| Product Type | Walk-Behind Lawn Mower |
| Brand | Troy-Bilt |
| Model | TB90B |
| Engine Type | 4-Stroke, Gasoline |
| Engine Displacement | 190 cc |
| Cutting Deck Width | 21 inches |
| Cutting Height Range | 1.0 - 3.75 inches |
| Cutting Height Adjustments | 7-position, single-lever |
| Discharge Options | Mulching, Rear Bag, Side Discharge |
| Bag Capacity | 2.0 bushels |
| Drive Type | Self-Propelled, Front-Wheel Drive |
| Speed Settings | Variable speed control |
| Handle Type | Adjustable, Foldable for Storage |
| Weight | 38 kg (84 lbs) |
| Dimensions (L x W x H) | 61 x 45 x 40 inches (folded) |
| Fuel Tank Capacity | 0.5 gallons |
| Oil Capacity | 20 oz |
| Maintenance | Change oil every 50 hrs; clean air filter; replace spark plug annually |
| Safety Features | Blade Brake Clutch (BBC); Operator Presence Control (OPC) |
| Parts Availability | Replacement parts widely available online and at dealers |
Frequently Asked Questions - TB90B TROY-BILT
What type of oil should I use in my Troy-Bilt TB90B lawn mower?
Use SAE 30 or 10W-30 oil, API service classification SJ or higher. Check the dipstick level before each use.
How do I change the oil on the TB90B?
Run the engine to warm oil, turn off, disconnect spark plug, tilt mower to drain oil from dipstick tube, refill with fresh oil to full mark.
What is the correct spark plug for the TB90B?
Use a Champion RC12YC or equivalent with a 0.030 inch gap. Replace annually or every 100 hours.
How do I adjust the cutting height on the TB90B?
Use the single-lever height adjuster located on the rear of the deck. Move the lever to one of 7 positions to set cutting height from 1 to 3.75 inches.
Why won't my TB90B start?
Check fuel level, ensure spark plug is connected and clean, verify air filter is not clogged, and that the blade brake is disengaged. Also check if the operator presence control is engaged.
Can I mulch leaves with the TB90B?
Yes, the mower has a mulching capability. Install the mulching plug and ensure the blade is sharp. For best results, mow over dry leaves at a slower pace.
How do I clean the deck after mowing?
After each use, tilt the mower with the spark plug side up and scrape off grass clippings. Rinse with water, but avoid spraying the engine. Dry thoroughly.
What does the Blade Brake Clutch (BBC) do?
The BBC stops the blade within a few seconds when the operator releases the handle, improving safety. It must be engaged for the engine to start.

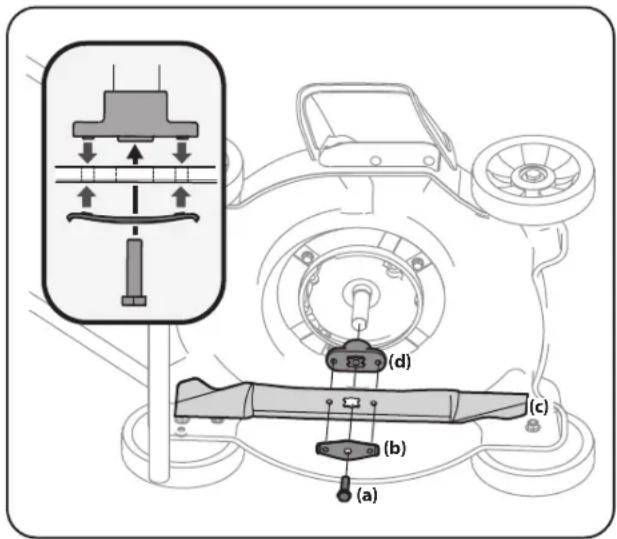

How often should I sharpen the blade?
Sharpen the blade at least once per mowing season or after 25 hours of use. A dull blade tears grass, leading to a brownish lawn.
Where can I find replacement parts for the TB90B?
Parts are available at Troy-Bilt dealers, online retailers like Amazon, and through the manufacturer's website using the model number TB90B.
