Brand	Jocel
Model	JLLE008220
Product Type	Built-in Dishwasher
Capacity	15 place settings
Energy Efficiency Class	C
Power Consumption	1850 W
Voltage / Frequency	220-240 V / 50 Hz
Height	82 cm
Width	60 cm
Depth (with connectors)	56 cm
Noise Level	46 dB(A)
Wash Programs	Intensive, Eco, Crystal, 60 min, Rapid, Pre-wash, Auto-wash
Delay Start	Up to 24 hours
Automatic Door Open	Yes (optional)
Child Lock	Yes
Water Softener	Adjustable salt dosage (H0-H7)

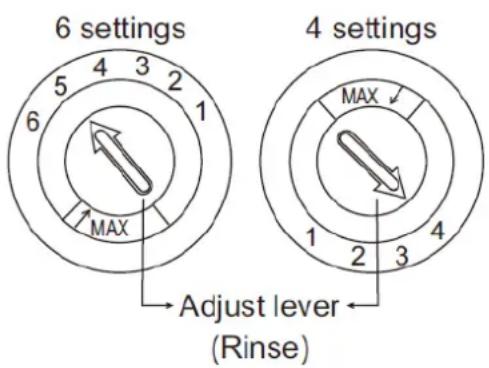

Rinse Aid Dispenser	Adjustable setting (4 or 6 levels)
Detergent Dispenser	Main and pre-wash compartments

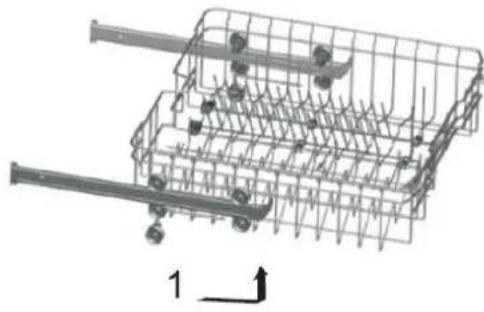

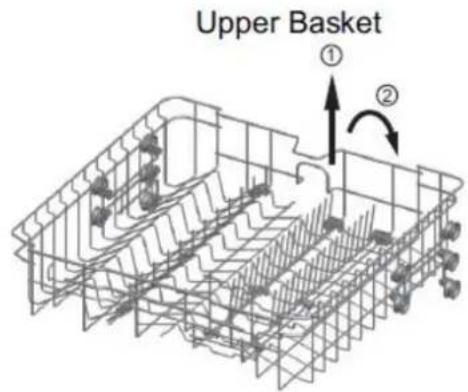

Adjustable Upper Basket	Height adjustable via wheels
Folding Racks	Upper and lower basket folding tines
Cutlery Tray	Yes
Filter System	Three-part: flat, coarse, micro
Spare Parts Availability	7 years for motors, pumps, heaters, PCBs, etc.; 10 years for door hinges, seals, spray arms, filters, racks

Frequently Asked Questions - JLLE008220 Jocel

How do I set the water softener on the JLLE008220?

Close the door, turn on the appliance, then hold down the 'Delay' button and press the 'Program' button for 5 seconds until 'H' flashes on the display (factory setting is H4). Use the 'Delay' button to adjust the hardness level (H0 to H7) based on your local water hardness. Press 'Program' to save.

What does error code E1 mean and how to fix it?

Error E1 indicates the door is open during operation. Close the door securely; the dishwasher will resume. If the error persists, check that the door latch is properly engaged.

Why are there white spots on my glasses after washing?

White spots are usually caused by hard water minerals. Increase the rinse aid dosage (rotate dial to 6), and ensure the salt container is filled with dishwasher salt. If using phosphate-free detergent, consider adding more detergent.

How do I clean the filters?

Remove the lower basket. Unscrew the coarse filter counterclockwise and lift it out, then lift the flat filter. Rinse all filters under running water and brush off debris. Reassemble in reverse order. Clean weekly for best performance.

Can I use regular dish soap in the dishwasher?

No. Only use detergents specifically designed for automatic dishwashers. Regular dish soap, laundry detergent, or hand soap will cause excessive suds, leading to leaks and poor cleaning.

How do I enable the child lock?

Press and hold the 'Program' button for 3 seconds until the child lock indicator flashes 6 times and then stays on. To disable, repeat the same procedure.

What is the energy and water consumption of the Eco program?

The Eco program consumes 0.757 kWh of energy and 11.0 liters of water per cycle, with a duration of approximately 4 hours and 7 minutes.

What is the best way to load the upper basket?

Place delicate items like glasses, cups, saucers, and small bowls upside down. Ensure items do not block the spray arms. Long utensils should be placed on the folding rack horizontally.

Why is my dishwasher not starting?

Check that the door is closed securely, the power cord is plugged in, the circuit breaker is not tripped, and the water supply is turned on. Also, ensure a cycle is selected and the START button is pressed.

How should I maintain the dishwasher during holidays?

Run a wash cycle with an empty dishwasher, unplug the appliance, turn off the water supply, and leave the door slightly ajar to prevent odors and keep seals in good condition.

USER MANUAL JLLE008220 Jocel

Interior view of a stainless steel kitchen appliance showing the open lid and internal components (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Vista frontal

Close-up of a kitchen sink with a metal handle and a small bowl, no visible text or symbols

Close-up of a kitchen sink with a metal handle and circular opening (no text or symbols visible)

Line drawing of a hand holding a device with a finger, no text or symbols present

Diagram of a lamp with a screw and a magnified inset showing the internal components (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Technical line drawing of a cleaning or cleaning device with labeled components (no text or symbols)

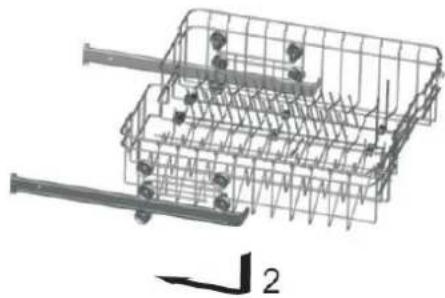

NOTA:

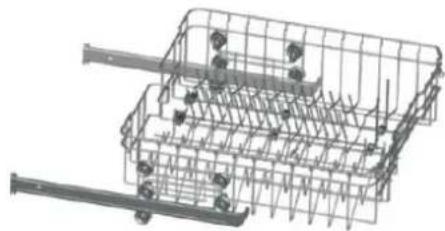

RELLENE EL DETERGENTE

3D wireframe model of a mechanical assembly with no visible text or symbols

1

3D wire mesh structure with embedded bolts and connectors, no visible text or symbols

2

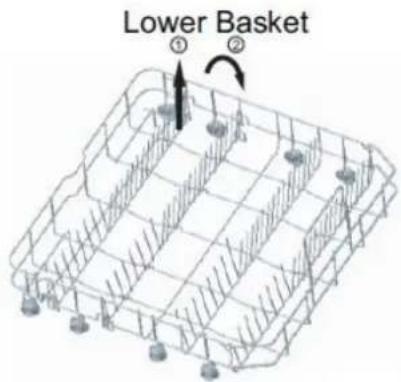

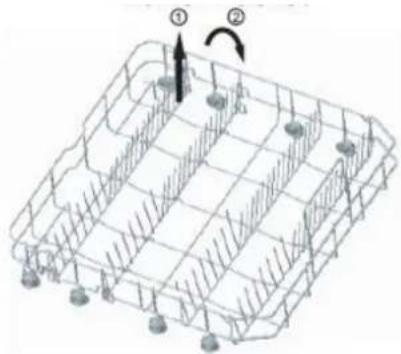

LLENADO DE LA CESTA INFERIOR

Isometric technical diagram of a structural grid with two directional arrows indicating movement or force (no text or symbols present)

Cesto Inferior

Isometric technical diagram of a structural grid with numbered components and directional arrows (no text or symbols)

Close-up of a mechanical component with a spring-loaded handle and rotating arrow (no visible text or symbols)

Close-up of a mechanical device with a curved blade and circular opening, no visible text or symbols

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawings of a hand adjusting a pipe fitting with a threaded component (no text or symbols)

Telef. 00 34 914879573

E-mail: [e-mail]

http://www.jocel.es

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

Perspetiva Frontal

Close-up of a kitchen sink with a metal spoon and circular button (no text or symbols visible)

Close-up of a kitchen sink with a metal tool and a circular component (no visible text or symbols)

Line drawing of a hand pressing down on a device with a scroll wheel (no text or symbols)

Illustration of a lamp bulb with a screw and a magnified inset showing internal components (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a screw and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

NOTA:

3D wireframe model of a mechanical assembly with no visible text or symbols

3D wire mesh structure with embedded rebar and bolt holes, no text or symbols present

Close-up of a mechanical component with a spring-like assembly and rotating arrow (no visible text or symbols)

Close-up of a mechanical device with a curved blade and circular features, no visible text or symbols

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

PROTEGER CONTRA CONGELAÇÃO

Technical line drawing showing two different mechanical or plumbing assembly steps: one with a handle and the other with a threaded component (no text or symbols present)

MAINTENANCE AND CLEANING 92

INSTALLACION 95

TROUBLESHOOTING TIPS 98

WARRANTY 102

DECLARATION OF CONFORMITY 103

READ THIS MANUAL

Dear Customer,

Please read this User Information carefully and keep it to refer to at a later date.

Pass it on to any subsequent owner of the appliance.

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Carefully read it before using the dishwasher will help you to use and maintain the dishwasher properly.

BEFORE CALLING FOR SERVICE

To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and no need to ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the basic precautions including the following:

WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, Hydrogen gas may be produced in a hotwater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release some accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame this time.

WARNING! PROPER USE

• Do not abuse, sit on, or stand on the door or dish baskets of the dishwasher.
• Do not touch the heating element during or immediately after using.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

○ Locate sharp items so that they are not likely to damage the door seal;
- Load sharp knives with the handles up to reduce the risk of cuttype injuries;
o Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• When using your dishwasher, you should prevent plastic items from contacting with heating elemento.
• Check that the detergent receptacle is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  • These instructions shall also be got from the manufacturer or responsible Vendor.

• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.

- The door should not be left in the open position since this could present a tripping hazard.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Please dispose of packing materials properly.

- During installation, the power supply must not be excessively or dangerously bent or flattened.

- Do not tamper with controls.

- The appliance is to be connected to the water mains using new hose sets, and the old hose-sets should not be reused.

- Make sure that the carpet must not obstruct the openings at the bottom base.

- Use the dishwasher only for its intended function.

- The dishwasher is intended for indoor use only.

- The dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments.

- Please do not overload your dishwasher. There is only space for 15 standard dishes. Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY SAVE THESE INSTRUCTIONS

DISPOSAL

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no text or symbols present)

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: (e.g. PS for polystyrene, padding material).

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment -WEEE.

The guideline specifies the framework for an EU-wide valid return and reuse of old appliances.

WARNING!

Packaging material could be dangerous for children!

For disposing of package and the appliance please go to a recycling centre. Cut off the power supply cable and make the door closing device unusable.

Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

1. Delay button: The START DELAY will allow you to delay the start time of any cycle automatically up to 24 hours.

2. Press ALT button you can choose washing of upper layer or washing of lower layer and the corresponding light flashes.

3. Door open button: Press this button you can choose the additional function Automatic door open, and the corresponding light flashes.

4. Program select button/Child lock button: Press the button to select the program. The "child lock" will be available when you press the button 3 seconds, and the corresponding light flashes.

5. ON/OFF Button: To turn on/off the power supply.

6. Program indicator light: When you select a washing programme, the corresponding light will display.

7. Salt refill indicator: The indicator lights up when the softener needs to be refilled.

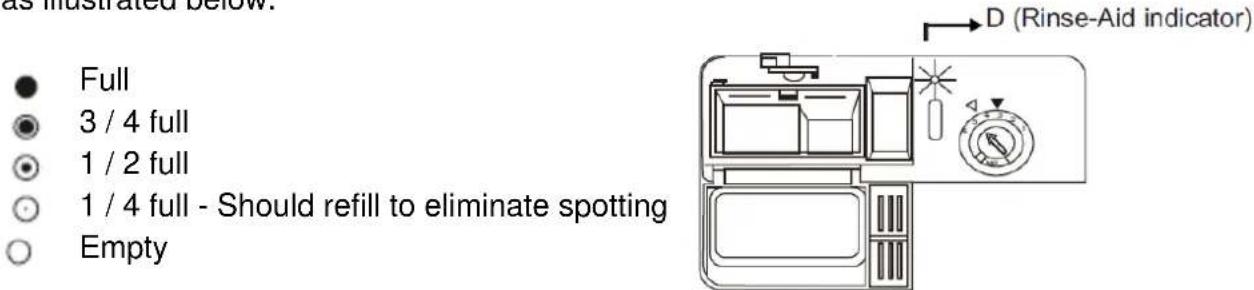

8. Rinse aid refill indicator: The indicator lights up when dispenser needs to be refilled.

9. Digital display: To display the running time remain, malfunction codes and delay time.

10. Washing light of upper layer: To come on when the upper spray arm is washing.

11. Washing light of lower layer: To come on when the lower spray arm is washing.

12. Child lock indicator The "Child Lock" will be available when you press the Child lock buttons for 3 seconds, and the "Child lock" indicator lights up after flashing 6 times.

13. Auto door open indicator: The Indicator lights up when the auto door open additional function be selected.

DISHWASHER FEATURES

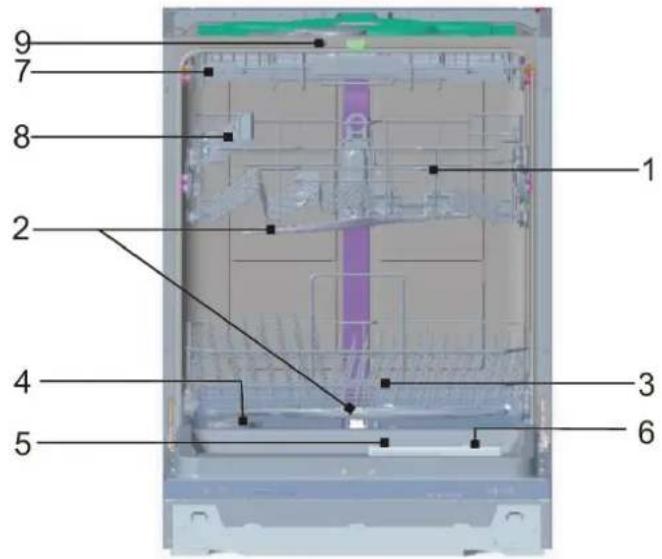

Front View

1. Upper Basket
2. Spray Arms
3. Lower Basket
4. Water Softener

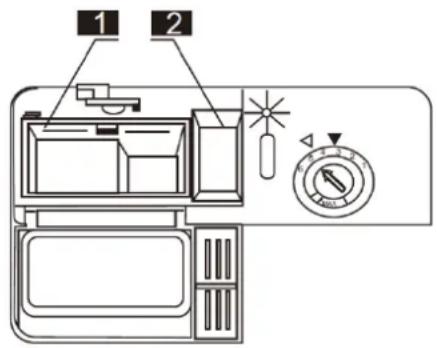

5. Detergent Dispenser
6. Rinse Aid Dispenser
7. Cutlery Tray
8. Cup Holder
9. Automatic door operator

PRIOR USING FOR THE FIRST TIME

Before using your dishwasher for the first time:

A. Set the water softener
B. Pour 500ml of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent

A. SET THE WATER SOFTENER

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder the water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

SETTING

The amount of salt dispensed can be set from H0 to H7.

Salt is not required at the set value H0.

1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
2. Set value can be found in the water hardness table.
3. Close the door.
4. Switch on "ON/OFF" switch.
5. Hold down "Delay" button and then press "Program" button for 5 seconds. The buzzer rings one time and H. flashes on the digital display. (factory setting is H4).

To change the setting:

1. Press "Delay" button.

Each time the button is pressed, the set value increases by one level; when the value of H7 has been reached, the display jumps back to H0(off).

1. Press "Program" button. The chosen setting has now been stored.

Contact your local water board for information on the hardness of your water supply.

Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.001kWh.

WATER HARDNESS TABLE

Water hardness		Mmol/l	Set value on the machine	Regeneration occurs every x programme sequence
Clark	Range
0-8	Soft	0-1.1	H0	Off
9-10	Soft	1.2-1.4	H1	13
11-12	Médium	1.5-1.8	H2	9
13-15	Médium	1.9-2.1	H3	7
16-20	Médium	2.2-2.9	H4	5
21-26	Hard	3.0-3.7	H5	4
27-38	Hard	3.8-5.4	H6	2
39-62	Hard	5.5-8.9	H7	1

B. LOADING THE SALT INTO THE SOFTENER

Always use salt intended for use with dishwasher.

NOTE: If your model has no water softener, you may skip this section.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses salts specifically designed to eliminate lime and minerals from the water.

The salt container is located beneath the lower basket and should be filled as follows:

ATTENTION!

Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.

Only fill with salt just before starting one of the complete washing programmes.

This will prevent any grains of salt or salty water, which may have been split, remaining on the bottom of the machine for any period of time, which may cause corrosion.

After the first wash cycle the control panel light expires.

Close-up of a kitchen appliance with a handle and cup (no visible text or symbols)

Close-up of a kitchen sink with a cleaning tool and a small bowl (no visible text or symbols)

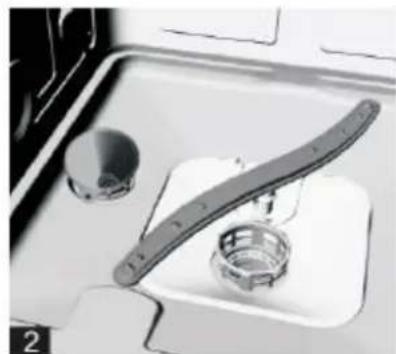

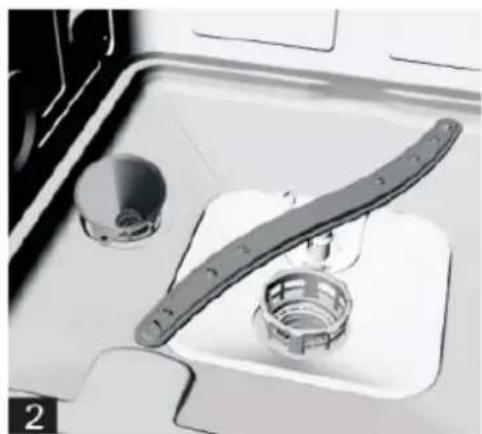

A. Remove the lower basket and then unscrew and remove the cap from the salt container. 1

B. If you are filling the container for the first time, fill the container with about 500 ml of water. 2

C. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container.

D. Carefully screw the cap back on.

E. Usually, the salt warning light will be off in 2-6 days after the salt container is filled with salt.

NOTE: 1. The salt container must be refilled when the salt warning light in the control pane comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolve. If there is no salt warning light in the control panel (for some models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run (see the following schema).

1. If there are spills of the salt, a soak program could be run to wipe them out.

WARNING: if salt is not added it will cause poor cleaning effect of dishes, and will produce scale.

C. FILL THE RINSE AID DISPENSER

FUNCTION OF RINSE AID

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.

ATTENTION!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

WHEN TO REFILL THE RINSE AID DISPENSER

If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

RINSE AID DISPENSER

Line drawing of a hand holding a device with a scroll wheel, no text or symbols present

Diagram of a lamp bulb with a screw and plastic cup, no text or symbols present

Hand holding a stack of books with a scroll, no visible text or symbols

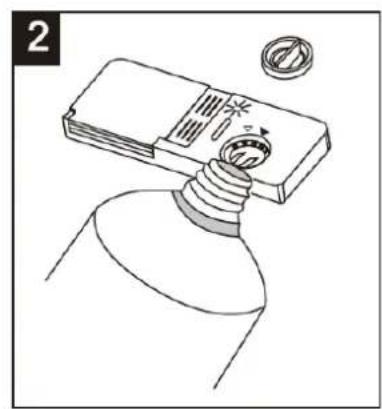

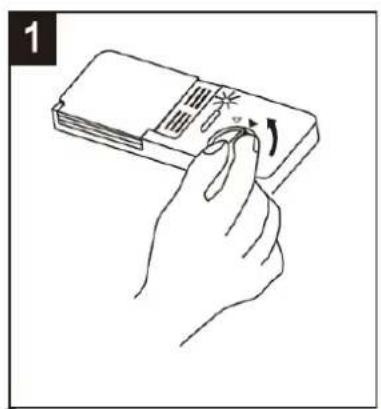

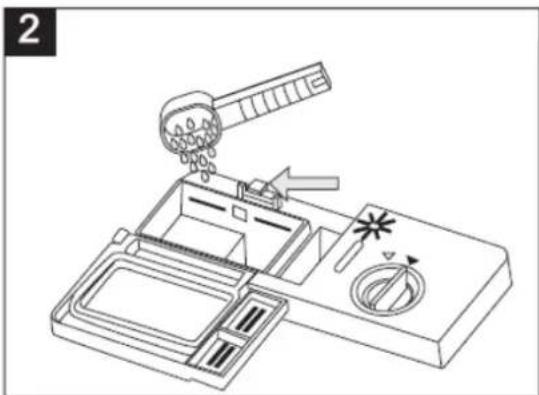

1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

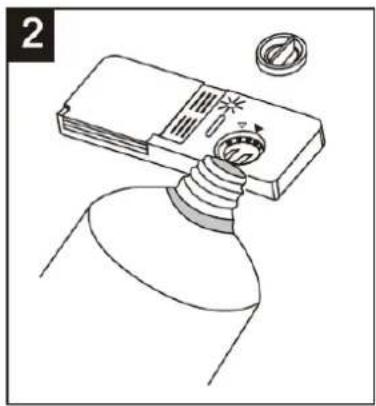

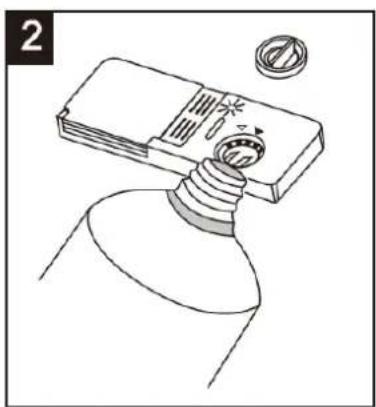

2. Pour the rinse aid into the dispenser, be careful not to overfill.

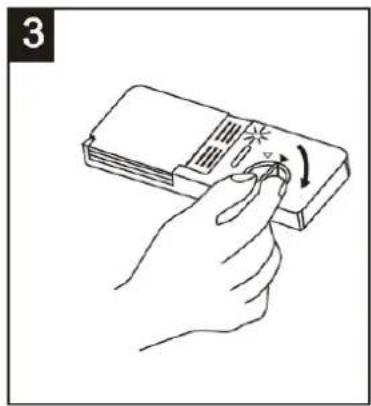

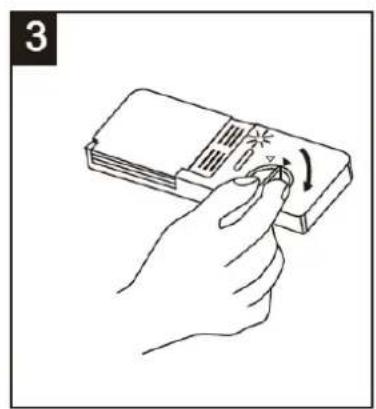

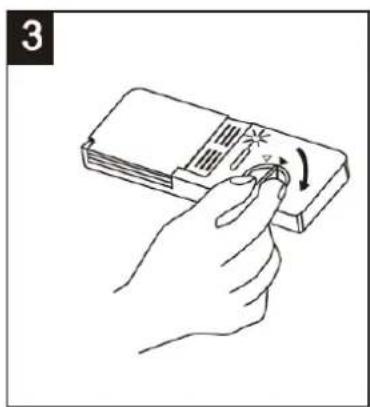

3. Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right) arrow.

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.

Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.

To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 140ml.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

ATTENTION!

Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the next wash.

ADJUSTING RINSE AID DISPENSER

The rinse aid dispenser has four or six setting. Always Start with the dispenser set on "5" If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "6". The dose is factory set in position 5 or 4.

NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

D. FUNCTION OF DETERGENT

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

CONCENTRATED DETERGENT

Based on their chemical composition, detergent can be split in two basic types:

• conventional, alkaline detergents with caustic components
- low alkaline concentrated detergents with natural enzymes

The use of "Eco" washing programme in conjunction with concentrated detergents reduces pollution and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason "Eco" washing programme in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using "intensive" programme.

DETERGENT TABLETS

Detergent tablets of different brands dissolve at different speeds. For this reason, some detergent cannot dissolve and develop their full cleaning power during short programmes. Therefore, please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

DETERGENT DISPENSER

The dispenser must be refilled before the start of each washing cycle following the instructions provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

AMOUNT OF DETERGENT TO USE

Line drawing of a hand using a tool to press down a device with a knob and arrow (no text or symbols)

Line drawing of a mechanical device with a lever and control panel (no text or symbols)

NOTE:

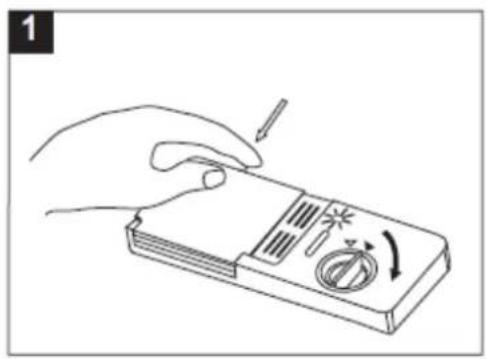

1. If the lid is closed: press release button. The lid springs open.

2. Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher.

WARNING!

Diswasher detergent is corrosive! Take care to keep it out of reach of children. If the washing powder is not added, the washing effect will be porr, resulting in increased water and electricity consumption for secondary washing.

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Don't put powder detergent into the dispenser until you're ready to wash dishes.

FILL IN THE DETERGENT

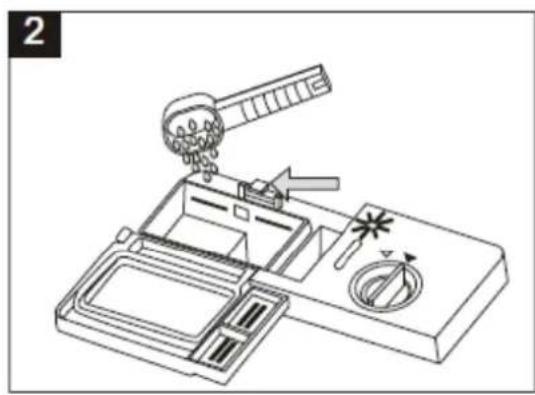

Fill the detergent dispenser with detergent.

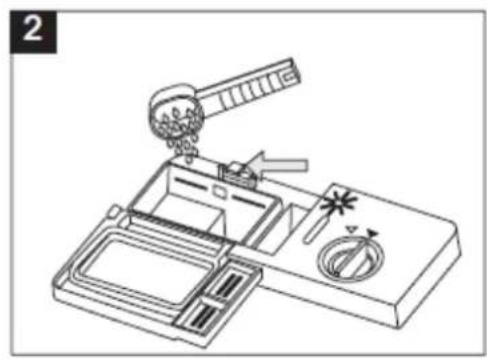

The marking indicates the dosing levels, as illustrated on the right:

1. The place of main wash cycle detergent placed; "MIN" means approximately 20g of detergent.
2. The place of pre-wash cycle detergent placed, approximately 5g of detergent.

Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

You can find information about the amount of detergent for the single programme on the last page.

Please be aware that according to the level soiling and the specific hardness of water, differences are possible.

Please observe the manufacturer's recommendations on the detergent packaging.

DETERGENTS

There are 3 sorts of detergents

1. With phosphate and with chlorine

2. With phosphate and without chlorine

3. Without phosphate and without chloride

Normally new pulverized detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case, please add more detergent to reach better results.

Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case, please choose a programme with higher temperature.

USE OF "AUTOMATIC DOOR OPEN" FUNCTION:

For models with automatic door opening function, except pre-washing, all washing procedures (excluding economic washing) at the end of the program, the automatic door opener starts to work and opens the door. Automatic door opening for economic washing starts to work in the drying stage.

TO SELECT "AUTOMATIC DOOR OPEN" FUNCTION:

1. Press the power switch and select the "Automatic door open" function by pressing the function alternative, ALT button until the "Automatic door open" indicator blinks.
2. The "Automatic door open" function will be available after pressing the start/pause button, and the "Automatic door open" indicator lights.

TO CANCEL "AUTOMATIC DOOR OPEN" FUNCTION:

Automatic door opening function you can disable the default automatic door opening function by holding down the "Program and ALT keys" at the same time for 3s when the model is powered on, and the message "OF" appears on the display. Then press the "Program key" to save the setting function and exit the function setting interface, and the buzzer will sound to enter the standby interface. Again, press and hold down the "Program and ALT keys" at the same time for 3s to restore the default automatic door opening function, and the "OP" word appears on the display, The rinsing temperature increases for the ECO program after the default automatic door opening function is removed.

TO CHECK THE USER COUNTER FUNCTION:

In the shutdown state, hold down the Power and Function keys for 3 seconds, the buzzer buzzes, and the display displays the real-time running times. Press the power button to exit the query status and shut down.

TIPS:

1. Hold down the ALT button for 3s while then dishwasher is washing, and the dishwasher will be forced to drain and roll out the washing program.
2. The automatic door opener can be manually reset by holding down the Delay and ALT buttons.
3. All washing procedures are compatible with 3in1 wash blocks or beads except the pre-washing.
4. If the dishwasher does not open the door after the end of the automatic door opening function program, it is recommended to push the push rod of the automatic door opener by hand, and then manually operate the panel to control the automatic door opener to move back and forth to avoid the failure of the automatic door opener caused by foreign matter stuck in the gear.

LOADING THE DISHWASHER BASKETS

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and silverware baskets may vary from your model.

ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER BASKETS

Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are stood upside down.
2. Curve items, or those with recesses, should be at a slant so that water can run off.
3. They are stacked securely and can not tip over.
4. They do not prevent the spray arms from rotating while washing takes place.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

REMOVING THE DISHES

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

LOADING THE UPPER BASKET

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.

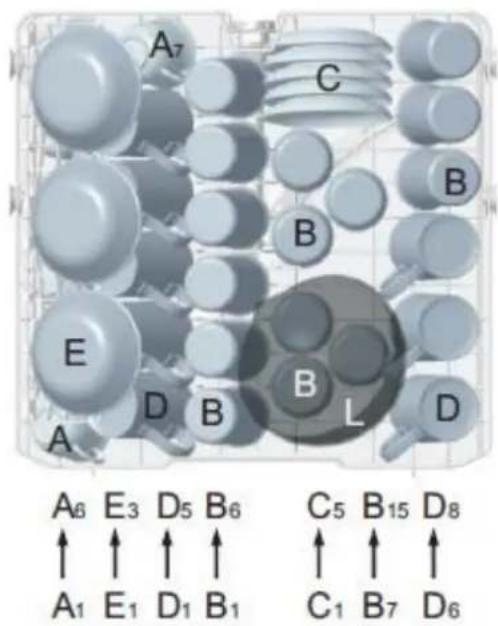

Upper Basket
Type	Item
A	Cup
B	Glass
C	Saucer
D	Mug
E	Dessert bowl
L	Glass bowl

ADJUSTING THE UPPER BASKET

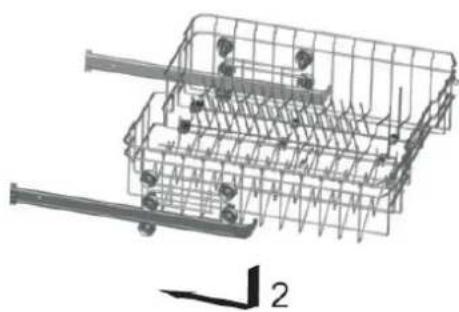

If required, the height of the upper basket can be adjusted in order to create more space for large utensils either in the upper basket or lower basket. The upper basket can be adjusted for height by putting wheels of different height into the rails. Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or removed when not be required for use.

3D wireframe model of a multi-level mechanical structure with no visible text or symbols

3D wireframe model of a reinforced concrete structure with rebar framework and bolt holes (no text or symbols)

LOADING THE LOWER BASKET

We recommend that you place large items which are most difficult to clean in to the lower basket: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc. must always be placed top down.

Deep pots should be slanted to allow water to flow out.

The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.

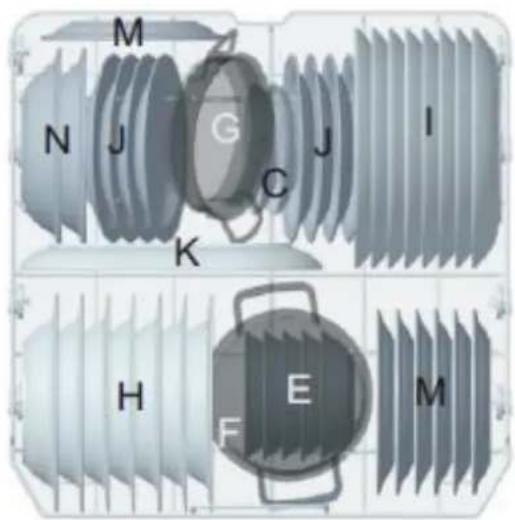

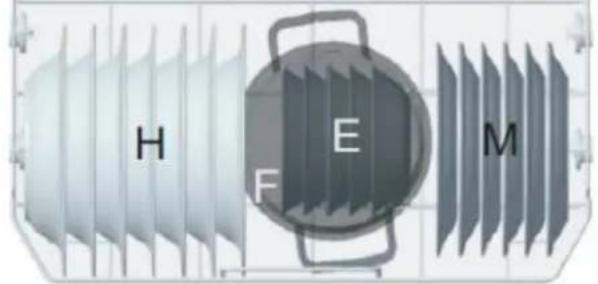

Lower Basket
Type	Item
C	Saucer
E	Dessert bowl
H	Soup plate
I	Dinner plate
J	Dessert plate
K	Ovar plate
F	Small pot
G	Oven pot
M	Melamine dessert plate
N	Melamine bowl

UPPER/LOWER BASKET FOLDING RACKS

Folding racks consisting of three/two parts in the upper/lower basket of your machine are designed in order to let you place big items easier as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger can be obtained. You can use folding racks by rasing thenupwards, or by folding.

CUTLERY TRAY

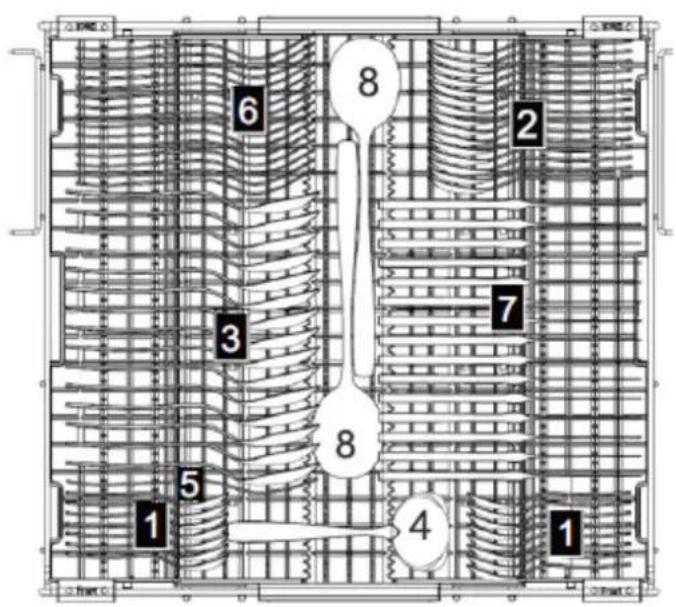

Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water runs off freely.

Cutlery tray
Type	Item
1	Tea spoons
2	Dessert spoons
3	Soup spoons
4	Gravy ladle
5	Serving fork
6	Forks
7	Knives
8	Serving spoons

For washing in the dishwasher, the following cutlery/dishes.

ARE NOT SUITABLE

Cutlery with wooden, horn china or mother-of-pearl handles

Plastic items that are not heat resistant

Older cutlery with glued parts that is not temperature resistant

Bonded cutlery items or dishes

Pewter or cooper items

Lead crystal glass

Steel items subject to rusting

Wooden platters

Items made from synthetic fibre

WARNING!

Do not let any item extend through bottom.

ARE OF LIMITED SUITABILITY

Some types of glasses can become dull after a large number of washes.

Silver and aluminium parts have a tendency to discolour during washing.

Glazed patterns may fade if machine washed frequently.

NOTE: Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes, please make sure that they are suitable for dishwashers.

NOTE: Please do not overload your dishwasher. There is only space for 15 standard dishes.

Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption.

LOADING CUTLERY AND DISHES

Before loading the dishes, you should:

Remove large left-over;

Soften remnants of burnt food in pans.

WHEN LOADING THE DISHES AND CUTLERY, PLEASE NOTE:

Dishes and cutlery must not impede the rotation of the spray arms.

Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other

• To avoid damage to glasses, they must not touch
• Load large items which are most difficult to clean into the lower basket
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.

ATTENTION!

Long bladed knives stored in an upright position are a potential hazard!

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket

WARNING: If tableware placement is not standard, it will cause poor cleaning effect.

DAMAGE TO GLASSWARE AND OTHER DISHES

POSSIBLE CAUSES:

• Type of glass or manufacturing process. Chemical composition of detergent.
  • Water temperature and duration of dishwasher programme.

SUGGESTED REMEDY:

• Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
• Use a mild detergent that is described as kind of dishes. If necessary, seek further information from detergent manufacturers.
• Select a programme with a low temperature.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

AT THE END OF THE WASH

When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

WASH CYCLE TABLE

Program	Cycle Selection Information	Description of Cycle	Detergent Pre/main	Running Time(min)	Energy (kWh)	Water (L)
Intensive	For the heaviest soiled loads,such as pots, pans, casseroledishes and dishes that havebeen sitting with dried foodon them for a while.	Pre-wash Main wash(60°C) Rinse1 Rinse2 Hot rinse Drying	4/19g (Or 3in1)	213	1.680	15.4
(*EN60436) (Standard Programme)	For normally soiled loads, such as pots, plates, glassesand lightly soiled pans.standard daily cycle.	Pre-wash Main wash(45°C) Rinse Hot rinse Drying	4/19g (Or 3in1)	247	0.757	11.0
[22AX] Crystal	For lightly soiled loads, suchas plates, glasses, bowls andlightly soiled pans.	Main wash(45°C) Rinse Hot rinse Drying	3/16g (Or 3in1)	125	0.820	9.5
[RACK] 60 min	For lightly and normally soiledplates and pans for everyday	Pre-wash Main wash(45°C) Hot rinse Drying	3/16g (Or 3in1)	60	1.050	9.6
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Main wash(45°C) Hot rinse	5/15g (Or 3in1)	40	0.600	6.6
Pre-wash	To rinse dishes that you plan to wash later that day	Pre-wash	/	12	0.010	3.9
Auto-wash	Is optimised according to the soiled loads,such as pots,pans,utensils and cutlery ,with the aid of sensors.	Pre-wash Main wash(45°C) Rinse Hot rinse Drying	4/19g (Or 3in1)	140-229	0.930-1.950	6.5-18

1. The ECO program is suitable to clean normally soiled tableware, it is the most efficient program in terms of its combined energy and water consumption
2. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended water and energy consumption and is not recommended.
3. Washing tableware in a household dishwasher usually consumes less energy and water than hand dishwashing when the household dishwasher is used according to this instruction manual.

EN 60436: this program is the test cycle

The information for comparability test in accordance with EN60436, as follows:

• Capacity: 15 settings
- Position of upper basket: Low position
- Rinse aid setting: 6 (or 4 for four setting dispenser)

TURNING ON THE APPLIANCE

Starting a wash cycle.

1. Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher"). Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
2. Insert the plug into the socket. The power supply is 220-240V AC 50 Hz, the specification of the socket is 12 A 250 VAC.50 Hz.

Make sure that the water supply is turned on to full pressure. Close the door, press the "ON/OFF" button, Press the "Program" button to select a desired "Wash cycle". (See the section entitled "Wash Cycle Table"). With a little force to ensure the door is properly closed.

NOTE: A click could be heard when the door is closed perfectly.

When the washing is over, you can shut off the switch by pressing "Power" button.

CHANGE THE PROGRAMME

Premise: A cycle that is underway can only be modified if it has only been running for a short time.

Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Fill in the Detergent").

Press "ON/OFF" button to cancel the programme, and turn on it again, then you can change the programme to the desired cycle setting (see the section entitled "Starting a wash cycle").

NOTE: If you open the door when washing, the machine pauses and warning alarm rings, the display appears E1. When you close the door, the machine will keep on working.

The 7 programme lights show the state of the dishwasher:

a) One of the programme lights on--> cycle running

b) One of the programme lights blinking -->pause

NOTE: If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.

FORGET TO ADD DISH

A forgotten dish can be added any time before the detergent cup opens.

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door, the dishwasher will work after ten seconds.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you. Switch Off the Dishwasher.

The digital display appears "----" and the buzzer rings 6 times, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the "ON/OFF" button.

2. Turn off the water tap!

Open the door carefully. Hot steam may escape when the door is opened!

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.
• Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

UNLOADING THE DISHWASHER

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper

basket onto the dishes in the lower one.

MAINTENANCE AND CLEANING

FILTERING SYSTEM

The filter is used to avoid the big remnants and other sundries getting inside the pump. The residue can obstruct the filter in sometime.

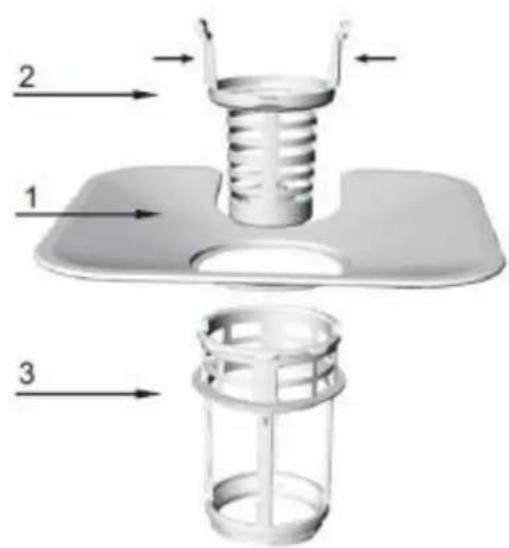

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

1. Flat filter

Food and debris will be trapped by a special jet on the lower spray arm.

2. Coarse filter

Big debris, such as bone and glass that could clog the drain will be trapped in the coarse filter.

To remove an item caught in this filter, gently squeeze the taps on the top of this filter and lift it out.

3. Micro filter

This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during a cycle.

- Inspect the filters for obstructions every time the dishwasher has been used.

- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Mechanical component with rotating parts and directional arrows, no visible text or symbols

Step 1: contrarotate the Coarse filter, and then lift it up;

Step 2: lift the Flat filter up

Mechanical device with a lever and mounting bracket, showing a directional arrow (no text or symbols)

NOTE: If operate from step 1 to step 2, the filter system will be removed; while operate from step 2 to step 1, the filter system will be installed.

FILTER ASSEMBLY

For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

WARNING!

Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on them.

Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

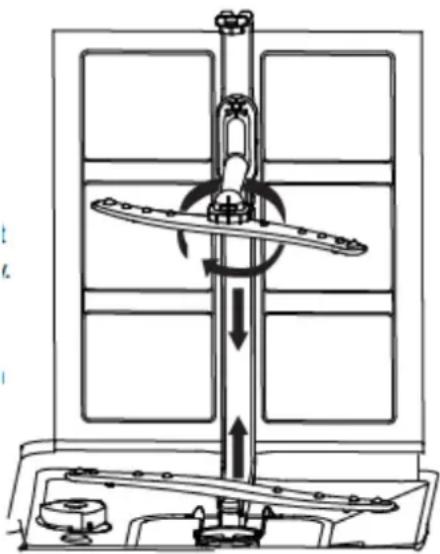

CLEANING THE SPRAY ARMS

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing thoroughly.

CARING FOR THE DISHWASHER

To clean the control panel, use a lightly dampened cloth then dry thoroughly.

To clean the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

PROTECT AGAINST FREEZING

If your dishwasher is left in an unheated place during the winter, ask a service technical to:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter in the tub and the bottom and use a sponge to use up water in sump.

CLEANING THE DOOR

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

Follow these steps when there is foreign material in the dishwasher.

WARNING!

Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless-steel surface.

HOW TO KEEP YOUR DISHWASHER IN SHAPE

AFTER EVERY WASH

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

REMOVE THE PLUG

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

NO SOLVENTS OR ABRASIVE CLEANING

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

WHEN YOU GO ON HOLIDAY

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming in the appliance.

MOVING THE APPLIANCE

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

SEALS

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this.

ATTENTION:

The installation of the pipes and electrical equipments should be done by professionals.

Warning!
	Electrical Shock Hazard!Disconnect electrical power before installing dishwasher.Failure to do so can result in death or electrical shock.

INSTALLATION

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

POSITIONING AND LEVELING

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed and further with the installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operation.

CONNECTING THE WATER AND ELECTRICITY SUPPLIES

Connection to the water and electricity supplies should only be performed by a qualified technician.

The dishwasher should not stand on top of the water hoses or the electricity supply cable.

The appliance must be connected to the water supply network using new piping. Do not use old piping.

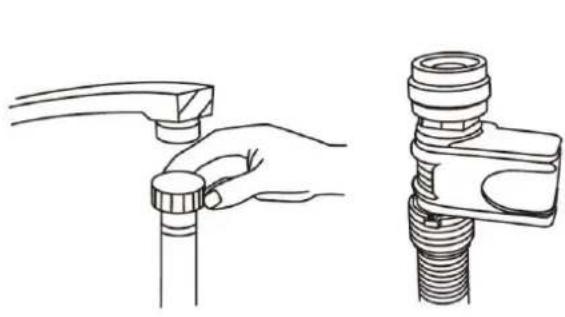

CONNECTING THE WATER INLET HOSE

Technical line drawing showing two different mechanical or plumbing assembly configurations (no text or symbols present)

Connect the cold-water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and the appliance could be damaged.

CONNECTING THE WATER OUTLET HOSE

Insert the drain pipe into the sewer drain pipe. When the drain pipe is placed, the height of the outlet is between 0.5\~1 meters.

Attention:

The drain pipe can not be discounted, the drain pipe outlet must be fixed and as close as possible to the dishwasher, the dishwasher drainage distance is about 1\~1.5 meters, the distance is too long will affect the dishwasher drainage effect, resulting in too much residual sewage in the drainage pipe, thus affecting the washing effect of the dishwasher.

ELECTRICAL CONNECTION

Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;
• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see description of the appliance);
• the power supply voltage falls within the values indicated on the data plate on the inside of the door;
• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorized technician to replace the plug (see assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

ADVICE REGARDING THE FIRST WASH CYCLE

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with and add approximately 2 Kg of salt (see Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT indicator light continues to flash for a few cycles after the salt has been loaded.

POSITIONING THE APPLIANCE

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

LEVELING THE APPLIANCE

Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the dishwasher, making it level. In any case, the appliance should not be inclined more than 2.

NOTE: The maximum adjustment height of the feet is 20 mm.

HOW TO DRAIN EXCESS WATER FROM HOSES

Due to the external drainage pipe being higher than the lowest point of the sink, residual water cannot be completely discharged through the drainage pump. Therefore, it is necessary to remove the drainage pipe and place it horizontall on the ground, and discharge the water from the pipe into the corresponding container.

WATER OUTLET

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.

Ensure that the water inlet hose is not kinked or squashed.

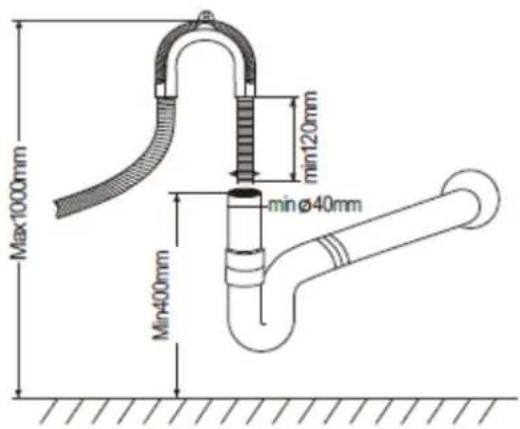

SYPHON CONNECTION

The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip.

START OF DISHWASHER

The followings should be checked before starting the dishwasher:

1. Whether the dishwasher is level and fixed
2. Whether the inlet valve is opened

3. Whether there is leakage at the connections of the conducts

4. Whether the wires are tightly connected

5. Whether the power is switched on
6. Whether the inlet and drain hoses are knotted
7. All packing materials and printings should be taken out from the dishwasher

ATTENTION

After installation, please put this manual into the bags of printings.

The content of this manual is very helpful to the users.

TROUBLESHOOTING TIPS

ERROR CODES

When some malfunctions happen, the appliance will display error codes to warn you.

Codes	Meanings	Possible Causes
E1	Door open	The door is opened when the dishwasher is operating
E2	Water inlet	Water inlet malfunction
E3	Water drainage	Water drainage malfunction
E4	Temperature sensor	Temperature sensor malfunction
E5	Overflow/leakage	Overflow occurs/Water leakage occurs
E6	Water leakage	Water leakage occurs
E7	Heating element	Abnormal heating

WARNING!

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

AVAILABILITY OF SPARE PARTS

1. Seven years after placing the last unit of the model on the market: Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

2. Ten years after placing the last unit of the model on the market: Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

BEFORE CALLING FOR SERVICE

Reviewing the charts on the following pages may make you be free of calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't run	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
Drain pump doesn't stop	Overflow	The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump.
Noise	Some audible sounds are normal	Sound from detergent cup opening.
	Utensils are not secure in the baskets or something small has dropped into the basket	To ensure everything is secured in the dishwasher.
	Motor hums	Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then start the "pre-rinse" wash cycle to drain out the water... Repeat if necessary.
	Spilled rinse agent	Always wipe up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was used	Make sure that the detergent is the one without colorant.
Dishes and flatware not clean	Improper programImproper basket loading	Select a stronger programme.Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware.
Spots and filming on glasses and flatware	1 Extremely hard water2 Low inlet temperature3 Overloading the dishwasher4 Improper loading5 Old or damp powder detergent6 Empty rinse agent dispenser7 Incorrect dosage of detergent	To remove spots from glassware:1 Take out all metal utensils out of the dishwasher.2 Do not add detergent.3 Choose the longest cycle.4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar.
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Yellow or brown film on inside surfaces	Tea or coffee stains	Using a solution of 1/2 cup of bleach and 3 cups of warm water to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen.
	Iron deposits in water can cause an overall film	You have to call a water softener company for a special filter.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
The Detergent dispenser lid cannot be closed prop -erly	Clogged detergent re -sidue is blocking the catch	Clean the detergent from the catch.
Detergent left in dispenser cups	Dishes block detergent Cups	Re-loading the dishes properly.
Steam	Normal phenomenon	There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Water standing on the bottom of the tub	This is normal	A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated.
Dishwasher leaks	Overfill dispenser or rinse aid spills	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversudsing and lead to overflowing. Wipe away any spills with a damp cloth.
	Dishwasher isn't level	Make sure the dishwasher is level.
Automatic door opening disabled	Drive gear blocked	Push the push rod of the automatic door opener by hand, and manually operate the panel to control the automatic door opener to move back and forth.
	Drive motor fault	Find after-sales repair

If the above chart does not solve your problem, contact a dedicated repairman.

Self-maintenance, unprofessional maintenance will affect the safety of the product use, affect the implementation of the warranty policy.

TECHNICAL DATA SHEET

Sheet of household dishwasher according to EU Directive 2019/2017:

Manufacture	JOCEL
Model	JLLE008220
Standard place settings	15
Energy efficiency class 1	C
PARAMETER	UNIT	VALUE
Eco programme energy consumption (EPEC) rounded to three decimal places	kWh/ciclo	0.757
Standard programme energy consumption (SPEC) rounded to three decimal places	kWh/ciclo	1.725
Energy Efficiency Index (EEI)	-	43.9
Eco programme water consumption (EPWC) rounded to one decimal place	l/ciclo	11.0
Cleaning performance index (IC)	-	1.121
Drying performance index (ID)	-	1.061
Duration of the eco programme (Tt) rounded to the nearest minute	h : min	4.07
Power consumption in off-mode (Po) rounded to two decimal places	W	0.49
Power consumption in standby mode (Psm) rounded to two decimal places	W	0.49
Does standby mode include the display of information?	-	No
Power consumption in standby mode (Psm) in condition of networked standby (if applicable), rounded to two decimal places	W	-
Power consumption in delay start (Pds) (if applicable) rounded to two decimal places	W	1.00
Airborne acoustical noise emissions	dB(A) re 1 pW	46
Mounting	Full built-in
Could be built- in	Yes
Height	82 cm
Width	60 cm
Depth (with connectors)	56 cm
Power consumption	1850 W
Rated voltage/frequency	AC 220-240 V/ 50Hz
Water pressure (flow pressure)	0.4-10 bar=0.04-1.0 MPa

NOTE:

1. A (highest efficiency) to G (lowest efficiency).

The device meets the European standards and the directives in the current version at delivery.

• LVD 2014/35/EU
• EMC 2014/30/EU
• EU 2019/2022

NOTE: The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the period for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.
3. With the modification or disappearance of the nameplate of the appliance.

NOTE: GLASSES AND LAMPS ARE NOT COVERED BY WARRANTY.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

E-mail: [e-mail]

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product BUILT-IN DISWASHER

Brand JOCEL

Model JLLE008220

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/EU

EN 60436:2020+A11:2020

+A12:2021

EN IEC 60704-1:2021

EN 60704-2-3:2019

Electromagnetic Compatibility

2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

MADE P.R.C.
