Installation Guide SAMSUNG PROPRIETARY Introduction New Samsung Magician Samsung Magician software, up until the version 4.9.7, has been an end-user application with a collection of features to help manage Samsung branded SSDs. With New Samsung Magician, it is aimed at providing a better user experience with a new GUI, feature-level update schemes. Samsung Magician software is developed and distributed exclusively for owners of Samsung Solid Sate Drives (SSDs). New Features New Samsung Magician features a number of improvements over version 4.9.7:

Completely re-designed and more intuitive user interface

SSD model specific feature installation system : only required feature components are installed and updated Revision2.0

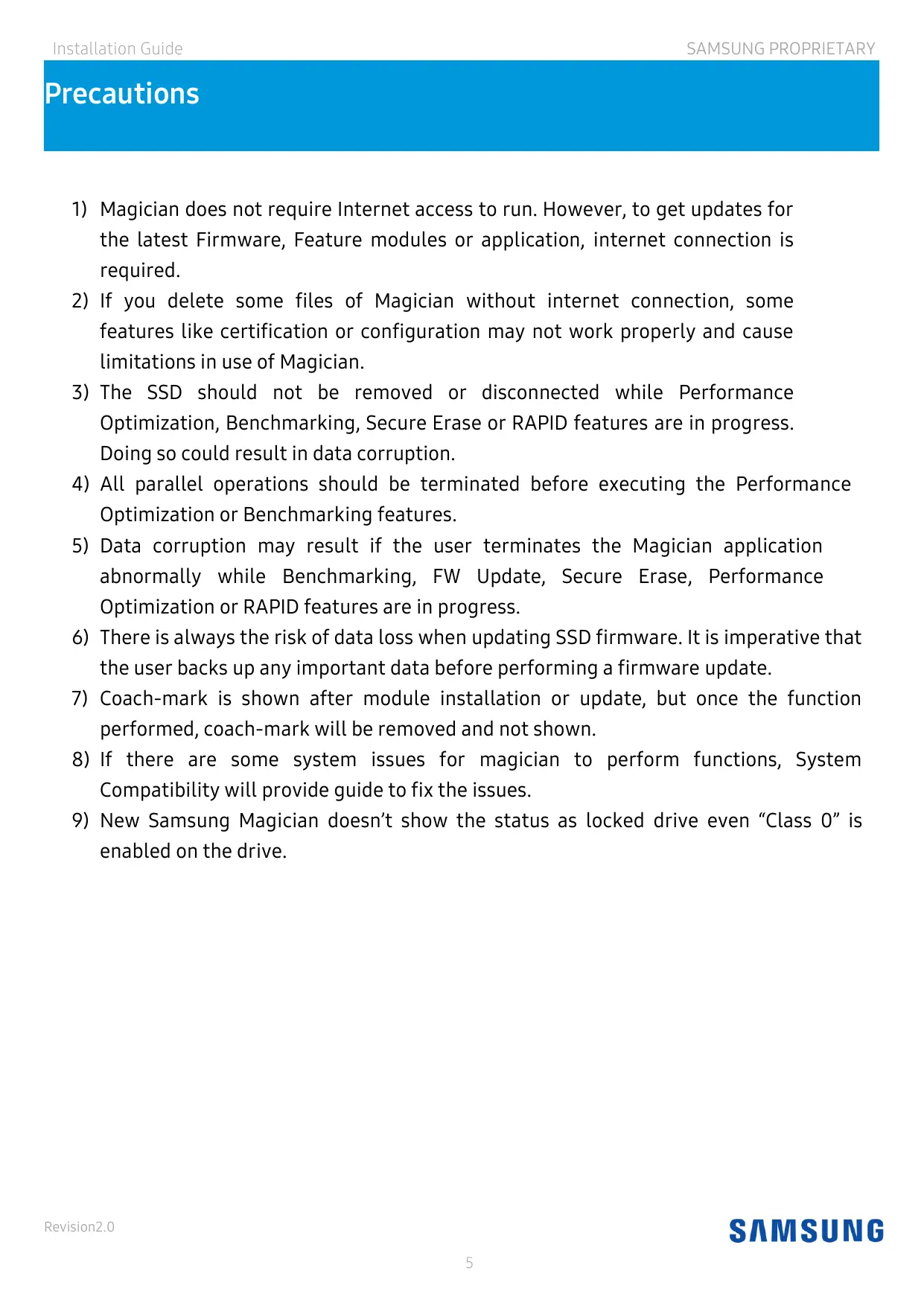

1) Magician does not require Internet access to run. However, to get updates for

the latest Firmware, Feature modules or application, internet connection is required.

2) If you delete some files of Magician without internet connection, some

features like certification or configuration may not work properly and cause limitations in use of Magician.

3) The SSD should not be removed or disconnected while Performance

Optimization, Benchmarking, Secure Erase or RAPID features are in progress. Doing so could result in data corruption.

4) All parallel operations should be terminated before executing the Performance

Optimization or Benchmarking features.

5) Data corruption may result if the user terminates the Magician application

abnormally while Benchmarking, FW Update, Secure Erase, Performance Optimization or RAPID features are in progress.

6) There is always the risk of data loss when updating SSD firmware. It is imperative that

the user backs up any important data before performing a firmware update.

7) Coach-mark is shown after module installation or update, but once the function

performed, coach-mark will be removed and not shown.

8) If there are some system issues for magician to perform functions, System

Compatibility will provide guide to fix the issues.

9) New Samsung Magician doesn’t show the status as locked drive even “Class 0” is

enabled on the drive. Revision2.0

Installation Guide SAMSUNG PROPRIETARY General Limitations Overall

1) Magician Shows only supported features for the connected SSD. Appearing

features may vary as (different) SSDs connected.

2) Magician does not work with SSDs connected via the SCSI controller interface.

3) Only MBR and GPT partition types are supported. Magician may not work with

other partition types.

4) Magician shows only volumes mounted with letter.

5) Magician will not work on SSDs that are locked with a user password.

6) The user may need to manually refresh for Magician to accurately reflect all

connected/removed disks.

7) RAID on mode in SATA configuration is not supported by Samsung magician

and DOS application.

8) Security mode (Class 0, TCG/Opal or Encrypted Drive) must be disabled

(unlocked) before removing and installing onto another PC.

9) If you are using any custom storage driver, then Magician may not work

properly. Please always use the latest storage driver or Microsoft driver. 10)In Windows 7, the Samsung NVMe Driver is required for Magician to fully support Samsung’s NVMe device. Performance Benchmark

1) Benchmarking results are for a Queue Depth of 32.

2) The numbers of threads used for performance benchmark are: 1 for

Sequential and 4 for Random for NVMe device; 1 for Sequential and 1 for Random for SATA device.

3) Benchmarking may not work with some removable storage devices.

4) Performance Benchmark may get timed-out on ASMedia controllers if the

driver does not handle multi thread operations (IOs) Revision2.0

Installation Guide SAMSUNG PROPRIETARY General Limitations Firmware Update

1) PC will be shut down automatically after firmware update (Magician counts

down 20 seconds before shutdown)

2) Firmware Update may fail on Samsung brand SSDs connected to AMD

Controller or IRST v10.0.0.1046. Please retry using default SATA AHCI controller(Microsoft drivers) Performance Optimization

1) Performance Optimization supports only the NTFS file system.

2) Performance Optimization will take more time to complete Performance

improvement may depend on the user system environment, thus this process is recommended for the user who essentially needs performance optimization. Performance Optimization is only supported in Samsung SSD 840 EVO and 840 Series model.

3) Windows may experience slow response while Performance Optimization is in

progress, on ASUS Sabertooth 990FX system with AMD 1.2.1.269 driver. Secure Erase

1) Secure Erase is not supported with NVMe device connected as primary disk.

2) For NVMe devices, Secure Erase may not work on systems where SECURITY

FREEZE LOCK is issued by the BIOS and Microsoft NVMe driver is used.

3) Magician provides different way to erase disk depend on disk’s interface type.

(SATA – DOS bootable solution)

4) While making a DOS bootable solution for Secure Erase, please make sure the

Device Manager window is closed. *refer ‘DOS Utility Limitations’ Revision2.0

1) In some of the PCs DOS Solution may not work properly as expected because

of compatibility issue.

2) The DOS Utility is not compatible with pure SCSI or SATA NVIDIA/LSI/AMD

3) AHCI or ATA mode must be enabled in the BIOS during PC boot up.

4) The DOS utility may not work consistently on PCs with chipsets other than the

5) The DOS Utility may hang if the SSD is removed on PCs that do not support

the hot plug feature (e.g. ICH5/6 chipsets).

6) The DOS Utility will not work with devices attached via SATA 6Gbps (SATA III)

operating in IDE mode.

7) If SSD name is too long, then Model name and serial no. overlaps in DOS

Bootable Solution. Please use the Command line option “/C” to run in CLI mode

8) By default, a GUI version of the application is launched when you boot from

USB. In order for this GUI application to function, the default font must be installed on your system. Otherwise, a command line version of the software is necessary. *Note : A command line version of the application is copied along with the corresponding GUI version when you create the bootable USB. You must manually type the application name to launch the command line versions. Press the [ESC] key to return to the DOS Prompt and type the commands shown under the headings below. DOS – Font The DOS-based Secure Erase utilities require the “/s” command line parameter as part of each command in order to configure the default DOS font. Commands are – “segui0 /s” DOS-CLI(Command Line) The DOS-based Secure Erase utilities require the “/c” command line parameter to launch the CLI version of the application. Commands are - “segui0 /c” Revision2.0

1) RAPID mode accelerates only one SSD even though user has several Samsung

SSDs (750 EVO, 850 EVO, 850 PRO, 840 EVO, and 840 PRO regardless of form factor).

2) If there are two identical SSDs connected, RAPID mode may accelerate the

3) RAID Mode sets is not supported as an accelerated drive.

4) After uninstalling RAPID mode, if the system is restored to a prior state in

which RAPID mode was installed, RAPID mode will be started in a disabled state.

5) NVIDIA Storage controller is not supported.

6) During RAPID mode Enable/Disable operation: Do not disconnect the target

SSD, Do not kill the application.

7) If fast startup is enabled on windows 8, 8.1 and 10 machines, RAPID mode

enable/disable requires system restart. Shutdown followed by turning-on the power will not activate RAPID mode enable/disable. By default fast startup is enabled.

8) Flush command of operating system and/or application may cause variation

in performance when RAPID mode is enabled.

9) Sometimes on AMD PC with AMD and ASMedia storage controllers it was

found that the IOs takes a longer time to complete. In such cases if Rapid was enabled, it may get automatically disabled due to such IO errors. It may display "Rapid is in inactive state". User has to reboot the PC to enable the Rapid back. 10)If multiple iterations of Read and Write are performed, RAPID mode may become inactive due to system internal errors on some of the AMD / ASMedia Controller or Driver.

11) RAPID mode can't be guaranteed on the target SSD with non-NTFS file

12) If you delete some files on RAPID folder, RAPID may not be uninstalled

properly. Revision2.0

with the error message “The Windows Installer service failed to start. Start the Windows Installer service manually, upgrade the Windows Installer service, and check if the last updated or installed program in Windows was successful. If the problem persists, contact the A/S center.” The issue can be fixed by:

Updating Windows Installer If your Windows Installer is not the latest version, corrupted or msiexec is missing, please install the latest version of Windows Installer, then try enabling RAPID mode again. If none of the above procedures work, we recommend reinstalling Windows.

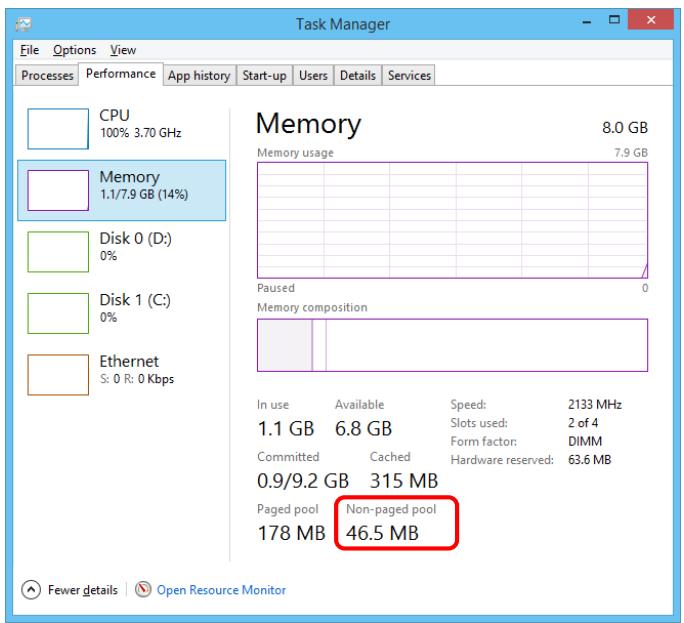

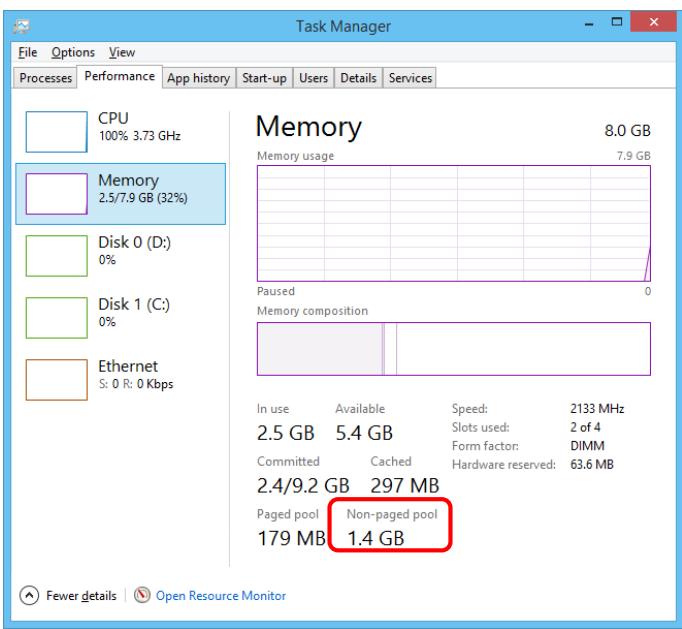

Installation Guide SAMSUNG PROPRIETARY Operational Check of RAPID mode RAPID mode starts its operation 45 seconds after OS booting. Please make sure the increased size of non-paged pool using “task manager → performance → memory tab” to ensure it is fully operational.
