ICM-200 - Coffee maker Imarflex - Free user manual and instructions
Find the device manual for free ICM-200 Imarflex in PDF.
| Product Type | Drip Coffee Maker |
| Model | ICM-200 |
| Brand | Imarflex |
| Capacity | 1.5 liters (12 cups) |
| Dimensions (W x D x H) | 24 cm x 20 cm x 32 cm |
| Weight | 1.2 kg |
| Power Supply | AC 220-240V, 50/60Hz, 900W |
| Main Functions | Brewing coffee, keep warm function, reusable filter, water level indicator |
| Material | Plastic body, glass carafe, stainless steel heating element |
| Color | Black and stainless steel |
| Care and Cleaning | Hand wash carafe and filter basket; wipe body with damp cloth; descale regularly |
| Safety Features | Auto shut-off, overheat protection, non-slip feet |
| Spare Parts | Glass carafe, filter basket, water tank lid |
| Repairability | User-replaceable carafe and filter; other repairs by qualified technician |
| General Information | Coffee maker with pause-and-serve function, comes with measuring spoon |
Frequently Asked Questions - ICM-200 Imarflex
User questions about ICM-200 Imarflex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual ICM-200 - Imarflex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ICM-200 by Imarflex.
USER MANUAL ICM-200 Imarflex
imarflex®
In Every Home.
www.imarflex.com
ICM-200
SPECIFICATION
MODEL NO : ICM-200
RATED VOLTAGE : 230Va.c. 60Hz
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions carefully.
- Before using the coffee maker, check if the voltage indicated corresponds with the electric outlet (230Va.c.).
- Do not use the two-way socket with other appliances.
-
Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized lmarflex service center.
-
Do not use the coffee maker if the water tank is empty.
- Do not place the coffee maker near gas stove, electric burner, heated oven, or any other hot surface.
- Keep it away from the edge of the counter to avoid accidents.
-
Children should be supervised to ensure that they do not play with the appliance.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
-
Extreme caution must be exercised when using an appliance containing hot coffee.
-
Do not allow cord to touch the hot surface of the coffee maker.
-
For protection against electric shock, do not immerse the coffee maker in water or any other liquid.
-
The use of any accessory not recommended by the appliance manufacturer may result in fire, electric shock or injury of the user.
-
Always ensure that the lid is closed and the carafe is properly placed in the unit. Do not lift the carafe while coffee is dripping. Scalding may occur if the carafe is removed during the brewing cycle. Do not touch the hot surfaces of the coffee maker.
-
Avoid placing the carafe on a wet or cold surface especially when hot.
-
Do not use the carafe if it is damage or the handle is not stable.
-
Do not use the carafe for other purposes.
-
The unit is not intended for outdoor use.
-
Do not use the unit other that its intended use.
-
After use, always switch OFF and unplug the unit from the convenience outlet.
-
Allow the unit to cool down before cleaning.
-
This coffee maker is intended for coffee only. Do not heat any other liquid or attempt to cook any food in this appliance.
-
No parts are dishwasher safe.
-
Do not exceed the "MAX" water level indicator when filling.
-
Coffee maker carafe may get very hot, be careful when handling.
-
Avoid water spillage into the socket, connector, cord and alike.
-
Use on a hard, flat level surface only, to avoid interruption of airflow underneath the appliance.
-
Never use warm or hot water to fill the water tank. Use cold water only.
-
Warning: The filling aperture must not be opened during use.
-
For household use only, not intended for any business purposes.
-
Do not use this unit other than its intended use.
-
Save this instruction manual for future reference.
-
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

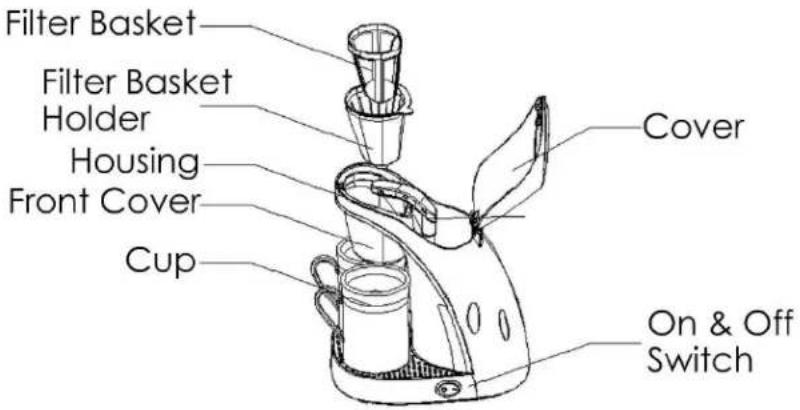

DESCRIPTION OF PARTS
HOW TO USE
- For initial use, wash filter basket, filter holder and the cups thoroughly.
- Plug the unit into a convenience outlet, always make it sure that the unit is in OFF position.
- Put the filter basket into the filter holder.
-
Put adequate amount of ground coffee on the filter basket.
-
Open the cover, pour the desired amount of water and close the then.
Note: Do not fill water tank above its maximum level.
-
Switch the unit ON.
-
During the brew cycle, the water will automatically drip into the cups. NOTE:
-
You can also use your own coffee mug as long as it will fit on the height of the spout.
-
The coffee you get will be less than the water you have poured, as some water is absorbed by coffee ground.
-
After use, switch OFF and unplug the unit from the convenience.
HINTS FOR GREAT-TASTING COFFEE
- A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "CLEANING AND MAINTENANCE" section.
- Always use fresh tap water in brewing coffee.
- Store unused ground coffee in a cool, dry place. After opening a package of ground coffee, store it in an airtight container to maintain its freshness.
- For the best coffee taste, buy whole coffee beans and finely grind them just before brewing.
- Do not reuse ground coffee since this will greatly reduce the coffee flavor.
- Reheating coffee is not recommended as coffee is at its peak flavor after brewing.
- Clean the coffee maker when over-extraction caused oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.
- Oiliness may occur more frequently if heavily roasted coffees are used.
CLEANING AND MAINTENANCE
How to clean the Water Tank:
- Pour water on the water tank with one pint vinegar.
- Put a mug under the spout.
-
Allow the vinegar inside the water tank for at least 30 minutes.
-
Pour water on the water tank and repeat the brewing cycle.
- Switch OFF.
NOTE: Do not use damp cloth to clean the water tank, this will leave some residue of lint and may clog your coffee maker, simply rinse with fresh tap water periodically.
Removing Mineral Deposits on the Water Tank
To keep your coffee maker operating efficiently, periodically clean mineral deposits left by the water according to the water quality in your area and the frequency of use, we recommend removing mineral deposits as follows:
- Fill the tank with water and de-scaling solution to the max level as indicated on water gauge (the scale of water and solution is 4:1; the detail refers to the instruction of the solution. Please use "household solution"; you may also use the citric acid instead of the solution (the one hundred parts of water and three parts of citric acid).
- Put a mug under the spout.
- Make sure that the filter (without ground coffee) and filter basket holder are assembled properly.
- Switch the unit on and allow it to process the de-scaling solution.
- Rinse the unit by processing with fresh water at least 3 times.
NOTE: Never pour brewed coffee into the water tank for reheating as it may damage the unit.
REMINDER: Please do not forget to fill up and send the warranty card
Brand : Imarflex
Model : ICM-200
Category : Coffee maker
