Product Type	Food Processor
Brand	Imarflex
Model	IFP-500S
Motor Power	500 W
Capacity (Bowl)	1.5 L
Speed Settings	2 speeds + pulse
Blade Material	Stainless steel
Functions	Chopping, mixing, blending, kneading
Accessories Included	Chopping blade, kneading hook, whisk, disc for slicing
Safety Lock	Safety lid lock system
Non-slip Feet	Yes
Housing Material	Plastic
Dimensions (H x W x D)	38 x 25 x 25 cm
Weight	3.5 kg
Power Supply	220-240 V, 50/60 Hz
Cord Length	1.2 m
Dishwasher Safe Parts	Bowl and lid are dishwasher safe
Repairability Index	Repairable, spare parts available
Certifications	CE, RoHS

Frequently Asked Questions - IFP-500S Imarflex

What is the capacity of the Imarflex IFP-500S food processor?

The IFP-500S has a 1.5-liter bowl capacity, suitable for processing moderate amounts of ingredients.

Can I shred or slice vegetables with this model?

Yes, it comes with a disc for slicing and shredding, allowing you to prepare vegetables quickly.

What safety features does the IFP-500S have?

It features a safety lid lock that prevents operation if the lid is not properly closed, ensuring safe use.

Is the bowl and lid dishwasher safe?

Yes, the bowl and lid are dishwasher safe for easy cleaning. The blades should be washed by hand.

What is the motor power of this food processor?

The IFP-500S has a 500 watt motor, providing sufficient power for most food processing tasks.

Can it knead dough?

Yes, it includes a kneading hook, and the motor can handle dough up to 500g of flour.

How do I adjust the speed?

The processor has 2 speed settings and a pulse function, controlled by a knob on the top.

Is the Imarflex IFP-500S repairable?

Yes, spare parts are available, and it is designed to be repairable. Refer to the manual for service centers.

What type of blades are included?

It includes a stainless steel chopping blade, a kneading hook, a whisk, and a slicing/shredding disc.

What is the warranty period for this product?

Imarflex typically offers a 1-year warranty against manufacturing defects. Check your local retailer for details.

USER MANUAL IFP-500S Imarflex

2-speed w/ Pulse
Double Safety Lock
Suction Footing

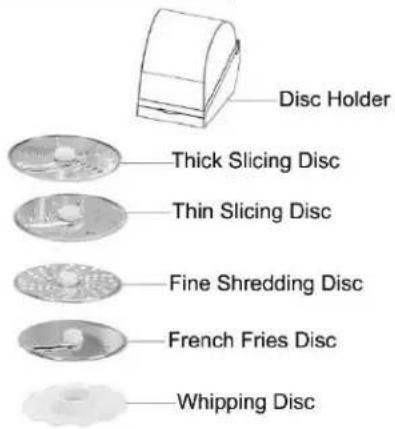

5 DISC ATTACHMENTS

• 2-reversible Discs 4mm Slicer/ Large Shredder & 2mm Slicer / Medium Shredder)
- Fine Shredder
- French Fries Slicer
- Whipping Disc
- Include 1 Chopping Blade

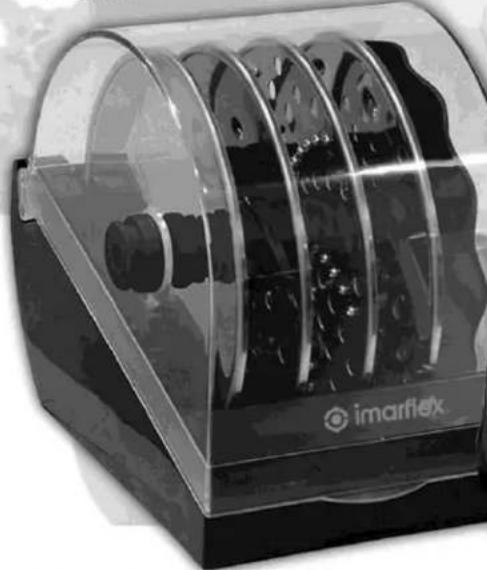

Close-up of a transparent cylindrical device with internal components and metallic rings, labeled 'imarflex' (no other text or symbols visible)

6 CUPS

1.0

LITER

Bowl Capacity

imarflex.

FOOD GRADE

STAINLESS STEEL

CHOPPING BLADES & SHREDDING BLADES

imarflex®

In Every Home.

www.imarflex.com

IFP-500S

SPECIFICATION

MODEL NO. : IFP-500S

RATED VOLTAGE : 230Va.c. 60Hz

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the food processor is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the appliance in water or any other liquids.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the food processor when mixing as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Blade is sharp, handle it carefully.

15. The maximum continuous operating time of the chopping is three minutes only. Do not exceed with the maximum operating time. It may cause damage to the unit.

16. Do not exceed into the maximum capacity if food processor is overfilled, it may cause damage to the unit.

17. Do not put the blade assembly on the base without the bowl.

18. Do not use the appliance if the bowl has a crack or damage.

19. This appliance is not intended for outdoor use.

20. Never place the appliance near hot surfaces.

21. In case of malfunctions, please bring the appliance to the nearest Authorized Imarflex Service Center.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Switch off the appliance before removing the bowl into the motor base.

24. Do not use this unit other than its intended use.

25. For household use only; not intended for any business purposes

26. Save this instruction manual for future reference.

27. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

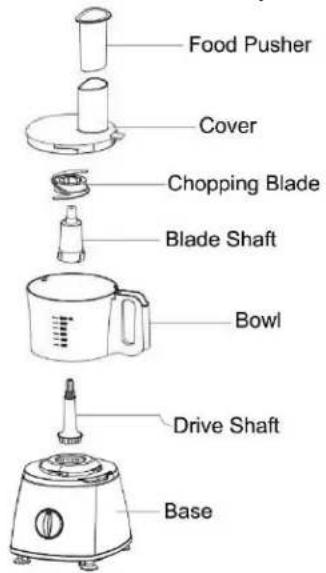

DESCRIPTION OF PARTS

HOW TO ASSEMBLE

IMPORTANT: Your container and blades are subject to wear and tear during normal use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged. Contact any Authorized Imarflex Service Center to obtain evaluation and repair.

Make sure that the unit is unplugged. Place motor base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Fit the Drive Shaft on the Motor Base.
2. Put the Bowl into the Drive Shaft and turn counter-clockwise to lock. (See pic.2)
3. Insert the Blade Shaft on the Bowl's hole. (See pic.3)
4. Select the desired attachment; whipping disc (see pic 5), slicing, shredding and French fries' disc (see pic. 6).

NOTE: If Slicing and Shredding Disc will be used, do not use the adapter anymore.

Pic.5
Pic.6
Pic.7

1. Put the Bowl Cover, align the slot then slightly turn it counter-clockwise to lock. (See pic.7)

NOTE: Make sure that the container and cover is properly fitted otherwise the unit will not function

Please refer to lock and unlock icon.

HOW TO USE

1. Place the unit on stable surface.
2. Assemble the unit properly. Please refer on How to Assemble.
3. Select the desired function.

a. Chopper-to chops different types of food.

Tips and Warning :

• Always keep the chopper inside the bowl before adding food
- Use pulse function for several times to avoid cutting too fine
- Do not operate for too long while processing hard cheese or chocolate. These ingredients melt easily
- For chopping meat, remove the skin and bone before processing
- Standard chopping period: 30-60 sec

Type of Food	Me asu rem ent Pe r b atc h
Ch oco la te	≤1 00 g
Ch ees e	≤2 00 g
me at	≤5 00 g
F ru it & Veg et ab le	10 0~3 00g
On io n	≤5 00 g

NOTE: Processing time depends on size and amount of food to be processed.

b. Whipping Disc- to whip some soft mixture

Type of Food	Me asu rem ent Per batch	Per rio d Per b atc h
Egg	2~5pc s	30 ~70 sec
chee se	125-35 0ml	20 sec .

Tips and Warning:

• Whipping Disc can be used to mix cheese and egg
• Do not use Whipping Disc to knead flour

NOTE: Processing time depends on size and amount of food to be processed.

c. Slicing Disc- for slicing different types of vegetables, fruits and other food; i.e. for banana chips, potato.

d. Fine Shredder- for shredding cheese, some vegetables with a fine outcome
e. Shredder- for shredding cheese, vegetables and some other foods with coarse outcome

Tips and Warning

• Choose desired attachment according to the food needed to process and desired shape of food.
• Push softly when feeding food.

• Pre-cut food into smaller pieces according to the diameter of food chute.
- Feed gradually for better effect. When cutting soft food, choose lower speed to achieve the best result. If large quantity food needs to be sized, please cut it for several batches.
• Capacity for one batch is 1000ml.

1. Put the Bowl Cover (9), align the slot then slightly turn it clockwise to lock.
2. Plug the unit into the convenience outlet.

3. Select the desired speed.

4. Speed I – Function is for chopping, soft vegetables, soft fruits or any light mixture

5. Speed II – Function is for grinding, hard vegetables and hard fruits or if you desire to texture / chop

6. Pulse - It is the function to control the texture of the desired texture of mixture

7. Insert the food on the chute.

8. Press down the food with the Food Pusher (6). Never push the food pusher forcibly as it may affect the performance of the motor.
9. Switch OFF and unplug the unit after every use.

NOTE:

• Some burnt smell may be observed on first use, this is normal.
• Maximum continuous operation time is 1 minute.
- THE UNIT IS EQUIPPED WITH OVERLOAD PROTECTION. IT

WILL AUTOMATICALLY STOP WHEN MOTOR REACH THE TEMPERATURE LIMIT. UNPLUG THE UNIT THEN LET IT COOL.

CLEANING AND MAINTENANCE:

1. Turn OFF and unplug the unit after every use.
2. Remove the food pusher from the food chute.
3. Turn the cover counter clockwise to unlock.
4. Carefully remove the attachment used.
5. Turn the container counter clockwise to remove. Lift the drive shaft from the base. The blade is sharp, handle it carefully.
6. Wash the container, cover, food pusher, adapter, and other attachments with soap and water.
7. Dry all parts before the next use and before storing the unit.

TROUBLE SHOOTING GUIDE:

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized lmarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the blender jar	1. Rubber packing is not properly installed2. Rubber was damaged	1. Turn OFF the unit. Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized lmarflex Service Center.
Attachment not functioning	1. Not properly installed	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
