IFP-300S - Food processor Imarflex - Free user manual and instructions

Type	Food Processor / Chopper
Model	IFP-300S
Brand	Imarflex
Power Consumption	280 watts
Rated Voltage	230 V a.c., 60 Hz
Capacity	500 cc
Blade Material	Food grade stainless steel
Bowl Material	Plastic (typical)
Housing Material	Plastic
Maximum Continuous Operating Time	1 minute
Standard Chopping Period	30-60 seconds
Safety Features	Overload protection; sharp blade warning; do not immerse
Cleaning	Wash detachable parts with soap and water; dry before storage; do not immerse base
Usage	For chopping meat, cheese, chocolate, fruits, vegetables, onions
Maximum Batch Sizes	Chocolate ≤100g, Cheese ≤200g, Meat ≤100g, Fruit/Vegetable 100-150g, Onion ≤500g
Warranty	Register via email with warranty card and receipt
Distributed By	Evergood Unlimited Corp., Manila, Philippines
Country of Origin	Made in China

Frequently Asked Questions - IFP-300S Imarflex

Can I use the food processor for more than 1 minute continuously?

No, the maximum continuous operating time is 1 minute. Exceeding this may damage the unit.

What should I do if the motor stops during operation?

This is due to overload protection. Unplug the unit and let it rest for at least 1 minute before resuming.

How do I clean the food processor?

Turn off and unplug. Remove all parts. Wash the bowl, cover, pusher, and attachments with soap and water. Dry thoroughly. Do not immerse the motor base.

Can I chop hot liquids in the food processor?

No, extreme caution is needed. Hot liquid can eject due to sudden steaming, causing burns.

What is the maximum capacity for chopping meat?

Per batch, meat should be ≤100g. Remove skin and bone before processing.

Is the blade dishwasher safe?

The manual recommends washing with soap and water. Dishwasher use may cause damage; hand wash recommended.

Why does my unit emit smoke or burning smell on first use?

This is normal for the first use. The motor coating may produce a smell initially. It should stop after short use.

Can I use the food processor without the bowl?

No, never place the blade assembly on the base without the bowl. It can cause injury or damage.

What type of outlet should I use?

Use a 230V a.c. 60Hz outlet. Do not use a two-way socket with another appliance.

How do I assemble the food processor?

Place bowl on motor base and turn counter-clockwise to lock. Insert chopping blade, then cover and turn counter-clockwise to lock.

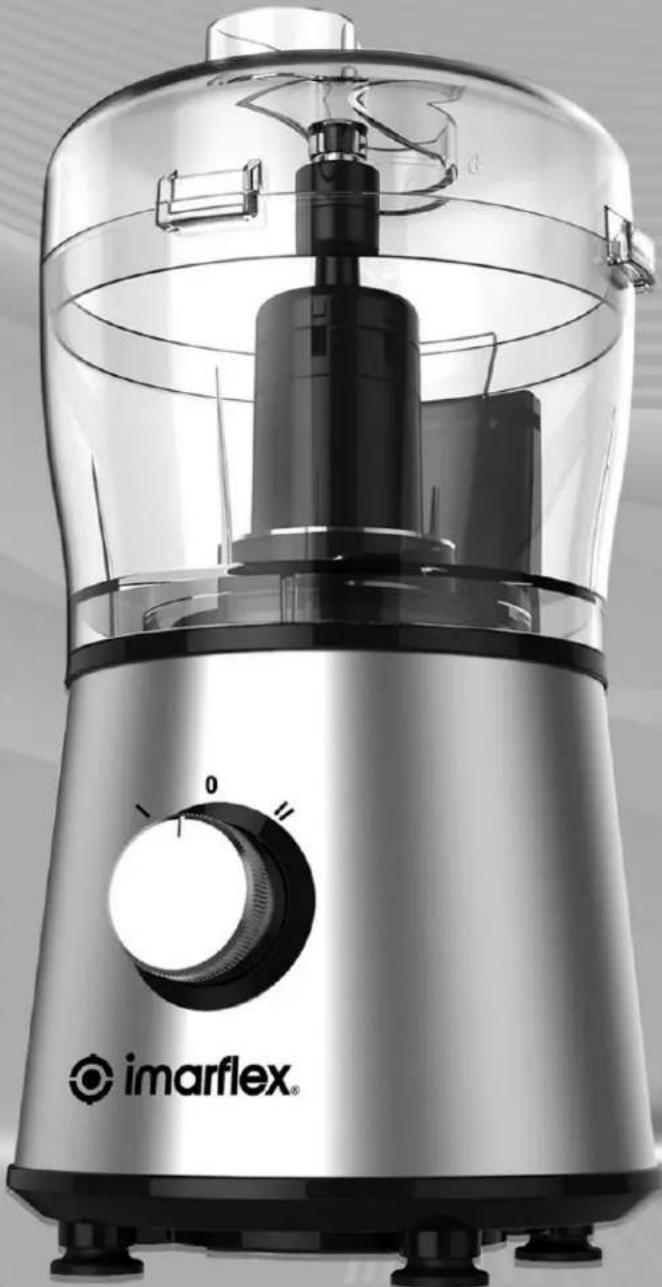

USER MANUAL IFP-300S Imarflex

FOOD CHOPPER

500CC CAPACITY

280W

POWER MOTOR

FOOD GRADE

STAINLESS STEEL

CHOPPING BLADES

Exterior view of a modern office building (no signage)

imarflex®

In Every Home.

IFP-300S

SPECIFICATION:

MODEL NO. : IFP-300S

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 280 watts

BOX DIMENSION : ____

UNIT DIMENSION : ____

GROSS WEIGHT : ____

UNIT WEIGHT : ____

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the food processor is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the appliance in water or any other liquids.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the food processor when mixing as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Blade is sharp, handle it carefully.

15. Do not put the blade assembly on the base without the bowl.

16. Do not use the appliance if the bowl has a crack or damage.

17. This appliance is not intended for outdoor use.

18. Never place the appliance near hot surfaces.

19. In case of malfunctions, please bring the appliance to the nearest Authorized Imarflex Service Center.

20. Avoid water spillage into the socket, connector, cord and alike.

21. Switch off the appliance before removing the bowl into the motor base.

22. Do not use this unit other than its intended use.

23. For household use only; not intended for any business purposes

24. Save this instruction manual for future reference.

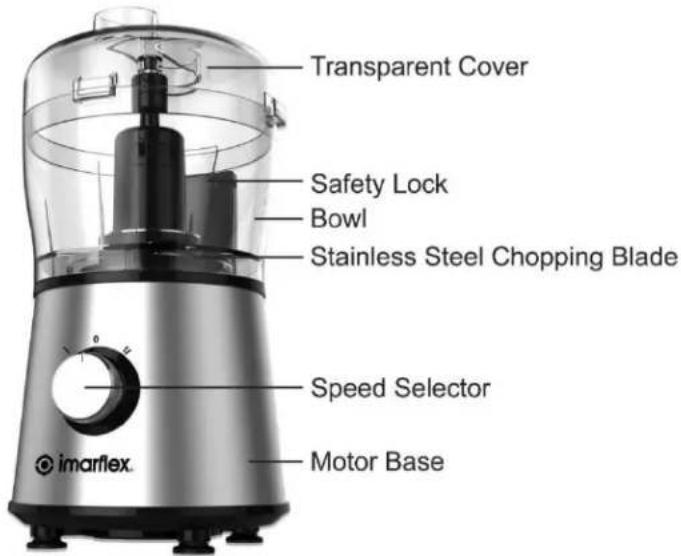

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

1. For initial use, wash detachable parts thoroughly.
2. Place the bowl into the motor base and turn counter-clockwise to lock.
3. Insert the chopping blade on the bowl's hole.
4. Put the bowl cover, align the slot then slightly turn it counter-clockwise to lock.

HOW TO USE:

1. Place the unit on stable surface.
2. Assemble the unit properly. Please refer on "how to assemble".

Tips and Warning :

• Always keep the chopper inside the bowl before adding food
- Do not operate for too long while processing hard cheese or chocolate. These ingredients melt easily
- For chopping meat, remove the skin and bone before processing
• Standard chopping period: 30-60 sec.

Ty pe of Food	Mea surement Pe r ba tc h
Ch oco l a t e	≤10 0 g
Ch ees e	≤200g
Me a t	≤100g
Fruit & Veg e t ab le	10 0 ~15 0g
On io n	≤50 0 g

NOTE: Processing time depends on size and amount of food to be processed.

CLEANING AND MAINTENANCE:

1. Turn OFF and unplug the unit after every use.
2. Make sure that the unit is unplugged before cleaning.
3. Remove the food pusher from the food chute.
4. Turn the cover counter clockwise to unlock.
5. Carefully remove the attachment used.
6. Turn the container counter clockwise to remove. Lift the drive shaft from the base. The blade is sharp, handle it carefully.
7. Wash the container, cover, food pusher, adapter, and other attachments with soap and water.
8. Dry all parts before the next use and before storing the unit.

Note: Do not immerse the unit in water or any liquids.

TROUBLE SHOOTING GUIDE:

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plugged in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized Imarflex Service Center
Motor stop during operation	Overload protection activated	Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	Unit is use for the first time	Its normal for the first use
Attachment not functioning	Not properly installed	Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
