Brand	Imarflex
Model	IFP-880
Product Type	Multi-purpose Food Processor (chopping, slicing, shredding, whipping, blending)
Motor Power	800W
Bowl Capacity	1.6 liters (1600cc / 8 cups)
Jug Capacity	1.5 liters (1500cc / 6 cups)
Speed Settings	2 speeds (Low, High) with Pulse function
Attachments	5 stainless steel: Dough Blade, Slicer Blade, French Fries Slicer, Chopping Blade, Large Shredder
Blade Material	Food-grade stainless steel
Bowl & Jug Material	BPA-free plastic
Safety Features	Dual safety lock on lid and base, overload protection (thermal cutout)
Suction Feet	Yes
Measuring Cup	Included
Power Supply	230V a.c.
Maximum Operating Time (Chopping/Kneading/Slicing)	90 seconds per cycle
Maximum Operating Time (Whisking)	2 minutes per cycle
Maximum Operating Time (Blending)	1 minute per cycle
Rest Period	Minimum 2 minutes between cycles; 30 minutes after 3 cycles
Cleaning	Wash attachments in warm soapy water; wipe motor base with damp cloth; never immerse motor base
Overload Protection	Yes (thermal cutout, resets after cooling)
Warranty	Register via email with purchase receipt
Country of Origin	Made in China
Distributor	Evergood Unlimited Corp., Manila

Frequently Asked Questions - IFP-880 Imarflex

How to assemble the food processor?

Place the motor base on a clean, dry surface. Place the bowl onto the base and turn clockwise to lock. Insert the driving shaft. Attach the desired blade (chopping, dough, whipping, or disc assembly) onto the shaft. Align the bowl cover and turn clockwise to lock. The unit will not work if the bowl and cover are not properly locked.

How to assemble the blender?

Place the blade assembly at the bottom of the blender jug and turn counter-clockwise to lock. Put the jug onto the motor base and turn clockwise to lock. Secure the lid with the measuring cup and turn clockwise to lock. The blender will not work if the jug base or lid is not properly locked.

What is the maximum chopping capacity?

The maximum chopping capacity is 400g of hard or soft substance and raw or cooked meat. Do not overfill the bowl.

How to use the pulse function?

Press the pulse button 3 to 5 times to crack ice or for short bursts when chopping. Use pulse first before selecting a continuous speed for better control.

What should I do if the motor stops during operation?

The overload protection has activated. Unplug the unit and let it rest for at least 2 to 30 minutes to cool down before resuming use.

How to clean the blender jar?

After use, add warm water and a splash of vinegar to the jar and blend for about a minute, then rinse. Alternatively, fill halfway with warm soapy water and blend for 30 seconds. For dried food, let warm soapy water sit for 30-60 seconds, then blend in intervals. Do not immerse the motor base.

Can I use the blender for meat?

No, the blending jug is not intended for meat blending. Use the food processor bowl with the chopping blade for meat.

What is the maximum continuous operating time for blending?

The maximum continuous operating time for blending is 1 minute. Do not exceed this to avoid damage.

How to store the appliance?

Store the appliance on a dry, cool place. Ensure all parts are dry before storing. Never leave food inside the blender jar for a long period.

What to do if there is a leak at the bottom of the blender jar?

Check if the rubber packing is properly installed, damaged, or if the blade assembly is not tightly locked. Turn off the unit, remove the jar, and reassemble correctly. Replace the rubber if damaged.

USER MANUAL IFP-880 Imarflex

MULTI-PURPOSE FOOD PROCESSOR

- CHOPPING • SLICING • SHREDDING • WHIPPING • BLENDING

5BLADE ATTACHMENTS

• Dough Blade • Slicer Blade

• French Fries Slicer • Large

• Chopping Blade Shredder

FOOD GRADE

STAINLESS STEEL

• CHOPPING BLADES • FRENCH FRIES SLICER

• SLICER BLADE • LARGE SHREDDER

1.6 LITERS BOWL CAPACITY 1600cc | 8 Cups

1.5 LITERS JUG CAPACITY 1500cc | 6 Cups

BPA-Free

BLENDER JUG & BOWL

800W

POWER MOTOR

• 4-angle Stainless
Steel Blade | Blender
• Overload Protection

- Suction Footing

- Measuring Cup

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the food processor is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the appliance in water or any other liquids.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the food processor when mixing as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Blade is sharp, handle it carefully.

15. The maximum continuous operating time of the chopping is three minutes only. Do not exceed with the maximum operating time. It may cause damage to the unit.

16. Do not exceed into the maximum capacity if food processor is overfilled, it may cause damage to the unit.

17. Do not put the blade assembly on the base without the bowl.

18. Do not use the appliance if the bowl has a crack or damage.

19. This appliance is not intended for outdoor use.

20. Never place the appliance near hot surfaces.

21. In case of malfunctions, please bring the appliance to the nearest Authorized Imarflex Service Center.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Switch off the appliance before removing the bowl into the motor base.

24. Do not use this unit other than its intended use.

25. For household use only; not intended for any business purposes

26. Save this instruction manual for future reference.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

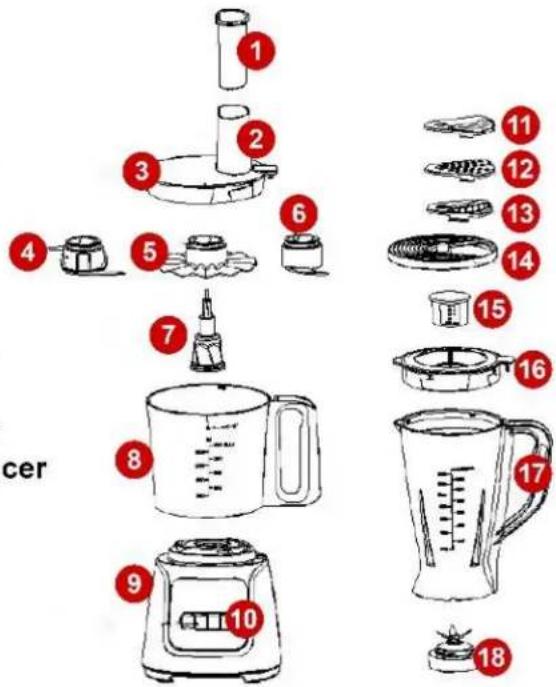

DESCRIPTION OF PARTS:

1. Food Pusher
2. Chute
3. Bowl Cover
4. Chopping Blade
5. Whipping Disc
6. Dough Blade
7. Driving Shaft
8. Bowl
9. Motor Base
10. Speed Selector
11. Slicer Blade
12. Large Shredder
13. French Fries Slicer
14. Disc Holder
15. Measuring Cup
16. Jug Cover
17. Blender Jug
18. Blender Blade

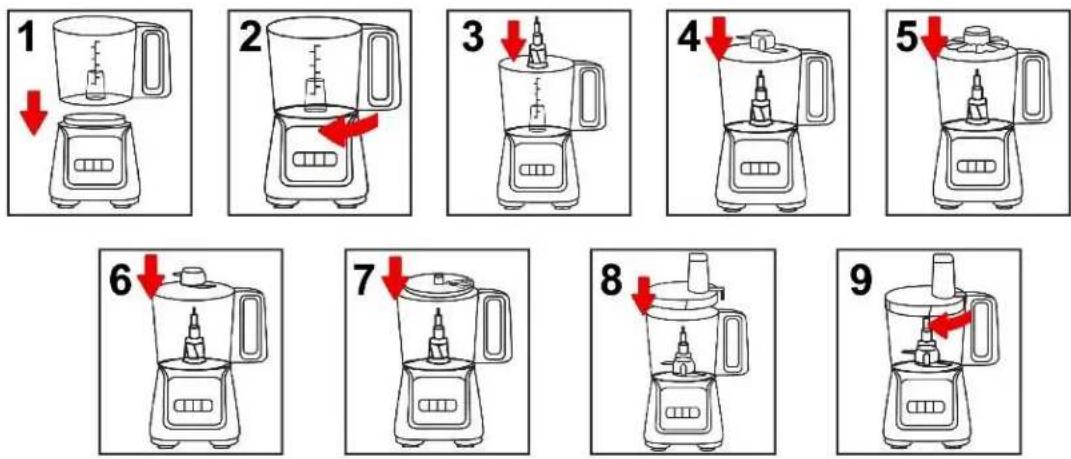

HOW TO ASSEMBLE:

Food Processor

IMPORTANT: Your Plastic Jug, Bowls and Blades are subject to wear and tear during normal use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged.

Contact any Authorized Imarflex Service Center to obtain evaluation and repair.

Make sure that the unit is unplugged. Place motor base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Place the bowl into the motor base and turn it clockwise to lock. Make sure it is properly locked. (See photo #1&2)
2. Put the drive shaft inside the bowl. (See photo #3)

3. Insert the desired attachment (Chopping Blade, Whipping Disc, Dough Blade or Disc Assembly) onto the drive shaft. (See photo #4-7)

4. Align the bowl cover into bowl slot then turn it clockwise to lock. (See photo 8&9)

NOTE: Make sure that the bowl and cover is properly fitted and locked otherwise the unit will not work. Please refer to lock and unlock icon.

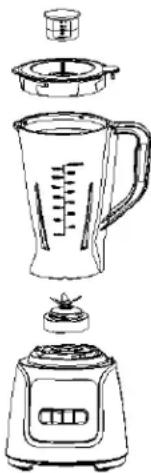

Blender

1. Place the blade assembly at the bottom of blender jug then turn it counter-clockwise to lock. Make sure that the blade is tightly locked. (See photo #1)
2. Put the blender jug into the motor base and turn it clockwise to lock. (See photo #2) NOTE: If the blender jug base is not properly locked, the blender will NOT work.
3. Put the measuring cup into the lid, then properly secure the lid into the jar. The lid must be placed securely into the jug. Turn it clockwise to lock the lid into place. (See photo #3-5) NOTE: If the blender cover is not properly locked, the blender will NOT work.

Line drawing of a blender with a red arrow indicating speed (no text or symbols)

HOW TO USE:

A. Food Chopper – to chops different types of food such as cheese, dried fruits, vegetables, meat, etc.

1. Place the unit on a stable surface.
2. Assemble the unit properly. Please refer on How to Assemble (Food Processor).
3. Select the desired speed.

Note:

• Do not overfill the unit. Maximum capacity chopping capacity is 400g of hard or soft substance and raw or cooked meat.
• Always keep the chopping blade inside the bowl before adding food.
• Use pulse function for several times before selecting speed.
• For chopping meat: Please remove the skin and bone before processing.
• Standard chopping time is 30 to 60 seconds depending on the size and amount of the food to be processed.
• Operating time should not be more than 90 seconds.

B. Kneading / Mixing – to process dough or soft food or ingredients.

1. Place the unit on a stable surface.
2. Assemble the unit properly. Please refer on How to Assembler (Food Processor).
3. Select the desired speed.

Note:

• Do not overfill the unit. Maximum flour capacity is 375 grams and maximum water capacity is 225cc only.
• Always keep the dough blade inside the bowl before adding ingredient.
• Flour and water proportion must be 5:3.
• Operating time should not be more than 90 seconds and minimum of 2 minutes rest period must be maintained after one operation cycle. At least 30 minutes rest period must be maintained to let the appliance cool down after three operation cycles.

C. Beating and Whisking – Can be used to prepare mayonnaise, sauces, egg whites, meringues and whip cream.

1. Place the unit on a stable surface.
2. Assemble the unit properly. Please refer on How to Assembler (Food Processor).
3. Select the desired speed.

Note:

• Operating time should not be more than 2 minutes per operation cycle.
• Do not use the whisk to knead dough or mix cake mixtures.

D. Slicing / Chipping / Shredding – Can be used to slice thickly-potatoes, onions, thinly-cucumbers, boot roots, apples, carrots, etc.

1. Place the unit on a stable surface.
2. Assemble the unit properly. Please refer on How to Assembler (Food Processor).
3. Fit the shredding blade / slicing blade / chipping into the disk stand then place it in the bowl.

Exploded view diagram of a kitchen appliance showing top, front, side, and side views (no text or labels)

Exploded view diagram of a kitchen appliance showing top, front, side, and side views (no text or labels)

Note:

• Assemble: You must push in one with block side first then push in the other side. (As photo shown).

• Disassemble the blade from the disk stand: You must push out one side with no block first, then push out the other side.

• Select the desired speed.

a. Slicer blade- for slicing different types of vegetables, fruits and other food; i.e., for banana chips, potato.
b. Large Shredder- for shredding cheese, vegetables and some other foods with coarse outcome.
c. French Fries Slicer- for slicing potato for French fries.

Note:

• Food must be cut into proper size that will fit the feeding chute.
• You may slice / chip up to 1000 grams of food.
• Operating time should not be more than 90 seconds and minimum of 2 minutes rest period must be maintained after one operation cycle. At least 30 minutes rest period must be maintained to let the appliance cool down after three operation cycles.
• The blade is extremely sharp, please handle with care.

E. Blending

1. Put the jar with blade assembly on the motor base. Please refer on How to Assemble (Blender)
2. Plug the unit into the convenience outlet.
3. Be sure to remove the seeds of the fruits/vegetables if needed.
4. Put the desired mixture.

NOTE: If the Jug base and cover lid are not properly locked, the blender will NOT work.

1. Plug the unit into the convenience outlet.
2. Press the pulse button 3 to 5 times to crack the ice.

3. Select the desired speed.

4. Low Speed: This speed is intended for blending soft vegetables, soft fruits or any light mixture

5. High Speed: This speed is intended for blending hard vegetables and hard fruits or if you desire to blend smoothie or any alike.
6. Pulse: This function is intended to crush ice.
7. Do not use boiling liquids or run the appliance empty.

8. The blending jug cannot be used for meat blending.

9. Additional ingredients can be added through opening in the lid.

10. Turn OFF and unplug the unit after every use.

Note:

• Some electric smell may be observed on first use.
• Do not overfill the unit. Maximum blending capacity is 1500cc or 6 cups only.
• Maximum continuous operating time is 1 minute only.
• To achieve the best result when pureeing solid ingredients, place a small portion

Exploded view diagram of a blender with labeled parts (no text or symbols)

Exploded view diagram of a blender with cooling unit and portable stove (no text or labels)

through the opening of the lid one by one.

• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening of the lid.
• For stirring solid or very thick liquid ingredients, it is recommended to use pulse speed to prevent the blades from being stuck.

CAUTION: Always put water or liquid in the jar to avoid damage to the unit. Use pulse speed first, if you are blending with ice.

CLEANING AND MAINTENANCE:

Food Processor

1. Turn OFF and unplug the unit after every use.
2. Remove the food pusher from the feeding chute.
3. Turn the cover counter-clockwise to unlock.
4. Carefully remove the attachments used. The blade is sharp, handle it carefully.
5. Turn the Bowl counter-clockwise to remove.
6. Wash the bowl, cover, food pusher, drive shaft and other attachments with soap and water.
7. Dry all parts before the next use and before storing the unit.

Blender

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth. NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.
3. Thoroughly clean speed selector knob so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch.
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

Lid/Center Lid

Wash in warm soapy water. Rinse by a running water and dry. Reassemble before use.

Container and Blade Assembly:

Method #1

- After use, add warm water and a splash of vinegar to blender jar. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method #2

- Fill the blender jar half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

- If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

1. Turn OFF the unit and wait for the blade and motor to stop.
2. Always unplug the unit after every use.
3. Remove the blade assembly by turning it counter-clockwise.
4. Wash the rubber packing and jar support with soap and water.
5. Turn the plastic jar upside down to remove excess water.
6. Wipe the plastic jar and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.
7. Never leave food inside the blender jar for a long period of time.
8. Store the blender on a dry cool place.

NOTE: NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET.

TROUBLE SHOOTING GUIDE

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized lmarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 2 to 30 minutes
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak at the bottom of the blender jar	1. Rubber packing is not properly installed2. Rubber was damaged3. Blade assembly not tightly locked.	1. Turn OFF the unit. Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Lock the blade assembly tightly.
Attachment not functioning	1. Not properly installed	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our Email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
