USER MANUAL BHS3000 SAMSUNG

Printed in China GH68-33828G CA. 07/2012. Rev. 1.0

Headset Oreillette HS3000

Getting started Your headset overview4 Button functions5 Charging the headset6 Wearing the headset8 Using your headset Turning the headset on or off10 Turning the indicator light on or off . 10 Pairing and connecting the headset11 Using call functions15 Using voice prompts18 Using music control functions20 Resetting the headset22 Appendix Frequently asked questions23 Certification and Safety approvals25 UL certified travel adapter26 Warranty and parts replacement27 Specifications28 1

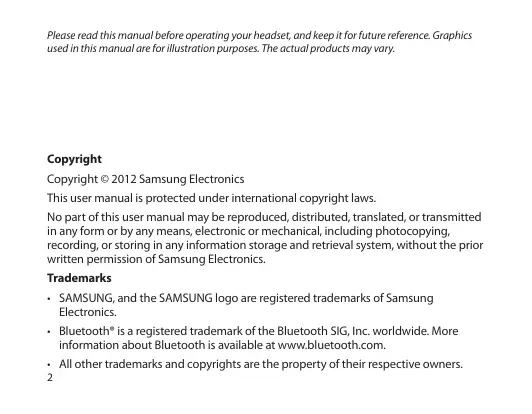

Please read this manual before operating your headset, and keep it for future reference. Graphics used in this manual are for illustration purposes. The actual products may vary.

Copyright Copyright © 2012 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks • SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. More information about Bluetooth is available at www.bluetooth.com. • All other trademarks and copyrights are the property of their respective owners. 2

Please read all Safety precautions before using your headset to ensure safe and proper use.

• When using your headset while driving, follow local regulations in the region you are in. • Never disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorized service center to repair it. • Keep your device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. • Avoid exposing your device to very cold or very hot temperatures (below 5 °C or above 35 °C). Extreme temperatures can cause the deformation of the device and reduce the charging capacity and life of your device. • Do not allow your device to get wet — liquids can cause serious damage. Do not handle your device with wet hands. Water damage to your device can void your manufacturer’s warranty. • Avoid using your device’s light close to the eyes of children or animals. • Do not use the device during a thunderstorm. Thunderstorms can cause the device to malfunction and increase the risk of electric shock. Excessive exposure to loud sounds can cause hearing damage. Exposure to loud sounds while driving may distract your attention and cause an accident. Use only the minimum volume setting necessary to hear your conversation. 3

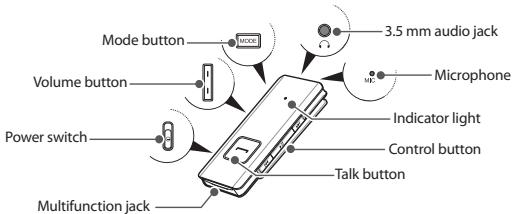

Getting started Your headset overview

Make sure you have the following items: headset, travel adapter, 3.5 mm stereo headphone, and user manual. The supplied items may vary.

• Slide up or down to turn the headset on or off. • Press and hold for 4 seconds to enter Pairing mode. • Press to answer or end a call.

• Press and hold to reject an incoming call. • Press and hold to place a call on hold. • Press and hold to switch between calls. • Press to adjust the volume.

• Press and hold to turn the microphone on or off during a call. • While listening to music, press to change the SoundAlive mode (Normal, Instrument, or Vocal). • Press to control the music files.

Charging the headset This headset has a rechargeable internal battery which is non-removable. Make sure the headset is fully charged before using it for the first time. 1

Connect the travel adapter to the multifunction jack on the headset.

Plug the travel adapter in to the wall outlet. During charging, the indicator light will turn red. If charging does not begin, unplug the travel adapter and plug it in again.

When the headset is fully charged, the red indicator light changes to blue. Unplug the travel adapter from the wall outlet and the headset. • Use only Samsung-approved chargers. Unauthorized or non-Samsung chargers could cause damage to the headset or in extreme circumstances an explosion, it could also invalidate any warranty on the product. • Repeatedly charging and discharging of the headset over time will cause the battery performance to diminish. This is normal for all rechargeable batteries. • Never make or receive calls while charging, always disconnect your headset from the charger and answer the call.

The headset beeps and the indicator light flashes red. If the headset powers off during a call, the call will be automatically transferred to the phone.

Checking the battery level To check the battery level, press and hold the Talk button and the Volume down button at the same time. Depending on the battery level, the indicator light flashes 5 times in one of the following colors: Battery level

Indicator light color

When the headset battery is low

Wearing the headset Use the supplied 3.5 mm stereo headphone. 1

Connect the headphone to the headset.

Clip the headset to your clothes using its shirt clip.

Using your headset This section explains how to turn the headset on or off, pair and connect the headset to the phone, and use various functions. • Activated functions and features may differ depending on the phone type. • Some devices, especially those that are not tested or approved by the Bluetooth Special Interest Group (SIG), may be incompatible with your headset. To ensure you get the best performance from your headset • Keep the distance between your headset and device as small as possible and avoid placing your body or other objects in the signals path. • If you usually use your mobile phone with your right hand, wear the headset on your right ear. • Covering your headset or device could affect its performance so keep contact to a minimum.

Turning the headset on or off To turn the headset on Slide down the power switch. The blue indicator light flashes 4 times. Turning the headset on for the first time, it will automatically enter pairing mode for approx. 3 minutes. To turn the headset off Slide up the power switch. The indicator light flashes blue and red then turns off.

Turning the indicator light on or off The Headset status light indicates the current status of your headset. If the light bothers at night, you can turn it off. • Press and hold both Volume buttons simultaneously to turn the indicator light on or off. • You cannot switch the indicator off while in pairing mode. • The indicator light will always work when the headset is turned on or off, when a call is received, in Pairing mode and when the battery is low. 10

Pairing and connecting the headset Pairing means unique and encrypted wireless connection between two Bluetooth devices when they agree to communicate with each other. In Pairing mode, two devices should be placed close enough to each other.

Pairing and connecting the headset with a phone 1

Enter Pairing mode. (The blue indicator light stays lit and stays for 3 minutes.)

Activate the Bluetooth feature on your phone and search for the headset (see your phone’s user manual).

Select the headset (HS3000) from the list of devices found by your phone.

If requested, enter the Bluetooth PIN 0000 (4 zeros) to pair and connect the headset to your phone. Once pairing is completed, the headset will attempt to reconnect each time you turn it on.

• With the headset turned on, press and hold the Talk button for 4 seconds.

• Your headset supports the Simple Pairing feature which allows the headset to be paired with a Bluetooth device without requesting a PIN. This feature is available for devices that are compliant with Bluetooth version 2.1 or higher. • If your phone supports Advanced Audio Distribution Profile (A2DP), you can also listen to music with your headset.

Pairing via the Active pairing feature With the Active pairing feature, your headset automatically looks for a Bluetooth device within range and tries to make a connection with it. Make sure the phone’s Bluetooth visibility option is set on. • In Pairing mode, press and hold the Talk button on the headset. The indicator light color changes to violet from blue. The headset will attempt active pairing for up to 20 seconds. • The Bluetooth phone you want to connect with must not be paired with other devices. If the phone is already connected to another device, end the connection and restart the Active pairing feature. • This feature may not be supported on some devices. • When the headset is paired with your phone, a connection is made through the Hands‑Free Profile. To make a connection through another profile, such as Advanced Audio Distribution Profile (A2DP), check the phone’s user manual on how to pair the Bluetooth device.

With the Multi-point feature activated, your headset can be connected to 2 Bluetooth phones at the same time. To turn Multi-point feature on In Pairing mode, press and hold the Volume up button. You will hear a beep.

To turn Multi-point feature off In Pairing mode, press and hold the Volume down button. You will hear a beep.

After connecting with the first Bluetooth phone, enter Pairing mode again.

Activate the Bluetooth feature on the second Bluetooth phone and search for the headset.

Select the headset (HS3000) from the list of devices found by the second Bluetooth phone.

If requested, enter the Bluetooth PIN 0000 (4 zeros) to connect the headset to the second Bluetooth phone.

Reconnect to the headset from the first Bluetooth phone. Some phones may not be able to connect as a second Bluetooth phone.

Connecting with two Bluetooth phones

Connecting the headset with a music device You can also pair and connect your headset with a music device such as an MP3 player. The process of connecting to a music device is the same as for connecting with a phone. When connected to both devices (phone and music device) you can make or receive a call on the phone while listening to music from the music device. For more information about control functions, see page 20.

Reconnecting the headset If the connection is lost while in use: To reconnect to the paired phone (HFP) • Press the Talk button on the headset or use the Bluetooth menu on your phone. To reconnect to the paired music device (A2DP) • press

button on the headset or use the Bluetooth menu on your music device.

When the headset is paired with a device, it will automatically attempt to reconnect each time you turn it on. If the Multi-point feature is activated, your headset will attempt to reconnect to the two most recently connected devices. This feature may not be supported on some devices.

Disconnecting the headset Turn off the headset or use the Bluetooth menu on your phone.

Using call functions • Available call functions may differ from phone to phone. • Some functions are only available when using the Hands-Free profile.

Making a call Redialing the latest number To redial the last number dialed on the primary phone: • Press and hold the Talk button. To redial the last number dialed on the secondary phone: • Press the Talk button twice. Some phones open the call log list. Press the Talk button again to dial the selected number.

Dialing a number by voice Press the Talk button. This function is only available on the primary phone.

Answering a call Press the Talk button to answer a call when a call comes in.

Rejecting a call Press and hold the Talk button to reject a call when a call comes in. If you receive calls on both connected phones at the same time, you can only answer or reject the call on the primary phone.

Ending a call Press the Talk button to end a call.

Options available during a call You can use the following functions during a call. 16

Adjusting the volume

Press the Volume up or down button to adjust the volume. You will hear a beep when the volume level of the headset reaches its lowest or highest level. Muting the microphone Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on. Transferring a call from the phone to the headset Press the Talk button to transfer a call from the phone to the headset. Placing a call on hold Press and hold the Talk button to place the current call on hold. Answering a second call • Press the Talk button to end the first call and answer a second call. • Press and hold the Talk button to place the first call on hold and answer a second call. To switch between the current call and the held call, press and hold the Talk button. 17

Using voice prompts Voice prompts will inform you about the current status of the headset and usage instructions. If you can’t hear any voice prompts, make sure the voice prompt feature is turned on.

Turning the voice prompts on or off To turn the voice prompts on • In Pairing mode, press and hold the Volume up button for 4 seconds. You will hear “Voice prompt is on”. To turn the voice prompts off • In Pairing mode, press and hold the Volume down button for 4 seconds. You will hear “Voice prompt is off”.

Changing the language In Pairing mode, press both volume buttons simultaneously to change a language. The headset provides following these languages: English, Spanish, French, and German. The default setting is English.

When you turn the headset on or off

“Power on” or “Power off”

List of voice prompts

When you select a language for the voice “Language name selected” prompt When you enter Pairing mode

“Ready to pair. Search for the headset from the Bluetooth menu. Enter 0000 if prompted for a PIN”

When you turn Multi-point feature on or off

“Multi-point mode is on” or “Multi-point mode is off”

When you connect the headset to the devices

“Device is connected” or “Two devices are connected”

When you disconnect the headset from a device

“Device is disconnected”

When you reject or end a call

“Call terminated” 19

When you check the battery level

“Headset battery level is high” or “Headset battery level is medium” or “Headset battery level is low”

Using music control functions Listening to music Control playback with the following buttons:

BUTTON FUNCTION Play/Pause • Press to start or pause or resume playback on the primary device. • Press twice to start or pause or resume playback on the secondary device. • Press and hold to stop playback. REW • Press to skip backward. • Press and hold to scan backward. 20

• Press to skip forward. • Press and hold scan forward.

When your headset is connected to two Bluetooth devices and music is being played in one device, you should stop playing it to control the other device.

Applying a sound effect (SoundAlive) You can apply appropriate sound effects for music during listening to music. To apply a sound mode, such as Normal, Instrument, or Vocal, press the mode button while listening to music. You can also switch between the sound modes pressing the mode button.

Resetting the headset When the headset is paired with a device, it automatically saves connection and feature settings, such as the Bluetooth address or device type of the mobile phone. If you want to reset the connection settings in the headset: • In Pairing mode, press and hold both Volume buttons and Talk button at the same time for 4 seconds. When you reset the headset, all connection settings in the headset will be deleted and the connection with your phone will be lost. In order to use the headset, you will have to pair it again.

Appendix Frequently asked questions Will my headset work with laptops, PCs, and PDAs?

Your headset will work with devices that support your headset’s Bluetooth version and profiles. For specifications, see page 28.

Why do I hear static or interference while on a call?

Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves.

Will my headset interfere with my car’s electronics, radio, or computer?

Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment. 23

Can other Bluetooth phone users hear my conversation?

When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.

Why do I hear an echo while on a call?

Adjust the headset volume, or move to another area and try again.

How do I clean my headset?

Wipe it with a soft dry cloth.

The headset does not fully charge.

The headset and the travel adapter may not have been connected properly. Separate the headset from the travel adapter, reconnect, and charge the headset.

I cannot use all the features described in the manual.

Available features may vary depending on the connected device. If your headset is connected to two devices at once, some features may be unavailable.

Certification and Safety approvals FCC FCC ID: A3LHS3000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. Industry Canada IC ID: 649E-HS3000 Operation is subject to the following two conditions: (1) This device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

UL certified travel adapter The travel adapter for this headset has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines. FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS. DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET. THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTATED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.

If during the period of warranty this product proves defective under normal use and service, you should return the product to the retailer from whom it was originally purchased or a qualified service center. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty. • The warranty is limited to the original purchaser. • A copy of your receipt or other proof of purchase is required for a proper warranty service. • The warranty is void if the product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties. • Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories. • Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorized third parties voids any warranty. * Depending on your region, the length of warranty may differ.

Warranty and parts replacement Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.*

Specifications and description

Approximately 2 hours*

* Depending on the phone type and usage, the actual time may vary. 28
