ST-VC7294 - Vacuum Cleaner Saturn - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Saturn
Model	ST-VC7294
Power Supply	1600 W
Rated Voltage	220-230 V
Rated Frequency	50 Hz
Rated Current	7.2 A
Filtration System	Water-based vacuum system plus twin HEPA filters
Filtration Efficiency	99.99% efficiency, captures particles down to 0.3 microns
Motor Speed	4-speed motor with electronic control
Suction Power Settings	Low, Medium, High, Turbo
Water Tank Capacity	Approximately 1.3 liters (max level)
Accessories Included	Crevice tool, Duster brush, Water brush, Telescopic tube
Optional Accessories	Handy-cyclonic attachment, Turbo rotating brush
Cord Storage	Automatic cord storage with foot pedal
Liquid Suction	Yes, with water brush (reduce water in tank)
Safety Features	Automatic switch off when float switch goes up
Filter Maintenance	HEPA filter: clean every 3 months, replace yearly; Sponge filter: clean with water
Warranty	2 years (or more depending on country)
Usage	Household use only

Frequently Asked Questions - ST-VC7294 Saturn

How does the water filtration system work?

The vacuum uses a water-based system that captures dust and dirt in water, preventing indoor air pollution. It also releases natural negative ions to act as an air cleaner.

How do I clean the HEPA filter?

Remove the HEPA filter frame from the body, take out the filter, rinse with tap water, and let it dry completely before reinstalling. Clean every 3 months and replace yearly.

Can I vacuum liquids with this vacuum?

Yes, but you must reduce the water in the tank to about half and use the Water Brush accessory. Avoid vacuuming soapy liquids to prevent frothing.

How do I adjust the suction power?

Use the (+) and (-) buttons on the main body to select from four settings: Low, Medium, High, and Turbo. Green lights indicate the current level.

What is the maximum water level in the tank?

The maximum water level is marked on the front of the container, approximately 1.3 liters. Do not overfill.

How do I store the vacuum cleaner?

Always empty and clean the water container and filter assembly after use. Store the machine in a cool, dry place with all parts completely dry.

What should I do if the suction power decreases?

Check for blockages in the hose or tools, and ensure the HEPA filter is clean. If the water is very dirty, replace it with clean water.

How do I use the crevice tool?

Attach the crevice tool to the telescopic tube or hose for cleaning corners, crevices, and cracks.

How do I remove the water container?

Push down the release button on the cover, lift the water tank unit upwards, and separate it from the vacuum body.

What do the blinking indicator lights mean?

If all four green lights blink together, the machine has stopped due to dirty water, overfilling, high suction for the task, or a blockage. Wait 30 seconds, then identify and resolve the issue.

USER MANUAL ST-VC7294 Saturn

Blue Saturn vacuum cleaner with coiled glass lid and black handle, no visible text or symbols on device body

GB

VACUUM CLEANER

Dear Buyer!

We congratulate you on having bought the device under trade name "Saturn". We are sure that our devices will become faithful and reliable assistance in your housekeeping.

Avoid extreme temperature changes. Rapid temperature change (e.g. when the unit is moved from freezing temperature to a warm room) may cause condensation inside the unit and a malfunction when it is switched on. In this case leave the unit at room temperature for at least 1.5 hours before switching it on. If the unit has been in transit, leave it indoors for at least 1.5 hours before starting operation.

Features

• Water-based vacuum system plus twin HEPA filters system.
- Multi filtration system capable of capturing bacteria particles down to the size of 0.3 microns.
• Uses no bag and as a result: no clogged pores, no loss of suction or airflow, no indoor air pollution and no costly replacement bags.
- 4-speed motor with electronic control for the best use of suction power and ultimate convenience.
- Innovative Handy-cyclonic attachment (optional) can clean all bigger dust before the dust coming into the water, and giving a quick and simple cleaning.
• 2 in 1 water squeegee reaches under low furniture, fixtures and fittings and allows liquid suction.
• Automatic switch off when the float switch goes up for safety.
- Mixing of Bio-fresh antibacterial, anti-allergenic & non-chemical fresheners such as Mountain Pine, Tropical Citrus & Country Lavender with water, helps to purify and disinfect Indoor air as well as eliminate unpleasant odors.
- HEPA filter at system's motor air outlet means the air coming out, is even cleaner than the air going into the system.
- Optional Turbo Rotating Brush allows deep cleaning of mattresses and rugs. Also ideal for

removing loose hair and fluff from carpeted floors and up-holstered surfaces.

Effectiveness

• Eco-Active water filter captures and retains dust & dirt in water without polluting the indoor air.
• Multi filtration including HEPA filter provides 99.99% efficiency in purifying the air and capturing micro-organisms down to 0.3 microns in size, such as dust, pollen, dust mites and their feces, pet hair & dander.
  • A HEPA filter at the motor air outlet ensures providing the ultimate indoor air quality.
• When operating the product, the water filter system makes and blow out natural Minus-Ion, so the product is acting as a Minus-Ion generator or an air cleaner when it is operated.
• By not using dirty and blocked paper bags the product maintains its maximum airflow & efficiency at all times.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER.

When using an electrical appliance, basic safety precautions should always be observed.

WARNING: To reduce the risk of fire, electrical shock or injury, keep the following:
1. To ensure safe and correct use of your product, do not operate without first reading this operation manual thoroughly.
2. To avoid shortening the life span or damaging your product, do not use the machine with part or accessories not recommended by this manual. Use only original spare parts or accessories.
3. Ensure that the vacuum cleaner is placed on a flat surface when in operation.
4. Do not touch the main plug with wet hands. Do not operate the machine with wet hands. Do not operate the machine in an excessively wet environment.
5. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce airflow.
6. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
7. Do not use the machine for vacuuming hot or burning objects including ash.

1. Turn off the control before unplugging

2. Do not use the machine for vacuuming any type of chemicals, acids or solvents. This will damage the machine

3. Do not use the product near explosive materials, inflammable liquids or any type of gas. Such usage can cause fire or explosions.

4. Do not use for any purpose other than described in this user's guide.

5. Using improper voltage may result in damage to the motor and possible injury to the user, correct voltage is listed on the rating label.

6. Do not disconnect the AC plug from the main outlet roughly. Never remove the AC plug by pulling the cord; always pull out the plug by holding the plug itself.

7. Do not connect or disconnect the AC plug from the main outlet with wet hands. This may result in an electrical shock.

8. Always switch-off your machine and disconnect the AC plug from the main outlet when the appliance is not in use.

9. Do not use your machine if the AC cord or plug is damaged.

10. If the cleaner is damages, it must be repaired by the manufacturer or its service agent in order to avoid a hazard.

11. This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

13. The vacuum cleaner must not be left unattended while it is connected the supply mains.

14. This vacuum cleaner is for household use only

15. The plug must be removed from the socket-outlet before cleaning or maintaining the vacuum cleaner.

Caution:

- Do not overfill the water container. Note the 'Maximum Level' marking.

- Do not fill the water container with anything other than water.

• Always empty the dirty water, clean and store you machine correctly after each use.

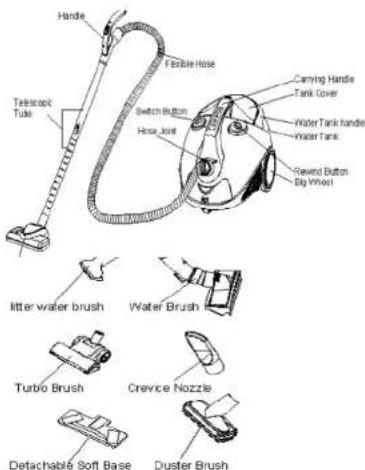

Part and Accessories Index

Preparation Before Use

1. Setting Up the Product
2. Remove the water container using the attached handle (Fig. 1).
3. Remove the filter assembly from the water container. Hang up the handle, and push

down the lock button on the cover (Fig. 2).

- Fill the container with tap water to 'Max Water Level', indicated on the front of the container. This is about 1.3 liters. Please ensure the container is not overfilled (Fig. 3).

- Assemble the water container back to the body. Close and lock the water tank handle. The locking mechanism will "Click" when locked.

- Insert the flexible hose into the hose socket (Fig. 4).

Connect the telescopic tube to the flexible hose.

2. Power On

• Extract the AC power cord fully by holding the cord and pull it towards you. Do not pull the cord by holding the plug, as this will damage the cord.

- Connect the plug to a suitable mains power outlet with the correct voltage (Fig. 5).

Caution:

Before connect the plug to the power socket, unwind a sufficient length of cable. A yellow mark on the power cable shows the ideal cable length. Don't expend the cable beyond the red mark

- Press firmly and turn on the main ON/OFF switch. One green indicator light will flash. The machine is now on 'Standby' mode. At this stage, your machine is ready to work (Fig. 6).

- Push the standby button on the main

body will activate the machine in the lower suction mode.

Caution: Make sure the AC power cord is fully extracted. During the operation a partially extracted power cord will generate excessive heat.

- This button is used to switch between standby mode and operation mode. The initial push turns the suction power on at the low mode. While the machine is operating, push this button returns the machine to the standby mode.

2. Suction Power Selection Button

• There are four suction power setting, Low, Medium, High and Turbo. Use (+) or

(-) button on the main body of the machine to select the desired setting (Fig. 7).

- The current suction power is indicated by the number of green indicator lights. Three green lights means the suction power is now in the high position.

3. Telescopic Tube

- The extendable Telescopic Tube gives you added flexibility and control. Depending on your application and situation, you may adjust the length of the Telescopic Tube to suit your needs. Push and hold the locking knob, extend or retract the telescopic pole as required. Release the knob and pull the

extended tube slightly to lock it in place. The tube can be extended to a maximum length of about 90cm.

4. Crevice Tool

- Use this accessory tool for corners, crevices and cracks.

5. Duster Brush

- The Duster Brush (2 in 1) cleaner accessory is for removing dust from all type of surfaces such as lampshades, electric equipment, air conditioner grills, car dashboards etc. Separately it can be used as a sofa nozzle (Fig. 8).

Two 3D mechanical diagrams showing a press or sheeting device with paper sheets, one being cut (no text or symbols)

6. Water Brush & Liquid Suction

• The Water Brush is so versatile that it can be used for vacuuming both solid and liquid dirt and is mainly for use on hard floor surface.

Caution: If you use your machine for liquid suction. Make sure you first reduce the amount of water in the tank by about half. It is also important not to allow the tank to become too full of vacuumed liquid. Before liquid suction you must change the carpet brush with the Water Brush

When you finish, empty the tank completely and vacuum up about one liter of clean water to rinse clean the inside of the Flexible Hose AND THE Telescopic Tube. Repeat if necessary.

To dry the inside of Hose & the Tube, detach the Water Brush, and run your machine for a few minutes without sucking up any dirt. Wash and dry the water brush separately. Vacuum soapy liquid or detergent should be avoided, as this causes frothing inside the water tank.

7. Automatic Cord Storage

- Your system comes with an Automatic Code Storage system. Push the button at the back of the machine and the cord is retracted automatically. The large button also al-

lows this to be done with your

foot (Fig. 9). Caution: While nearing the end of the retraction, hold on to the end of the cord and guide it into the cord storage compartment. The force and speed of the retraction may cause the plug to snap back and hit something.

Product Care and Storage

Always switch off the main switch and disconnect the AC cord from the electrical outlet before cleaning you machine or replacing any part.

1. General

- You may wipe the machine with a damp cloth. Synthetic detergent may be used on plastic and metal parts if necessary. Make sure you wipe the machine and its parts dry before storage. - Do not use strong cleaning agents such as benzene or thinner to clean the machine. - Always store your product and parts after they are completely dried.

2. Cleaning and Maintenance of the filter assembly.

- It is highly recommended that you pour away the dirty water and clean the container and the filter assembly after each use. Keeping your home clean using a clean appliance is an advantage that the machine has over 'bag'-vacuum cleaner.

• To empty the water container, push down the release button and hang up the water tank unit upwards, remove from the vacuum unit (Fig. 1).

- Lift up and take out the cover and filter set from the water tank, and empty the container. Thoroughly clean, rinse and leave to dry (Fig. 2) (Fig. 3).

- Regularly dismantle and clean the filter assembly.

- Remove the curved tube by pulling it from the meshed filter cage.

- Pull out the filter cage and remove the sponge filter. Wash and rinse all the components. Dry before assembling them.

• To remove stubborn dirt from the container and the filter assembly, use normal washing-up liquid but make sure it is rinsed

thoroughly afterwards.

3. Air Outlet HEPA Filter

• If there is a noticeable drop in the suction power, this is an indication that the HEPA filter need to be cleaned or change a new one.

Take out the HEPA FilterFrame from the body (Fig. 10). Remove the HEPA Filter from the frame, clean, rinse by tap water and dry it before use again. You can also replace it with a new one (Fig. 11).

\*\*\* It is recommended to clean the HEPA filter every 3 months at least, or replace with a new one every one year at least.

4. Air Outlet Sponge Filter

- Push the button on the Air Outlet Grill, remove the Air Outlet Grill from the body (Fig. 12). - Take out the Air Outlet Sponge Filter (Fig. 13). - Clean it by water or replace it with a new one.

Caution: Use only original spare part.

5. Storage

- Store your machine with care and in a cool dry place.

Troubleshooting

Do not disassemble or attempt to repair the machine yourself.

Conditions	Possible Cause and Solution
The machine stops during operation and all four suction power indicator lights start blinking together.	Wait for about 30 seconds before you operate the machine again. This lets the machine reset whilst you identify one of the following possible causes. The water has turned very dirt and milky. Empty the water container and replace with clean water. The water level is above the maximum level. Reduce the water level.
	The selected suction power level is too high for the current cleaning application. Reduce the suction power. The airflow is blocked. Remove the blockage.
The machine does not start.	AC supply is not properly connected the AC cord to electrical supply.
Noticeable decrease in the suction power.	The HEPA filter requires replacement. Change a new one. There is a blockage. Remove the cleaning tools and attachments from the machine and remove the blockage.
Leakage of water when using for cleaning of liquid waste.	The Switch Float is blocked. Unblock it by cleaning.

Technical Data

Power Supply: 1600 W Rated Voltage: 220-230 V Rated Frequency: 50 Hz Rated Current: 7.2 A

Set

Vacuum cleaner 1 Instruction manual with warranty book 1 Package 1

ENVIRONMENT FRIENDLY DISPOSAL You can help protect the environment

Please remember to respect the local regulations; hand in the non-working electrical equipments to an appropriate waste disposal center. The manufacturer reserves the right to change the specification and design of goods

RUI

ПЫЛЕСОС

Two 3D mechanical parts with a black arrow indicating transformation (no text or symbols)

Two 3D mechanical parts with cutouts and a directional arrow, no text or symbols present

The Warranty is provided for the period of 2 years or more if the Law on User Right of the country where the appliance was bought provides for a greater minimum warranty period.

All terms of warranty comply with to the Law on Protection of the Consumer Rights and are governed by the legislation of the country where the product was bought.

The warranty and free of charge repair are provided in any country where the product is delivered to by Saturn Home Appliances or authorized representative thereof, and where no restriction of import or other legal provisions interfere with rendering of warranty services and free of charge repair.

Cases uncovered by the warranty and free of charge repair:

1. Guarantee coupon is filled in improperly.
2. The product has become inoperable because of the Buyer's non-observance of the service regulations indicated in the instruction.
3. The product was used for professional, commercial or industrial purposes (except for the models, specially intended for this purpose that is indicated in the instruction).
4. The product has external mechanical damage or damage caused by penetration of the liquid inside, dust, insects and other foreign objects.
5. The product has damages caused by non-observance of the rules of power supply from batteries, mains or accumulators.
6. The product was exposed to opening, repair or modification of design by the persons, unauthorized to repair; independent cleaning of internal mechanisms etc. was made.
7. The product has natural wear of parts with limited service life, expendables etc.
8. The product has deposits of scale inside or outside of fire-bar elements, irrespective of used water quality.
9. The product has damages caused by effect of high (low) temperatures or fire on non-heat resistant parts of the product.
10. The product has damages of accessories and nozzles which are included into the complete set of product shipment (filters, grids, bags, flasks, cups, covers, knives, sealing rings, graters, disks, plates, tubes, hoses, brushes, and also power cords, headphone cords etc.).

On the warranty service and repair, please contact the authorized

service centers of Saturn Home Appliances.

CZ

MEZINÁRODNÍ ZÁRUKA

When purchasing the product,

please require its checking before you;

BE SURE

that the goods sold to you, are functional and complete

and that the warranty coupon is filled in correctly.

This warranty coupon confirms the absence of any defects in the product you purchased and provides for free of charge repair of the product failed through the fault of the manufacturer throughout the period of warranty service and free of charge repair.

Failing the presentation of this coupon, in case of its improper filling in, infringement of factory seals (if any), and also in cases indicated in the warranty obligations, the claims are not accepted, and no warranty service and free of charge repair is made! The warranty coupon is valid only in the original copy with the stamp of trading organization, signature of the seller, date of sale and signature of the buyer.

CZ

ZÁRUČNÍ LIST

Při koupi výrobku

Buyer's Signature confirming the acquaintance and consent with conditions of free of charge maintenance service of the product, and absence of the complaints on appearance and color of the product.
