Product type	Fan Heater
Dimensions (H x W x D)	250 x 180 x 140 mm
Weight	1.4 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption	2000 W (max)
Heating modes	Fan only, Low heat (1000 W), High heat (2000 W)
Thermostat control	Adjustable thermostat with auto shut-off
Overheat protection	Yes, automatic shut-off if overheating
Tip-over switch	Yes, shuts off if tilted
Housing material	ABS plastic
Cleaning instructions	Wipe with a dry cloth; do not use water or chemicals
Filter type	Washable dust filter
Spare parts availability	Filter and power cord available from Anslut service
Repairability index	6/10 (common components replaceable)
Certifications	CE, GS

Frequently Asked Questions - 411-077 Anslut

How do I clean the Anslut 411-077 heater?

Always unplug the heater first. Use a soft dry cloth to wipe the exterior. For the air inlet/outlet, use a vacuum cleaner with a brush attachment. Never use water or cleaning agents.

Can I use the heater in a bathroom?

No, the Anslut 411-077 is not splash-proof. It should be used in dry indoor areas only, away from water sources.

What does the thermostat do?

The adjustable thermostat allows you to set the desired room temperature. Once the temperature is reached, the heater will cycle on and off to maintain it.

Why does the heater turn off automatically?

This may be due to overheating protection or the tip-over switch. Ensure the heater is on a stable surface and that the air intake is not blocked. If it continues, check the filter or contact support.

What are the power modes?

The heater has three settings: Fan only (no heat), Low heat (1000 W), and High heat (2000 W). Use the rotary switch to select.

How do I replace the dust filter?

Turn off and unplug the heater. Locate the filter cover (usually on the back or side), remove the old filter, and insert a new washable filter. Wash the old filter with mild soap and water, dry completely, and reuse.

Is the heater safe to leave unattended?

While the heater has safety features like overheat protection and tip-over switch, it is not recommended to leave it unattended for long periods. Always follow the manual's safety instructions.

Can I use an extension cord?

It is best to plug the heater directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord (min 14 AWG) rated for at least 2000 W and keep it fully uncoiled.

What should I do if the heater makes unusual noise?

Unplug the heater and check for obstructions in the fan. Clean the filter. If noise persists, it may indicate a mechanical issue; contact Anslut customer service.

How do I store the heater during summer?

Clean the heater and filter, allow to dry completely. Wrap the power cord loosely, and store in a dry, dust-free place away from direct sunlight.

USER MANUAL 411-077 Anslut

White portable electric heater with grid-patterned ventilation grille and two side control knobs (no visible text or symbols)

This product is only intended for well-insulated areas, or sporadic use.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

1. Termostat
2. Nätindikator
3. Handtag
4. Funktionsväljare

HANDHAVANDE

1. Termostat
2. Nettindikator
3. Händtak
4. Funksjonsvelger

BRUK

Read the Operating Instructions carefully before use!

• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
• WARNING: Certain parts of the appliance can become extremely hot and cause burns. Special attention must be given when children and people with reduced physical, sensory or mental capabilities are present.
  • The heater fan must be connected to single phase mains power supplying 230 V \~ 50 Hz.
• The heater fan meets the requirements for electromagnetic compatibility as regards interference with radios and televisions under the EN 55104/1995 standard.
• Always turn the heater fan off before leaving your house. Check that the power switch is turned off (position 0) and that the thermostat is set to MIN. Always disconnect the heater fan from the power socket after use.
• Keep flammable objects such as furniture, cushions, bedclothes, paper/newspapers, clothes and curtains at least one metre away from the heater fan.
  • Do not hang anything on or in front of the heater fan.
• Always disconnect the heater fan from the power socket when it is not in use. Never pull on the power cord to disconnect the plug from the socket. Always hold the plug to remove it.
• Do not insert objects into the fan's air intake or air outlet. There must be at least one metre of free space in front of the fan and 50 cm of free space behind the fan.
• Do not position the heater fan immediately below a power socket.
• Keep children and pets at a safe distance from the heater fan when it is in use. Note that the air outlet becomes hot during use, reaching a temperature of above 80^ C.
  • In order to avoid overheating and the risk of fire, the heater fan must not be covered over.
  • Do not use the heater fan close to baths, showers or swimming pools.
• Do not use the heater fan in locations where explosive gases are present or where flammable solvents, lacquers or adhesives are used.
• Do not use the heater fan if the power cord or plug is damaged in any way. For safety reasons, the power cord must only be replaced or repaired by an authorised service centre. Consult your dealer.
• Keep the heater fan clean. Do not allow objects to penetrate the air intake or air outlet, as this can cause electric shock, a fire risk or damage to the heater fan.
  • Store the heater fan in a cool, dry place when not in use.

WARNING!

• Do not use the heater fan close to showers, baths, washbasins or swimming pools, etc.
• Always use the heater fan in the upright position.
• Do not use the heater fan outdoors. It is designed for indoor household use only.
- Do not use the heater fan to dry washing. Never block the air intake or air outlet, as this causes a risk of overheating.
- Do not use the heater fan in spaces of less than 4 m ^2 .

TECHNICAL DATA

Mains voltage

Rated output

230 V \~ 50 Hz

2000 W

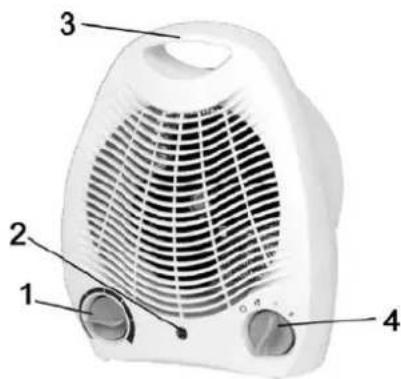

DESCRIPTION

1. Thermostat
2. Mains indicator
3. Handle
4. Function selector

OPERATION

NOTE: When the heater fan is used for the first time, or when it has not been used for an extended period, it is normal for it to emit a certain odour and some fumes. These will disappear after a short while. The heater fan is equipped with tilt protection. In order to activate the fan, it must be placed on a flat surface.

• Turn the thermostat clockwise to MAX.
• For operation in the summer (ventilation only), turn the function selector to the position ⚡.
  • For heating at half power, turn the function selector to position I (1000 W).
  • For heating at full power, turn the function selector to position II (2000 W).
  • To switch off the heater fan, turn the function selector to position 0.

Regulating the thermostat

When the required room temperature has been reached, turn the thermostat slowly anti-clockwise until the heater fan switches off. Stop in this position. The thermostat will then maintain this temperature in the room.

The heater fan has a safety switch that turns the appliance off in the event of overheating, for example if the air intake/outlet is blocked or if the motor is operating slowly or not at all). To reset the heater fan: Unplug the heater fan from the mains supply and wait for a few minutes, remove the cause of overheating and then reconnect the heater fan to the power socket. If this does not solve the problem, take the heater fan to your authorised service centre for inspection.

MAINTENANCE

• Unplug the heater fan from the mains supply before cleaning it.
• Regularly clean the grilles over the air intake and air outlet.
- Do not use solvents or abrasive products for cleaning.

Modell: 411077
Storhet Beteckning Värde	Enhet Storhet	Enhet
Utgående värmeeffekt Typ av uppvärmning, endast för elektriska varmvattenberedare med behållare för lokal uppvärmning (välj en)
Nominell utgående värmeeffekt	Pnom	1,8-2 kW	Manuell reglering av värmelagring, med integrerad termostat Nej
Min. utgående värmeeffekt (kW)	Pmin	1	kW	Manuell reglering av värmelagring, med återkoppling av rums- och/eller utomhustemperatur	Nej
Max. kontinuerlig utgående värmeeffekt	Pmax,c	2	kW	Elektronisk reglering av värmelagring, med återkoppling av rums- och/eller utomhustemperatur	Nej
Elförbrukning kringutrustning				Utgående värmeeffekt fläktassistans Nej
Vid normal utgående värmeeffekt	elmax 0 kW	Typ av reglering av utgående värmeeffekt/rumstemperatur (välj en)
Vid min. utgående värmeeffekt	elmin 0 kW			Enstegs utgående värmeffekt, ingen rumstemperaturreglering	Nej
I viloläge elSB 0 kW Minst två manuella	steg, ingen	rumstemperaturreglering Nej
				Rumstemperaturreglering med mekanisk termostat	Ja
				Rumstemperaturreglering med elektronisk termostat	Nej
				Rumstemperaturreglering plus dygnstimer	Nej
				Rumstemperaturreglering plus veckotimer	Nej
				Andra regleralternativ (flera val är möjliga)
				Rumstemperaturreglering med närvarodetektering	Nej
				Rumstemperaturreglering med detektering av öppna fönster	Nej
				Möjlighet till fjärrstyrning	Nej
				Adaptive startkontroll	Nej
				Driftidsbegränsning	Nej
				Med svart bulbgivare	Nej
Kontaktuppgifter	Serviceavdelning: 0200 88 55 88 www.jula.se
Modell-ID: 411077
Artikkel Symbol Verdi Enhet Artikkel Enhet
Varmeavgivelse Type varmeeffekt, kun for elektriske oppvarmingsenheter til lagringsområder (velg én)
Nominell varmeavgivelse P	nom	1,8-2 kW	Manuell varmestyring med integrert termostat Nei
Minimum varmeavgivelse (indikativ)	Pmin	1	kW	Manuell varmestyring med registrering av rom- og utendørstemperatur	Nei
Maksimal kontinuerlig varmeavgivelse	Pmaks, c	2 kW		Elektronisk varmestyring med registrering av rom- og utendørstemperatur	Nei
Sekundært strømforbruk V	fteassistert varmeavgivelse Nei
Ved normal varmeavgivelse	maks.el 0 kW Type varmeavgivelse/styring av romtemperatur (velg én)
Ved minimum varmeavgivelse	min.el	0	kW	Ettrinns varmeavgivelse og ingen romtemperaturstyring	Nei
I hvilemodus (standby)	el sb	0	kW	To eller flere manuelle trinn, ingen romtemperaturstyring	Nei
				Romtemperaturstyring med mekanisk termostat	Ja
				Romtemperaturstyring med elektronisk termostat	Nei
				Elektronisk romtemperaturstyring med dagtidsur	Nei
				Elektronisk romtemperaturstyring med uketidsur	Nei
				Andre styringsalternativer (flere valg mulig)
				Romtemperaturstyring med nærværssensor	Nei
				Romtemperaturstyring med åpent vindu-sensor	Nei
				Med mulighet for fjernstyring	Nei
				Med tilpasningsdyktig startstyring	Nei
				Med driftstidsbegrensning	Nei
				Med UV-pæresensor	Nei
Kontaktinformasjon	Serviceavdeling: 67 90 01 34 www.jula.no
Identyfikator(y) modelu: 411077
Pozycja Symbol Wartość Jednostka Pozycja Jednostka
Moc cieplna Wpisz moc cieplną, dot. tylko lokalnych ogrzewnic				przestrzenimagazynowej (wybierz jedną)
Nominalna moc cieplna: P	nom	1,8-2 kW		Ręczny regulator obciążenia cieplnego, z wbudowanym termostatem	Nie
Minimalna moc cieplna (orientacyjna)	Pmin	1	kW	Ręczny regulator obciążenia cieplnego, ze wskazaniem temperatury w pomieszczeniu i na zewnątrz	Nie
Maksymalna ciągła moc cieplna	Pmaks.,c.	2 kW		Elektroniczny regulator obciążenia cieplnego, ze wskazaniem temperatury w pomieszczeniu i na zewnątrz	Nie
Dodatkowe zużycie energii elektrycznej				Moc cieplna wspomagana wentylatorem Nie
Przy standardowej mocy cieplnej	el.maks. 0	kW		Rodzaj regulatora mocy cieplnej/temperatury w pomieszczeniu (wybierz jeden)
Przy minimalnej mocy cieplnej	el.min. 0	kW		Jednostopniowy regulator ciepła, brak regulatora temperatury w pomieszczeniu	Nie
W trybie czuwania el.czuw.	0 kW			Dwa lub więcej stopni regulacji ręcznej, brak regulatora temperatury w pomieszczeniu	Nie
				Z regulacją temperatury w pomieszczeniu termostatem mechanicznym	Tak
				Z regulacją temperatury w pomieszczeniu termostatem elektronicznym	Nie
				Elektroniczny regulator temperatury w pomieszczeniu i dzienny regulator czasowy	Nie
				Elektroniczny regulator temperatury w pomieszczeniu i tygodniowy regulator czasowy	Nie
				Inne opcje regulacji (wiele pozycji do wyboru)
				Regulator temperatury w pomieszczeniu, z czujką obecności	Nie
				Regulator temperatury w pomieszczeniu, z czujką otwartego okna	Nie
				Z opcją regulacji zdalnej Nie
				Z regulatorem rozruchu stopniowego	Nie
				Z ograniczeniem czasu pracy	Nie
				Z czujnikiem przepalonej żarówki	Nie
Dane kontaktowe	Obsługa klienta: 22 338 88 88 www.jula.pl
Model identifier(s): 411077
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output P	nom	1.8-2 kW	Manual heat	heat charge control, with integrated thermostat No
Minimum heat output (indicative)	Pmin	1	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At normal heat output elmax 0 kW Type of heat output/room temperature control (select one)
At minimum heat output elmin		0 kW		Single stage heat output and no room temperature control	No
In standby mode	eISB	0	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic thermostat room temperature control	Yes
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details	www.jula.com
