Product Type	Fan Heater
Brand	Anslut
Model	411-032
Power Supply	230 V ~ 50 Hz
Rated Power	2000 W
Heating Elements	PTC ceramic
Fan Speed Settings	2 (Low / High)
Thermostat	Adjustable
Overheat Protection	Yes
Tip-Over Switch	Yes
Dimensions (H x W x D)	25 x 20 x 15 cm
Weight	1.8 kg
Cord Length	1.5 m
Noise Level	< 45 dB
Cleaning Instructions	Disconnect from power, wipe exterior with a dry cloth. Do not use water or solvents.
Maintenance	Check power cord regularly for damage. Ensure air inlets and outlets are free of dust.
Safety Features	Overheat protection, tip-over switch, thermal fuse
Spare Parts Availability	Contact manufacturer or authorized service centers
Product Certification	CE, RoHS

Frequently Asked Questions - 411-032 Anslut

What is the power consumption of the Anslut 411-032 heater?

The heater has a rated power of 2000 W (2 kW) on high setting.

Can I use this heater in a bathroom?

No, this heater is not designed for damp or wet areas. It should only be used in dry indoor locations.

Does the heater have an automatic shut-off function?

Yes, it features an overheat protection and a tip-over switch that automatically turns off the heater if it is knocked over or overheats.

How do I clean the Anslut 411-032?

Always unplug the heater before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use water, chemicals, or abrasive cleaners. Vacuum the air intake and outlet grills regularly to prevent dust buildup.

What are the dimensions of this heater?

The approximate dimensions are 25 cm height, 20 cm width, and 15 cm depth.

Is the heater suitable for continuous operation?

While it can run for extended periods, it is recommended to turn it off when unattended and avoid covering the unit to prevent overheating.

What type of heating element does it use?

The Anslut 411-032 uses a PTC ceramic heating element, which provides efficient and consistent heat.

Can I adjust the temperature?

Yes, it has an adjustable thermostat that allows you to set your desired room temperature. The heater will cycle on and off to maintain the set temperature.

Where can I find spare parts for this model?

Spare parts are available through Anslut's customer service or authorized service centers. Contact the manufacturer for specific part numbers.

What safety certifications does the heater have?

The heater is CE certified and complies with RoHS standards, ensuring it meets European safety and environmental requirements.

USER MANUAL 411-032 Anslut

User instructions for heater fan, 5 kW

411032

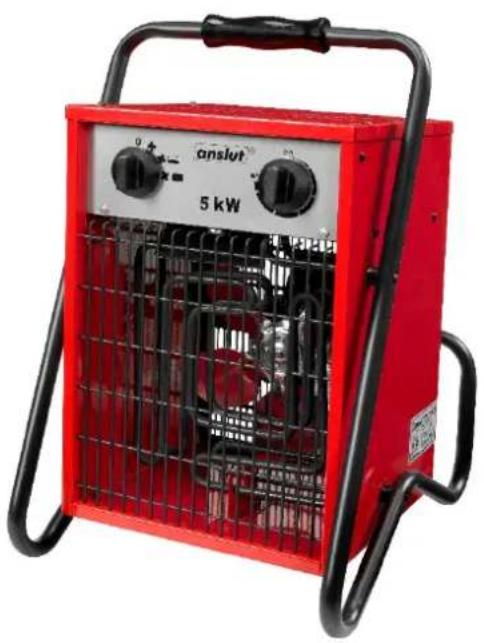

Red portable electrical heating unit with black metal frame and control knobs (no visible text or symbols)

This product is only intended for well-insulated areas, or sporadic use.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributör/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul. Malborska 49, 03-286 Warszawa, Polska

Read the Operating Instructions carefully before use!

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: Certain parts of the appliance can become extremely hot and cause burns. Special attention must be given when children and people with reduced physical, sensory or mental capabilities are present. The heater fan must be connected to an earthed mains supply.

- The heater fan is not intended for use by people (including children) with various disabilities, or by people who have no knowledge of how the appliance is used, unless they are supervised or receive instructions concerning its use from someone responsible for their safety.

• Children must be supervised to ensure they do not play with the fan.

- Place the heater fan on an even, flat, stable surface. The fan must not be tilted or turned upside down.

- Note that the heater fan becomes very hot during use. It must therefore be placed at a safe distance from flammable objects such as furniture and curtains.

• The heater fan must not be covered due to the risk of fire.

• The heater fan must not be installed immediately below a power outlet.

- The heater fan must be protected against dust and moisture. It must not be placed outdoors in rainy weather.

- The heater fan must not be connected to the mains power supply via a timer or similar unit that can turn the fan on automatically.

• It must not be placed in rooms where flammable liquids or gases are used or stored.

- If an extension cord is used, it must be as short as possible and must always be fully unwound.

- No other appliances should be connected to the same power outlet as the one to which the fan is connected.

• Do not use the heater fan close to baths, showers or swimming pools.

- The heater fan must not be placed on vehicles that can start to move or in such a way that it can tip over.

- Do not connect other appliances to the same power outlet to which the heater fan is connected.

- Do not use the heater fan if the power cord or plug is damaged in any way. For safety reasons, the power cord must only be replaced or repaired by an electrician or authorised service centre. Consult your dealer.

- Turn off the heater fan and disconnect from the mains supply before carrying out maintenance.

TECHNICAL DATA

Mains voltage:	400 V/50 Hz
Output:	5000 W
Power levels:	x 4: 55 W high, 2500 W low, 5000 W low and 5000 W high
Temperature:	Adjustable 0-40°C
Protection rating:	IPX4
Dimensions:	300 x 372 x 462 mm
Weight:	7.2 kg
Fuse:	Minimum 15 A

OPERATION

IMPORTANT:

Observe the following safety distances between the fan and other objects:

Side 50 cm

Up 50 cm

Front 180 cm

1. Stand the fan upright on a flat surface at a safe distance from flammable objects.
2. Connect the heater fan to the mains supply.
3. Set the thermostat (2) to MAX and turn the output knob (1) to full power. When the required room temperature has been reached, turn the thermostat knob anti-clockwise until the thermostat switches off. The fan now operates at 2500 W output. The output increases to 5000 W when the temperature drops.
4. The thermostat will now turn the heat on/off automatically to regulate the room temperature to the set value.
5. When the heater fan is used for the first time, it may emit some smoke. This is normal and stops after a while. The smoke comes from the thin coat of protective oil which is applied to the heater element during manufacture.

MAINTENANCE

• Disconnect the mains voltage and allow the fan to cool before cleaning.
• Wipe the outside with a soft cloth dampened with a mild soap solution. Take care to ensure that no water gets inside the heater fan. Wipe with a dry cloth.
• Never use petrol or solvents to clean the heater fan.
• Allow the fan to cool before storing it. Place the fan in a dry, ventilated area.

Modell: 411032
Storhet Beteckning Värde	Enhet Storhet	Enhet
Utgående värmeeffekt Typ av uppvärmning, endast för elektriska behållare för lokal uppvärmning (välj en)				varmvattenberedare med
Nominell utgående värmeeffekt	Pnom	5,0 kW	Manuell reglering av värmelagring, med integrerad termostat Nej
Min. utgående värmeeffekt (kW)	Pmin	2,5 kW		Manuell reglering av värmelagring, med återkoppling av rums- och/eller utomhustemperatur	Nej
Max. kontinuerlig utgående värmeeffekt	Pmax,c	5,0 kW		Elektronisk reglering av värmelagring, med återkoppling av rums- och/eller utomhustemperatur	Nej
Elförbrukning kringutrustning				Utgående värmeeffekt fläktassistans Nej
Vid normal utgående värmeeffekt	elmax	Ej tillämpligt	kW Typ	av reglering av utgående värmeeffekt/rumstemperatur (välj en)
Vid min. utgående värmeeffekt	elmin	Ej tillämpligt	kW	Enstegs utgående värmeeffekt, ingen rumstemperaturreglering	Nej
I viloläge elSB		Ej tillämpligt	kW Minst två manuella steg, ingen rumstemperaturreglering Nej
				Rumstemperaturreglering med mekanisk termostat Ja
				Rumstemperaturreglering med elektronisk termostat Nej
				Rumstemperaturreglering plus dygnstimer Nej
				Rumstemperaturreglering plus veckotimer	Nej
				Andra regleralternativ (flera val är möjliga)
				Rumstemperaturreglering med närvarodetektering	Nej
				Rumstemperaturreglering med detektering av öppna fönster	Nej
				Möjlighet till fjärrstyrning	Nej
				Adaptive startkontroll	Nej
				Drifttidsbegränsning	Nej
				Med svart bulbgivare	Nej
Kontaktuppgifter	Serviceavdelning: 0200 88 55 88 www.jula.se
Modell-ID: 411032
Artikkel Symbol Verdi Enhet Artikkel Enhet
Varmeavgivelse Type varmeeffekt, kun for elektriske oppvarmingsenheter til lagringsområder (velg én)
Nominell varmeavgivelse P	nom	5,0 kW	Manuell varmestyring med integrert termostat Nei
Minimum varmeavgivelse (indikativ)	Pmin	2,5 kW		Manuell varmestyring med registrering av rom- og utendørstemperatur	Nei
Maksimal kontinuerlig varmeavgivelse	Pmaks, c	5,0 kW		Elektronisk varmestyring med registrering av rom- og utendørstemperatur	Nei
Sekundært strømforbruk V	fteassistert varmeavgivelse Nei
Ved normal varmeavgivelse	maks.el – kW Type varmeavgivelse/styring av romtemperatur (velg én)
Ved minimum varmeavgivelse	min.el	–	kW	Ettrinns varmeavgivelse og ingen romtemperaturstyring	Nei
I hvilemodus (standby)	el sb	–	kW	To eller flere manuelle trinn, ingen romtemperaturstyring	Nei
				Romtemperaturstyring med mekanisk termostat	Ja
				Romtemperaturstyring med elektronisk termostat	Nei
				Elektronisk romtemperaturstyring med dagtidsur	Nei
				Elektronisk romtemperaturstyring med uketidsur	Nei
				Andre styringsalternativer (flere valg mulig)
				Romtemperaturstyring med nærværssensor	Nei
				Romtemperaturstyring med åpent vindu-sensor	Nei
				Med mulighet for fjernstyring	Nei
				Med tilpasningsdyktig startstyring	Nei
				Med driftstidsbegrensning	Nei
				Med UV-pæresensor	Nei
Kontaktinformasjon	Serviceavdeling: 67 90 01 34 www.jula.no
Identyfikator(y) modelu: 411032
Pozycja Symbol Wartość Jednostka Pozycja Jednostka
Moc cieplna Wpisz moc cieplną, dot. tylko lokalnych ogrzewnic				przestrzenimagazynowej (wybierz jedną)
Nominalna moc cieplna: P	nom	5,0 kW		Ręczny regulator obciążenia cieplnego, z wbudowanym termostatem	Nie
Minimalna moc cieplna (orientacyjna)	Pmin	2,5 kW		Ręczny regulator obciążenia cieplnego, ze wskazaniem temperatury w pomieszczeniu i na zewnątrz	Nie
Maksymalna ciągła moc cieplna	Pmaks.,c.	5,0 kW		Elektroniczny regulator obciążenia cieplnego, ze wskazaniem temperatury w pomieszczeniu i na zewnątrz	Nie
Dodatkowe zużycie energii elektrycznej				Moc cieplna wspomagana wentylatorem Nie
Przy standardowej mocy cieplnej	el.maks. nd. kW			Rodzaj regulatora mocy cieplnej/temperatury w pomieszczeniu (wybierz jeden)
Przy minimalnej mocy cieplnej	el.min. nd. kW			Jednostopniowy regulator ciepła, brak regulatora temperatury w pomieszczeniu	Nie
W trybie czuwania el.czuw.	nd. kW			Dwa lub więcej stopni regulacji ręcznej, brak regulatora temperatury w pomieszczeniu	Nie
				Z regulacją temperatury w pomieszczeniu termostatem mechanicznym	Tak
				Z regulacją temperatury w pomieszczeniu termostatem elektronicznym	Nie
				Elektroniczny regulator temperatury w pomieszczeniu i dzienny regulator czasowy	Nie
				Elektroniczny regulator temperatury w pomieszczeniu i tygodniowy regulator czasowy	Nie
				Inne opcje regulacji (wiele pozycji do wyboru)
				Regulator temperatury w pomieszczeniu, z czujką obecności	Nie
				Regulator temperatury w pomieszczeniu, z czujką otwartego okna	Nie
				Z opcją regulacji zdalnej Nie
				Z regulatorem rozruchu stopniowego	Nie
				Z ograniczeniem czasu pracy	Nie
				Z czujnikiem przepalonej żarówki	Nie
Dane kontaktowe	Obsługa klienta: 22 338 88 88 www.jula.pl
Model identifier(s): 411032
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output P	nom	5.0 kW	Manual heat	charge control, with integrated thermostat No
Minimum heat output (indicative)	Pmin	2.5 kW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	5.0 kW		Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At normal heat output elmax N/A kW Type of heat output/room temperature control (select one)
At minimum heat output elmin N/A kW				Single stage heat output and no room temperature control	No
In standby mode	eISB	N/A	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic thermostat room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option	No
				With adaptive start control	No
				With working time limitation	Yes
				With black bulb sensor	No
Contact details	www.jula.com
