Product Type Tablet
Brand Skytex
Model Skypad SP723
Display Size 7 inches
Dimensions (approx.) 190 x 110 x 10 mm
Weight (approx.) 300 g
Power Supply Rechargeable lithium battery, 5V DC via micro-USB
Operating System Android
Processor (typical) Quad-core 1.2 GHz
Memory (RAM) 1 GB
Storage 8 GB internal, expandable via microSD
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera Rear: 2 MP, Front: 0.3 MP
Battery Capacity 3000 mAh
Charging Time Approximately 3 hours
Display Resolution 1024 x 600 pixels
Audio Built-in speaker, 3.5 mm headphone jack
Sensors G-sensor
Cleaning Instructions Use a soft, dry cloth. Do not use liquids or abrasives.
Safety Warnings Avoid exposure to water, extreme temperatures, and physical shock.
Repairability Battery replaceable by authorized service center only.
Spare Parts Availability Contact Skytex support for replacement parts.
Manual Language English, with translations available for many languages.

Frequently Asked Questions - Skypad SP723 Skytex

What is the screen size of the Skytex Skypad SP723?
The Skypad SP723 has a 7-inch display with a resolution of 1024 x 600 pixels.
How do I charge the tablet?
Use the included micro-USB cable and a 5V USB power adapter. Charging time is approximately 3 hours.
Can I expand the storage?
Yes, the tablet supports microSD cards up to 32 GB for additional storage.
What is the battery life?
The 3000 mAh battery provides up to 4-5 hours of mixed usage.
Does the tablet have a camera?
Yes, it has a rear 2 MP camera and a front 0.3 MP camera for video calls.
How do I clean the screen?
Use a soft, lint-free cloth. Avoid using water, cleaning liquids, or abrasive materials.
Is the tablet water-resistant?
No, the tablet is not water-resistant. Keep it away from moisture and liquids.
Can I use a Bluetooth keyboard?
Yes, the tablet supports Bluetooth 4.0, so you can pair a Bluetooth keyboard for easier typing.
What operating system does it run?
The Skypad SP723 runs on Android (specific version varies by production batch).
Where can I download the user manual?
The manual is available for free on notice-facile.com in PDF format. You can download it directly from our website.

User questions about Skypad SP723 Skytex

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Tablet in PDF format for free! Find your manual Skypad SP723 - Skytex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Skypad SP723 by Skytex.

USER MANUAL Skypad SP723 Skytex

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to dispose of all packing materials after opening.

To avoid damaging the screen, do not touch it with excessive force or with any object other than your finger. For best response, make sure your hands are clean before using the touch Screen controls.

The battery used in this tablet may present a fire or chemical burn if misused. Don't heat or incinerate the tablet. Don't leave it in a place subject to direct sunlight, or in a car with windows closed. Don't connect to a power source from another manufacturer. This may result in the risk of fire or electric shock.

SKYTEX is not responsible for any loss or damages incurred from your access to third party content, Apps, or services and expressly disclaims all warranties of any kind.

To avoid damage and data corruption, do not remove a memory card while data is being written to or read from the card. As an example, do not remove a card while playing a video or music file stored on the card. The available menu items are dependent on the unit. All illustrations are for reference only.

Customer Use Only:

Enter the model number of your tablet and save for future reference.

Model #: ____

Serial #: ____

Be especially cautious with applications that request access to many functions or to a significant amount of your data. You are responsible for the results of applications installed on your tablet.

The Tablet's "mass storage mode" is compatible with many operating systems including: Windows® XP, Vista, 7 or higher and Mac OS or Linux.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

Company Trademarks

SKYTEX logo is trademarks of SKYTEX TECHNOLOGY INC.

Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.

HDMI, the HDMI logo are trademarks or registered trademarks of HDMI Licensing, LLC.

All other trademarks and logos are property of their respective owners unless indicated otherwise.

FCC Compliance

This tablet complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This tablet may not cause harmful interference, and
(2) This tablet must accept any interference received, including interference that may cause undesired operation.

Note: This tablet has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This tablet generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this tablet does cause harmful interference to radio or television reception, which can be determined by turning the tablet off and on, the user is encouraged to attempt to correct the interference by one of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the tablet and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio / TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the tablet unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop using the tablet.

SAFETY NOTICES

  1. Read: and retain these instructions for future reference.
  2. Warnings: on the product and User Guide instructions should always be adhered to.
  3. Cleaning: Do not use liquid cleaners or aerosol cleaners. Use a damp soft cloth for cleaning.
  4. Adapters: Use UL certified adapters recommended by SKYTEX. Other adapters may be hazardous or void your warranty.
  5. Moisture & Water: Do not use near water such as near bath tub, kitchen sink, laundry tub, or swimming pool.
  6. Ventilation: Should there be slots and openings in the tablet, they are provided for ventilation to ensure reliable operation of and protection from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
  7. Power Sources: This tablet should be operated from the type of power source indicated on the rating label. Consult your product dealer or our website for more information. For products intended to operate from battery power or other sources, refer to the operating instructions.
  8. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

  9. Object and Liquid Entry: Never put objects of any kind on to or into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

  10. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards and will void your warranty. Refer all servicing to qualified service personnel.

  11. Damage Requiring Service: Unplug this product from

the wall outlet and refer servicing to qualified service personnel: a) when the power-supply is damaged; b) if liquid has been spilled; c) if the product has been exposed to rain or water; d) if the product does not operate normally; e) if the product has been dropped or damaged in any way (voids warranty); f) when the product exhibits a distinct change in performance.

  1. Heat: The product should be kept away from heat sources such as a radiator, heat register, stove, or other products that generate heat.

  2. Replacement Parts: Unauthorized substitutions when service this product may result in fire, electric shock, or other hazards. Make sure your service technician has used parts specified by the manufacturer.

TABLE OF CONTENTS

Important Notices....1

Safety Notices....2

FCC Compliance....3

Table of Contents....4

Introduction....5

Tablet Controls & Descriptions....6-7

Charging Your Tablet....8

Power ON/OFF/STANDBY....9

Connecting To a Wireless Network....10

Install Apps ....11

Browse the Web....12

Settings: Date, Time, Screen Time Out.... 13

Home Screen Applications.... 14

Discover Application Shortcuts.... 15

Notifications Bar / Connecting HDMI to HDTV / Using Mini-USB.... 16

Transfer Music/Video/Photos....17

Playing Music/Video....18

Video Streaming/ Insert Memory Card....19

Camera & Video Chat....20

Setting Up Your Email....21

Troubleshooting....22

Specifications....23

Warranty & Support....24

INTRODUCTION

Thank you for purchasing your new Skytex 7" tablet with capacitive multi-touch display. It is designed to keep you entertained and engaged for hours at a time. With its internal storage and Micro-SD card slot (for up to an additional 32GB), you can house a library of games, movies, music, eBooks, photos and documents. In addition, 5GB of free cloud storage is provided through the CloudLink Toolbox which includes other productivity Apps. View video files from your HDTV in high definition with HDMI Your tablet is pre-installed with many popular AppLinks to get you started once connected to Wi-Fi.

Discover and download many of your favorite Android Apps from the Skytex App Store*. The Apps are optimized specifically for your screen size bringing you the best experience possible in which to view them. In addition, the 1Mobile Market offers more than 300,000 Android Apps including gaming, productivity for business, children's education, and more.

It is recommended that you read this user guide completely before first use. Visit our website at www.skytex.com to register your tablet and review additional information and updated FAQ's.

PACKAGE CONTENTS: SKYPAD TM Tablet, USB Cable, AC Adapter, Stereo Earbuds.

* Approximately 1.5GB of internal storage is used for the OS, system files and pre-installed Apps.

** Powered by Good e-Reader.

TABLET CONTROLS & DESCRIPTIONS

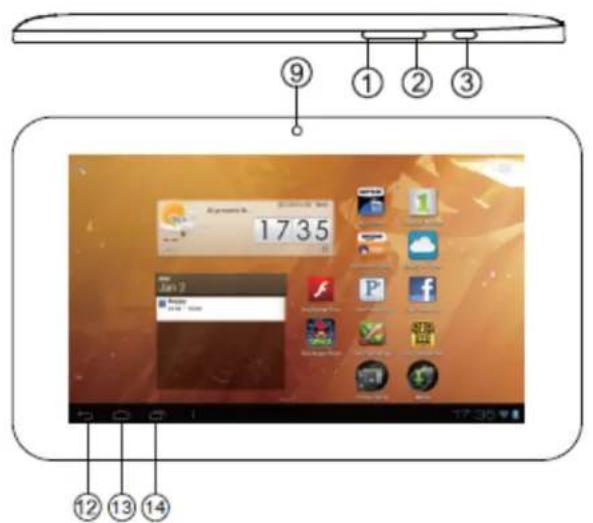

⑨ ① ② ③ 17:35 Jan 2 12 13 14

Diagram of a device panel with numbered labels pointing to different components, including a side view and a front view.

  1. Volume - Press and hold to decrease volume.
  2. Volume + Press and hold to increase volume.
  3. Power On/Off Press and hold momentarily to turn on; when powering off you will be asked to confirm.
  4. Built-in Mic Records audio including your voice while video chatting, etc.
  5. 3.5mm Jack Audio connection to listen to stereo earphones or powered speakers.
  6. Mini-HDMI Connect to an HDTV or HD projector to view images in high definition resolution.
  7. Mini-USB OTG Connect to a computer to transfer files or for use with a keyboard / mouse.

TABLET CONTROLS & DESCRIPTIONS
⑨ ① ② ③ 17 35 Jan 2 12 13 14

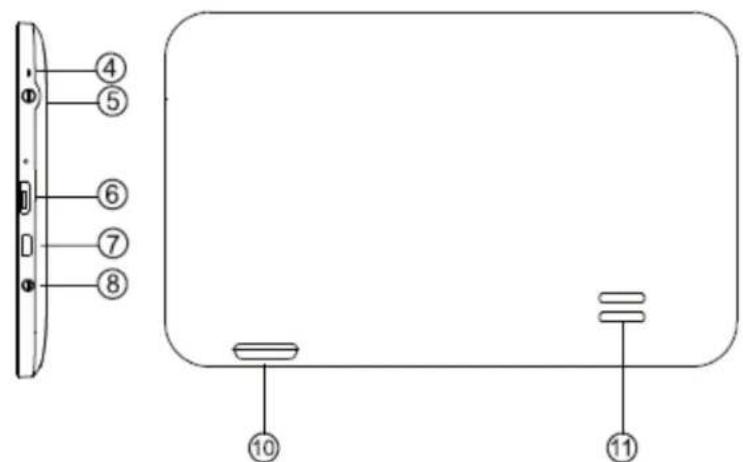

Diagram showing labeled components of a device panel with numbered parts and structural details

  1. DC IN Connect the AC power adapter to charge the battery (No more than 3 hours)
  2. Webcam Front facing camera for video chat.
  3. MicroSD Card Slot Load external storage memory card (up to an additional 32GB).
  4. Speaker Listen through speaker unless earphone jack is connected. Sound will mute.
  5. Back Key Tap to go back to the previous page.
  6. Home Key Tap to go to the Home Launcher Screen.
  7. Open Apps Key Tap to view open applications. Swipe to the left to close and save battery life.

CHARGING YOUR TABLET

The tablet comes with a built-in rechargeable battery that should be charged fully prior to first use. Connect the AC adapter to your Tablet via the DC input on the bottom of the Tablet (illustrated below). Disconnect the Tablet when its fully charged.

A full charge and discharge (15% or below) cycle is recommended to maximize the battery's life and performance.

If the battery is completely drained please allow the Tablet at least 10-15 minutes to recharge prior to turning it on.

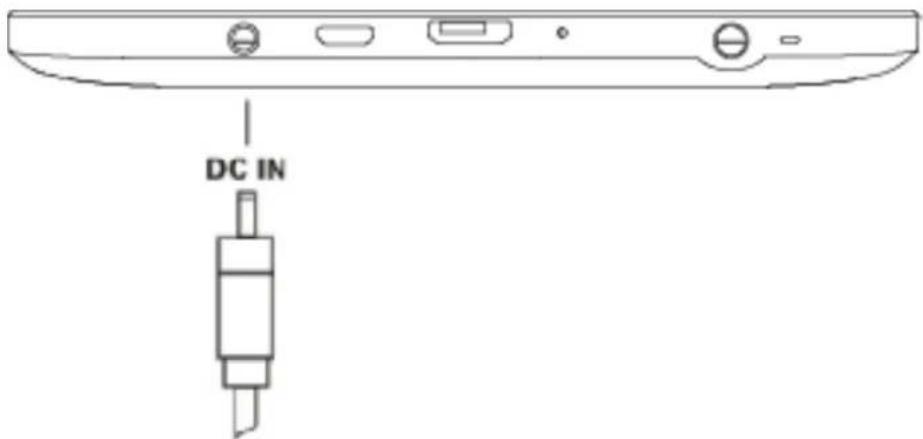

DC IN

Note: When charging the Tablet while powered OFF, the battery indicator appears momentarily. Although the battery indicator disappears, the Tablet will continue to charge.

POWER ON/OFF/STANDBY MODE

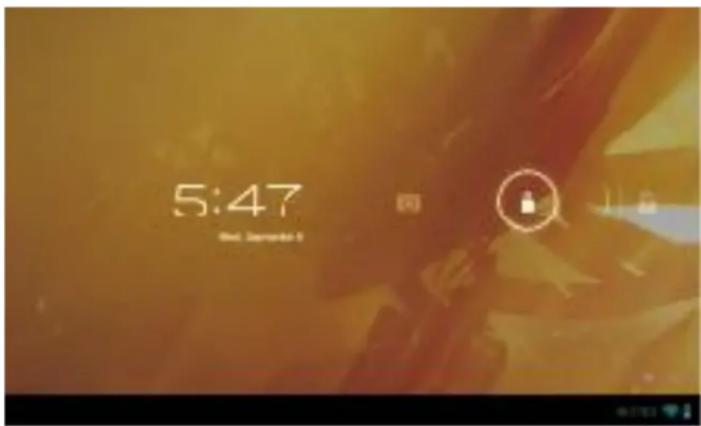

ON: Press and hold the Power button until the Tablet's loading screen appears. Once the lock screen appears, unlock the Tablet by swiping your finger from the left 'Unlock' icon to the right 'Unlock' icon (illustrated below). Should the display 'Timeout' (or go black) before you are able to unlock the Tablet, press the Power button for one second to turn the display back on.

5:47 Wed. Semerke 9

NOTE: Leaving the Tablet in Standby Mode when not in use will result in battery drain. Switch the Tablet off completely to conserve power between charges.

SKYPAD

OFF: Press and hold the Power button until the Tablet options appear. The options will prompt you to tap 'OK' to power the Tablet off or 'Cancel' to return back to the Home screen.

STANDBY: To enter Standby Mode, simply tap and release the Power button. To wake from Standby, tap and release the Power button.

CONNECTING TO A WIRELESS NETWORK

NOTE: To connect your Tablet to the Internet you must have an Internet connection and a wireless network.

A. Open the App Tray > Select 'Settings' > Switch the 'Wi-Fi' option from 'OFF' to 'ON' by tapping the 'OFF' icon.

B. A list of networks will appear to the right of the screen > Select your network and enter the password/network key.

C. Tap 'Connect' to complete the connection

Skytex Skypad SP723 - CONNECTING TO A WIRELESS NETWORK - 1

Tip: Check the "Show Password" box to verify password was entered correctly.

Settings SCAN ADD NETWORK WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL SKYTEX Connected @Home7 CAB WFHWC Secured with WEP (-)HP4577BD (-)HPC96899 WJ9R5 Secured with WEP red Secured with WPA2 (protected network available) 7:23PM

REQUIREMENT: To connect you will require a wireless router or an access point through a broadband internet connection. You must know the name of your network password and if your network is secured. Settings of this nature may be found on your wireless router and/or its user guide.

NOTE: If you are connected to network previously used with this tablet, it will automatically connect. If you don't see your network in the list, tap the SCAN icon located on the top right corner of the screen.

INSTALLING APPS

A. Tap the 📄 or App and browse by Category or Search for popular apps to download on to your Tablet. Select the desired App and download it. (You must be connected to a wireless network.)
B. NOTE : When your download has completed you, will be prompted to install the App. Tap 'Install' and when completed the App will appear in your App Tray.

5:50 Status Bar Status

Discover and manage pre-populated productivity apps within CloudLink's Toolbox that includes 5GB of free cloud storage; Catch Notes; Office Suite to view docs spreadsheets, PowerPoint; premium Apps available also.

SKYTEX APP STORE Search New Apps Categories i-Reader Apps Comic Reader Apps Essential Apps Games Magazines and Newspapers Android App Stores Video and Audio Apps Kobo Apps Top New Android Apps Social Media Business and Productivity Sports Apps Travel and Leisure Education Popular Apps My Apps Amazon Kindle Reader for Android Adobe PDF Reader Aldiko Kobo Google Books for Android Barnes and Noble Nook

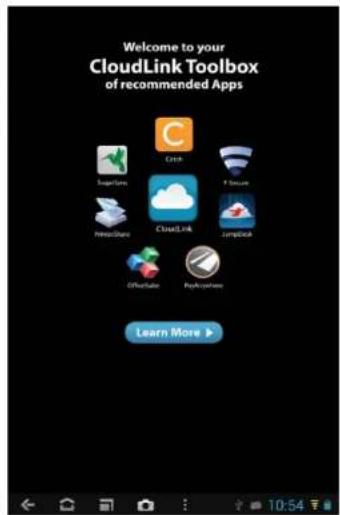

Welcome to your CloudLink Toolbox of recommended Apps SugarSens Crisch F Secure HyperShare CloudLink JumpBook OfferSuite PaytoPaycom Learn More >

Skytex Skypad SP723 - INSTALLING APPS - 4

The Skytex App Store is stocked with the most popular free Apps that have been “optimized” specifically for the screen size on your Tablet. Hundreds more are optimized for release weekly.

Skytex Skypad SP723 - INSTALLING APPS - 5

Find over 300,000 apps at 1Mobile including online shopping apps, streaming video apps, games, social media, radio, news, recipes, and more.

Skytex Skypad SP723 - INSTALLING APPS - 6

apps Purchase Apps from the Amazon App Store Check their Free App of the Day Promotion featured daily.

BROWSE THE WEB

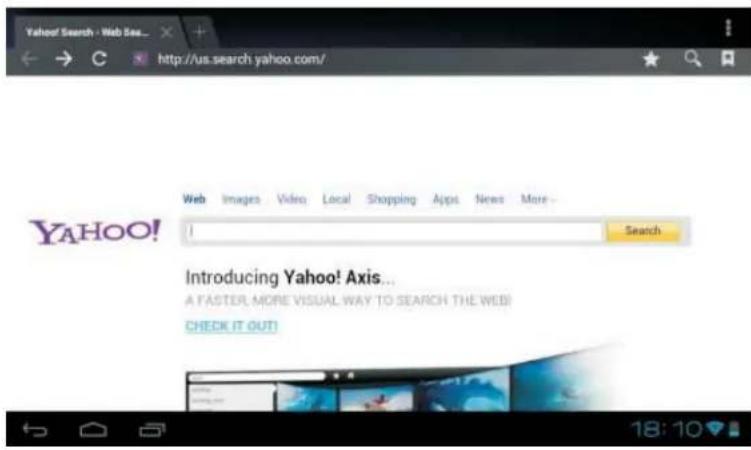

Yahoo! Search - Web See... http://us.search.yahoo.com/ Web Images Video Local Shopping Apps News More Search YAHOO! Introducing Yahoo! Axis... A FASTER, MORE VISUAL WAY TO SEARCH THE WEB! CHECK IT OUT!

Your Tablet is equipped with a full HTML Web Browser that enables you to view web pages.

A. To access the Web Browser select the from the App Tray.
B. To enter a URL, tap the URL field at the top of the browser and enter the desired link using the QWERTY keyboard.
C. Tap 'Go' to load the page.

Skytex Skypad SP723 - BROWSE THE WEB - 2

Bookmark a Favorite Page

A. Scroll to the top of the desired web page.
B. Tap the star on the URL field > Tap 'OK.'

Yahoo! Search - Web Search http://as.search.yahoo.com/web/?p=5x=utf-B&I=ch Address: http://as.search.yahoo.com/web/?p=5x=utf-B&I=ch Account: Local Add to: Bookmarks YAHOO! Web Images Videos Local Shapping Cancel OK Tab Q W E R T Y U I O P 7123 A S D F G H J K L Z X C V B N M , . 8 >/ English 0/0 9:51 0

SETTINGS: Date, Time, & Screen Timeout

Manual Time Setting

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Time' > Set the hour and minute by tapping the arrow keys; then tap 'Set.'

Manual Date Setting

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Date' > Set the month, date, and year by tapping the arrow keys; then select 'Set.'

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Brightness Wallpaper Auto-rotate screen Sleep After 5 minutes of activity Font size Huge Accelerometer coordinate system Accelerometer uses the default coordinate system. screen adoption Used to adjust size of some games display screen.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use networks-previolated time Automatic time zone Use networks-provided time zone Set folder 4/16/2012 Set folder CS 60.888 Select time zone EAT-08:50, EAT-08:50 Use 24-hour format 1:00 pie Select date format 12/31/2012 7:23PM

Auto Date & Time

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Automatic Date & Time' to check the box.

Note: The 'Automatic Date & Time' option sets the date and time using the network provided. Should an incorrect time zone appear, tap 'Select Time Zone' and find the appropriate time zone.

Screen Timeout

A. Open the App Tray > Select 'Settings' > 'Display' > 'Sleep.'
B. A dialogue box will appear with several options to choose from. Tap the length of time (in seconds or minutes) before the Tablet goes black (to conserve battery life).

HOME LAUNCHER SCREEN APPLICATIONS

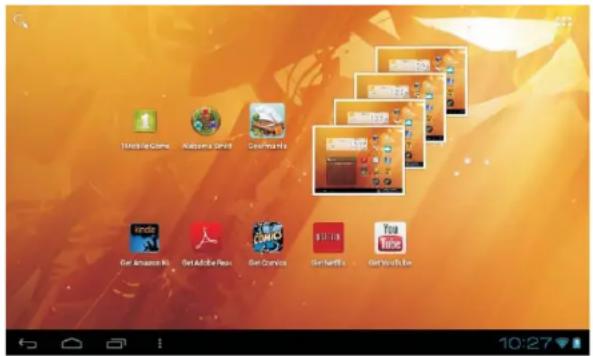

Home Launcher Screen

This is your starting point. The Home Launcher screen consists of 5 screens (slide finger left or right across the screen to view). You'll find many features including pre-installed AppLink shortcuts of the most popular Apps used today, that are ready for download once you connect to the internet.

APPS WIDGETS 1 Mobile Game 1 Mobile Mark Alabama Smith App Store Browser Calculator Calendar Camera Clock CloudLink Tsc Downloads Email File Manager Gallery Get Adobe Tsc Get Adobe Res Get Amazon A Get Amazon R Get Angry Bits Get Console Get Facebook Get Fruit Ninja Get Netflix Get Pandora

NOTE: Apps that are running in the background will take up valuable memory and drain battery resources. Tap the icon to view any open Apps, then swipe towards the left to close them.

At present th... 2013/01/02 Wed. 17:35 SKYTEX Agilent Amazon Get America Get Simple 1 Google Maps Google Maps Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple Get Simple

Add or Remove Favorite Apps from App Tray

A. To open the App Tray tap the icon located at the upper right hand corner of the Tablet to display all of the applications that have been pre-installed or downloaded to your Tablet.

B. To add to the Home Launcher screen, tap and hold the desired app. Release the icon onto the Home screen.

C. To remove an App from the Home Launcher screen, tap and hold the icon until it enlarges, then slide to remove to Trash.

DISCOVER APP SHORTCUTS

Your Home launcher screens feature pre-installed Apps shortcuts and up to 12 Applinks for your convenience. They are ready for download once you connect to the internet. Several examples are described below.

Music – Access music files installed on your Tablet.

App Tray – Access all Apps that are installed on to your Tablet.

Settings – View and modify settings for Wireless network, display, battery, menu language, etc.

Internet Browser – Access the world wide web when connected to a wireless network.

File Manager – View all your files installed on your Tablet.

Gallery – Access photos and videos you have installed on your Tablet.

Skytex App Store – Thousands of the most popular Android Apps specifically optimized for your tablet!

1Mobile Market – Discover 300,000+ free Android Apps: games, social media, music, education, books, etc.

Get Amazon – One of (up to 12) pre-installed Applinks direct you to download the actual App once connected to a wireless network. When installed the App will be located in your App Tray. It is recommended to delete the "Get" Applink once the actual App is downloaded and installed, to reserve space on your Home screen.

Get Kindle –Download and again access to millions of eBooks, magazines, newspapers, audio books, games, blogs, and more.

Cloudlink – Discover and manage pre-populated productivity suite content from CloudLink's Toolbox including 5GB of free cloud storage.

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 1

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 2

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 3

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 4

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 5

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 6

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 7

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 8

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 9

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 10

Skytex Skypad SP723 - DISCOVER APP SHORTCUTS - 11

NOTIFICATIONS BAR / CONNECT TO TV / USING mini-USB

NOTIFICATIONS BAR

The Notifications Bar, located at the bottom of the Home Launcher screen displays new messages, alerts and icons that show you the time, wireless network status, battery charge, progress of downloads, connectivity of

Bluetooth or mini-USB, alarm setup, and more.

Skytex Skypad SP723 - NOTIFICATIONS BAR - 1
Back

Skytex Skypad SP723 - NOTIFICATIONS BAR - 2
Home

Skytex Skypad SP723 - NOTIFICATIONS BAR - 3
Open Apps

Skytex Skypad SP723 - NOTIFICATIONS BAR - 4
App Tray

Back – Tap to go back to the previous page.

Home – Tap to go to the Home Launcher Screen

Open Apps – Tap to view open applications. Swipe to the left to close and save battery life.

App Tray – Access all applications installed on to the tablet.

APPS WIDGETS 1Mobile Game 1Mobile Mark Alabama Smith App Store Browser Calculator Calendar Camera Clock CloudLink Top Downloads Snail File Manager Gallery Get Adobe Fan Get Adobe Reo Get Amazon A Get Amazon X Get Angry Bit! Get Comics Get Facebook Get Fruit Ninja Get Netflix Get Pandora

HDMI

Your Tablet features an HDMI output to display its content digitally to your HDTV. Enjoy the benefits of high definition video by connecting an optional mini HDMI HD cable (available at the SKYTEX store).

Mini-USB

Your tablet offers true versatility when using the mini-USB port. Select cables are available at the SKYTEX online store.

Keyboard/Mouse – connect an optional keyboard or mouse using an optional mini-USB OTG cable.

Ethernet Adapter – connect your tablet to a wired internet network using an optional Ethernet to USB dongle.

3G Wireless – connect an optional 3G wireless modem dongle. Insert your SIM card into it and use your tablet when Wi-Fi isn't available.

Transfer Files & Additional Storage—connect a flash drive using the cable provided with your tablet.

A. Connect your Tablet to your PC via the USB cable.
B. A USB symbol will appear in the Notifications Bar/Bottom Bar
C. Select the symbol that appears > Tap USB Connected > Turn on USB Storage.
D. You are now able to drag-and-drop your music, video, and photo files between your Tablet and PC.

NOTE: Your Tablet will be recognized as an external drive. Once completed, tap 'Turn off USB Storage' and remove Tablet from your PC.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Watch Videos

A. Go to the App Tray and select 'Gallery'
B. Select the movie file to view.
C. Once the video begins, you may select playback controls that appear on the display.

Skytex Skypad SP723 - Watch Videos - 1

View Photos

A. Go to App Tray and select 'Gallery'
B. Tap on photo files you would like to view.

Skytex Skypad SP723 - View Photos - 1

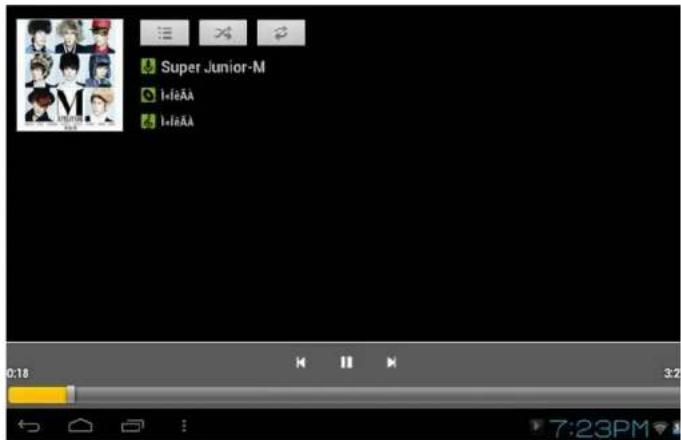

Play Music

A. Go to App Tray then tap the 'Music'
B. Select the desired song and adjust volume settings to your liking.
C. To exit out of the App, tap 'Home or 'Back.'
D. To stop music playback, go back to the Music App and tap 'Pause.'

Skytex Skypad SP723 - Play Music - 1

Skytex Skypad SP723 - Play Music - 2

natural_image Industrial worker operating machinery on a utility pole, captured in a photo frame (no visible text or symbols)

NOTE: Hearing experts advise against the constant use of headphones played at high volume. Constant exposure to higher volumes may lead to hearing loss. Should you experience ringing in the ears or hearing loss, discontinue use.

Your Tablet is capable of streaming videos directly from the Internet or via 3 rd party streaming applications. Popular streaming video applications are available through the Skytex App Store for download on to the Tablet. Prior to streaming movie files, download the application of your choice.

You are come Alacoma Group Cayama Info Get Amazon's Get Google Press Get Google Get Netflix Get YouTube

INSERTING A MICRO-SD CARD

Your Tablet will accept a micro-SD memory card to add up to an additional 32GB of storage for videos, music, photos, documents, and more.

Align an optional memory card with the card slot. Make certain the metal contacts are facing downward. Slide the card carefully into the spring-loaded slot until it clicks securely.

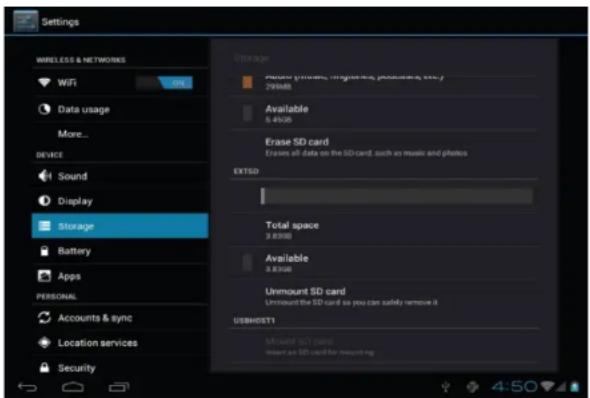

To remove safely, enter SETTINGS and STORAGE to view options. Tap UNMOUNT SD card, then push the memory card with your thumbnail further into the slot until it springs outward of the slot. Do not remove card while any app is in use.

Settings WIRELESS & NETWORKS WiFi Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Storage Music groups, music files, product, etc. 29868 Available 5.4508 Erase SD card Erase all data on the SD-card, such as music and photos EXTSD Total space 3.8308 Available 3.8308 Unmount SD card Unmount the SD card so you can safely remove it USBHOST1 Mount SD card Insert an SD card for mounting 4:50

NOTE:

Do not attempt to insert objects other than a micro-SD memory card into the card slot. A compatible memory card should fit easily into the card slot; If you encounter resistance, check the alignment of the card. Do not attempt to force the card in. Avoid touching the gold contacts of the memory card.

CAMERA & VIDEO CHAT

Skytex Skypad SP723 - CAMERA & VIDEO CHAT - 1

natural_image Close-up of a smiling adult and child with camera control panel visible (no text or symbols on main subjects)

Camera Functions

A. Tap the Trash Can icon to delete.
B. Tap Menu > 'Set Picture As' to set the photo as the Table's background.

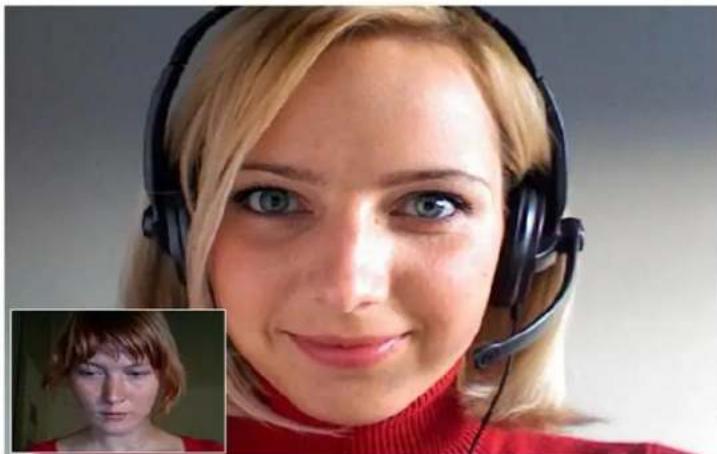

Video Chat

A. Download and install your favorite video chat app from the Skytex App Store or 1Mobile Market.
B. The Webcam is set as the default camera for video chat.

Camera Use

A. Open the 'Camera' application by tapping the Camera icon
B. Switch between front and rear camera by tapping the ● icon
C. Capture images shown on the display by tapping
D. Tap the thumbnail of an image that appears to view or edit the photo.
E. You may also view your photos with the 'Gallery' app

Skytex Skypad SP723 - Camera Use - 1

Skytex Skypad SP723 - Camera Use - 2

natural_image Portrait of a woman wearing a headset, with an inset photo of a person in a red turtleneck (no visible text or symbols)

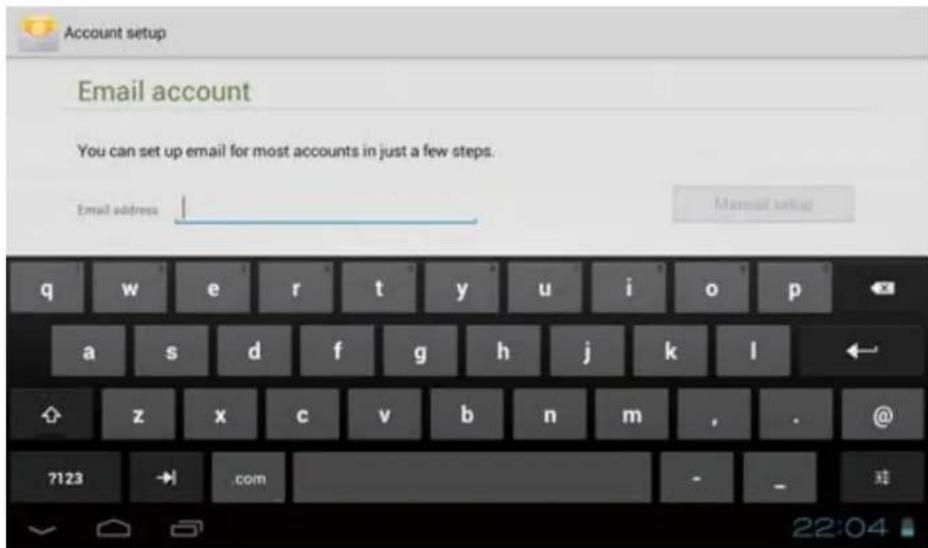

SETTING UP YOUR EMAIL

A. From your App Tray, tap the 'Email' icon to enter the Email client.

B. Enter an Email address and a password.

C. After you have entered your information, press 'Next' to move to the next step.

D. The Email app will test the incoming and outgoing mail servers. Once completed, you will be prompted to enter an account name and your name.

E. The account name is used to identify the name of the account on the Tablet.

F. Your name will be displayed on all outgoing messages sent from the Email app on your Tablet.

Account setup Email account You can set up email for most accounts in just a few steps. Email address Manual setup q w e r t y u i o p a s d f g h j k l z x c v b n m , . @ 7123 → .com - _

NOTE: Certain Email providers will require you to enter more details about the type of account you are using. You will have three choices: POP3, IMAP, and Exchange. If unsure of your account type, please contact your Email provider for more information.

TROUBLESHOOTING

For more updated FAQs and troubleshooting tips, visit us at www.skytex.com/support

Symptom Solution

My touchscreen is not responding. How do I reset the tablet?

The battery drained completely and now it won't turn on...

I inserted a MicroSD card. Where are my files located?

1Mobile Market states a 'Network Error' message when I attempt a download.

My Wi-Fi says it's 'Disconnected' after I attempt to connect?

To reset, first make sure the power source is unplugged. Press and hold the Power button for 10 seconds and then plug the power source back in. Press the Power button for another 2-3 seconds.

To erase all data on the Tablet go to Settings > Backup & reset > Factory Data Reset. ALL DATA WILL BE LOST.

After inserting the card, find your files in the "File Manager" application. Go to the App tray; open 'File Manager'. Select the SD card icon to access files.

The App requires an update to the most recent version. Visit http://www.1mobile.com on your tablet's browser and download the updated version.

The 'Disconnected' status means that the tablet is not connected to any network. Make sure the correct password is entered when connecting to your wireless network. This password could be on the bottom of the router or a password that was created by someone when the Wi-Fi device was originally set up.

SPECIFICATIONS

HD Display Type: 7" 800 x 480 Capacitive Touchscreen Display

Processor Type: Cortex A8 1.2GHz Processor + Mali 400 GPU

Operating System: Android 4.1.1 Ice Cream Sandwich

Storage Capacity: 8GB* Internal Storage

Internal Memory: 1GB RAM

Memory Card Supported: Micro-SD Expansion to 32GB

Wireless LAN: 802.11b/g/n

HDMI: Yes

Web Camera: VGA

Mini USB: Yes

Stereo Headphone Output: 3.5mm

Tablet Dimensions: 7.1"(L) x 5.1"(W) x 0.3"(D)

Tablet Weight: 9 ounces

Battery Capacity: Up to 6 hours*

Input Voltage, Power Adapter 100V/240VAC, 50/60Hz, 5V Output (UL Listed)

Limited Warranty: 1 Year Parts & Labor

NOTE:

1- *Available storage capacity will be less due to operating system and pre-installed software applications.
2- Battery life will vary depending on your settings, use and other factors.

WARRANTY & SUPPORT

SKYTEX Technology Inc. warrants against defects in material and workmanship for a period of one year from original purchase date when purchased from an authorized U.S. reseller/retailer by the original purchaser or is a consumer who received the tablet as a gift. You must retain and provide the original bill of sale (or photocopy) as proof of purchase in case the tablet requires service. Retain the original box and inner packaging to ship if necessary.

Your Responsibility

Warranty service shall be provided after a return authorization number (RMA#) is provided to you by our customer support representative. For one year, SKYTEX will provide at no charge, service repairs using new or replacement parts. In certain cases your tablet may be replaced with a refurbished model that meets or exceeds factory specifications. Service provided or refurbished replacement is warranted for the duration of the original warranty period or 45 days, whichever is greater. Warranty extends to defects in materials or workmanship and does not cover cosmetic imperfections, damage incurred during shipment to SKYTEX, misuse, accidental drops that crack the screen, connection to improper equipment, or repairs by an unauthorized party. Write the RMA number on the package; include a copy of the store receipt and description of the issue with the product and serial number.

How to Obtain Warranty Service

If after following the User Guide, should you find it necessary to contact Customer Support, email or call between 9am-5:30pm Mon-Fri (Pacific Time). Have your date of purchase, serial number, and a full understanding of the issue ready for your representative. You are responsible for the transportation costs and protective packaging associated with shipping the product to SKYTEX safely. Ship the tablet using a service that provides tracking information.

Customer Support Mon-Friday 9:00am-5:30pm

Phone: (888) 759-8399

Email: support@skytex.com Website: www.skytex.com

SKYPAD

7" Multimedia Tablet

At present th... 2013/01/02 Wed. N/A 17 35 WED Jan 2 Happy 18:00 - 19:00 SKYTEX App Store 1 Mobile Marketplace amazon appS Get Amazon A's CloudLink Tool Get Adobe Flash! Get Pandora Get Facebook Get Angry Birds Get Fruit Ninja Get Tempe Fun Productivity Media 17:35

CONFORMIDAD CON LA FCC

Camera & Video Chat....20

SKYTEX APP STORE Search New Apps Categories i-Reader Apps Comic Reader Apps Essential Apps Games Magazines and Newspapers Android App Stores Video and Audio Apps Kids Apps Top New Android Apps Social Media Business and Productivity Sports Apps Travel and Leisure Education Popular Pages My Apps Amazon Kindle Reader for Android Adobe PDF Reader Aldiko Kobe Google Books for Android Barnes and Noble Nook

Welcome to your CloudLink Toolbox of recommended Apps SuperRare Crick F Secure FreeShare CloudLink JumpBook Offshore Right phones Learn More >

Yahoo Search - Web Go http://us.search.yahoo.com/web/?p=8e=utf-8&I=ch Account Local Add to Bookmarks YAHOO! Web Images Video Local Shopping Bookmark this page Label Yahoo! Search - Web Search Address http://us.search.yahoo.com/web/?p=8e=utf-8&I=ch Account Local Add to Bookmarks Cancel OK Tab Q W E R T Y U I O P 1123 A S D F G H J K L Z X C V B N M , . English X55. 9:51

AJUSTES: FECHA, HORA, TIEMPO DE ESPERA DE PANTALLA

Ajustes de Manual de la Hora

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use network-provided time Automatic time zone Use network-provided time zone Set date: 4/19/2012 Set time: 13:45 AM Select time zone: GMT 06:00 GMT 08:00 Use 24-hour format: 1.00 pm Select date format: 12/31/2012 7:28PM

REPRODUCCION DE MUSICA / VIDEOS

Super Junior-M I=leAA I=leAA

Ver Videos

natural_image Exterior view of a military or industrial equipment structure with visible ropes and equipment (no signage or text)

NOTA:

natural_image Close-up of a smiling couple with a camera control panel in the corner (no readable text or symbols)
natural_image Portrait of a woman wearing a headset, with an inset photo of a person in a red turtleneck (no visible text or symbols)

CONFIGURAR EL CORREO ELECTRONICO

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Skytex

Model : Skypad SP723

Category : Tablet
