Notice Skytex Skypad SP706 - page 2
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Tablet
Brand Skytex
Model Skypad SP706
Display Size 7 inches
Display Resolution 1024 x 600 pixels
Processor Quad-core 1.2 GHz
RAM 1 GB
Internal Storage 8 GB
Operating System Android 4.x (estimated)
Battery Capacity 3000 mAh
Battery Life Up to 6 hours
Dimensions (W x H x D) 190 x 120 x 10 mm
Weight 300 g
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera (Rear) 2 MP
Camera (Front) 0.3 MP
Ports Micro-USB, 3.5mm headphone jack, microSD slot
Sensors Accelerometer
Power Supply 5V/1A DC charger
Spare Parts Replacement battery, screen, charger available online
Repairability Basic repairs possible with tools; professional service recommended

Frequently Asked Questions - Skypad SP706 Skytex

How do I perform a factory reset on the Skytex Skypad SP706?
Go to Settings > Backup & reset > Factory data reset. Confirm and the tablet will reset to factory defaults, erasing all user data.
What should I do if the tablet does not charge?
Check the charger and cable. Try a different outlet. If the battery is completely drained, leave it charging for 30 minutes. If still no charge, the battery may need replacement.
How can I expand the storage on my SP706?
Insert a microSD card (up to 32 GB) into the microSD slot located on the side of the tablet. The card will be recognized automatically.
My tablet screen is frozen. What should I do?
Press and hold the Power button for 10-15 seconds until the device restarts. If the issue persists, perform a factory reset.
How do I connect the tablet to Wi-Fi?
Open Settings > Wi-Fi, turn it on, select your network, and enter the password. The tablet will connect automatically.
The tablet is slow. How can I improve performance?
Close unused apps via the recent apps button. Clear cache in Settings > Storage. Uninstall unused apps. If still slow, consider factory reset.
How do I take a screenshot?
Press and hold the Power button and Volume Down simultaneously for 2 seconds. The screenshot will be saved in the Gallery.
Is the Skytex Skypad SP706 rootable?
Yes, it is possible to root using tools like KingoRoot. However, rooting may void the warranty and pose security risks. Proceed with caution.
What type of charger does the SP706 use?
It uses a standard Micro-USB charger with 5V/1A output. Any similar charger should work.
Can I update the operating system?
The tablet likely runs Android 4.x and may not receive official updates. Custom ROMs may be available but require technical knowledge.

User questions about Skypad SP706 Skytex

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Tablet in PDF format for free! Find your manual Skypad SP706 - Skytex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Skypad SP706 by Skytex.

USER MANUAL Skypad SP706 Skytex

SP706

User Manual

IMPORTANT NOTICES

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to dispose of all packaging materials after opening.

To avoid damaging the screen, do not touch it with excessive force or with any object other than your finger. For best response, make sure your hands are clean before using the touch screen controls.

The battery used in this Tablet may present a fire or chemical burn if misused. Don't heat or incinerate the Tablet. Don't leave it in a place subject to direct sunlight, or in a car with windows closed. Don't connect to a power source from another manufacturer. This may result in the risk of fire or electric shock.

SKYTEX is not responsible for any loss or damages incurred from your access to third pary content, Apps, or services and expressly disclaims all warranties of any kind.

To avoid damage and data corruption do not remove a memory card while data is being written to or read from the card. As an example, do not remove the card while playing a video or music file stored on the card. The available menu items are dependent on the unit. All illustrations are for reference only.

Customer Use Only:

Enter the model number of your Tablet and save for reference.

Model #: ____

Serial #: ____

Be especially cautious with applications that request access to many functions or to a significant amount of your data. You are responsible for the results of applications installed on your tablet.

The Tablet's "mass storage mode" is compatible with many operating systems including: Windows® XP, Vista, 7, 8 or higher, Mac OS X or Linux.

For recycling or disposal information about this product, visit our website, or contact your local recycling centers or the Electronics Industries Alliance: www.eiae.org.

Company Trademarks

SKYTEX logo is a trademark of SKYTEX TECHNOLOGY INC. Android is a trademark of Google Inc. Use of this trademark and Google Play are subject to Google Permission. HDMI, the HDMI logo are trademarks or registered trademarks of HDMI Licensing, LLC. All other trademarks and logos are property of their respective owners unless indicated otherwise.

FCC COMPLIANCE

This Table complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This Tablet may not cause harmful interference, and
(2) This Tablet must accept any interference received, including interference that may cause undesired operation.

Note: This Tablet has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This Tablet generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this Tablet does cause harmful interference to radio or television reception, which can be determined by turning the Tablet off and on, the user is encouraged to attempt to correct the interference by one of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the Tablet and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of part 15 of the FCC rules. Do not make any changes or modifications to the Tablet unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop using the Tablet.

SAFETY NOTICES

  1. Read and retain these instructions for future reference.
  2. Warnings on the product and User Manual instructions should always be adhered to.
  3. Cleaning: Do not use liquid cleaners or aerosol cleaner. Use a damp soft cloth for cleaning.
  4. Adapters: Use UL certified adapters recommended by SKYTEX. Other adapters may be hazardous or void your warranty.
  5. Moisture & Water: Do not use near water such as a bath tub, kitchen sink, laundry tub, or swimming pool.
  6. Ventilation: Should there be slots and openings in the Tablet, they are provided for ventilation to ensure reliable operation of and protection from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
  7. Power Sources: This Tablet should be operated from the type of power source indicated on the rating label. Consult your product dealer or our website for more information. For products intended to operate from battery power or other sources, refer to the operating instructions.
  8. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptables as this can result in a risk of fire or electric shock.

  9. Object and Liquid Entry: Never put objects of any kind on to or into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

  10. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards and will void your warranty. Refer all servicing to qualified service personnel.

  11. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel: a) when the power-supply is damaged; b) if liquid has been spilled; c) if the product has been exposed to rain or water; d) if the product does not operate normally; e) if the product has been dropped or damaged in any way (voids warranty); f) when the product exhibits a distinct change in performance.

  12. Heat: The product should be kept away from heat sources such as radiator, heat register, stove, or other products that generate heat.

  13. Replacement Parts: Unauthorized substitutions when servicing this product may result in fire, electric shock, or other hazards. Make sure your service technician has used parts specified by the manufacturer.

TABLE OF CONTENTS

Important Notices ....1

FCC Compliance 2

Safety Notices ....3

Table of Contents 4

Introduction......5

Tablet Controls & Descriptions....6-7

Charging Your Tablet 8

Power ON/OFF/STANDBY....9

Connecting To a Wireless Network 10

Install Apps....11

Browse the Web 12

Settings: Date, Time, Screen Time Out....13

Home Screen Applications 14

Discover Application Shortcuts....15

Notifications Bar / Connecting HDMI to HDTV / Using micro-USB....16

Transfer Music / Video / Photos 17

Playing Music / Video 18

Video Streaming / Insert Memory Card 19

Camera & Video Chat....20

Setting Up Your Email 21

Troubleshooting....22

Specifications 23

Warranty & Support 24

INTRODUCTION

Thank you for purchasing the new SKYTEX SKYPAD 7" Tablet with 800X480 multi-touch display. It is designed to keep you entertained and engaged for hours at a time. With 8GB of internal storage and MicroSD card slot (for up to an additional 32GB), you can house a large library of games, movies, music, eBooks, photos and document files. The Tablet also features a web cam and 2MP rear camera for life's special moments.

Discover and download thousands of your favorite Android Apps from the Skytex App Store*. Skytex Apps are optimized specifically for your screen size bringing you the best experience possible in which to view them. In addition, 5GB of free cloud storage is provided through the CloudLink® Toobox which includes many of today's business friendly Apps.

It is recommended that you read this user manual completely before first use. Visit our website at www.skytex.com to register your tablet and review additional information and updated FAQ's.

PACKAGE CONTENTS: SKYPAD Tablet, USB Cable, AC Adapter.

* Approximately 1.5GB of Internal storage is used for the OS, system files and pre-installed Apps.

**Powered by Good e-Reader.

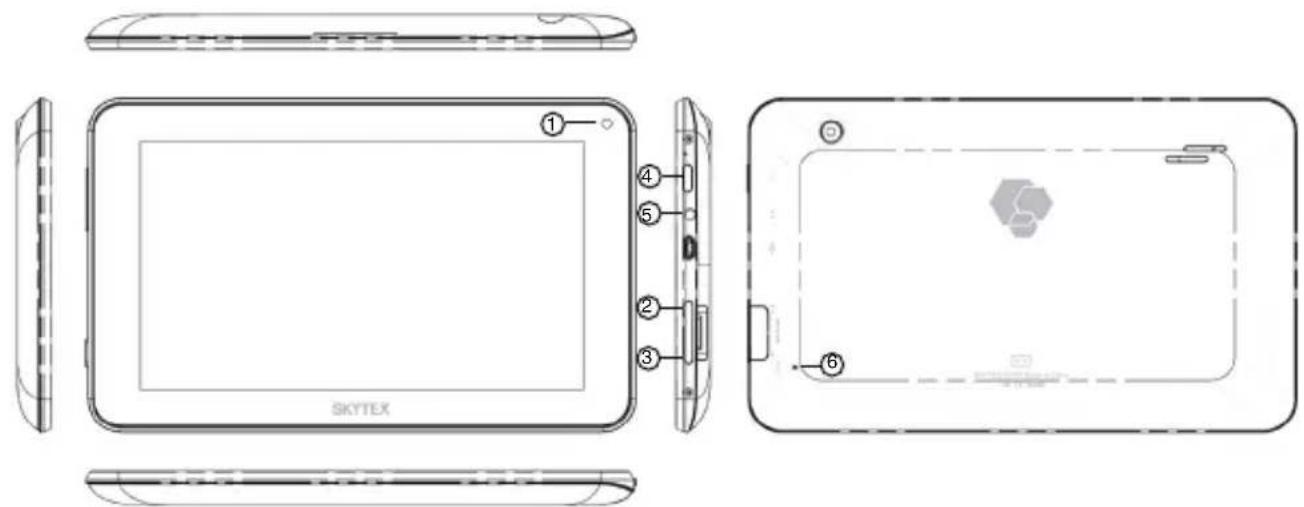

TABLET CONTROLS AND DESCRIPTIONS
SKYTEX

  1. Front camera Front facing camera for video chat.
  2. Volume + Press and hold to increase volume.
  3. Volume - Press and hold to decrease volume.
  4. Power On/Off Press and hold momentarily to turn on; when powering off you will be asked to confirm.
  5. 3.5mm Jack Audio connection to listen to stereo earphones or powered speakers.
  6. Reset Press to reset the tablet.

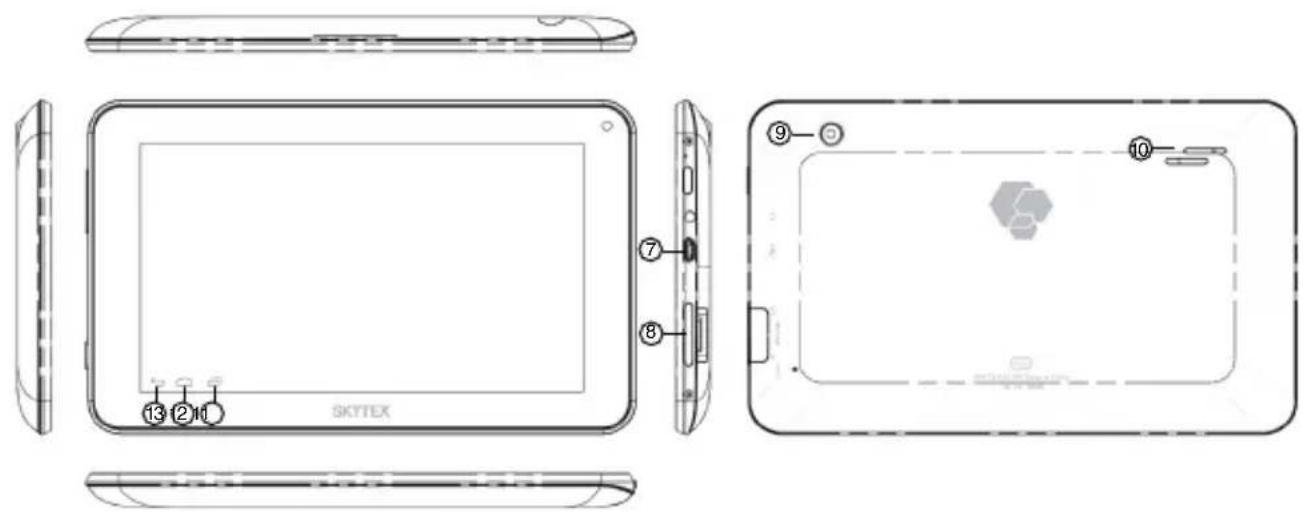

TABLET CONTROLS AND DESCRIPTIONS
SKYTEX ①②⑪ ⑦ ⑧ ⑨ ⑩

  1. Micro-USB OTG Connect to a computer to transfer files or use with a keyboard/mouse.
  2. MicroSD Card Slot Load external storage memory card (up to an additional 32GB).
  3. Rear camera Take photos using the display as viewfinder.
  4. Speaker Listen through speaker unless earphone jack is connected. Sound will mute.
  5. Open Apps Key Tap to view open applications. Swipe to the left to close and save battery life.
  6. Home Key Tap to go to the Home Launcher Screen.
  7. Back Key Tap to go back to the previous page.

CHARGING YOUR TABLET

The Tablet comes with a built-in rechargeable battery that should be charged fully prior to first use. Connect the AC adapter to your Tablet via the micro-USB Input on the bottom of the Table (illustrated below). Disconnect the Tablet when it is fully charged.

A full charge and discharge (15% or below) cycle is recommended to maximize the battery's life and performance.

If the battery is completely drained please allow the Tablet at least 10-15 minutes to recharge prior to turning it on.

MicroUSB Input

NOTE: When charging the Tablet while powered OFF, the battery indicator appears momentarily. Although the battery indicator disappears, the Tablet will continue to charge. To view if the battery is continuing to charge, tap the Power button once.

POWER ON/OFF/STANDBY MODE

ON: Press and hold the Power button until the Tablet's loading screen appears. Once the lock screen appears, unlock the Tablet by swipping your finger from the left 'Unlock' icon to the right 'Unlock' icon (illustrated below). Should the display 'Timeout' (or go black) before you are able to unlock the Tablet, press the Power button for one second th turn the display back on.

6:11 WED. JULY 10

NOTE: Leaving the Tablet in Standby Mode when not in use will result in battery drain. Switch the Tablet off completely to conserve power between charges.

Skytex Skypad SP706 - POWER ON/OFF/STANDBY MODE - 2

SKYTEX

TECHNOLOGY INC.

OFF: Press and hold the Power button until the Tablet options appear. The options will prompt you to tap 'OK' to power the Tablet off or 'Cancel' to return back to the Home screen.

STANDBY: To enter Standby Mode, simply tap and release the Power button. To wake from Standby, tap and release the Power button.

CONNECTING TO A WIRELESS NETWORK

NOTE: To connect your Tablet to the Internet you must have an Internet connection and a wireless network.

A. Open the Apps Tray □□□> Select 'Settings' > Switch the 'Wi-Fi' option from 'OFF' to 'ON' by tapping the 'OFF' icon.
B. A list of networks will appear to the right of the screen > Select your network and enter the password/network key.
C. Tap 'Connect' to complete the connection WiFi

Tip: Check the "Show Password" box to verify password was entered correctly.

Benchings WIRELESS & NETWORKS Vit. Ft Grid size Mars... Device Sound Display Coverage Battery Apps Users Application Completion screen Security CYTTER-1678 Connected CXCC CXCC-AUTO Connected with BLK 30 CYTTER-1678 Connected with WTR/MPKL (MPZ available) ZAW TERO Connected with WTR/MPKL (MPZ available)

REQUIREMENTS:

A wireless router or an access point through a broadband Internet connection is required. You must know the name of your network, password, and whether your network is secured. The settings may be found on your wireless router and/or its user manual.

NOTE: If you were connected to a network previously, your Tablet will automatically reconnect once your Wi-Fi is turned 'ON'. If your network ID is not listed, tap the SCAN icon located on the top right corner of the screen.

INSTALL APPS

A. Tap the App and search or browse by Category for popular apps to download on to your Tablet. Select the desired App to download and install. (You must be connected to a wireless network.)

B. NOTE: When your download has completed, you will be prompted to install the App. Tap 'Install' and when completed the App will appear in your App Tray.

Screenshot of a macOS desktop with application icons and status bar, showing folder navigation and system status.

Discover and manage pre-populated productivity apps within CloudLink's Toobox that includes 5GB of free cloud storage; Catch Notes; Office Suite to view docs, spreadsheets; PowerPoint; premium Apps available.

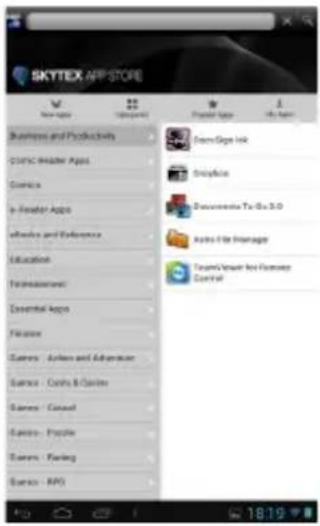

SKYTEX APP STORE New Apps Product Apps SalesGaps Ink Synapse Documents To Go 3.0 Actions For Manage Target/Render Not Framework Control

Welcome to CloudLink Your Productivity Toolbox Offusion HelpIcon Lighting Flashbox CloudLine Flashbox PlayBubble Flashbox Go Windows USB Server Auto Tools

The Skytex App Store is stocked with the most popular free Apps that have been “optimized” specifically for the screen size on your Tablet. Hundred more are optimized for release weekly.

Purchase Apps from the Amazon App Store. Check their Free App of the Day Promotion featured daily.

BROWSE THE WEB

YAHOO! Search Web Images Video Local Shopping News Store - q w e r t y u l o p 123 a s d f g h j k l 5x z x c v b n m , . / - n

Bookmark a Favorite Page

A. Scroll to the top of the desired web page.
B. Tap the start on the URL ☆> Tap 'OK.'

Your Tablet is equipped with a full HTML Web Browser that enables you to view web pages.

A. To access the Web Browser select the icon from the App Tray.
B. To enter a URL, tap the URL field at the top of the browser and enter the desired link using the QWERTY keyboard.
C. Tap 'Go' to load the page.

Check out the new Yahoo.com: Access Search, Mail and a virtual Web Images Videos Local Shop Hello! Cancel OK Web Q W E R T Y U I O P 1131 A S D F G H J K L 2 X C V B N M / - - -

SETTINGS: Date, Time, & Screen Timeout

Manual Time Setting

A. Open the App Tray >>>> Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Time' > Set the hour and minute by tapping the arrow keys; then tap 'Set.'

Manual Date Setting

A. Open the App Tray > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Set Date' > Set the month, date, and year by tapping the arrow keys; then tap 'Set.'

Calendar Calendarware Tap-Fl Dataforge Misc Audio Sound Display Storage Inventory App1 Users User Application Location access Drawing Cleanbox Graphics Wallpaper Sleep After 10 hours in connectivity Daylighters Part size Normal Accelerometer coordinate system Accelerometer uses the backscatter system dsame adoption Length used for your case game setup screen

Screen Timeout

A. Open the App Tray □□□ > Select 'Settings' > 'Display' > 'Sleep.'

B. A dialogue box will appear with several options to choose from. Tap the length of time (in seconds or minutes) before the Tablet goes black (to conserve battery life).

Settings Battery Agpt Units Professional Location access Security Language & Signal Backup & Reset ACCOUNT AMR/Instrument FORMAT Date & Time Accessibility Developer options Automatic Data & Time Data Network provided time Automatic Time zone Data Network provided Time zone USB 100 2198-0031 Sub-Box A 12.5% USB 100% each, Additional Time Use 76.1 Annual Workout For PM Choose developer FEBY/0039

Auto Date & Time

A. Open the App Tray □□□ > Select 'Settings' > Scroll down to and tap 'Date & Time' > Select 'Automatic Date & Time' to check the box.

NOTE: The ‘Automatic Date & Time’ option sets the date and time using the network provided. Should an incorrect time zone appear, tap ‘Select Time Zone’ and find the appropriate time zone.

HOME SCREEN APPLICATIONS

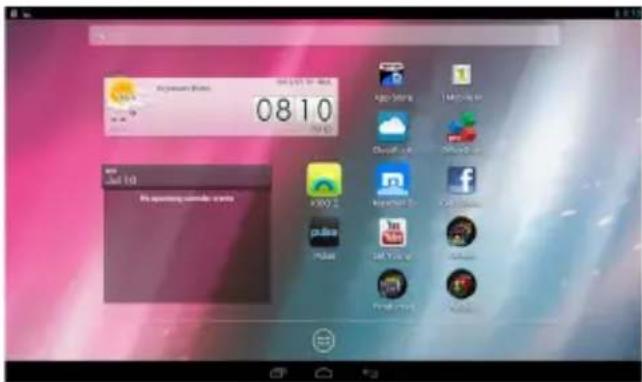

Home Launcher Screen

This is your starting point. The Home Launcher screen consists of 5 screens (slide finger left or right across the screen to view). You'll find pre-installed AppLink shortcuts of the most popular Apps used today, that are ready for download once you connect to the Internet.

UPPS WISSETS Mobile Game Mobile Market Alabama Switch Automobiles App Store Biosum Catalogers Calendar Camera Cloud Cloverable Tree Display Tree Download Email File Manager Wireless Get Google Files Get Mobile Pro Get Microsoft A... Get Amazon Web Get Angry Web NET Cows Get Facebook Get Fruit Maps Get Tube Get Netflix Get Pandora Get Templateurs

NOTE: Apps that are running in the background will take up valuable memory and drain battery resources. Take the icon to view any open Apps, then swipe toward the left to close them.

Macron OS 08/10 My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer

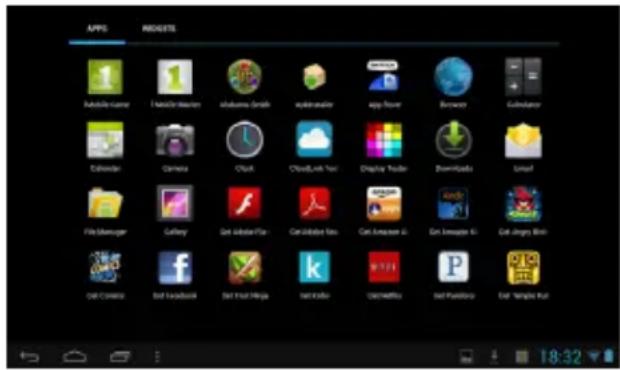

Add or Remove Favorite Apps from App Tray

A. To open the App Tray tap the 🎯icon located at the upper right hand corner of the Tablet to display all of the applications that have been pre-installed or downloaded to your Tablet.

B. To add to the Home Launcher screen, tap and hold the desired App. Release the icon onto the Home screen.

C. To remove an App from the Home Launcher screen, tap and hold the icon until it enlarges, then slide to remove to Trash.

DISCOVER APP SHORTCUTS

Your Home launcher screens feature pre-installed Apps shortcuts and AppLinks for your convenience. They are ready for download once you connect to the Internet. Several examples are described below.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 1

Music - Access music files installed on your Tablet.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 2

App Tray - Access all Apps that are installed on to your Tablet.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 3

Settings - View and modify settings for Wireless network, display, battery, menu language, etc.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 4

Internet Browser - Access the world wide web when connected to a wireless network.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 5

File Manager - View all your files installed on your Tablet.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 6

Gallery - Access photos and videos you have installed on your Tablet.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 7

Skytex App Store - Thousands of the most popular Android Apps specifically optimized for your tablet display!

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 8

Get Kindle - Download and again access to millions of eBooks, magazines, newspapers, audio books, games, blogs, and more.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 9

Cloudlink - Discover and manage pre-populated productivity suite content from CloudLink's Toobox including 5GB of free cloud storage.

Skytex Skypad SP706 - DISCOVER APP SHORTCUTS - 10

Get Amazon - One of (up to 12) pre-installed AppLinks direct you to download the actual App once connected to a wireless network. When installed the App will be located in your App Tray. It is recommended to delete the "Get" AppLink once the actual App is downloaded and installed, to reserve space on your Home screen.

NOTIFICATIONS BAR / CONNECT TO TV / USING micro-USB

NOTIFICATIONS BAR

The Notifications Bar, located at the top left of the Home Launcher screen displays new messages, alerts and icons that show the time, wireless network status, battery charge, progress of download, connectivity of Bluetooth* or micro-USB, alarm setup, and more.

Skytex Skypad SP706 - NOTIFICATIONS BAR - 1
Back

Skytex Skypad SP706 - NOTIFICATIONS BAR - 2
Home

Skytex Skypad SP706 - NOTIFICATIONS BAR - 3
Open Apps

Skytex Skypad SP706 - NOTIFICATIONS BAR - 4
App Tray

Back - Tap to go back to the previous page.

Home - Tap to go to the Home Launcher Screen.

Open Apps - Tap to view open applications. Swipe to the left to close and save battery life.

App Tray - Access all applications installed on to the Tablet.

IMPORTS 1 Mobile name 1 I have the name Alabama Gndh vskminder app store Broom Culiflower Calendar Chrome OUP CloudLink Yor Display Trader Downloads Umsd File Manager Gallery Get Active Plan Get Active You Get Active AI Get Active AI Get Active Bmi Get Active Get Active Get Simple Nut

HDMI\*

Your Tablet features an HDMI output to display its content digitally to your HDTV. Enjoy the benefits of high definition video by connecting an optional mini-HDMI HD cable (available at the SKYTEX store at www.skytex.com).

Micro-USB

Your Tablet offers true versatility when using the micro-USB port. Cables are available at the SKYTEX online store.

Keyboard/Mouse - connect an optional keyboard or mouse using an optional micro-USB OTG cable.

Ethernet Adapter - connect your Tablet to a wired Internet network using an optional Ethernet to USB dongle.

3G Wireless - connect an optional 3G wireless modem dongle. *Insert your SIM card into it and use your Tablet when Wi-Fi isn't available.

Transfer Files & Additional Storage - connect a flash drive using the cable provided with your Tablet.

*- When available

A. Connect your Tablet to your PC via the USB cable.
B. A USB symbol will appear in the Notifications Bar / Bottom Bar.
C. Select the symbol that appears > Tap USB Connect > Turn on USB Storage.
D. You are now able to drag-and-drop your music, video, and photo files between your Tablet and PC.

NOTE: Your Tablet will be recognized as an external drive.Once completed, tap 'Turn off USB Storage' and remove Tablet from your PC.

USB files storage USB connected You can be connected to your Android user. You will check the buttons below if you want to copy this between your Computer and your email's 32 card. Turn on USB storage

Watch Videos

A. Go to the App Tray and select 'Gallery'
B. Select the video file to view.
C. Once the video begins, you may select playback.

Skytex Skypad SP706 - Watch Videos - 1

View Photos

A. Go to the App Tray and select 'Gallery'
B. Tap on photo files you would like to view.

Skytex Skypad SP706 - View Photos - 1

Play Music

A. Go to the App Tray then tap 'Music' 🎨 App.
B. Select the desired song and adjust volume settings to your liking.
C. To exit out of the App, tap 'Home' or 'Back.'
D. To stop music playback, go back to the Music App and tap 'Pause.'

Skytex Skypad SP706 - Play Music - 1

natural_image Industrial scene with glowing hot metal pipes and machinery (no visible text or symbols)

NOTE: Hearing experts advise against the constant use of headphones played at high volume. Constant exposure to higher volumes may lead to hearing loss. Should you experience ringing in the ears or hearing loss, discontinue use.

Your Tablet is capable of streaming videos directly from the Internet or via 3 ^rd party streaming applications. Popular streaming video applications are available through the Skytex App Store for download on to the Tablet. Prior to streaming video files, download the application of your choice.

INSERTING A MICROSD CARD

Your Tablet will accept a MicroSD memory card to add up to an additional 32GB of storage for videos, music, photos, documents, and more.

Align an optional memory card with the card slot. Make certain the metal contacts are facing downward. Slide the card carefully into the spring-loaded slot until it clicks securely.

To remove safely, enter SETTINGS and STORAGE to view options. Tap UNMOUNT SD card, then push the memory card with your thumbnail further into the slot until it springs outward of the slot. Do not remove card while any apps is in use.

Circling CanADA CanEra CanFid P k Circlingbox

Internal EMISSION Total space 2.0000 renolable 175MB Rupta (Capy data & encertainties) 10248 Locked close 1.0000 Net zoom Total space 1.0000 Insulation 1.0000

NOTE:

Do not attempt to insert objects other than a MicroSD memory card into the card slot. A compatible memory card should fit easily into the card slot. If you encounter resistance, check the alignment of the card. Do not attempt to force the card in. Avoid touching the gold contacts of the memory card.

CAMERA & VIDEO CHAT

Skytex Skypad SP706 - CAMERA & VIDEO CHAT - 1

natural_image Close-up of a smiling adult and child with camera control panel visible (no text or symbols on main subjects)

Web Camera Functions

A. Tap the Trash Can icon to delete.
B. Tap Menu > 'Set Picture As' to set the photo as the Tablet's background.

Video Chat

A. Download and install your favorite video chat app from the Skytex App Store or 1Mobile Market.
B. The Webcam is set as the default camera for video chat.

Rear Camera Functions

A. Open the 'Camera' application by tapping the Camera icon
B. Switch between front and rear camera by tapping the Switch icon.
C. Capture images shown on the display by tapping
D. Tap the thumbnail of an image that appears to view or edit the photo.
E. You may also view your photos with the 'Gallery' app

Skytex Skypad SP706 - Rear Camera Functions - 1

natural_image Portrait of a woman wearing a headset, with an inset photo of a person in red (no visible text or symbols)

SETTING UP YOUR EMAIL

A. From your App Tray, tap the 'Email' icon to enter the Email client.

B. Enter an Email address and a password.

C. After you have entered your information press 'Next' to move to the next step.

D. The Email app will test the incoming and outgoing mail servers. Once completed you will be prompted to enter an account name and your name.

E. The account name is used to identify the name of the account on the Tablet.

F. Your name will be displayed on all outgoing messages sent from the Email app on your Tablet.

Account setup Email account You can set up email for most accounts in just a few steps. Email address: Print name: Too q w e r t y u i o p 7123 a s d f g h j k l Next z x c v b n m , # @ -_ ,.out!

NOTE: Certain Email providers will require you to enter more details about the type of account you are using. You will have three choices: POP3, IMAP, and Exchange. If unsure of your account type, please contact your Email provider for more information.

TROUBLESHOOTING

For more updated FAQs and troubleshooting tips, visit us at www.skytex.com/support.

Symptom Solution

My touchscreen is not responding. How do I reset the tablet?

The battery drained completely and now it won't turn on...

I inserted a MicroSD card. Where are my files located?

1 Mobile Market states a 'Network Error' message when I attempt a download.

My Wi-Fi says it's 'Disconnected' after I attempt to connect.

To reset, first make sure the power source is unplugged. Press and hold the Power button for 10 seconds and then plug the power source back in. Press the Power button for another 2-3 seconds. To erase all data on the Tablet go to Settings > Backup & reset > Factory Data Reset. ALL DATA WILL BE LOST.

After inserting the card, find your files in the "File Manage" application. Go to the App tray; open 'File Manager', Select SD card icon to access files.

The App requires an update to the most recent version. Visit http://www.1mobile.com on your Tablet's browse and download the updated version.

The Disconnected status means that the tablet is not connected to any network. Make sure the correct password is entered when connecting to your wireless network. This password could be on the bottom of the router or a password that was created by someone when the Wi-Fi device was originally set up.

SPECIFICATIONS

HD Display Type:

Processor Type:

Operating System:

Storage Capacity:

Internal Memory:

Memory Card Supported:

Wireless LAN:

HDMI:

Cameras:

Micro-USB:

Stereo Headphone Output:

Tablet Dimensions:

Tablet Weight:

Battery Capacity:

Input Voltage, Power Adapter:

Limited Warranty:

7" 800 x 480 Capacitive Touchscreen Display

1.2GHz Processor + Mali-400MP

Android 4.2.2 Jelly Bean

8GB* Internal Storage ^1

512MB RAM

MicroSD Expansion to 32GB

802.11b/g/n

None

VGA Front / 2MP Rear

Yes

3.5mm

Up to 8 hours ^2

100V-240VAC, 50/60Hz, 5V Output (UL Listed)

1 Year Parts & Labor

NOTE:

1 - * Available storage capacity will be less due to operating system and pre-installed software applications.
2 - Based on theoretical discharge speeds. Actual usage may be lower.

WARRANTY & SUPPORT

SKYTEX Technology Inc. warrants against defects in material and workmanship for a period of one year from original purchase date when purchased from an authorized U.S. reseller/retailer by the original purchaser or is a consumer who received the Tablet as a gift. You must retain and provide the original bill of sale (or photocopy) as proof of purchase in case the Tablet requires service. Retain the original box and inner packaging to ship if necessary.

Your Responsibility

Warranty service shall be provided after a return authorization number (RMA#) is provided to you by our customer support representative. For one year, SKYTEX will provide at no charge, service repairs using new or replacement parts. In certain cases your Tablet may be replaced with a refurbished model that meets or exceeds factory specifications. Service provided or refurbished replacement is warranted for the duration of the original warranty period or 45 days, whichever is greater. Warranty extends to defects in materials or workmanship and does not cover cosmetic imperfections, damage incurred during shipment to SKYTEX, misuse, accidental drops that crack the screen, connection to improper equipment, or repairs by an authorized party. Write the RMA number on the package; include a copy of the store receipt and description of the issue with the product and serial number.

How to Obtain Warranty Service

If after following the User Guide, should you find it necessary to contact Customer Support, email or call between 9 AM - 5:30 PM Monday - Friday (Pacific Time). Have your date of purchase, serial number, and a full understanding of the issue ready for your representative. You are responsible for the transportation costs and protective packaging associated with shipping the product to SKYTEX safely. Ship the Tablet using a service that provides tracking information.

Customer Support

Monday - Friday 9:00 AM - 5:30 PM

Phone: (888) 759-8399

Email: support@skytex.com

Website: www.skytex.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Skytex

Model : Skypad SP706

Category : Tablet
