GDS-DOCK-V2-SAM13U - Docking Station RAM Mount - Free user manual and instructions

Product Type	Docking Station
Brand	RAM Mount
Model	GDS-DOCK-V2-SAM13U
Compatible Devices	Samsung Galaxy Tab A (2019) 10.1-inch, other tablets with similar dimensions
Dimensions (approx.)	7.5 x 5.0 x 3.0 inches (190 x 127 x 76 mm)
Weight (approx.)	1.2 lbs (540 g)
Power Input	5V/2A USB-C or 12V/2A barrel connector (included)
Charging Output	Up to 15W (depending on device)
Mounting Type	RAM Mount compatible ball base (1.5" ball)
Material	High-strength composite plastic, rubber grip pads
Key Features	Adjustable grips, integrated cable management, port access cutouts
Installation	Quick-release lever, tool-free adjustment
Cleaning	Wipe with soft, damp cloth; mild soap if needed. Do not use solvents.
Safety Warnings	Keep away from moisture; ensure device is securely fastened before use. Do not exceed weight limit of 5 lbs.
Spare Parts / Repairability	Replacement rubber pads and base adapters available from RAM Mount. Device not user-serviceable for electronics.
Package Contents	Dock, USB-C charging cable, mounting screws (2x), quick-start guide
Warranty	1-year limited warranty against manufacturing defects

Frequently Asked Questions - GDS-DOCK-V2-SAM13U RAM Mount

Is the RAM Mount GDS-DOCK-V2-SAM13U compatible with my Samsung Galaxy Tab S6?

This dock is specifically designed for the Samsung Galaxy Tab A 10.1 (2019) model. It may not fit other tablets due to button and port placement. Check device dimensions (9.8 x 6.5 x 0.3 in) before purchase.

Does the dock support fast charging?

Yes, it supports up to 15W fast charging via the included USB-C cable when using a compatible power adapter (sold separately). For best results, use a 5V/3A or 9V/2A adapter.

How do I install the dock in my vehicle?

Mount the included RAM Mount ball base to a flat surface using the provided screws. Then attach the dock to the ball and tighten the lever. Adjust the grip arms to fit your device securely.

Can I use this dock for a non-Samsung tablet?

While the dock is molded for the Samsung Tab A 10.1, the adjustable arms can accommodate tablets up to 11 inches wide and 0.4 inches thick. However, port alignment may not match.

Is the dock waterproof?

No, the dock is not waterproof. It is designed for indoor or protected outdoor use. Avoid exposure to rain or splashes. Store in a dry place when not in use.

What is the weight capacity of the dock?

The dock supports devices up to 5 lbs (2.27 kg). Ensure your tablet plus any case does not exceed this limit to prevent damage.

Does the dock block any ports or buttons?

The dock has cutouts for the power button, volume rocker, and charging port on the Samsung Tab A 10.1. Other models may have blocked access to some buttons.

Can I rotate my tablet to portrait mode while docked?

Yes, the dock can be rotated 360 degrees when the ball mount is not fully tightened. For portrait use, adjust the grip arms to hold the device securely from the sides.

How do I clean the dock?

Use a soft, lint-free cloth slightly dampened with water or mild soap. Wipe gently and dry thoroughly. Avoid abrasive cleaners or solvents that may damage the plastic.

What spare parts are available for this dock?

Available spare parts include replacement rubber grip pads, mounting screws, and the ball base adapter. Contact RAM Mount customer service or visit their website to order.

USER MANUAL GDS-DOCK-V2-SAM13U RAM Mount

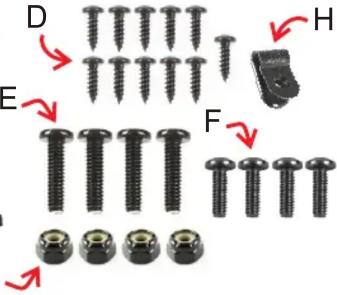

A. Vehicle Dock Backing Plate (QTY. 1)
B. Top Cup (QTY. 1) Cup Design May Vary
C. GDS ^TM Docking Cup (QTY. 1)
D. #4 X 3/8" Sheet Metal Screw (QTY. 10)
E. #8 X 5/8" Machine Screw (QTY. 4)
F. #8 X 1/2" Machine Screw (QTY. 4)
G. #8 Nylock Nut (QTY. 4)
H. Cable Retention Clip (QTY. 1)

Assembly

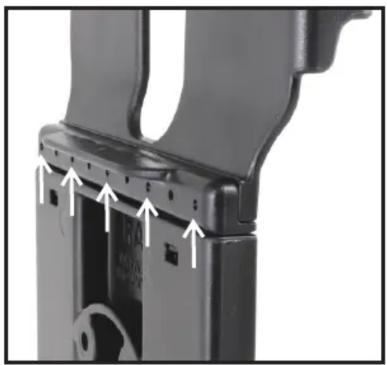

1. Use five (D) Screws to attach (B) Top cup to (A) Back Plate.

1. Use five (D) screws to attach (C) Docking cup to bottom of (A) Back plate.

To prevent screws from protruding behind vehicle dock, avoid over-tightening.

Close-up of a mechanical component with mounting holes and arrows indicating features (no text or symbols visible)

1. Use (E or F) Screws and (G) Nuts to attach vehicle dock to any RAM® mounting system, depending on the type of the component used:

1. Insert Micro USB 2.0 cable into GDS™ Dock's Micro USB 2.0 receiver. When plugged in, tablet will detect power source within two seconds. User must supply a USB wall charger or cigarette adapter with appropriate charging specifications for mounted device.

Close-up of two black and green audio/video cables with connectors (no text or symbols visible)

For open cockpit or outdoor use, it is recommended to apply electrical tape to your USB connection.

1. Snap USB cable into (H) cable retention clip.

Close-up of a black cable with a small clamp and labeled 'H' (no text or symbols beyond the label)

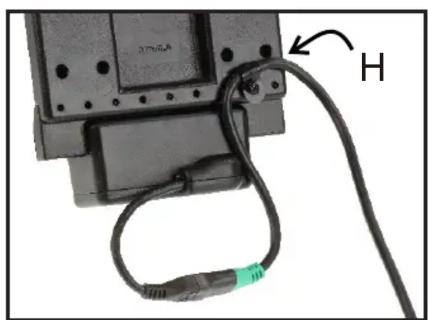

1. Using (D) Screw, attach (H) Cable retention clip into any of the available wholes shown behind vehicle dock.

Close-up of a black electronic device with a green cable and labeled component 'H' (no readable text or symbols beyond label)

Adjust USB cable appropriately along cable retention clip before tightening.

Lack of or improper use of wire retnetion/cable management may void warranty.

RPR-INS-GDS-DOCK-V2

National Products Inc.

8410 Dallas Ave S

Seattle WA 98108

Phone: [phone]

Fax: [phone]

www.rammount.com

[e-mail]

Proper Insertion of IntelliSkin™

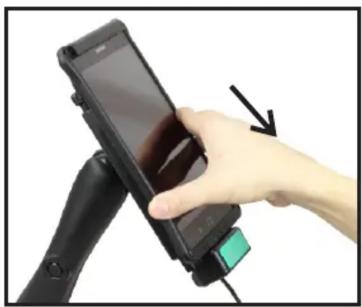

1. Insert top of tablet upward against top cup, expanding spring tension.

2. Press bottom of tablet flush against Tab-Tite back plate.

3. Rest bottom of tablet straight downward, docking on the pins of docking cup. When plugged in, tablet will detect power source within two seconds.

Hand holding a tablet device on a stand, with a green sensor attached (no visible text or symbols)

Hand holding a tablet device with a green sensor attached, no visible text or symbols

Hand holding a smartphone mounted on a tripod stand with a green sensor attached (no visible text or symbols)

1. To remove, pull tab upward, located on back of vehicle dock.

Close-up of a hand adjusting a black mechanical component with an arrow indicating upward motion (no text or symbols visible)

3 YEAR WARRANTY ON ALL ELECTRONIC COMPONENTS LIFETIME WARRANTY ON ALL NON-ELECTRONIC COMPONENTS

The exclusive NPI Lifetime Warranty states that all GDS ^™ non-electronic components and parts are warranted against defect in materials and workmanship for the life of the product or part. NPI's Lifetime Warranty covers the product or its components only. The mounted device is not covered under the Lifetime Warranty and will not be replaced if damaged as a result of mount failure. This warranty is expressly limited to persons in the United States, and all foreign countries who purchase GDS ^™ for resale or use in the ordinary course of the buyer's business. This warranty does not cover any product or part that has been abused, worn out, heated, ground or otherwise altered, used for a purpose other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

MORE DOCKS AND DEVICES WITH GDS™ TECHNOLOGY

Close-up of a black and green QDS Tech device with a circular logo on the dome (no readable text or symbols beyond branding)

GDS™ Desktop Dock Pro

Black rectangular battery pack with five vertical slots and a green circular button (no text or symbols visible)

GDS™ 6 Gang Dock Charger

Illustration of a smartphone with a cable inserted, showing no text or symbols on the device body.

GDS™ to USB Adapter

Exterior view of a gray electronic device labeled 'FAM' with a GDS tag, no readable text or symbols beyond branding.

GDS™ Locking Vehicle Dock

Close-up of a black electronic component with a green indicator badge (no visible text or symbols on the main body)

GDS™ Vehicle Phone Dock

Visit for alternate docks or IntelliSkin™ for any tablet or phone.www.gdstech.com
