GDS-DOCK-V2-AP7U - Docking Station RAM Mount - Free user manual and instructions

Product Type	Vehicle Docking Station
Brand	RAM Mount
Model	GDS-DOCK-V2-AP7U
Compatible Devices	Tablets and phones with IntelliSkin™
Power Input	Micro USB 2.0 (user-supplied USB wall charger or cigarette adapter)
Mounting System	RAM® mounting system (sold separately)
Main Function	Secure device docking and charging in vehicle
Key Features	Top cup, spring tension, Tab-Tite back plate, cable retention clip
Included Parts	Backing plate, top cup, docking cup, screws (10 #4, 4 #8 5/8", 4 #8 1/2"), 4 nuts, cable retention clip
Installation	Attach top cup and docking cup to back plate with screws; then attach to RAM mount using machine screws and nuts
Cable Management	USB cable snaps into retention clip, adjust before tightening
Warranty	3 years on electronic components, lifetime on non-electronic components
Country of Origin	USA (National Products Inc., Seattle WA)
Weight	Approx. 0.5 lb (estimated)
Dimensions (WxHxD)	Approx. 4 x 5 x 2 inches (estimated)

Frequently Asked Questions - GDS-DOCK-V2-AP7U RAM Mount

How do I assemble the GDS-DOCK-V2-AP7U?

Attach the top cup to the back plate using five #4 screws. Then attach the docking cup to the bottom of the back plate with five #4 screws. Use machine screws and nuts to secure the dock to your RAM mount. Avoid over-tightening to prevent screw protrusion.

How do I insert my device into the dock?

Insert the top of the tablet upward against the top cup to expand the spring tension. Press the bottom flush against the Tab-Tite back plate, then rest the bottom straight downward onto the docking pins. A power source should be detected within two seconds.

What power source do I need?

You must supply a USB wall charger or cigarette adapter with appropriate charging specifications for your mounted device. Connect a Micro USB 2.0 cable to the dock's receiver.

How do I manage the USB cable?

Snap the USB cable into the included cable retention clip. Use a #4 screw to attach the clip into any available hole behind the dock. Adjust the cable along the clip before tightening to avoid loose cables.

Is the dock compatible with all tablets?

This dock is designed for devices with an IntelliSkin™ case. Check compatibility on the GDS Technology website (www.gdstech.com) for your specific tablet or phone model.

Can I use this dock outdoors?

Yes, but for open cockpit or outdoor use, it is recommended to apply electrical tape to your USB connection for added weather protection.

What is the warranty coverage?

All electronic components have a 3-year warranty. All non-electronic components have a lifetime warranty. The mounted device itself is not covered. The warranty applies to defects in materials and workmanship, excluding abuse or misuse.

How do I remove my device from the dock?

Pull the tab located on the back of the vehicle dock upward. This releases the tension and allows you to lift the device off the docking pins.

What spare parts are included?

The dock includes a backing plate, top cup, docking cup, ten #4 x 3/8" sheet metal screws, four #8 x 5/8" machine screws, four #8 x 1/2" machine screws, four nylock nuts, and one cable retention clip.

Where can I find more information or support?

Visit www.rammount.com or email [e-mail]. For alternate docks and IntelliSkin™, go to www.gdstech.com. National Products Inc. is located at 8410 Dallas Ave S, Seattle WA 98108.

USER MANUAL GDS-DOCK-V2-AP7U RAM Mount

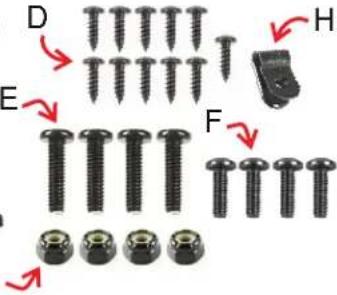

A. Vehicle Dock Backing Plate (QTY. 1)
B. Top Cup (QTY. 1) Cup Design May Vary
C. GDS ^TM Docking Cup (QTY. 1)
D. #4 X 3/8" Sheet Metal Screw (QTY. 10)
E. #8 X 5/8" Machine Screw (QTY. 4)
F. #8 X 1/2" Machine Screw (QTY. 4)
G. #8 Nylock Nut (QTY. 4)
H. Cable Retention Clip (QTY. 1)

Assembly

1. Use five (D) Screws to attach (B) Top cup to (A) Back Plate.

1. Use five (D) screws to attach (C) Docking cup to bottom of (A) Back plate.

To prevent screws from protruding behind vehicle dock, avoid over-tightening.

Close-up of a mechanical component with mounting holes and arrows indicating features (no text or symbols visible)

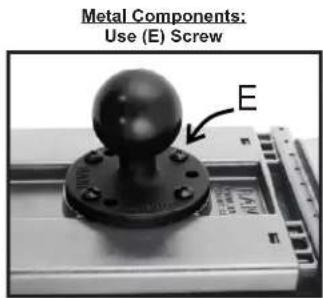

1. Use (E or F) Screws and (G) Nuts to attach vehicle dock to any RAM® mounting system, depending on the type of the component used:

1. Insert Micro USB 2.0 cable into GDS™ Dock's Micro USB 2.0 receiver. When plugged in, tablet will detect power source within two seconds. User must supply a USB wall charger or cigarette adapter with appropriate charging specifications for mounted device.

Close-up of two black and green cables with connectors, no visible text or symbols

For open cockpit or outdoor use, it is recommended to apply electrical tape to your USB connection.

1. Snap USB cable into (H) cable retention clip.

Close-up of a black cable with a small square clip and an arrow labeled 'H' indicating direction (no text or symbols beyond the label)

1. Using (D) Screw, attach (H) Cable retention clip into any of the available wholes shown behind vehicle dock.

Close-up of a black electronic device with a green cable and labeled component 'H' (no readable text or symbols beyond label)

Adjust USB cable appropriately along cable retention clip before tightening.

National Products Inc.

8410 Dallas Ave S

Seattle WA 98108

Phone: [phone]

Fax: [phone]

www.rammount.com

[e-mail]

Lack of or improper use of wire retnetion/cable management may void warranty.

RPR-INS-GDS-DOCK-V2

Proper Insertion of IntelliSkin™

1. Insert top of tablet upward against top cup, expanding spring tension.

2. Press bottom of tablet flush against Tab-Tite back plate.

3. Rest bottom of tablet straight downward, docking on the pins of docking cup. When plugged in, tablet will detect power source within two seconds.

Hand holding a tablet device with a green sensor attached, showing no visible text or symbols

Hand holding a smartphone with a green sensor attached, showing a black cable (no text or symbols visible)

Hand holding a smartphone with a green sensor attached, no visible text or symbols

1. To remove, pull tab upward, located on back of vehicle dock.

Close-up of a hand adjusting a black mechanical component with an upward arrow (no text or symbols visible)

3 YEAR WARRANTY ON ALL ELECTRONIC COMPONENTS LIFETIME WARRANTY ON ALL NON-ELECTRONIC COMPONENTS

The exclusive NPI Lifetime Warranty states that all GDS™ non-electronic components and parts are warranted against defect in materials and workmanship for the life of the product or part. NPI's Lifetime Warranty covers the product or its components only. The mounted device is not covered under the Lifetime Warranty and will not be replaced if damaged as a result of mount failure. This warranty is expressly limited to persons in the United States, and all foreign countries who purchase GDS™ for resale or use in the ordinary course of the buyer's business. This warranty does not cover any product or part that has been abused, worn out, heated, ground or otherwise altered, used for a purpose other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

MORE DOCKS AND DEVICES WITH GDS™ TECHNOLOGY

Close-up of a green and black electronic device with a logo, no visible text or symbols on the body.

GDS™ Desktop Dock Pro

Black rectangular battery pack with five vertical slots and a green circular button (no text or symbols visible)

GDS™ 6 Gang Dock Charger

Illustration of a smartphone with a cable inserted (no text or symbols visible)

GDS™ to USB Adapter

Exterior view of a gray electronic device with a green GDS tag (no readable text or symbols beyond branding)

GDS™ Locking Vehicle Dock

GDS™ Vehicle Phone Dock

Visit for alternate docks or IntelliSkin™ for any tablet or phone.www.gdstech.com
