Product Type	Vehicle Docking Station
Brand	RAM Mount
Model	GDS-DOCK-V2-SAM12-AUD1U
Compatible Devices	Tablets and smartphones with IntelliSkin™ (GDS Technology)
Dimensions (Approx.)	6.5 x 4.5 x 2.5 inches
Weight (Approx.)	1.1 lbs
Material	High-strength composite with metal mounting hardware
Power Input	Micro USB 2.0 (5V DC, user-supplied charger)
Charging Detection	Tablet detects power within 2 seconds after connection
Mounting System	RAM® compatible (uses #8 screws and nylock nuts)
Cable Management	Included cable retention clip with screw attachment
Installation Method	Mount to RAM® base using supplied screws and nuts
Device Insertion	Slide tablet upward against top cup, then press bottom onto docking pins
Device Removal	Pull tab located on back of vehicle dock
Outdoor Use Recommendation	Apply electrical tape to USB connection for moisture protection
Warranty (Electronic Components)	3 years
Warranty (Non-Electronic Components)	Lifetime
Warranty Coverage	Defects in materials and workmanship; does not cover abuse or mounted device
Included Items	Backing plate, top cup, docking cup, screws (10x #4, 4x #8 5/8", 4x #8 1/2"), 4x nylock nuts, cable retention clip, manual
Manufacturer	National Products Inc., Seattle WA, USA
Contact	Phone: [phone], Email: [e-mail]

Frequently Asked Questions - GDS-DOCK-V2-SAM12-AUD1U RAM Mount

What devices are compatible with the RAM Mount GDS-DOCK-V2-SAM12-AUD1U?

This docking station is designed for tablets and smartphones that are equipped with an IntelliSkin™ (GDS Technology). It supports a wide range of devices from various manufacturers.

Does the dock include a power adapter?

No, the dock requires a user-supplied USB wall charger or cigarette lighter adapter. The dock has a Micro USB 2.0 input and the device will detect power within two seconds once connected.

How do I install the dock in my vehicle?

First, attach the top cup and docking cup to the backing plate using the #4 screws. Then mount the assembly to a RAM® mounting system using the #8 machine screws and nylock nuts. Finally, connect the USB cable and secure it with the cable retention clip.

Can the dock be used outdoors?

Yes, but for open cockpit or outdoor use, RAM Mount recommends applying electrical tape to the USB connection to protect against moisture and debris.

How do I properly insert my tablet into the dock?

Insert the top of the tablet upward against the top cup to expand spring tension, then press the bottom of the tablet flush against the back plate. Finally, rest the tablet straight downward to dock on the pins of the docking cup.

What is the warranty coverage for this product?

All electronic components have a 3-year warranty, while all non-electronic components have a lifetime warranty. The warranty covers defects in materials and workmanship but does not cover abuse, alteration, or the mounted device itself.

How do I remove my device from the dock?

Simply pull the tab located on the back of the vehicle dock upward. This releases the device from the docking pins.

What screws are included and what are they used for?

The dock includes #4 x 3/8" sheet metal screws (10) for attaching cups to backing plate, #8 x 5/8" machine screws (4) and #8 x 1/2" machine screws (4) along with #8 nylock nuts (4) for mounting to a RAM® system.

Is the dock compatible with other mounting systems?

The dock is designed specifically for RAM® mounting systems. While it may be adapted, using RAM® components is recommended for proper fit and safety.

What is the purpose of the cable retention clip?

The cable retention clip (part H) is used to secure the USB cable and prevent it from being pulled or damaged. It attaches to the back of the dock using one of the available holes.

USER MANUAL GDS-DOCK-V2-SAM12-AUD1U RAM Mount

A. Vehicle Dock Backing Plate (QTY. 1)
B. Top Cup (QTY. 1) Cup Design May Vary
C. GDS ^TM Docking Cup (QTY. 1)
D. #4 X 3/8" Sheet Metal Screw (QTY. 10)
E. #8 X 5/8" Machine Screw (QTY. 4)
F. #8 X 1/2" Machine Screw (QTY. 4)
G. #8 Nylock Nut (QTY. 4)
H. Cable Retention Clip (QTY. 1)

Assembly

1. Use five (D) Screws to attach (B) Top cup to (A) Back Plate.

1. Use five (D) screws to attach (C) Docking cup to bottom of (A) Back plate.

To prevent screws from protruding behind vehicle dock, avoid over-tightening.

Close-up of a mechanical component with mounting holes and arrows indicating features (no text or symbols visible)

1. Use (E or F) Screws and (G) Nuts to attach vehicle dock to any RAM® mounting system, depending on the type of the component used:

1. Insert Micro USB 2.0 cable into GDS™ Dock's Micro USB 2.0 receiver. When plugged in, tablet will detect power source within two seconds. User must supply a USB wall charger or cigarette adapter with appropriate charging specifications for mounted device.

Close-up of two black and green audio/video cables with connectors (no text or symbols visible)

For open cockpit or outdoor use, it is recommended to apply electrical tape to your USB connection.

1. Snap USB cable into (H) cable retention clip.

Close-up of a black cable with a small square connector and an arrow labeled 'H' indicating direction (no text or symbols beyond the label)

1. Using (D) Screw, attach (H) Cable retention clip into any of the available wholes shown behind vehicle dock.

Close-up of a black electronic device with a green cable and labeled component 'H' (no readable text or symbols beyond label)

Adjust USB cable appropriately along cable retention clip before tightening.

Lack of or improper use of wire retnetion/cable management may void warranty.

RPR-INS-GDS-DOCK-V2

National Products Inc.

8410 Dallas Ave S

Seattle WA 98108

Phone: [phone]

Fax: [phone]

www.rammount.com

[e-mail]

Proper Insertion of IntelliSkin™

1. Insert top of tablet upward against top cup, expanding spring tension.

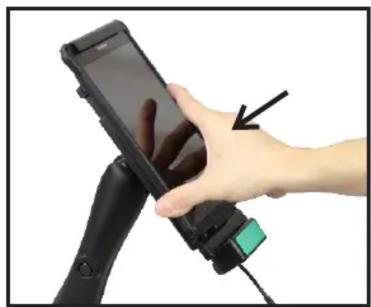

2. Press bottom of tablet flush against Tab-Tite back plate.

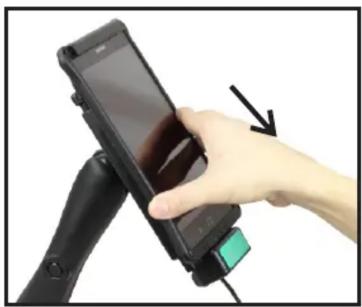

3. Rest bottom of tablet straight downward, docking on the pins of docking cup. When plugged in, tablet will detect power source within two seconds.

Hand holding a tablet device on a stand, with a green sensor attached (no visible text or symbols)

Hand holding a tablet device with a green sensor attached, no visible text or symbols

Hand holding a smartphone mounted on a tripod stand with a green sensor attached (no visible text or symbols)

1. To remove, pull tab upward, located on back of vehicle dock.

Close-up of a hand adjusting a black mechanical component with an arrow indicating upward motion (no text or symbols visible)

3 YEAR WARRANTY ON ALL ELECTRONIC COMPONENTS LIFETIME WARRANTY ON ALL NON-ELECTRONIC COMPONENTS

The exclusive NPI Lifetime Warranty states that all GDS ^™ non-electronic components and parts are warranted against defect in materials and workmanship for the life of the product or part. NPI's Lifetime Warranty covers the product or its components only. The mounted device is not covered under the Lifetime Warranty and will not be replaced if damaged as a result of mount failure. This warranty is expressly limited to persons in the United States, and all foreign countries who purchase GDS ^™ for resale or use in the ordinary course of the buyer's business. This warranty does not cover any product or part that has been abused, worn out, heated, ground or otherwise altered, used for a purpose other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

MORE DOCKS AND DEVICES WITH GDS™ TECHNOLOGY

Close-up of a black and green QDS ECH1 device with a circular logo on the dome (no readable text or symbols beyond branding)

GDS™ Desktop Dock Pro

Black rectangular battery pack with five vertical slots and a green circular button (no text or symbols visible)

GDS™ 6 Gang Dock Charger

Illustration of a smartphone with a cable inserted, showing no text or symbols on the device body.

GDS™ to USB Adapter

Exterior view of a gray electronic device labeled 'FAM' with a GDS tag, no readable text or symbols beyond branding.

GDS™ Locking Vehicle Dock

GDS™ Vehicle Phone Dock

Visit for alternate docks or IntelliSkin™ for any tablet or phone.www.gdstech.com
