Condo - Tent Zempire - Free user manual and instructions

Product Type	Tent
Brand	Zempire
Model	Condo
Capacity	4-6 persons
Dimensions (Floor)	300 x 300 cm (118 x 118 in)
Centre Height	200 cm (79 in)
Weight	14 kg (30.9 lbs)
Packed Size	70 x 30 x 30 cm (27.6 x 11.8 x 11.8 in)
Material (Flysheet)	Polyester, 190T, waterproof PU coating
Material (Inner)	Breathable polyester mesh
Material (Floor)	Polyethylene, reinforced, waterproof
Poles	Fiberglass, 11 mm diameter
Waterproof Rating	Fly: 3000 mm, Floor: 5000 mm
Seams	Taped seams for extra waterproofing
Season Rating	3-season (spring, summer, fall)
Setup	Freestanding dome design, easy setup with clip system
Ventilation	Mesh roof vent and adjustable side vents
Storage	Internal pockets and gear loft
Entry	D-style door with mesh inner
Included Accessories	Steel pegs, guy ropes, carry bag, repair kit
Maintenance	Clean with mild soap, air dry, store in dry place
Safety	Fire retardant coating (CPAI-84), reflective guy lines
Repairability	Replacement poles and parts available; simple patch kit for fly

Frequently Asked Questions - Condo Zempire

How do I set up the Zempire Condo tent?

Lay out the tent, assemble the poles (color-coded), insert into sleeves or clips, then raise the structure. Peg down corners and guylines. Full instructions are in the manual.

Is the tent waterproof?

Yes, the flysheet has a 3000mm waterproof rating and the floor 5000mm. Seams are taped. For extra protection, seam seal the zippers.

Can I use the tent in winter?

The Condo is designed for 3-season use (spring, summer, fall). Winter camping may require a 4-season tent due to wind and snow load.

How many people can sleep comfortably?

The tent fits 4-6 people in sleeping bags, but for comfort, 4 adults with gear is recommended.

What is the packed size and weight?

Packed size is 70x30x30 cm (27.6x11.8x11.8 in) and weight is about 14 kg (30.9 lbs).

How do I clean and store the tent?

Clean with mild soap and water, avoid harsh chemicals. Dry completely before storing in a cool, dry place. Roll loosely to avoid creases.

Can I replace broken poles?

Yes, replacement poles are available from Zempire. The poles are fiberglass; broken sections can be sleeved with a repair tube.

Does the tent have a warranty?

Zempire offers a limited warranty against manufacturing defects. Check your manual or contact support for details.

How do I improve ventilation?

Open the mesh roof vent and side vents. In hot weather, roll up the fly on one side, but secure it with guylines.

Are spare parts available?

Yes, spare parts like pegs, poles, and repair kits can be purchased from Zempire retailers or their website.

USER MANUAL Condo Zempire

1. Clear your site making sure there are no sharp objects where you are going to pitch your tent. Try to get a site that is as flat as possible.

1. Assemble the 6 pole sections. Ensure that the poles are inserted fully in tho the steel connectors.

2. Firstly peg our the 4 corners of the centre of the tent(●). Then peg out each corner of the bedrooms(●). Try to get the floor sitting as flat as possible at each stage.

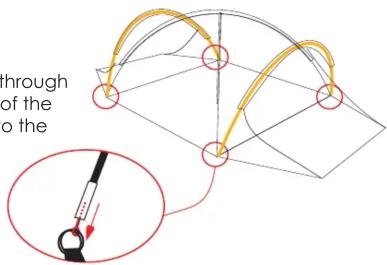

Diagram showing a curved structural element with red lines and circular nodes, alongside an inset magnified view of a tool interacting with a circular component (no text or symbols)

1. Thread the RED poles through the pole sleeves that run diagonally across the centre of the tent. Tension the poles inserting the pins located directly underneath each pole sleeve into the ends of the poles. It may be easier to have someone to support the crossover of the poles during this step.

2. Thread the YELLOW poles through the pole sleeves on either side of the centre dome. Insert the pins into the pole ends.

1. Thread the BLUE poles through the pole sleeves at the front and rear of the tent. Insert the pins into the pole ends.

3D geometric diagram showing intersecting curved blue lines and red circles on a grid-like surface (no text or symbols)

1. Peg out all remaining peg points around the tent.

1. Pull the fly over the tent and velcro the edges of the cover onto the Velcro strips located on each of the black pole sleeves. Attach the hooks onto the loops sewn around the pole sleeves.

2. Peg out the ORANGE Webbing anchors attached to fins above each side window. Peg out at a 45^ angle to the ground and tension.

3. Peg out all the guy ropes. Try to have guy ropes at a 45^ angle to the ground.

This tent design is under copyright protection by Freedom Camping, New Zealand. The "Freedom Camping" and "airflow" logos are registered trademarks of Flow Imports Ltd. Any reproduction of this manual is prohibited without the prior consent of Flow Imports Ltd.

PITCHING INSTRUCTIONS - CONDO _airflowseries

3D geometric diagram showing a pyramid-like structure with internal components and directional arrows, no text or symbols present.

1. For extra warmth and privacy you may decide to attach the inners tent inside the tent. Lay out the inners inside the tent with the door facing the front and the floor facing downwards. Attach the corner male buckles to the female buckles sewn into the inside rear corners of the tent. Connect the toggles through the corresponding rings sewn on the tent working your way front the rear to the front of the inner. Peg down the front of the inners and cover.

2. Ensure guy ropes are pegged out at all times during use

3. Never pack your tent away wet. If you must take your tent down when wet, ensure that you dry you tent completely as soon as possible to prevent mildew forming.
4. If mildew does form on your tent wash off pours with warm water and a soft brush to prevent further growth. Do not use detergents.
5. Do not use an open flame inside your tent. The fabric has been treated with a fire retardant but is in no way fire proof
6. Clean all pegs and poles before storing

Freedom zempire

Freedom Zempire is proud to be a 100% New Zealand owned and operated business.
