PRJLE33 - Video projector Pyle - Free user manual and instructions

Product Type	Video Projector
Brand	Pyle
Model	PRJLE33
Dimensions (W x H x D)	330 x 246 x 116 mm
Weight	3 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	<140 W
Display Technology	5" TFT LCD
Native Resolution	800 x 600
Supported Resolutions	720p, 1080p
Contrast Ratio	1000:1
Brightness	2000 Lumens
Lamp Type	LED
Lamp Life	20,000 hours
Lens Focus	185 mm
Keystone Correction	±15 degrees
Projection Size	60 - 100 inches
Audio Output	Stereo, 5W x 2 speakers
Video Inputs	Composite, Component (Ypbpr), VGA, HDMI (2x), TV, S-Video
Audio Inputs	Stereo (L/R)
Audio Outputs	Stereo (L/R)
Remote Control	38 kHz IR
Fan Cooling	Automatic, continues 90 sec after power off
Safety Features	Overheat protection, auto shut-off
Accessories Included	Projector, remote, power cable, AV cable, VGA cable, manual, spare fuse, clear paper
Warranty	1 year free repair

Frequently Asked Questions - PRJLE33 Pyle

How do I adjust the focus on the PRJLE33 projector?

Turn the lens gently into the projector, then slowly turn it out while observing the image clarity. Stop when the center of the image is sharp. This is the best focus position.

How can I correct trapezoid (keystone) distortion?

Use the keystone adjustment feature on the projector panel or remote. Navigate to the menu, select keystone, and adjust using the arrow keys. The range is ±15 degrees.

What should I do if there is no image on the screen?

Check the input source selection matches your device. Ensure the signal cable is properly connected. In PC mode, verify the output frequency is 50-60 Hz and that the PC is outputting a signal to the projector.

Why does the projector shut off automatically after some time?

This may be due to overheating, blocked ventilation, unstable voltage, or a broken fan. Ensure the filter is clean and ventilation is unobstructed. The projector has overheat protection that triggers automatic shut-off.

How do I clean the projector filter?

Turn off the projector and unplug it. Use water to clean the filter monthly to prevent dust buildup. Let it dry completely before reinstalling. Do not use cleanser.

Can I mount the projector on the ceiling?

Yes, the projector has mounting holes for a ceiling mount. It is recommended to contact a professional service person to install it correctly. Improper mounting may damage the projector or cause injury.

What is the PIP function and how do I use it?

PIP (Picture-in-Picture) allows you to display a secondary source in a small window over the main picture. In the PIP menu, you can select the sub-source (e.g., TV, AV, HDMI), adjust its size and position, and swap audio sources.

How do I change the OSD language?

Press the Menu button on the remote or panel. Navigate to the System menu using the arrow keys. Select 'Language' and choose your desired language from the list.

What to do if the remote control does not work?

Check if the power switch is on. Ensure batteries are installed correctly and have charge. Aim the remote at the IR receiver on the projector. Replace batteries if needed.

How long does the LED lamp last and can it be replaced?

The LED lamp has a typical life of 20,000 hours. The projector is designed for lamp replacement; spare lamps are available as purchasable accessories. Always replace with the same type.

USER MANUAL PRJLE33 Pyle

Line drawing of a projector with visible lens and ventilation slots (no text or symbols)

MODEL NO.: PRJLE33

www.pyleaudio.com

User's Manual

6M16(2HDMI)

Contents

Warranty card

Warning 1

Safety Precautions.... 2

Caution 3

Installation 4

standard setting (front projection)....5

Installation method....6

machine instruction....7

input terminals.... 8

Remote control instruction....9

Panel keystone instruction....10

Open/close.... 11

Open operation....11

Close operation....11

Image trapezoid adjustment 12

Focus adjustment....12

Trapezoid adjustment....12

Menu setting.... 13

Trouble shooting.... 17

Specification....19

Name/Company: Telephone:

Address:____ Fax No.:____

Product Purchased: Model No.: Serial No.:

Dealer Name: Date of Purchase: Invoice No.:

This card to be remained by customer

Thank you very much for the purchase of this product.

We offer free repair service for a period of one year from the date of purchase in accordance with the terms and condition state on the back of this card.

In the event of servicing, please return faulty product with complete Warranty Card and original Invoice to the following.

Accessory List

Warning

When you open the carton of projector, please check the full accessories

Accessory list :

Projector 1 unit

remote control 1 pc

power cable 1 pc

AV signal cable----1 pc

VGA signal cable----1 pc

manual 1 pc

spare fuse 1 pc

clear paper 1 pc

Purchasable accessory:

1, projector screen

2, projector ceiling mount

3, spare lamps

warning:

Please remember the model Number

and series number if you need.

And please check all accessories

when you drop the carton package.

MODEL NUMBER:

SERIES NUMBER:

When you use this projector, please read this manual carefully

Warning:

Donot see the light from the lens, it is high bright lamp.

It will damage your eye .specially for children.

Warning: Donot place the projector in the wet condition, avoid to getting an electric shock

It indicates there is a instruction for important operation

It indicates there is a dangerous voltage

Warning:

when close the projector, the fans will continue to turn 90 seconds. Before pull out the power cable, please be sure the fans stop to turn. Or it will damage the projector lamp.

About the remote control battery:

The remote control battery should be fixed correctly,

Or it will damage the remote control.

Make sure the remote control out of children reach.

Safety precautions

Specification

Warning;

when use this projector, please read this manual carefully.

If wrong operation, it will cause electric shock or fire. so when use and repair this projector, please comply with the following points.

1,Read manual

Before use this projector ,please read full manual carefully and operate according to this manual instruction

2, Clear

when clear this projector, please pull out the power cable. Use the wet cloth to clear, not the cleanser

1. Accessory

please use our recommended accessory.

Or it will damage the projector.

4, Use environment

Donot place the projector in wet environment

5, installation and fix

please place this projector in stable table.

1. Ventilation

the ventilation in the projector are best for projector work stably. Donot let the dust wall up the filter. Or it will cause the projector high-temperature protected. So please use the water to clear the filter per month.

7, Power

please make sure the power same as your projector inquiry specification. (220 V or 110V)

8, Earthing wire

this projector has earthing wire.

It is three pin plug.

9,protect the power cable

Please confirm the power cable are perfect when connect the projector.

10, Thunder

when the thunder happen or long time no use, please pull the power cable out of projector.

11, Repairment

As the high voltage inside ,please donot open or try to repair the projector by yourself. . Please ask a professional technician to repair the projector.

12, Far away Heat device please make sure this projector far away other heat device. It will damage the projector service life

LCD	Model	5"TFT
Input signal	video	component video(Ypbpr), VGA, HDMI1,HDMI2 TV,S-video
	audio	stereo
output signal	audio	5W×2 speaker(select)
LCD	native resolution	800*600 support 720P,1080P
	contrast ratio	1000:1
Lens	aperture	3.8
	Focus	185mm
Lamp	LED	100W
	Color-Temperature	9300K
	Life	20000 hours
Image	size	60~100inch
	Brightness	2000 Lumens
	keystone	±15 degree
Power	Voltage	AC100-240V/50-60Hz
	power consumption	<140W
Working condition		temperature 0°C~+70°C humidity 10%~65%
store condition		temperature -20°C~+70°C humidity 10%~90%
Remote control		Frequency 38KHz
machine	size	330×246×116 mm
	weight	3Kg

(If all parameter changed, donot note again)

Trouble shooting

Caution

Problem	The possibility reason
3,No image in the screen	◎the input source choice is correct ?◎Is there a input signal ?◎the input cable connect well or not ?◎under PC mode,the PC output frequency is 50-60Hz ?You have output your PC signal to projector ?
4.Auto-off after use some times	◎the projector ventilation is block?◎the voltage is not stable.◎the projector is so hot ? Maybe the fan is broken .

About the installation

- In order to improve the projector service life,● About Open and close the projector It should not place in a wet and ventilation condition. - when open the projector,connect

- Donot put the projector under the sunshine directly.

- Projector working temperature: 0^ +70^ 。 - Projector store temperature: -20^ +70^ 。

- Donot block the ventilation-window of projector

If the projector interior temperature are too hot, the machine will be shut off automatically. This is hot-protected system.

So please clean the filter of projector per month. It is very important. Donot let the dust cover the filter.

- when open the projector, connect the power cable and press the "power" key on the panel. the projector will work, but the lamp will be bright more and more. After 5 minutes, the lamp work normally

- when close the projector, press the power key again. And then the lamp shut off. But the fans still work until 5minutes later. When close the projector, donot pull out the power cable directly. After 5minutes, the projector will shut off automatically.

Warning:

Fans will adjust the temperature. It is controlled by system. When the projector work, the fans turn slowly or quickly, so the fans noise are different. But it is normal. when the projector work donot pull out the pwer cable. If the fans stop to work, it will cause the projector interior temperature very high, so it may damage the projector.

Installation

Trouble Shooting

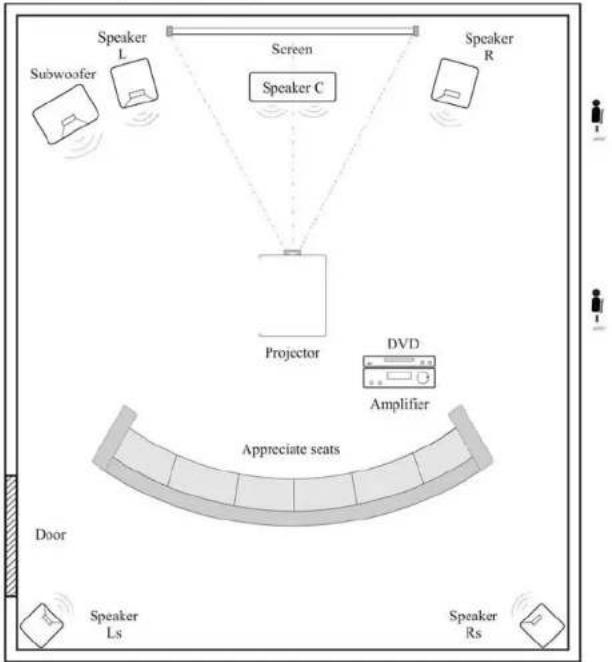

PROJECTOR INSTALLATION

Please use the setup instruction below:

In order to get good image quality, donot let the sunlight shine the screen directly. If you use the projector in the day time, please close the curtain.

TROUBLE SHOOTING

Please refer to this chapter when you encounter a problem.

It lists some simple problem solution.

Problem	The possibility reason
1.When turn on the power switch, the indicator light do not work.	◎Power cable do not connect well.◎the power switch fuse is broken.
2.the remote control can not turn on the projector.	◎the power switch turn on or off?◎remote control do not have battery◎the remote control do not aim at the IR point

Menu setting

Projector Installation

8. PC Menu

PC MENU
CONTRAST	0-100	Adjust the picture contrast
BRIGHTNESS	0-100	Adjust the picture brightness
COLOR MODE	COLOR TEMAP	Standard	Make a setting according to your personal.
		Warm
		Cool
		S-RGB
		Personal
	USER-R	0-100	Make a setting according to your personal.
	USER-G	0-100
	USER-B	0-100
SCALE	Adjust the picture scale
AUTO	Adjust the PC picture frequency and phase
PICTURE MODE	Personal setting

9. GEOMETRY MENU

Geometry menu
H-position	0-100	Adjust PC picture position in Horizontal
V-position	0-100	Adjust PC picture position in vertical
CLOCK	0-100	Adjust the scan frequency in horizontal
PHASE	0-100	Adjust the signal synchronization

The geometry menu only exist in PC channel

Standard setting (Front projection)

Please refer to the following sheet, adjust your picture size and distance (from the lens to screen)

Distance	4:3	16:9
60"	2.3m	2.5m
72"	2.68m	2.88m
100"	3.6m	3.9m

The data maybe have 3% error, due to the image size according to the distance between projector and screen. if the distance is less 2m or over 5m, the image maybe not clear.

warning:

Please check the following picture to show the trapezoid adjustment

Projector installation

Menu setting

Installation method:

Contact a professional service man to mount this projector to a ceiling.

Follow the instructions below for the correct projector positions:

2 Front projection Table mount	4 Rear projection Table mount

Warning:

1) This projector might damage beyond repair when it is incorrectly mounted on a ceiling or when its incorrectly installed on a surface or installed on a incorrect surface. It may also inflict damage to persons within close vicinity.
2) This projector can only be used in an environment with a temperature not exceeding the range of 0-35 degree. The projector may malfunction if temperatures vary outside the normal operating range.
3) The sharpness of the screen might be interrupted when the projector is being used in a dusty, wet, moist or smoke filled environment. The projector might malfunction in a moist or wet environment.
4) Take care of sufficient ventilation around the projector. Otherwise this projector might overheat and cause life threatening situations

6. PIP MENU

PIP MENU
MULITI WINDOWS	OPEN
	PIP
	POP 4:3
	OFF
SUB SOURCE	TV	Choose TV as sub source
	VIDEO	Choose AV as sub source
	SVIDEO	Choose svideo as sub source
	YCBCR	Choose yebcr as sub source
	VGA	Choose VGA as sub source
	HDMI1	Choose HDMI1 as sub source
	HDMI2	Choose HDMI2 as sub source
SIZE	S/M/L	Choose sub picture size
PIP POSITION	UpLeft	Move the sub picture to upleft
	DownLeft	move the sub picture to downleft
	UpRight	Move the sub picture to upright
	DownRight	Move the sub picture to downright
BORDER COLOR	Black and blue	Choose the border color
SOUND SOURCE	Main picture	Choose the sound for main picture
	Sub picture	Choose the sound for sub picture
SWAP	Alternate main picture and sub picture

NOTE:

when main source is HDMI1, HDMI2, YCBCR, VGA the sub source is only AV or TV or S-video.

7. TV-CHANNEL MENU

TV menu
Auto scan	Scan the channel and save it
Fine	Fine the channel by manual
Manual search	Channel	Chose the channel number.
	Search	Search the channel by manual
	Save	Save the channel by manual
Color system	Auto	Adjust the color system,"auto" is default
	PAL
	SECAM
Sound system	Auto	Adjust the sound system"auto"is default
	BG
	I
	DK
	L
	LL

Menu setting

Machine Instruction

3) Picture Menu

Picture menu
Contrast	0-100	Picture contrast adjustment
Brightness	0-100	Picture brightness adjustment
Hue	0-100	Picture hue adjustment
Saturation	0-100	Picture saturation adjustment
Sharpness	0-100	Picture sharpness adjustment
Color tone	Standard	The default is standard.you can set according to your personal.
	Cool
	Warm
3D NR	High	The default is mid.you can set according to your personal.
	Mid
	Low
	Close

4) SOUND MENU

Sound menu
Bess	0-100	Adjust left-right sound channel
Treble	Standard	Default effects
	Movie	Movie sound effects
	Music	Music sound effects
	Personal	Choose your personal sound effects
Balance	Off/on	Balance off/on
Sound mode	Off	S-XBS off
	Low	S-XBS low mode
	Mid	S-XBS middle mode
	High	S-XBS high mode
AVC	Off/on	Auto voice control
SOUND SOURCE	Normal	Line and speaker both output
	Line	Only line output
	Speaker	Only speaker output

5). SYSTEM MENU

System menu
Language	Adjust the OSD language
H-position	0-100	Adjust OSD horizontal position
V-position	0-100	Adjust OSD vertical position
Flip horizontal	Off/on	Picture flip left to right
Flip vertical	Off/on	Picture flip up and down
Mem-recall	All setting return to system default

1, focus lens
2,IR receiver
3,Hight-feet adjustment
4,cool winds input ventilation
5, input terminals
6,power switch
7,keystone
8,hot winds output ventilation
9, speaker
10,hight-feet adjustment
11, projector mount hole
12,label
13, hot winds output ventilation

Input terminals

Menu setting

Interface

Name	Instruction
Y/Pb/Pr	Component video input
Video	AV input
Lout、Rout	Audio output
Lin、Rin	Audio input
VGA IN	VGA input
Svideo	Svideo input
TV	Analog TV input
HDMI 1	HDMI Signal input
HDMI 2

Caution

☆Please connect the input signal cable well, then turn on the projector. Otherwise, it is easy to damage the projector.

1) Menu setting method

1. Using the projector, press "menu" key, the picture display on screen to adjust the menu(picture one):
2. press "◀/▶" key, the menu in turn circle into "picture" > "sound" > "system" > "PIP";
3. Elect the adjust interface, use “▲/▼” key elect the item that need to adjust(picture two);
4. use "◀/▶" key to adjust the elect item paremeter;
5. Finished the elect item parameter, press the "menu" key again, exit the page;
6. Repeat operate the 2\~5step, till finished all the parameter's enactment, press "exit" key, exit the menu page, otherwise, the menu page will auto exit after a period time.

2) Paremeter adjustment

a. Press "menu" key, untile disply the above picture of the menu;
b. Press “▲/▼” key, elect the option that need to adjust;
c. Press “◀/▶” key, adjust parallelism elect parameter.
d. Press the "menu" key again exit the menu page parameter adjust station.

note:

(One)

(Two)

1

Image adjustment

Remote control instruction

When you use the projector first time.it normally will appear image faintness or the image is trapezoid.It is the reason of lens focus or trapeziod correction. please follow the step the correction:

Focus adjustment

1. turn the lens into the projector, then turn it out slowly, at the same time, looking at the resolution point carefully, when the image is very clearly (take the middle area of the image), it is the best situation of the lens

1

2

NOTE: When you replace the projector from a cold to a warm environment water vapour might occur. Don't turn the projector on when this occurs but wait until the vapour has disappeared.

KEYSTONE

If a projected picture has keystone distortion, correct image with Keystone adjustment. The image becomes trapezoid shape when the screen or project is not level. Please reposition the projector to improve its angle to the screen. However, the circumference of the image may not be focussed.

If not able to use the Keystone correction function to correct the trapezoid distortion, please reduce of the projector to centre the screen vertically.

REMOTE CONTROL

Panel keystoke instruction

Open/close

Panel keystoke sketch map

① Power key It can open or close the projector its function same as the "power" in the remote control

③ Menu, It can adjust the menu by UP/Down ,left/right

⑤ Direction operation Key

② Sources It can choose the input signal (such as: AV .YPBPR , HDMI1, HDMI2 ,PC or TV)

④ Indicator light red color:standby green color:working

If the projector is the new one, please read "projector install" chapter, placed the projector, connect the powerwire and the signalwire, the operation as follow:

Open operation

1. Before use the remoter. Put in two 7 size battery in it

1. Open the power switch on the the power light begin to flash.

1. press the power key on the remote control or panel, the indicator light turn light.

1. After 2 second, the projector lamp begin work, began appear unclear white light on the screen, after 2 minute the projector begin work.

2. For the new projector. When the first time to use, maybe will appear image unclear or trapezoid distortion, please read "image adjustment" chapter.

3. After the image is clear, then you can watch program. during watching, you also can setup the system parameter, please read "menu setting" chapter.

Close operation

1. During use the projector, press "power" key, can let the projector switch to stay situation.

2. After inter into stay situation, the projector under auto protect, auto release hot, the indicator light is flase situation, but here, the projector is under auto protect situation, not accept any order. if need to startup again, must wait for finished the release hot.
