PRJHD66 - Video projector Pyle - Free user manual and instructions

Product Type	Video Projector
Brand	Pyle
Model	PRJHD66
Resolution	1080p (1920 x 1080) supported
Brightness	3000 lumens
Contrast Ratio	2000:1
Display Technology	LCD
Lamp Life	Up to 30,000 hours (LED)
Dimensions (W x D x H)	9.4 x 6.3 x 3.1 inches
Weight	2.8 lbs
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	60W (normal mode)
Connectivity	HDMI, VGA, USB, AV, Audio Out
Keystone Correction	±15° vertical
Projection Distance	3.9 - 16.4 feet
Screen Size	30 - 200 inches
Built-in Speaker	Yes, 2 x 3W
Fan Noise	< 35 dB
Lens Cleaning	Use soft, dry cloth; avoid solvents
Ventilation	Keep vents clear; do not block
Safety Warning	Do not stare into lens; avoid water exposure
Spare Parts Available	Remote control, power cord, user manual
Included Accessories	Remote, power cable, AV cable, manual

Frequently Asked Questions - PRJHD66 Pyle

What is the resolution of the Pyle PRJHD66 projector?

The Pyle PRJHD66 supports 1080p (1920x1080) resolution for clear and detailed images.

How do I connect my smartphone to this projector?

You can connect via HDMI using an adapter, or use the USB port for media playback. Wireless connection is not built-in.

What is the lamp life of the PRJHD66?

The projector uses an LED light source with a lifespan of up to 30,000 hours, reducing maintenance needs.

Can I use this projector for outdoor movies?

Yes, with a brightness of 3000 lumens, it is suitable for outdoor use in low-light conditions. Ensure proper ventilation and protect from dust/moisture.

How do I adjust the keystone effect?

Use the keystone correction button on the remote or projector menu to adjust vertical keystone up to ±15 degrees.

Does this projector have built-in speakers?

Yes, it includes dual 3W speakers for basic audio. For better sound, connect external speakers via the audio out jack.

What size screen can I get with this projector?

The projector can produce an image from 30 to 200 inches diagonally, depending on the distance (3.9 to 16.4 feet).

How to clean the lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using any liquids or abrasive materials.

Is the projector fan loud?

The fan noise is rated at less than 35 dB, making it quiet enough for home theater use.

Where can I find spare parts or the remote control?

Spare parts such as the remote control and power cord can be ordered from Pyle's official website or authorized dealers.

USER MANUAL PRJHD66 Pyle

HD Home cinema projector

PYLE® www.PyleAudio.com

Black and silver projector with camera lens and ventilation slots (no visible text or symbols)

Model: PRJHD66 User Manual

CONTENTS

Safety Precautions....2

Caution 3

Installation of projector....4

Full setting.... 4

standard setting front projection) 5

Installation method....6

input port instruction....7

signalconnection map....8

Remote control instruction....9

Panel keystone instruction....10

Open/close.... 11

Open operation....11

Close operation....11

Image trapezoid adjustment 12

Focus adjustment....12

Trapezoid adjustment 12

Image trapezoid adjustment 13

Menu setting method.... 13

1. Image menu adjustment.... 13

2. volume menu adjustment....14

3. Function menu adjustment....14

4. system menu adjustment....14

5. PIP menu adjustment……14

6. preset menu adjustment.... 14

7. TV Search menu adjustment....14

Maintenance....15

filter clearance....15

lamp replacement.... 16

Trouble shooting.... 18

Specification 20

Accessory and purchasable parts

When you open the carton of projector, please check the full accessories

Accessory list :

Projector 1 unit

remote control ----1 pc

power cable 1 pc

AV signal cable----1 pc

VGA signal cable----1 pc

warranty card----lpc

manual 1 pc

spare fuse 1 pc

clear paper 1 pc

Purchasable accessory:

1, projector screen

2, projector ceiling mount

3, spare lamps

Specification

WARNING

LCD	Model	5"TFT
Input signal	video	component vidco(Ypbpr), VGA,HDMI TV
	audio	stereo
output signal	audio	5W 3 speaker(select)
LCD	native resolution contrast ratio	640×80 support 576P, 720P 1080P) 800 l
Lens	aperture Focus	3.8 160mm
Lamp	Power Color-Temperature Life >6000 hours working time <24 hours	150W 9300K >6000 hours working time <24 hours
Image	size Brightness keystone	60-100inch 1800 Lumincs 20 degree
Power	Voltage power consumption	220±10 VAC 50Hz or <200W 110 10 VAC 60Hz, 10% ~ %
Working condition		temperature 0°C70 °C humidity 10% ~ %
store condition		temperature -20°C70 °C humidity 10% ~ %
Remote control		Frequency 38KHz
machine	size weight	298×10 120mm 6Kg

(If all parameter changed, donot note again)

warning :

Please remember the model Number and series number if you need.

And please check all accessories when you drop the carton package.

MODEL NUMBER:

SERIES NUMBER:

When you use this projector, please read this manual carefully

Warning:

Donot see the light from the lens, it is high bright lamp. It will damage your eye .specially for children.

Warning: Donot place the projector in the wet condition, avoid to getting an electric shock

Warning:

when close the projector, the fans will continue to turn 90 seconds. Before pull out the power cable, please be sure the fans stop to turn. Or it will damage the projector lamp.

About the remote control battery:

The remote control battery should be fixed correctly,

Or it will damage the remote control.

Make sure the remote control out of children reach.

Safety precautions

Trouble shooting

Warning:

when use this projector, please read this manual carefully.

If wrong operation, it will cause electric shock or fire. so when use and repair this projector, please comply with the following points.

1, Read manual

Before use this projector, please read full manual carefully and operate according to this manual instruction

2.Clear

when clear this projector, please pull out the power cable. Use the wet cloth to clear, not the cleasner

3. Accessory

please use our recommended accessory. Or it will damage the projector.

4, Use environment

Donot place the projector in wet environment 5, installation and fix please place this projector in stable table.

6, Ventilation

the ventilation in the projector are best for projector work stably. Donot let the dust wall up the filter. Or it will cause the projector high-temperature protected. So please use the water to clear the filter per month.

7, Power

please make sure the power same as your projector inquiry specification. (220 V or 110V)

8, Earthing wire

this projector has earthing wire. It is three pin plug.

9,protect the power cable

Please confirm the power cable are perfect when connect the projector.

10, Thunder

when the thunder happen or long time no use, please pull the power cable out of projector.

11, Repairment

As the high voltage inside ,please donot open or try to repair the projector by yourself. . Please ask a professional technician to repair the projector.

12, Far away Heat device please make sure this projector far away other heat device. It will damage the projector service life

TROUBLE SHOOTING

Please refer to this chapter when you encounter a problem list prior to contacting your dealer.

Problem:

Possible solution(s):

Projector turns off automatically

1, Dust cover the filter, Please wash this filter by water.

1. Some of fans are broken, donot turn again. It is high temperature protected system. Please replace the broken fans quickly.

Lamp doesn't work.

1. Power supplier are wrong. Please confirm your Projector power specification. 220V or 110V.

2, Lamp are broken or out of service life. Please replace the lamp and test it again

1. Check the ignitor. It is broken, please change a New ignitor.

Trouble Shooting

Caution

TROUBLE SHOOTING

Please refer to this chapter when you encounter a problem list prior to contacting your dealer.

Problem:
Possible solution(s):

No power	1, The projector donot connect the power cable2, Donot open the projector.3, Fuse broken
Remote doesn't operate	1, Projector turned on to quickly after last turn off (needs 5 minutes).2, Batteries defect.3, Aim remote correctly at IR receiver.
No image	1, Please remove the len cap at first2, Projector turned off.3, Selected the wrong input signal.4, the mainboard are broken . Please Replace this mainboard.

About the installation

• In order to improve the projector service life,● About Open and close the projector It should not place in a wet and ventilation condition.
• when open the projector ,connect
• Donot put the projector under the sunshine directly.
• Projector working temperature: 0℃70 ℃.
• Projector store temperature : -20℃70 ℃.
• Donot block the ventilation-window of projector
  If the projector interior temperature are too hot, the machine will be shut off automatically. This is hot - protected system.
  So please clean the filter of projector per month. It is very important.
  Donot let the dust cover the filter.
• when open the projector, connect the power cable and press the "power" key on the panel. The projector will work, but the lamp will be bright more and more. After 5 minutes, the lamp wor normally
• when close the projector, press the power key again. And then the lamp shut off. But the fans still work until 5 minutes lat. When close the projector, donot pull out the power cable directly. After 5 minutes the projector will shut off automatically.

Warning:

Fans will adjust the temperature. It is controlled by system when the projector work, the fans turn slowly or quickly so the fans noise are different But it is normal when the projector work, donot pull out the pwer cable. If the fans stop to work, it will cause the projector interior temperature very high, so it may damage the projector.

Installation

Maintenance

PROJECTOR INSTALLATION

Please use the setup instruction below:

In order to get good image quality, donot let the sunlight shine the screen directly. If you use the projector in the day time,

1. Take away the panel like the picture 2.

Close-up of a mechanical component with circular features and a central rectangular body (no visible text or symbols)

2

★Before replacing the lamp, make sure the lamp are cold.
★Before open the lamp cover board, pull out the power cable
★When replacing the lamp, donot drop some dirty goods inside the projector.

Maintenance

Projector Installation

Replace the projector lamp

Our projector lamp warranty 6 months in different use environment, after 6000 hours, the lamp brightness will reduce the image will become dark. Therefore, please replace the lamp according to the following steps.

1, use the tool to remove the screw, like the picture 1 show

Close-up of a mechanical component with a metallic tool inserted, no visible text or symbols

1

Standard setting Front projection

Please refer to the following sheet, adjust your picture size and distance (from the lens to screen)

Taille D'écran	4:3 16:9
50"	2.45m	2.65m
72"	3.45m	3.75m
100"	4.73m	5.15m

The data maybe have 3% error, due to the image size according to the distance between projector and screen. If the distance is less 2m or over 5m, the image maybe not clear.

warning:

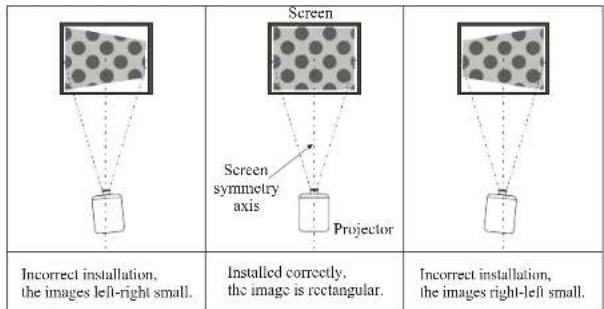

Please check the following picture to show the trapezoid adjustment

Projector installation

Maintenance

Installation method:

Contact a professional service man to mount this projector to a ceiling.

Follow the instructions below for the correct projector positions:

Warning:

1) This projector might damage beyond repair when it is incorrectly mounted on a ceiling or when its incorrectly installed on a surface or installed on a incorrect surface. It may also inflict damage to persons within close vicinity.
2) This projector can only be used in an environment with a temperature not exceeding the range of 0-35 degree. The projector may malfunction if temperatures vary outside the normal operating range.
3 The sharpness of the screen might be interrupted when the
projector is being used in a dusty, wet, moist or smoke filled environment. The projector might malfunction in a moist or wet environment.
4 Take care of sufficient ventilation around the projector. Otherwise this projector might overheat and cause life threatening situations

Maintenance filter

The filter should be cleaned at least once a month (more often in dusty environments), or the projector will overheat. the step as follow:

1. Remove the grille like indicated below.

Close-up of a curved mechanical component with a small arrow pointing downward (no text or symbols visible)

1. clear the dusty on the filter. Dry the filter sufficiently never install a moist filter in this projector, and complete the installation.

Menu setting

Projector installation

2. SOUND INTERFACE

4. SYSTEM INTERFACE

6. GEOMETRY INTERFACE

3. ADVANCE INTERFACE

5. PIP INTERFACE

(NOTE: only HDMI and Pc, support PIP function, when PIP function not close, the singal just switch between HDMI and PC)

7. TV-CHANNEL INTERFACE

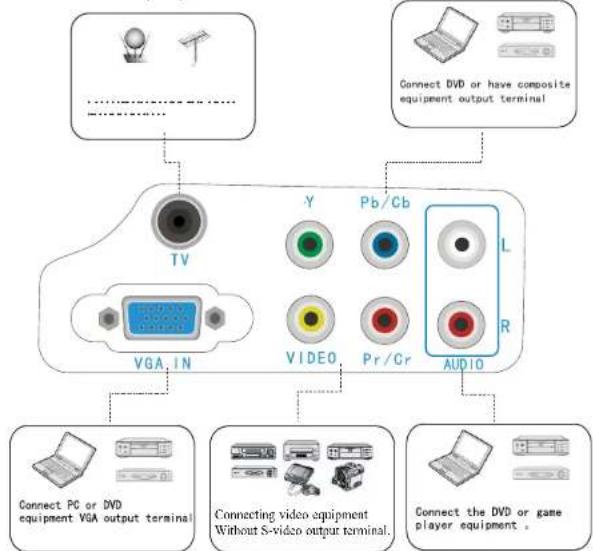

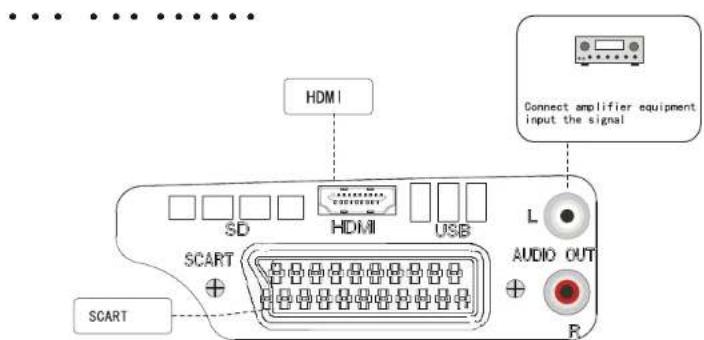

Input port instruction

This projector can support component video signal, s-video signal, VGA signal and TV signal, the audio in and audio out function.

1. Indicator light on stay situation, the light is red, on working situation, the light is green.

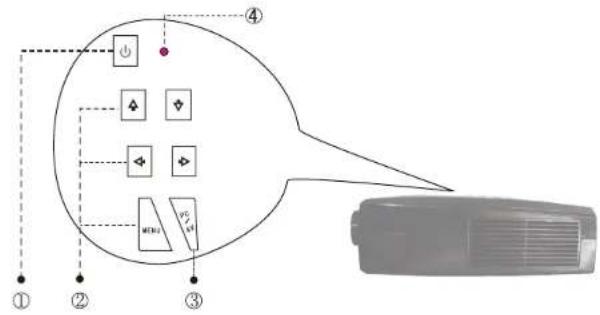

2. Panel key use panel key to adjust parameter, read the introduce of the panel key

3. Remote control receiver when use the remote control, please point this receiver directly.

4. Lens adjust the lens focus to improve the image quality.

5. Trapezoid correction turn the knob on the projector left or right. Adjust the image become square, can adjust +/-15

6. HDMI signal input, max support 1080i signal.

7. Signal wire connect connect projector signal source, read the signal port introduce )

8. Power switch
   when use, you need connect the power wire with projector and the power jace.
9. Fuse
   if open the power switch, the indicator light do not work, it maybe the fuse broken 5A120V)
10. Power switch
    open and shut off this switch.
    when you want to open the projector
    it must open this switch at frist
11. ventilation
    this ventilation window is very important denot block this window.otherwise it will burn the projector
12. ventilation
    two side of the projector have the ventilation, when use, you must ensure do not block it

Projector install

Menu setting

Connect main equipment

Menu setting method

1. Using the projector, press menu key, the picture display on screen to adjust the menu(picture one);
2. press "◀/▶key the menu in turn circle into image >"volume> "

function > "system > setting > " image adjust interface ;

1. Elect the adjust interface, use "key" elect the item that need to adjust(picture two);
2. use "key to adjust the elect item paremeter ;
3. Finished the elect item parameter, press the menu key again exit the page ;

4. Repeat operate the 2-5step, till finished all the parameter's enactment, press exit key, exit the menu page, otherwise the menu page will auto exit after a period time.

5. Image menu adjustment

a. Press menu key untile display the above picture of the menu;
b. Press “▲/▼key elect the option that need to adjust;
c. Press “key adjust parallelism elect parameter.
d. Press the "menu" key again exit the menu page parameter adjust station.

(One)

(Two)

note:

parameter, as adjust parameter

will appear adjustment interface;

Image adjustment

Remote control instruction

The new projector using it first time commonly will appear image faintness and the image is trapezoid, it is course that not adjust well of the lens focus and the trapezoid. please follow the step the correction:

Focus adjustment

•turn the lens into the projector then turn it out slowly at the same time looking at the resolution point carefully, when the image is very clearly (take the middle area of the image), it is the best situation of the lens

NOTE: When you replace the projector from a cold to a warm environment water vapour might occur. Don't turn the projector on when this occurs but wait until the vapour has disappeared.

KEYSTONE

If a projected picture has keystone distortion, correct image with Keystone adjustment. The image becomes trapezoid shape when the screen or project is not level. Please reposition the projector to improve its angle to the screen. However, the circumference of the image may not be focussed.

If not able to use the Keystone correction function to correct the trapezoid distortion, please reduce of the projector to centre the screen vertically.

Remote panel instruction

Precautions:

I you need to dry the remote control with a dry cloth immediately when it gets wet.
2, when the battery hasn't been used for a long time we advise you to remove it from the remote. be sure that children can't reach the removed button cell. swallowing a of harm and is very dangerous

Panel keystoke instruction

Open/close

Panel keystoke sketch map

Power key It can open or close the projector its function same as the "power" in the remote control

- Menu, direction Key It can adjust the menu by UP/Down ,left/right

②PC/AV Key It can choose the input signal (such as: AV.SVIDEO.Component video, HDMI,PC or TV)

- Indicator light

If the projector is the new one, please read projector install "chapter, placed the projector connect the powerwire and the signalwire, the operation as follow:

Open operation

1. Before use the remoter. Put in two 7 size battery in it

1. Open the power switch on the the power light begin to flash.

1. press the power key on the remote control or panel, the indicator light turn light.

1. After 2 second the projector lamp begin work, began appear unclear white light on the screen, after 2 minute the projector begin work.

2. For the new projector. When the first time to use, maybe will appear image unclear or trapezoid distortion, please read image adjustment chapter

3. After the image is clear, then you can watch program during watching, you also can setup the system parameter, please read menu setting chapter

Close operation

1. During use the projector press power key can let the projector switch to stay situation.

2. After inter into stay situation, the projector under auto protect auto release hot the indicator light is flase situation, but here the projector is under auto protect situation, not accept any order if need to startup again must wait for finished the release hot.
