Product Type	Over-ear wired headphones
Brand	Sven
Model	AP-690MV
Weight	Approx. 200 g
Dimensions (folded)	180 x 150 x 60 mm
Driver Diameter	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Microphone	Built-in, omnidirectional
Cable Length	1.5 m
Connector	3.5 mm jack (gold-plated)
Stereo/Mono	Stereo
Control	In-line volume and mute control
Compatibility	Smartphones, tablets, PCs, audio players
Ear Pad Material	Leatherette
Headband Padding	Foam with leatherette
Adjustable Headband	Yes
Foldable Design	Yes
Color Options	Black
Warranty	1 year

Frequently Asked Questions - AP-690MV Sven

How do I connect the headphones to my device?

Plug the 3.5 mm jack into the headphone port of your device. Ensure the plug is fully inserted.

Can I use the headphones with a PC?

Yes, the headphones are compatible with PCs. Use the 3.5 mm audio jack; if your PC has separate mic and audio ports, you may need a splitter cable.

How do I adjust the volume?

Use the in-line controller on the cable to adjust volume up/down. Also you can control volume from your device.

The microphone is not working. What should I do?

Check that the plug is fully inserted. If using a PC, ensure the microphone is not muted in system settings. Also verify the in-line mute switch is off.

How do I clean the headphones?

Wipe the ear pads and headband with a soft, dry cloth. Do not use solvents or immerse in water.

Are the ear pads replaceable?

Yes, the ear pads are replaceable. Contact Sven support or check online for compatible replacement pads.

Can I use these headphones for gaming?

Yes, they work for gaming with a microphone. However, they are not surround sound; they provide stereo audio.

The sound is only coming from one side. How to fix?

Check the audio plug for debris and ensure it's fully inserted. Test with another device. If problem persists, the cable may be damaged.

Do the headphones have noise cancellation?

No, the AP-690MV does not feature active noise cancellation. The over-ear design provides passive isolation.

What is the warranty period?

The headphones come with a 1-year warranty. Keep your purchase receipt for service.

USER MANUAL AP-690MV Sven

Black SVEN headband with logo, no visible text or symbols on the device itself

Congratulations on your purchase of the SVEN headphones!

APPLICATION

Sven AP-690MV stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems. They can be also used in VoIP telephony, video conferencing, multimedia applications, interactive games, for speech recognition and learning foreign languages.

SAFETY PRECAUTIONS

• Don't use the stereo headphones while driving.
• Don't use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.

SPECIAL FEATURES

• 2*3.5 mm (3 pin) connector for PC
• Unilateral connection of the cable
• Adjustable headband
• Easy-to-use microphone arm
  • Volume control on the left headphone
• SVEN PNC passive noise cancelling system

• Connect the headphones connector to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
• Insert the microphone connector into the microphone input jack of your audio source.
• Adjust the headphones volume level as desired with the volume control wheel on the cable.

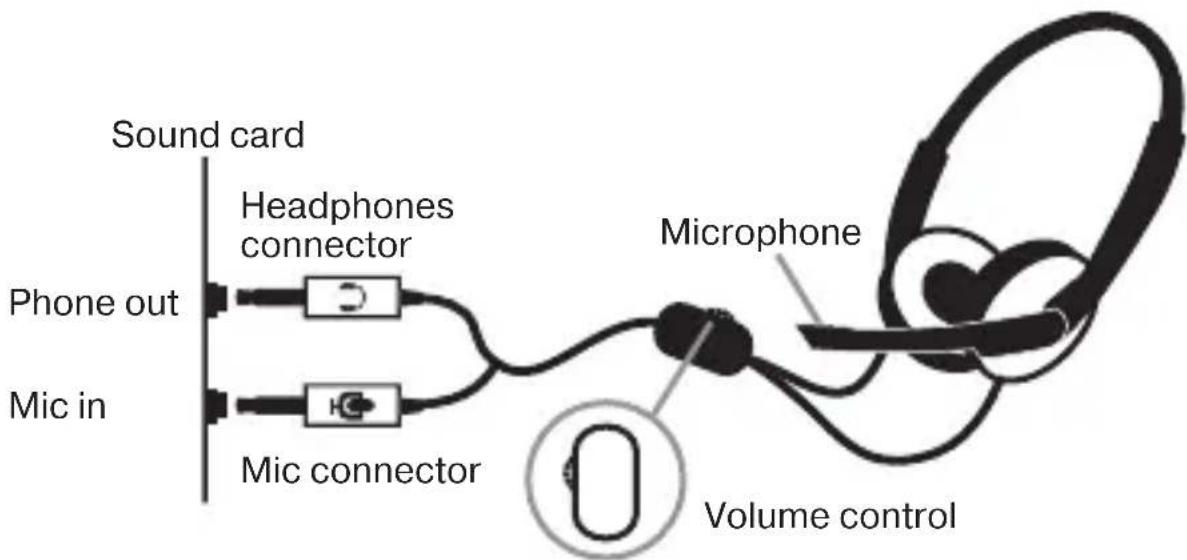

Fig. 1. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensitivity, dB	headphones: 116microphone: -52 ± 2
Frequency range, Hz	headphones: 20 – 20,000microphone: 20 – 16,000
Membrane, mm	∅ 40
Connector type	∅ 2*3.5 mm (3 pin) stereo mini-jack
Cable length, m	2.2
Weight, r	210

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Stereo Headphones with Microphone

SVEN®

YOU WANT - WE CAN

Black outdoor headphones with exposed earbuds and black headband (no visible text or symbols)

Модель: AP-690MV

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

AP-690MV
