USER MANUAL AP-640 Sven

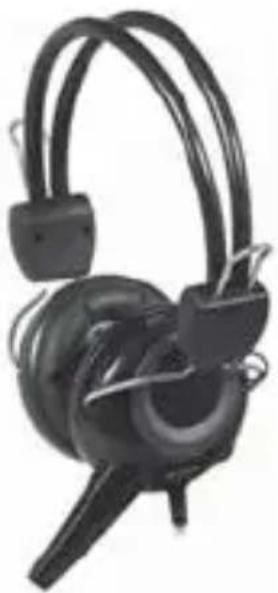

Close-up of a black hardcover head with earbuds and adjustable straps (no visible text or symbols)

Congratulations on your purchase of the SVEN headphones!

APPLICATION

Sven AP-640 stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems. They can be also used in VoIP telephony, video conferencing, multimedia applications, interactive games, for speech recognition and learning foreign languages. One of the distinctive features of the model is SVEN PNC (passive noise cancelling) system providing isolation from outside sounds.

SAFETY PRECAUTIONS

• Don't use the stereo headphones while driving.
• Don’t use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.

SPECIAL FEATURES

• 2*3.5 mm (3 pin) connector for PC
• Unilateral connection of the cable
• Ear cushions made of antiallergic materials
  • Volume control on the left earphone
• Adjustable headband
• Heavy-duty non-tangling cable with fabric braid
• SVEN PNC passive noise cancelling system

• Connect the headphones connector to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
• Insert the microphone connector into the microphone input jack of your audio source.
• Adjust the headphones volume level as desired with the volume control wheel on the left headphone.

Sound card Phone out Mic in Headphones connector Microphone Microphone connector Volume control on left earcup

Fig. 1. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensitivity, dB	headphones: 106 ± 2microphone: -48 ± 3
Frequency range, Hz	headphones: 18 – 22,000microphone: 50 – 16,000
Membrane, mm	∅ 40
Connector type	∅ 2*3.5 mm (3 pin) stereo mini-jack
Cable length, m	2.2
Weight, g	220

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Stereo Headphones with Microphone

SVEN®

YOU WANT - WE CAN

Close-up of a black hard-band ear with attached straps and earplids (no text or symbols visible)

Модель: AP-640

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
