PC101B - CD Player GPX - Free user manual and instructions

Product Type	Portable CD Player
Brand	GPX
Model	PC101B
Disc Compatibility	CD, CD-R, CD-RW
Playback Modes	Repeat, Random, Program
Audio Output	3.5mm headphone jack
Power Source	2 x AA batteries (not included) or AC adapter (optional)
Dimensions (approx)	5.5 x 5.0 x 1.5 inches
Weight (approx)	0.5 lbs
Display	LED screen
Skip/Search	Yes
Volume Control	Yes
Anti-skip Protection	Yes
Headphones Included	No
Color	Black
Material	Plastic
Warranty	1 year limited
Maintenance	Clean lens with soft, dry cloth
Safety	Do not expose to moisture or extreme temperatures
Replaceable Parts	Batteries, headphones (compatible with any 3.5mm)

Frequently Asked Questions - PC101B GPX

How do I play a CD on the GPX PC101B?

Insert a CD with the label facing up, close the lid, and press the Play/Pause button. The disc will start spinning and audio will play through connected headphones.

How do I skip to the next track?

Press the Next (>>|) button to skip forward. Press Previous (|<<) to go back to the start of the track or previous track.

Can I use rechargeable batteries?

Yes, you can use rechargeable AA batteries. Ensure they are fully charged before use. Note that performance may vary.

Why is there no sound?

Check that headphones are securely plugged into the 3.5mm jack. Ensure volume is turned up. Also verify the CD is not scratched or dirty. Try a different CD.

How do I program a custom playlist?

Press the Program button, then use the skip buttons to select track numbers, press Program again to add each track. Press Play to start the programmed sequence.

How do I clean the CD lens?

Use a dry, soft cloth to gently wipe the lens. Do not use liquid cleaners. Alternatively, use a lens cleaning CD.

What power adapter can I use?

The GPX PC101B accepts a 3V DC adapter with a tip positive center. Use only a compatible adapter to avoid damage.

Does it have anti-skip?

Yes, the player includes anti-skip protection to minimize skipping during light movement. For heavy activity, use a portable case.

How do I activate repeat mode?

Press the Repeat button to cycle through options: repeat one track, repeat all, or repeat off. The display shows the current mode.

Can I play CD-RW discs?

Yes, the PC101B supports CD-RW discs as long as they are finalized. Some older or scratched discs may not play properly.

USER MANUAL PC101B GPX

Portable Compact CD Player

For the most up-to-date version of this User's Guide, go to www.gpx.com

Introduction

STOP/OFF

Press to stop a CD during play. In stop mode, press to power off the CD player.

CD DOOR

PLAY/PAUSE

Press to play or pause a loaded CD.

SKIP/SEARCH

Press to skip between tracks on a loaded CD. Press and hold to search an individual track on a loaded CD.

OPEN

Press to open the CD DOOR.

PROG

Press to program a loaded CD to play tracks in a specified order.

MODE

Press to repeat a single track or an entire CD, play tracks in a random order, or play the CD in intro mode.

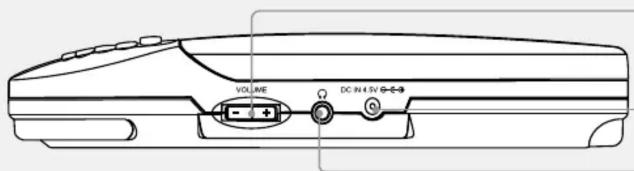

VOLUME

Press to adjust the volume.

DC POWER INPUT

STEREO HEADPHONE JACK

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

Main plug is used as disconnect device and it should remain readily operable during intended use.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Personal CD Player

Features

• CD player: CD, CD-R
  • Digital volume control
• LCD display
• Low battery indicator
  • DC power: requires 2, AA size, batteries (not included)
• DC power input: requires an AC/DC power adapter (not included)

Includes

• PC101B
  • One set of stereo earbuds

Setup

Power

Requires an AC/DC power adapter (not included).

Line drawing of a device connected to an electrical outlet (no text or symbols)

Battery Power

Requires 2, AA size, batteries (not included)

Diagram of a circular device interior with internal compartments and a small component, no text or symbols present

Operations

Loading a CD

1. Press the OPEN button to open the CD DOOR.
2. Load a CD into the player, label side up.
3. Close the CD DOOR.

Playing a CD

1. Follow the instructions for Loading a CD.
2. Press the PLAY/PAUSE button to begin playing the loaded CD.

Programming a CD

1. Follow the instructions for Loading a CD and Playing a CD.
2. Press the STOP button to stop the CD during play.
3. Press the PROG button.
   "01" will begin to blink on the DISPLAY.
4. Press the SKIP/SEARCH buttons to select the track you wish to program.
5. Press the PROG button to save the selected track to the program.
6. Repeat steps 4 and 5 to program up to 20 tracks to play in the order they are programmed.

Company Information

Green Initiative International Support

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

2009 marked the official launch of DPI, Inc.'s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain significant and important conservation efforts within its manufacturing and marketing communities. In addition to targeting and selecting energy efficient product features, and structuring 'green office' procedures, other initial program efforts include:

• Reduction of all packaging sizes
• Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper
  • Recycled fiber board in place of the polyfoam in packing boxes
  • Recycled plastics in place of the virgin material in product construction

To download this User's Guide in English, Spanish, or French, visit the support section at www.gpx.com.
