Product Type	CD Boombox / CD Player
Brand	GPX
Model	BC112B
Power Supply	AC power via included cable or 6 C batteries (not included)
Battery Life	Approximately 8 hours
Disc Compatibility	CD, CD-R/RW (not MP3 CDs)
Radio Bands	AM/FM
Tuning	Manual analog dial
Audio Input	3.5mm line-in (cable not included)
Display	2-digit red LED
Volume Control	Analog knob
Disc Loading	Top-load
Antenna	Built-in AM/FM
Safety	Double insulation; no user-serviceable parts; polarized plug
Cleaning	Dry cloth only
Accessories Included	AC power cable
Output	Built-in speakers
Customer Support	1-888-999-4215, [e-mail]
Warranty Information	Visit www.gpx.com

Frequently Asked Questions - BC112B GPX

How do I power the BC112B?

You can power the unit using the included AC power cable plugged into a standard outlet, or by inserting 6 C batteries (not included) into the battery compartment for portable use.

Can I use rechargeable batteries?

Yes, you can use rechargeable C batteries, but note that battery life may vary. The unit is designed for standard C batteries.

How do I play a CD?

Open the CD door, place a CD label side up, close the door, set the Source Switch to CD mode, and press the Play/Pause button.

Does the BC112B play MP3 CDs?

No, this unit is not compatible with MP3 CDs. It supports standard audio CDs and CD-R/RW discs.

How do I program tracks on a CD?

Press Stop to stop playback, then press Program ("01" blinks). Use Skip/Search to select a track, press Program to add it. Repeat up to 20 tracks, then press Play. Press Stop to cancel the program.

How can I improve radio reception?

The unit has built-in AM and FM antennas. Adjust the position or rotate the boombox to improve reception. For FM, extending the antenna (if present) may help.

Can I connect my smartphone or MP3 player?

Yes, use a 3.5mm audio cable (not included) to connect the device to the Line In input on the back. Set the Source Switch to Line In to hear audio through the speakers.

What is the battery life?

Battery life is approximately 8 hours when using 6 C batteries, depending on volume and usage.

Where can I get support or download the manual?

Visit the support section at www.gpx.com to download the manual in English, Spanish, or French, or contact customer service at 1-888-999-4215 or by email at [e-mail].

How do I clean the unit?

Unplug the unit and wipe with a dry cloth. Do not use water or chemical cleaners to avoid damage.

USER MANUAL BC112B GPX

Important Safety Instructions

- Read these instructions

- Keep these Instructions.

- Reed all Warnings.

- Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as regulators, heat registers, stoves, or other apparatus.

(including amplifiers) that produce heat

- Do not defer the safety purpose of the polarized or grounding-type plug. A polarized plug has two blocks with one wider than the other. A grounding-type plug has two blades and a third grounding plug. The wide blade or the third plug are provided for your safety. When the provided plug does not fit into the outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Enplan this asserts us during lie-sharing storms or when un-seal for long periods of time.

- Refer all servicing in qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or his been dropped.

• Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer.

or sold with the apparatus. When a cart is used, use caution when moving the car.

apparatus combination to avoid injury from tip over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can moderate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged thereby to correct the interference by one or more of the following measures.

• Recurrent or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

- Connect the equipment iron an outlet on a circuit different from that to which the receiver is

•

• Consult the dealer or an experiential route TV technician for help.

Additional Warnings and Precautions

- CAPTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE SLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

AVIN: AVIN DE PREVADOR LAS CHOCS ELECTRIQUES, PANTES CORRESPONDRE LA PICHE BLANCHE DE LA PRISE À LA VENTE LARGE, INSÉRIZ TOTALLEMENT.

WARNING: To reduce the risk of electric shock, do not remove cover (or hack). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The examination point, within an equalateral triangle is intended to start the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning hash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a use of electric shock in persons

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

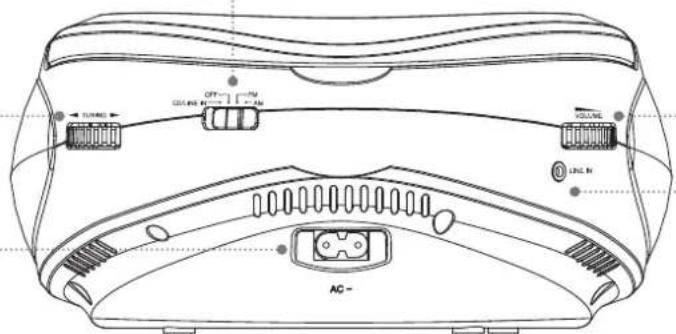

FEATURES AND CONTROLS

FEATURES

• CD player: CD, CD-R/RW
• AM/FM radio (direct tuning)
- Top-load disc player
• 3.5mm audio input
• Built-in AM/FM antenna
• 2 digit red LED display
• Analog volume control
• AC power input: requires an AC power cable (included)
• DC battery power: requires 6 C batteries (not included)
- Battery life: \~8 hours of audio

POWER & BATTERY

To power the unit, plug the power cord (included) into the AC Power Input on the back of the unit and a standard AC power outlet. For battery power, this unit requires 6 C-size, batteries (not included).

CD 3.5 MM AUDIO INPUTRADIO

Loading and Playing a CD

Note: This unit is not compatible with MP3 CDs.

1. Open the CD door and place a CD in the boombox, label side facing up.
2. Close the CD door.
3. Adjust the Source Switch to CD mode.
4. Press the Play/Pause button to begin playing the loaded disc.

Programming a CD

1. Press the Stop button to stop a loaded CD.
2. Press the Program button. "01" will blink on the display.
3. Press the Skip/Search buttons to select a track.
4. Press the Program button to add the selected track to the program.
5. Repeat steps 4 and 5 to program up to 20 tracks to play in a specified order.
6. Press the Stop button to cancel a program.

Radio Reception

An AM and FM antenna is built into the radio. To improve radio reception, adjust the position of the boombox.

Playing the Radio

1. Slide the Source Switch switch to AM or FM radio mode.
2. Adjust the Tuning dial to tune the radio.

Using the Line In

3.5 mm audio input cable not included.

1. Plug one end of a 3.5 mm audio input cable into the Line In input on the back of the unit, and plug the other end of the cable into the audio output on an MP3 Player or other audio source.
2. Press the Power button to power the unit on.
3. Slide the Source Switch on the front of the unit to Line In.
4. Audio played through the connected device will now be heard through the speakers.

INTERNATIONAL SUPPORT

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com

For Warranty Information and the most up-to-date version of this User's Guide, go to www.gpx.com

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail] Copyright © 2014 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.

Protect for Today Sustain for Tomorrow
