USER MANUAL VTR2 Bimar
Close-up of a metallic tool interacting with a black mechanical component (no visible text or symbols)
Line drawing of a double-sided air conditioner fan with visible blades and cooling screen (no text or symbols)Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet Handy for further use. If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.
This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.
This symbol indicates class III electrical insulation, it is equipment with a very low safety voltage system.
GENERAL NOTICES
- This device is intended for home use only, to ventilate internal rooms, and outdoor on condition that the appliance is not exposed directly to atmospheric agents (sun, rain, high humidity, wind, etc.): do not use it for any other purpose. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen in shops, offices and other working environments;
- farm houses
- by clients in hotels, motels and other residential type environments
-
bed and breakfast type environments
-
This appliance can only be used with the adaptor provided.
- Do not insert any tool, or your fingers, into the grille protecting the blades.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The appliance must be kept out of children’s reach.
- Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
- Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.
- Make sure that the appliance is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.
- Check that the fan does not come into contact with water or other liquids. If it is accidentally wet or immersed in a liquid when to recharge, first disconnect the power supply by turning off the control panel switch, and only then remove the plug USB. Dry both the plug and the power socket carefully before reactivating the power socket. Reconnect the plug to the power socket and then use the appliance. If in doubt, call in qualified staff.
- Do not use the device at room temperatures above 40^ .
- Do not move the appliance when it is in function.
- Do not leave the device exposed to the weather (sun, rain, etc.).
- Do not pull on the cord to disconnect the plug from the socket.
- Do not allow children, or irresponsible persons, to use the device without supervision.
- If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.
- Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the appliance is covered or positioned incorrectly.
- Ensure that the fan is switched off from the supply mains before removing the guard.
INSTALLATION
- After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, blister, etc.) must be kept out the reach of children because they are potential sources of danger.
All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The bag which is unmarked due to its small size or packing materials (for example: packing tape), therefore you have to follow the procedures for the disposal of their municipality.
- Before connecting the appliance, check that the voltage values on plate match those of the adapteur.
- The plug Usb must be easy to reach so the plug can be removed quickly in case of emergency.
- Do not place the fan on a shelf and/or near sinks or other container of liquids (minimum distance of 50 cm) to avoid the risk of it falling in.
- Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
- Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
- Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
- Do not place the appliance near an open flame, cooking or other heating appliance.
Battery
- Do not overcharge (an excessively long charge cycle of more than 10 hours) or over-discharge the battery, as this may damage the battery and shorten its life.
- Make sure that the battery do not reach temperatures above 50^ C, or below 10^ C for a long period of time.
- Recharge your fan in an indoor environment, dry and well ventilated (ideal temperature: 20-25°C). Do not charge the fan if it is exposed to the elements (sun, rain, etc.) or in damp and wet environments.
- When charging, make sure the fan is not near other heat sources, flammable materials (curtains, upholstery, etc.), flammable gases or explosive materials (spray cans). Check that there is 50cm of free space to the front, back and the sides.
- Make sure the battery is charged at regular intervals, even if you are not using electric fan for a long time. This is to prevent battery damage caused by low voltage for an extended period of time.
- If the fan is not being used continuously, please recharge the battery at least once 3 months.
- A fully charged battery will run out even if the fan is not used for a certain period of time.
- Battery life depends on various environmental, storage and usage factors.
- Do not charge the battery and use the fan if the battery starts to emit odours, overheats or starts to leak. Do not touch any leaking substances or breathe in the fumes from them. Seek immediate medical attention if you are exposed to any substance emitted from the battery. The manufacturer cannot be held responsible for any damage resulting from improper use (such as tampering with the battery), incorrect and irresponsible use and/or repairs carried out by unqualified persons.
- When charging the battery, make sure that it does not come into contact with water or other liquids. If it inadvertently gets wet or is immersed in liquid, first deactivate the power socket by turning off the switch on the electrical panel, and only then remove the plug from the power socket. Carefully dry both the plug and the socket, and only then turn on the power at the socket. Insert the plug into the power outlet again, and you can then use the appliance. In case of doubt, contact professionally qualified personnel.
USE
Description
The appliance is equipped with the following control elements and accessories:
Battery: this is located inside the fan. To recharge it, proceed as described:
- place the fan on a flat, stable surface
- Insert the cable connector into port type-C.
- Insert the USB plug into the adapter (5Vdc. included in the package), taking care to correctly guide the plug into the USB socket, and insert the adapter plug into the power outlet.
- The battery takes around 6 hours to completely recharge. A green LED flash indicate the charge status, while a LED on indicate that the battery is fully charged. When charging is complete, remove the adapter plug from the socket, and the connector from the port.
Before each use, verify that the unit is in good condition, the electric cord and the Adapteur are not damaged.
The functions of this appliance can be started using they keyboard of the control panel or the remote control which has to be pointed in the correct direction (at a max distance of 4m) to base.
Do not allow children to insert and replace battery.
Insert n.1 battery type: CR2025: 3V of the remote control (not included in the package), move the plastic tab to the right ( PUSH) and simultaneously remove the battery slot ( OPEN). Insert the battery (following the right polarity: +/-) and close the battery slot.
WARNING: Do Not Ingest Battery. Chemical Burn Hazard.
This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The batteries contain materials, which are hazardous to the environment; they must be removed from the appliance before it is scrapped and that they are disposed of safely.

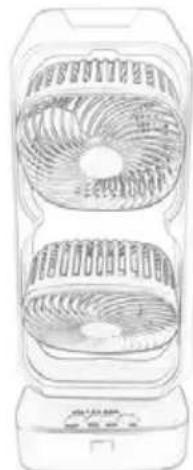

Running the fan:
1) To turn the fan on, press the "ON/OFF" button on the control panel (7) or the remote control "⏻". The fan starts at the lowest speed. On the display of the control panel, an "L" and "POWER" icons will light up.
2) In order to select the desired speed, press the "SPEED" repeatedly on the control panel (8) or the remote control "💡" (minimum, medium or maximum) and icon will light up:
“L”= minimum speed “M”= medium speed “H”= maximum speed
3) Timer: This function allows you to set the time of operation, after which the unit will stop automatically.
To set the operating time, press the “TIMER” button on control panel (9) or remote control “☑” repeatedly: each press of the button changes the time set, and the selected time appears on the display (2H=2 hours – 4H=4 hours – 8H=8 hours): the maximum operating time is 8 hours. To disable the timer, set the maximum time, then press the button again and the corresponding indicator light will turn off.
4) Horizontal oscillation (right-left): this is done by pressing button "OSC" on the control panel (10) or of the remote control Ⓞ". To stop the movement, press button once again.
5) Vertical inclination (high-low): fan units tiltable towards the front and the back, using snap settings, about 250°.
Attention: the fan units tiltable can't be at 360°.
Autonomy (fully charged battery): if the fan runs at minimum speed it can run continuously for up to a maximum of around 9 hours. If it runs at maximum speed it can run continuously up to a maximum of around 2/3 hours
To turn the fan off press the button of the control panel (7) or on the remote control “⏻”.
Max tiltable towards the back
Attention: before normal cleaning, remove the plug from the USB port.
- Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
- Do not immerse any part of the fan in water or other liquid.
- It is essential that the motor's air holes be kept from dust and lint.
- If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
- Should you decide not to use the appliance any more, we recommend to remove the battery and make dangerous parts harmless if children are allowed to play with them.
BATTERY - Remove the battery. Do not dispose the battery with domestic waste. The battery must be disposed of in the appropriate containers or in the specific collecting centre. Suitable segregated collection helps prevent damage to the environment and to human health.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
5Vdc 2,4A 12W
