Product Type	House Fan
Brand	Bimar
Model	VP458T
Dimensions (H x W x D)	Approximately 130 x 40 x 40 cm
Weight	Approximately 5 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	50-60 W
Speed Settings	3 speeds
Oscillation	Yes
Timer	Yes, up to 7 hours
Remote Control	Yes, included
Material	ABS plastic
Safety Features	Overheat protection, stable base
Cleaning Instructions	Wipe with damp cloth; do not immerse in water
Spare Parts Availability	Available through customer service
Warranty	Standard 2 years

Frequently Asked Questions - VP458T Bimar

How to clean the Bimar VP458T fan?

To clean the fan, first unplug it. Use a soft, damp cloth to wipe the exterior. For the grille and blades, you can use a brush or vacuum with a soft brush attachment. Do not immerse any part in water or use harsh chemicals.

Is the VP458T fan noisy?

The fan operates quietly on low speed. On higher speeds, some noise is normal due to airflow. If you hear unusual rattling or scraping, check for loose parts or obstructions.

How to assemble the Bimar VP458T?

Assembly is straightforward: attach the base to the pole, then mount the fan head. Refer to the manual for detailed steps. Typically, no tools are required.

Does the VP458T come with a remote control?

Yes, the VP458T includes a remote control for convenient operation, allowing you to adjust speed, timer, and oscillation from a distance.

Can I adjust the tilt of the fan?

Yes, the fan head can be tilted up or down to direct airflow where needed. Loosen the tilt adjustment knob, set the angle, and tighten again.

What is the warranty period for the Bimar VP458T?

The Bimar VP458T typically comes with a 2-year warranty. Keep your purchase receipt for warranty claims.

How to set the timer on the VP458T?

Press the timer button on the control panel or remote. Each press typically increases the timer by 1 hour, up to 7 hours. The fan will automatically shut off after the set time.

Does the VP458T have an oscillation feature?

Yes, the fan has a wide oscillation function to distribute air across the room. You can turn oscillation on/off via the remote or control panel.

What is the power consumption of the Bimar VP458T?

The fan consumes about 50-60 watts at maximum speed, making it energy-efficient for continuous use.

Where can I find spare parts for the VP458T?

Spare parts such as remote controls, blades, and stands are available through Bimar customer service or authorized dealers. Contact support with your model number.

USER MANUAL VP458T Bimar

Line drawing of a standard office fan with a circular top and base (no text or symbols)

Diagram of a fan with a smiling face and fan blades, no text or symbols present

Line drawing of two different floor fans on poles, one at 129cm and the other at 90cm (no text or symbols on the fan bodies)

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet Hndy for further use. If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

GENERAL NOTICES

- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for any other purpose. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments
• bed and breakfast type environments

- Do not touch the appliance with wet hands or feet.

- Do not insert any tool, or your fingers, into the grille protecting the blades.

- This appliance can only be used with the adaptor provided.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The appliance must be kept out of children’s reach.
• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
• Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.
• Always unplug the appliance before you assemble, disassemble or make adjustments to the appliance.
• Make sure that the propeller is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.
• Do not move the appliance when it is operating.
• Unplug the appliance when not in use.
• Do not use the device at room temperatures above 40 °C.
• Do not move the appliance when it is in function.
• Do not leave the device exposed to the weather (sun, rain, etc.).
• Do not pull on the cord to disconnect the plug from the socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
• In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help: repairs made by unqualified persons can be dangerous and render void the warranty.
• Ensure that the fan is switched off from the supply mains before removing the guard.

INSTALLATION

- After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger. All packaging elements must be disposed of according to their

raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The secondary elements of the packaging with low weight (es: packing tape) are unmarked as are its small size packing materials, the protective film of surfaces: therefore you have to follow the procedures for the disposal in force in your municipality.

Attention: any stickers or advertising material applied to the grid removed before using the appliance. The manufacturer declines all responsibility in case this is not safe working practices will be respected.

• Before connecting the appliance, check that the voltage shown on the data plate matches that of your electricity. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Do not place the appliance near an open flame, cooking or other heating appliance.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Stand the appliance on a horizontal, flat surface; do not stand on a inclined plane (the appliance could upset).

ASSEMBLY

Attention: the fan can be used only when completely and correctly assembled, that is complete with its base with Counterweight and support and protection grid. If in doubt, have the appliance checked or assembled by a qualified professional person

Attention: always unplug the appliance before you assemble.

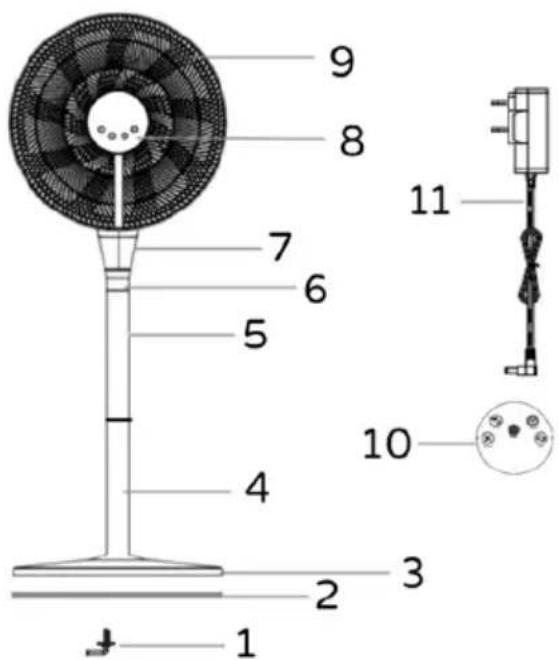

For assembly, refer to figure.

1. Screw "L" with washer
2. Counterweight
3. Base
4. Lower column
5. Upper column
6. Motor attachment
7. Motor cover
8. Electronic controls
9. Front grille
10. Remote control
11. Adapteur AC/DC

Piantana

1. Insert with adequate strength the lower column (4) to the base (3) and to the counterweight (2) by inserting it into its seat, with the screw "L" with washer (1). At the end of the work, make sure that auction and the base (with counterbalance) are firmly united.

2. Insert the upper column (5) correctly into the lower column (4), so that the large pin of the upper column (A) fits into the corresponding large groove of the lower column (B) and consequently also the small pin groove.

Align symbols on the colours ■ (4) and 🔒 (5), turn the upper column (5) counterclockwise until it locks (the symbols and are aligned).


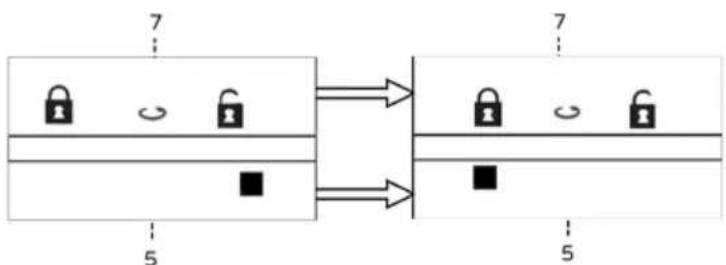

1. Insert the motor body (7) fully into the upper column (5), so that the large pin of the motor body (A) fits into the corresponding groove of the upper column (B) and consequently also the small pin groove. Align the symbols on the column ■ (5) and the motor body 🔒 (7) and rotate the motor body anticlockwise until it locks (the symbols ■ and 🔒 are aligned).

At the end of the work, check that all the motor cover, columns and base are firmly inserted correctly. To disassemble the fan, proceed in reverse order.

USE

Warning: The fan can only be used if properly assembled in good condition.

The functions of this appliance can be started using they keyboard of the control panel or the remote control which has to be pointed in the correct direction (at a max distance of 4-5m). The remote control can be placed on the back via magnetic support

Circular fan with decorative patterns and a black arrow pointing to the center (no text or symbols)

Insert n.1 battery type: "CR2025. 3V" of the remote control (not included in the package), move the plastic tab to the right ( PUSH) and simultaneously remove the battery slot ( OPEN). Insert the battery (following the right polarity: +/-) and close the battery slot.

For long periods remove the battery.

Do not allow children to replace battery.

The fan has the following setting and control elements:

• Stand-by-ON button: press "POWER" of the panel control or "⏻" of the remote control : to turn the fan on or turn it off in standby mode
• Ventilation: the eight speeds are selected by pressing the "SPEED" button or of the remote control "✗" button: the symbol corresponding to the selected speed will light up: (P1= min; P8=max).
• Timer: This function allows you to set the time of operation, after which the unit will stop automatically. To set the operating time, press “TIMER” button of the control panel or “☐” button repeatedly: each press of the button changes the time set, and the selected time appears on the display (P1=1 hour – P2=hours-P3=3 hours, etc...): the maximum operating time is 12 hours. To disable the timer, set the maximum time, then press the button again and the corresponding indicator lights will turn off of the time.
• Left/right oscillation: press the "OSC" button of the control panel or "©" the remote control to active motorized and adjustable, and the symbol corresponding to the selected oscillation will light up; then press the button again to disable.

The fan can be used at two different heights (129cm e 92cm), as shown in the image on the side, without using one or both of the central columns.

Line drawing of two different outdoor fans with labeled dimensions (125cm and 92cm), no text or symbols present.

To operate the fan, insert the adapter plug into the socket on the motor attachment (6), and insert the plug into the socket (you will hear a "beep" indicating that the unit is in stand-by mode). To activate the fan press "POWER" or the "💡" button and select the required functions. To turn the unit off, remove the plug from the socket of the adapteur. To fully switch off the appliance, remove the plug from the power socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance

and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.

• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).

BATTERY - Remove the battery from the remote control before its disposal. Do not dispose the battery with domestic waste. The battery must be disposed of in the appropriate containers or in the specific collecting centre. Suitable segregated collection helps prevent damage to the environment and to human health.

To remove battery, refer to Instructions for use.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

it is advised to register the appliance on the website https://www.bimaritaly.it/it/garanzia

or to scan the QR code on the side to properly register the warranty (fill out the form to activate the warranty on the product you purchased).

General guarantee terms

Guarantee coverage starts from the moment of purchase of the appliance as indicated by a fiscally mandatory delivery document (bill or tax receipt or shipping document). Guarantee coverage lasts 24 months and terminates after the prescribed term. Guarantee coverage covers all replacements or repairs that become necessary due to defects in material or manufacture. Guarantee coverage does not cover all those parts which become defective due to failure to comply with installation, operating or maintenance instructions, shipping damage, operating neglect or negligence, improper use or any circumstances which are not due to manufacturing defects of the appliance. Guarantee coverage is also excluded for replacement or repair of all parts subject to fair wear and tear or to expiry, as well as removable parts, light bulbs, glass components, ceramic parts, external tubes, batteries and disposable (throw-away) accessories. Replacements or repairs that come under guarantee coverage are performed free of charge for goods delivered free the Manufacturer's factory or to one of our Technical Service Centres. The Customer must only pay for shipping costs. Guarantee coverage is not granted if repairs are performed by personnel not belonging to authorized Technical Service Centres or when non-genuine spare parts are used. This warranty is governed by and construed in accordance with applicable laws in force in the country where the product is purchased. For details, contact the Customer Support in your country or the Bimar website. (www.bimaritaly.it). The Manufacturer declines all responsibility for any direct or indirect harm to persons, pets or property consequent to failure to comply with all the provisions specified in the appliance instruction booklet and especially those regarding appliance maintenance, operation, installation or warnings.
