Product Type	Passive Line Array Speaker
Dimensions (W x L x H)	10.7" x 24.4" x 16.7" (271.7 mm x 619.7 mm x 424.1 mm)
Weight	48.1 lbs (21.8 kg)
Frequency Response (-3 dB)	77 Hz - 18 kHz
Operating Frequency Range (-10 dB)	65 Hz - 20 kHz
Maximum SPL (Passive Mode)	125 dB Peak / 122 dB Continuous
Power Handling (Passive)	1600 W Peak / 800 W Program / 400 W Continuous (AES)
Bi-amp Power (Low / High)	1600 W / 300 W Peak
Nominal Impedance (Passive)	8 Ω
Coverage Horizontal	100° nominal
Coverage Vertical	7.5° per enclosure
Low-Frequency Transducers	2 × 8" mid-bass, 2" voice coil, 16 Ω each
High-Frequency Transducers	2 × 1.4" titanium diaphragm, neodymium magnet, 1" exit, 16 Ω
Crossover Modes	Passive or Bi-amp with HFC (0 dB or +3 dB)
Input Connector	Speakon NL4-type
Thru Connector	Speakon NL4-type
Mounting / Rigging	Integrated suspension hardware, dual 36 mm pole socket, two handles
Enclosure Material	Wood (assumed) with weather-resistant coating
Safety Feature	Array frame FB-1 compatible, max 6 units suspended according to table
Included Accessories	Quick Start Guide, Safety & Warranty Booklet

Frequently Asked Questions - Tourmax SXA28P ALTO

How do I set up the Tourmax SXA28P line array?

Follow the quick setup: ensure all items are present, read safety booklet, study connection diagram, turn all devices off and set faders to zero, connect sound sources to amplifier inputs, connect amplifier outputs to speakers, plug into power, and power on in order: sound sources → mixer → amplifier → speakers. Power off in reverse.

What is the High Frequency Configurator (HFC)?

The HFC adjusts the sound pressure level for the audience. It works only in passive mode. The +3 dB position is for distant audiences (e.g., when using in an array), and 0 dB for near-field coverage.

How many SXA28P speakers can be suspended using the FB-1 array frame?

According to the maximum array configurations table, up to 6 SXA28P speakers can be suspended as satellites, with 1 SXA18P subwoofer allowed for arrays of 2-4 satellites. For 5 or 6 satellites, no subwoofer is allowed. Always check local regulations.

What is the difference between passive and bi-amp mode?

In passive mode, the internal crossover sends the full-range signal to all transducers. In bi-amp mode, separate amplifier channels are used for low and high frequencies, requiring an external crossover and more amplifier channels. The speaker has separate power ratings for each mode.

Can I use the SXA28P on a pole?

Yes, the speaker has a dual 36 mm pole socket. Do not stack more than two SXA28P speakers on a pole. Ensure they are locked with original hardware.

What kind of cables do I need?

Speakon NL4-type cables are required for input and thru connections. For bi-amp operation, a 4-conductor NL4 cable is needed to separate low and high signals.

How do I clean and maintain the SXA28P?

Use a dry cloth to clean the enclosure. Avoid solvents or abrasive cleaners. Check all hardware periodically for tightness. Store in a dry, dust-free environment.

What is the warranty information?

Refer to the Safety & Warranty Information Booklet included in the box for specific warranty terms. Generally, Alto Professional products come with a limited warranty covering defects in materials and workmanship.

Can I use the SXA28P as a standalone speaker without subwoofers?

Yes, it can be used standalone. The frequency response extends down to 65 Hz (-10 dB), but for full-range audio, adding subwoofers like the SXA18P is recommended.

What is the maximum SPL of the SXA28P?

In passive mode, the maximum peak SPL is 125 dB at 1 meter, with continuous SPL of 122 dB. The system sensitivity is 97 dB SPL (1 W @ 1 m) in passive mode.

USER MANUAL Tourmax SXA28P ALTO

SXA28P

QUICKSTART GUIDE

ENGLISH (3 - 6)

Safety & Warranty Information Booklet

QUICK SETUP

1. Make sure all items listed in the BOX CONTENTS section are included in the box.
2. READ SAFETY & WARRANTY INFORMATION BOOKLET BEFORE USING THE PRODUCT.
3. Study the connection diagram in this guide.
4. Place all devices in an appropriate position for operation.
5. Make sure all devices are turned off and all faders and gain knobs are set to "zero."
6. Connect all sound sources' outputs to amplifier inputs as indicated in the diagram.
7. Connect the amplifier outputs to speakers.
8. Plug all devices into an appropriate power source.
9. Switch everything on in the following order:

• Sound sources (i.e. microphones, turntables, CD players, etc.)
- Mixer
- Amplifier
- Speakers

1. When turning powering down, turn everything off in the following order:

2. Speakers

3. Amplifier
4. Mixer
5. Sound sources

REAR PANEL DIAGRAM

1. High Frequency Configurator (HFC)- Defines the best sound pressure level in front of the audience. The HFC only works in Passive mode. The +3 dB position is normally set when the SXA28P is used in an array to cover a distant audience. The 0dB is normally used for covering the nearest audience.
2. Input connector- Connect your Speakon cable to these inputs
3. Thru connector- Connect your Speakon cable to this output
4. Frequency Response- The frequency response for the HFC can be set to either 0dB or +3dB.

LINE ARRAY HARDWARE PARTS

SUB-HD-L

SUB-HD-R

SAT-HD-L

SAT-HD-R

SH

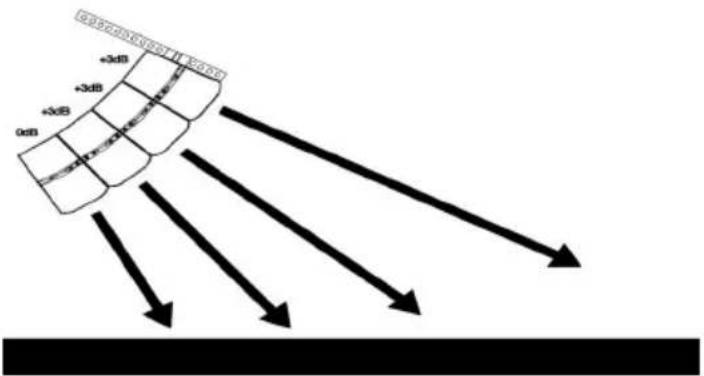

Medium Array Configuration

Below is an example of applying the HFC to four SXA28P's in an array. In this particular configuration, the HFC on the top speaker is set at +3 dB, and the bottom speaker 0 dB.

Small Array Configuration

This is an example of the HFC application with two SXA28P's in a small array, with the top speaker set at +3 dB and the bottom speaker at 0 dB. Do not stack more than two SXA28P speakers on the pole.

Be sure to lock the two speaker cabinets with the original hardware.

Array Frame

The following table defines the maximum number of speakers that may be suspended using the FB-1 array frame. A security design factor is maintained for the speaker configurations indicated in the table.

Maximum Array Configurations

Maximum quantity of SXA28P in array (satellite)	2	3	4	5	6
Maximum quantity of SXA18P in array	1	1	1	0	0

Suspension Safety Warning

• Never exceed the maximum recommended speaker cabinet listed on the table.
- Research and understand the local regulation and requirements of the country where you intend to install the line array. The correct assembly of all associated hardware is required for a safe suspension system.
- Two point suspension with uniform loading of each lifting location is recommended when using Array Frame FB-1

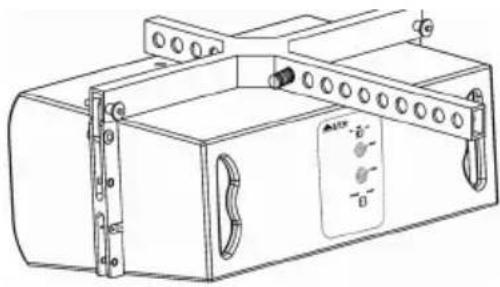

Array Frame Connection

The FB-1 frame is connected to SXA-HD-L and SXA-HD-R with ALTO quick release pins.

Technical line drawing of a mechanical housing or enclosure with mounting flanges and internal components (no text or symbols)

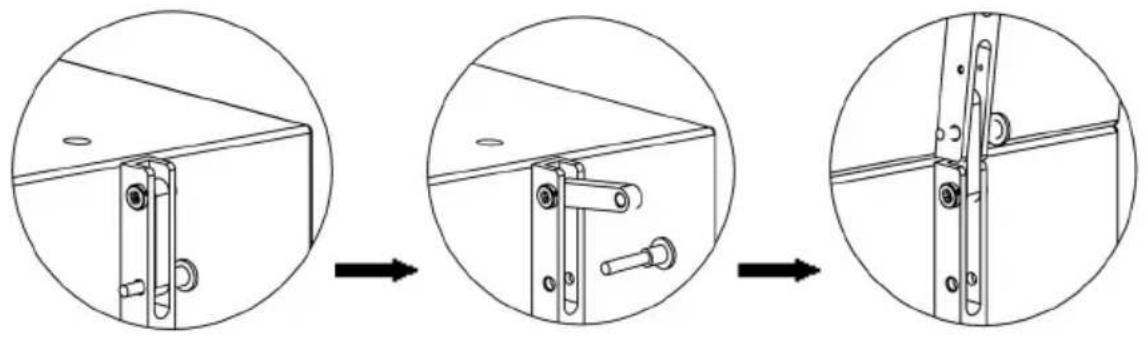

Any time two or more SXA28P and SXA18P are arrayed together, they must be mechanically secured to each other. See the diagram below for details.

Three-step diagram showing a metal bracket assembly with mounting holes and internal components, no text or symbols present.

DEPLOYING THE SYSTEM IN SUSPENSION & COMPRESSION

Suspension

Compression

CONFIGURATIONS

DIRECT / PASSIVE MODES

HOOK-UP: 12x SXA28P + 8x SXA18P

Technical line drawing of a mechanical device with mounting flanges and control panel (no text or symbols)

Three-step diagram showing a metal bracket assembly with mounting holes and internal components, no text or symbols present.

Compresión

CONFIGURACIONES

• Power Rating (Passive): AES Standard
• 1600 W Peak / 800 W Program / 400 W Continuous
• Bi-amp low: 1600 W Peak / 800 W Program / 400 W Continuous
• Bi-amp high: 300 W Peak / 150 W Program / 75 W Continuous

ELECTRICAL SPECIFICATION

• Operating Frequency Range (-10 dB): 65 Hz - 20 kHz
  • Frequency Response (-3 dB): 77 Hz - 18 kHz
  • Maximum SPL @ 1m: 125 dB Peak (Passive Mode), 122 dB SPL Continuous (Passive Mode)
  • Coverage Horizontal: 100° nominal
  • Coverage Vertical: 7.5° per enclosure
• Transducers (LF): 2 × 8" mid-bass, 2" high-power voice coil, ferrite magnet, weather-resistant cone; impedance 16 Ω each.
• Transducers (HF): 2 × 1.4" titanium diaphragm, neodymium magnet, 1" exit; impedance 16 Ω
• Crossover Modes: Passive or bi-amp with high-frequency external level selector, used or far-field (-3 dB) or near-field (0 dB)

SYSTEM SENSITIVITY (1 W @ 1 m)

• Passive: 97 dB SPL
• Bi-Amp Low: 97 dB (2 device parallel)
• Bi-Amp High: 107 dB (2 device parallel)

NOMINAL IMPEDANCE

• Passive: 8 Ω
  • Bi-Amp Low: 8 Ω (2 device parallel)
  • Bi-Amp High: 8 Ω (2 device parallel)

GENERAL SPECIFICATIONS

• Suspension/Mounting: Integrated hardware for suspension in Line Array, dual 36 mm diameter pole socket, two handles
• Input Connector: Speakon NL4-type
• Thru Connector: Speakon NL4-type

DIMENSIONS (WxLxH)

- 10.7" x 24.4" x 16.7" (271.7 mm x 619.7 mm x 424.1 mm)

WEIGHT

• 48.1 lbs. (21.8 kg)
