USER MANUAL REVO SUB118P ALTO

Stacked black speaker units with multiple speakers, no visible text or labels

SEIKAKU TECHNICAL GROUP LIMITED

NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan www.altoproaudio.com Tel: [phone] email:[e-mail] Fax: [phone]

All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2008 Seikaku Group

www.altoproaudio.com Version 1.1 JUL. 2008

English

IMPORTANT SAFETY INSTRUCTION

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS.

This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.

This symbol, wherever used, alerts you to important operating and maintenance instructions. Please read.

Protective Ground Terminal

\~ AC mains (Alternating Current)

§ Hazardous Live Terminal

ON: Denotes the product is turned on.

OFF: Denotes the product is burned off.

CAUTION

Describes precautions that should be observed to prevent damage to the product.

1. Read this Manual carefully before operation

2. Keep this Manual in a safe place.

3. Be aware of all warnings reported

with this symbol.

1. Keep this Equipment away from water and moisture.

2. Clean it only with dry cloth. Do not use solvent or other chemicals.

3. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions.

4. Power Cords are designed for your safety. Do not remove Ground connections! if the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire.

5. Unplug this equipment when unused for long periods of time or during a storm.

6. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual.

7. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.

WARNING

To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain.

Dispose of this product should not be placed in municipal waste and should be separate collection.

1. Movethis Equipment only with a cart,

scand, tripod, or by specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tin-over

1. Permanent hearing loss may be caused by exposure to extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level.

These are shown in the following chart:

HOURS X DAY SPL EXAMPLE

8	90	Small gig
6	92	train
4	95	Subway train
3	97	High level desktop monitors
2	100	Classic music concert
1,5	102
1	105
0,5	110

0,25 or less 115 Rock concert

According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of hear. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation.

The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

14. WARRANTY

1. WARRANTY REGISTRATION CARD

To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date.

All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide amore effective and efficient after-sales warranty service. Please fill out all the information carefully and genuinely, miswriting or absence of this card will void your warranty service.

2. RETURN NOTICE

2.1 In case of return for any warranty service, please make sure that the product is well packed in its original shipping carton, and it can protect your unit from any other extra damage.
2.2 Please provide a copy of your sales receipt or other proof of purchase with the returned machine, and give detail information about your return address and contact telephone number.
2.3 A brief description of the defect will be appreciated.
2.4 Please prepay all the costs involved in the return shipping, handling and insurance.

3. TERMS AND CONDITIONS

3.1 ▲LTO warrants that this product will be free from any defects in materials and/or workmanship for a period of 1 year from the purchase date if you have completed the Warranty Registration Card in time.
3.2 The warranty service is only available to the original consumer, who purchased this product directly from the retail dealer, and it can not be transferred.
3.3 During the warranty service, ▲LTO may repair or replace this product at its own option at no charge to you for parts or for labor in accordance with the right side of this limited warranty.
3.4 This warranty does not apply to the damages to this product that occurred as the following conditions:
- Instead of operating in accordance with the user's manual thoroughly, any abuse or misuse of this product.
• Normal tear and wear.
• The product has been altered or modified in any way.
- Damage which may have been caused either directly or indirectly by another product / force / etc.
• Abnormal service or repairing by anyone other than the qualified personnel or technician.
And in such cases, all the expenses will be charged to the buyer.
3.5 In no event shall ▲LTO be liable for any incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
3.6 This warranty gives you the specific rights, and these rights are compatible with the state laws. you may also have other statutory rights that may vary from state to state.

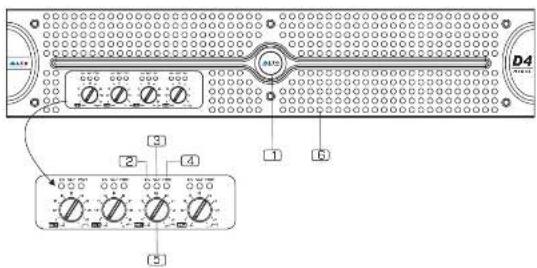

13. CONTROL ELEMENTS: D4 Amplifier

Front Panel

D4 ① ② ③ ④ ⑤ ⑥

Power Switch & Indicator LED
Protection LED
2 Signal LED
5 Gain Controls
3 Clip LED
6 Cooling Vents

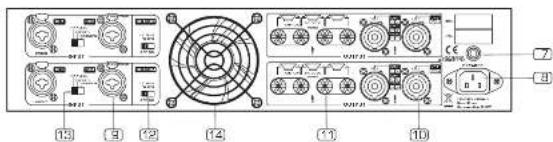

Rear Panel

Cropped image of an electronic control panel with labeled buttons and ports, including numbered labels 10 through 14.

7 Circuit Breaker
11 Binding Post Outputs
☐ IEC Socket for AC Power Cable
12 Low Frequency Filter
9 Combo Balanced Input Connectors
19 Output Mode Selector
10 Speakon Outputs
14 Cooling Fan

IN THIS MANUAL:

1. INTRODUCTION TO THE REVO SAT208P 2

2. REVO SAT208P TECHNICAL SPECIFICATION 3

3. INTRODUCTION TO THE REVO SUB118P....4

4. REVO SUB118P TECHNICAL SPECIFICATION 5

5. LAYOUT OF CONNECTOR PANEL REVO SAT 208P....6

6. HIGH FREQUENCY CONFIGURATOR (HFC) 7

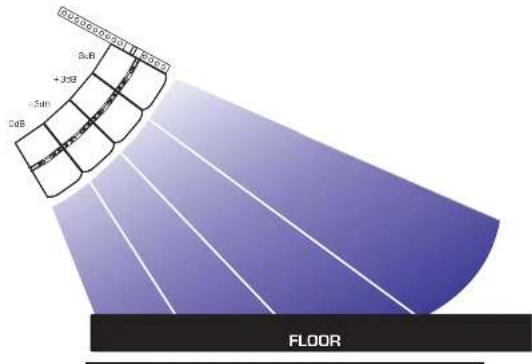

7. REVO MAXIMUM ARRAY SIZE 8

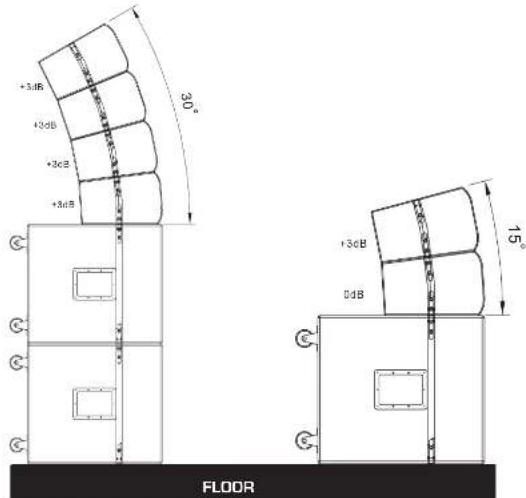

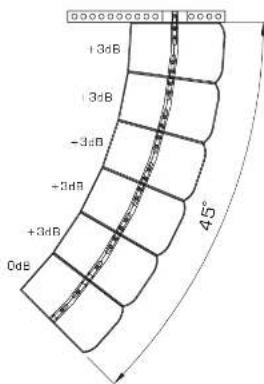

8. DEPLOYING THE SYSTEM IN SUSPENSION & COMPRESSION 9

9. SPEAKER MANAGEMENT: MAXIDRIVE3.4+ 10

10. HOOK-UP: 12XSAT208P+8XSUB118P CONFIGURATION....11

11. HOOK-UP: 8XSAT208P+4XSUB118P CONFIGURATION....12

12. HOOK-UP: 4XSAT208P+2XSUB118P CONFIGURATION....13

13. REVO LINE ARRAY HARDWARE PARTS 14

14. CONTROL ELEMENTS: MAXIDRIVE3.4+ PROCESSOR 15

15. CONTROL ELEMENTS: D4 AMPLIFIER....16

16. WARRANTY 17

1. INTRODUCTION TO THE REVO SAT208P

Black rectangular electronic device with two side fans and ventilation grille (no visible text or symbols)

REVO is a compact two-way passive, line array system, intended for use in arrays with fixed curvature, up to six cabinets of 5/1208P. The REVO is a versatile loudspeaker system for medium & large Indoor venues, it is suitable in small and medium outdoor scale application, or as a delay tower for large scale sound reinforcement system.

The REVO was born for make a line-array with fixed curvature, with 100° horizontal & 40° Vertical coverage pattern, aim to simulate a coherent waveguide with six enclosure.

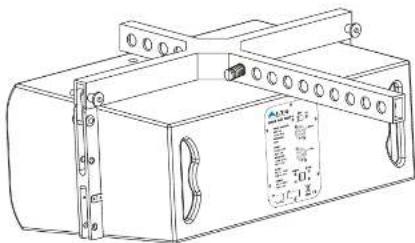

A main frame hardware defines the biting of the complete array system between 120°/25". The SAT20BP includes a dual angle pole socket, plus the accessory for a suspension option. It is easy to use integral rigging hardware, and give the possibility to assemble a max of 6 x SAT20BP in suspension or 1x SUB11BP plus 4 x SAT20BP in the same way as a single source. A high frequency selector is included in the passive crossover for giving you more flexibility to define an amplitude shading of the REVO. The OdB position is normally used to coverage the near field audience. The +3dB position is normally used to coverage the far field audience. The SAT20BP is normally used in Passive mode, and no restriction exist for use in Bi-Amp mode with the way of Passive Active selector. The SAT20BP is equipped with two custom high power B' Mid-Bass of the 2' sandwich copper voice coil on fiberglass former; and two 1"high frequency drivers with 1.4" voice coil of titanium diaphragm are used on double proprietary waveguide horn.

Dimension Drawings for REVO SAT208P

423.5 620 271.5 7.5°

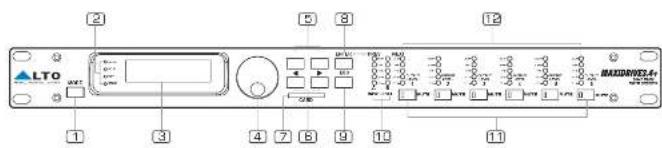

12. CONTROL ELEMENTS: MAXIDRIVE3.4+ PROCESSOR

Front Panel

LTO 1 2 3 4 5 6 7 8 9 10 11 12 MAX80003.4+ MAX80003.4- MAX80003.4-

1 MODE Button

② LEDs

3 Display

4 DIAL Knob

⑤ PREV/NEXT Button

6 Navigation Cursor Keys

7 Memory Card Slot

8 ENTER Key

ESC key

Input Level LEDs

11 Mute Switches

Output Level LEDs

Rear Panel

CE 13 14 15 16 17 18 19 20 21

13 AC Inlet and Fuse Holder

14 Power Switch

15 Digital In

16 Rs485 OUT

17 Rs485 IN

19 RS 232

19 OUTPUTS

20 INPUTS

11. REVO LINE ARRAY HARDWARE PARTS

700 ① → 20.1" ② → 17.5" ③ → 14.9" ④ → 12.1" ⑤ → 0.8" ⑥ → 2.1" ⑦ → 5" ⑧ → 7.8" ⑨ → 10.6" ⑩ → 13.4" ⑪ → 16.1" ⑫ → 18.7" ⑬ → 21.3" ⑭ → 23.7"

BB2 REVO FB-1

REVO SAT-HO-R

REVO SH

REVO SUB-HD-L

REVO SAT-HDL

REVO SUB-HD-R

2. REVO SAT208P TECHNICAL SPECIFICATION

Model No.	REVO SAT 208P
Configuration	Two-way Passive or Bi-Amp, with a total of four speakers device
Operating Frequency Range	65 Hz/20 kHz (-10 dB)
Frequency Response	77 Hz/18 kHz (-/-3 dB)
Maximum Peak SPL	126 dB SPL (calculated)
Power Rating (AES Standard)	4300 W/800 W/1630W passive mode
	Bi-amp Low 400 W/800 W
	Bi-amp High 75 W/150 W
Coverage Horizontal	100 nominal, single unit
Coverage Vertical	7.5 variable with array configuration
Transducers Low Mid	2 x 8 Mid-Bass, 2" high-power voice coil, ceramic magnet,
	Weather resistant cone. Impedance 16 ohm
Transducers High	2x1, 4" Titanium diaphragm, neodymium magnet, 1" ext. Impedance 16 ohm
	55 dB SPL (passive model)
Crossover modes	Passive or Bi-Amp with externally selector
	High frequency externally level selector
	Used for far field (+3 dB) or Near field(CdB)
System Sensitivity (1w@1mt)	97 dB SPL, passive version
	Bi-Amp Low 97 dB (device parallel)
	Bi-Amp High 107 dB (2 device parallel)
Nominal Impedance Passive B ohm
	Bi-Amp Low 8 ohm (2 device parallel)
	Bi-Amp High 8 ohm (2 device parallel)
Suspension / Mounting	Integrated hardware for suspension in Line
	Array, dual pole socket, two handle
Enclosure	18mm calibrated plywood, black finish,
	Perforated metal grille, black finish
Input Connectors	Two Speakon N-L 4 type.
	Passive, Input 1+/1- Output 1-/1-
	Bi-Amp, Low 1+/1- High 2-/2-
Dimension (H x W x D)	271.5 mm x 520 mm x 423.5 mm
	(10.7" x 24.4" x 16.7")
Net Weight (Kg/lbs)	21.8 kg (48 lbs)

1. "Frequency Response" is measured in half-space condition.
2. AES filtered pink noise with 6 dB crest factor for 2 hours.

REVO SAT208P BLOCK DIAGRAM

NL4 INPUT HI-AMP MODE THRU NL4 LOW FREQ HIGH FREQ

3. INTRODUCTION TO THE REVO SUB118P

Exterior view of a black industrial speaker or fan unit with ventilation grille (no visible text or symbols)

The SUB118P is a vented subwoofer equipped with a single custom high power 18' Subwoofer with 4' high-power sandwich copper voice coil on fiberglass former, double spider, ceramic magnet, and weather resistant cone. The enclosure is made with a 18mm multi-layer plywood, finished with anti-scratch black paint, with a strong perforated metal grille, two metal handles, one pole socket for satellite and four wheels.

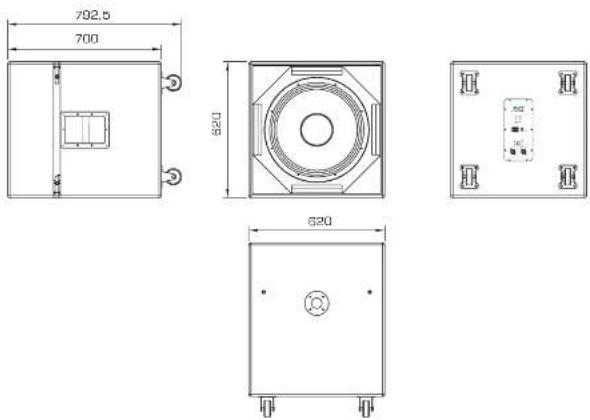

Dimension Drawings for REVO SUB118P

792.5 700 620 620

10. HOOK-UP: 4xSAT208P+2xSUB118P CONFIGURATION

RIGHT SATL1 SATL2 REVO SAT208P LEFT SATL1 SATL2 REVO SAT208P SUBL1 Subwoofer REVO SUB18P ALTO Power Amplifiers: 2xD4 ALTO Processor MAX/REFEA-H SUBR1 Subwoofer REVO SUB18P Interfer to follow REV0. SAT208P 2.DEVO SAT-HLD-1 (pre-rew) 2.DEVO SAT-HLD-2 (pre-rew) Deploy in suspension or compression

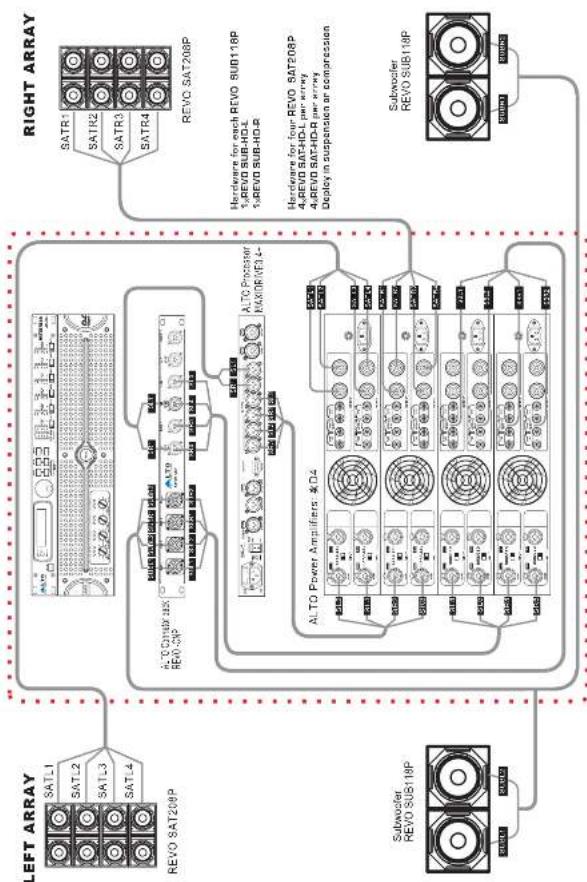

10. HOOK-UP:8xSAT208P+4xSUB118P CONFIGURATION

4. REVO SUB118P TECHNICAL SPECIFICATION

Model No.	REV0 SUB 118P
Configuration	Vented Subwoofer, Passive or Direct
Operating Frequency Range	37 Hz~200 Hz (-10 dB)
Frequency Response	40 Hz~200 Hz (-/- 3 dB)
Maximum Peak SPL	129 dB SPL (calculated)
Power Rating (AES Standard)	750 W/1500 W
Transducers Low	18" Subwoofer, 4" high-power voice coilCeramic magnet, weather resistant cone.
Crossover modes	Passive, Active with externally selector in direct connection
System Sensitivity (1w@1mL)	87 dB SPL, passive version
Nominal Impedance	8 ohm, nominal
Suspension / Mounting	Single 36 mm pole socket, four integrated pointFor line array suspension, two handle, four optional wheel
Enclosure	10 mm calibrated plywood, black finish, perforated metal grille
Input Connectors	Two SPK N-L 4 type.Passive, Input 1+/1- Output 1-/1-Direct 1+/1- 1-2 SPK parallel 1 with externally selector
Dimension (H x W x D)	620 mm x 620 mm x 700 mm(24.4" x 24.4" x 27.5")
Net Weight (Kg/lbs)	51.8 Kg (113.4 lbs)

1. 'Frequency Response' is measured in half-space condition.

2. AES filtered pink noise with 6 dB crest factor for 2 hours.

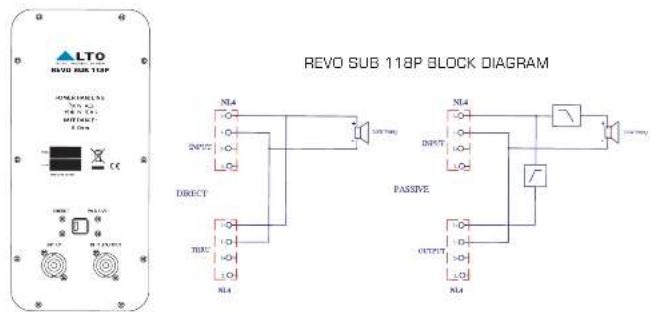

Rear panel

REVO SUB 118P BLOCK DIAGRAM LTO RHOO SUB 118P MINTU MINTU MINTU C D E F G H I J K L M N O P Q R S T U A B C D E F G H I J K L M N O P Q R S T U A B C D E F G H I J K L M N O P Q R S T U A B C D E F G H I K L M N O P Q R S T U A B C D E F G H I J K

5. LAYOUT OF THE CONNECTOR PANEL REVO SAT208P

1 High Frequency Configurator (HFC)

The High Frequency Configurator gives you the possibility to define the best sound pressure level in front of the audience. The HFC is included in the passive crossover and work only in Passive-Mode.

The +3 dB position is normally used for the SAT208P that work in array, for covering the more distant audience. The 0dB is normally used for covering the nearest audience.

ALTO REVO SAT 208P POWER NAME: INT 1323 V/DC RIPFANCE: 2 Ohms BI-4WP LED/LED 100W HCP: 75 W RIPFANCE: 2.5V 5.5V RIPFANCE: 1.5V 1.5V BI-4WP PIN: 10.0 MB RIPFANCE: 1.5V 1.5V PARSHIP PIN: 10.0 MB RIPFANCE: 1.5V 1.5V INPUT TIFU B-4WP/400MHz CE

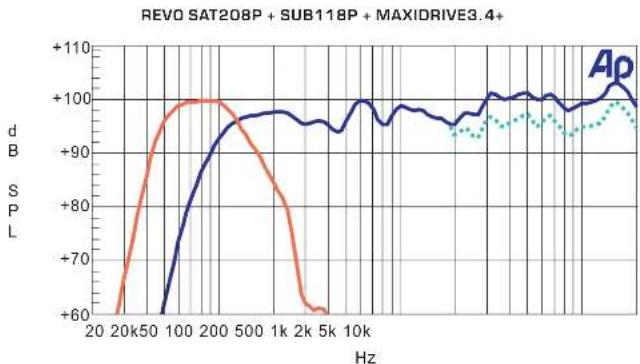

2 Frequency Response

The frequency response is visible to the HFC in the two different position of the selector. DdB (dotted line) and +3dB (continuous).

10. HOOK-UP: 12xSAT208P+8xSUB118P CONFIGURATION

9. Speaker management: MAXIDRIVE3.4+

USER PRESET:2S18+6208U13

REVO MAXIDRIVE3.4+ User Preset:2S18+6208U13

EDIT→XOVER	FILTER TYPE	FILTER SHAPE	FILTER FREQ	PHASE
OP1&2	LFF	LR24	125.0Hz	ΦC
	HPF	LR24	37.2Hz
OP3&4	LFF	Thru	2K00Hz	ΦC
	HPF	LR24	82.5Hz
OP5&6	LFF	Thru	2K00Hz	ΦC
	HPF	LR24	82.5Hz

EDIT > OUT EQ	FILTER SELECT	FILTER TYPE	FILTER FREQ	FILTER Q	FILTER GAIN
OP1S2	EQ1	PEAK	37.2Hz	1,65	1,3,0
	EQ2	PEAK	101.0Hz	1,85	+6,0
	EQ3 Default	PEAK	2K00	1,00	0,0
	EQ4 Default	PEAK	2K00	1,00	0,0
	EQ5 Default	PEAK	2K00	1,00	0,0
OP3S4	EQ1	PEAK	4K78Hz	1,0	-6,0
	EQ2	His6	10K93Hz		3,0
	EQ3	PEAK	8K28Hz	1,95	+3,0
	EQ4 Default	PEAK	2K00	1,00	0,0
	EQ5 Default	PEAK	2K00	1,00	0,0
OP5S6	EQ1	PEAK	4K78Hz	1,0	-6,0
	EQ2	His6	10K83Hz		-3,0
	EQ3	PEAK	8K28Hz	1,95	+3,0
	EQ4 Default	PEAK	2K00	1,00	0,0
	EQ5 Default	PEAK	2K00	1,00	0,0

EDIT OUTPUT GAIN
OP1&2 -3dB
OP3&4 (dBIDefault)
OP5&6 (dBIDefault)

EDIT POLARITY
OP1S2 NORMAL
OP3S4 NORMAL
OP5S6 NORMAL

EDIT COMP.,LIM
OP1&2 SLOW LIM. 18.0
OP354	FAST	LIM.	14.0
OP5&6	FAST	LIM.	14.0

6. HIGH FREQUENCY CONFIGURATOR (HFC)

1 Medium Array Configuration

The below is an example of applying the HFC in four SAT208P in array. In this particular configuration, the HFC on the top speaker is set at +3 dB, and the bottom speaker 0 dB.

5m 3dB +3dB 2dB FLOOR

2 Small Array Configuration

This is the example of the HFC application at two SAT208P in a small array, with tilted speaker set at +3 dB and the bottom speaker at 0 dB.

Do not stack more than two SAT208P speaker on the pole. Be sure to lock the two speaker cabinets, with the original hardware.

-SdB CdB J

10

7

7. REVO MAXIMUM ARRAY SIZE

1 ArrayREVO Frame

The following table defines the maximum number of speakers that may be suspended using the REVO FB-1 array frame. A security design factor is maintained for the speaker configurations indicated in the table.

Maximum quantity of REVO SAT20BP in array	2xSAT	3xSAT	4xSAT	5xSAT	6xSAT
Maximum quantity of REVO SUB11BP in array	0	1xSUB	1xSUB	0	0
			Max		Max

2 Suspension Safety Warning

Never exceed the maximum recommended speaker cabinet listed on the table.

Research and understand the local regulation and requirements of the country where you intend to install the line array.

A correct assemble of all REVO hardware is required for safety suspension system.

3 Array Frame Connection

REVO FB-1frame is connected to REVO SAT-HD-L and REVO SAT-HD-II with ALTO quick release pins.

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

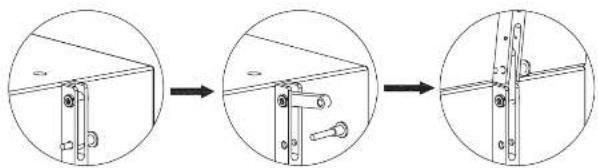

4 Lock The Loudspeakers Together

Any time two or more SAT208P and SUB118P are arrayed together, they must be mechanically secured to each other. See the diagram below for details.

Three-step diagram showing a mechanical assembly with bracket, hinge, and mounting components (no text or symbols)

8. DEPLOYING THE SYSTEM IN SUSPENSION & COMPRESSION

1 Suspension

-3dB -3dB +3dB 0dB 3D

+3dB +3dB -3dB +3dB +3dB 0dB 45°

2 Compression

+3dB +3dB +3dB +3dB 20° 15° FLOOR
