Product type	Compact digital camera
Brand	Samsung
Model	ES17
Image sensor	CCD 1/2.33", 12.2 effective megapixels
Lens	Samsung f=6.3-18.9 mm (35-105 mm equiv.), aperture F3.2 (W) - F5.8 (T)
Optical zoom	3x
Display	LCD TFT 2.5", 230,000 pixels
Focus	Auto TTL (multi, center, face detection)
Shutter speed	Auto: 1/8-1/1500 sec, Program: 1-1/1500 sec, Night: 8-1/1500 sec, Fireworks: 2 sec
Flash	Built-in
Internal storage	~11 MB
External storage	SD card (up to 2 GB), SDHC (up to 8 GB), MMC Plus (up to 1 GB)
Power source	2 AA alkaline batteries or optional Ni-MH rechargeable battery
Dimensions (W×H×D)	94.1 × 62.7 × 25.2 mm
Weight	121 g (without battery or card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85%
Main functions	Photo and video shooting, digital zoom, self-timer, face detection, scene selection
Maintenance and cleaning	Clean with a soft dry cloth; avoid liquids, dust, extreme temperatures
Safety	Do not use near flammable gases; keep out of reach of children; avoid flash near eyes
Spare parts and accessories	Rechargeable battery SNB-2512B KIT (optional), USB cable, wrist strap, case
Repairability	Contact an authorized Samsung after-sales service

Frequently Asked Questions - ES17 SAMSUNG

How to insert the battery and memory card?

Open the battery compartment at the bottom of the camera. Insert the memory card with the chip facing upward until it clicks. Insert the AA batteries respecting polarity. To remove the card, gently press it to eject.

How to turn on the camera and set the language?

Press the [POWER] button. The setup screen appears. Use the navigation buttons to select Language, then choose your language with [DISP] or [] and confirm with [OK].

How to take a photo?

Press the shutter button halfway for focusing (green frame). Press fully to take the photo. Use the Zoom (W/T) button to frame.

How to record a video?

Press [MENU] and select video mode. Frame the subject, then press the shutter button to start recording. Press again to stop. During video, press [OK] to pause.

What type of memory card is compatible?

SD card (up to 2 GB), SDHC card (up to 8 GB), and MMC Plus (up to 1 GB). Insert it with the chip facing upward.

How to transfer photos to a PC?

Install the provided CD-ROM. Connect the camera to the PC with the USB cable. Turn on the camera. On the PC, go to My Computer > Removable Disk > DCIM > 100PHOTO. Copy the desired files.

How to view photos on the camera?

Press the [▶] (playback) button. Use the [⚡] or [] buttons to scroll through photos. Hold down for fast scrolling.

How to play a recorded video?

In playback mode, select the video and press [OK] to play. Use [♣] for rewind, [OK] for pause/resume, [♣] for fast forward.

What are the important safety precautions?

Do not use the flash within one meter of eyes. Avoid exposure to liquids, flammable gases. Use only Samsung batteries and chargers. Keep the camera out of reach of children.

How to clean the lens and display?

Use a soft dry cloth. Avoid any liquids. Do not touch the lens with fingers. If the memory card is dirty, clean it with a soft cloth before insertion.

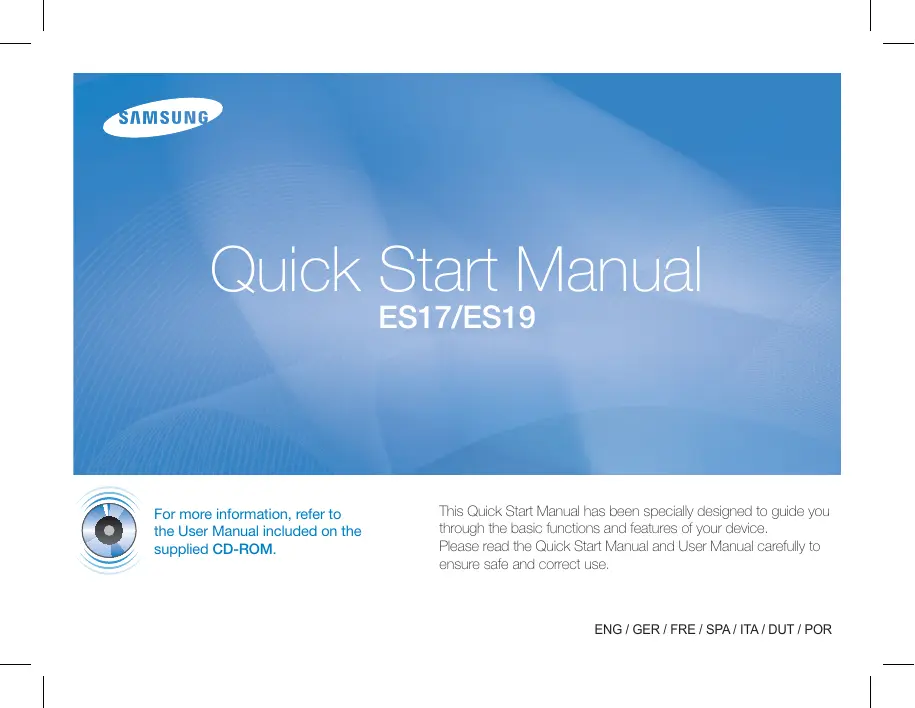

USER MANUAL ES17 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

Contents

Health and safety

information...... 2

Camera layout 4

Setting up your camera ..... 5

Unpacking 5

Inserting the battery and

memory card 6

Turning on your camera....7

Selecting options 7

Capturing photos or videos 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

1

8

7

13

16

33

19

53

86

79

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Camera layout

SAMSUNG

① Shutter button
② POWER button
③ Microphone
4 AF-assist light/timer lamp
5 Speaker
6 Lens / Lens cover
⑦ Tripod mount
8 Battery chamber cover
9 Flash

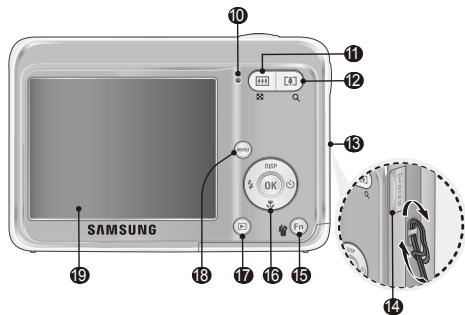

SAMSUNG 10 11 12 13 14 15 16 17 18 19

10 Status lamp
11 Zoom Wide(W) button (Thumbnail)
12 Zoom Tele(T) button (Digital zoom)
13 Strap eyelet
14 USB / AV / DC terminal
15 Fn / Delete button
16 Navigation button/OK button
17 | Playback button
18 MENU button
19 LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera

AA Alkaline Batteries

USB cable

Camera strap

Quick Start Manual

Software CD-ROM (User manual included)

Optional accessories

Memory cards

Rechargeable Battery

Charger

A/V Cable

AC Cord

Camera case

Inserting the battery and memory card

With the gold-coloured contacts facing up 1 2 3 4

▼ Removing the battery

Diagram of a device with two circular components and directional arrows indicating movement or force (no text or symbols)

▼ Removing the memroy card

Cross-sectional diagram of a device showing internal components with arrows indicating flow or movement (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Turning on your camera

1 Press [POWER].

- The initial setup screen appears.

Display Language Date & Time Battery Type MENU Exit ► Change

2 Press [💡] to select Language and press [💡].
3 Press [DISP] or [💡] to select a language and press [OK].
4 Press [DISP] or [💡] to select Date & Time and press [💡].
5 Press [⚡] or [💡] to select an item.
6 Press [DISP] or [💡] to change the number or select another date format and press [OK].
7 Press [DISP] or [💡] to select Battery Type and press [💡].
8 Press [DISP] or [♥] to select a battery type and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

EV MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

F3.2 1/30 00001 F A I F

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter].

- Press [OK] to pause or resume.

4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12^M	4000 x 3000	147	285	404
10^m	3984 x 2656	168	314	442
3^M	3968 x 2232	202	368	529
8^M	3264 x 2448	212	375	538
5^M	2592 x 1944	340	568	793
3^M	2048 x 1536	511	804	1,067
2^M	1920 x 1080	737	1,146	1,440
1^M	1024 x 768	1,290	1,673	1,876

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].

2 Press [⚡] or [💡] to scroll through files.

- Press and hold to view files quickly.

Silhouette of a person holding a pointer, no text or symbols present

Viewing videos

1 Press [▶].
2 Press [OK].

100-0002 00:00:11 OK Play Capture

3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Diagram showing a digital camera connected to a small device via cable (no text or symbols present)

Disconnecting safely (for Windows XP)

EN 10:00 AM Click Safely remove USB Mass Storage Device - Drive(H:) EN 10:00 AM Click

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.33" (approx. 7.81 mm) CCDEffective pixels: approx. 12.2 mega-pixelsTotal pixels: approx. 12.3 mega-pixels
Lens	Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm)F-stop range: F3.2 (W) - F5.8 (T)
Display	2.5" (6.4 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF)
Shutter speed	Auto: 1/8 - 1/1,500 sec.Program: 1 - 1/1,500 sec.Night: 8 - 1/1,500 sec.Firework: 2 sec.
Storage	Internal memory: approx. 11 MBExternal memory (Optional): SD card (up to 2 GB guaranteed),SDHC card (up to 8 GB guaranteed), MMC Plus (up to 1 GB guaranteed)Internal memory capacity may not match these specifications.
Rechargeable battery	Primary Battery : 2x AA AlkalineRechargeable battery : SNB-2512B KIT (Optional)(2xAA Ni-MH Battery & Charger)
Dimensions (W x H x D)	94.1 x 62.7 x 25.2mm (excluding protrusions)
Weight	121g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
