USER MANUAL BT8701 B-Tech

Technical line drawing of a vertical metal frame structure with mounting brackets and mounting holes (no text or symbols)

SPECIFICATIONS

• Recommended for screens up to: 75" (190cm)
  • Max load: 70kg (154lbs)
• Stand Dimensions: H.1970 (77.50") x W.705mm (27.75") x D.160mm (6.25")
• Suitable for displays with VESA® & non-VESA fixings
  • Universal design suitable for displaying screens in a landscape or portrait orientation
  • Integrated cable management

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....14

B-Tech Contact Details....16

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use only with the maximum weights indicated. Use with screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.

Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of wall/floor prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended.

Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. The fixing kit supplied with the product may not be suitable for all walls/floors.

If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.

If in doubt consult a professional AV installer or other suitably qualified person.

PLEASE KEEP THIS FOR FUTURE REFERENCE

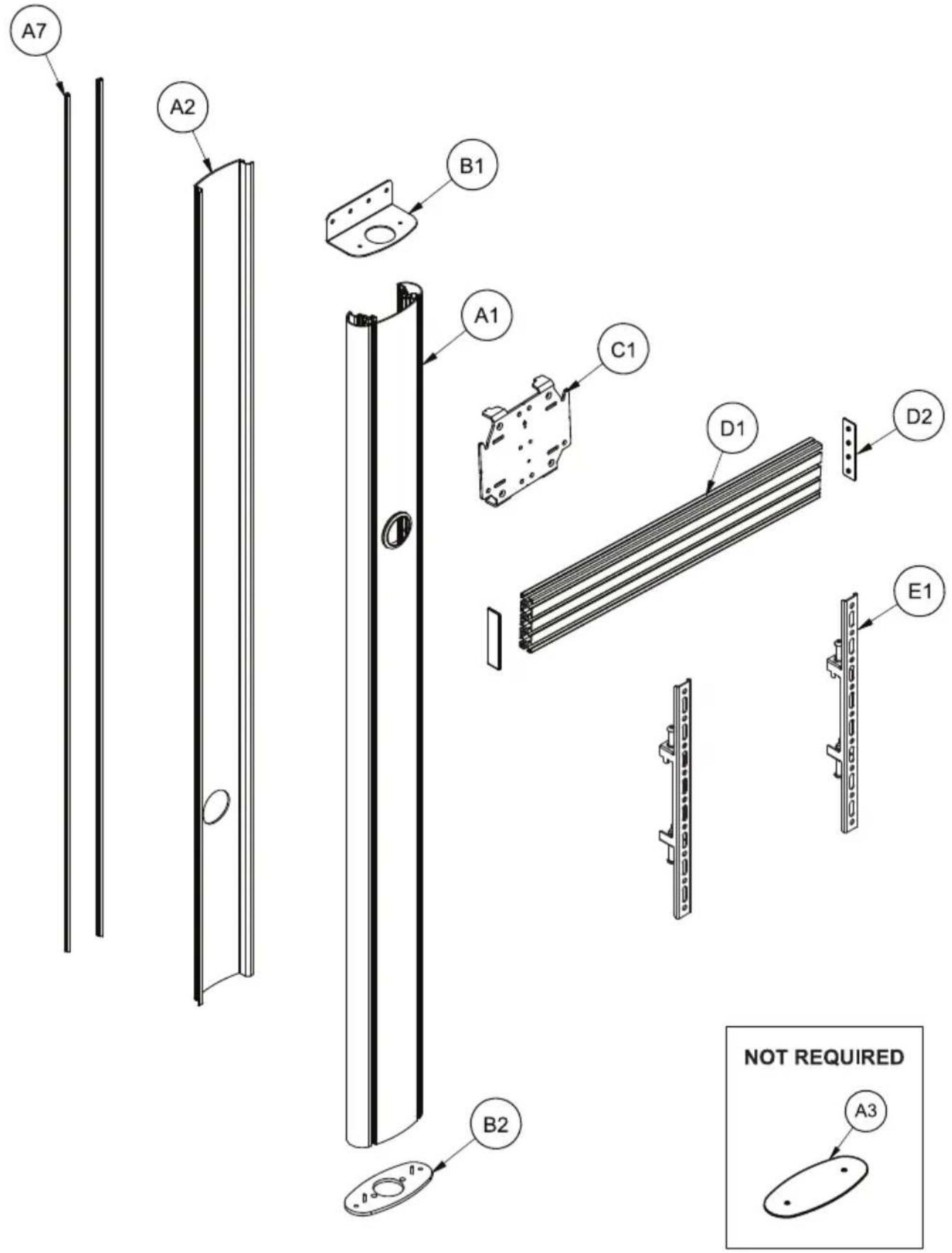

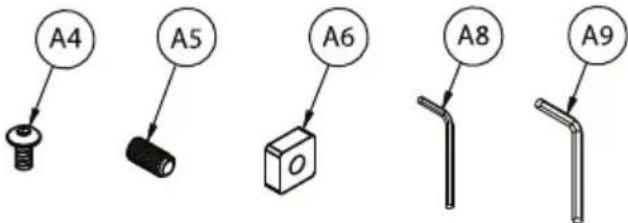

	ITEM	PART	DESCRIPTION	QTY
	COLUMN	A1	1.9M COLUMN	1
		A2	COLUMN REAR COVER	1
		A3	END CAP (NOT REQUIRED)	1
		A4	M6 x 12mm HEX SCREW	2
		A5	M6 x 12mm GRUB SCREW (OPTIONAL)	4
		A6	SQUARE NUT (OPTIONAL)	4
		A7	COVER STRIP	4
		A8	3AF HEX KEY	1
		A9	4AF HEX KEY	1

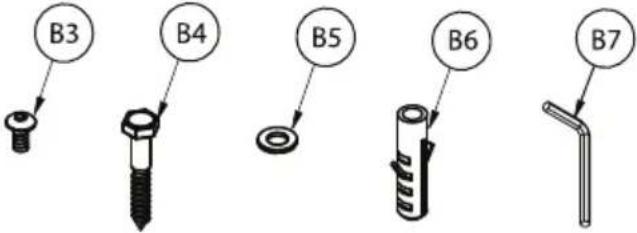

	FLOOR TO WALL KIT	B1	WALL PLATE	1
		B2	BASE PLATE	1
		B3	M6 x 12mm SCREW	2
		B4	M8 x 50mm COACH SCREW	4
		B5	M8 T1.5mm METAL WASHER	4
		B6	N°.10 x 50mm WALL PLUG	4
		B7	4AF HEX KEY	1

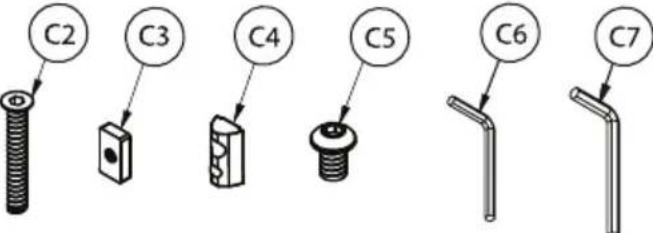

	MOUNTING BRACKET	C1	RAIL-TO-COLUMN MOUNTING BRACKET	1
		C2	M6 x 40mm CSK HEX SCREW	4
		C3	RECTANGLE NUT	4
		C4	M8 SLIDING INSERT	4
		C5	M8 x 12mm SCREW	4
		C6	4AF HEX KEY	1
		C7	5AF x L120mm HEX KEY	1
	RAIL	D1	MOUNTING RAIL	1
		D2	END CAP	2
	ARMS	E1	SCREEN INTERFACE ARM	2
		E2	5AF LONG HEX KEY	1

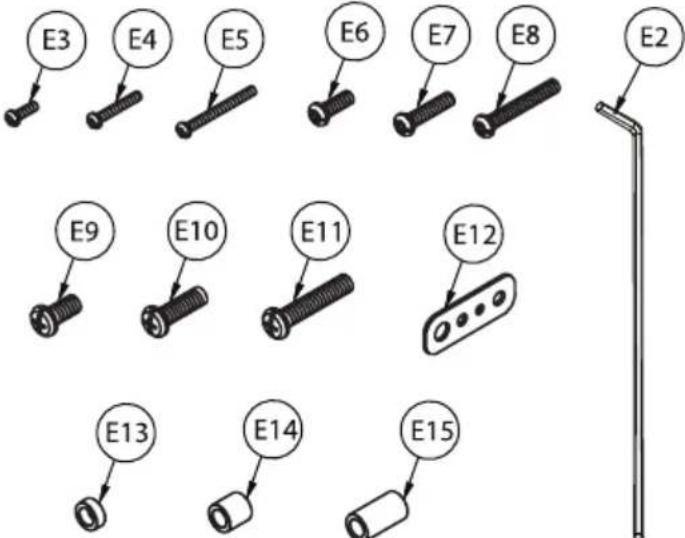

	SCREEN FIXING KIT	E3	M4 x 12mm SCREW	4
		E4	M4 x 25mm SCREW	4
		E5	M4 x 40mm SCREW	4
		E6	M6 x 16mm SCREW	4
		E7	M6 x 25mm SCREW	4
		E8	M6 x 40mm SCREW	4
		E9	M8 x 16mm SCREW	4
		E10	M8 x 25mm SCREW	4
		E11	M8 x 40mm SCREW	4
		E12	MULTIWASHER	4
		E13	5mm SPACER	4
		E14	13mm SPACER	4
		E15	24mm SPACER	4

INSTALLATION TOOLS REQUIRED

Drill

Drill bit

Pencil

Crosshead screwdriver

Spanner

Pliers/Cutter

INSTALLATION INSTRUCTIONS

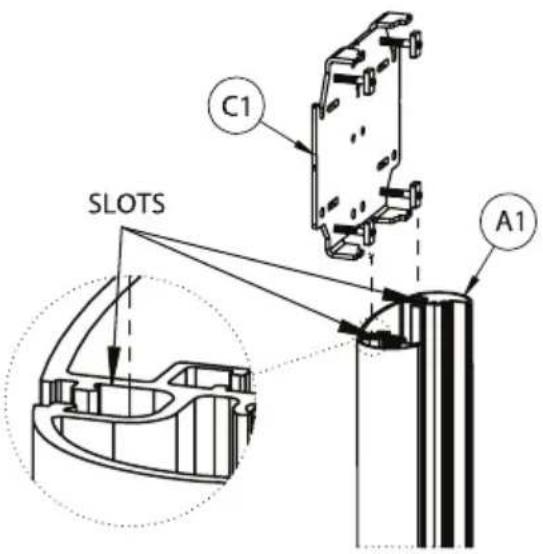

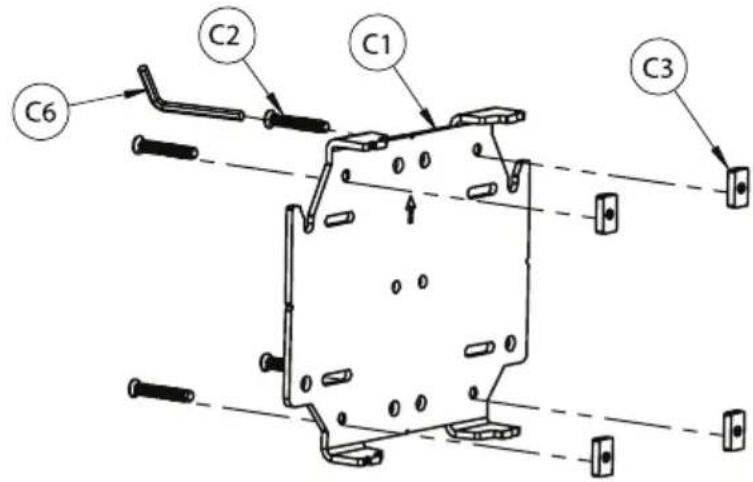

1 ATTACH MOUNTING BRACKET TO COLUMN

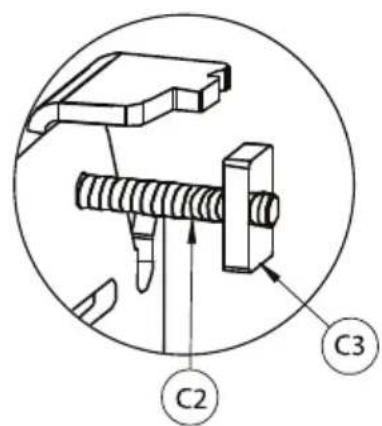

i. Insert 4 x item C2 into item C1 and attach item C3.

Screw two full turns to leave item C3 at the end of item C2.

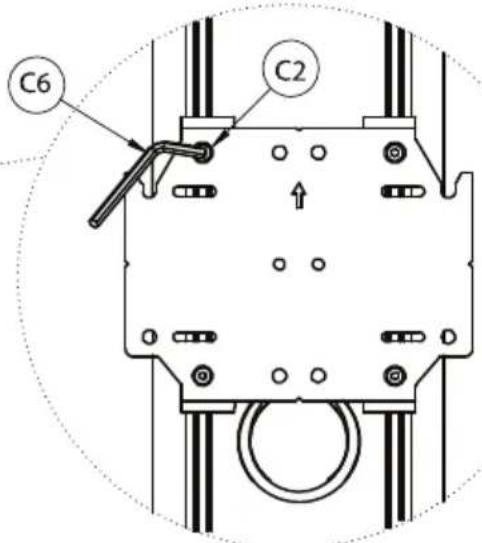

ii. Slide item C1 down the front slots of item A1 to the correct height and tighten item C2.

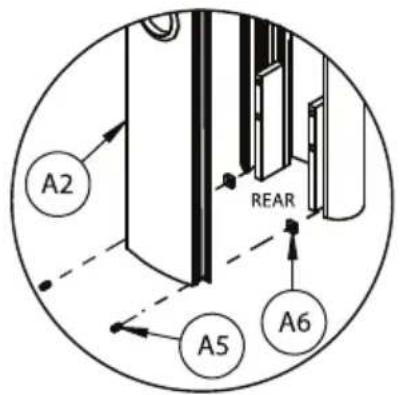

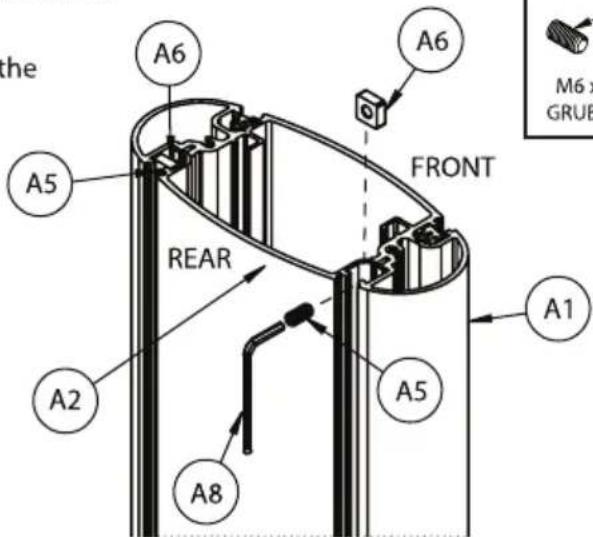

OPTIONAL - FIX REAR COVER TO COLUMN

Place item A2 into the back of item A1.

Use items A5 & A6 at the top and bottom of the column slot to secure rear cover.

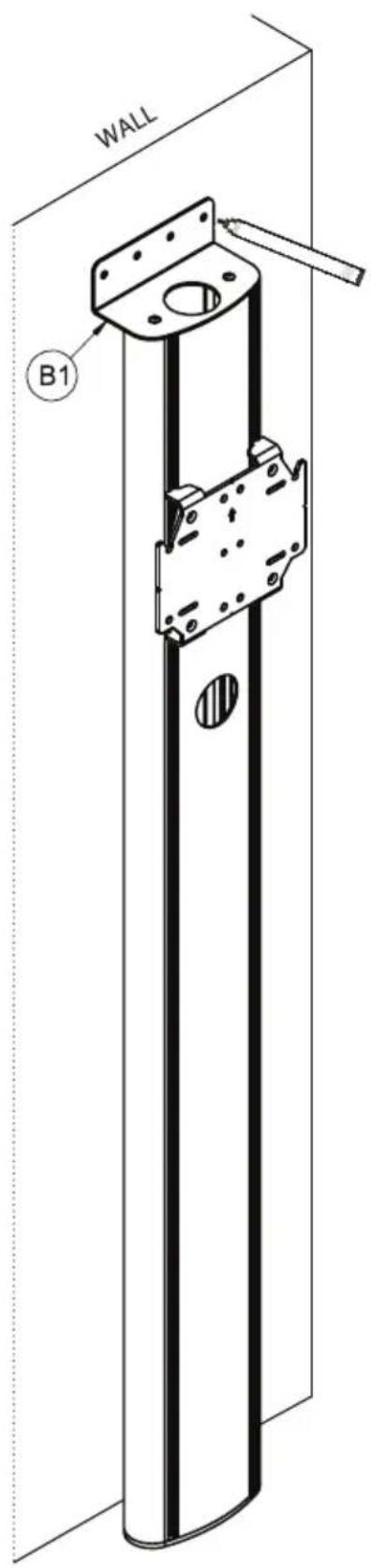

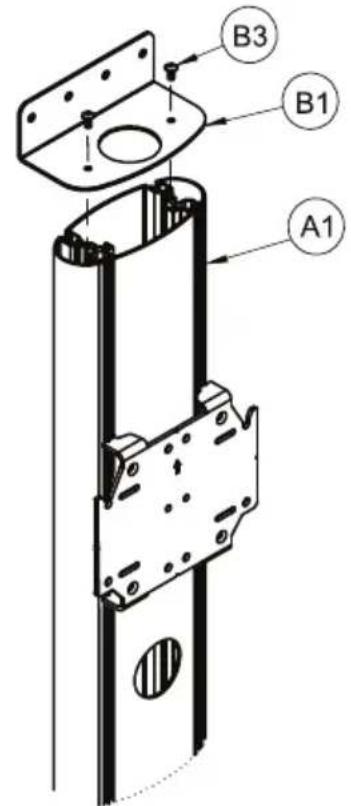

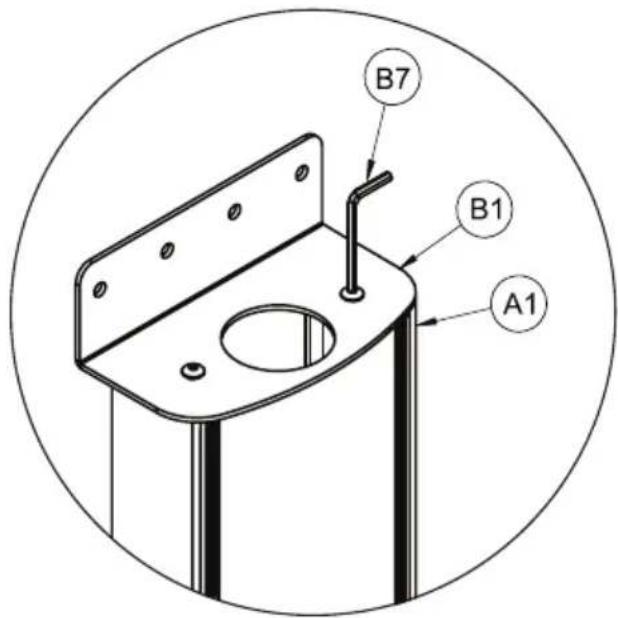

2. ATTACH WALL PLATE TO COLUMN

Fix item B1 to the top of item A1 using item B3.

M6 x 12mm

HEX SCREW

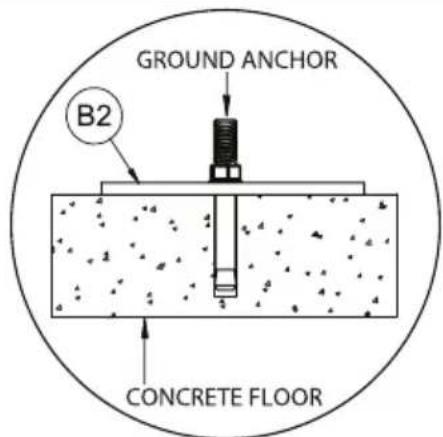

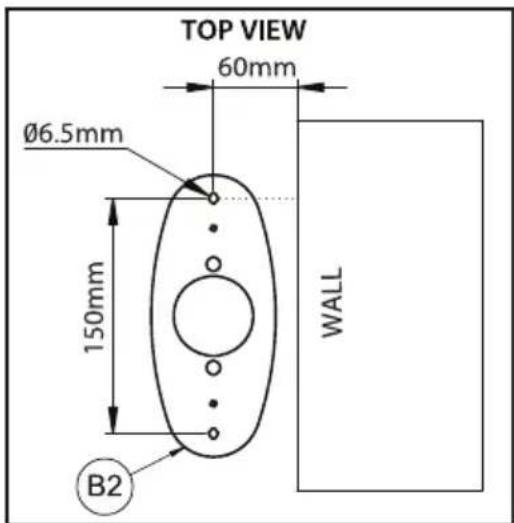

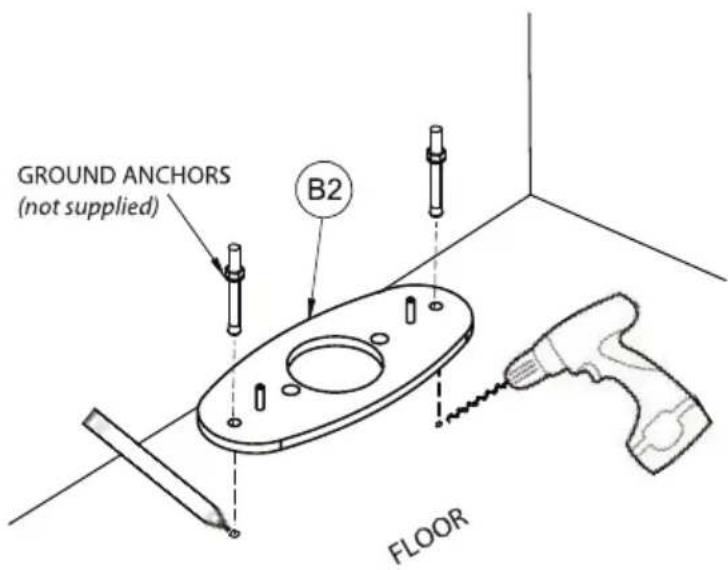

3. FIX FLOOR PLATE TO FLOOR

Fix item B2 to floor (fixings not included).

Note: Fixing points are 60mm away from the wall.

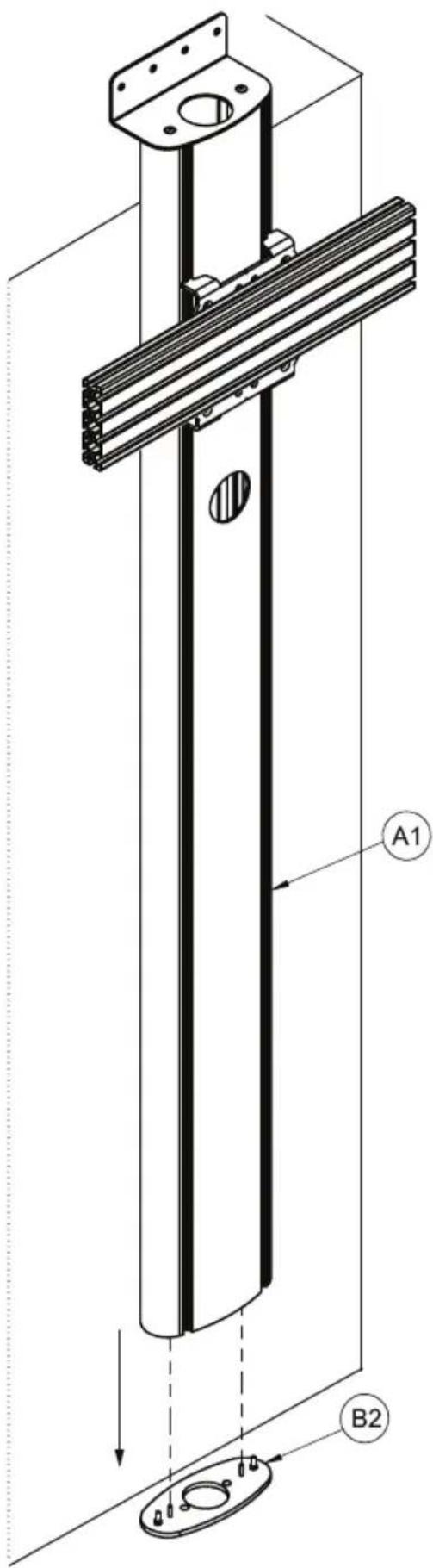

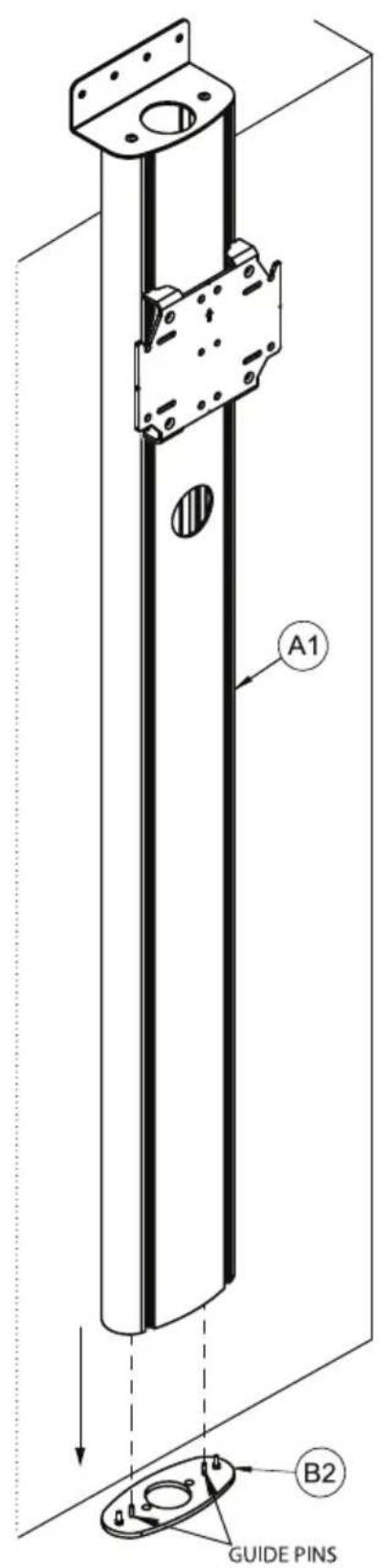

4. MARK WALL FIXING HOLES

Using the guide pins, place item A1 onto item B2. Mark the 4 fixing holes from item B1 onto the wall.

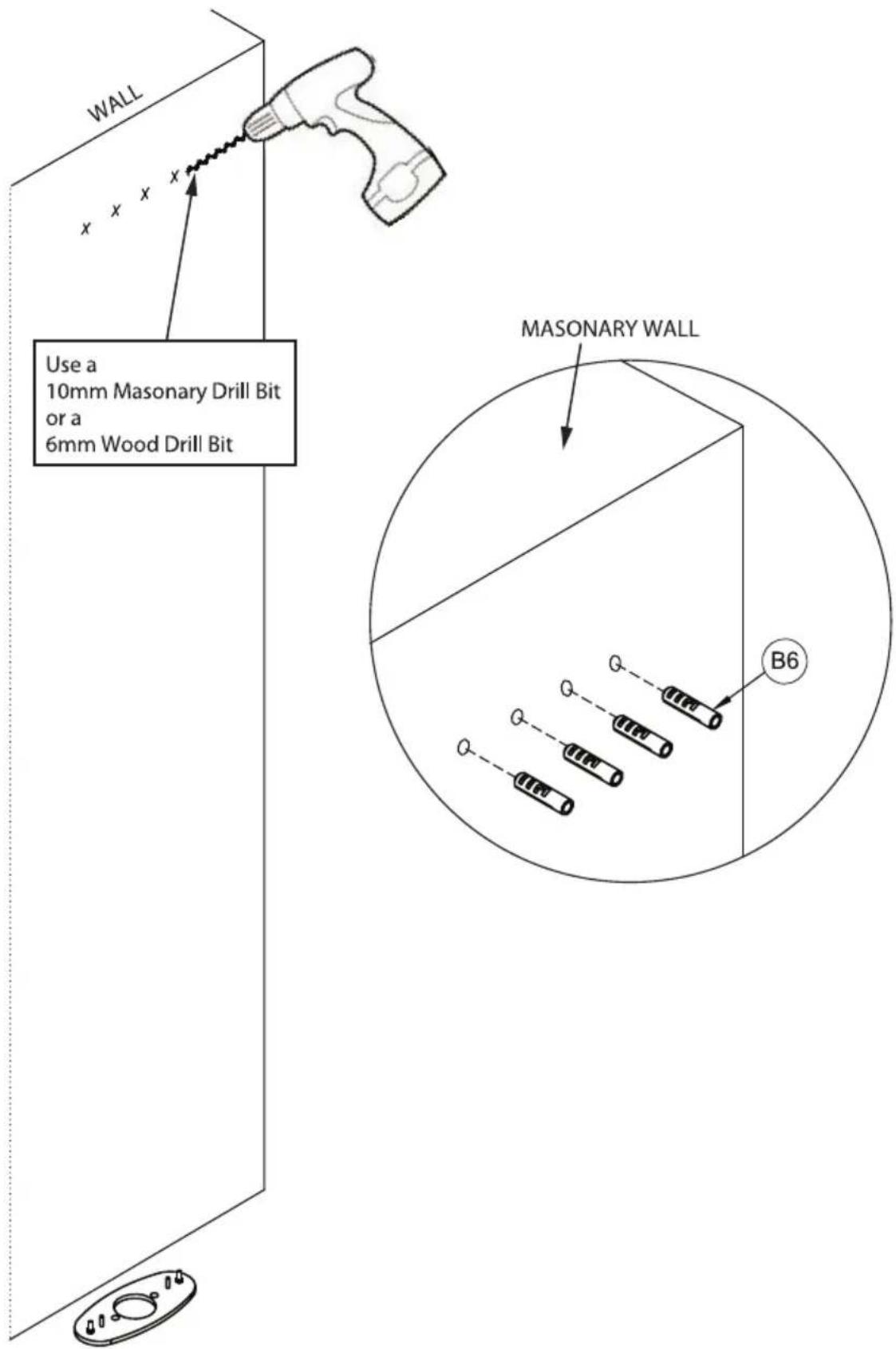

5. DRILL HOLES AND INSERT WALL PLUGS

Remove item A1 and drill marked holes.

Insert 4 x item B6 (Not required for stud/wood walls).

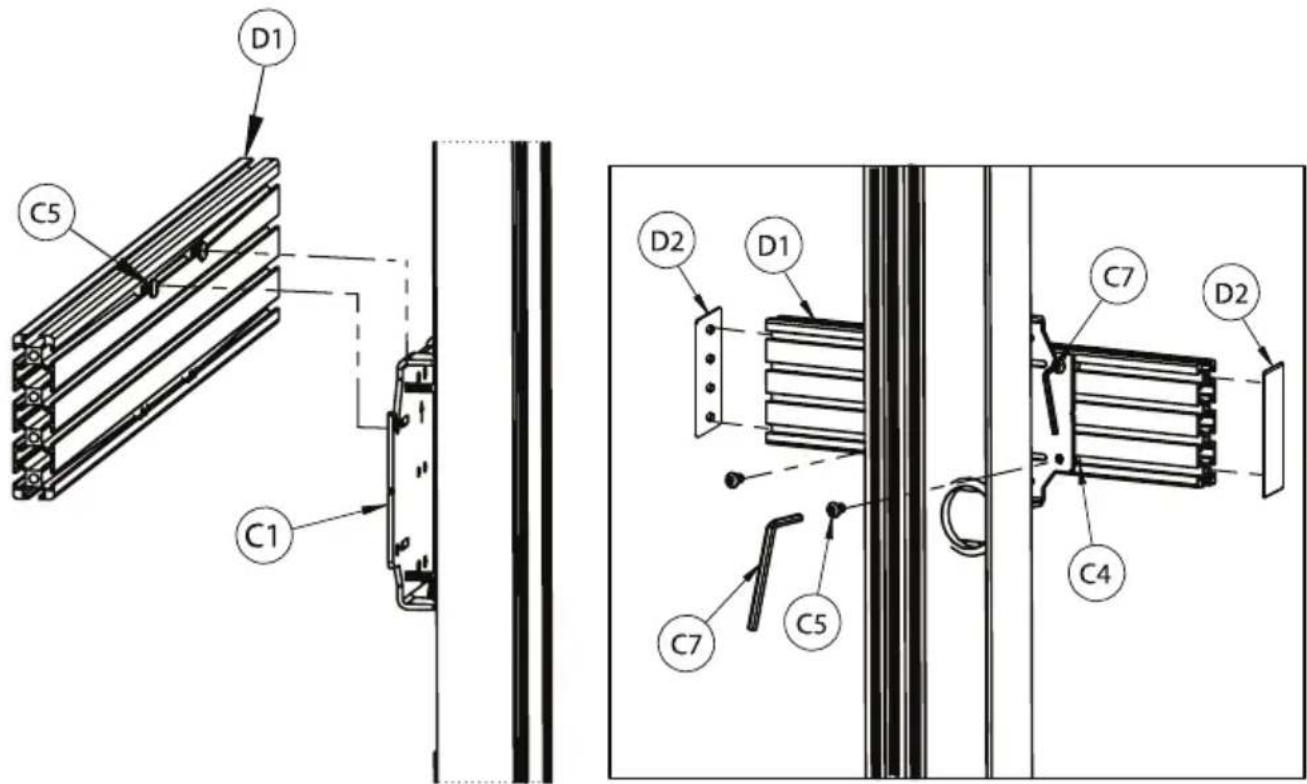

6. HOOK RAIL ONTO MOUNTING BRACKET

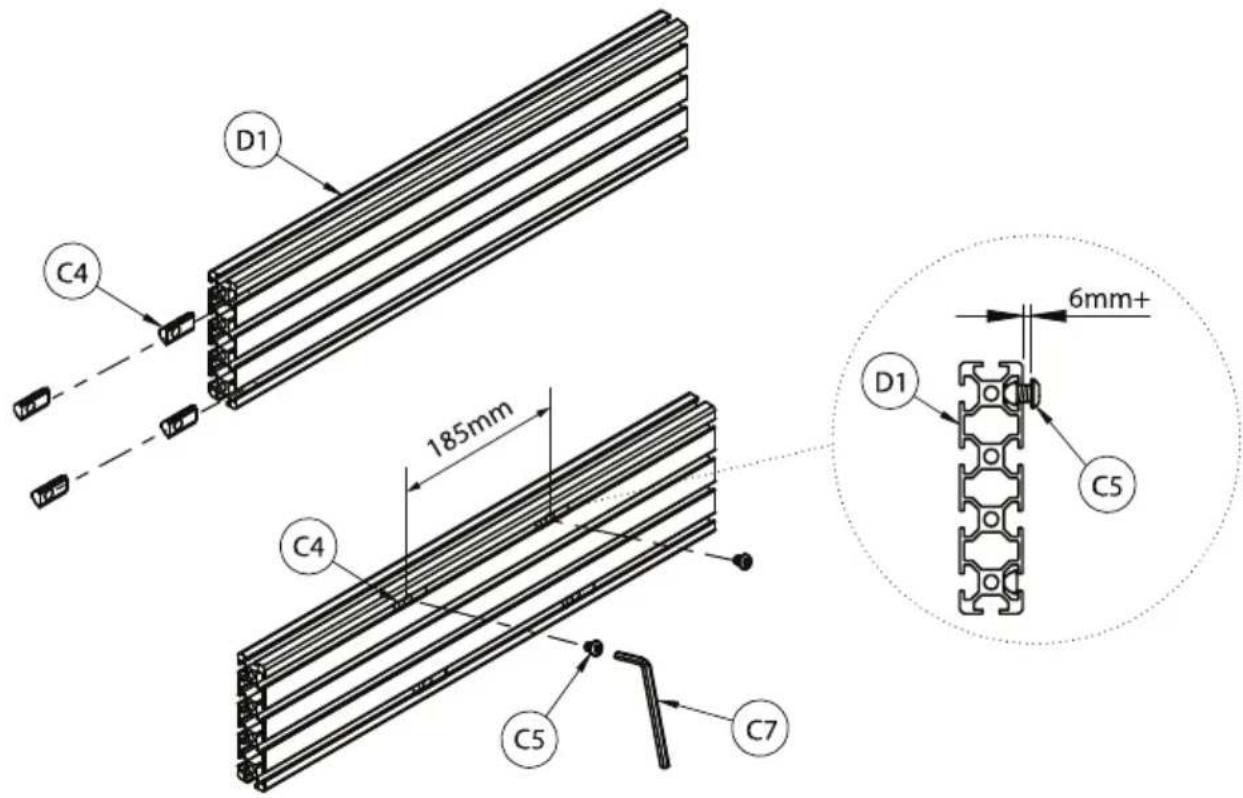

i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel).
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap so the rail can be hooked on to item C1.

iii. Hook item D1 onto item F1 and fix with in place with item C5. iv. Attach item D2 to the ends of item D1.

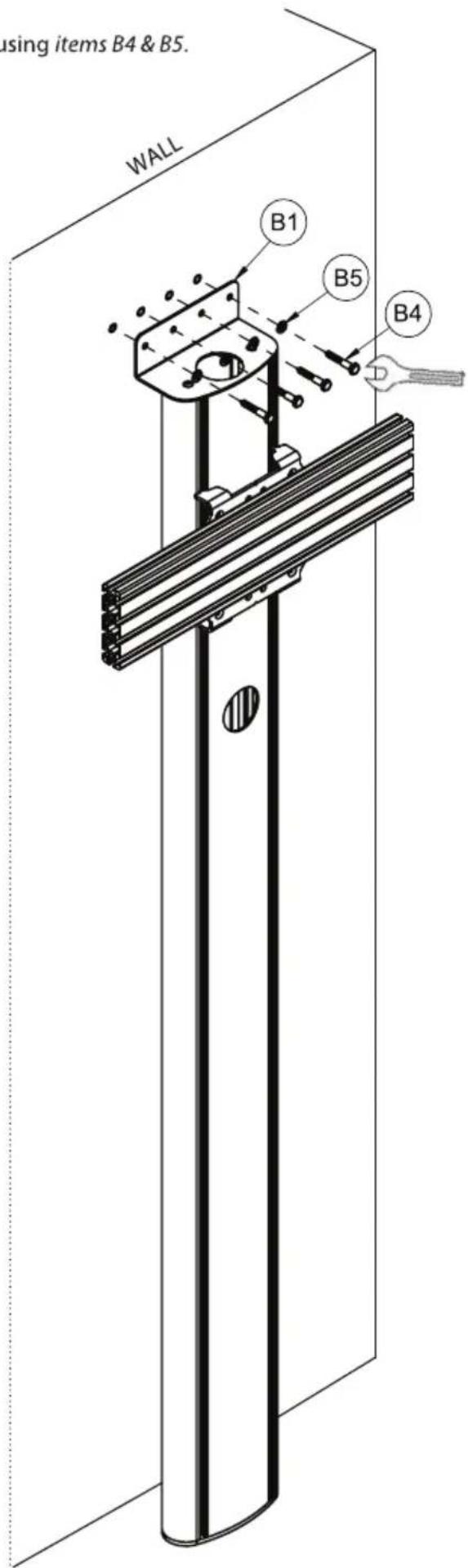

7. FIX COLUMN TO WALL

Place item A1 onto item B2 and fix item B1 to the wall using items B4 & B5.

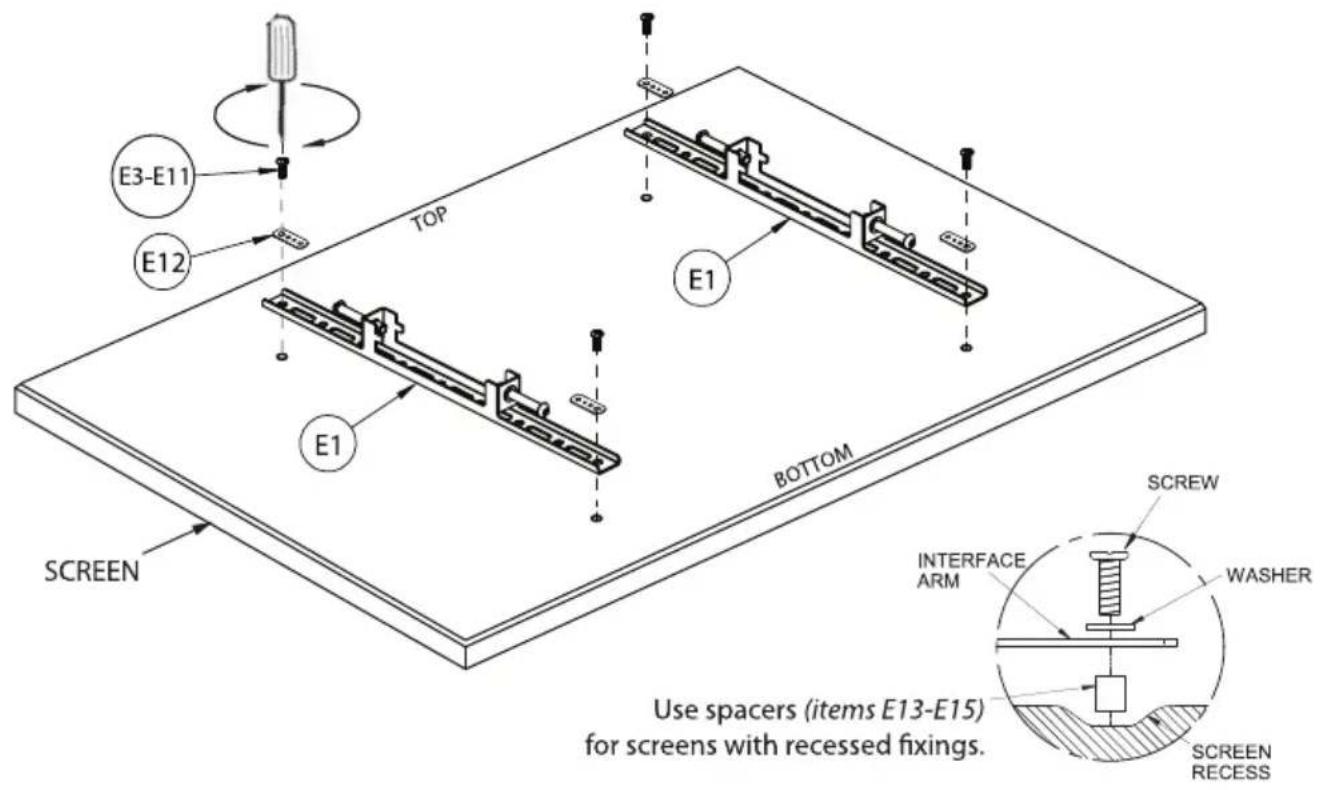

8. ATTACH INTERFACE ARMS TO SCREEN

Fix item E1 to the rear of the screen using items E3 - E15.

Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.

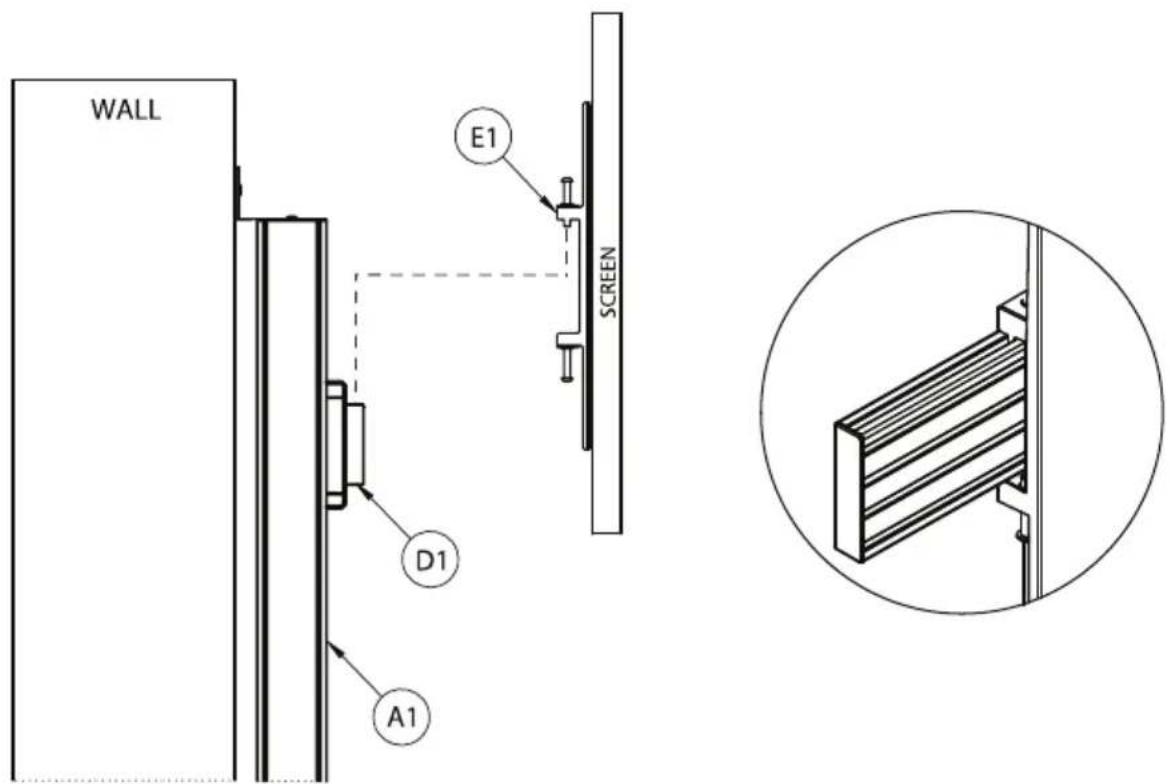

9 HOOK SCREEN ONTO RAIL

Use items E1 to hook the screen onto item D1.

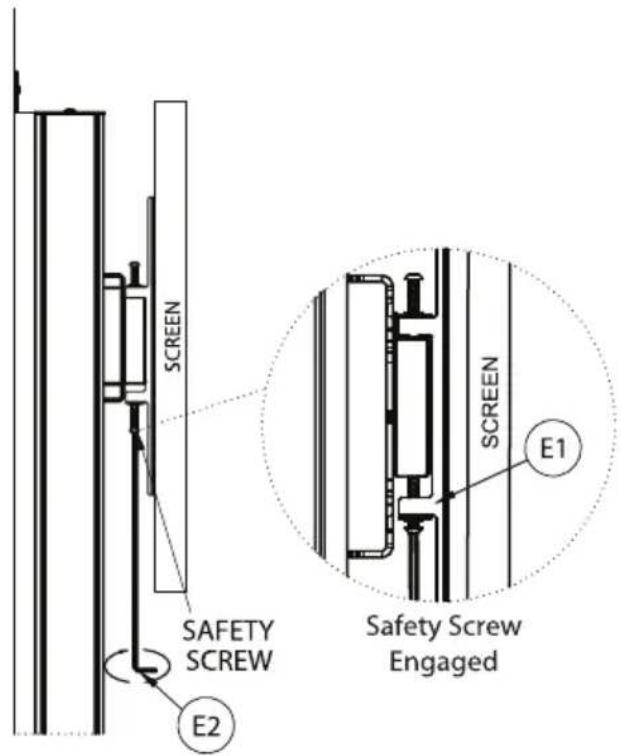

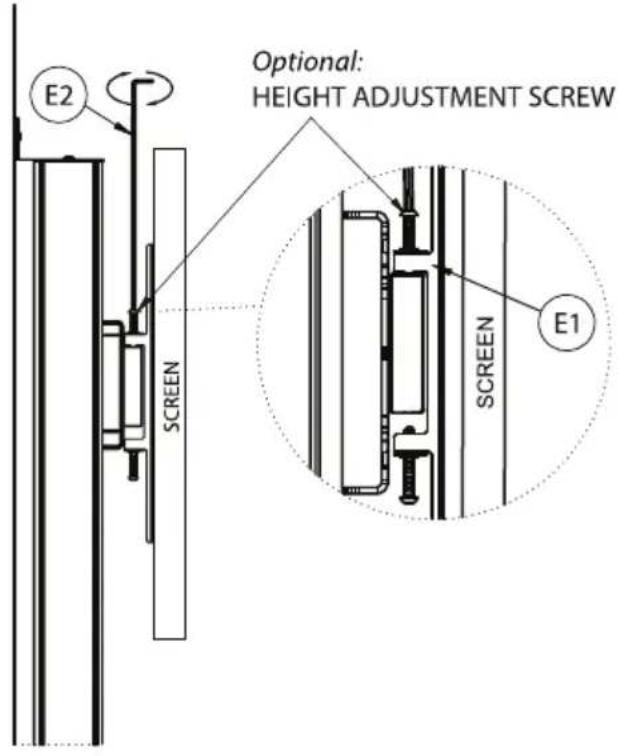

10. LEVEL SCREEN AND LOCK ONTO RAIL

Optional: If necessary, adjust the height adjustment screws on top of item E1 to level the screen. Tighten the safety screws on the bottom of item H1 securing the screen to item D1.

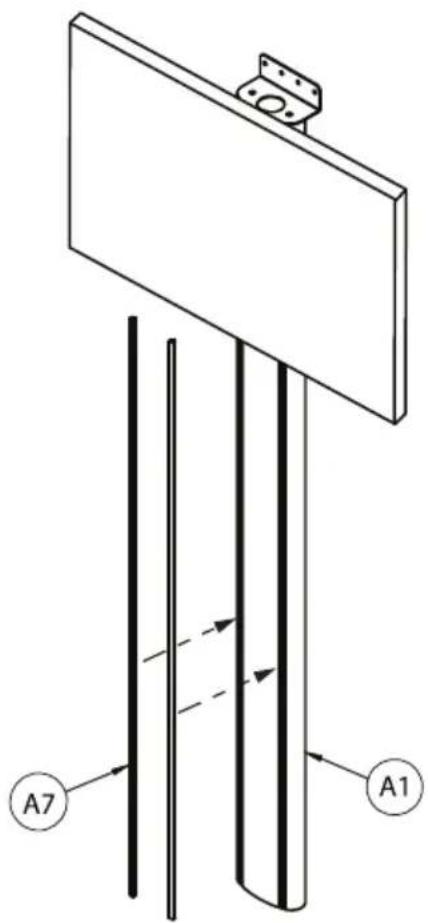

11. ATTACH STRIPS

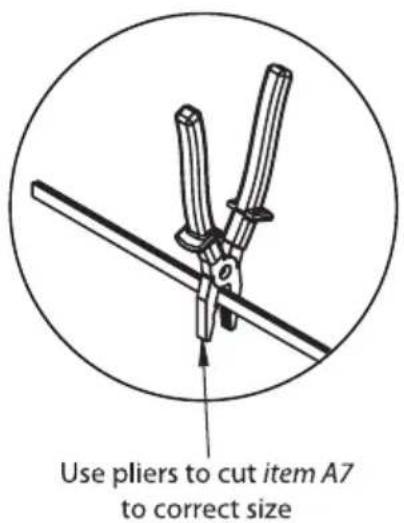

Insert item A7 to the front and back of item A1. Note: Item A7 may have to be cut down to size to be able to fit into the front of item A1.

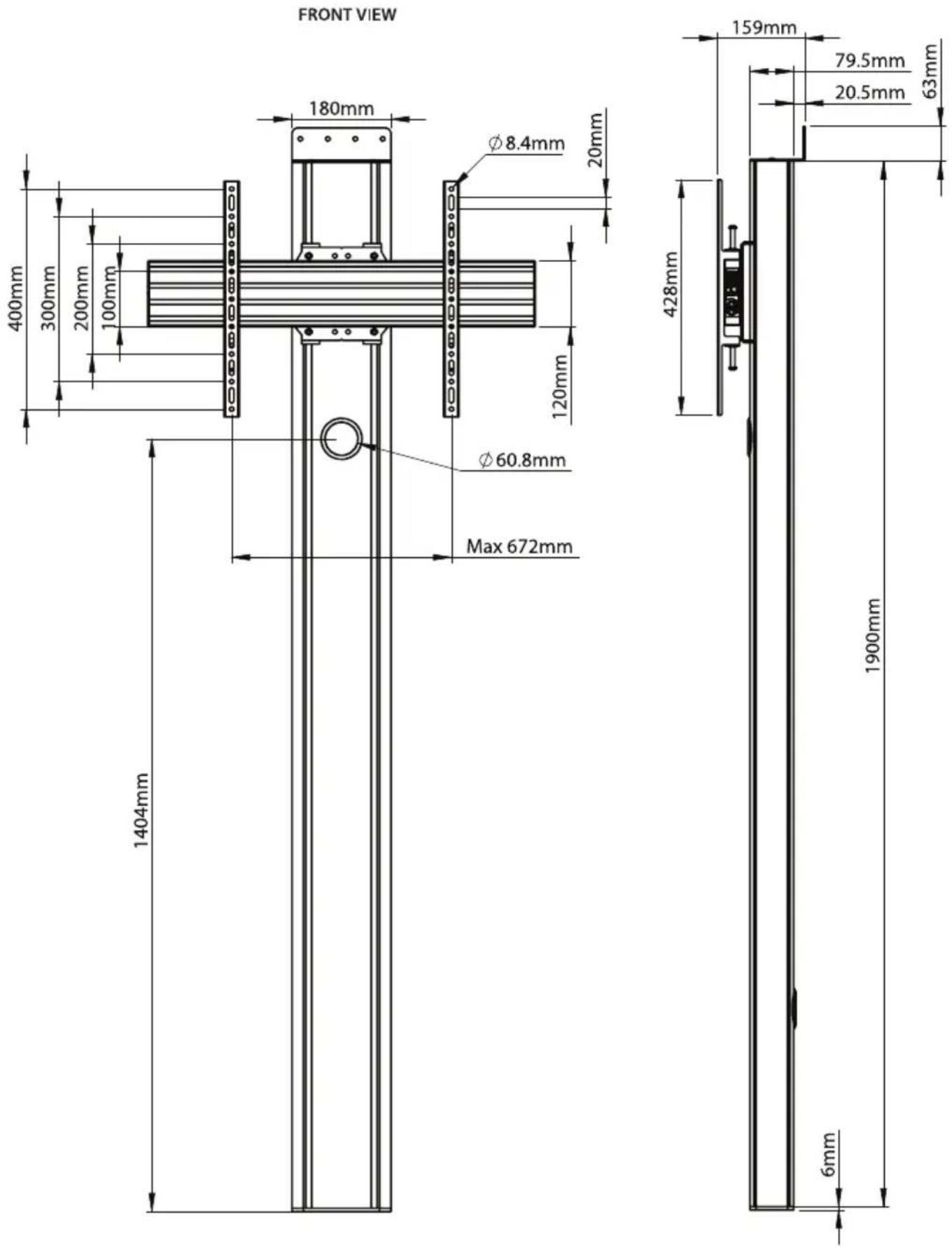

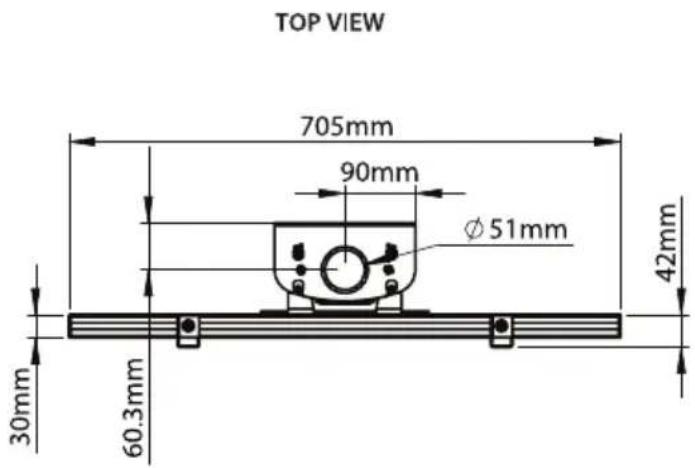

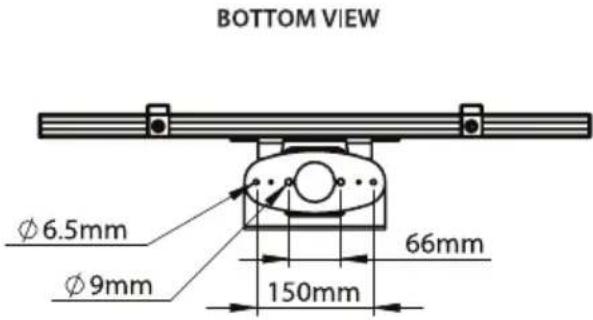

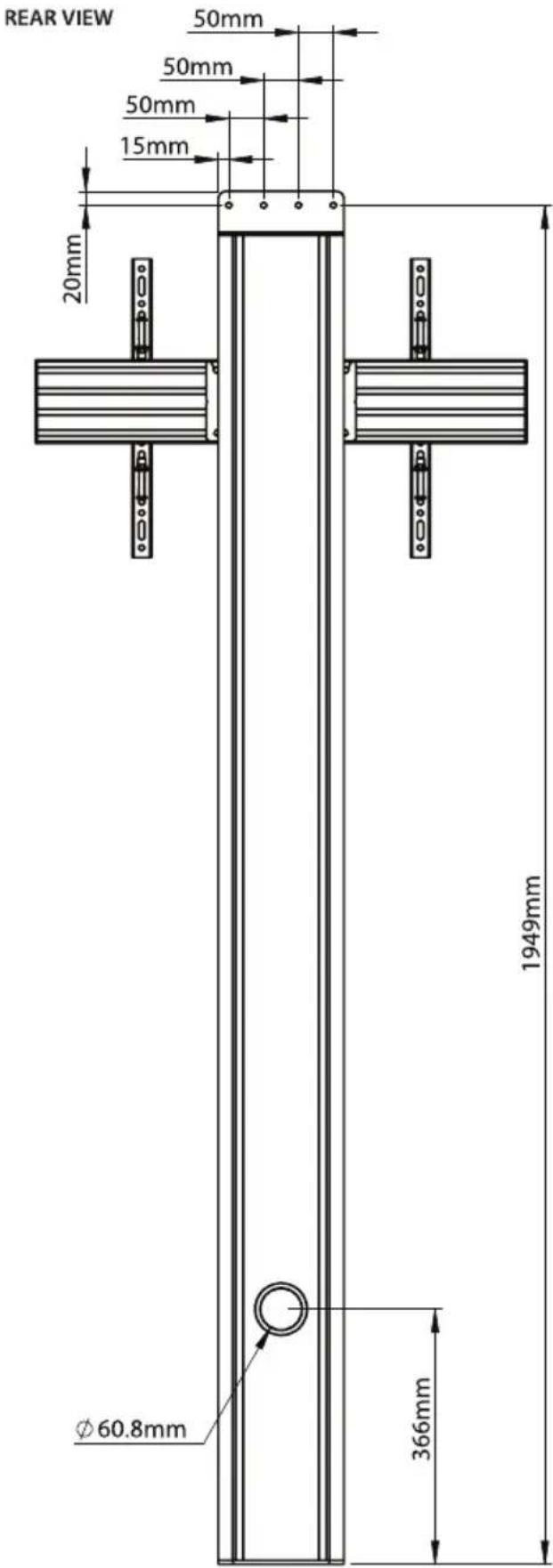

BT8701 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

SIDE VIEW

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BT8701 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

CONTACT:

[e-mail]

©2022 B-Tech International Design and Manufacturing Ltd. All rights reserved.

B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.

B-Tech AV Mounts and the B-Tech logo are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

AMA-BT8701-V1.1-0822-104 MADE IN VIETNAM
