Product Type	Video conferencing stand with shelf
Brand	B-Tech
Model	BT8712
Recommended Screen Size	46" - 65" (117 - 165 cm)
Max Load per Screen	56 kg (123 lbs)
Stand Dimensions (H x W x D)	1945 x 2005 x 757 mm
VESA Compatibility	Up to 600 x 400 mm
Number of Columns	2
Integrated Cable Management	Yes (cover strips on columns)
Adjustable Leveling Feet	Yes (4 feet)
Mounting Rail	Yes, for screens
VC Shelf Included	Yes, for camera/small device
Screen Interface Arms	4 included (with various spacers)
Adaptor Arms for 65" Screens	600 mm adaptor arms included
Material	Metal (steel columns, aluminum parts)
Color	Black (assumed from images)
Assembly Required	Yes, detailed installation instructions provided
Recommended Installer	Professional AV installer or qualified person
Safety Notes	Do not exceed max load; secure to structure
Warranty	Not specified; all guarantees void if improperly installed

Frequently Asked Questions - BT8712 B-Tech

What is the BT8712 designed for?

The B-Tech BT8712 is a video conferencing system stand designed to hold two screens (46-65 inches) and a shelf for a camera or small device. It is suitable for public or home installation.

What is the maximum load per screen?

Each screen must not exceed 56 kg (123 lbs). Using heavier screens may cause instability and injury.

What VESA patterns does it support?

It supports fixings up to 600 x 400 mm. Adaptor arms are included for 65-inch screens with 600 x 400 mm VESA.

How do I level the stand on an uneven floor?

Use the four adjustable leveling feet (item B4) and a 19 mm spanner (B9) to turn them until the stand is stable and level.

Can I mount the shelf above or below the screens?

Yes, the shelf can be mounted above or below the mounting rail. The instructions include steps for both configurations.

What tools are needed for assembly?

The package includes hex keys (3, 4, 5, 6 AF) and a 19 mm spanner. No additional tools are required for standard assembly.

Is professional installation recommended?

Yes, B-Tech recommends a professional AV installer or suitably qualified person. Improper installation can cause serious injury.

How do I manage cables?

The stand has integrated cable management: columns include cover strips (item A7) to hide cables inside the column slots.

Can I extend the shelf reach?

Yes, an extension bracket (item G3) is included for an extended reach. Attach it to the sliding bracket (G2) using provided hardware.

How often should I inspect the stand?

Periodic inspections every 6 months are recommended to ensure all fixings remain tight and the structure is safe.

USER MANUAL BT8712 B-Tech

Technical line drawing of a mechanical support structure with vertical columns and mounting feet (no text or symbols)

SPECIFICATIONS

• Recommended for screens: 46" - 65" (117 - 165cm)
  • Max load: 56kg (123lbs) per screen
• Suitable for displays with fixings up to 600 x 400mm
• Stand dimensions: H.1945 x W.2005 x D.757mm
• Integrated cable management

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....14

B-Tech Contact Details....16

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use only with the maximum weights indicated. Use with screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.

Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of floor prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.

Use of a good quality live wire detector and hidden object locator is therefore recommended.

Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.

If in doubt consult a professional AV installer or other suitably qualified person.

PLEASE KEEP THIS FOR FUTURE REFERENCE

ITEM	PART	REF	DESCRIPTION QTY
	COLUMNBASE	A1	1.9M COLUMN	2
		A2	END CAP	2
		A3	COLUMN REAR COVER	2
		A4	M6 x 12mm HEX SCREW	4
		A5	M6 x 12mm GRUB SCREW (OPTIONAL)	8
		A6	SQUARE NUT (OPTIONAL)	8
		A7	COVER STRIP	8
		A8	3AF HEX KEY	2
		A9	4AF HEX KEY	2
		B1	BASE - LEFT SIDE	1
		B2	BASE - RIGHT SIDE	1
		B3	BASE CONNECTOR	2
		B4	ADJUSTABLE LEVELLING FEET	4
		B5	M6 x 30mm CSK HEX SCREW	8
		B6	M10 x 25mm CSK HEX SCREW	8
		B7	4AF HEX KEY	1
		B8	6AF HEX KEY	1
		B9	19mm SPANNER	1
	MOUNTING BRACKET	C1	RAIL-TO-COLUMN MOUNTING BRACKET	2

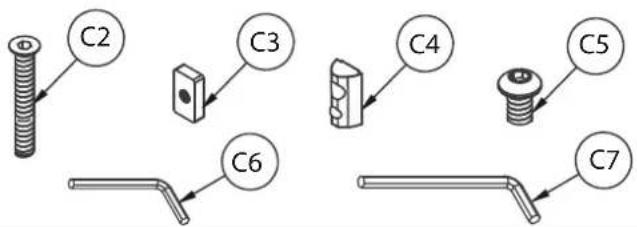

		C2	M6 x 40mm CSK HEX SCREW	8
		C3	RECTANGLE NUT	8
		C4	M8 SLIDING INSERT	8
		C5	M8 x 12mm SCREW	8
		C6	4AF HEX KEY	2
		C7	5AF HEX KEY	2
	RAIL	D1	MOUNTING RAIL	1
		D2	END CAP	2
	ARMS	E1	SCREEN INTERFACE ARM	4
		E2	5AF LONG HEX KEY	2

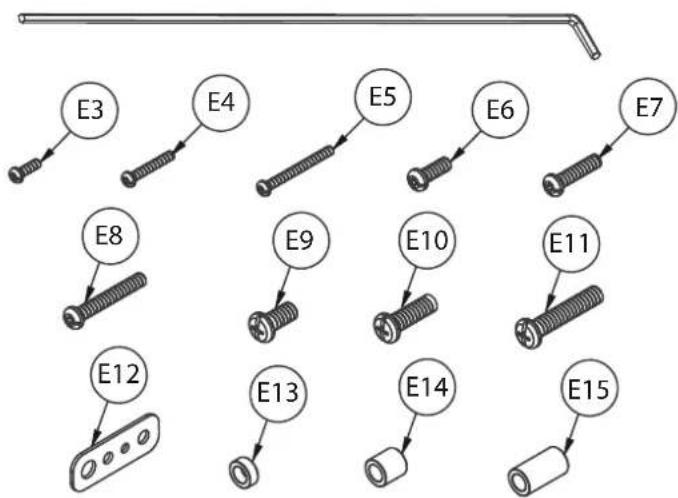

	SCREEN FIXING KITVC SHELF	E3	M4 x 12mm SCREW	8
		E4	M4 x 25mm SCREW	8
		E5	M4 x 40mm SCREW	8
		E6	M6 x 16mm SCREW	8
		E7	M6 x 25mm SCREW	8
		E8	M6 x 40mm SCREW	8
		E9	M8 x 16mm SCREW	8
		E10	M8 x 25mm SCREW	8
		E11	M8 x 40mm SCREW	8
		E12	MULTIWASHER	8
		E13	5mm SPACER	8
		E14	13mm SPACER	8
		E15	24mm SPACER	8
	ADAP-TORS	F1	600mm ADAPTOR ARM	4
		F2	M8 x 12mm SCREW	8
		G1	HOOK ARM	1
		G2	SLIDING BRACKET	1
		G3	EXTENSION BRACKET	1
		G4	M8 x 55mm HEX SCREW	2
		G5	M8 NUT	4
		G6	WASHER	4
		G7	M8 x 16mm HEX SCREW	4
		G8	M8 SPRING WASHER	4
		G9	M8 x 20mm HEX SCREW	2
		G10	SHELF	1
		G11	M4 x 10mm SCREW	4
		G12	UNC 1/4" x 1/2" SCREW	1

INSTALLATION INSTRUCTIONS

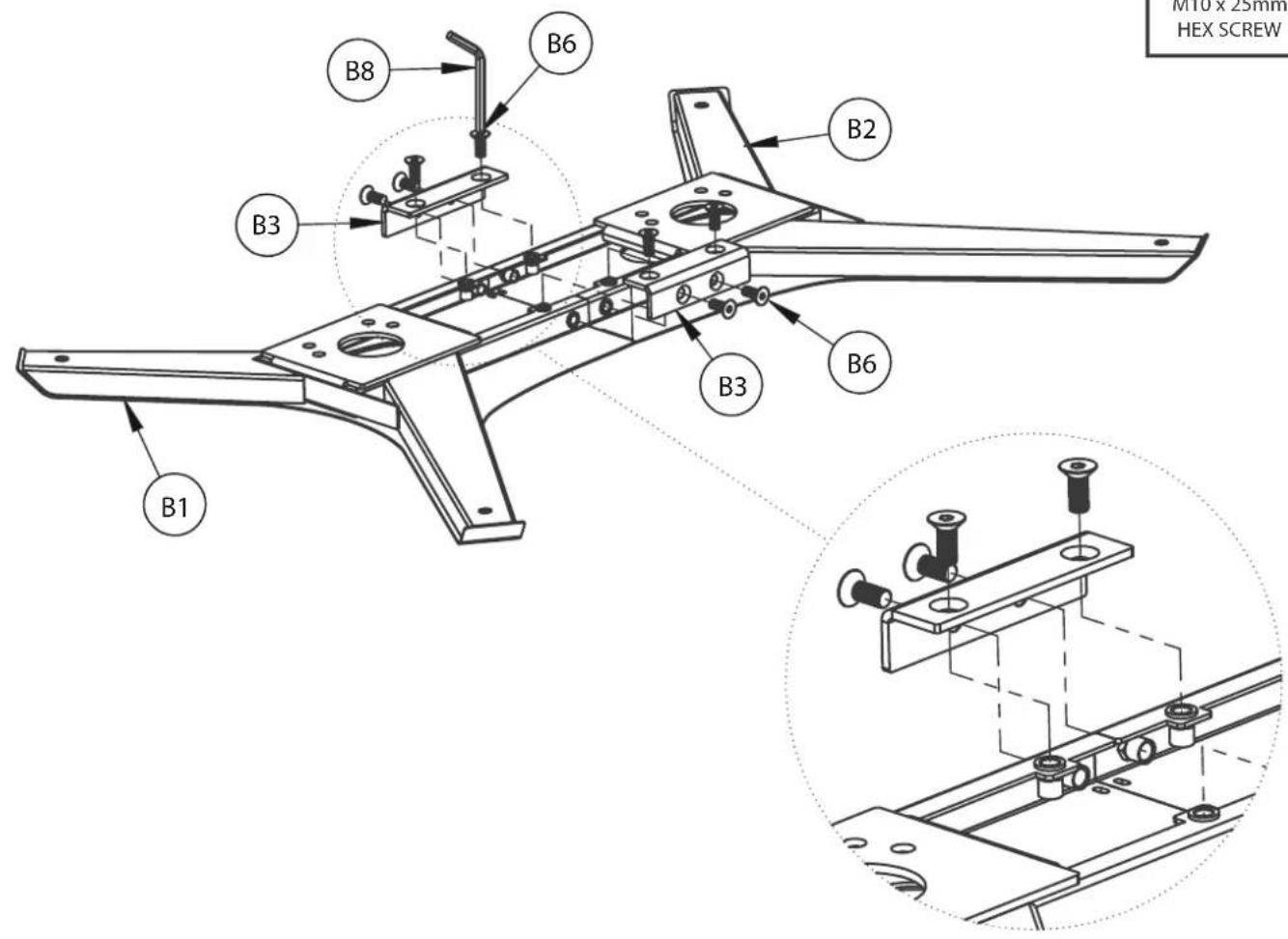

1. ASSEMBLE BASE

i. Fix item B1 to item B2 using items B3 & B6 on the front and back.

ii. Screw item B4 into items B1 & B2.

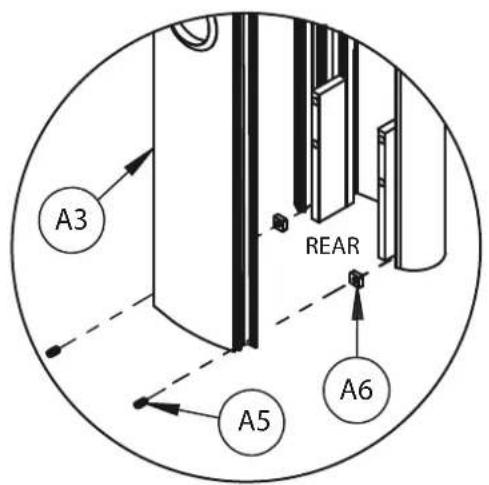

OPTIONAL - FIX REAR COVERS TO COLUMNS

Place item A3 into the back of item A1.

Use items A5 & A6 at the top and bottom of the column slot to secure rear cover.

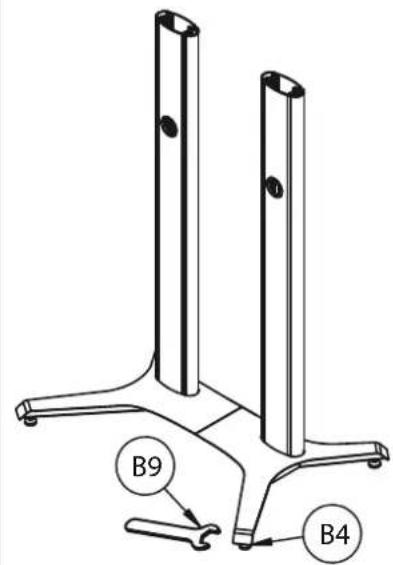

2. ATTACH COLUMNS TO BASE

Mount items A1 onto items B1 & B2 and fix in place using items B5.

OPTIONAL: To level the stand, adjust item B4 using item B9.

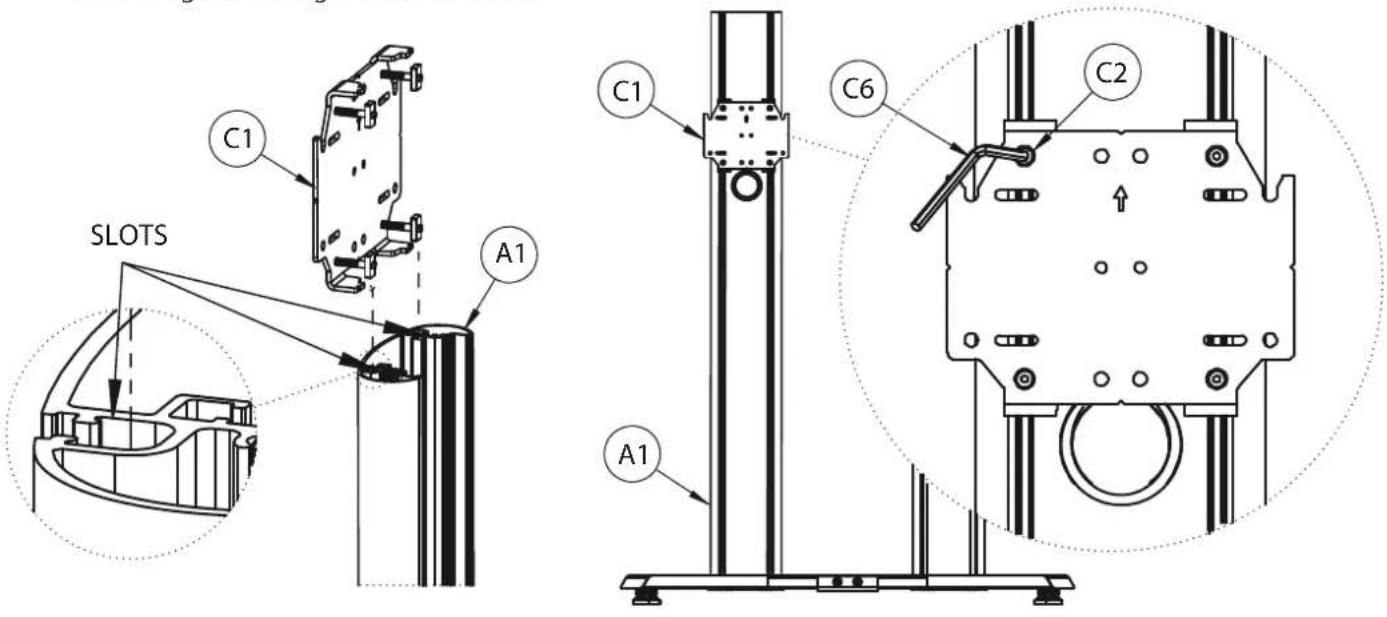

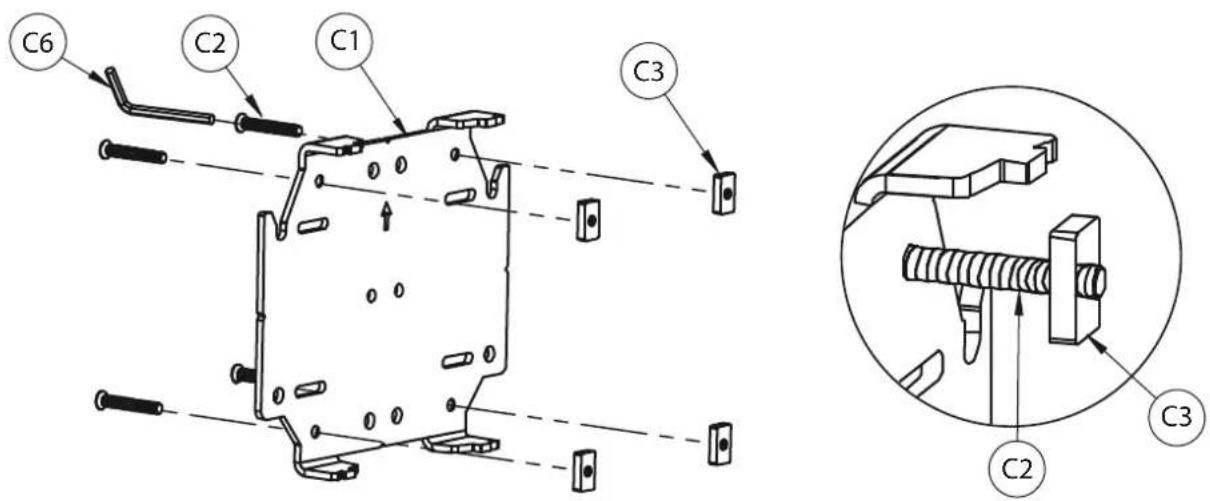

3. ATTACH MOUNTING BRACKETS TO COLUMNS i. Insert 4 x item C2 into item C1 and attach item C3.

Screw two full turns to leave item C3 at the end of item C2. Repeat for all 4 mounting plates.

ii. Slide 2 x item C1 down the front slots of each item A1 and space apart by 600mm. Once height is set tighten all items C2.

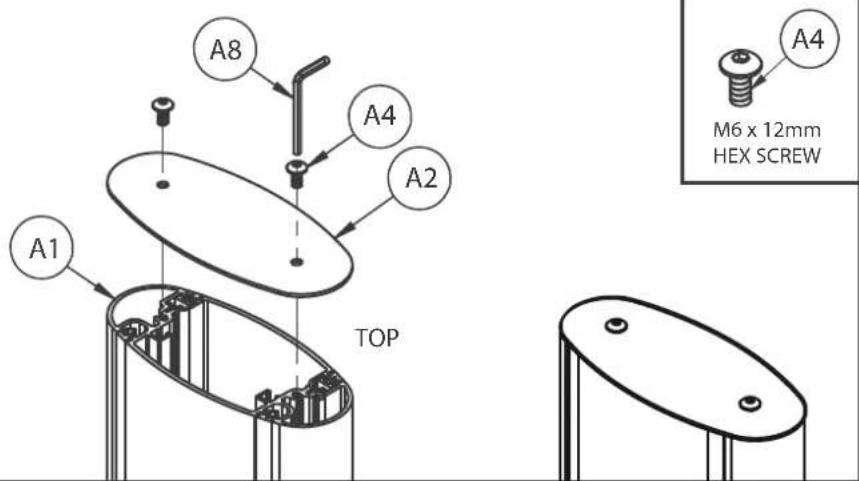

4 FIX END CAP TO COLUMNS

Fix item A2 onto the top of item A1 using item A4.

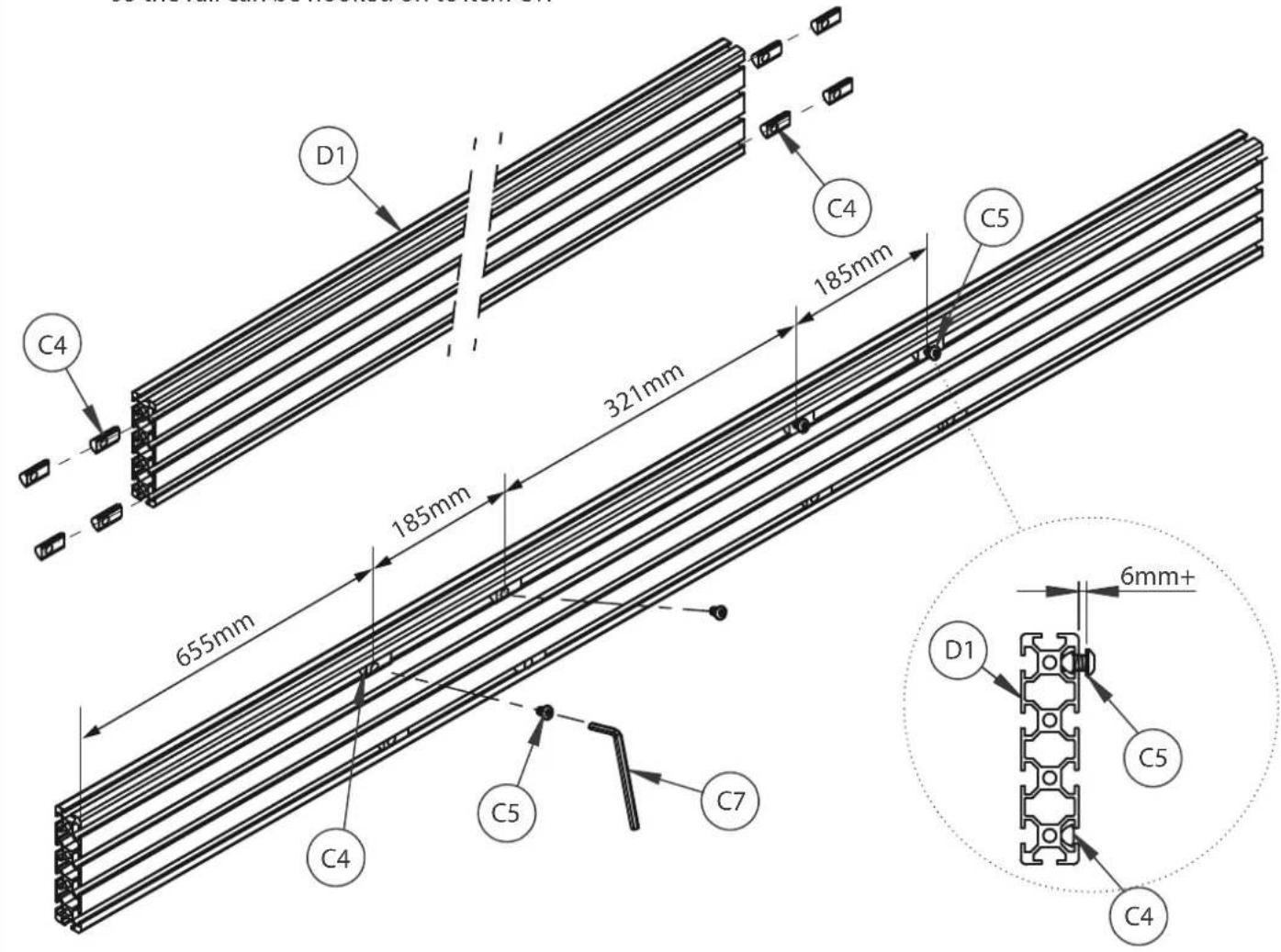

5. HOOK RAIL ONTO MOUNTING BRACKET

i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel) on each side of the rail.

ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap so the rail can be hooked on to item C1.

iii. Hook item D1 onto items C1 and fix with in place with item C5. iv. Attach item D2 to the ends of items D1.

6.

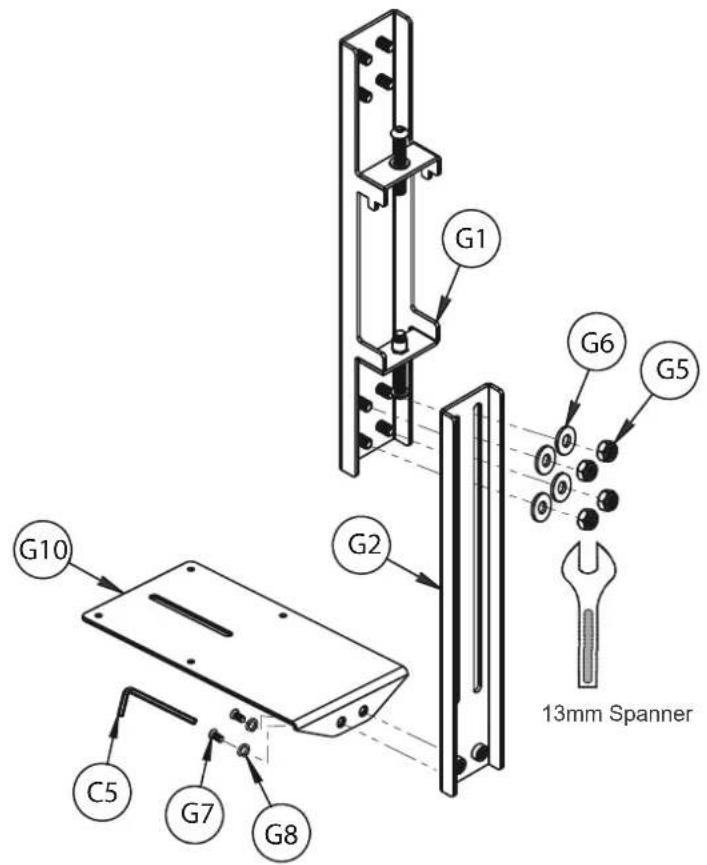

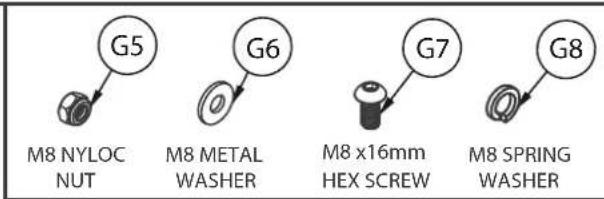

ASSEMBLE VC SHELF

i. Attach item G2 to item G1 using items G5 & G6. ii. Attach item G10 to item G2, using items G7 & G8.

Note: The shelf adaptor can mount the shelf above or below the screens. Assembly shows shelf mounted below the rail / screens.

Optional

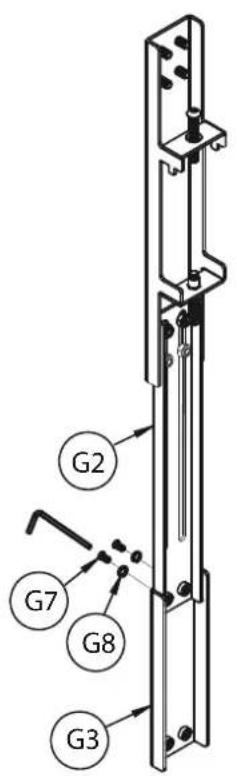

Add extension bar

For an extended reach attach item G3 onto item G2 using items G7 & G8.

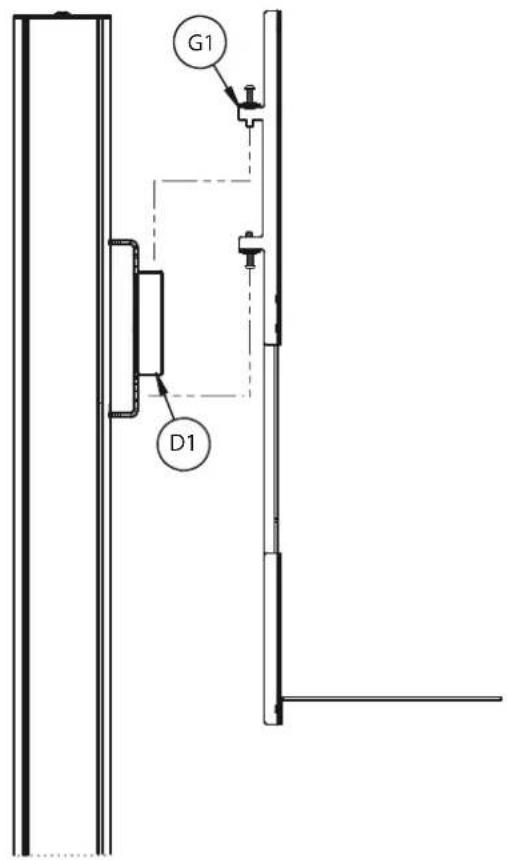

7. HOOK SHELF ONTO MOUNTING RAIL

i. Hook item G1 onto item D1.

ii. Secure shelf to rail.

Use item G4 on the bottom of item G1 to secure the shelf to item D1.

Optional: Level the shelf bracket by adjusting item G4 on top of item G1.

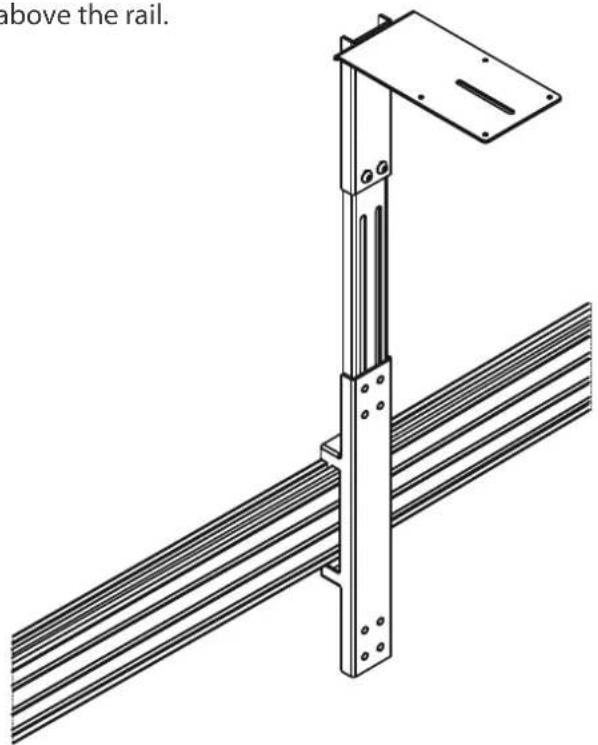

ALTERNATIVE SHELF MOUNTING OPTIONS

Shelf shown mounted above the rail.

Technical line drawing of a metal support structure with ribbed base and mounting bracket (no text or symbols)

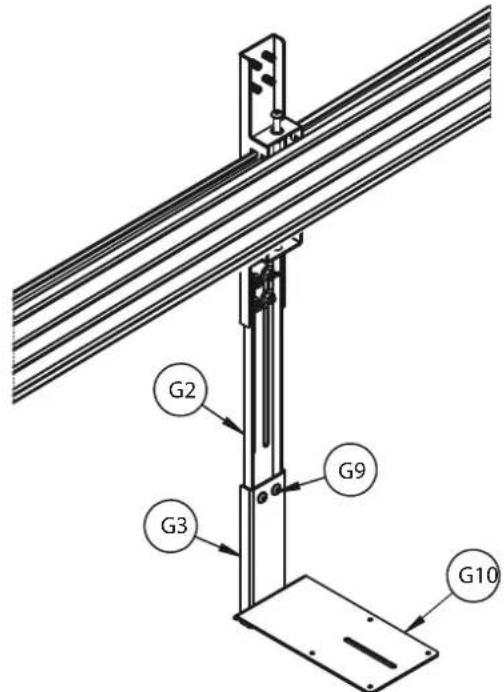

REVERSE MOUNTINGABOVE THE

To reverse mount the shelf, use item G9 to mount item G10 onto the back of item G3.

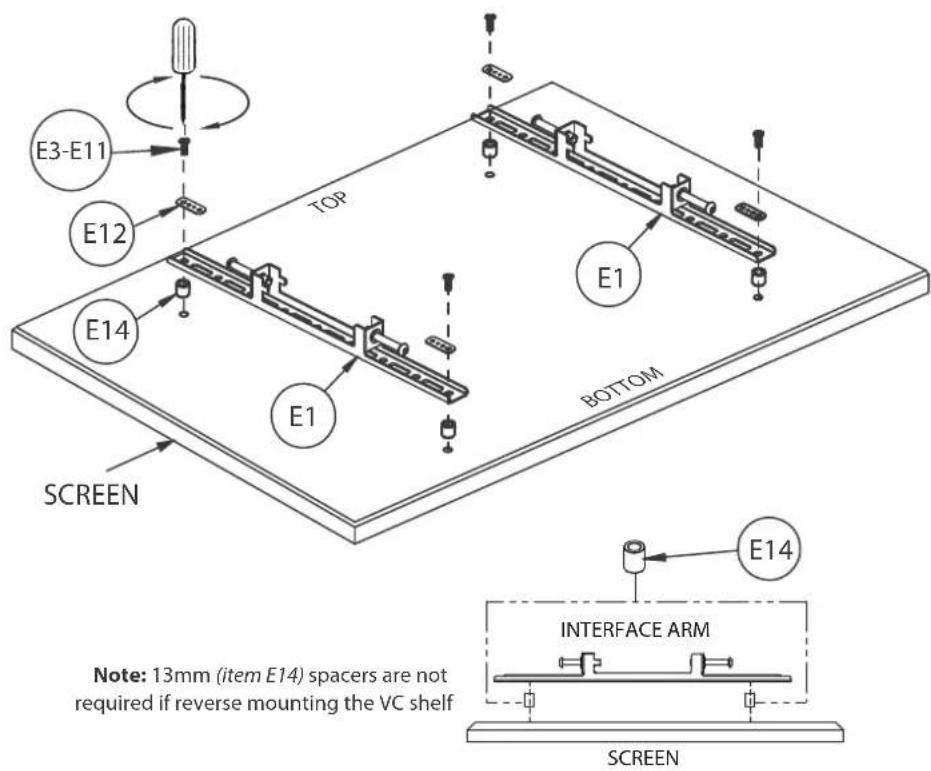

8 ATTACH INTERFACE ARMS TO SCREENS

Fix item E1 to the rear of the screens using items E3 - E15.

Note: Ensure the arms are facing the correct way round and the same holes are used on all arms.

600mm ADAPTOR ARMS

Note: Use (if required) for 65" screens with VESA 600 x 400mm fixings

i. Attach item F1 to item E1 using item F2.

ii. Fix item F1 to rear of screen using the interface kit (items E3-E14).

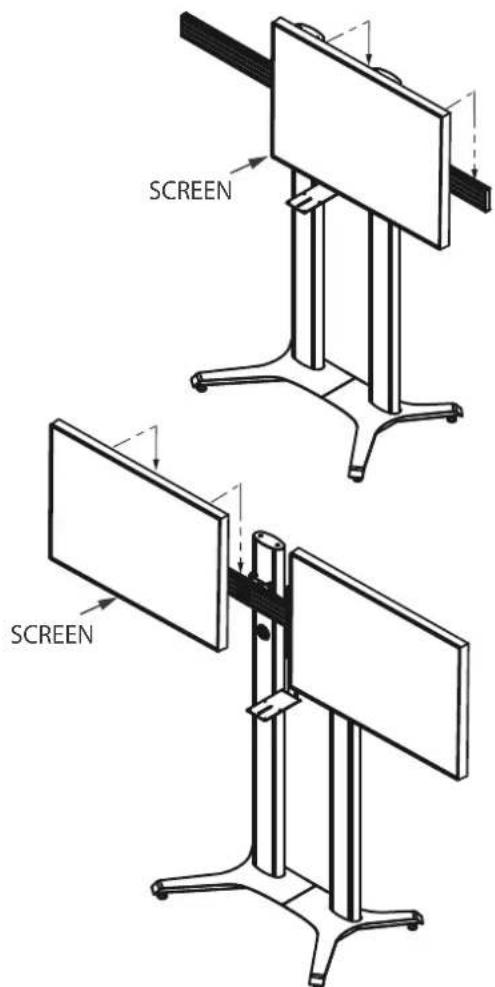

9 HOOK SCREEN ONTO RAIL

Use items E1 to hook the screen onto item D1.

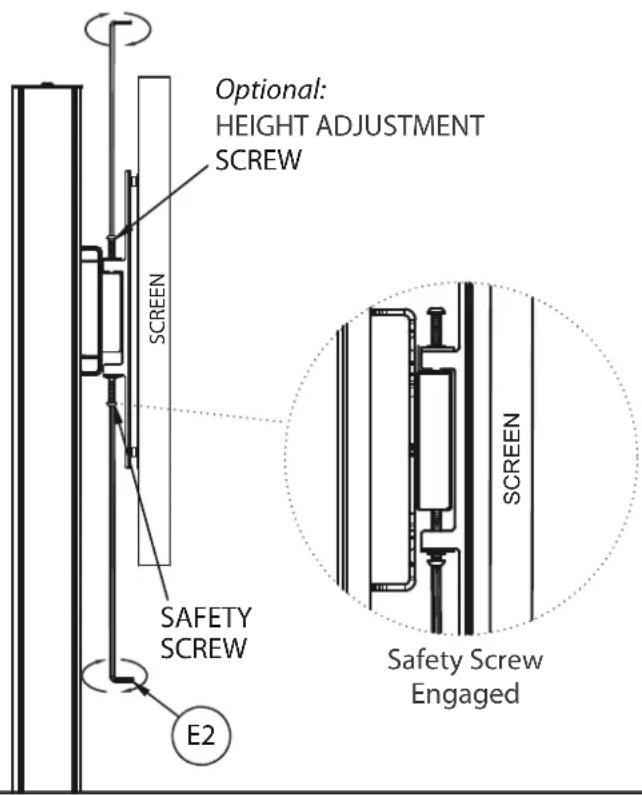

10. LOCK SCREENS TO RAIL

Tighten the safety screws on the bottom of item E1 securing the screens to item D1.

Note: If necessary, adjust the height adjustment screws on top of item E1 to level the screen.

11. ATTACH CAMERA TO SHELF

Fix camera to item G10 using either item G11 or item G12.

12. ATTACH STRIPS Insert item 47 to the

Insert item A7 to the front and back of item A1. Note: Item A7 may have to be cut down to size to be able to fit into the front of item A1.

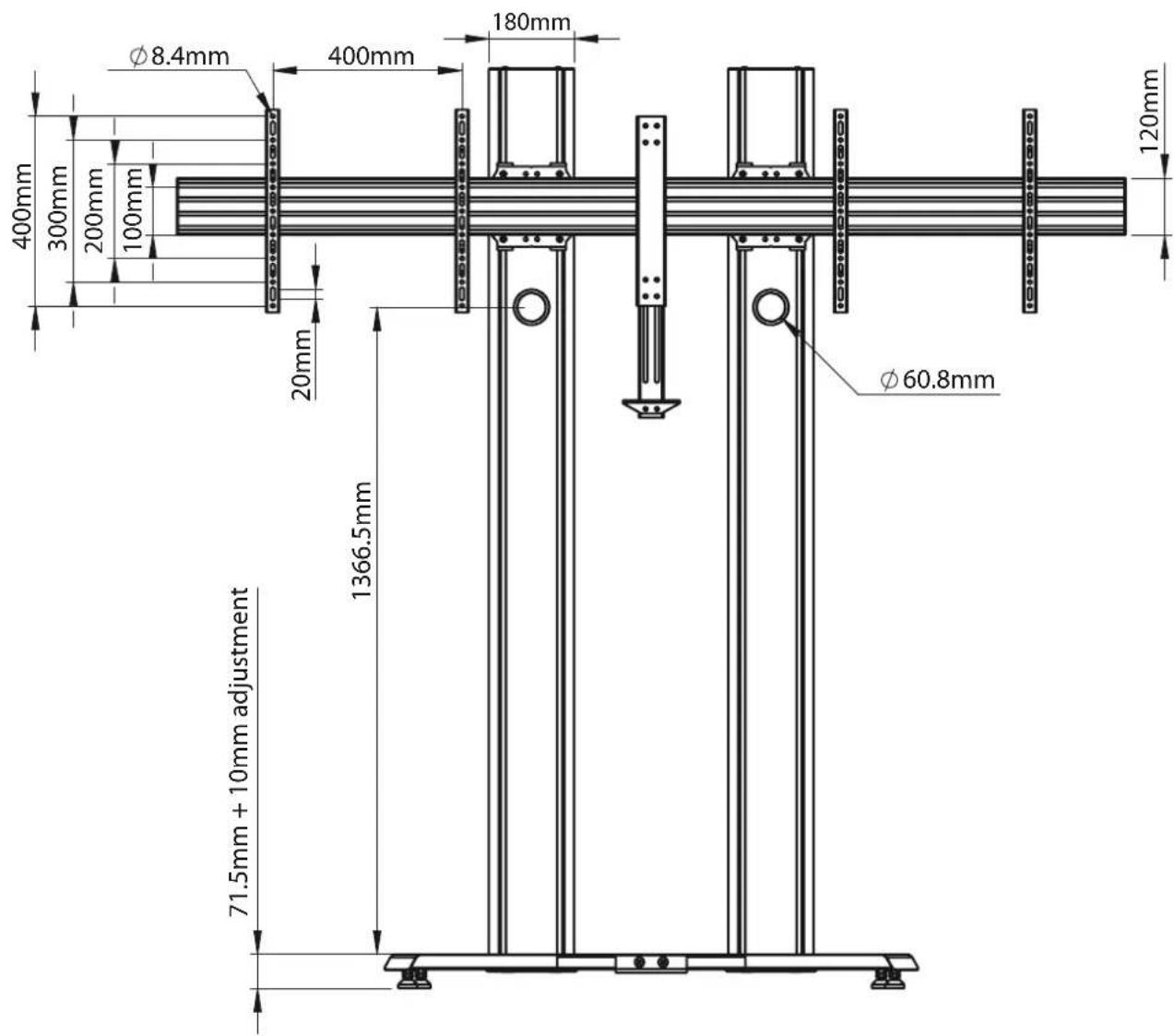

BT8712 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

FRONT VIEW

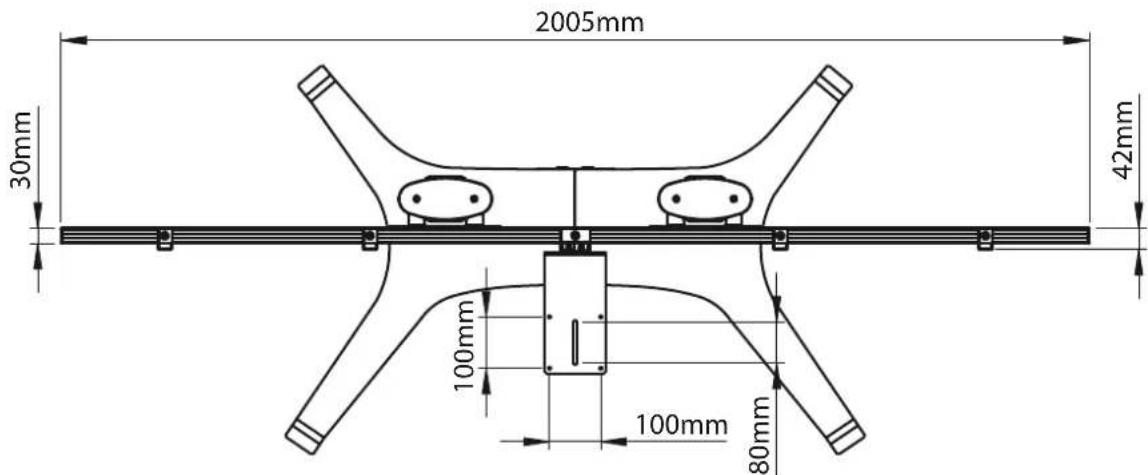

TOP VIEW

These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.

BT8712 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

SIDE VIEW

BOTTOM VIEW

These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
