USER MANUAL BT8709 B-Tech

• Recommended for screens up to: 100" (254cm)
  • Max load: 100kg (220lbs)
• Suitable for displays with fixings up to 972 x 800mm
• Stand dimensions: H.1945 x W.1128 x D.757mm
• Integrated cable management

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....11

B-Tech Contact Details....12

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use only with the maximum weights indicated. Use with screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.

Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of floor prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.

Use of a good quality live wire detector and hidden object locator is therefore recommended.

Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.

If in doubt consult a professional AV installer or other suitably qualified person.

PLEASE KEEP THIS FOR FUTURE REFERENCE

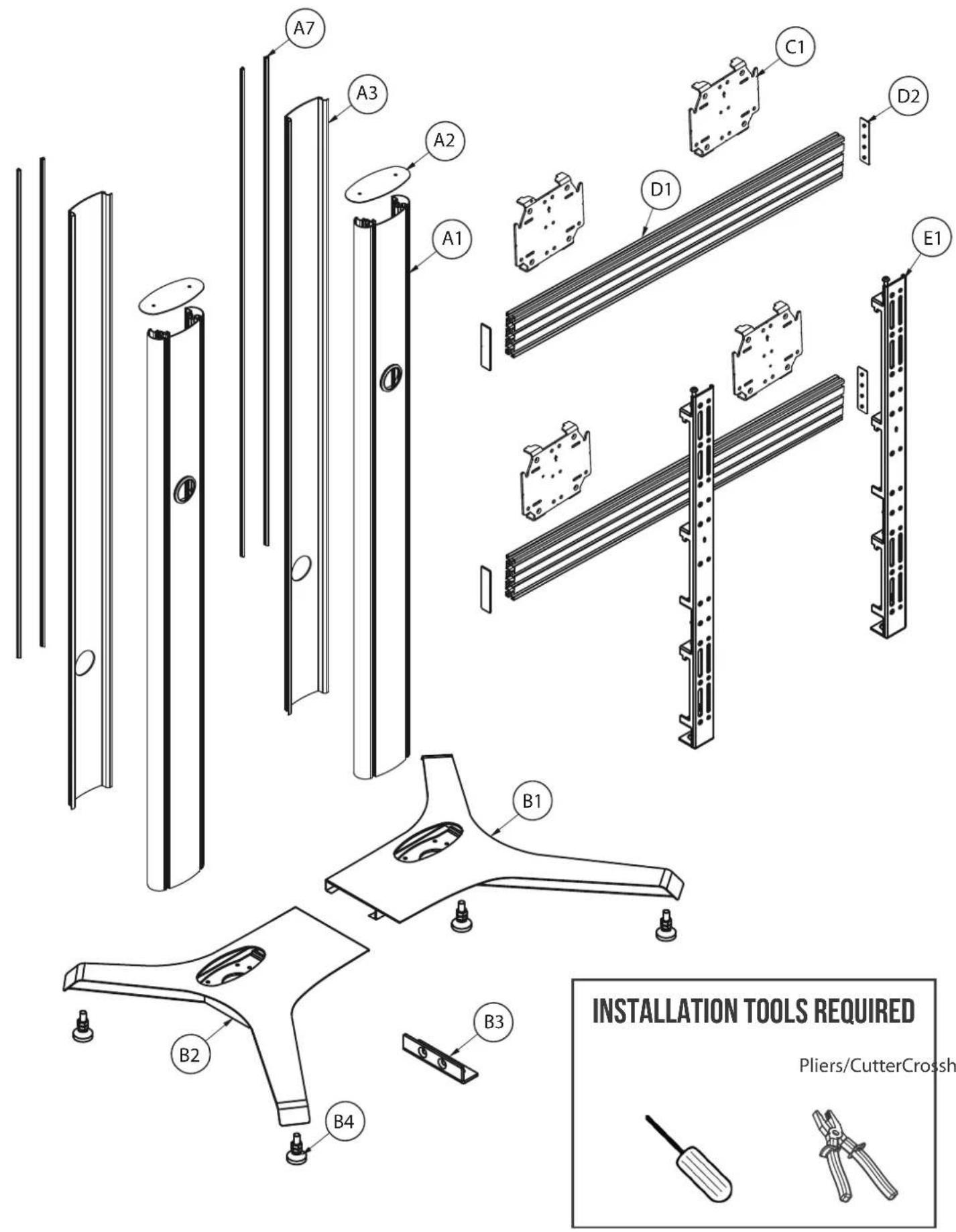

A7 A3 A2 A1 C1 D2 D1 E1 B1 B2 B3 B4 INSTALLATION TOOLS REQUIRED Pliers/CutterCrossh

ITEM		REFPART DESCRIPTION QTY
	COLUMNBASEMOUNTING B	A1	1.9M COLUMN	2
		A2	END CAP	2
		A3	COLUMN REAR COVER	2

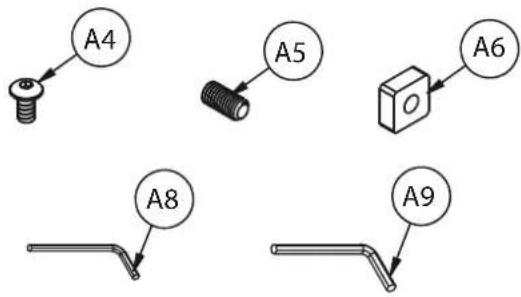

		A4	M6 x 12mm HEX SCREW	4
		A5	M6 x 12mm GRUB SCREW (OPTIONAL)	8
		A6	SQUARE NUT (OPTIONAL)	8
		A7	COVER STRIP	8
		A8	3AF HEX KEY	2
		A9	4AF HEX KEY	2

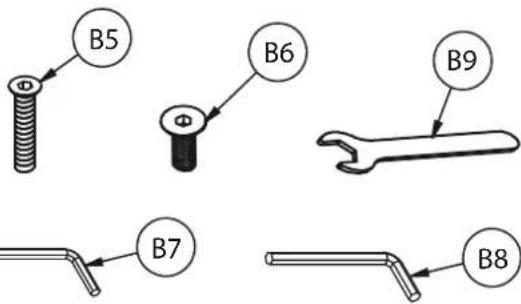

		B1	BASE - LEFT SIDE	1
		B2	BASE - RIGHT SIDE	1
		B3	BASE CONNECTOR	2
		B4	ADJUSTABLE LEVELLING FEET	4
		B5	M6 x 30mm CSK HEX SCREW	8
		B6	M10 x 25mm CSK HEX SCREW	8
		B7	4AF HEX KEY	1
		B8	6AF HEX KEY	1
		B9	19mm SPANNER	1
		C1	RAIL-TO-COLUMN MOUNTING BRACKET	4
		C2	M6 x 40mm CSK HEX SCREW	16
		C3	RECTANGLE NUT	16
		C4	M8 SLIDING INSERT	16
		C5	M8 x 12mm SCREW	16
		C6	4AF HEX KEY	4
		C7	5AF HEX KEY	4
	RAIL	D1	MOUNTING RAIL	2
		D2	END CAP	4

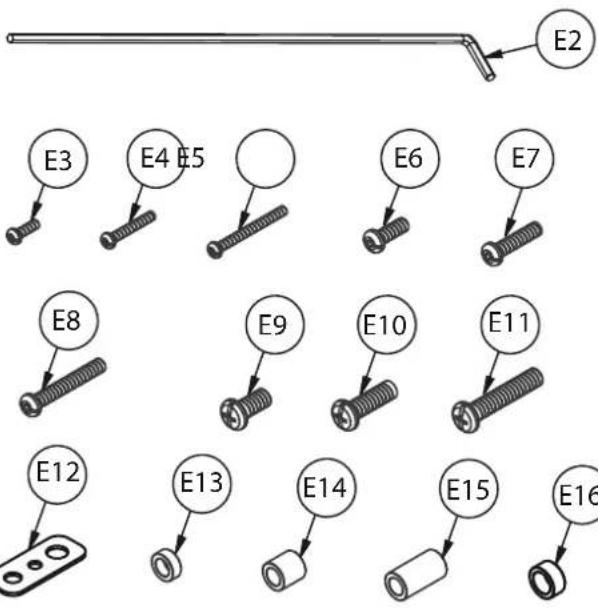

	ARMS	E1	SCREEN INTERFACE ARM	2
		E2	5AF LONG HEX KEY	1
	SCREEN FIXING KIT	E3	M6 x 16mm SCREW	4
		E4	M6 x 25mm SCREW	4
		E5	M6 x 40mm SCREW	4
		E6	M8 x 16mm SCREW	4
		E7	M8 x 25mm SCREW	4
		E8	M8 x 40mm SCREW	4
		E9	M10 x 16mm SCREW	4
		E10	M10 x 25mm SCREW	4
		E11	M10 x 40mm SCREW	4
		E12	MULTIWASHER	4
		E13	M8 5mm SPACER	4
		E14	M8 13mm SPACER	4
		E15	M8 24mm SPACER	4
		E16	M10 7mm SPACER	4

INSTALLATION INSTRUCTIONS

1. ASSEMBLE BASE

i. Fix item B1 to item B2 using items B3 & B6 on the front and back.

B8 B6 B3 B2 B3 B6 B1 M10 x 2 HEX SC

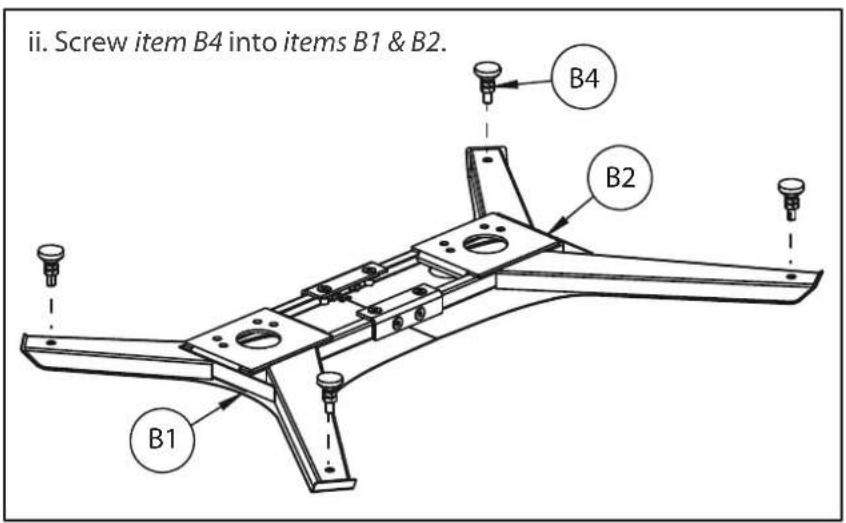

ii. Screw item B4 into items B1 & B2. B1 B2 B4

Technical line drawing of a mechanical assembly with mounting holes and structural brackets (no text or symbols)

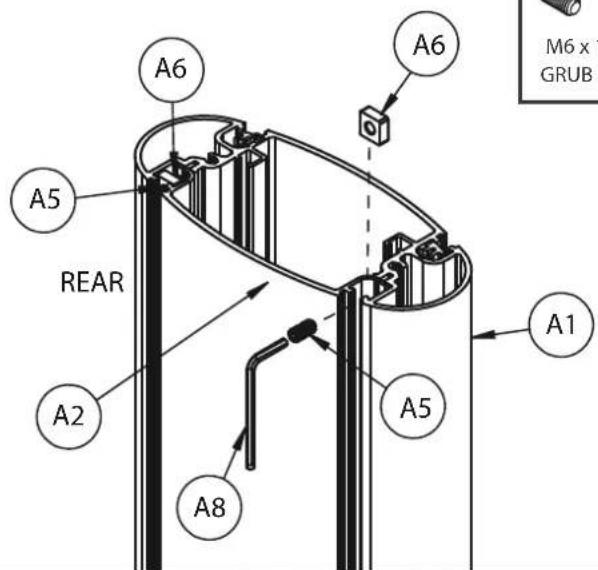

OPTIONAL - FIX REAR COVERS TO COLUMNS

Place item A2 into the back of item A1.

Use items A5 & A6 at the top and bottom of the column slot to secure rear cover.

A2 REAR A5 A6

A6 A5 REAR A2 A8 A5 A6 A1 M6 x 1 GRUB

A5 M6 x 12mm GRUB SCREW A6 SQUARE NUT

2 ATTACH COLUMNS TO BASE

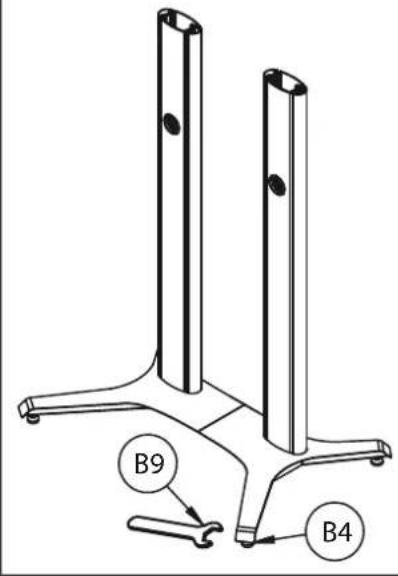

Mount items A1 onto items B1 & B2 and fix in place using item B5.

A1 B2 B1 B5 B7

OPTIONAL: To level the stand, adjust item B4 using item B9.

B9 B4

3. ATTACH MOUNTING BRACKETS TO COLUMNS

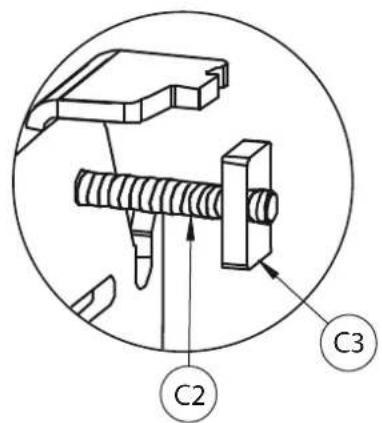

i. Insert 4 x item C2 into item C1 and attach item C3.

Screw two full turns to leave item C3 at the end of item C2.

Repeat for all 4 mounting plates.

M6 x 40mm CSK HEX SCREW RECTANGLE NUT

C6 C2 C1 C3

C2 C3

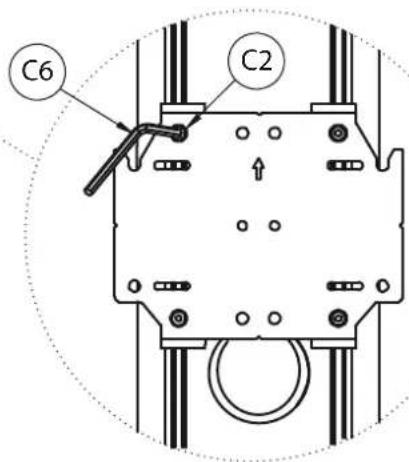

ii. Slide 2 x item C1 down the front slots of each item A1 and space apart by 600mm. Once height is set tighten all items C2.

C1 SLOTS A1

C1 600mm A1

C6 C2

4 HOOK RAILS ONTO MOUNTING BRACKETS

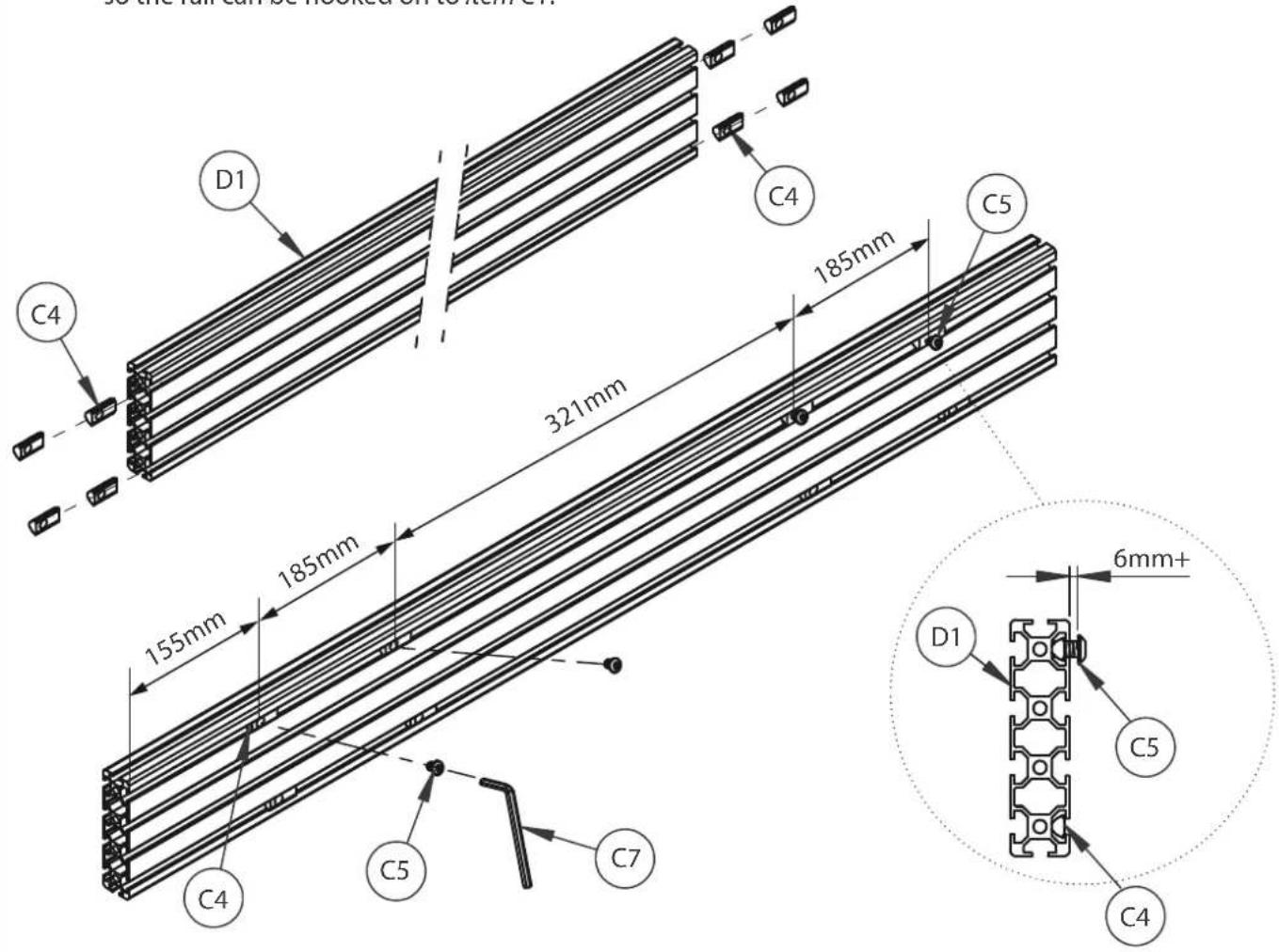

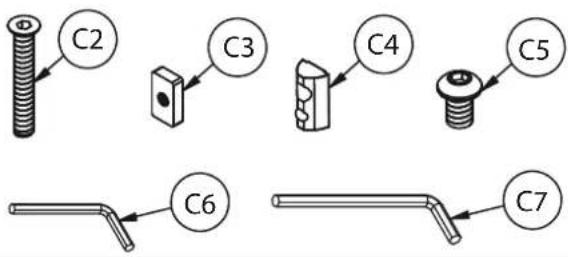

i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel) on each side of the rails.

ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap so the rail can be hooked on to item C1.

C4 M8 SLIDING INSERT C5 M8 x 12mm HEX SCREW

6mm+ D1 C4 C5 185mm 321mm 155mm 185mm 100mm 6mm+ D1 C5 C4 C7

iii. Hook items D1 onto items C1 and fix with in place with item C5. iv. Attach item D2 to the ends of items D1.

D1 C5 A1 C1

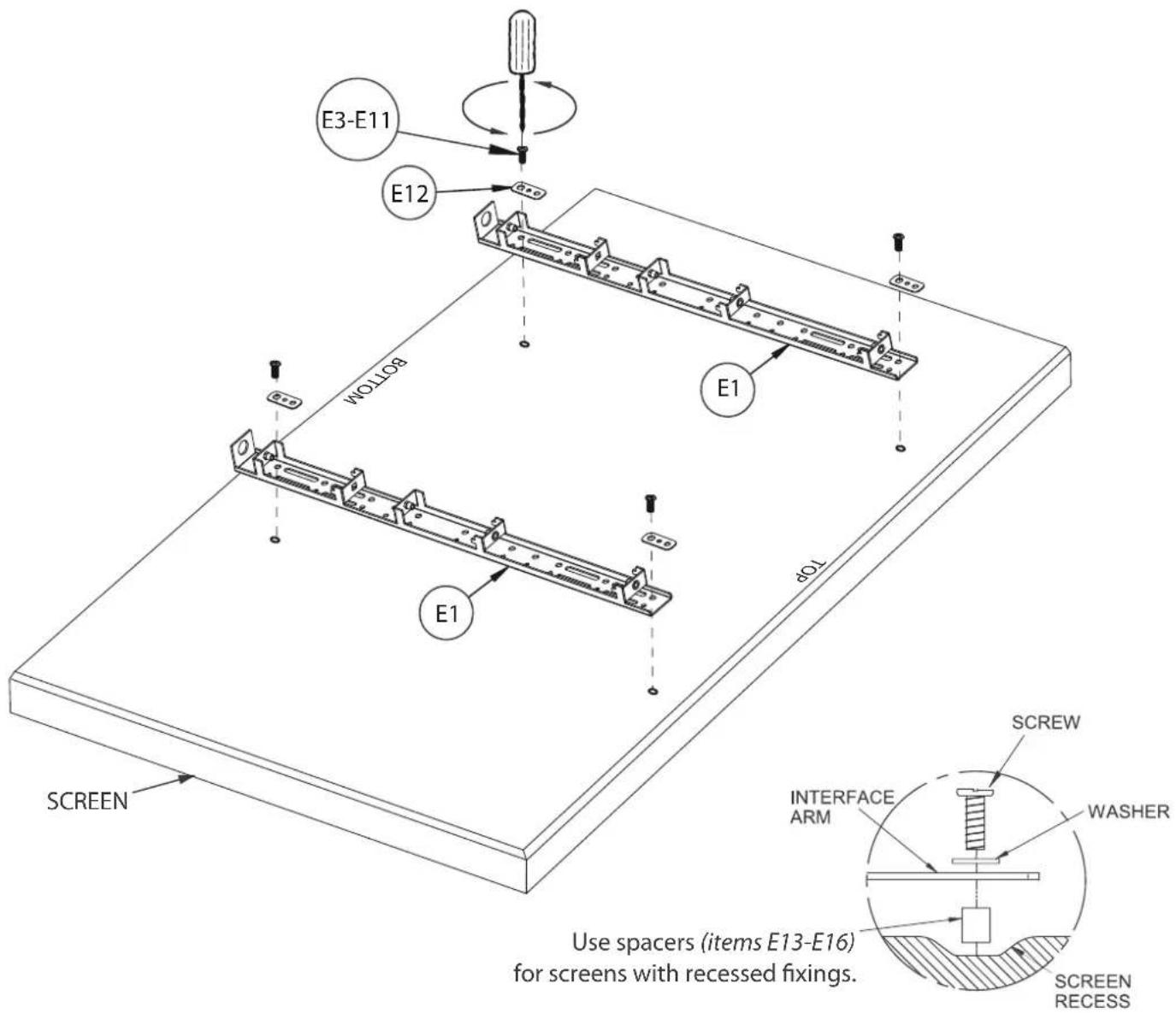

Fix items E1 to the rear of the screen using items E3 - E16.

Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.

E3-E11 E12 E1 E1 WOLLO TOP SCREEN Use spacers (items E13-E16) for screens with recessed fixings. SCREW INTERFACE ARM WASHER SCREEN RECESS

7 HOOK SCREEN ONTO RAIL

Use items E1 to hook the screen onto item D1.

A1 E1 D1 SCREEN

8. LOCK SCREEN TO RAIL Tighten the safety screws on

Tighten the safety screws on the bottom of item E1 securing the screen to item D1.

Note: If necessary, adjust the height adjustment screws on top of item E1 to level the screen.

Optional: HEIGHT ADJUSTMENT SCREW A1 SCREEN D1 E1 SCREEN E2 SAFETY SCREW E2

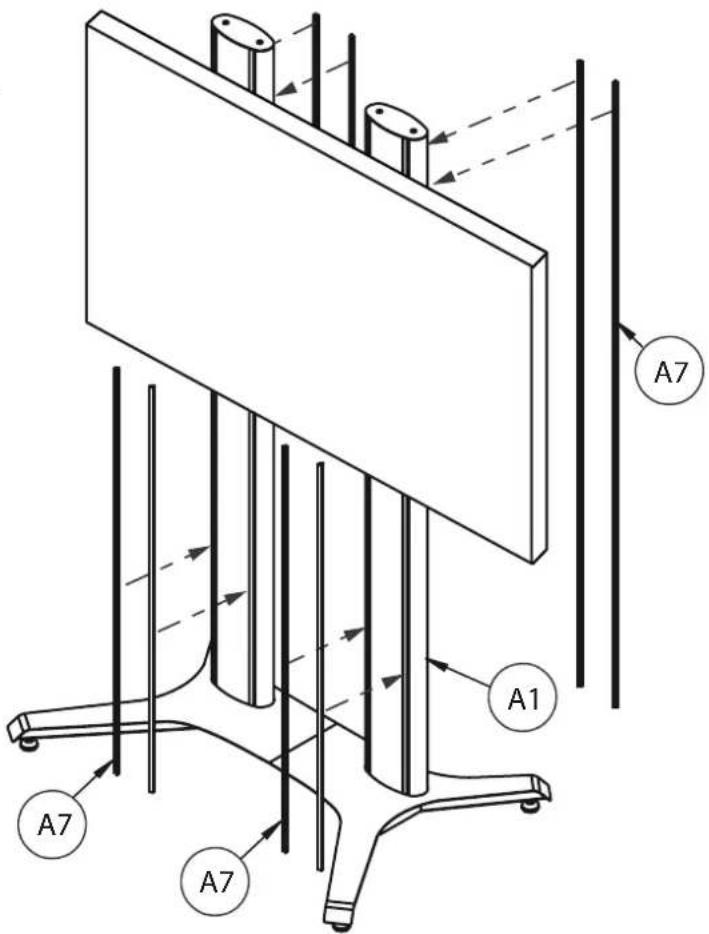

9. ATTACH STRIPS Insert item 47 to the

Insert item A7 to the front and back of items A1. Note: Item A7 may have to be cut down to size to be able to fit into the front of item A1.

Technical line drawing of a mechanical tool with two blades, no text or symbols present

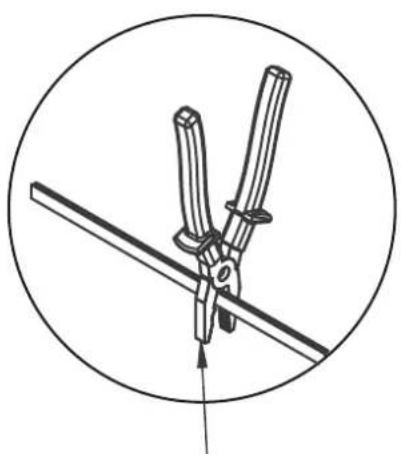

Use pliers to cut item A7 to correct size

A7 A1 A7 A7

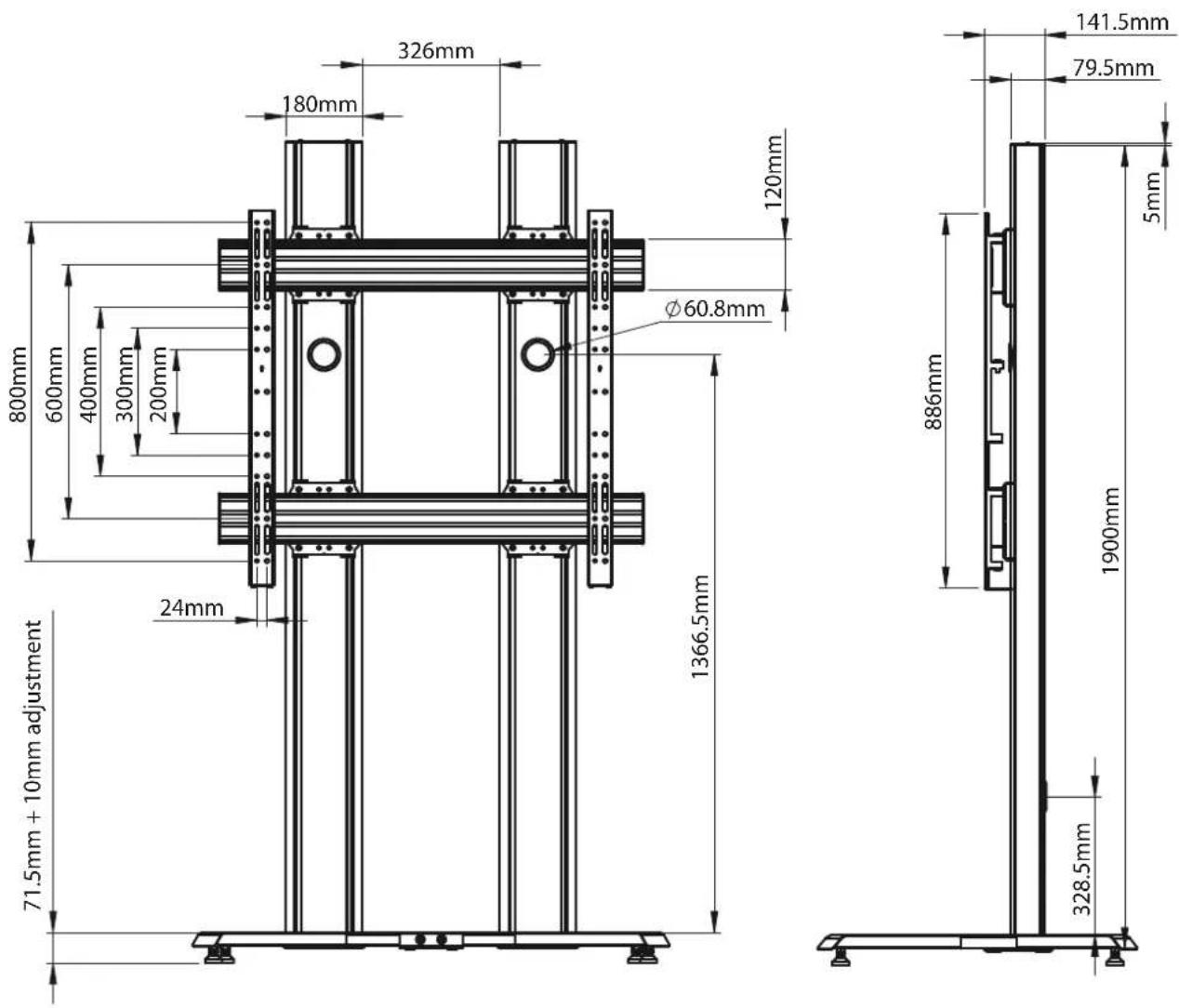

BT8709 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

FRONT VIEW SIDE VIEW

326mm 180mm 120mm Ø60.8mm 800mm 600mm 400mm 300mm 200mm 24mm 71.5mm + 10mm adjustment 1366.5mm 141.5mm 79.5mm 5mm 886mm 1900mm 328.5mm

BOTTOM VIEWTOP VIEW

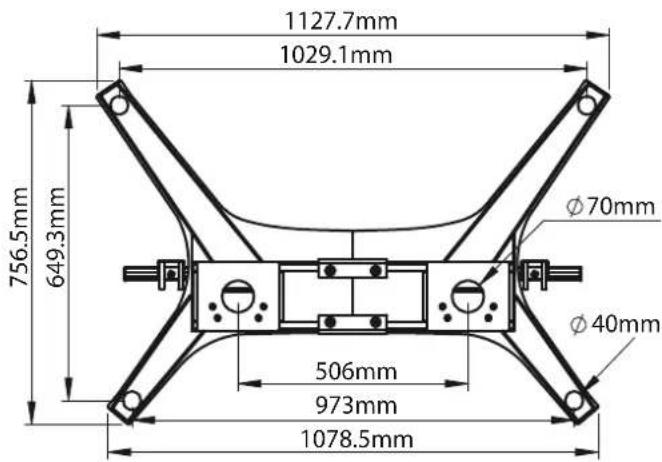

1005mm 30mm 45mm 395.6mm 360.9mm

1127.7mm 1029.1mm 756.5mm 649.3mm φ70mm φ40mm 506mm 973mm 1078.5mm

These instructions are intended as a guide only and B-tTech accepts no liability for the accuracy of the information contained in this document.

CONTACT:

[e-mail]

©2020 B-Tech AV Mounts. All rights reserved.

B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.

B-Tech AV Mounts and the B-Tech logo are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

AMA-BT8709-V1-0920-110 MADE IN VIETNAM
