Product Type	Video Conferencing System Stand (Floor Stand for Large Displays)
Brand	B-Tech
Model	BT8704
Recommended Screen Size	Up to 75" (190 cm)
Max Load Capacity	70 kg (154 lbs)
Stand Dimensions (H x W x D)	1905 mm x 705 mm x 210 mm (75" x 27.75" x 8.25")
Display Orientation	Landscape or Portrait
VESA Compatibility	VESA and non-VESA fixings
Cable Management	Integrated cable management
Material	Metal (steel/aluminum)
Mounting Type	Floor stand with base plate and column
Included Components	Column, base, mounting bracket, hook rail, interface arms, rear cover, end cap, strips, hardware
Installation	Professional installation recommended; floor anchoring required (fixings not included)
Safety Features	Safety screws for screen locking, weight limit warning, periodic inspection recommended
Intended Use	Indoor, public or home installation
Cleaning	Wipe with a soft dry cloth; avoid harsh chemicals
Spare Parts Availability	Contact B-Tech for replacement parts
Manufacturer Contact	[e-mail]
Country of Origin	Vietnam

Frequently Asked Questions - BT8704 B-Tech

What is the maximum screen size and weight this stand can support?

The B-Tech BT8704 supports screens up to 75 inches (190 cm) and a maximum load of 70 kg (154 lbs).

Does this stand work with my TV if it doesn't have VESA holes?

Yes, the stand is designed for displays with VESA and non-VESA fixings. It includes universal interface arms that can accommodate various mounting patterns.

Can I mount my screen in portrait mode?

Yes, the stand supports both landscape and portrait orientations. The mounting bracket allows rotation as needed.

Do I need to bolt this stand to the floor?

Yes, for stability and safety, the stand must be bolted to the floor using suitable ground anchor fixings (not supplied). Pre-drill holes and use appropriate anchors.

What tools are needed for installation?

You will need a crosshead screwdriver, pliers/cutter, and a drill for floor anchoring. The manual also suggests using a live wire detector if drilling into walls.

How do I manage cables with this stand?

The stand has integrated cable management. Use the provided rear cover and strips to route and hide cables neatly along the column.

Is professional installation recommended?

Yes, B-Tech recommends installation by a professional AV installer or suitably qualified person due to the weight and complexity.

How often should I inspect the stand for safety?

Periodic inspections should be made at least every 6 months to ensure all fixings are secure and the stand remains stable.

Can I use this stand outdoors?

No, the stand is designed for indoor use only. Exposure to moisture or extreme temperatures may cause damage.

Where can I get replacement parts or support?

Contact B-Tech at [e-mail] for spare parts, support, or technical inquiries.

USER MANUAL BT8704 B-Tech

SPECIFICATIONS

• Recommended for screens up to: 75" (190cm)
  • Max load: 70kg (154lbs)
• Stand Dimensions: H.1905mm (75") x W.705mm (27.75") x D.210mm (8.25")
• Suitable for displays with VESA® & non-VESA fixings
  • Universal design suitable for displaying screens in a landscape or portrait orientation
• Integrated cable management

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....11

B-Tech Contact Details....12

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use only with the maximum weights indicated. Use with screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.

Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of floor prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended.

Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.

If in doubt consult a professional AV installer or other suitably qualified person.

Crosshead screwdriver

Pliers/Cutter

INSTALLATION INSTRUCTIONS

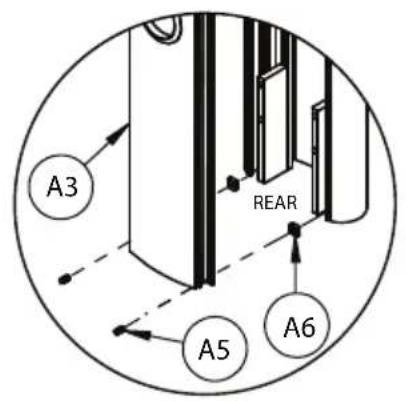

OPTIONAL FIX REAR COVER TO COLUMN

Place item A3 into the back of item A1. Use items A5 & A6 at the top and bottom of the column slot to secure rear cover.

1 FIX BASE TO COLUMN

Fix item B1 to the bottom of item A1 using item B2.

M6 x 35mm CSK HEX SCREW

2. ATTACH MOUNTING BRACKET TO COLUMN

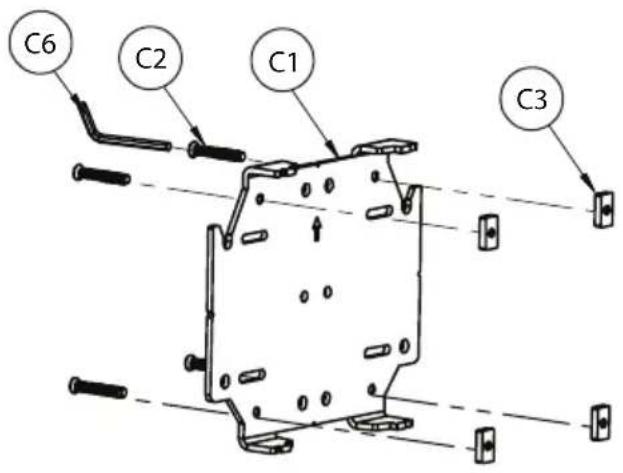

i. Insert 4 x item C2 into item C1 and attach item C3.

Screw two full turns to leave item C3 at the end of item C2.

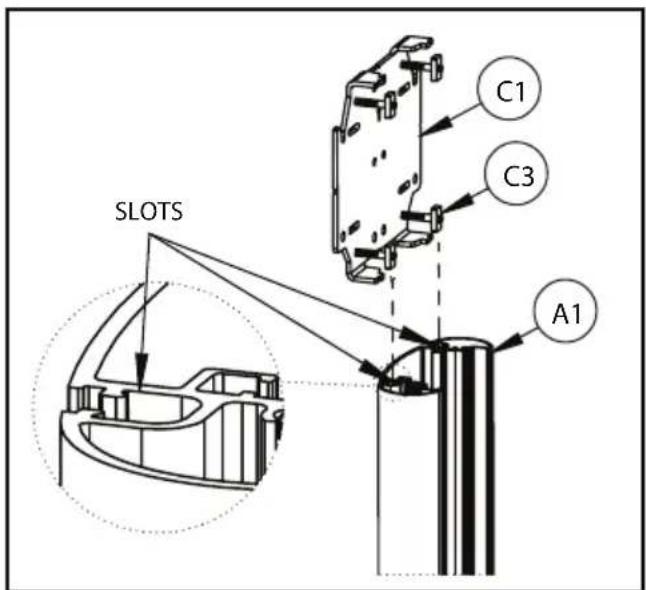

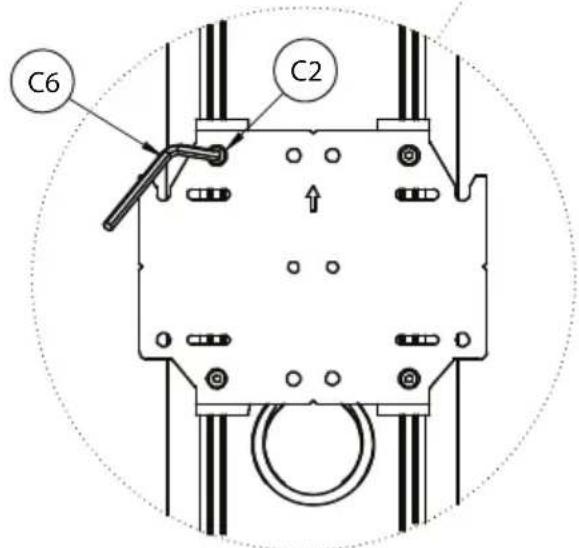

ii. Slide item C1 down the front slots of item A1 to the correct height and tighten items C2.

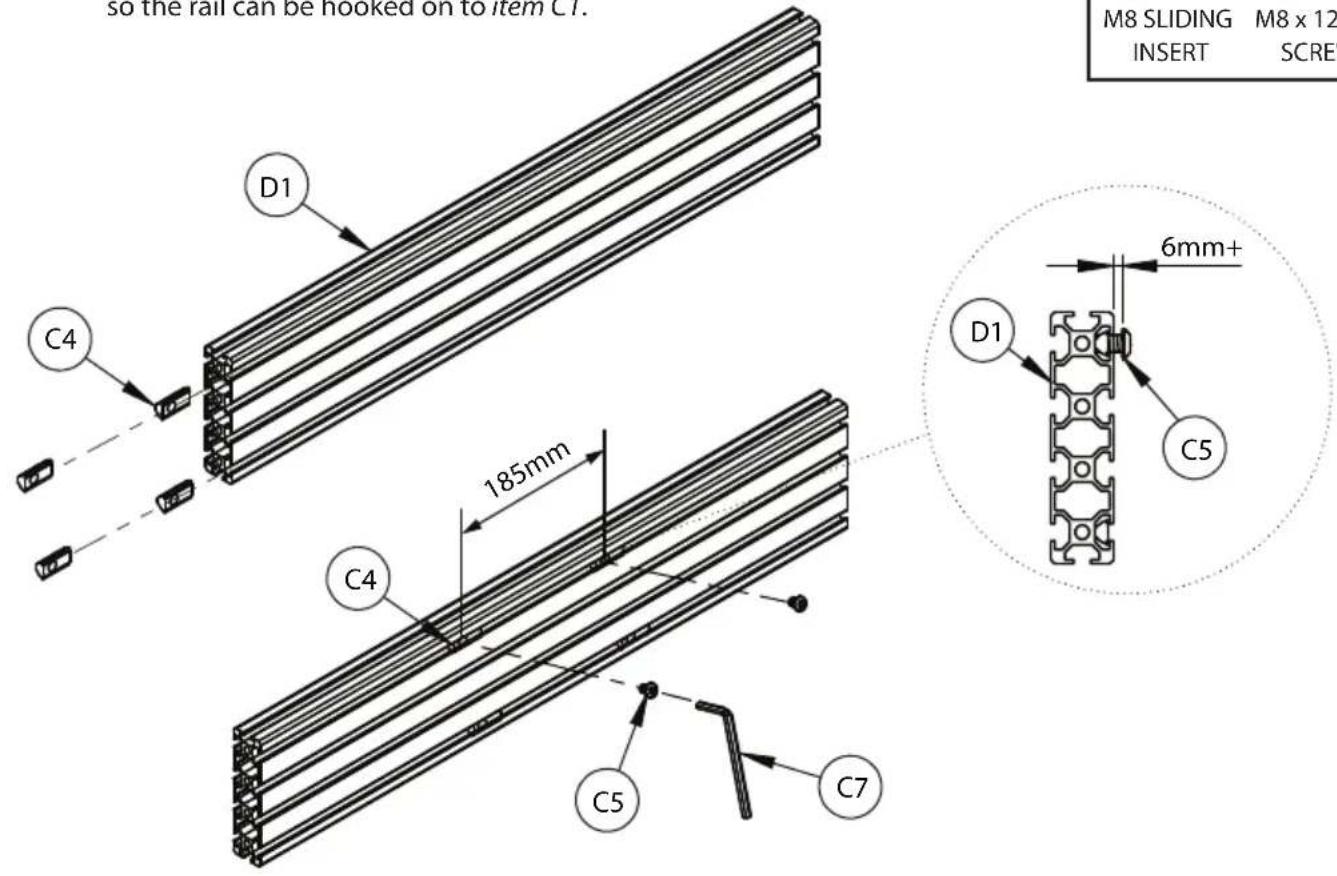

3. HOOK RAIL ONTO MOUNTING BRACKET

i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel). ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap so the rail can be hooked on to item C1.

iii. Hook item D1 onto item C1 and fix with in place with item C5. iv. Attach item D2 to the ends of item D1

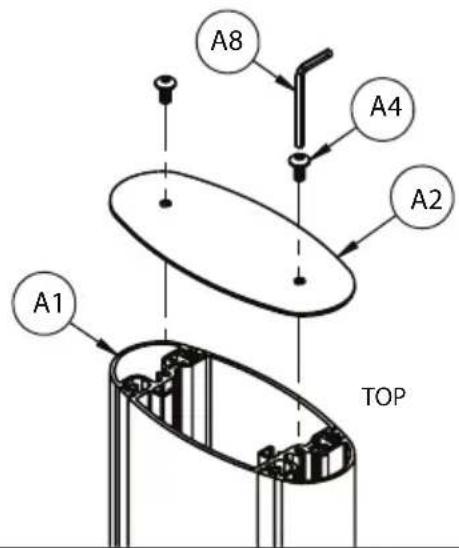

4 ATTACH END CAP

Fix item A2 onto the top of item A1 using item A4.

M6 x 12mm HEX SCREW

5 BOLT STAND TO THE FLOOR

Pre-drill holes in floor and using suitable ground anchor fixings (not supplied), fix stand to floor.

5. ATTACH INTERFACE ARMS TO SCREEN

Fix item E1 to the rear of the screen using items E3 - E15.

Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.

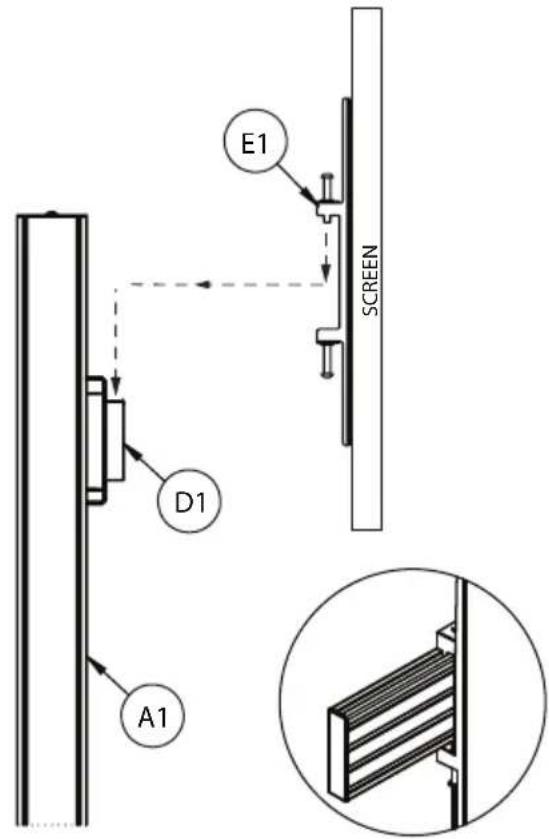

6. HOOK SCREEN ONTO RAIL

Use items E1 to hook the screen onto item D1.

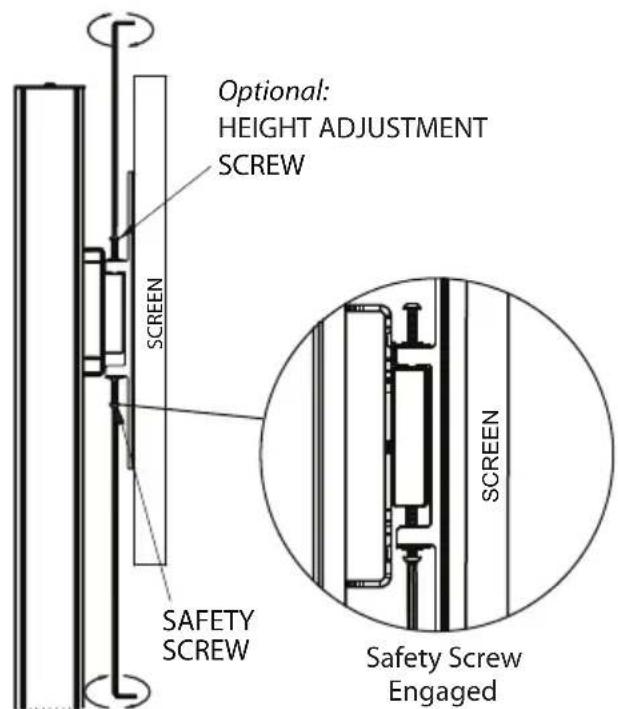

7. LOCK SCREEN TO RAIL

Tighten the safety screws on the bottom of item E1 securing the screen to item D1.

Note: If necessary, adjust the height adjustment screws on top of item E1 to level the screen.

8. ATTACH STRIPS

Insert item A7 to the front and back of item A1. Note: Item A7 may have to be cut down to size to be able to fit into the front of item A1.

Use pliers to cut item A7 to correct size

BT8704 DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

FRONT VIEW REAR VIEW SIDE VIEW

CONTACT:

[e-mail]

©2022 B-Tech International Design and Manufacturing Ltd. All rights reserved.

B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.

B-Tech AV Mounts and the B-Tech logo are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

AMA-BT8704-V1.1-0822-104 MADE IN VIETNAM
