USER MANUAL BBPM-3008 Becken

Arm Blood Pressure Monitor

MANUAL DE INSTRUÇÕES

Portrait of a woman with short blonde hair and green eyes, wearing a blue top (no text or symbols visible)

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Humidity and Water 6

1.2. Cleaning 6

1.3. General Precautions 6

2. OPERATING INSTRUCTIONS 11

2.1. Blood Pressure Classification Chart 11

2.2. Product Description 12

2.3. Product Operation 14

2.4. Troubleshooting 24

3. TECHNICAL SPECIFICATIONS 26

1. AFTER-SALE SERVICE 27

2. ENVIRONMENTAL PROTECTION 28

Arm Blood Pressure Monitor

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

[you can trust]

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

BECKEN

1.1. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.2. Cleaning

Clean the body with soft dry cloth dipped in a concentration of 75% medical alcohol.

Do not wet or clean the cuff with water.

Clean the cuff with soft dry cloth after measurement.

To clean the exterior of the product, use a dry soft cloth only.

1.3. General Precautions

- Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider.

- Those who suffer from arrhythmia, diabetes, blood circulation problems or apoplexy problems, please use as instructed by your physician.

- If cuff inflation doesn't stop, remove the cuff or power off the unit, otherwise it may result in a hazardous situation.

- Do not use in combination with a hyperbaric oxygen therapy device, or in an environment where combustible gas may be generated.

[you can trust]

• Do not install the unit in the following locations:
• Locations subject to vibration such as ambulances and emergency helicopters.
• Locations where there is gas or a flame.
• Locations where there is water or steam.
• Locations where chemicals are stored.
• Locations where the unit may easily fall.

- Common arrhythmias such as atrial premature beats, premature ventriculars and atrial fibrillations may lead to inaccurate results or errors.

- Please take into account environmental variables, otherwise they may lead to inaccurate measurement.

- When using or replacing the AC adapter and batteries the operator should not touch these parts simultaneously with the patient.

- Do not use Luer lock. If Luer lock connectors are used in the tubing construction, there is a possibility that they might be inadvertently connected to intravascular fluid systems, allowing air to be pumped into a blood vessel.

- Avoid high temperatures, moisture, dust and direct sunlight.

- Do not use at extremely high temperatures in high humidity or at high altitudes. Use only within the required ambient conditions.

- Do not use the unit near large equipment which uses a switching relay for power ON/OFF.

- Remove the batteries if the unit will not be used for a long time.

- Clinical testing has not been conducted on new-borns and pregnant women. Do not use on new-borns and pregnant women.

- The blood pressure monitor has gone through several trials of testing to ensure measurement accuracy. If used according to the operation instructions, it does not require periodic re-adjustments.

- Blood pressure measurements determined with the device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, manual, electronic or automated sphygmomanometers.

- Keep out of reach of infants, small children, and compromised people who cannot express their consent.

- This product is suitable for the self-monitoring of blood pressure at home or to be used by licensed healthcare personnel in hospitals.

[you can trust]

Important information regarding Electro Magnetic Compatibility (EMC)

With the increased number of electronic devices such as PC's and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation.

In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to prevent an unsafe product situation, the IEC60601-1-2 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices.

This medical device conforms to this IEC60601-1-2:2007 standard for both immunity and emissions.

Nevertheless, special precautions need to be observed:

- Do not use mobile (cellular) telephones and other devices which generate strong electrical or electromagnetic fields near the medical device. This may result in incorrect operation of the unit and create a potentially unsafe situation. Recommendation is to keep a minimum distance of 7m. Verify correct operation of the device in case the distance is shorter. Further documentation in accordance with IEC60601-1-2:2007 is available at pump at the address mentioned in this user manual.

Arm Blood Pressure Monitor

• IEC 60601-1: 2005 Medical electrical equipment - Part: General requirements for safety and essential performance.
• IEC 60601-1-2:2007 Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests
• EN 1060-1:1995+A2:2009 Non-invasive sphygmomanometers - parts1: General requirements
• EN 1060-3:1997+A2:2009 Non-invasive sphygmomanometers - parts3: Supplementary requirements for electro-mechanical blood pressure measuring systems.
  • ANSI/AAMI SP-10:2002+A1:2003+A2: 2006/(R)2008 Manual, electronic, or automated sphygmomanometers
  • ANSI/AAMI/ISO 81060-2-2009 Non-invasive sphygmomanometers

Explanation of Symbols

Symbol for "batch code"

Symbol of "manufacturer"

"CE Conformity marking"

Symbol for "Follow operating instructions"

[you can trust]

IP22

Symbol for "the IP classification"

Symbol for "electrical and electronic equipment"

Symbol for "AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY"

2. OPERATING INSTRUCTIONS

2.1. Blood Pressure Classification Chart

According to World Health organization standard, the blood pressure level classifications and definitions are as following:

Category Systolic (mmHg) Diastolic (mmHg)
Desirable <120 and <80
Normal 120-129	and/or 80-84
Pre-hypertension	130-139 and/or	85-89
Hypertension	>140 and/or	>90
Stage 1 Hypertension	140-159 and/or 90-99
Stage 2 Hypertension	160-179 and/or	100-109
Hypertensive Crisis	>180 and/or	>110

These categories were defined by the American Heart Association. This chart applies to adults age 20 and older.

Arm Blood Pressure Monitor

Indications for use: Measurement of Human Blood Pressure and Pulse Rate for adults at home or to be used by licensed healthcare personnel in hospitals.

Body

Fig 1

Cuff Label (Type BF Applied Part)

Applicable Arm Circumference: 220 mm to 360 mm

[you can trust]

Fig 2

BECKEN

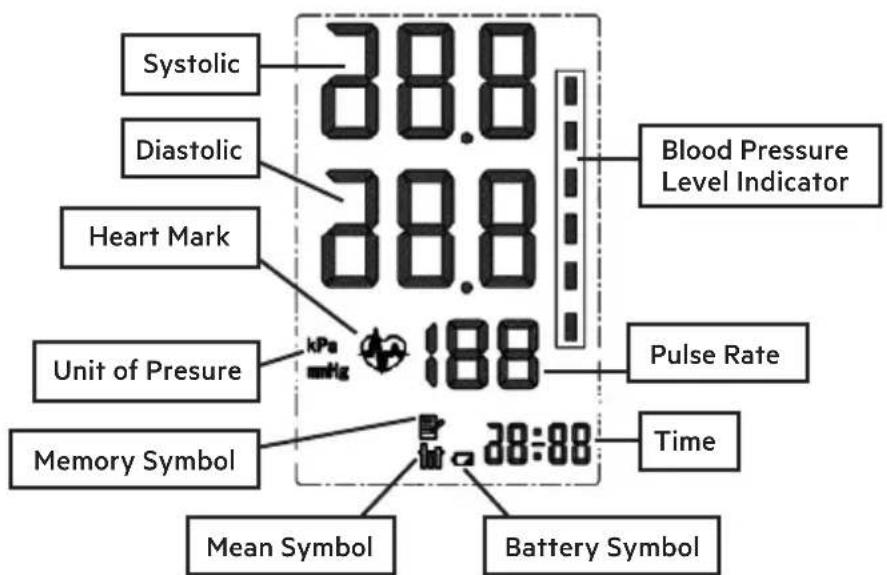

Display

Fig 3

2.3. Using the Product

2.3.1. Battery

Installation and replacement

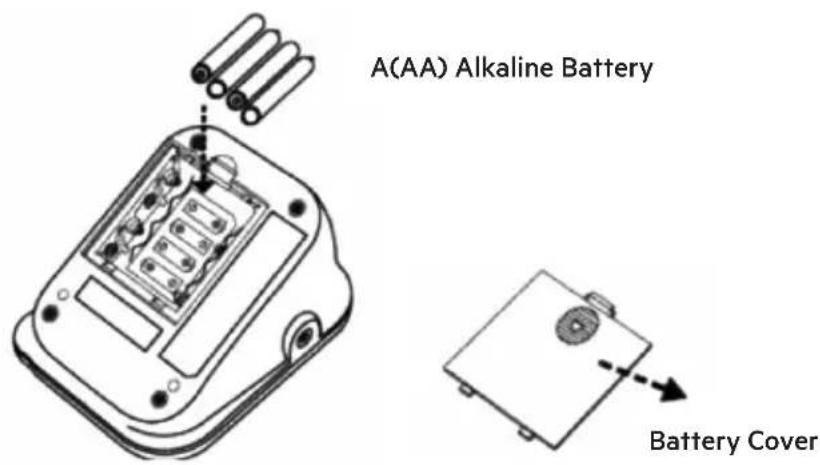

1) Remove battery cover.
2) Insert 4 standard AA alkaline batteries as indicated on figure.

[you can trust]

Fig 4 Fig 5

Please use the same brand of batteries and be aware of battery polarity during installation

3) Place back the battery cover.
4) Replace the battery if low battery icon is displayed.

- If the low battery symbol is displayed, replace with new batteries, otherwise the unit may not function properly.

• Use 4 same brand 1.5 Volt AA alkaline batteries.
• Do not mix the new and old batteries.
• Remove the battery if the unit is to remain unused for an extended period.
• Reset the time and date after battery replacement.

Arm Blood Pressure Monitor

- Four new LR6 (AA) batteries will last for approximately 200 measurements, if measurements are taken once a day at room temperature (23°C).

- Battery life can be confirmed on the bottom right of the display. If the low battery symbol ☐ is displayed remaining power is low, replace with new batteries.

2.3.2. Set-up

1) With monitor power off 2) Hold the [Set] button for 3 seconds until year digits blink.

a) Changing the number:
i) Press the [M] button to advance one number.
ii) Hold down the [M] button to change the number rapidly.
b) Enter the two digits of the year number.
c) Press the [Set] button to proceed to month setting.
d) Repeat step a) to c) to set month, day, hour and minutes.

3) Unit Conversion (mmHg to kPa):

a) Press the [M] memory button to automatically change the unit conversion as shown on Fig 6 or Fig 7.

4) Unit with Broadcast.

a) To continue the broadcast setting, press the [M] button to automatically turn on or off the broadcast system as shown on Fig 8 or Fig 9.
b) To complete the setting, press the [ON/OFF] button to exit.

[you can trust]

Fig 6 Fig 7 Fig 8 Fig 9

2.3.3. Taking measurement Important Notes

• Don't eat, drink alcohol, smoke, take a shower or exercise for at least 30 minutes before you take your blood pressure and don't use any medicines which could raise your blood pressure.
• Try not to take your blood pressure if you are nervous or upset. When nervous, anxious, or agitated your blood pressure may rise.
• Rest for 5 to 10 minutes before taking a reading. Sit in a comfortable, relaxed position. Don't move around or talk while taking your blood pressure. Leave your legs in one position, breathe freely and calmly.
• The blood pressure cuff should fit over about 3/4 of your upper arm. It should easily go around the arm and the Velcro should close tightly.

BECKEN

• If possible, use the same arm for every reading.
• Measuring blood pressure at the same time on different days should give similar readings (disregarding outside influences like exercise).
• Changes in medication or nutritional supplement can alter your result. Please consult your doctor before taking or stopping medications or supplements.

2.3.4. Fitting the cuff

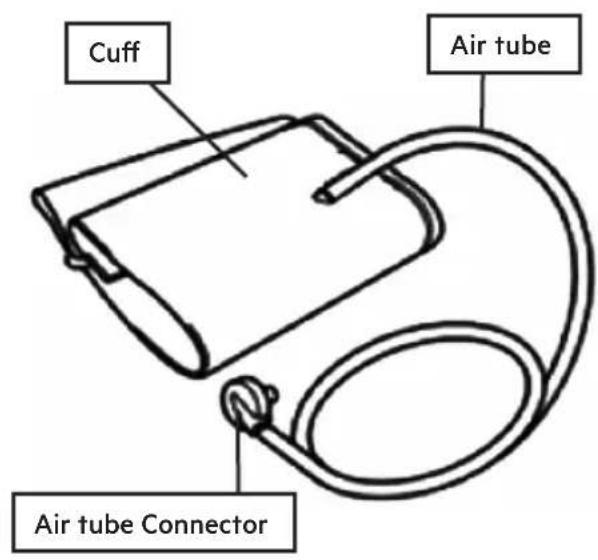

1) Plug in the air tube connector into the main unit
2) Wrap the cuff around the upper left or right arm.

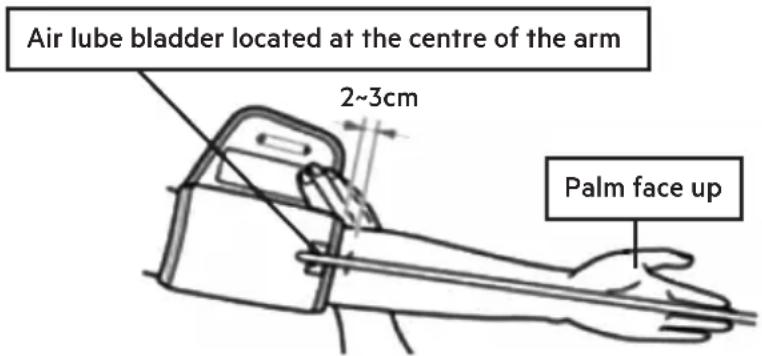

3) Tighten the cuff around the arm, make sure the cuff is approximately 2 to 3cm (1 to 2 inches) above the elbow. (Fig 10)

Fig 10

[you can trust]

4) Make sure the cuff's air tube outlet is facing your finger. Do not over tighten. Approximately one finger should be able to fit underneath the cuff after tightening.
5) Relax, place the elbow on the desk with palm facing up; the cuff should be level with your heart. If the cuff doesn't fit your arm, the reading accuracy may be affected.

• Do not bend with the cuff or the air tube on.
• To detach the cuff, unplug the air tube connector from the main unit.
• Do not inflate prior to fitting the cuff.
• Change the cuff if it there is a leakage or if the cuff is not working properly.
• Only use the manufacturer cuff provided to ensure the measurement accuracy.

2.3.5. Body posture during measurement

Relax, place your elbow on the desk with palm facing up; the cuff should be at heart level (Fig 11). The reading accuracy may be affected if the cuff is not fitted properly. The arm should be at the same level as your heart. If your arm is too low, your reading will be too high. If your arm is too high, your reading will be too low.

Fig 11

2.3.6. Taking Measurement

After installing the batteries and fitting the cuff, the unit is ready for measurement:

1) For the most accurate results please relax, do not smoke, take a deep breath, speak loudly or move around during the measurement.
2) Press the [ON/OFF] button; the display will light-up for 1 second as shown on Fig 12.
3) Then the display switches on as shown on Fig 13, a beep sound indicates the monitor has begun taking the measurement.
4) When the device detects a pulse, the heart symbol will flash as shown on Fig 14. The cuff inflates, and your pulse and blood pressure measurement is taken.
5) When the test is completed, the cuff will automatically deflate and the test result will be displayed on the screen as shown on fig 15 and the device will broadcast the result. The pillar on the right side of the display will indicate

[you can trust]

the level of blood pressure, the blood pressure level classification and definition as show in Fig 16.

6) You may turn off the unit or compare with the previous results
7) Automatic shut off in 3 minutes.
8) If a problem occurs during the test, "Err" will be displayed on the screen.
9) At the end of the measurement, "A" will be displayed on the screen if an irregular pulse is detected.

Fig 12 Fig 13 Fig 14 Fig 15

Blood pressure level classification and definition (Fig 16)

BECKEN

Fig 16

Notes:

• Do not self-diagnose according to measurement results. Follow the instructions of your physician or licensed healthcare provider.
• The pillar on the right side of the display and the segment colour in the unit will indicate the level of blood pressure, the blood pressure level classification and definition as shown in Fig 16.

[you can trust]

- If the device should cause any discomfort during measurement or fail to perform as indicated, turn off the power or discontinue use.

- The time of the pressure decrease from 260mmHg (34.67kPa) to 15mmHg (2kPa) does not exceed 10s.

- If the cuff inflated up to 300 mmHg (40 kPa) doesn't stop, please remove the cuff or power off the unit.

2.3.7. Memory

The internal memory can hold up to 90 readings

1) Reviewing memory data:

a) To access readings from the memory, press the [M] button.
b) The unit will display the 3 most recent sets of data.
c) Hold the [M] button to view the data from the most recent date to the oldest date. Hold the [Set] button to reverse the order.
d) If the data in the memory displays the heart mark, it was prompted by a measurement of irregular pulse.

Caution: Continuously holding the [M] button will delete all memory data.

2) Deleting memory data:

a) Enter into the memory mode.
b) Press and hold the memory [M] button until “---” is displayed.

Arm Blood Pressure Monitor

c) All data will be deleted; the device is not capable of deleting single data entries.
d) Press the [ON/OFF] button to exit the memory mode and shut down.

2.4. Troubleshooting

Error Indication

List of Error codes.

Error Cause	How to correct
cuff self-test symbol	Power on, cuff inflation rate is too low or main unit does not connect with the cuff.	C1) Reconnect the air tube connector with the main unit2) Cuff or bladder leakage, if necessary purchase a new one.3) Confirm the cuff is wrapped up correctly (ref 4) Retake the measurement
Er 2	Weak signal or cuff is too loose	Cuff too loose, Confirm the cuff is wrapped up correctly (ref 4.2) and retake the measurement
	Heavy shock during the measurement.	Remain still, retake the measurement (ref 4.1)
	Bad Signal, moving or talking during the measurement	Remain still, retake the measurement (ref 4.1)
Lo	Low battery power, cannot inflate	Change batteries (ref 3.1)

Abnormal How to correct
After battery installation, power on, no display.	(1) Check battery polarity.(2) If still cannot power on, reinstall the batteries or change new batteries
Measured value is abnormally high or low.	(1) Confirm the cuff is wrapped up correctly.(2) If the user's clothing restricts normal flow, please remove the obstructing clothing and retake the measurement.(3) Relax, place the elbow on the desk with palm facing up; cuff should align with heart level. Re-take the measurement.
Cuff inflation rate is too low or cuff does not inflate.	(1) Reconnect the air tube connector with the main unit(2) Cuff or bladder leakage, if necessary purchase a new one.
Cuff deflates too quickly.	(1) Cuff too loose, confirm the cuff is wrapped up correctly.
Measured value is different from the hospital or the value is inconsistent.	(1) Blood pressure value varies during the day and is also affected emotional and physical conditions.(2) Record the variance and consult your physician.

Arm Blood Pressure Monitor

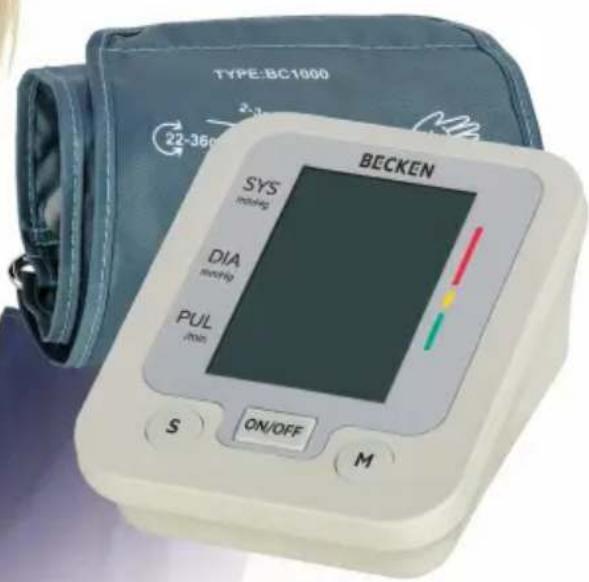

Description	Arm automatic blood pressure monitor	Model BBPM 3008 A
Display	LCD Digital Display	Measuring principle	Oscillometric Method
Measurement Range	Pressure: 0mmH-g~280mmHg(0kPa~37.3kPa)Pulse: 40 pulse/min ~180 pulse/min	Accuracy	Pressure: ±3mmHg(±0.4kPa) Pulse: ±5%
Memory	90 sets memory of measurement values	Automatic Power Off	Unattended 3 minutes
Power Source	4 AA Alkaline battery AC Adapter (AC 100~240 V)	Battery Life	Approx. 200 measurements
Protection against Electric Shock	Type BF	IP classification	IP21
Operating Environment	Temperature:+5°C+40°CHumidity: ≤93%Pressure:70.0kPa~106.0kPaAltitude:≤3000 m	Storage and transport Environment	Temperature:-25°C+70°C;Humidity: 10%95%Pressure:50.0kPa106.0kPa

[you can trust]

Description	Arm automatic blood pressure monitor	Model BBPM 3008 A
Weight	294g (Without batteries)	Size 140mm × 110mm × 70mm
Warranty Two years Contents		• Storage case• Instruction Manual

This unit is intended for home use and the specifications may be changed without prior notice. Please dispose of batteries according to local regulations.

4. AFTER-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

BECKEN

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

CE0197

Shenzhen Pump Medical System Co., Ltd 2/F, M-7 Sinosteel Building, Maqueling Estate, Hi-Tech Industrial Park, Nanshan District – 51805 Shenzhen, Guangdong, China

Shanghai Internacional Holding Corp. GmbH (Europe) Eiffestrasse, 80, D-20537 Germany

[you can trust]

Vertical gradient bar with two shades of blue, no text or symbols present

Arm Blood Pressure Monitor

Arm Blood Pressure Monitor

Arm Blood Pressure Monitor

Technical line drawing of an electronic device with internal components and connectors (no text or symbols)

A(AA) Alkaline Battery

Simple line drawing of a battery with an arrow indicating direction (no text or symbols)

Battery Cover

Imagen 4 Imagen 5

Arm Blood Pressure Monitor

Imagen 11

Arm Blood Pressure Monitor

Arm Blood Pressure Monitor

Arm Blood Pressure Monitor

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular bar (no text or symbols present)

CE0197

Shenzhen Pump Medical System Co., Ltd 2/F, M-7 Sinosteel Building, Maqueling Estate, Hi-Tech Industrial Park, Nanshan District – 51805 Shenzhen, Guangdong, China

Shanghai Internacional Holding Corp. GmbH (Europe) Eiffestrasse, 80, D-20537 Germany

[you can trust]

Vertical gradient bar with two shades of blue, no text or symbols present

Arm Blood Pressure Monitor

Category Systolic (mmHg) Diastolic (mmHg)
Desirable <120 and <80
Normal 120-129	and/or 80-84
Pre-hypertension 130	-139 and/or 85-89
Hypertension >140	and/or >90
Stage 1 Hypertension	140-159 and/or 90-99
Stage 2 Hypertension	160-179 and/or 100-109
Hypertensive Crisis	>180 and/or	>110

Arm Blood Pressure Monitor

Technical line drawing of a device casing with internal components and three cylindrical pins (no text or symbols)

A(AA) Pilha Alcalina

Simple line drawing of a rectangular object with a circular element and an arrow pointing to it, labeled 'Tan' at the bottom (no other text or symbols)

Arm Blood Pressure Monitor

Fig. 11

BECKEN

Arm Blood Pressure Monitor

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

CE0197

Shenzhen Pump Medical System Co., Ltd 2/F, M-7 Sinosteel Building, Maqueling Estate, Hi-Tech Industrial Park, Nanshan District – 51805 Shenzhen, Guangdong, China

Shanghai Internacional Holding Corp. GmbH (Europe) Eiffestrasse, 80, D-20537 Germany

[you can trust]

PT

Arm Blood Pressure Monitor

Arm Blood Pressure Monitor

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
