USER MANUAL MCT2027 MCCULLOCH

For problems or questions, DO NOT return this product to the store. Contact your Customer Service Agent.

10715 Springdale Avenue, Unit 2

Santa Fe Springs, CA 90670

USA

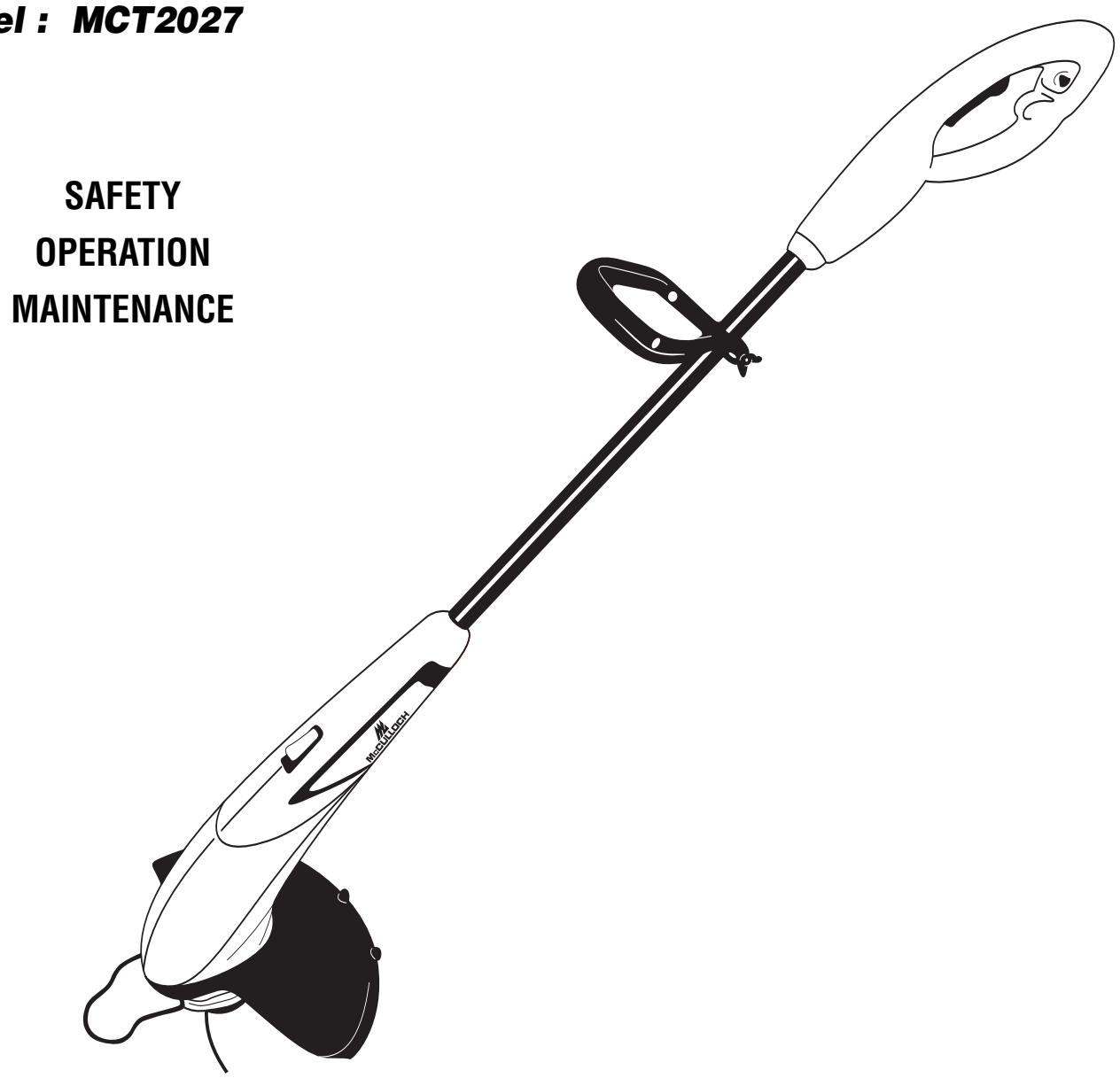

USER MANUAL Electric Grass Trimmer

Model: MCT2027

WARNING · PLEASE READ

For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your trimmer before each use.

INTRODUCTION

PLEASE READ

Dear Customer,

Thank you for purchasing a McCulloch product. With proper operation and maintenance, it will provide you with years of service.

In order to make the best use of your investment, be CERTAIN to familiarize yourself with the contents of the ENTIRE user manual before attempting to operate and maintain your unit.

Be sure to carefully follow the step-by-step instructions in this manual to start, operate and maintain your new product.

In the manual there will be the following call-outs: NOTE:, WARNING / CAUTION and WARRANTY.

A NOTE: is used to convey additional information, to highlight a particular explanation, or to expand a step description.

A WARNING or CAUTION identifies a procedure which, if not undertaken or if improperly done, can result in serious personal injury and/or damage to the unit.

(WARRANTY SYMBOL) serves notice that unless instructions or procedures are followed, any damage caused will warranty and repairs will be at owner's expense.

Pay particular attention to the safety precautions. They are written for your protection and contain important information you must know to safely operate your trimmer.

FOR WARRANTY OR SERVICE CONTACT THE NEAREST McCULLOCH AUTHORIZED SERVICE CENTER - LOCATE YOUR NEAREST SERVICE CENTER BY CALLING THE TOLL FREE NUMBER IN THIS MANUAL.

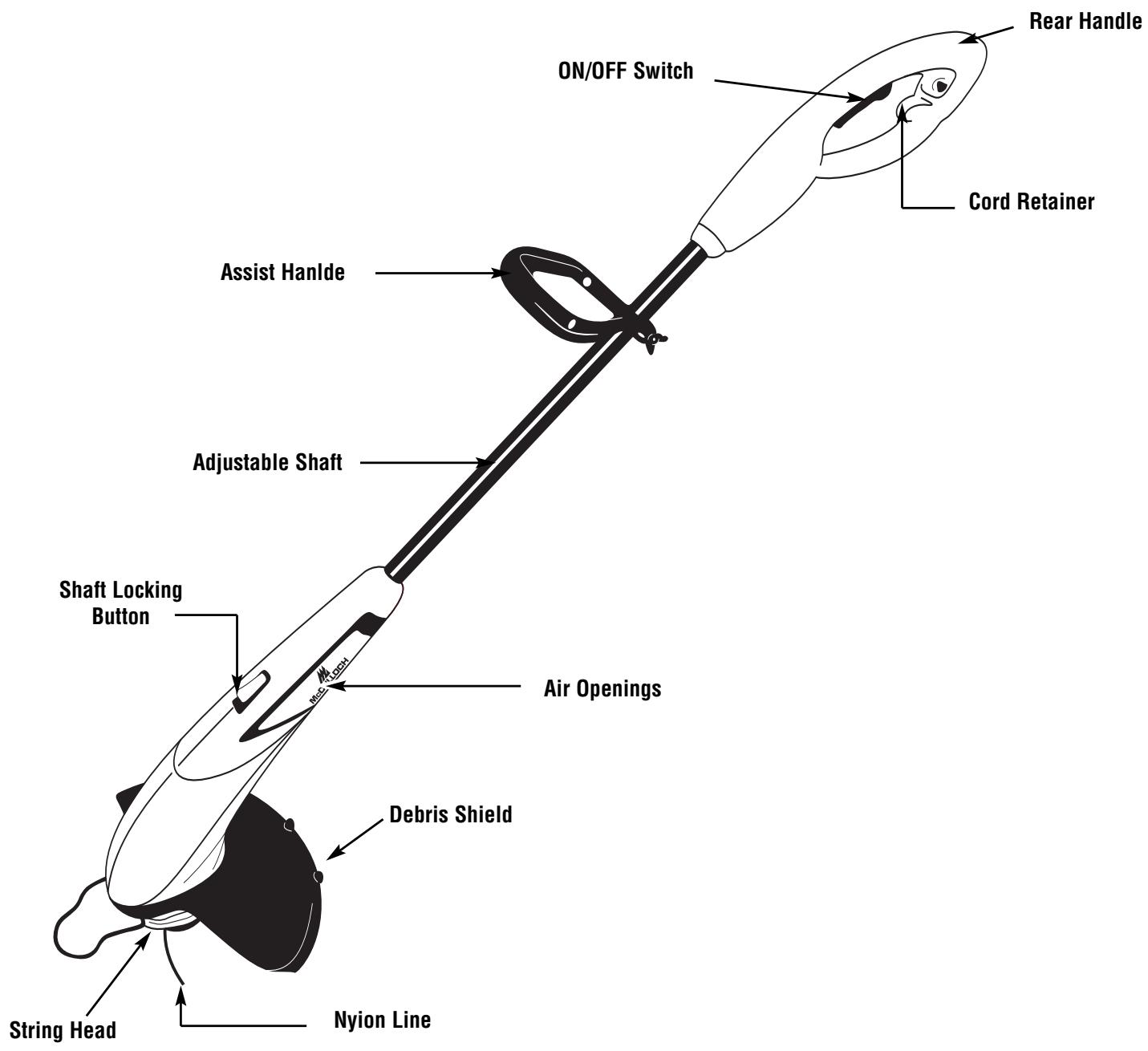

1 - GENERAL INFORMATION

SPECIFICATIONS

Input .120V\~, 60Hz, 3.7Amp

No Load Speed 8,000/min.

Cutting width 12" (300mm)

Line Diameter .0.065" (1.65mm)

Net Weight 2.0 Kg (4.4 Lbs)

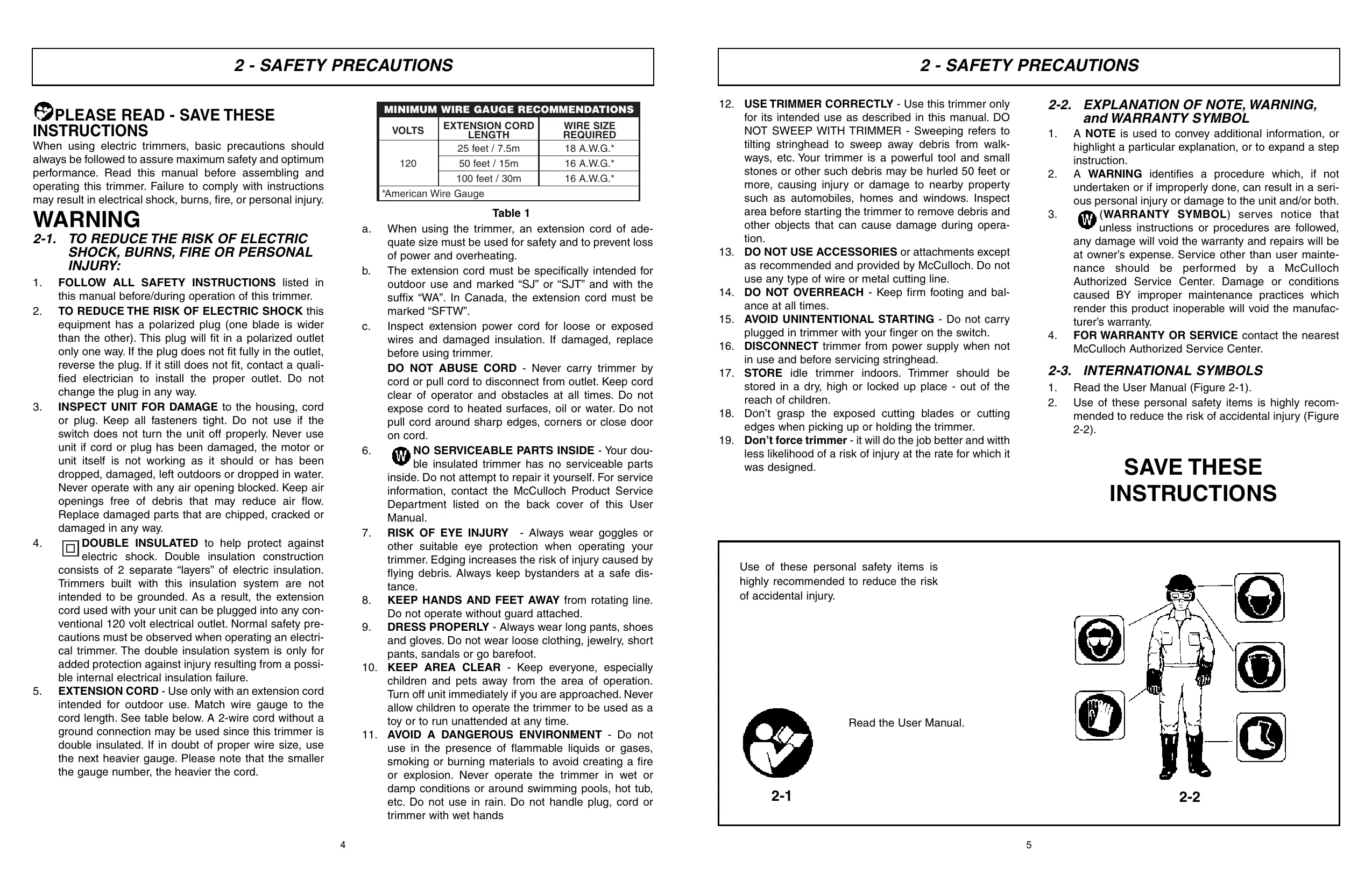

2 - SAFETY PRECAUTIONS

PLEASE READ - SAVE THESE INSTRUCTIONS

When using electric trimmers, basic precautions should always be followed to assure maximum safety and optimum performance. Read this manual before assembling and operating this trimmer. Failure to comply with instructions may result in electrical shock, burns, fire, or personal injury.

WARNING

2-1. TO REDUCE THE RISK OF ELECTRIC SHOCK, BURNS, FIRE OR PERSONAL INJURY:

1. FOLLOW ALL SAFETY INSTRUCTIONS listed in this manual before/during operation of this trimmer.
2. TO REDUCE THE RISK OF ELECTRIC SHOCK this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
3. INSPECT UNIT FOR DAMAGE to the housing, cord or plug. Keep all fasteners tight. Do not use if the switch does not turn the unit off properly. Never use unit if cord or plug has been damaged, the motor or unit itself is not working as it should or has been dropped, damaged, left outdoors or dropped in water. Never operate with any air opening blocked. Keep air openings free of debris that may reduce air flow. Replace damaged parts that are chipped, cracked or damaged in any way.
4. DOUBLE INSULATED to help protect against electric shock. Double insulation construction consists of 2 separate "layers" of electric insulation. Trimmers built with this insulation system are not intended to be grounded. As a result, the extension cord used with your unit can be plugged into any conventional 120 volt electrical outlet. Normal safety precautions must be observed when operating an electrical trimmer. The double insulation system is only for added protection against injury resulting from a possible internal electrical insulation failure.
5. EXTENSION CORD - Use only with an extension cord intended for outdoor use. Match wire gauge to the cord length. See table below. A 2-wire cord without a ground connection may be used since this trimmer is double insulated. If in doubt of proper wire size, use the next heavier gauge. Please note that the smaller the gauge number, the heavier the cord.

Table 1

MINIMUM WIRE GAUGE RECOMMENDATIONS
VOLTS	EXTENSION CORD LENGTH	WIRE SIZE REQUIRED
120	25 feet / 7.5m	18 A.W.G.*
	50 feet / 15m	16 A.W.G.*
	100 feet / 30m	16 A.W.G.*
*American Wire Gauge

a. When using the trimmer, an extension cord of adequate size must be used for safety and to prevent loss of power and overheating.
b. The extension cord must be specifically intended for outdoor use and marked "SJ" or "SJT" and with the suffix "WA". In Canada, the extension cord must be marked "SFTW".
c. Inspect extension power cord for loose or exposed wires and damaged insulation. If damaged, replace before using trimmer.

DO NOT ABUSE CORD - Never carry trimmer by cord or pull cord to disconnect from outlet. Keep cord clear of operator and obstacles at all times. Do not expose cord to heated surfaces, oil or water. Do not pull cord around sharp edges, corners or close door on cord.

1. NO SERVICEABLE PARTS INSIDE - Your double insulated trimmer has no serviceable parts inside. Do not attempt to repair it yourself. For service information, contact the McCulloch Product Service Department listed on the back cover of this User Manual.
2. RISK OF EYE INJURY - Always wear goggles or other suitable eye protection when operating your trimmer. Edging increases the risk of injury caused by flying debris. Always keep bystanders at a safe distance.
3. KEEP HANDS AND FEET AWAY from rotating line. Do not operate without guard attached.
4. DRESS PROPERLY - Always wear long pants, shoes and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot.
5. KEEP AREA CLEAR - Keep everyone, especially children and pets away from the area of operation. Turn off unit immediately if you are approached. Never allow children to operate the trimmer to be used as a toy or to run unattended at any time.
6. AVOID A DANGEROUS ENVIRONMENT - Do not use in the presence of flammable liquids or gases, smoking or burning materials to avoid creating a fire or explosion. Never operate the trimmer in wet or damp conditions or around swimming pools, hot tub, etc. Do not use in rain. Do not handle plug, cord or trimmer with wet hands

2 - SAFETY PRECAUTIONS

1. USE TRIMMER CORRECTLY - Use this trimmer only for its intended use as described in this manual. DO NOT SWEEP WITH TRIMMER - Sweeping refers to tilting stringhead to sweep away debris from walkways, etc. Your trimmer is a powerful tool and small stones or other such debris may be hurled 50 feet or more, causing injury or damage to nearby property such as automobiles, homes and windows. Inspect area before starting the trimmer to remove debris and other objects that can cause damage during operation.
2. DO NOT USE ACCESSORIES or attachments except as recommended and provided by McCulloch. Do not use any type of wire or metal cutting line.
3. DO NOT OVERREACH - Keep firm footing and balance at all times.
4. AVOID UNINTENTIONAL STARTING - Do not carry plugged in trimmer with your finger on the switch.
5. DISCONNECT trimmer from power supply when not in use and before servicing stringhead.
6. STORE idle trimmer indoors. Trimmer should be stored in a dry, high or locked up place - out of the reach of children.
7. Don't grasp the exposed cutting blades or cutting edges when picking up or holding the trimmer.
8. Don't force trimmer - it will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

2-2. EXPLANATION OF NOTE, WARNING, and WARRANTY SYMBOL

1. A NOTE is used to convey additional information, or highlight a particular explanation, or to expand a step instruction.

2. A WARNING identifies a procedure which, if not undertaken or if improperly done, can result in a serious personal injury or damage to the unit and/or both.

3. (WARRANTY SYMBOL) serves notice that unless instructions or procedures are followed, any damage will void the warranty and repairs will be at owner's expense. Service other than user maintenance should be performed by a McCulloch Authorized Service Center. Damage or conditions caused BY improper maintenance practices which render this product inoperable will void the manufacturer's warranty.

4. FOR WARRANTY OR SERVICE contact the nearest McCulloch Authorized Service Center.

2-3.INTERNATIONAL SYMBOLS

1. Read the User Manual (Figure 2-1).

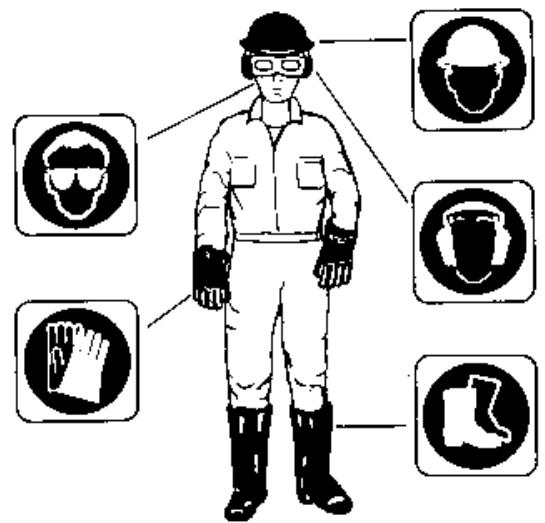

2. Use of these personal safety items is highly recommended to reduce the risk of accidental injury (Figure 2-2).

SAVE THESE INSTRUCTIONS

Use of these personal safety items is highly recommended to reduce the risk of accidental injury.

2-1

Read the User Manual.

2-2

3 - ASSEMBLY INSTRUCTIONS

NOTE: The only assembly required for your trimmer is to install the edge guide wheel, debris shield and adjust the assist handle.

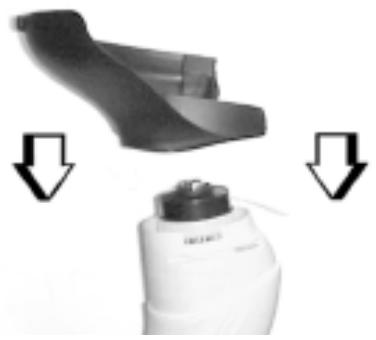

3-1. DEBRIS SHIELD INSTALLATION

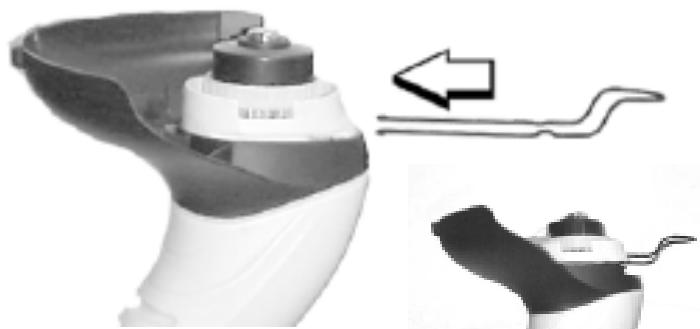

1. Position the motor housing with stringhead carrier facing up (Figure 3-1A).
2. Slide debris shield over motor housing as shown (Figure 3-1A).
3. Align edging guide with mating grooves and push firmly in the direction shown until an audible snap is heard (Figure 3-1B).

NOTE: Be certain that edging guide is oriented as shown. Once edging guide, motor housing and debris shield are mated the connection is permanent and cannot be removed without a special tool.

3-1A

3-1B

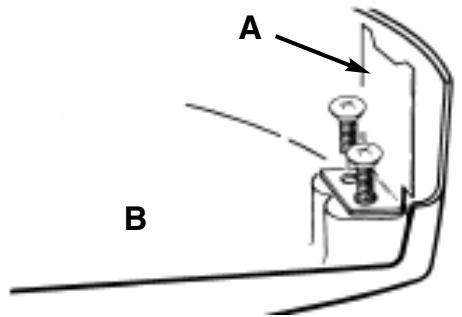

3-2. DEBRIS SHIELD KNIFE SHARPENING

1. Remove cutter knife (A) from debris shield (B). (Fig. 3-2)
2. Place knife in a bench vise. Sharpen knife using a flat file, being careful to maintain the angle of cutting edge. File in one direction only.

3-2

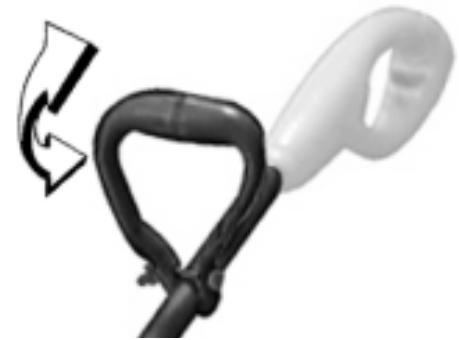

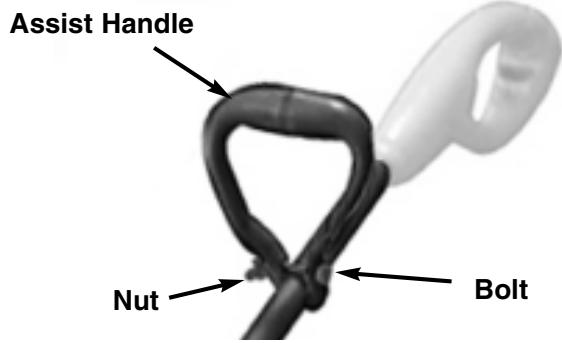

3-3. ATTACH ASSIST HANDLE (Fig. 3-3A and 3-3B)

1. Insert the handle in comfortable position and tighten securely.
2. Before tightening completely, adjust the assist handle height by sliding handle up or down tube. When assist handle is at desired operating height, tighten it securely.

3-3A

3-3B

3 - ASSEMBLY INSTRUCTIONS

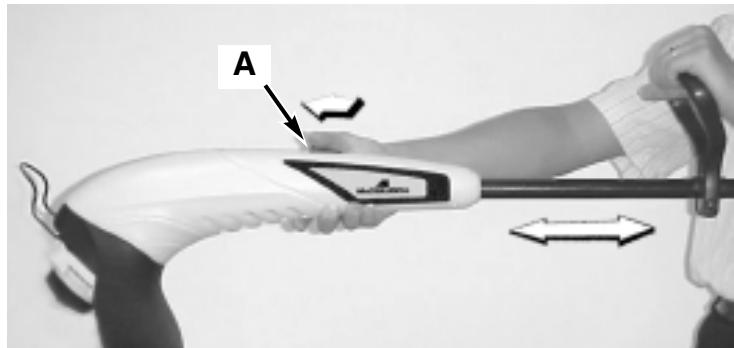

3-4. ADJUST SHAFT LENGTH

1. Grip shaft firmly.
2. Push shaft release button (A) and move motor housing forward or backward to desired length. (Fig. 3-4)

NOTE: Shaft may be adjusted in trimming or edging mode.

3-4

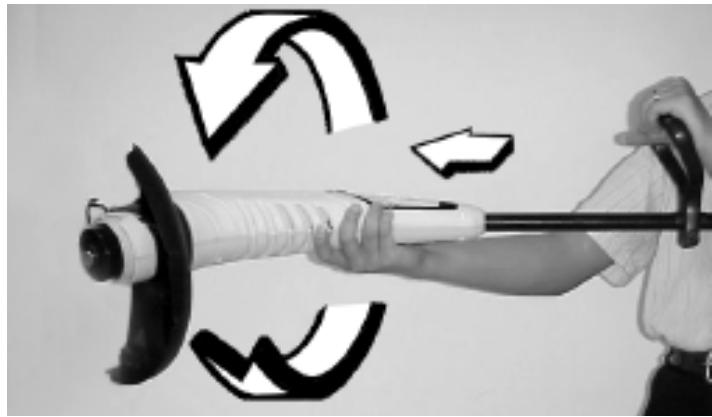

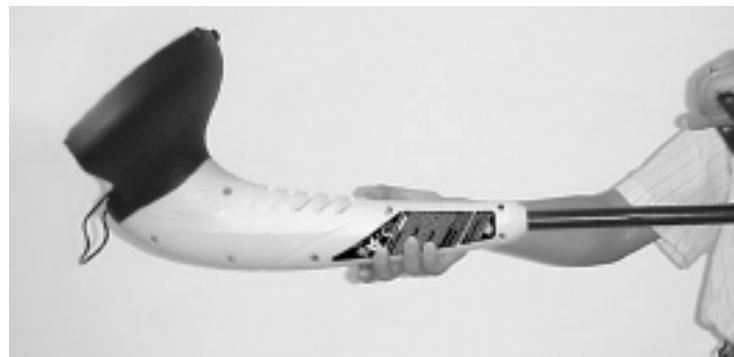

3-5. EDGING CONVERSION

1. Grip shaft firmly.
2. Push shaft locking button forward, and rotate handle assembly until an audible click is heard (Fig. 3-5A & 3-5B).

3-5A

3-5B

3-6. STARTING

1. When starting the string-trimmer for the first time, check that the nylon line touch or pass over the wire-cutting blade. If they are not long enough, press the bump knob and, at the same time, pull the nylon line. (Fig. 3-6A).
2. Adjust the height and cutting position as detailed in adjustment instructions.
3. Make sure the length of grass trimmer and position of assist handle is most applicable before use, adjust the length of grass trimmer by pressing the shaft adjustment button, adjust the height of assist handle by loosening the adjustment knob.

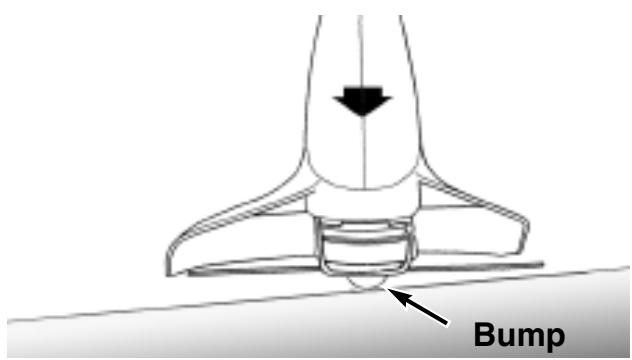

4. Take a secure hold of the grass trimmer and, without letting it touch the grass to be cut, push up the safety switch, then press the trigger on the upper handgrip. Let the string trimmer run for a few seconds and "bump" the stringhead against the lawn. Nylon line will automatically release. The cut-off knife in the debris shield will trim off excess line.
5. To switch off the string trimmer let go of the switch.

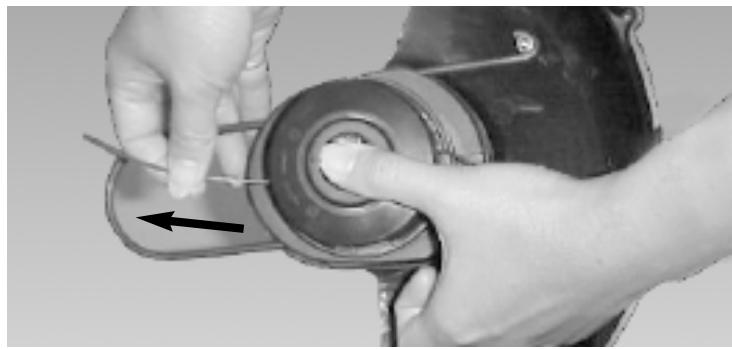

NOTE: A short or worn trimmer line cuts less efficiently so, to improve its operation on subsequent occasions, bump the spool button lightly on the ground while the trimmer is running.(Fig 3-6B)

These operations should be repeated a few times before starting work to make sure that everything is functioning properly and to familiarize yourself with the string trimmer.

Start off slowly, when you have gained experience, you will be able to use the grass trimmer to its full potential.

3-6A

3-6B

4 - OPERATING INSYRCUCTIONS

4-1. CONNECT THE CORD

1. Ensure the cord is NOT plugged into a receptacle before this procedure.
2. Make a loop with 8'' - 10'' (20 - 25cm) of the end of the extension cord.

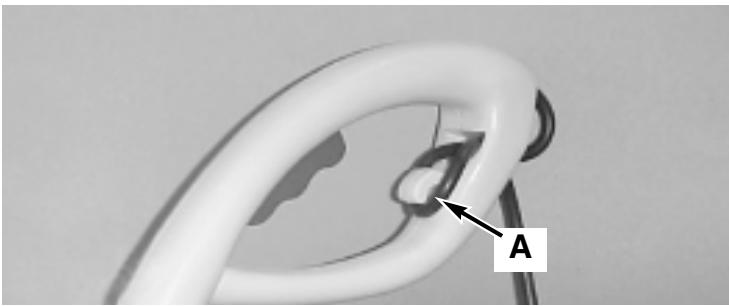

3. Place the loop into the slot (A) under the rear handle and lock into place on the cord retainer as shown in Figure 5-1.
4. Connect the extension cord to the trimmer.
5. Plug the extension cord into a receptacle ONLY when you are ready to operate the trimmer.

4-1

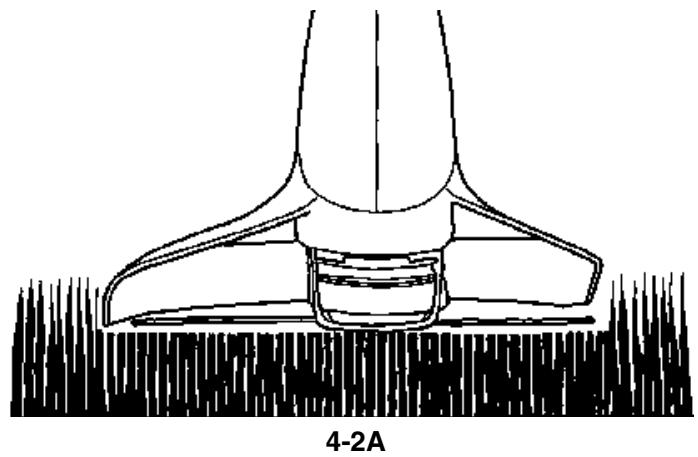

1. TRIMMING / MOWING (Fig. 4-2A). Swing trimmer with a sickle-like motion from side to side. Do not tilt the stringhead during the procedure. Test area to be trimmed for proper cutting height. Keep stringhead at same level for even depth of cut.

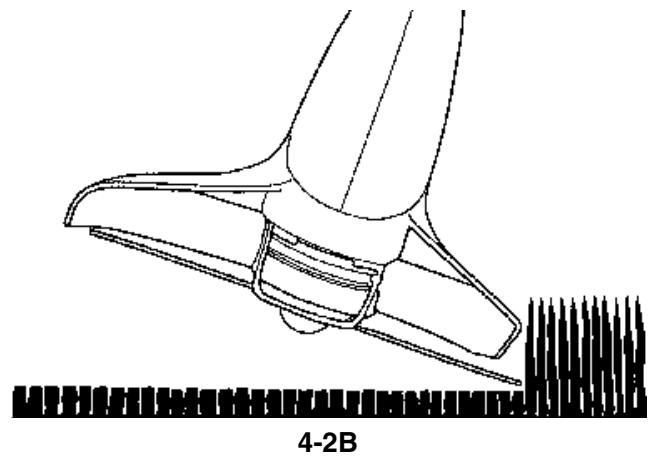

2. CLOSER TRIMMING (Fig. 4-2B). Position trimmer straight ahead with a slight tilt so bottom of stringhead is above ground level and string contact occurs at proper cutting point. Always cut away from operator. Do not pull trimmer in toward operator.
3. FENCE/FOUNDATION TRIMMING. Approach trimming around chain link fences, picket fences, rock walls and foundations slowly to cut close without whipping string against the barrier. If the string comes in contact with rock, brick walls, or foundations, it will break or fray. If string snags fencing, it will snap off.
4. TRIMMING AROUND TREES. Trim around tree trunks with a slow approach so string does not contact bark. Walk around the tree trimming from left to right. Approach grass or weeds with the tip of the string and tilt stringhead slightly forward.

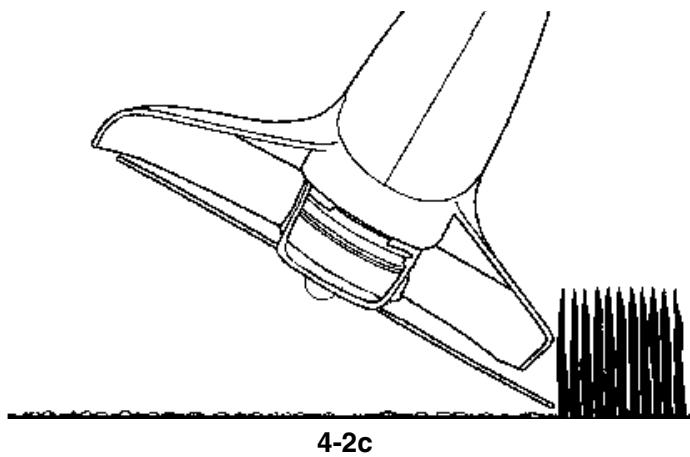

5. SCALPING (Fig. 4-2C). Scalping refers to removal of all vegetation down to the ground. To do this, tilt the stringhead to about a 30 degree angle to the left. By adjusting the handle you will have better control during this operation. Always keep a distance of 50 feet (15 meters) from other people and animals when scaling. Do not attempt this procedure if there is any chance flying debris could injure operator, other people or cause damage to property.

4 - OPERATING INSYRCUCTIONS

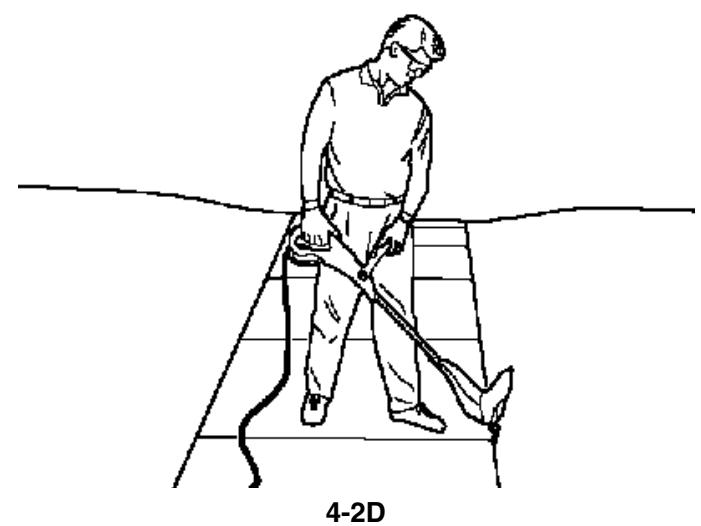

1. OPERATING AS AN EDGER (Fig. 4-2D). With the unit configured as an edger, hold it so the motor is to your left side so that debris is thrown to the rear. Always use eye protection.

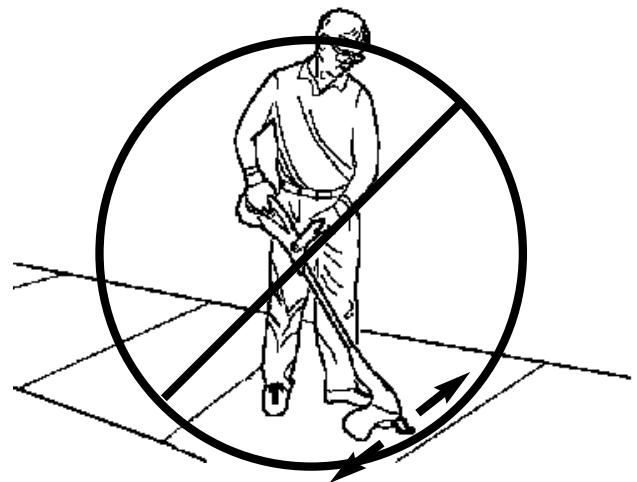

2. SWEEPING - DO NOT SWEEP WITH TRIMMER (Fig. 4-2E)

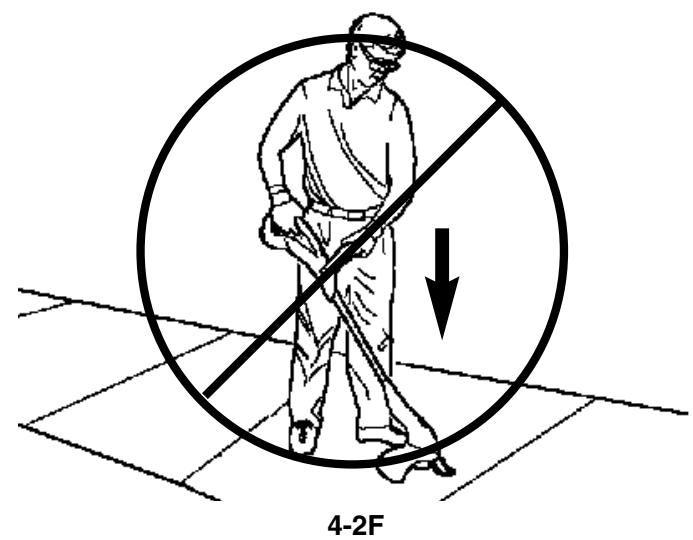

3. DO NOT BUMP TRIMMER ON CONCRETE. This can damage the stringhead (Figure 4-2F).

4-2E

5 - MAINTENANCE INSTRUCTIONS

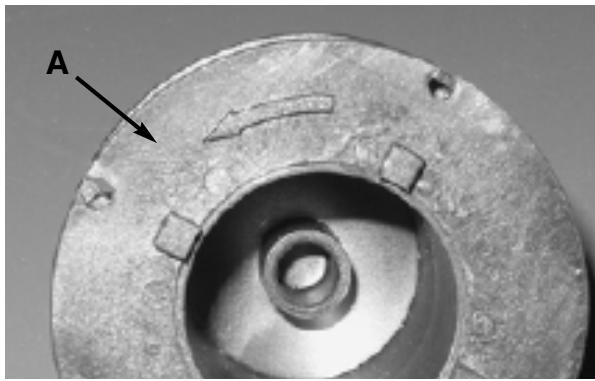

5-1. REPLACE THE SPOOL OF NYLON LINE

1. Unplug the trimmer.

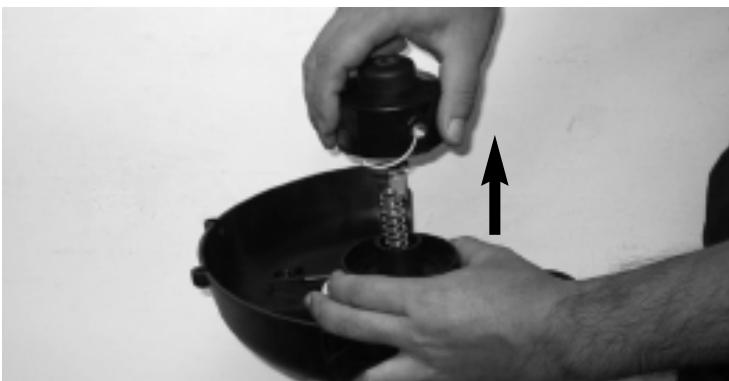

2. Remove the spool assembly from the trimmer. To do so, hold the outer ribbed part of the assembly with one hand, while pushing down and turning the spool head with the other to unlock it. (Fig. 5-1A & Fig. 5-1B) The spool carrier and spool will now disassemble easily.

NOTE: There is a spring inside the spool head that could easily be lost. Insure that it is put in a safe place.

5-1A

5-1B

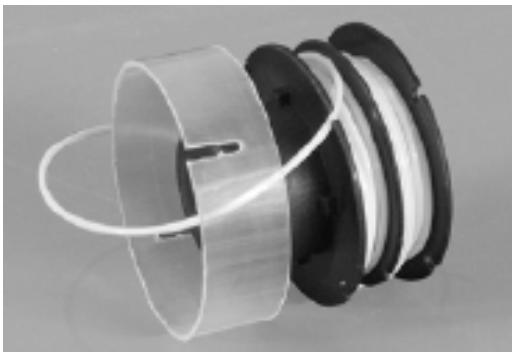

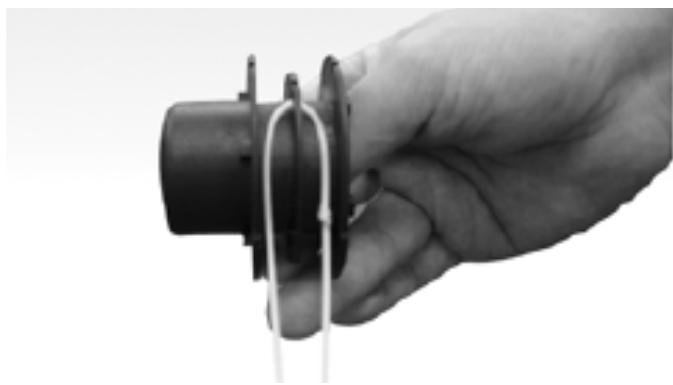

1. Remove the clear plastic line retaining ring. Remove any existing line from the spool.
2. Using 0.065'' replacement line measure off approximately 14' of line. Double over the cutter line into two equal lengths and place loop in slot of the spool divider (Fig. 5-1C).

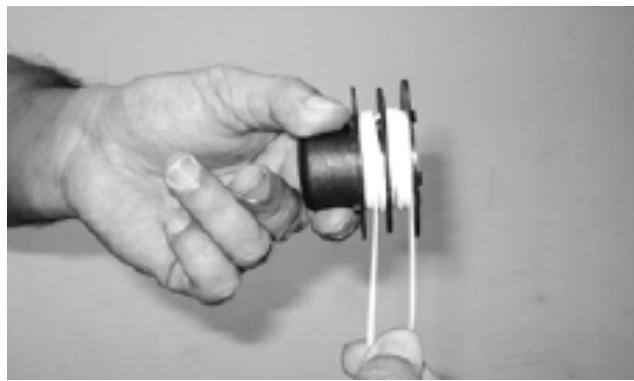

3. Wind the line onto the spool by turning the spool. The line should go on in the direction of the arrow (A) on the spool (Fig. 5-1D). Line should be wrapped tightly around the spool. The line is wound with each half separated by the divider. Tightly wind it until there is about 6'' of line left (Fig. 5-1E).

5-1C

5-1D

5-1E

5 - MAINTENANCE INSTRUCTIONS

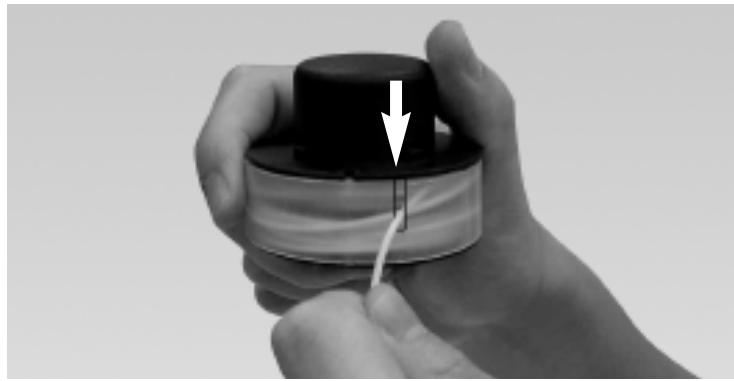

1. Lock the ends of the line in opposite slots on the spool (Fig. 5-1F). Place the clear plastic line retainer back over the line and spool (Fig. 5-1G). Pull the lower line up into the lower slot in the clear plastic line retainer (Fig. 5-1H). Pull the upper line down into the upper slot (Fig. 5-1I).

5-1F

5-1G

5-1H

5-11

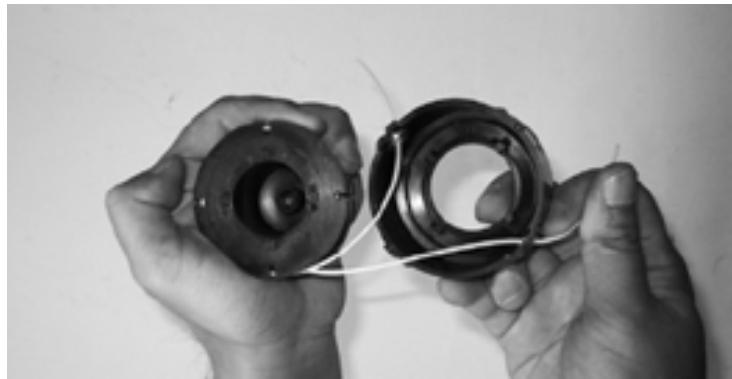

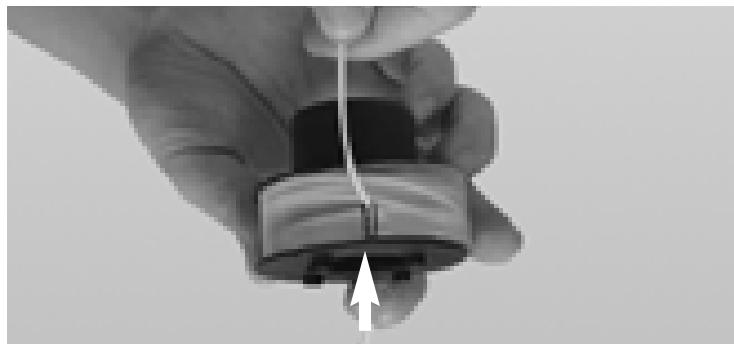

1. Insert the line through each eyelet in the spool carrier and slide the spool into the carrier. (Fig. 5-1J)
   NOTE: Insure that the line is within the clear plastic line retainer. If it's outside of the clear plastic line retainer, the line will not feed.

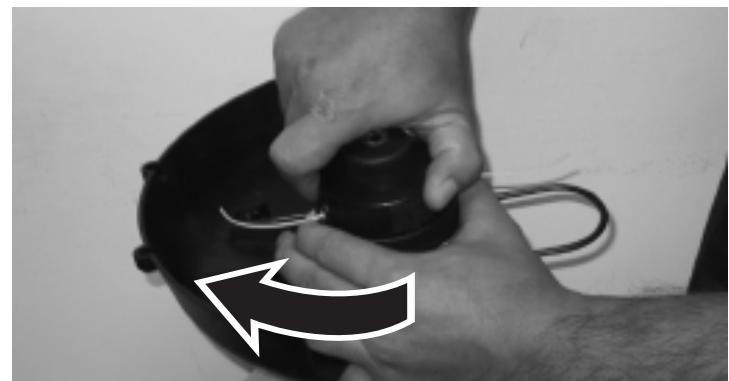

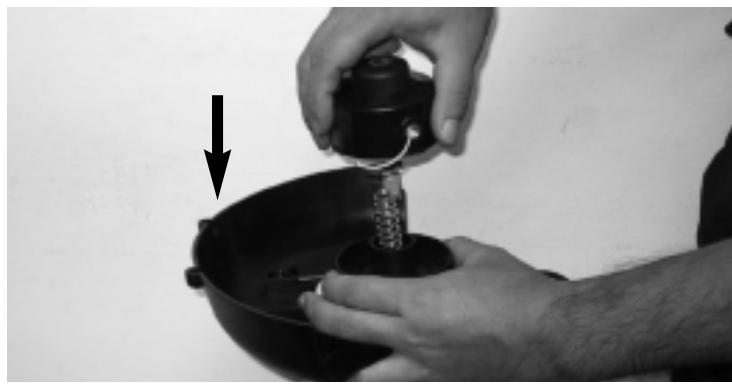

2. Make sure to insert the spring, assemble the spool and spool carrier back onto the trimmer. To do so, push the head on and turn it clockwise until it locks. (Fig. 5-1K and Fig. L)

5-1J

5-1K

5-1L

5 - MAINTENANCE INSTRUCTIONS

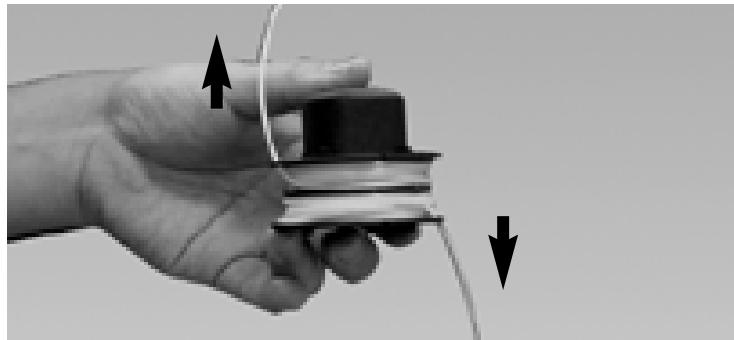

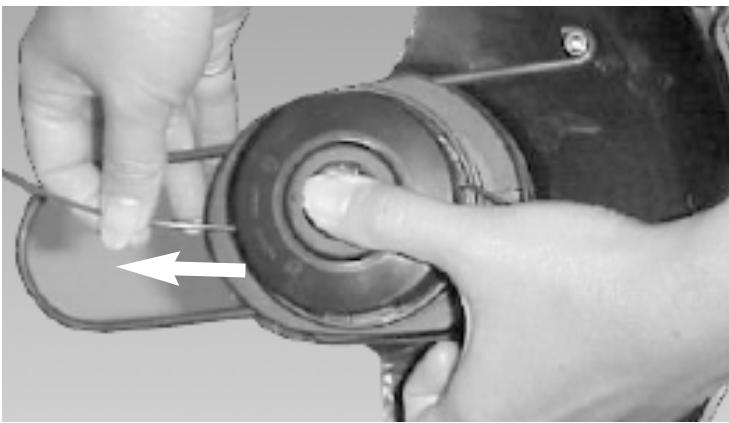

1. To test if the line is advancing properly, push the button with your thumb while pulling the line with your fingers. The line should advance freely. (Fig. 5-1M).
2. In the event of the line breaking inside the spool, repeat the replacement operation.
3. Start the grass trimmer following the instructions in the "STARTING" section.

5-1M

5-2. MAINTENANCE

WARNING

Before carrying out any maintenance operations, disconnect the electric power supply by disconnecting the plug from the extension cable.

1. Regular cleaning and maintenance of your string trimmer will ensure efficiency and prolong the life of your machine.
2. After each cutting operation, take apart and clean out the grass and soil from: the spool and its slot and in particular the debris shield.
3. During operation, keep the air slots clean and free of grass.
4. Only use a cloth soaked with hot water and a soft brush to clean the string trimmer.
5. Do not spray or wet the trimmer with water.
6. Do not use detergents or solvents as these could ruin the trimmer. The parts made of plastic can easily be damaged by chemical agents.

6 - ONE YEAR LIMITED WARRANTY

1. DURATION

The duration of the warranty for this McCulloch product is as follows: ONE (1) YEAR from date of original purchase only when used for personal, family, household, farm or ranch, purposes, provided the unit is not used for rental purposes; NINETY (90) DAYS from date of original purchase when used for commercial, professional, institutional or rental purposes. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. MCCulloCH CORPORATION HEREBY DISCLAIMS ALL IMPLIED WARRANTY AFTER THE APPLICABLE EXPIRATION DATES OF THIS EXPRESS LIMITED WARRANTY. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.)

2. WHO GIVES THIS WARRANTY

McCulloch U.S.A 1-800-521-8559

10715 Springdale Avenue, Unit 2, Santa Fe Springs, CA 90670 USA

3. WHO RECEIVES THIS WARRANTY

A. The buyer (other than for purposes of resale) of the McCulloch Product.
B. Any person to whom such product is lawfully transferred within the duration of the implied or written warranty applicable to the product.
C. Any other person who is entitled by the terms of the warranty or under applicable state law to enforce against the Warrantor the obligation of the warranty. (The above mentioned parties are hereinafter referred to as "User.")

4. WHAT IS COVERED UNDER THIS WARRANTY

Any failure that occurs within the applicable duration of the warranty period that is the result of defects in materials or workmanship.

5. WHAT IS NOT COVERED UNDER THIS WARRANTY

A. Any incidental or consequential damages that may result from the failure or malfunction of the McCulloch product. (Some states do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you.)
B. Any failure that results from an accident, User abuse, neglect or failure to operate the product in accordance with the instructions provided in the User Manual(s) supplied with the product, or that results from improper servicing by an unauthorized repair facility.
C. Normal adjustments which are explained in the User Manual(s) provided with the product.
D. Any component(s) or accessories not sold or manufactured by the Warrantor.
E. Predelivery setup or assembly of units.
F. This warranty does not apply to accessories, normal maintenance or adjustment(s) of the product set forth in the User Manual(s).

6. RESPONSIBILITIES OF THE WARRANTYER UNDER THIS WARRANTY

A. Repair or replace components which have failed within the duration of the applicable warranty period at no cost to the User.
B. Ensure that the authorized repair station is reimbursed for parts and labor costs incurred due to performance of a warranty repair in accordance with established warranty policies and procedures.

7. RESPONSIBILITIES OF THE USER UNDER THIS WARRANTY

A. The User must deliver or ship the McCulloch product covered under this warranty to the dealer from whom it was originally purchased or to the nearest Authorized Service Center. Proof of purchase is required.
B. Freight costs, if any, will be borne by the user.
C. Use reasonable care in maintenance, operations and storage of the product as explained in the User Manual(s).

8. WHEN WARRANTYOR WILL PERFORM OBLIGATION UNDER THIS WARRANTY

A. Repair of warrantable products will be scheduled according to the normal work flow at the servicing location, depending on the availability of replacement parts.
B. Repair time which exceeds ten (10) days from the time the product was delivered to the servicing agent will extend the warranty coverage by the number of days the product remains inoperable.
C. If User does not receive satisfactory results from local servicing outlet, User must contact McCulloch Corporation, by calling our toll-free telephone number.
