ICM-880T - Coffee maker Imarflex - Free user manual and instructions

Product Type	Coffee Maker
Brand	Imarflex
Model	ICM-880T
Rated Voltage	230 V a.c. ~ 60 Hz
Power Consumption	900 W (estimated)
Color	Black and Silver
Display	LCD (24-hour clock)
Control Type	Push buttons (ON/OFF, PROG, HOUR, MIN)
Capacity (Cups)	12 cups (estimated)
Water Tank Capacity	1.5 L (estimated)
Carafe Material	Glass
Carafe Capacity	1.5 L (estimated)
Filter Type	Basket filter (reusable)
Functions	Automatic start timer, keep warm, programmable timer
Safety Features	Do not immerse; use on flat surface; replace damaged cord
Cleaning	Descaling with vinegar; wash filter basket and carafe with mild detergent
Included Accessories	Measuring scoop
Dimensions (Approx.)	25 x 20 x 30 cm (estimated)
Weight (Approx.)	2 kg (estimated)

Frequently Asked Questions - ICM-880T Imarflex

How do I set the automatic start time?

To set the automatic start time, press PROG once to set the current time using HOUR and MIN, then press PROG again to set the delayed start time. Finally, press ON/OFF twice to activate the blue flashing indicator. The coffee maker will start at the set time.

How should I clean the coffee maker?

For the water tank, pour one pint of vinegar, let it sit for 30 minutes, then run a brew cycle. Rinse thoroughly. For the filter basket and carafe, wash with mild detergent and water. Never use abrasive materials.

Can I use the coffee maker without a filter?

No, you must use the filter basket and filter holder with brewed/ground coffee. Without a filter, coffee grounds may enter the carafe and damage the unit.

What should I do if the carafe is empty during operation?

Always turn off the unit if the carafe is empty to prevent overheating. Do not run the coffee maker without water or an empty carafe.

How do I reset the clock?

The clock resets to 12:00 when you plug in the unit. To set it, press PROG and use HOUR and MIN to adjust the time.

Is this coffee maker suitable for business use?

No, it is intended for household use only and not for business purposes.

Can children operate this appliance?

This appliance is not intended for use by children or persons with reduced capabilities unless supervised. Children should be supervised to ensure they do not play with the appliance.

How do I descale the water tank?

Fill the water tank with one pint of vinegar, let it sit for at least 30 minutes, then run a brewing cycle. Empty and rinse the carafe, then run a cycle with fresh water.

What type of coffee grounds should I use?

Use brewed/ground coffee suitable for drip coffee makers. Adjust the amount according to personal taste using the measuring scoop.

How to clean the carafe to remove stains?

Fill the carafe with water and mild soap and let it sit overnight. Then rinse thoroughly. Do not use abrasive materials to avoid scratches.

USER MANUAL ICM-880T Imarflex

COFFEE MAKER

コーヒーメーカー

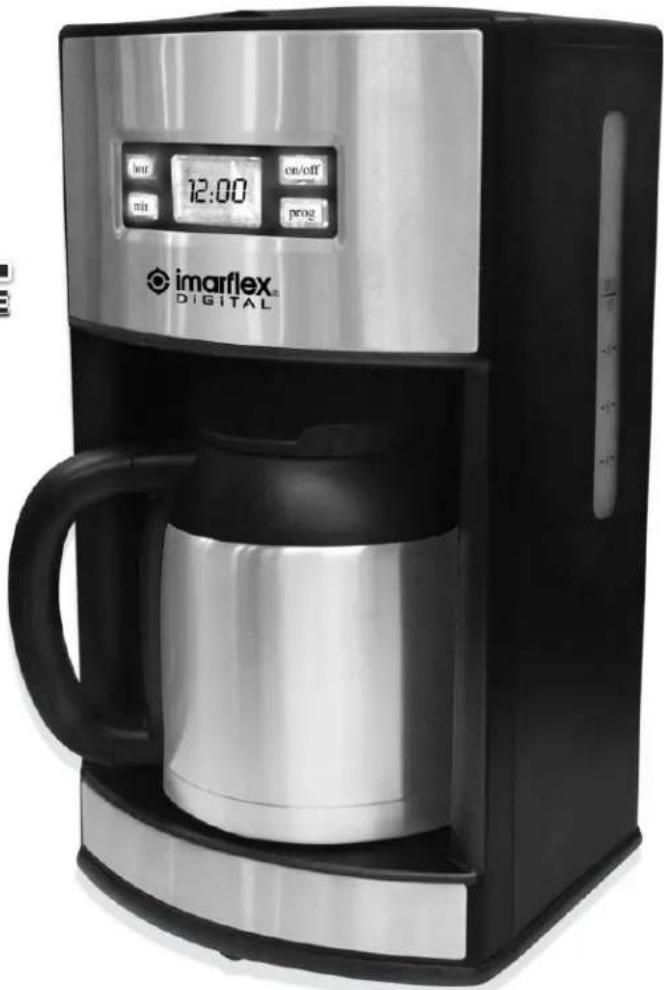

Black and silver image of a imarflex digital coffee maker with a glass mug, showing its design, control buttons, and display time (no readable text beyond branding)

imarflex®

In Every Home.

www.imarflex.com

ICM-880T

SPECIFICATION

MODEL NO : ICM-880T

RATED VOLTAGE : 230Va.c. \~ 60Hz

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230V).
3. Do not use two-way socket with another appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface, keep it away from the edge of counter to avoid accidents.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with the appliance.
9. Do not allow the cord to touch the hot surface of the unit.
10. To protect against electric shock, do not immerse the unit in water.
11. Avoid placing the carafé on wet or cold surface.
12. Do not use the carafé if it is damaged or the handle is not stable.
13. Be sure that the cover is in its proper place before use.
14. Do not use the unit outdoors.
15. Do not use this unit other than its intended function.
16. For household use only, not intended for any business purposes.
17. Save this instruction for future reference.

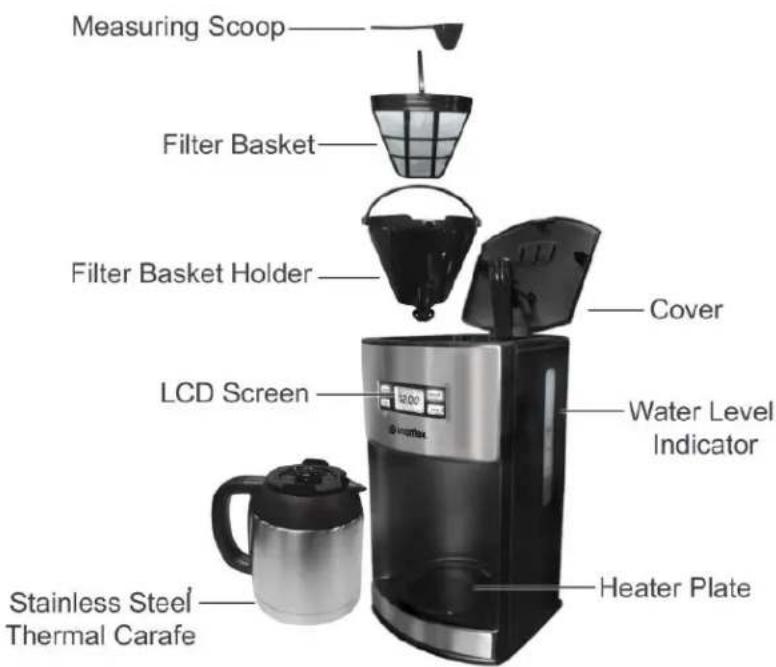

DESCRIPTION OF PARTS

HOW TO USE

1. For initial use, wash filter basket, filter holder and the carafé thoroughly.
2. Plug the unit into a convenience outlet. The LCD screen will display "12:00".

NOTE: The time cycle is 24 hours

1. Open the cover, pour the desired amount of water into the water tank.
2. Put the filter basket into the filter holder.
3. For each cup of coffee, put brewed/ground coffee into the filter basket using the measuring scoop. Adjust amount of coffee according to personal taste. Close the lid cover.
4. Place the carafé into the heater plate.
5. Press the ON/OFF button, the indicator light will be illuminated red. The brewing process will start.
6. To keep the coffee hot, leave the carafé in the heater plate.

NOTE: Always turn off the unit if the carafé is empty.

AUTOMATIC START FUNCTION

If you don't want the coffee maker to start operation immediately, for example now it is 5:10pm, you want that the coffee maker will automatically start at 8:15 in the evening, first follow steps 1 to 6 of above selection, then you can set the automatic start function as follows.

Fig. 1

Fig. 2

1. Press PROG button one time, the word CLOCK is showed at the upper-right corner of the LCD screen.
2. Press the HOUR and MIN button continuously to set the present time (real clock), that is 17:10 (See fig.1).
3. Press PROG button once again and the word TIMER shows on upper-left corner of the display.
4. Set the delayed starting time by pressing HOUR and MIN button repetitively, that is 20:15 (See fig.2).
5. Press the on/off button twice, the indicator light will illuminate blue and flash.
6. When the delayed starting time is reached (20:15) the indicator light will be illuminated red and the brewing process will start.

The LCD will display the current clock. You may see the automatic start time by pressing PROG.

CLEANING AND MAINTENANCE

How to clean the Water Tank:

1. Pour water on the water tank with one-pint vinegar.
2. Put the carafé into the hot plate.
3. Allow the vinegar inside the water tank for at least 30 minutes. Press ON/OFF button. The water will flow into the carafé.
4. Empty the carafé and rinse it thoroughly.
5. Pour water on the water tank and repeat the brewing cycle.
6. To Turn Off the unit, Press ON/OFF button (2) two times.
7. Wash the carafe once more.

How to clean the Filter Basket, Filter Holder:

1. Allow the unit to cool before cleaning.
2. Do not use abrasive materials to avoid scratches.
3. Wash the filter basket and filter holder with soap and water.

How to clean the Carafé:

1. Always make sure that the Carafé is cool before cleaning.
2. Wash the carafé using a mild detergent.
3. To remove stains, fill carafé with water and mild soap, allow these inside the carafé overnight.
4. Do not use abrasive materials to avoid scratches.
5. Rinse the carafé thoroughly.

NOTE: Before cleaning, always unplug the unit from the convenience outlet. Do not pour left over brewed coffee in the water tank for re-heating, this will damage the heater.

REMINDER: Please do not forget to fill up and send the warranty
