EHD 500 E - Drill Power Craft - Free user manual and instructions

Product Type	Drill
Brand	Power Craft
Model	EHD 500 E
Power Input	500 W
Voltage	230 V ~ 50 Hz
No-Load Speed	0 - 3000 RPM (variable)
Chuck Type	Keyless, 13 mm capacity
Max Drilling Diameter in Wood	25 mm
Max Drilling Diameter in Steel	13 mm
Weight	1.5 kg
Dimensions (L x W x H)	250 x 200 x 70 mm
Cord Length	2 m
Included Accessories	Side handle, depth stop, chuck key
Safety Features	Double insulated, lock-on button
Maintenance	Keep ventilation slots clean; replace carbon brushes when worn
Spare Parts Availability	Carbon brushes, chuck, switch repair kits
Warranty	2 years (subject to conditions)

Frequently Asked Questions - EHD 500 E Power Craft

How do I change the drill bit on the Power Craft EHD 500 E?

To change the bit, first unplug the drill. Open the keyless chuck by rotating it counterclockwise, insert the bit, and tighten clockwise. If the chuck is stuck, use the included chuck key for extra leverage.

What is the maximum drilling capacity of this drill?

The Power Craft EHD 500 E can drill up to 25 mm in wood and 13 mm in steel. Use appropriate bits and speeds for material.

Can this drill be used for screwdriving?

Yes, with a screwdriver bit holder. Set the torque clutch to avoid over-tightening. The variable speed trigger helps control driving.

How do I adjust the speed?

The speed is controlled by the trigger pressure. For more control, use the variable speed function. There is no separate speed selector; it's fully variable from 0 to 3000 RPM.

Is the Power Craft EHD 500 E hammer drill?

No, this model is a standard drill without hammer function. It is suitable for drilling into wood, metal, and plastic, not masonry.

What safety precautions should I take?

Always wear safety goggles. Keep the cord away from cutting edges. Use the side handle for stability. Disconnect power when changing bits. Do not use in wet conditions.

How do I maintain the drill?

Regularly clean the ventilation slots with a brush. Check carbon brushes every 50 hours of use; replace if shorter than 6 mm. Lubricate the chuck occasionally.

Where can I buy spare parts?

Spare parts such as carbon brushes, chuck, and switch are available from authorized Power Craft service centers or online retailers. Use original parts for safety.

What does the warranty cover?

The warranty covers manufacturing defects for 2 years from purchase. It does not cover wear parts like brushes or damage from misuse. Keep your receipt.

Can I use the drill with an extension cord?

Yes, but use a heavy-duty extension cord rated for at least 10 A and keep it fully uncoiled to avoid overheating. Ensure the cord is suitable for outdoor use if necessary.

USER MANUAL EHD 500 E Power Craft

Operating Instructions Impact Drill

POWER CRAFT®

CE

Art.-No.: 42.589.66

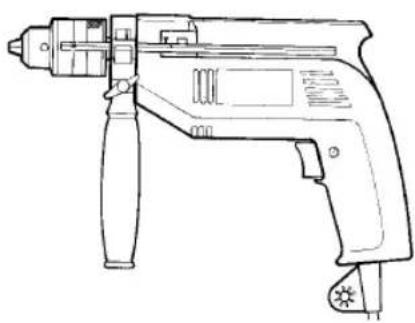

Line drawing of a manual drill bit with handle and screwdriver (no text or symbols)

EHD 500 E

GB Important: Read and note the operating instructions and safety regulations before using!

GBPlease pull out page 2

GB Contents: Page

Description 3 / 4

General safety regulations and accident prevention 4

Operating instructions for electric hammer drills 5

EC conformity declaration 6

Warranty certificate 7

1

GB

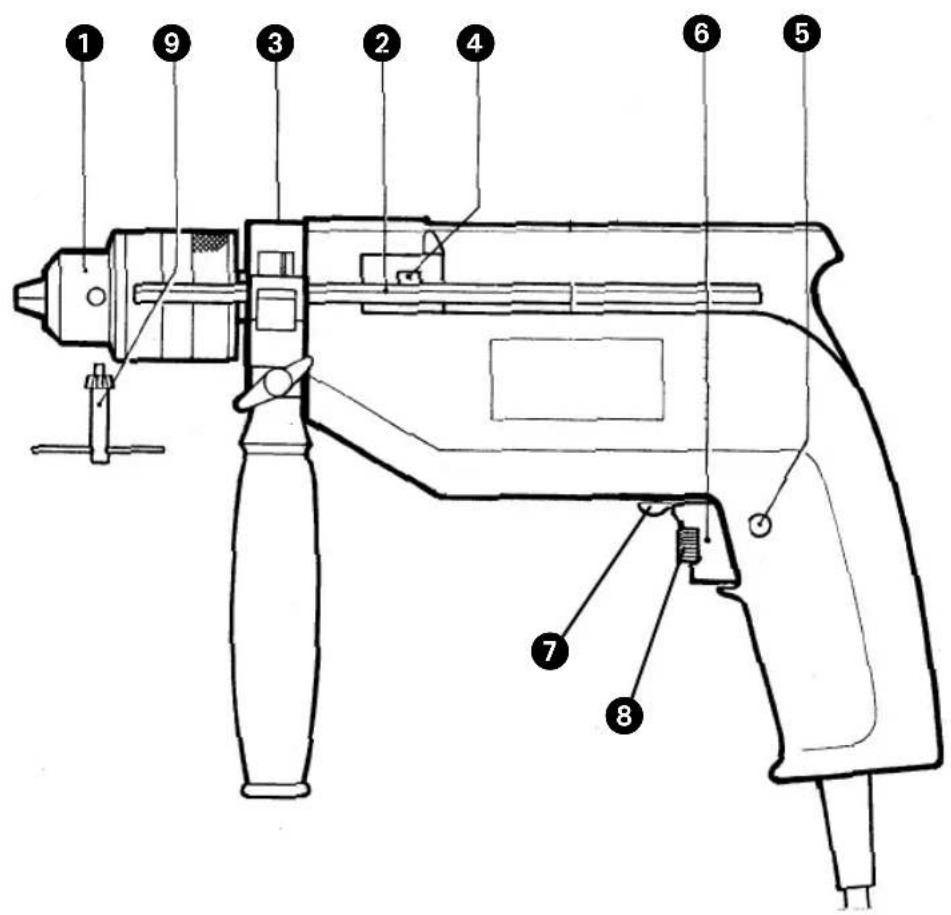

Description

1 Sprocket chuck
2 Drilling depth stop
3 Supplementary grip
4 Drill/Hammer drill selector switch
5 Locking button
6 ON/OFF switch
7 Selector button: clockwise/anticlockwise
8 Speed control
9 Chuck key

General safety regulations and accident prevention

To ensure the accident-free and safe operation of this tool, please read and observe these safety regulations and operating instructions.

●Before each use, check the appliance, the power cable and the plug. Use only when the appliance is in perfect working order and undamaged. Any damaged parts must be replaced immediately by a qualified electrician.
●Always remove the plug from the socket before doing any work on the machine, before each tool change and whenever the drill is not in use.
●To prevent damage to the power cable, always ensure that the power cable trails behind the machine.
- When working outdoors, use only an extension lead designed for this purpose. The extension lead used must have a minimum cross section of 1.5 ~mm^2 . The plug connection must be properly earthed and water-proof.
- Keep tools safe and away from children.
- When grinding, brushing and splitting, always wear safety goggles, protective gloves and ear defenders. Wear a mask for work which generates dust.
●Never leave the tool key in the machine. Before switching on, make sure the key and adjustment tools have been removed.
●Make sure the workpiece to be drilled cannot slip (clamp it).
- Use a dust extractor when working with stone (splitting and grinding). The dust extractor must be suitable for the extraction of stone dust.
●Do not work on asbestos-containing materials.

Observe the professional association's relevant accident prevention regulations (VBG 116).

●Fire risk! When splitting and grinding materials, make sure there are no combustible materials within range of the sparks.
●Use only original spare parts.
●Repairs must be performed only by qualified electricians.
●Noise levels at the place of work should not exceed 85 db (A), in which case the operator will need ear defenders. The noise produced by this electric tool has been measured according to IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (34/537/EC).
●Make sure you have a firm footing and avoid any abnormal postures.
- Do not expose your electric tool to rain. Do not use electric tools in a wet or damp environment or in the vicinity of combustible liquids.
- Do not carry the electric tool by the power cable. Protect the cable from damage caused by oil, solvents and sharp edges. Never carry the electric tool by the power cable.
- Keep your working area tidy.
●Make sure the ON/OFF switch is off before plugging in the drill.
●Wear suitable work clothes. Do not wear loose-fitting clothes or jewellery. If you have long hair, wear a hair net.
●In the interests of your own safety, use only accessories made by the same manufacturer.
- Take account of the drill's reaction moment, especially when the drill bit seizes.
●Vibration measured in the handle according ISO 5349.

GB

Operating Instructions for the Impact Drill EHD 500 E

Use only sharp bits and use your machine carefully.

STARTING UP

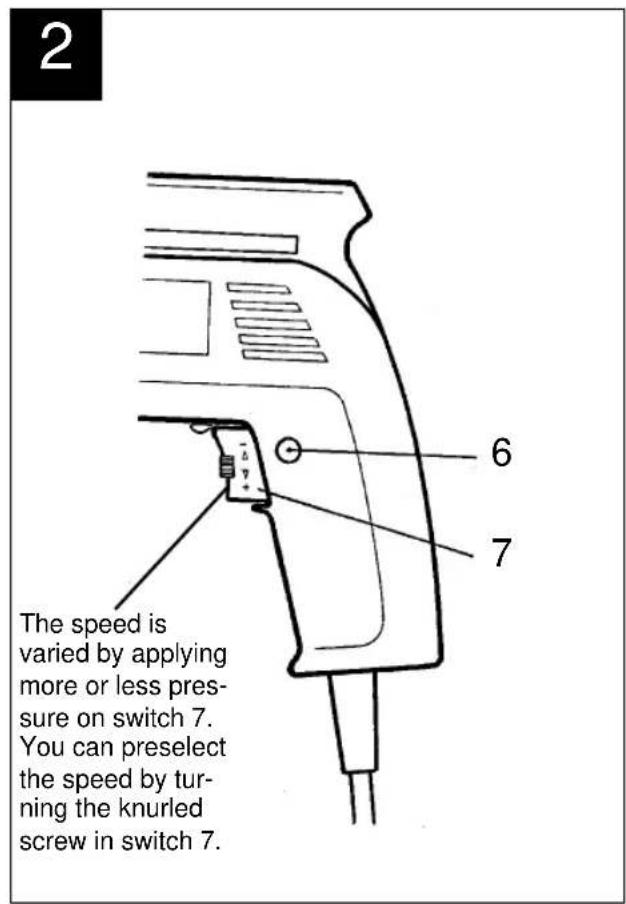

Momentary operation (Fig. 2)

Switch on: Press ON/OFF switch 7

Switch off: Release ON/OFF switch 7

Continuous operation (Fig. 2)

Switch on: Press ON/OFF switch 7 and lock in

place with the locking button 6

Switch off: Press and release ON/OFF switch 7

drill, push switch 4 to the „hammer“ symbol on the right. The hammer drill function is for drilling in masonry, concrete and stone.

TECHNICAL DATA:

Voltage: 230 V 50 Hz
Power rating: 500 W
Chucking range: 1.5 mm dia. - 13 mm
Speed: max. 2800 rpm
Sound pressure level LPA: 93 db (A)
Power level LWA: 103 db (A)
Vibration _w	10 m/s ^2
Weight 2 kg
Totally insulated

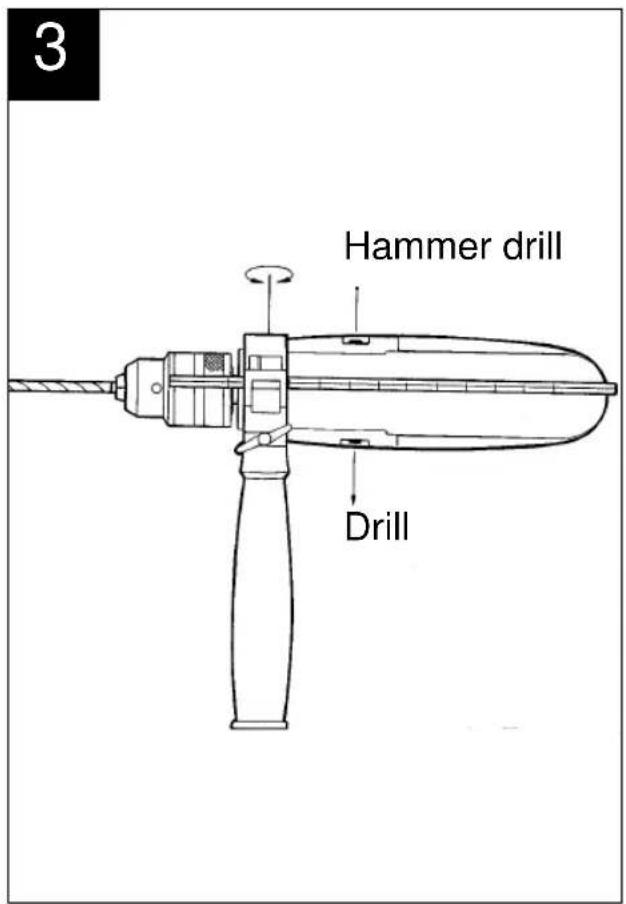

Drill/Hammer drill selector switch (Fig. 3)

You can change from drilling to hammer-drilling using the selector switch 4. To drill, push the selector switch 4 to the „drill“ symbol on the left. To hammer-

GB	FIN	N	GR	I	DK
EC Declaration of ConformityThe Undersigned declares, on behalf of	EC YhdenmukaisuusilmoitusAllekirjoittanut ilmoittaa yhtiön	EC KonfirmitetserklæringUndertegnede erklærer på vegne av firma	EC Δήλωση περι της ανταπόκρισηςΟ υπγράφων δηλώνει εν ονόματι τησ εταιρίασ	Dichiarazione di conformità CEIl sottoscritto dichiara in nome della ditta	EC Overensstemmelses-erklæringUndertegnede erklærer på vegne af firmaet
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
that the	nimissä että	at	óτι η	che la	at
Machine / Product	kone/tuote	Maskin/produkt	μηχανή / το προϊόν	macchina/prodotto	maskine/produkt
Impact Drill	Sähköporakone	Elektrisk slagboremaskin	Ηλεκτρικό κρουστικό τρυπάνι	Trapano elettrico	Elektrisk slagboremaskine
produced by:	merkki	Merke	υάρκα	marca	mærke
CRAFT
Type	tyyppi	Type	túπος	tipo	type
EHD 500 E
is in accordance with theEC Directive regarding machinery 89/392 EEC, as amended;EC Directive regarding low-voltage equipment 73/23 EEC;EC Directive regarding electromagnetic compatibility 89/336 EEC, as amended.	vastaaEU-konedirektiivik (johon on tehty muutoksia) 89/392/EWGEU-pienjänitedirektiiviä 73/23 EWGEU-direktiiviä 89/336 EWG (johon on tehty muutoksia) ja joka koskee sähkömagn-eettista mukautuvuutta (EMI)	tilfredsstiller følgende retningslinjer:EU Maskinretningslinje 89/392/ EWG med endringerEU Lavspennings-retningslinje 73 / 23 EWGEU Ratningslinje for elektromagnetisk kompatibilitet 89/336 EWG med endringer,	avtanokpívetai στηνκατευθυντήρια γραμμή τησ Ευρωπακήσο Κοινότητασ 89/392/ EOK με αλλαγέκατευθυντήρια γραμμή χαμηλήσ τάσεωσ τησ Ευρωπακήσο Κοινότητασ 73/ 23/ EOKκατευθυντήρια γραμμή ηλεκτροναγνητικήσανεκτικότητασ τησ Ευρωπακήσο Κοινότητασ 89/ 336/ EOK με αλλαγέσ.	corrispondeαlla Direttiva CE sullemacchine 89/392/CEE conmodificheαlla Direttiva CE sulla bassa tensione 73/23 CEEαlla Direttiva CE sulla compatibilità elettromagnetica 89/336 CEE conmodificheCEE con modificaciones.	opfylderEU-maskindirektiv89/392/EØF med ændringerEU-lavspændingsdirektiv73/23/EØFEU-direktiv vedr.elektromagnetisk stoj (EMC)89/336/EØF med ændringer.
EN 50144-1 EN 50144-2-1 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3
Landau/Isar, (date)04.07.2000PflaumProdukt-Management	Landau/Isar04.07.2000PflaumProdukt-Management	Landau/Isar, den04.07.2000PflaumProdukt-Management	Landau/Isar, στιο04.07.2000Pflaum	Landau/Isar,"04.07.2000PflaumProdukt-Managements	Landau/Isar, den04.07.2000PflaumProdukt-Managements
Achivierung / For archives: BSM - 0644 - 26 - 4141800-E

GB WARRANTY CERTIFICATE

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts and necessary repair work are free of charge.

We do not assume responsibility for consequential damage. Your statutory rights are not affected.

Your customer service partner

Service UK:

GB Einhell UK Ltd

Brook House, Brookway

North Chesire Trading Estate

Prenton, Wirral, Chesire

CH 43 3DS

Tel. [phone], Fax [phone]

Technical specification subject to change

EH07/00
