USER MANUAL PDM 600 Power Craft

GB Operating Instructions Electronic Hammer Drill

POWER CRAFT®

CE

Art.-Nr.: 42.586.45

Line drawing of a manual pusher with handle and base (no text or symbols)

PDM 600

Please read the operating instructions meticulously and pay particular attention to the safety instructions.

Keep the operating instructions together with the drill.

Scope of delivery package

PDM 600,

Self-centering chuck

1.5 - 13 mm,

Additional grip with bit stop

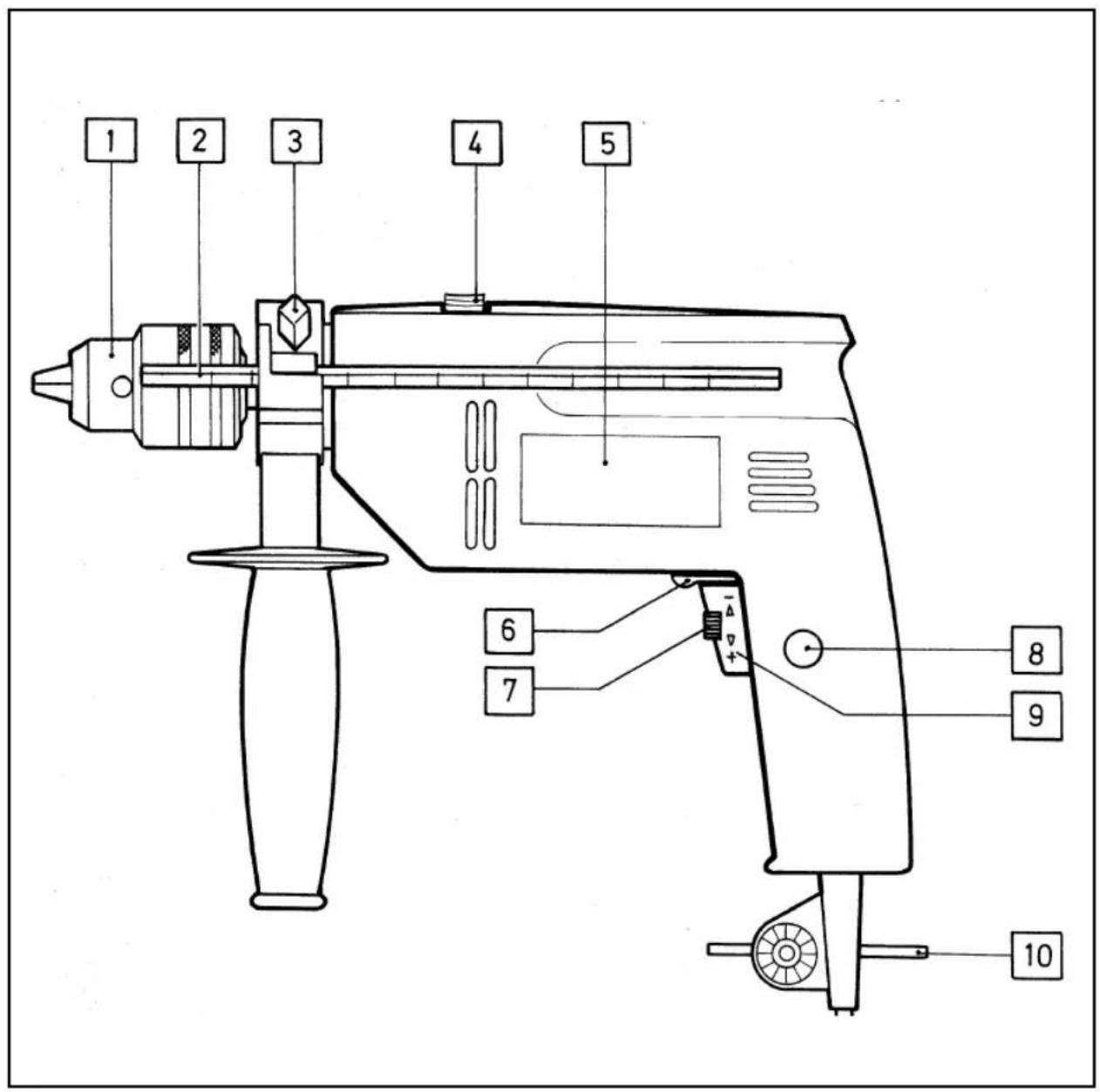

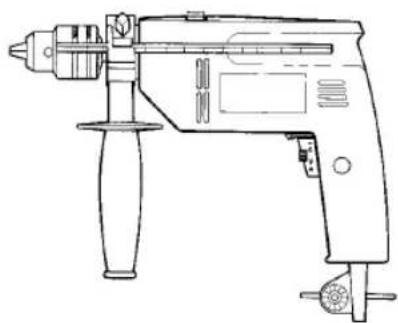

Description

1 Scroll chuck

2 Depth stop

3 Additional handle

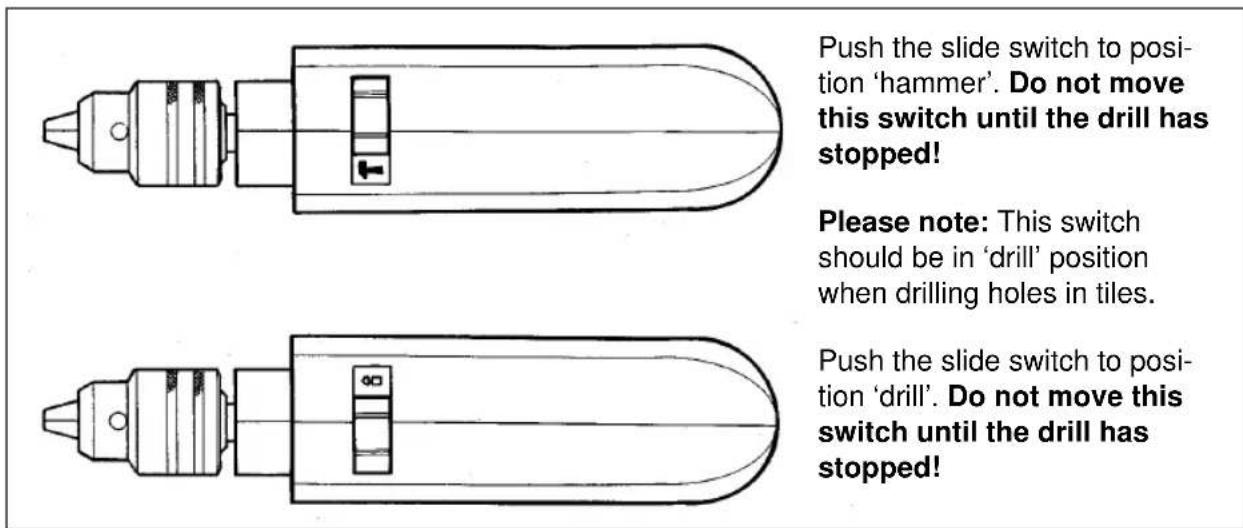

4 Selector button: drill/hammer

5 Rating plate

6 Selector button: clockwise/anticlockwise

7 Speed control

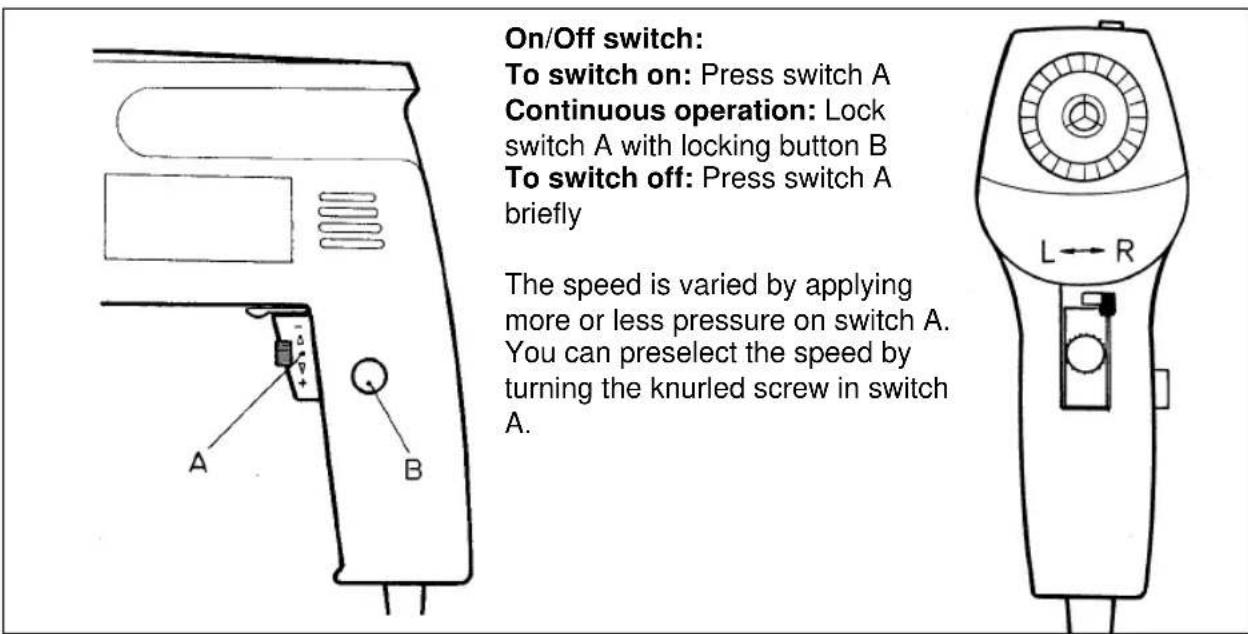

8 Locking button

9 On/Off switch

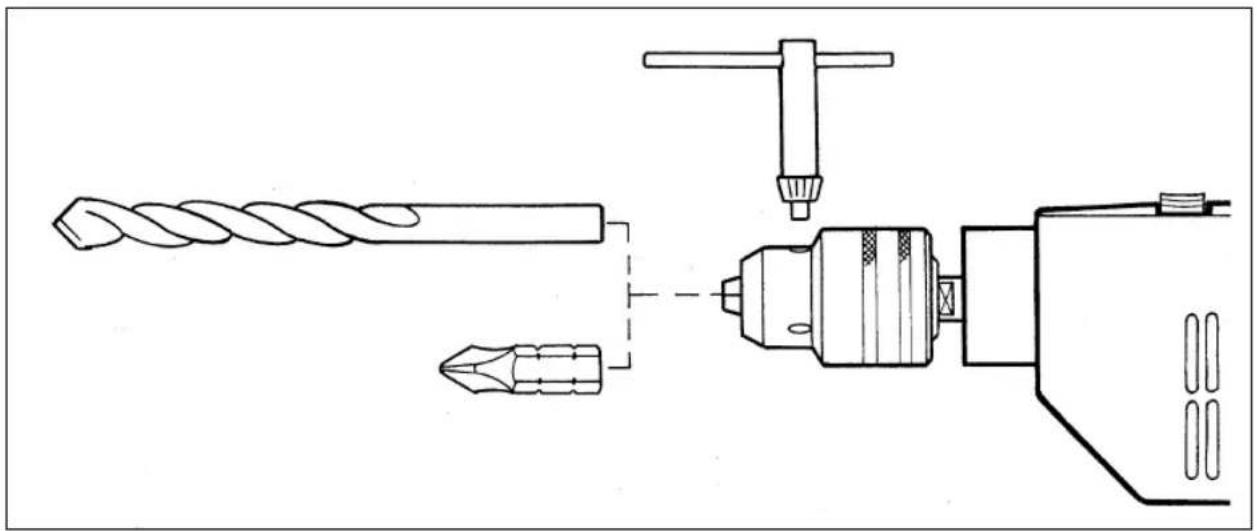

10 Chuck key

Technical Data

Voltage 230 V

Power 500 Watt

input:

Drilling Concrete 16 mm

capacity: Steel 13 mm

Wood 25 mm

Load

speed: 0-2200 min

Number of

blows: 0-27.000 min

Sound pressure

level LPA 82 dB(A)

Sound power

level LWA 92.6 dB(A)

Radio suppressed in accordance with EC Guidelines 89/336/EEC

Caution

●The PDM 600 is not designed for the operating of auxiliary devices.

●Do not use near steams or inflammable liquids.

●Only use sharp bits and suitable screwing bits.

- Remove the plug from the socket for all adjusting and cleaning work.

●Protect the mains cable against any damage. Oil and acids can damage the cable.

●Do not carry the device by the mains cable.

- Do not remove the plug from the socket by pulling the mains cable.

●Make sure before inserting the plug that the operating switch is not locked.

- When using a cable drum uncoil the cable completely. Cross-section of wire at least 1,5 mm ^2 .

●Do not overload machine.

- Secure all workpieces to be processed sufficiently.

●Do not allow children to have access.

●Make sure you have a secure stance on ladders or scaffolding when using the drill free-hand.

- Localise lines with a line detector in walls where power, water or gas lines are laid invisibly.

●Wear protection goggles and use a dust mask for dust-producing work.

●Always arrange for a qualified electrician to carry out repairs

●Use only original replacement parts

●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise generated by this electric tool was measured in accordance with ICE 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/537/EEC).

Maintenance

●Always keep the drill clean.

●Do not use corroding agents for cleaning plastic.

- Check carbon brushes in the case of excessive sparking.

- Keep ventilation channels free.

- If you discover any damage, you can define spare parts precisely on account of the exploded view drawing and parts list and place your request with our customer service.

Technical line drawing of a drill bit and drill press assembly (no text or labels)

D	GB	F	NL	E	P
EG KonformitätserklärungDer Unterzeichnende erklärt im Namen der Firma	EC Declaration of ConformityThe Undersigned declares, on behalf of	Déclaration de Conformité CELe soussigné déclare, au nom de	EC ConformiteitsverklaringDe onderlekenaar verklaart in naam van de firma	Declaracion CE de ConformidadPor la presente, el abajo firmante declara en nombre de la empresa	Declaração de conformidade CEO abaixo assinado declara em nome da empresa
ISC GmbH, International Service Center · Eschenstraße 6 · D-94405 Landau/Isar
daß die	that the	que	dat de	que el/la	que
Maschine/Produkt	Machine / Product	la machine / le produit	machine/produkt	máquina/producto	a máquina/o produto
Elektronik-Schlagbohrmaschine	Electronic Hammer Drill	Perceuse électronique à percusion	Elektronische klopboormachine	Taladradora percutora electrónica	Berbequim electrónico de percussão
Marke	produced by:	du fabricant	merk	marca	marca
CRAFT
Typ	Type	Type	type	tipo	tipo
PDM 600
– Seriennummer auf dem Produkt – der☑EG Maschinenrichtlinie89/392/EWG mit Änderungen☑EG Niederspannungs-richtlinie 73/23 EWG☑EG Richtlinie Elektromagnetische Verträglichkeit89/336 EWG mit Änderungen entspricht.	– Serial number specified on the product - is in accordance with the☑EC Directive regarding machinery 89/392 EEC, as amended;☑EC Directive regarding low-voltage equipment73/23 EEC;☑EC Directive regarding electromagnetic compatibility89/336 EEC, as amended.	– no. série indiqué sur le produit - correspond(ent) à la☑Directive CE relative aux machines 89/392 CEE avec les modifications y apportées;☑Directive CE relative aux basses tensions 73/23 CEE;☑Directive CE relative à la compatibilité électromagnétique 89/336 CEE avec les modifications y apportées.	– serienummer op het produkt-conform de volgenderichtlijnen is:☑EG machinerichtlijn89/392/EWG met wijzigingen☑EG laagspanningsrichtlijn73/23 EWG☑EG richtlijn Elektromagnetische compatibilititeit89/336 EWG met wijzigingen	– No. de serie en el producto: satisface las disposiciones pertinentes siguientes:☑Disposición de maquinaria de la CE 89/392/CEE con modificaciones☑Disposición de baja tensión de la CE 73/23 CEE☑Disposición de la compatibilidad electro-magnética de la CE 89/336 CEE con modificaciones.	– cujo número de série encontra-se no produto - corresponde à☑Directiva da CE de máquinas 89/392/CEE, com alterações☑Directiva da CE de baixa tensão 73/23 CEE☑Directiva da CE de compatibilidade electro-magnética 89/336 CEE, com alterações
HD 400.1; HD 400.2; EN 55014; EN 50082-1; EN 60555-2/4; EN 60555-3/4
Landau/Isar, den9. 04. 1996SchneiderProdukt-Management-L	Landau/Isar, (date)9. 04. 1996SchneiderHead of Product Management	Landau/Isar, (date)9. 04. 1996SchneiderDirection Gestion Produits	Landau/Isar, datum9. 04. 1996SchneiderHoofd produkt management	Landau/Isar9. 04. 1996SchneiderDirector de gestión productos	Landau/Isar9. 04. 1996SchneiderChefe da Gestão de Produtos

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

Service UK:

GB Einhell Marketing Sales & Service

15 Warwick House Ind. Park, Banbury Road,

Sautham, Warwickshire CV 33 OPS

Telephone: Southam [phone]

Facsimile: [phone]

Technical changes subject to change

wegm. 7/96
