USER MANUAL DVD-L300 SAMSUNG

ENGLISH Notices and Safety Instructions Notices and Safety Instructions ENGLISH Safety Instructions

SERVICE PERSONNEL. To prevent electric shock, match wide blade of plug to Wide slot and fully insert

. READ INSTRUCTIONS: All the safety and operating instructions should be read before the DVD is operated. RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference. HEED WARNINGS: All warnings on the DVD and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS:

Cal All operating and maintenance instructions should be followed.

CLEANING: Unplug this DVD from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth used for dusting cabinets. ATTACHMENTS: Do not use attachments not recommended by the DVD product manufacturer as they may be hazardous.

voltage within the products enclosure that may be of sufficient magnitude to constitute a j This symbol is intended to alert the user to the presence of uninsulated dangerous risk of fire or electric shock. This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product. WATER AND MOISTURE: Do not use this DVD near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake. . ACCESSORIES: Do not place this DVD on an unstable cart, stand, tripod, bracket or table. The DVD may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacture or sold with the DVD. Any mounting of the unit should follow the manufacturer’s instructions and should use à mounting accessory recommended by the manufacturer. À. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

(Symbol provided by RETAC)

VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the DVD and to protect it from overheating. These openings must not be blocked or covered. Never place your DVD on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This DVD should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. POWER SOURCES: The DVD should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. À DVD is intended to be operated from battery power, or other sources, refer to the operating instructions. . GROUNDING OR POLARIZATION: This DVD may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the DVD, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below. . LIGHTNING: For added protection of this DVD during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system This will prevent damage to the DVD due to lightning and power-line surges. . POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. . OVERLOADING: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

Notices and Safety Instructions Safety Information ENGLISH

OBJECTS AND LIQUIDS: Never push objects of any kind into this DVD through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the DVD. Should spillage occur, unplug unit and have it checked by a technician before use. . SERVICING: Do not attempt to service this DVD yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel . DAMAGE REQUIRING SERVICE: Unplug this DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions a. When the power-supply cord or plug is damaged. b. If any liquid has been spilled onto, or objects have fallen into the DVD. c. If the DVD has been exposed to rain or water. d. If the DVD does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the DVD to its normal operation. e. If the DVD has been dropped or the cabinet has been damaged. £. When the DVD exhibits a distinct change in performance, this indicates a need for service.

20. REPLACEMENT PARTS:

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

. SAFETY CHECK: Upon completion of any service or repairs to this DVD, ask the service technician to perform safety checks to determine that the DVD is in safe operating order. CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Copy Protection *+ Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. + This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Assuring the Finest Performance This product is designed with the latest technology to provide trouble-free operation. If the pick-up lens or disk drive gets dirty, the video quality will decrease. Moisture Condensation Condensation may form inside this player under following conditions: - If warm air comes in contact with any cold parts inside the player; - lfthe player is located in a room with high humidity; and + lfthe player is exposed to sudden temperature changes from cold to hot. When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational. Laser Safety Caution This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not look inside the product if interlock mechanism is damaged. Warning Be careful not to damage the interlock mechanism.

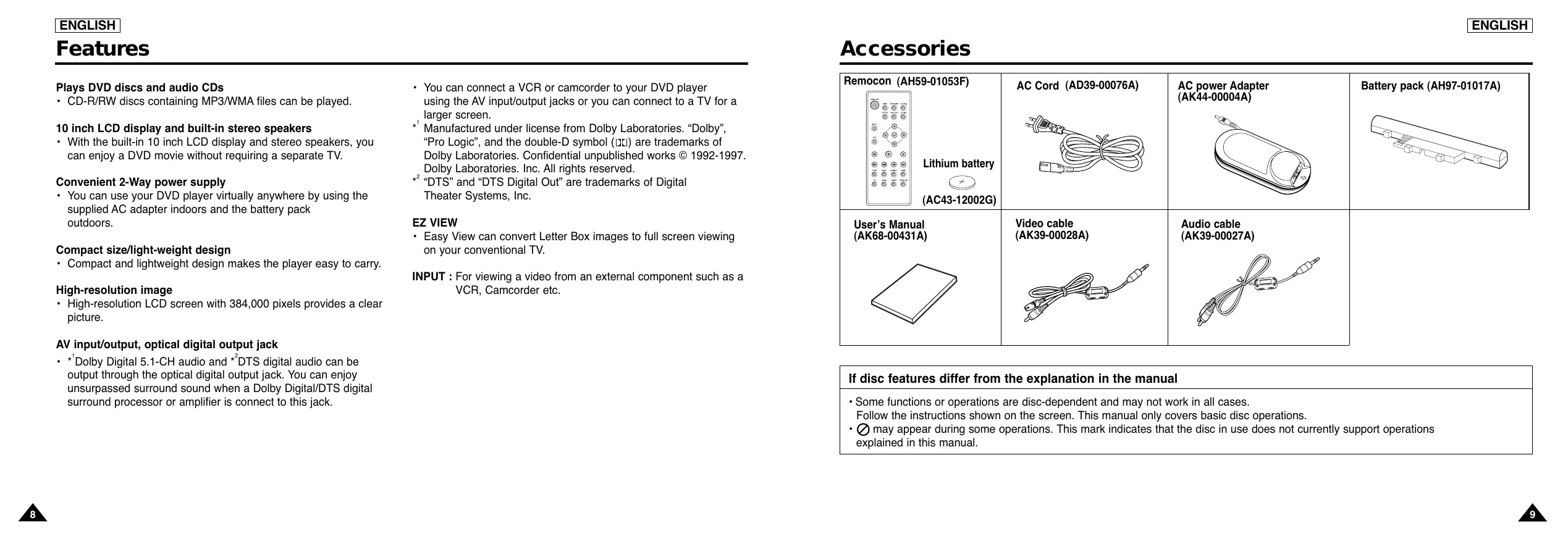

Table of Contents Setup Features --- Accessories - - Disc Type and Characteristics Description-Front Panel - - - -- Tour of the Remote Control - - Using the Remote Control Unit - Connections Connecting Headphones to the DVD Connecting to an External Component (Input Select) - Viewing a Video from an External Component - - Connecting to a TV - Connecting to a Stereo Component - Adapter directions Using the AC adapter - Using the battery pack - Battery level display - - + Basic Functions Playing a Disc Using the Search & Skip Functions - Using the Display Function - --- Using the Disc and Title Menu Using the Function Menu Repeat Play Table of Contents ENGLISH Advanced Functions Slow Repeat Play Adjusting the Aspect Ratio (EZ View) - - Selecting the Audio Language : - Selecting the Subtitle Language Changing the Camera Angle -- Using the Bookmark Function - - Using the Zoom & 3D Sound Functions - - Clips Menu for MP3WMA/PEG - Folder Selection : MP3/WMA Play - Picture CD Playback - Changing Setup menu Using the Setup Menu Setting Up the Language Features - Setting Up the Audio Options - - Setting Up the Display Options Setting Up the Parental Control - - Reference Cautionary Notes : - 5 Troubleshooting . 55 Specifications - 50 Warranty - &

Features Plays DVD discs and audio CDs + CD-R/RW discs containing MP3/WMA files can be played. 10 inch LCD display and built-in stereo speakers + With the built-in 10 inch LCD display and stereo speakers, you can enjoy a DVD movie without requiring a separate TV. Convenient 2-Way power supply + You can use your DVD player virtually anywhere by using the supplied AC adapter indoors and the battery pack outdoors. Compact size/light-weight design + Compact and lightweight design makes the player easy to carry. High-resolution image + High-resolution LCD screen with 384,000 pixels provides a clear picture. AV input/output, optical digital output jack . *’Dolby Digital 5.1-CH audio and “DTS digital audio can be output through the optical digital output jack. You can enjoy unsurpassed surround sound when a Dolby Digital/DTS digital surround processor or amplifier is connect to this jack. + You can connect a VCR or camcorder to your DVD player using the AV input/output jacks or you can connect to a TV for a larger screen.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol (Hu) are trademarks of Dolby Laboratories. Confidential unpublished works © 1992-1997. ; Dolby Laboratories. Inc. AIl rights reserved.
• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. EZ VIEW + Easy View can convert Letter Box images to full screen viewing on your conventional TV. INPUT : For viewing a video from an external component such as a VCR, Camcorder etc. Accessories ENGLISH Remocon (AH59-01053F) AC Cord (AD39-00076A) Lithium battery

(AC43-12002G) AC power Adapter (AK44-00004A) Battery pack (AH97-01017A) Video cable (AK39-00028A) User's Manual (AK68-00431A) Audio cable (AK39-00027A) If disc features differ from the explanation in the manual explained in this manual. + Some functions or operations are disc-dependent and may not work in all cases. Follow the instructions shown on the screen. This manual only covers basic disc operations. + @ may appear during some operations. This mark indicates that the disc in use does not currently support operations

Disc Type and Characteristics Disc Type and Characteristics ENGLISH This DVD player is capable of playing the following types of discs with the corresponding logos: Disc Types Recording Disc (Logos) Types

• Caution 1 NTSC BPÉPrAT + Play NTSC broadcast + Dolby Region system in U.S.A, Digital Number Canada, Korea, disc Japan, etc. DIGITAL STEREO | sounD dts L DVD Single-sided | DVD contains excellent 5" 240 min. sound and video due to Aucl Double-sided | Dolby Digital and pas 480 min. MPEG-2 system. = h + Various screen and audio DVD VÉES _. SERRE functions can be easily VIDEO 7° | Double-sidea | Selected through the 160 min. . AUDIO-CD 5" 74 min. + CDis recorded as a Digital Signal with better audio COMPACT Audio quality, less distortion and ñ less deterioration of audio DIGITAL AUDIO SE 20 min. quality over time. Play Region Number Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the bottom housing of the player. + Stereo + Digital + DTS disc + MP3 disc Audio disc disc NOTE:

• Discs which cannot be played with this player: + DVD-ROM + DVD-RAM + CD-ROM *CDV CDI + HD layer of super Audio CD

• CDGs play audio only, not graphics. Ability to play back may depend on recording conditions: + DVD-R + CD-RW

+ Picture CD It may not play CD-R, CD-RW and DVD-R in all cases due to the type of disc or condition of the recording. À Caution 2 + Some playback functions of a DVD vary by manufacturer. This DVD player reproduces the disc data according to guidelines provided by the disc manufacturer. lf @ appears during disc operations, the disc manufacturer has placed a limit on that function. À Caution 3 - The LCD display does not support Closed Captions. However, you can view captions by connecting this unit to a TV with the caption function. Discs that cannot be played

1. Illegally manufactured discs

2. Discs with scratches; and

8. Discs with fingerprints, dirt, and debris.

+ lfthe disc surface has dirt or scratches, No Disc will be displayed and the disc will not be played correctly. (Refer to page 5 and clean the surface of the disc.) If the player encounters dirt or scratches while playing, video playback may be interrupted. (Some block-like patterns appear. When this occurs, your player will restore the image in 2-3 seconds.) About Copyrights + Any kind of unauthorized and commercial duplication, public performance, broadcasting, renting, copying and making transmittable of the content of discs is strictly prohibited by law. - This product is equipped with anti-copy protection device and connecting to a VCR for recording purposes results in a distorted picture. - This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. + Manufactured under license from Dolby Laboratories. “Dolby”, “Dolby Digital”, “Dolby Pro Logic”, and the double-D symbol (ÆÆÆ#) are trademarks of Dolby Laboratories. -“DTS”" is a trademark of Digital Theater System, Inc.

• Standard : The basic mode for ordinary viewing. - Indoor : The best mode for partial lighting environment. Displays a more vivid, detailed picture under artificial lighting conditions, with enhancement of signal components: + Outdoor : The perfect mode for sunny outdoor conditions. Increases the contrast and sharpness level to compensate for outdoor lighting conditions. + Low light : The optimum mode for lowr light viewing situations. Hthe viewing environment is very dark, use this mode to decrease brighness, and increase contrast and edge sharpness.

- Press the POWER button for 1 second to power off.

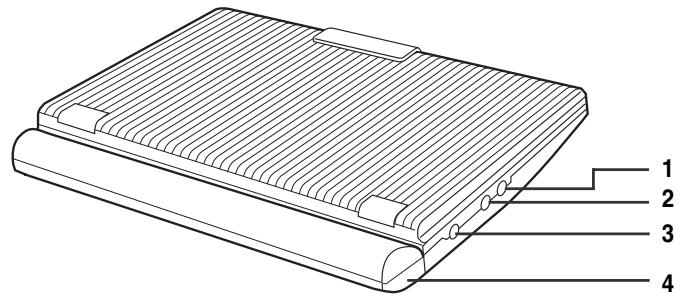

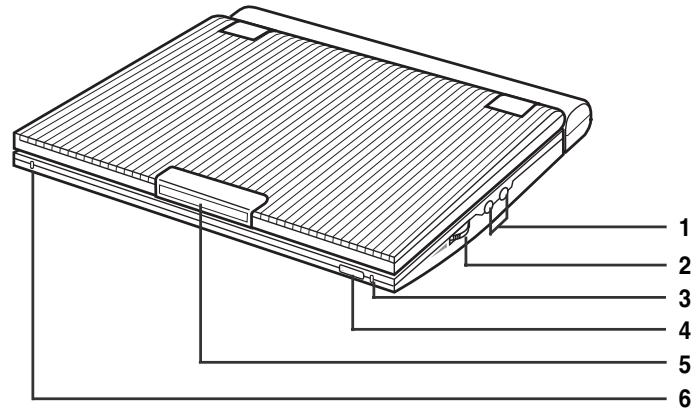

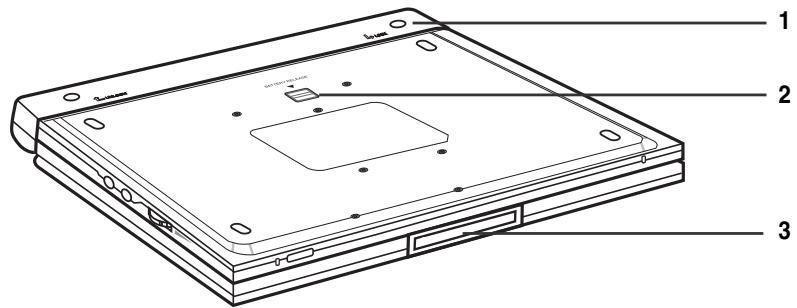

1. AUDIO IN/OUT / DIGITAL OUT

2. RELEASE (Battery pack separation switch)

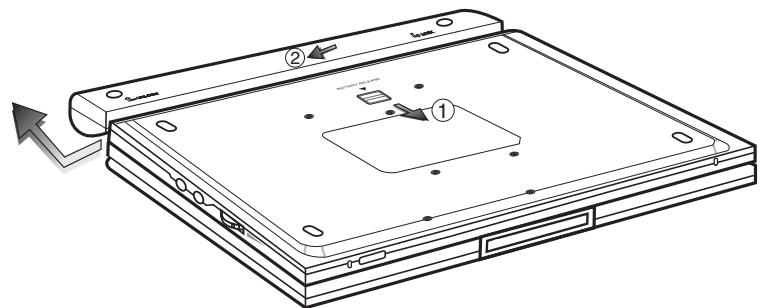

© Press in the direction of the arrow. @ Slide battery pack to the left, then out. Tour of the Remote Control ENGLISH CAS

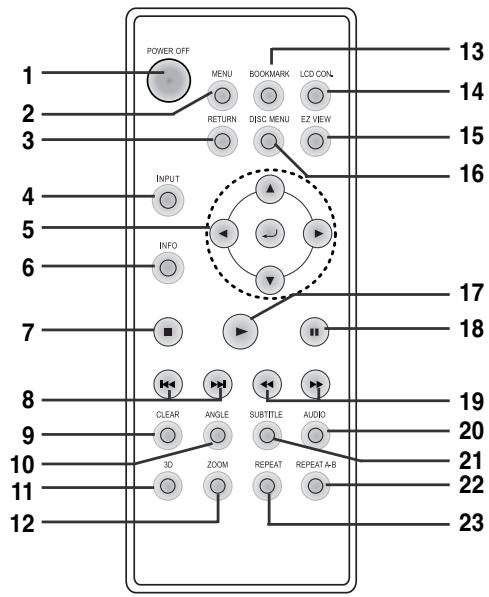

. DVD POWER OFF Button - IE you power off the unit with the remote, it remains in low power consumption mode. To turn the unit on, you must press the main POWER button on the unit. MENU Button + Brings up the DVD players setup menu. RETURN Button - Returns to the previous menu. INPUT Button - Use to select signals from external sources. ENTER/DIRECTION Buttons (UP/DOWN or LEFT/RIGHT buttons) : This button functions as a toggle switch INFO Button - Displays the current disc mode. STOP Button

• Stops disc play SKIP Buttons Use to skip the title, chapter, or track. CLEAR Button + Use to remove menus or status displays from the screen

+ Use to access various camera angles on a DVD

• Starts disc play. . PAUSE/STEP Button + Pauses disc play. . SEARCH Buttons + Allow you to search fonvard/backward through à disc. . AUDIO Button + Use this button to access various audio functions on a disc. . SUBTITLE Button REPEAT A-B Button + Use to mark a segment to repeat between À and B. REPEAT Button + Alows you to repeat play a title, chapter, track, or disc.

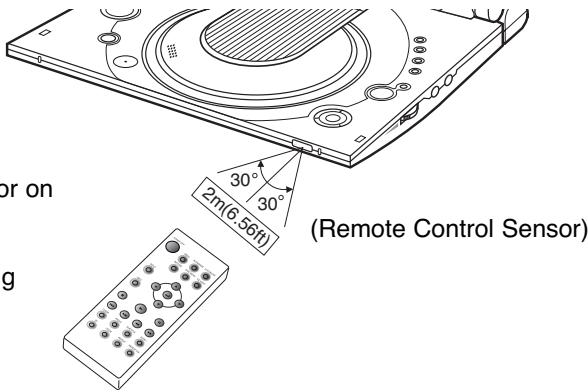

Using the Remote Control Unit Installing the Battery in the Remote 1. Remove the battery compartment in the direction of the arrow. 2. Place the lithium battery in the battery compartment and put the battery compartment cover back on the remote. - Match the polarities (+ and -) on the battery with the marks (Back of the remote control) in the battery compartment. If the battery is inserted in the OI. Operating Range of Remote Control Unit Important! Do not subject the remote control unit to strong vibration or shock. Keep the remote control unit free from moisture and water. Caution + After battery replacement, your remote control unit may not work. If this occurs, remove the battery and re-insert in about 5 minutes. + It may be difficult to operate the remote control unit if the remote control sensor on the DVD player is exposed to direct sunlight or strong artificial light. Try operating the remote away from such light sources.

• Remove the battery when not planning to use the remote control unit for a long period of time. wrong direction, your remote control may not work correctly. Connecting Headphones to the DVD ENGLISH You can attach headphones with a stereo mini-jack plug (not supplied) to the PHONES jack for private listening. There are two jacks available. How to use headphones

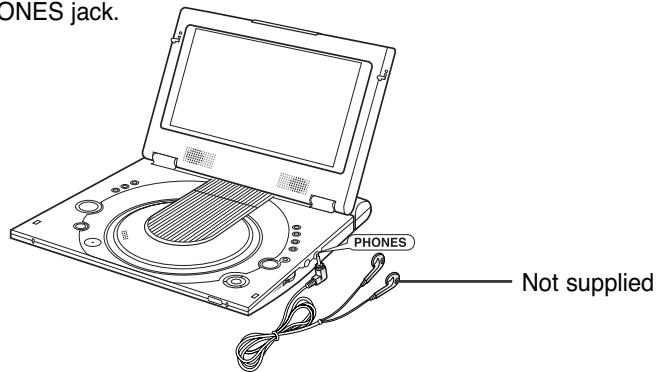

1. Insert headphones into the A or B PHONES jack.

+ This jack is a stereo mini-jack. Not supplied Important! + Turn the headphone volume down to the minimum setting before connecting. Caution + Once you connect headphones to the DVD, your DVD Player's speakers will be disconnected.

2. Adjust the volume level by using the VOLUME control dial.

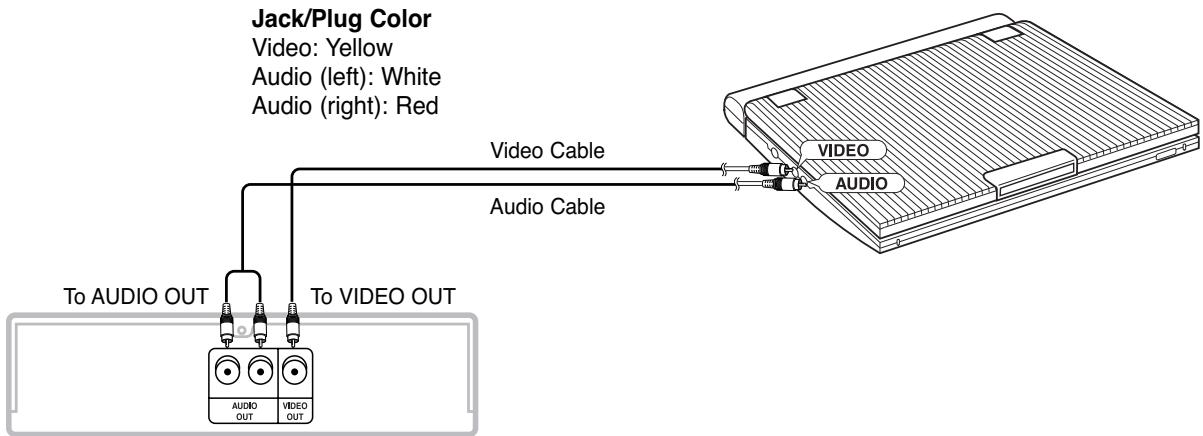

Connecting to an External Component (Input Select) You can enjoy video from your VCR or Camcorder on your DVD player. When connecting to an external component Jack/Plug Color Video: Yellow Audio (left): White Audio (right): Red Video Cable Audio Cable To AUDIO OUT To VIDEO OUT

VCR or other component equipped with external output connectors Important! + Always turn off the DVD Player and other components before you connect any cables. - Refer to owner's manual of the components you are connecting for more information on those particular components. NOTE: + In the INPUT mode, the video input must be the standard NTSC. Viewing a Video from an External Component Use the procedure below to view a video from a VCR or Camcorder on your DVD player. To view video from an external component

1. Connect the external component according to the procedure outlined on page 18.

2. Turn on the external component. INPUT

3. Turn on the DVD player.

4. Press the INPUT button to set the INPUT mode.

5. Press the PLAY button on the external component.

Caution + Power is not supplied from this device to the connected DVD player. + When not using your DVD player, always remove all connecting cables from the video or audio input/output jacks. + Ifno signal is input for more than 5 minutes while in the input mode, this unit enters the standby mode.

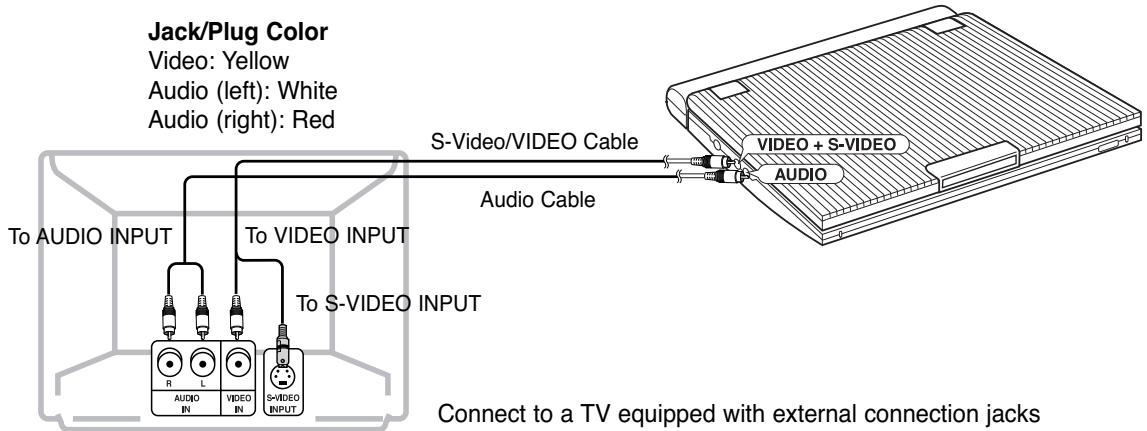

Connecting to a TV Connecting to a Stereo Component You can enjoy high-resolution video using an S-VIDEO cable when connecting your DVD player to a TV equipped with an S-VIDEO input jack. + Always turn off the DVD Player and TV before you connect any cables. ENGLISH When you connect the DVD player to an audio system, you can listen to higher quality sound. To view video with a TV 2-CH Audio Playback

1. Turn on the TV. = Analog Connection

2. Press the TV/VIDEO button on your TV to select the input from the DVD player.

3. Turn on the DVD player, and start playback. JacKPlug Color

Audio (left): White Jack/Plug Color Audio (right): Red Video: Yellow Audio (left): White : " Audio (right): Red Audio Amplifier 8-Video/VIDEO Cable Connect to input jacks Audio Cable To AUDIO INPUT To VIDEO INPUT

eao Caution + If you wish to view video on your TV only, close the display panel of your DVD player. Playback will continue and audio to the speakers will be cut off, but you still will be able to use the remote to control the DVD player. + For power saving, press the LCD CON. button to power off the LCD display. À À Audio Cable To S-VIDEQ INPUT Connect to a TV equipped with external connection jacks

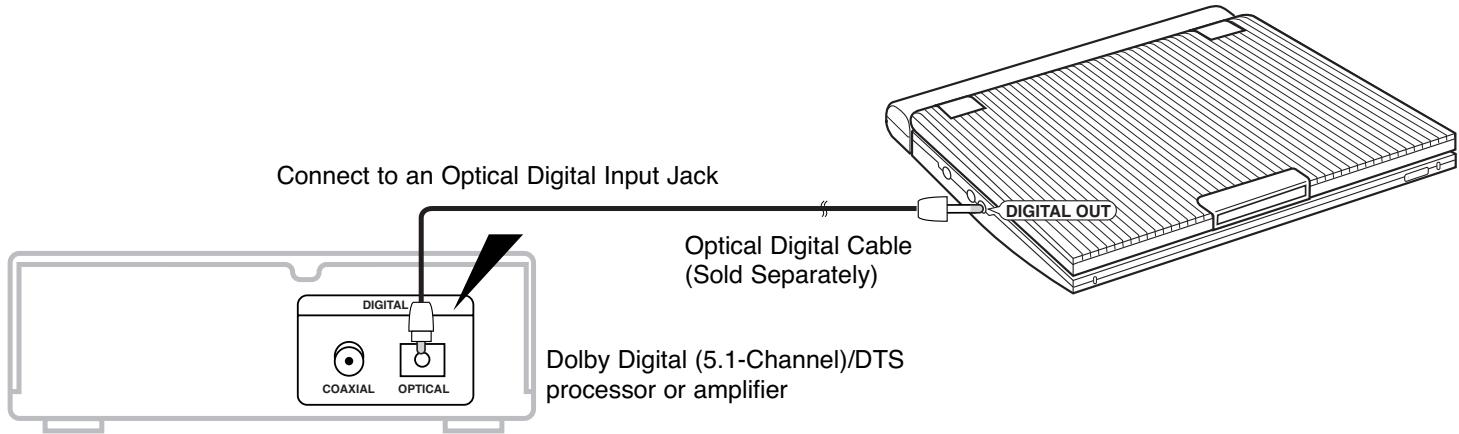

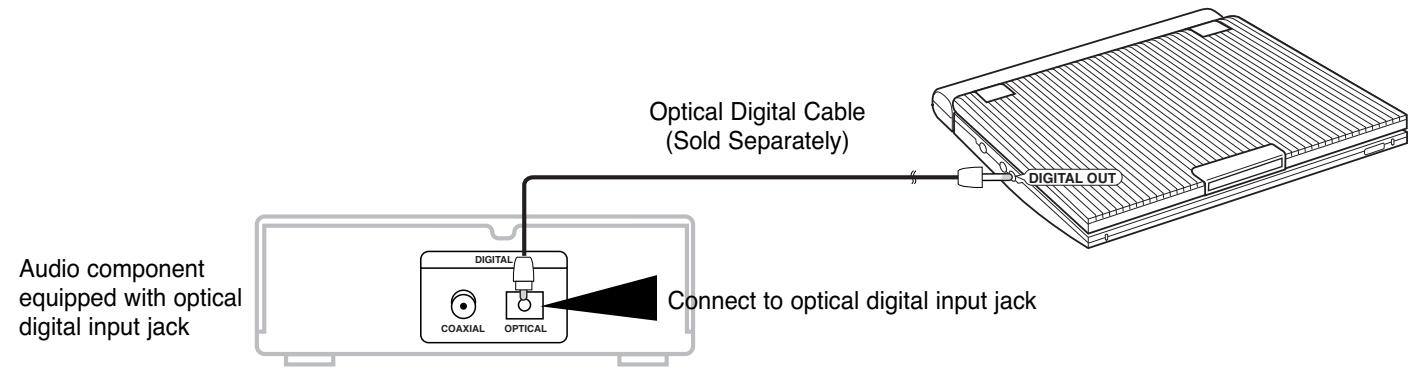

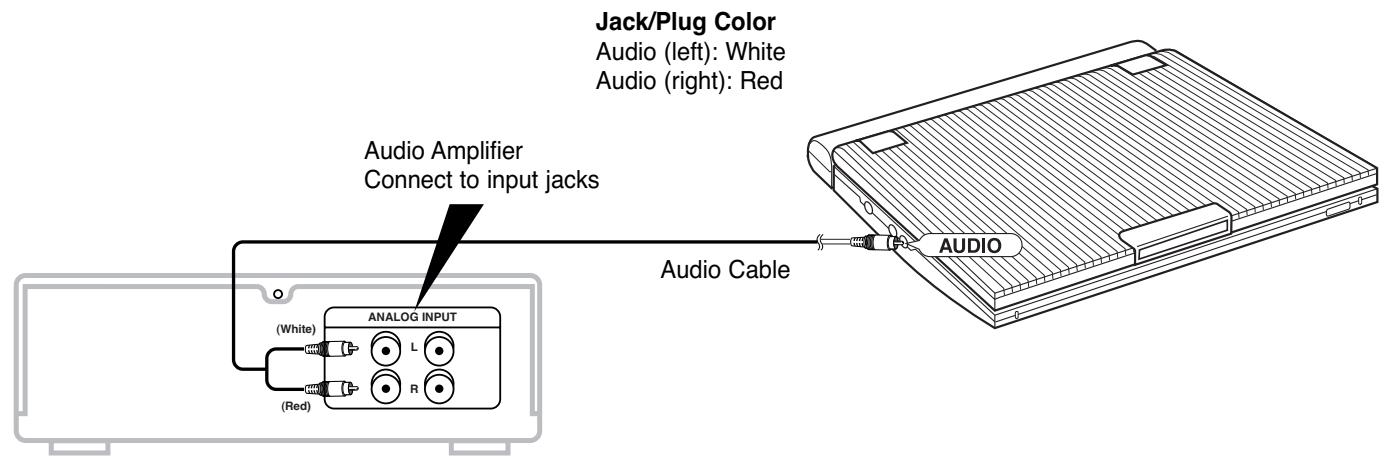

Connecting to a Stereo Component Connecting to a Stereo Component Digital Audio Output (optical) Playing Dolby Digital (5.1-CH) and DTS Audio + You can enjoy full and dynamic surround sound by connecting a Dolby Digital/DTS digital surround processor or amplifier to the optical digital jack on the DVD player. + When using DTS digital surround, select the DTS audio by using the disc menu screen : si or function adjustment screen. Optical Digital Cable (Sold Separately) Audio component EE equipped with optical (o] Connect to optical digital input jack Connect to an Optical Digital Input Jack digital input jack COMM orme Optical Digital Cable (Sold Separately) After the completion of above connections; Set the “Digital Output” to “PCM” (see page 52) in “Audio Setup”.

Dolby Digital (5.1-Channel)/DTS processor or amplifier # Digital connection to an audio component without a Dolby Digital decoder + Audio CD Play the disc. When connecting digitally, DTS-encoded audio tracks will produce distorted sound. After making the connections shown above; De a 2 channel will produce distortion but 5.1 channel will not. Set the “Digital Output” to “Bitstream” (see page 52) in “Audio Setup”. . isc When playing a Linear PCM Audio encoded disc, you must use the digital connection Caution method shown above. + To play a DTS disc, you need a DTS processor or amplifier. - lfthe DTS processor or amplifier you want to use does not have an optical digital input jack, digital connection is not possible. NOTE: - Refer to owner's manual of the processor or amplifier for details on connections. Only use an optical Digital Cable which has been designed for use with portable DVD.

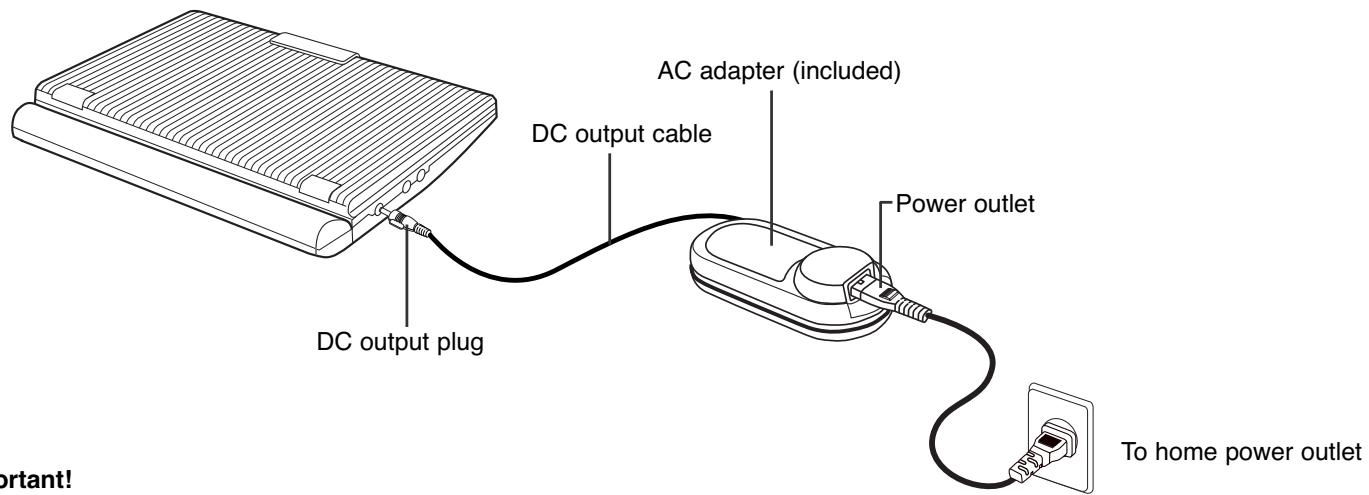

Using the AC adapter AC adapter (included) DC output cable Power outlet DC output plug To home power outlet Important! - Always turn off the DVD player before connecting or disconnecting the AC cord. - Be sure to use the supplied AC adapter. Using a different type of adapter may cause malfunction or damage to the product. + When the AC adapter is used for prolonged periods of time, the adapter may heat up. This is normal and is not a cause for concern. + When not using the adapter, unplug it from the wall outlet.

• Keep the AC adapter free from moisture, cold, and dust. Otherwise, this can result in a risk of fire or electric shock. Warning + Only use the AC adapter supplied with this player. - Be sure to unwind the AC adapter cable (DC output cable) before using, as electromagnetic interference may cause problems with other devices. + If this power supply is used at 240V ac, a suitable plug adapter should be used. Using the AC adapter ENGLISH Important! - Always turn off the DVD player when inserting or removing the AC adapter. - Before storing the battery pack, make sure it is completely drained. Be sure to recharge the battery at least once every six months to ensure proper battery life. Caution + When charging or using the battery pack, it heats up. This is normal and is not a cause for concern. NOTE: Connecting the battery pack to the AC Adapter; + You can recharge the battery pack in the DVD player by turning off the player and connecting the AC adapter to the player. Charge Time: Approx. 2.5 hours + Charge time may be longer when using the battery pack in a cold environment. DVD Continuous Playing Time with a Fully charged Battery pack (with speaker): Approx. 2.5 hours + DVD continuous playing time is a reference indicating the maximum playing time at average speaker volume. - The playback time may be shortened depending on the disc, surrounding temperature, battery pack conditions, and speaker volume.

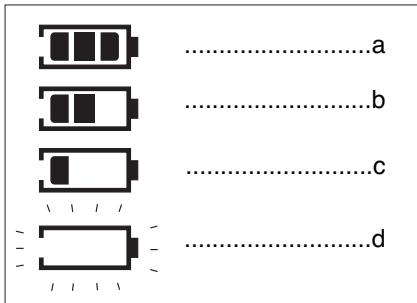

ENGLISH Using the battery pack Battery level display - The battery level display indicates the amount of power remaining in the battery pack. Important! + When inserting the battery pack, make sure that it is inserted correctly. Otherwise, your DVD player may malfunction. a. Fully charged b. 20-40% used Charging the battery pack . 40-80% used ging Ty Pi d. Completely used (flickers) Use the AC adapter (included) to charge the battery pack. (If the battery mark flickers the DVD will turn off soon. Change the battery as soon as possible) - Before charging, make sure that the battery pack is correctly seated.

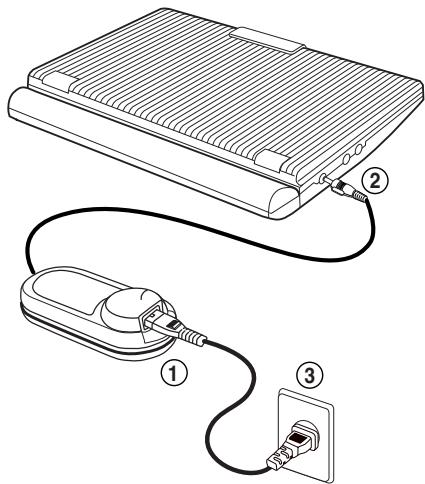

1. Connect the AC cord to the jack on the AC adapter (©).

*The playing time is affected by environmental temperature and conditions. The playing time becomes very short in a cold environment. The continuous playing times in the operating instructions are measured using a fully charged battery pack at 77°F (25°C). As the environmental temperature and conditions may differ when you actually use the DVD, the remaining battery time may not be the same as the approximate continuous playing time given in these instructions.

2. Connect the DC cord to the DC IN jack on the left side of the DVD player (®).

3. Plug the other end of the AC cord into an AC outlet (®).

Blinking time Charging rate Once per second Less han 50% Twice per second 50%-75% Three times per second 75%-90% Binking tops and stays on | 20% 100% On for a second and Error-Reset the battery pack and NOTE: off or a second ie DG cable + When the operation time is noticeably shorter than normal, it is time to buy a new battery. The battery level display time changes depending on the battery operating time. Power Charge Lamp . : . . -Green light will flash while charging. + As the battery is completely used, the noise screen intermittently can be displayed. -When the battery pack is fully charged, the light will stop blinking and remain green.

Playing a Disc Before Play SELECTNENULANGURGE After plugging in the player, the first time you press the POWER button, this screen comes up: E Press the UP/DOWN buttons to select the language, and then press the ENTER button. Fons (This screen will only appear when you plug in the player for the first time.) Play

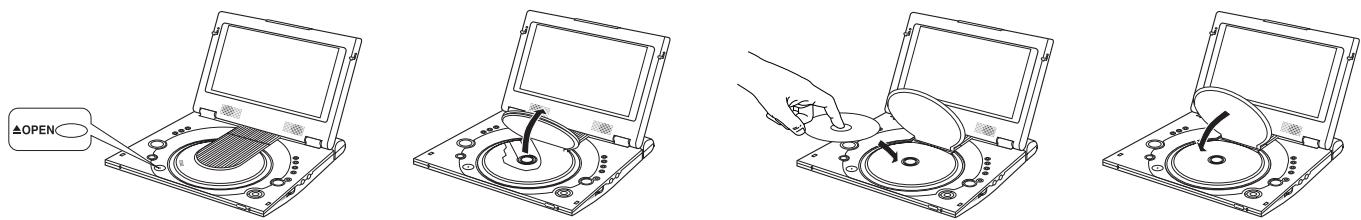

1. Press the OPEN button to open the disc cover.

- The disc cover opens up to around a 60-degree angle. Do not attempt to open the cover to an angle beyond this range. The cover may become damaged.

Place a disc gently into the tray. + You should hear and feel the disc snap firmly into place. Caution + Place a disc into the tray with the disc's label facing up.

3. Close the disc cover and then press the part marked “PUSH” until it clicks shut.

• Press the STOP ( 5 ) button during play.

Press the PAUSE ( II ) button on the remote during play. - Screen stops, no sound. - To resume, press PLAY ( >) button once again. Playing a Disc

6. Step Motion Play (DVD only)

Press the PAUSE ( 11 YSTEP button on the remote during play. - Each time the button is pressed, a new frame will appear. - No sound is heard during STEP mode. - Press PLAY ( ») to resume normal play. (You can only perform step motion play in the forward direction.)

7. Slow Motion Play (DVD only)

Press the æ button on the remote during PAUSE or STEP mode. By pressing the æ button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed. Press and hold the »1 button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode. - No sound is heard during slow mode. - Press PLAY ( ») to resume normal play. NOTE: Reverse slow motion play will not work. RESUME function When you stop disc play, the player remembers where you stopped, so when you press PLAY ( >) again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you pressed the STOP ( mi ) button twice.) Important! -+ Make sure that the disc is correctly placed. Otherwise, the disc and/or the DVD player may be damaged. + lfthe disc is placed upside down in the disc tray or the region number of the DVD is not supported, No Disc will appear on the screen. NOTE: + lfthe player is left for 5 minutes in pause mode, it will stop. + Ifthe player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Screen saver will be activated only with a TV. Press the PLAY ( ) button to resume normal play. + lfthe player is left in the stop mode for more than 5 minutes, the power will automatically shut off. (Automatic Power-Off Function)

• This @ icon indicates an invalid button press. + Do nof remove the disc until it has completely stopped. + Press the POWER button for 1 second to power off.

Using the Search & Skip Functions During play, you can search quickly through a chapter or track or use the skip function to jump to the next selection. Searching through a Chapter or Track During play, press the SEARCH (4 or >) button on the remote. + Press the SEARCH (-&« or bp) button on the remote for more than 1 second and press again or press continuously to search at a faster speed on a DVD or CD. + Press the SKIP ( |@4 or px) button for more than 2 seconds to use the SEARCH feature.

DVD | 2X, 8X, 32X, 128X

CD 2X, 4X, 8X Skipping Tracks During play, press the NEXT SKIP (1) or BACK SKIP (I) button. + When playing a DVD, if you press the NEXT SKIP button, it moves to the next chapter. If you press the BACK SKIP button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. + When playing a CD, if you press the NEXT SKIP button, it moves to the next track. If you press the BACK SKIP button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. Using the Display Function ENGLISH When Playing a DVD/CD

1. Press the INFO button during playback.

2. Use the UP/DOWN buttons to select the desired item.

8. Use the LEFT/RIGHT buttons to make the desired setup, then press ENTER.

4. To make the screen disappear, press the INFO button again.

To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified Most of DVD discs are recorded in chapters so that you can quickly find a specific passage. (similar to tracks on an audio CD). Allows playback of the film from a desired time. You must enter the starting time as a reference. Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. À DVD disc can have up to eight different soundtracks. Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. À DVD disc can have up to 32 different subtitles. A surround sound effect is generated using only two front speakers. 30) NOTE: + If you want to see the battery level display, press the INFO button.

1. Press the MENU button during playback.

1. Press the MENU button during playback.

2. Select Title Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.

NOTE: + Depending on the disc, the Title and Disc Menus may not work. - Title Menu will only be displayed if there are at least two titles in the disc. + You can also use the Disc Menu, using the DISC MENU button on the remote. Gens Flers Pres ENTER key For Te Menu Using the Function Menu

1. Press the MENU button during playback.

Repeat Play Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD/CD

1. Press the REPEAT button on the remote. Repeat screen appears. DVD

2. Select Chapter, Title or A-B using the LEFT/RIGHT buttons. |

+ Chapter (13 ) : repeats the chapter that is playing. “Title (9 ) : repeats the title that is playing. +A-B : repeats a segment of the disc that you select

4. To return to normal play, press REPEAT again, then press the LEFT/RIGHT buttons to select

Off and Press ENTER. cD

• REPEAT A-B button - + Press the REPEAT A-B button to select the point where the function starts. (A) + Press the REPEAT A-B button to select the point where the function ends. (B) + To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again. + A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set. NOTE:

• DVD repeats play by chapter or title, CD repeats play by disc or track.
• Depending on the disc, the Repeat function may not work. Slow Repeat play ENGLISH This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc. so you can study them more closely. When playing a DVD

1. During play, press the PAUSE ( 11 STEP button on the remote.

2. By pressing the » button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed.

8. Press the REPEAT A-B button to select the point where the function starts. (A)

4. Press the REPEAT A-B button to select the point where the function ends. (B)

NOTE: - The disc will play from A to B repeatedly at the speed you chose. + To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again. + A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.

Adjusting the Aspect Ratio (EZ View) Adjusting the Aspect Ratio (EZ View) ENGLISH To play back using aspect ratio (DVD) Press the EZ VIEW button. - The screen size changes when the button is pressed repeatedly. - The screen zoom mode operates differently depending on the screen setting in the initial setup menu. + To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the initial setup (See page 53). If you are using a 16:9 TV © For 16:9 aspect ratio discs + Wide Screen Displays the content of the DVD title in 16:9 aspect ratio. + Screen Fit The top and bottom of the screen are cut off. When playing a 2.85:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on the type of disc, the black bars may not disappear completely.) + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. © For 4:33 aspect ratio discs + Normal Wide Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched. + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched. + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. + Vertical Fit When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched. If you are using a 4:3 TV © For 16:9 aspect ratio discs + 4:3 Letter Box Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. + 4:3 Pan Scan The left and right of the screen are cut off and displays the central portion of the 16:9 screen. + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched. + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. @ For 4:3 aspect ratio discs + Normal Screen Displays the content of the DVD title in 4:3 aspect ratio. + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture would look vertically stretched. + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. NOTE: + This function may behave differently depending on the type of disc.

Selecting the Audio Language You can select a desired language quickly and easily with the AUDIO button. Using the AUDIO button

1. Press the AUDIO button.

2. The Audio changes when the button is pressed repeatedly.

- The audio languages are represented by abbreviations.

3. Press the AUDIO button to select Stereo, Left or Right. (On CD)

NOTE: - This function depends on what languages are encoded on the disc and may not work with all DVDs.

• À DVD disc can contain up to 8 audio languages. + How to have the same audio language come up whenever you play a DVD; Refer to “Setting Up the Language Features” on page 51. DVD

Selecting the Subtitle Language ENGLISH You can select a desired subtitle quickly and easily with the SUBTITLE button. Using the SUBTITLE button

1. Press the SUBTITLE button.

2. The subtitle changes when the button is pressed repeatediy.

8. To turn off the display, press the CLEAR or RETURN button.

- Initially, the subtitle will not appear on screen. - The subtitle languages are represented by abbreviations. NOTE: - This function depends on what languages are encoded on the disc and may not work with all DVDs. + A DVD disc can contain up to 32 subtitle languages. - How to have the same subtitle language come up whenever you play a DVD; Refer to “Setting Up the Language Features” on page 51.

Changing the Camera Angle Using the Bookmark Function When a DVD contains multiple angles of a particular scene, you can select the Angle function. The Bookmark function lets you select parts of a DVD so that you can quickly find the section at a later time. Using the Bookmark Function (DVD) Using the ANGLE button : 1. During play, press the BOOKMARK button on the remote. Press the ANGLE button to see if an ANGLE ( Æ% ) mark is present at the upper left hand The Bookmark icons will be displayed. EE | corner of the screen. (- as . Use the LEFT/RIGHT buttons to move to the desired bookmark icon. 1. When an ANGLE mark is shown, press the ANGLE button, then an ANGLE select icon . When you reach the scene you want to mark, press the ENTER button. will appear at the upper hand corner of the screen. The icon will change to a number (1, 2, or 3). Press the BOOKMARK button to turn off the display. © np

. During play, press the BOOKMARK button on the remote. Use the LEFT/RIGHT buttons to select a marked scene. . Press the PLAY ( >) button to skip to the marked scene. on | ® D Clearing a Bookmark . During play, press the BOOKMARK button on the remote. Use the LEFT/RIGHT buttons to select the bookmark number you want to delete. . Press the CLEAR button to delete a bookmark number. Press the BOOKMARK button to turn off display.

NOTE: + lfthe disc has only one angle, this feature won't work. Currently, very few discs have this feature.

NOTE: + Up to three scenes may be marked at a time. + Depending on the disc, the Bookmark function may not work.

Using the Zoom & 3D Sound Functions Clips Menu for MP3/WMA/J PEG ENGLISH Using the Zoom Function (DVD)

1. During play or pause mode, press the ZOOM button on the remote. A square will be

displayed on screen.

2. Use the UP/DOWN or LEFT/RIGHT button to select the part of the screen you want to

- Press ENTER to zoom in 2X/4X/2X/Normal in order. (DVD) Using the 3D Sound Function (DVD) The simulated surround effect depends on the disc contents. If you connect the unit to your stereo system, you can enhance sound quality and produce a greater surround effect. This feature is useful when you are using the DVD player with a two channel stereo through the analog outputs. (Discs which are recorded with LPCM, MPEG or DTS will not work.)

1. During play, press the 3D button. The 3D SOUND mark will be displayed on screen.

2. Press the UP/DOWN buttons to turn the 3D Sound feature on or off.

NOTE: + 3D Sound is possible only on discs recorded using DOLBY SURROUND or DOLBY DIGITAL. However, some of these discs do not contain rear channel sound signals. + Depending on the disc, the Zoom and 3D Sound function may not work.

. Open the disc cover.

. Place the disc in the player. - Place the disc with the labeled side up.

. Close the cover. - The cover is closed and you should get a screen that looks like the one below. . Name of currently playing file. . : Current Playback Time. IA : Current Playback Mode : There are 4 modes, toggle by the REPEAT button. - Off : Normal Playback - Track : Repeat the current track. - Folder : Repeat the current folder. - Random : Files in the disc will be played in random order. : MP3 file icon. : JPEG file icon. : WMA file icon. : Folder icon. : Current Folder icon. QG 0002 HA Because You Hiesens Hi Saë Day

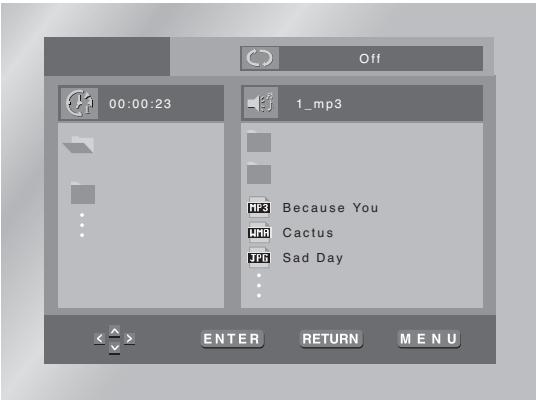

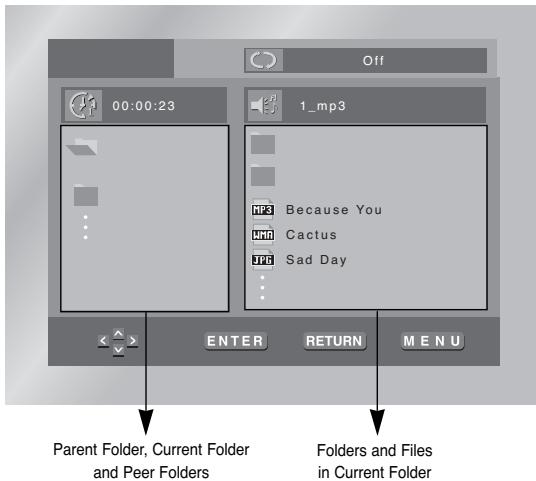

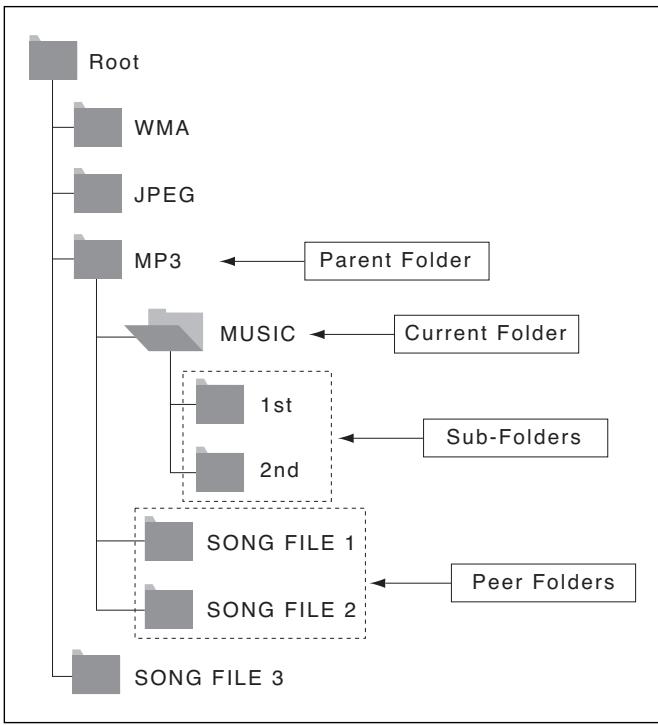

Parent Folder, Current Folder Folders and Files and Peer Folders in Current Folder

. Place the disc in the player. - Place the disc with the labeled side up.

. Close the cover. - The cover is closed and you should get a screen that looks like the one below. MP3/WMA Play Function . Select the desired folder. (See page 44 to change folder.)

. Press ENTER to begin playback of the song file. Repeat/Random playback Press the REPEAT button to change playback mode. There are 4 modes, Off, Track, Folder and Random. - Off : Normal Playback - Track : Repeats the current song file. - Folder : Repeats the song files which have the same extension in the current folder. - Random : Song files which have the same extension will be played in random order.

MP3/WMA Play CD-R MP3/WMA discs When you record MP3/WMA files on the CD-R, please refer to the following. + Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used. + When naming your MP3 or WMA files, do not exceed 8 characters, and enter ".mp3, .wma" as the file extension. General name format of: Title.mp8. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (../\=,+).

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly. - Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. - Do not try recording copyright protected MP3 files. Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Mediar” (registered trade mark of Microsoft Inc) and SDMI"* (registered trade mark of The SDMI Foundation). You cannot copy such files. + Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assur- ance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). - This unit can play a maximum of 3000 files and 300 folders per disc. Picture CD Playback

1. Select the desired folder. (See page 44 to select the folder)

2. Use the UP/DOWN buttons to select a Picture file in clip menu and then press ENTER.

+ Select JPEG in the menu to view a Photo CD. + Use the UP/DOWN or LEFT/RIGHT buttons on the remote control to select the picture you want to view and then press the ENTER button. (Press the PLAY ( »-) button if you want to play it in the Slide Show mode.) + Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again. + Æ : Return to the Album Screen. + To see the next 6 pictures, press the pl button. + To see the previous 6 pictures, press the K# button. + AT : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. + & : Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal -+ 2X -+ 4X-+ 2X — Normal) + © : The unit enters slide show mode. “Before the Slide Show begin, the picture interval must be set. . 6 : When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval. . 6 : The pictures change automatically with about a 12 second interval. . & : The pictures change automatically with about a 18 second interval. “Depending on the file size, each interval between images may take longer or shorter than the manual suggests. “If no button on the remote control is pressed for 60 seconds, the menu will disappear and the selected item will be played. NOTE: + If no buttons on the remote control are pressed for 10 seconds, the menu will disappear. Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again. - Press the STOP button to return to the Clips menu + When playing a Kodak Picture CD, the unit displays the Photo directly, not the clip menu. À

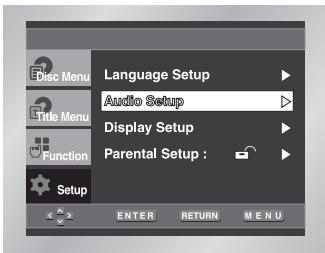

Picture CD Playback Using the Setup Menu CD-R JPEG Discs The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have. + Only files with the ".jpg" and ".JPG" extensions can be played. si Language Setup - With the unit in Stop mode, press the MENU button. EE Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. + Ifthe disc is not closed, it will take longer to start playing and not all of the recorded files may be played. + Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. + The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +). © Language Setup : Setup of the Language. = Por + Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played © Audio Setup : Setup of the Audio Options Display Setup Parental Setup only up to the blank segment. © Display Set Setup of the Display Ont : : : isplay Setup : Setup of the Displa: ions

• Amaximum of 500 images can be stored on a single CD. Use to select Wich be of Screen You want to watch and several display options. + Kodak Picture CDs are recommended. © Parental Setup : Setup of the Parental Level Allows users to set the level necessary to prevent children from viewing unsuitable movies such + Kodak Picture CD : The JPEG files in the pictures folder can be played automatically. as those with violence, adult subject matter, etc. + When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. + Konica Picture CD : lf you want to see the Picture, select the JPEG files in the clips menu.

. Use the UP/DOWN buttons on the remote to access the different features. - Fuji Picture CD : If you want to see the Picture, select the JPEG files in the clips menu. + QSS Picture CD : The unit cannot play QSS Picture CD. 3. Press the ENTER button to access the sub features. + If a number of files in 1 Disc are over 3000, only 3000 JPEG file can be played. To make the setup screen disappear after setting up, press the MENU button again. + If a number of folders in 1 Disc are over 300, only JPEG files in 300 folders can be played. NOTE: + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. - Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie. Using the Player Menu Language

- Select “Others” if the language you want is not listed.

Using the Subtitle Language . With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. Select Subtitle using UP/DOWN buttons, then press the RIGHT or ENTER button. Use the UP/DOWN buttons to select the desired language. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio preference. - Select “Others” if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting. . Press the ENTER button. - The language is selected and the screen returns to Setup menu. NOTE: + Ifthe selected language is not recorded on the disc, the original pre-recorded language is selected. + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. Subite CENSES

Select Bitstream when using the Digital Audio Output. NOTE: Be sure to select the correct Digital Output or no audio will be heard. © DTS

1. Off : Doesn't output digital signal.

2. On : Outputs DTS Bitstream via digital output only.

Select DTS when connecting to a DTS Decoder. © Dynamic Compression

1. On : To select dynamic compression.

2. Off : To select the standard range.

NOTE: + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. + Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. + “DTS" and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Language Setup Display Setup Parental Setup DTs o# Dynamic Compression : On ENGLISH Setting Up the Display Options

4. Use the UP/DOWN buttons to select the desired item. Then press the RIGHT or ENTER button.

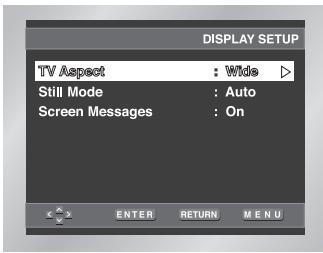

© TV Aspect Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio). 1.4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

2. 4:3 Pan Scan : Select this for conventional size TVs when you want to see the central portion of the

16:9 screen. (Extreme left and right side of movie picture will be cut off.)

3. 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

Language Setup Audio Setup © Still Mode —— These options will help prevent picture shake in still mode and display small text clearer.

1. Auto : When selecting Auto, Field/Frame mode will be automatically converted.

2. Field : Select this feature when the screen shakes in the Auto mode.

3. Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

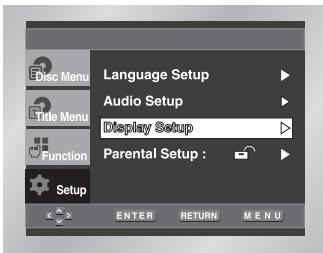

© Screen Messages Use to turn on-screen messages On or Off. 4:3 Letter Box 4:3 Pan Sean

Setting Up the Parental Control The Parental Control function works in conjunction with DVDs that have been assigned a rating level which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode, press MENU button. The Setup Menu screen appears.

4. Use RIGHT or ENTER to select Yes if you want to use a password.

The Enter Password screen appears.

5. Select your password with the UP/DOWN/LEFT/RIGHT buttons and press the ENTER button.

The Re-enter Password screen appears to confirm the password. Select your password again. The Parental Control screen appears (&). About the Rating Level ; The Rating Level will work only when Use Password is set to Yes. (To unlock the player, use RIGHT or ENTER to select No.) Use UP/DOWN to select Rating Level. Press ENTER. - Use UP/DOWN to select the level(e.g. Level 6) and press ENTER. Discs that contain Level 7 will now not play. - To cancel the rating level, use RIGHT or ENTER to select No in Use Password. About the Change Password ; - Use UP/DOWN to select Change Password. Press ENTER. The Change Password screen appears. - Select your new password. Select the new password again. NOTE: + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. + If you have forgotten your password, see Forgot Password in the Troubleshooting Guide. Language Setup Audi Setup Disply Setup CREATE PASsWORD) Enter Password EEE Rating Level Cautionary Notes Cautions on Using the Player

• Avoid magnetic environments. Using the player under strong fluorescent lighting, in a car, near a TV or magnetic object may deteriorate recorded images. - Be sure to remove the disc, turn off the player, and remove the battery pack after use. - If used near a broadcast station or power transmission tower, the video may become distorted due to interference. - Do not drop the player or subject it to strong vibration or shock.

• Do not place the player near a lamp. Heat from the incandescent light bulbs may cause deformation or malfunction.

• Always observe the rules regulating the use of electrical devices on airplanes.

• Do not expose this product to high temperature and humi: This product can be operated within a temperature range of 50 ser and humidity range of 30%-80%. Do not expose this product to direct sunlight or in a car with its windows closed. Doing so may result in deformation of casing and circuitry as well as cause fire or bodily injury.

• Do not let water, sand, dust, or other foreign objects in the player. Avoid using or storing the player in a place where there is smoke, steam, or moisture. Doing so may cause malfunction or mold on the pick-up lens. Keep the player in a well-ventilated area. + When using the player in cold environments, the color LCD screen may not be visible immediately after the power is turned on. This is not a malfunction. Do not operate the player in temperatures below 50°F. - Be especially careful not to scratch the pick-up lens during loading/unloading of the disc, or cleaning. Doing so may result in malfunction.

Cautionary Notes When Moving the Player - Be sure to remove the disc from the player before packing for moving. It is recommended that you also remove the disc from the player and turn off the power when not using the player. Saving Power -Itis recommended that you turn off the power to the DVD player when not in use. If you are not going to use it for prolonged period of time, unplug the power cord from the wall outlet. Maintenance of LCD Screen - To keep the screen clean, turn off the power and then wipe with a soft cloth. About LCD Screen - This LCD panel is designed with the latest technology, ensuring 99.99% of active pixels. Cautionary Notes Cautions on Using Battery pack Danger! Always follow the safety information below when using the battery pack. Otherwise, a short circuit, overheating, smoke, fire, or damage to the product may result. 1. Never disassemble or modify the battery pack in any way. Do not touch the terminal of the battery pack with a metal object.

2. Do not let any metal object inside the battery pack.

3. Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high temperature.

4. Do not expose the battery pack to water, fire, or heat.

5. Always use the included AC adapter when charging the battery pack.

6. This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices.

1. Do not drop or subject to strong vibration.

2. Keep out of reach of children.

3. The battery pack may leak fluid that is harmful to your eyes.

If this fluid gets in your eyes, wash eyes immediately with large amounts of running water and get medical attention immediately. If the fluid gets on your skin or clothing, wash immediately with water. Caution!

1. When not using the battery pack, remove it and store in a cool place.

2. Do not use the AC adapter or battery pack for a prolonged period of time during recharging. You might get a low temperature burn.

3. Keep the battery pack free from smoke, steam, moisture, and dust.

+ Do not place the battery pack near a kitchen, heater, or any other place where there is smoke or steam. Doing so may result in fire or electric shock. - Avoid direct sunlight, heater, or high temperature place. etc, inside of a car. lt can cause explosion or fire. Doing so may cause a short circuit, overheating, smoke, fire, or damage to the product.

4. Using the battery pack under 50°F or over 86°F can cause reduced battery life.

Cautionary Notes After a Recharge, store the Battery pack separately. - This battery pack is a lithium ion battery. Even when not in use, power will drain slowly. So use a fully charged battery pack. - Recharge until the charge lamp stays on green. À partial charging of the battery pack decreases the overall lifetime of the battery. Cautions on Charging Battery pack + Charge within the surrounding temperature range of 50°F-86°F. Charging at a low surrounding temperature slows down the charging time and decreases the battery pack. You cannot fully charge the battery pack at high temperature. - lfthe DVD player is overheated and the battery packs internal temperature goes up to a certain level, you will not be able to charge the battery pack. (The lamp flashes quickly and the light does not come on.) In this case, remove the battery pack. After the internal temperature reaches a safe level, charging will begin automatically. - The battery pack becomes warm during recharge or use. This is normal and is not a cause for concern. A hot battery pack may take longer to charge or may not be charged at all. Wait until the battery pack cools down before charging. Battery pack Life and Use (Low Temperature) - The lifetime of the battery pack is limited. Power is slowly drained even when not using. Though it varies for differing storage conditions, the battery pack stored unused for a year has a much shorter lifetime. If the battery pack does not last long even after a full charge, you might have to replace it with a new one. + Total operating time of the battery pack becomes much shorter when used at temperatures below 50°F. Electrical energy is discharged due to internal chemical action of the battery pack. A very low temperature may impede this chemical action and shortens the total operating time. Caution - Be sure to use only the battery pack exclusively designed for your DVD player. NOTE: + When not using the DVD player, always turn off the power to conserve the battery pack. If the AC adapter is connected to the player, charge the battery pack with the power to the player turned off. Cautionary Notes Cautions on Storing Battery pack - Even when not in use, power is consumed continuously. To reduce the power consumption, follow the procedure below.

1. Remove the battery pack from the DVD player after every use.

2. When not using the DVD player, turn off the power. If the player is left in the standby mode, power will be slowly drained from the battery pack and the charging capacity will decrease.

3. Before storing the battery pack, completely drain the power by operating the player and store in a cool, dry place.

If stored in a hot place, the capacity of the battery pack will decrease.

4. The battery pack must be recharged and then used on the DVD player at least once every 6 months.

This helps to prevent the loss of capacity. AC Adapter The supplied AC adapter is compatible with 50/60Hz electrical system (110V-240V range). Use of the AC adapter depends on the specific voltage requirements and electrical outlet design. + Using the AC adapter near a radio may cause poor reception. + Do not let any type of flammables, liquid, or metal objects in the adapter. - The adapter is covered with an outer plastic sheath. Do not peel open the sheath. + Do not drop, jar, or shake the adapter. + Do not place in direct sunlight. - Do not use in high temperature or cold and humid environments. Cleaning and Maintenance -+ Many plastic parts are used in this DVD player casing. Do not use volatile chemicals such as benzene or thinner. This might damage the finish. - Wipe the casing with a soft, dry cloth. For excessive dirt, use a cloth dampened in a diluted neutral detergent. and wipe again with a soft, dry cloth. + Wipe off fingerprints or dirt on the LCD screen using a soft, dry cloth.

Troubleshooting Troubleshooting If your DVD player does not seem to be functioning properly, check the items below before you contact a Samsung authorized service center. Symptom Check Symptom Check Check that the LCD display is turned on. Check that the display panel is open. If it is closed, audio will not be output to the speakers. Battery pack is in place but | * Check that the battery pack is charged. If not, recharge it. Check the volume setting. lf set to zero, turn up volume level. the power does not turn on Check that the headphones are plugged into the PHONES jack. or suddenly turns off Speakers cannot be used with the headphones. No picture and sound Check that the DVD player is in the DVD mode and not in the INPUT mode. Distorted video or sound Use a disc without scratches or dents. Power does not turn on or | + Make sure the AC power cord is securely plugged into an AC outlet. No picture suddenly turns off. + Turn the power off and then back on. No sound Remote control won't work | + Check that the battery is inserted in the “+” and “-" direction properly. - The batteries may be dead. Replace them with new batteries. Whi ni d + Check that the signal transmission is directed at the remote control sensor on the DVD player. ein L e input mode, no picture is output from : + Remove the obstacle between the remote control unit and remote control sensor. the external component Make sure the S-Video cable is used for output only. Check that the DVD player is in the INPUT mode and not in the DVD mode. Check that the video or audio cable is securely connected. No picture or sound + Check that the video and audio cables are securely connected. to the DVD player + Check that the disc is a DVD (region number 1 or all), DVD-RW, AUDIO CD. - Do not use a disc that has scratches or dirt. + Check that the label-side of the disc is facing up. - The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning. + Check that the TV channel is set to VIDEO or AV if viewing with a TV. Forgot password - Press power on from a cold start with no disc in the unit. Press the STOP and PLAY buttons simultaneously on the unit for three seconds. The Select Menu Language display will appear. Select the desired language by using UP or DOWN button. Press the MENU button on the remote control to select the Parental Mode. The Parental Mode is now unlocked as indicated on the display. Press the DOWN button to select Parental. Press ENTER and the Create Password display will appear. You can now set your rating level and change your password to a new number. The built-in micro controller can be influenced by external electrical noise. lf you believe this may be the cause of the problem, turn off the DVD player and then back on.

ENGLISH Troubleshooting ENGLISH Symptom Check DVD Video does not appear with a + Check that the TV is set to VIDEO or AV. external component connected to the DVD player + Check that the video or audio cable is securely connected. Dolby Digital audio volume is + Change the “Dynamic Compression” setting to “On”. This will turn up the comparatively too low low volume level of Dolby Digital, which provides the most wide, dynamic sound range. Battery pack| Battery pack won't charge + Check that the DVD player is turned off. operation You cannot charge the battery pack with the player turned on.

• A hot battery pack may take longer to charge. Wait until the battery pack is sufficiently cooled down. Power does not turn on * Replace with a fully charged battery pack or use the AC adapter. Power charge lamp does * Replace with a fully charged battery pack or use the AC adapter. not light (Battery pack won't lf the DVD player is overheated and the battery pack's internal temperature goes up charge) to a certain level, you will not be able to charge the battery pack. In this occurs, remove the battery pack. After the battery pack has sufficiently cooled down, charging will begin automatically. + Check that the temperature is within the range of 50°F-86°F. + Check that the DC cord of the AC adapter is plugged in correctly. Battery pack| Power charge lamp quickly + Remove the DC cord from the battery pack and then re-plug. operation flashes Green Ifthe battery pack is installed, remove the DC cord from the battery pack before performing above procedure. - Recharge a different power pack. lf the same symptom occurs, your AC adapter may be defective. If the second battery pack charges without any problem, your first battery pack may be defective or needs battery replacement. Specifications Power Requirements AC 120V, 60 Hz Power Consumption 18W General Weight 3.3 lbs (without batiery pack) Dimensions Q) 141 in x (H) 822 in x (D) 10.4 in Operating Temperature Range | +50°F to +86°F Operating Humicity Range 30 % to 80 % DVD Reading Speed : 11.45 — 16.09 fUsec. (DIGITAL VERSATILE DISC) | Approx. Play Time (Single Sided, Single Layer Disc : 135 min cD:5" Reading Speed : 15.75 to 18.87 f/sec. Disc (COMPACT DISC) Maximum Play Time : 74 min. GD:3e" Reading Speed : 15.75 to 18.37 fsec. (COMPACT DISC) Maximum Play Time : 20 min. Video Composite Video 7 channel : : 0 LE _ o) ra _ Output S-VIDEO Ghomirance Sgnai 020 va US Q oac) 2 channel L(1/D), R(2/R) “prequenoy Response 48 kHz Sampling : 4 Hz to 22 kHz Audio 96 kHz Sampling : 4 Hz to 44 kHz Output “SIN Ratio #10 48 “Dynamic Range 100 dB “Total Harmonic Distortion 0.004 % +: Nominal specification + Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. + Weight and dimensions are approximate.

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for the following limited warranty period: One (1) Year Parts and Labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by SAMSUNG's authorized service center. To receive warranty service, the original dated bil of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defective during the limited warranty period specified above. The product must be retumed during the warranty period with transportation charges prepaid to SAMSUNG's designated service center. Prior to returing any product for warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product. Al replaced parts and products become the property of SAMSUNG and must be retumed to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment: applications and uses for which this product was not intended: falures or problems which are caused by products or equipment not supplied by SAMSUNG: accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations or surges: damage caused by improper or faulty installation: improper connection with any peripheral; product alteration or modification: improper or unauthorized repair: cosmetic damage or exterior finish; product with altered serial numbers: failure to follow operating instructions, customer adjustments, maintenance and environmental instructions that are covered and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment which damage this product or result in service problems: falures or problems due to incompatibility with other equipment.
