Product Type	Network switch (PoE)
Brand	Hikvision
Model	DS-3E-PWR150D-H
Ports	16 x 10/100 Mbps PoE ports + 2 x Gigabit uplink ports
PoE Budget	150W
Switching Capacity	5.6 Gbps
MAC Address Table	8K
Dimensions (W x D x H)	330 x 200 x 44 mm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	≤170W (with PoE)
Operating Temperature	0°C to 40°C
Fan	Fanless design
VLAN Support	802.1Q VLAN
QoS	IEEE 802.1p priority queues
Management	Web-based managed
LED Indicators	Power, Link/Activity, PoE status
Maintenance	Clean with dry soft cloth; avoid liquids
Safety	Keep away from water, heat sources; do not disassemble
Spare Parts / Repairability	No user-serviceable parts; contact Hikvision support

Frequently Asked Questions - DS-3E-PWR150D-H Hikvision

How many PoE ports does the DS-3E-PWR150D-H have?

It has 16 PoE ports (10/100 Mbps) with a total PoE budget of 150W, supporting devices like cameras and access points up to 30W per port.

What is the total power consumption of this switch?

The maximum power consumption is approximately 170W, including 150W for PoE and the switch's own operation.

Does the DS-3E-PWR150D-H support Gigabit speeds?

Yes, it has 2 Gigabit uplink ports for high-speed connectivity. The PoE ports are Fast Ethernet (10/100 Mbps).

Can this switch be mounted on a wall?

Yes, the switch is desktop type but supports wall mounting with mounting brackets (included). Ensure proper ventilation.

Is the DS-3E-PWR150D-H fanless?

Yes, it features a fanless design for silent operation, suitable for office or home environments.

What management options are available?

It is a web-managed switch, allowing configuration of VLAN, QoS, port settings, and PoE management via a web interface.

What devices can I power with this PoE switch?

It can power IEEE 802.3af/at compliant devices such as IP cameras, VoIP phones, and wireless access points, with each port delivering up to 30W.

How do I reset the switch to factory defaults?

Press and hold the Reset button (located near the power port) for about 10 seconds until all LEDs blink. Release to reset.

What is the warranty period for this switch?

Hikvision typically offers a 3-year limited warranty. Check your local distributor for specific terms.

How to troubleshoot PoE devices not powering on?

Verify the switch is powered on, check the PoE budget is not exceeded, ensure the device is 802.3af/at compliant, and test with a different port or cable. Try a power cycle of the switch.

USER MANUAL DS-3E-PWR150D-H Hikvision

The installation tools are not provided with the switch. Prepare them yourself as required.

Flathead screwdriver

Phillips screwdriver

Needle-nose pliers

ESD wrist strap

Marker

Installation accessories

M4 countersunk-head screw

Cage nutGrounding cable M6 screw

(Type A) (Type B)
Mounting brackets Rubber feet Grounding screw

Cable tie

The applicable installation accessories vary by switch model. Some accessories are not provided with the switch. The packing list describes the accessories provided with the switch.

A Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably grounded.

Mounting the switch in a rack

The applicable mounting brackets vary by switch model. Some switch models provide two installation positions on the two sides for mounting brackets: one at the port side and one at the power module side. Select an installation position for the mounting brackets as required.

Four screws are required to attach a Type A mounting bracket. Two screws are required to attach a Type B mounting bracket.

1 Attaching mounting brackets to the switch

Type A mounting bracket

Type A mounting bracket

Type B mounting bracket

2 Attach cage nuts to the rack posts

Mount the switch in the rack

Mounting the switch on a workbench

Simple line drawing of a rectangular table with a small box on top, no text or symbols present.

Grounding the switch

Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection. Use the grounding cable provided with the chassis to ground the switch.

Installing and removing a power module

This section is applicable only to switch models that use removable power modules.

Connecting the power cord

Before connecting the power cord, connect the grounding cable and make sure the switch is reliably grounded. To avoid bodily injury, connect the power cord first to the switch and then to the power supply system.

1 Connecting the power cord for an AC power module.

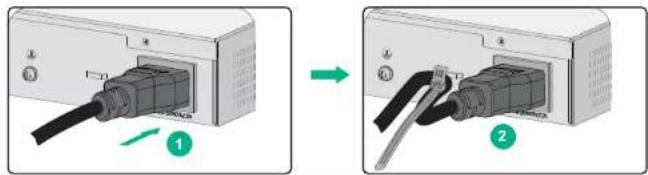

Method 1

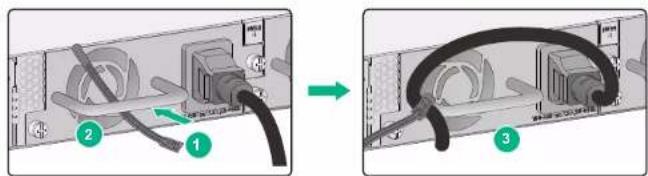

Method 2

2 Connecting the power cord for a DC power module.
