Product Type	Power Outlet (Socket)
Brand	Hager
Model	WGCS116S
Rated Voltage	250 V AC
Rated Current	16 A
Number of Sockets	1
Mounting Type	Flush Mounted
Material	Thermoplastic
Color	White
Protection Rating	IP20
Dimensions (H x W x D)	80 x 80 x 40 mm
Weight	0.1 kg
Operating Temperature	-5°C to +40°C
Standards	EN 60898-1
Terminal Capacity	Up to 2.5 mm²
Cleaning	Wipe with dry cloth
Safety	Shutter system for child protection
Spare Parts	Available from manufacturer
Warranty	2 years

Frequently Asked Questions - WGCS116S HAGER

What is the rated voltage and current of the WGCS116S?

The Hager WGCS116S power outlet is rated for 250 V AC and 16 A.

Can I use it outdoors?

No, this outlet has an IP20 rating, meaning it is not waterproof. It is intended for indoor use only.

Does it have child safety features?

Yes, the WGCS116S includes a built-in shutter system that prevents accidental insertion of objects, providing child protection.

What is the mounting depth required?

The outlet has a depth of 40 mm, so a standard flush-mounted box of at least 40 mm depth is recommended.

Can I connect two cables to one terminal?

It is not recommended. The terminal capacity is up to 2.5 mm² for a single conductor. For multiple wires, use a junction box or consult an electrician.

What is the warranty period?

Hager offers a 2-year warranty on the WGCS116S power outlet against manufacturing defects.

How do I clean the outlet?

Use a dry cloth to wipe the surface. Do not use water, solvents, or abrasive cleaners.

Is this outlet compatible with smart home systems?

No, this is a standard passive outlet. It does not include smart features.

Can I replace the socket mechanism without changing the frame?

Yes, the WGCS116S is part of Hager's modular system, so the inner mechanism can be replaced separately while keeping the same frame.

What cable cross-section is suitable?

For this 16 A outlet, a cable cross-section of 1.5 mm² or 2.5 mm² is typically used, depending on the circuit.

USER MANUAL WGCS116S HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

German socket outlet for electrical installations in buildings. 3pole design with shutter for enhanced contact protection.

Compatibility

The socket outlet is compatible with the following plug types:

Plugs Plug types Plug designs Pins Amperage Plug standards
	Type “F”	3pole round pin (∅ 4.8 mm) with earthing contact	L, N, ≡	max. 16A CEE 7/4
	Type “E+F”	3pole round pin (∅ 4.8 mm) with earthing contact	L, N, ≡	max. 16A CEE 7/7
	Type “C” 2pole round pin (∅ 4.8 mm) L, N max. 16A CEE 7/17
	Type “C” Europlug	2pole round pin (∅ 4.0 mm) L, N max.	2.5A CEE 7/16

Correct use

• For the flush-mounted installation in standard wall boxes (wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Socket rated current: 16 A

Conductor cross-section of screw terminals: min. 1 x 1.5 mm ^2 ... max. 2 x 4 mm ^2

Distance of fixing holes: 60.3 mm

Socket compliance: IEC 60884-1

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1A

Hager Muse

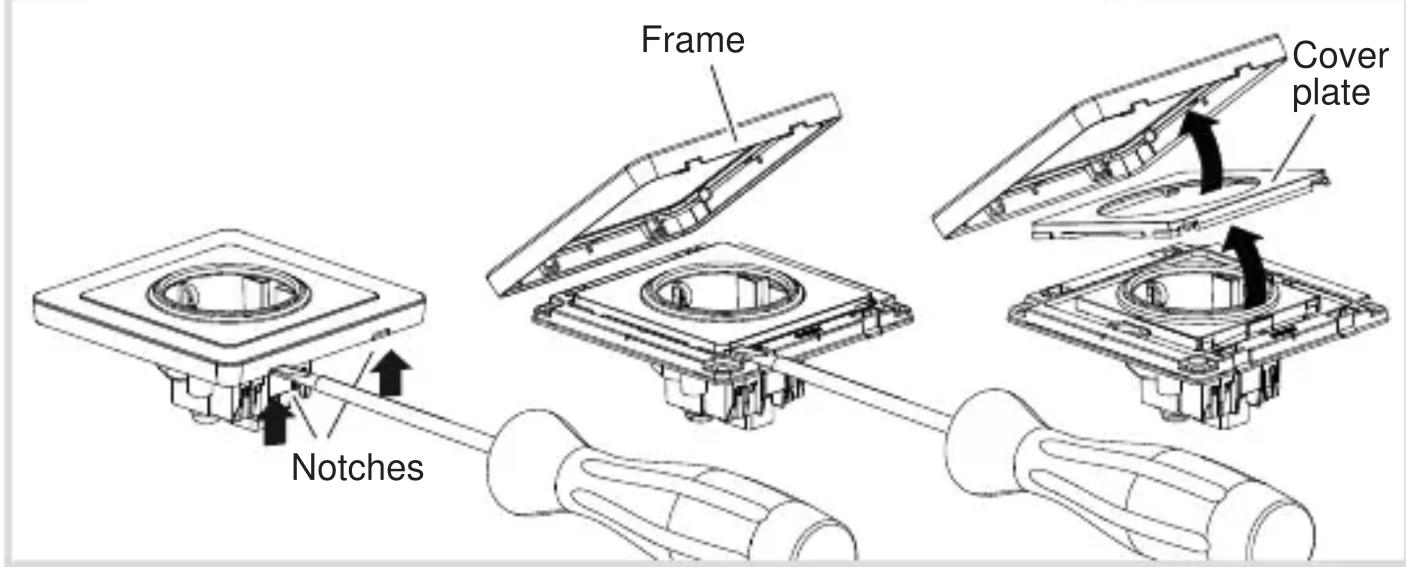

Hager Muse: Carefully loosen the frame on the notch with a flat-blade screwdriver. Lift up and remove the frame (1A).

Hager Inspire: Carefully loosen the frame on the notches with a flat-blade screw-driver. Lift up and remove the frame (1B).
■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the device

2

• Strip connection cables approx. 10 ... 12 mm.
  ■ Wire the device according to the appropriate connection diagram (2).

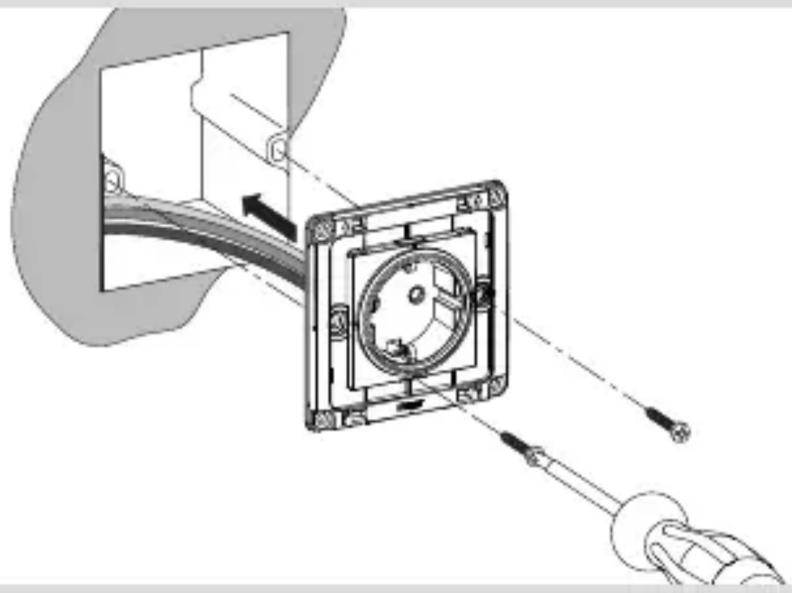

Installing the device into the wall box

3

Technical diagram of a mechanical assembly with a central component and tool, showing no text or symbols.

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the covers

4A
Hager Muse

4B
Hager Inspire

■ Hager Muse: Snap the frame onto the device (4A).
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (4B).

2-5gang frames are available for multiple combinations.
