USER MANUAL WGCXS116SNB HAGER
Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.
Function
German socket outlet for electrical installations in buildings. 3pole design with shutter for enhanced contact protection.
Compatibility
The socket outlet is compatible with the following plug types:
| Plugs Plug types Plug designs Pins Amperage Plug standards | |||||
 | Type “F” | 3pole round pin (∅ 4.8 mm) with earthing contact | L, N, ⊕ | max. 16A CEE 7/4 | |
 | Type “E+F” | 3pole round pin (∅ 4.8 mm) with earthing contact | L, N, ⊕ | max. 16A CEE 7/7 | |
 | Type “C” 2pole round pin (∅ 4.8 mm) L, N max. 16A CEE 7/17 | ||||
 | Type “C” Europlug | 2pole round pin (∅ 4.0 mm) L, N max. | 2.5A CEE 7/16 | ||
Correct use
- For the flush-mounted installation in standard wall boxes (wall box depth ≥ 35 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 250 V\~
Frequency: 50/60 Hz
Socket rated current: 16 A
Conductor cross-section of screw terminals: min. 1 x 1.5 mm² ... max. 2 x 4 mm²
Distance of fixing holes: 60.3 mm
Socket compliance: IEC 60884-1
Information for electricians
Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and cover all live parts in the area!

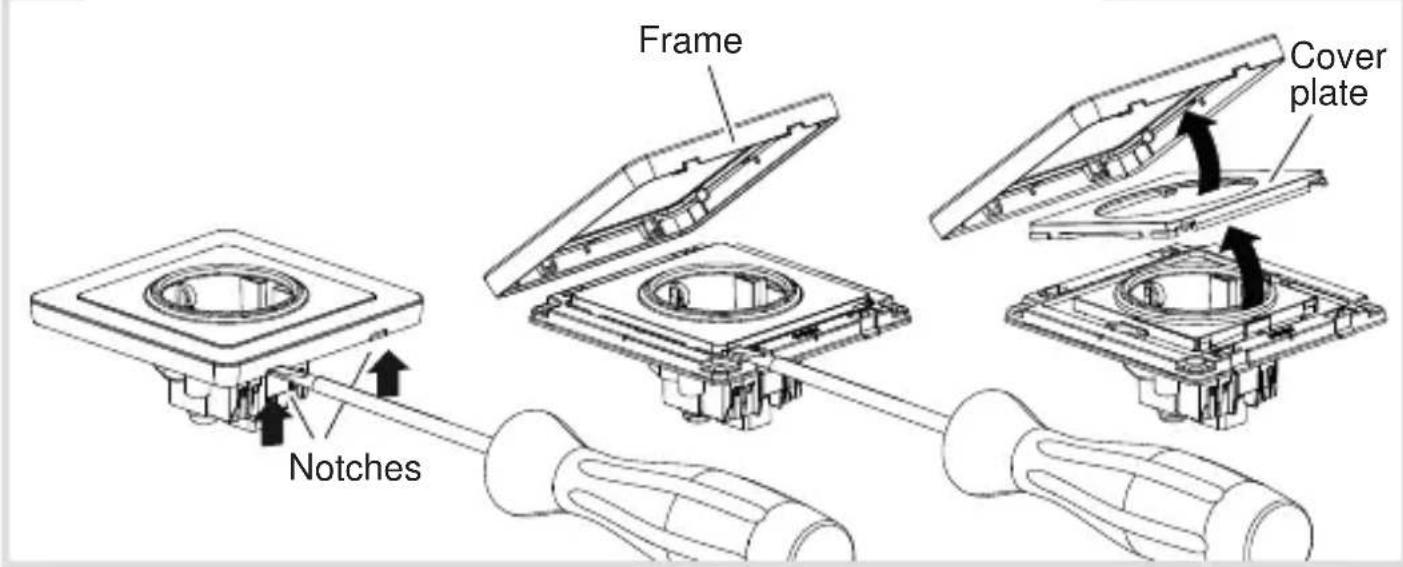

Preparing the device for installation
1A
■ Hager Muse: Carefully loosen the frame on the notch with a flat-blade screwdriver. Lift up and remove the frame (1A).
■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).
Connecting the device
2
■ Wire the device according to the appropriate connection diagram (2).

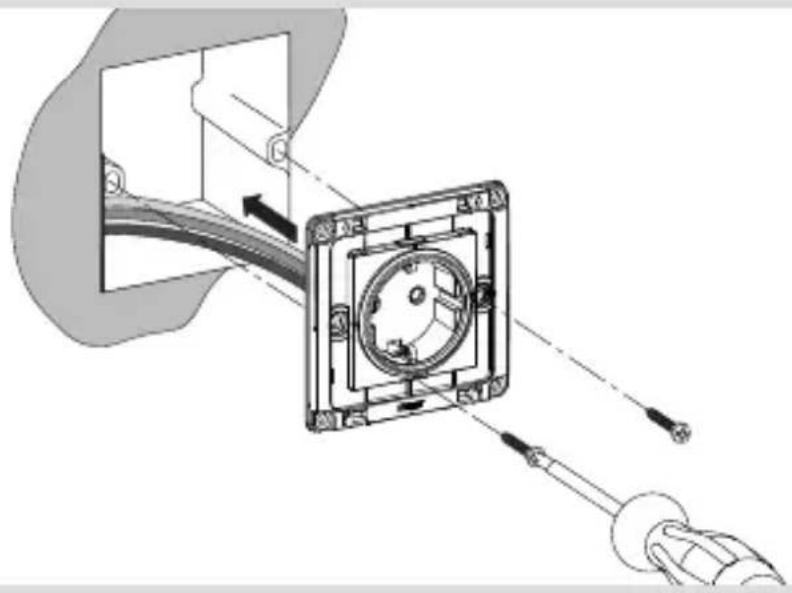

Installing the device into the wall box
3


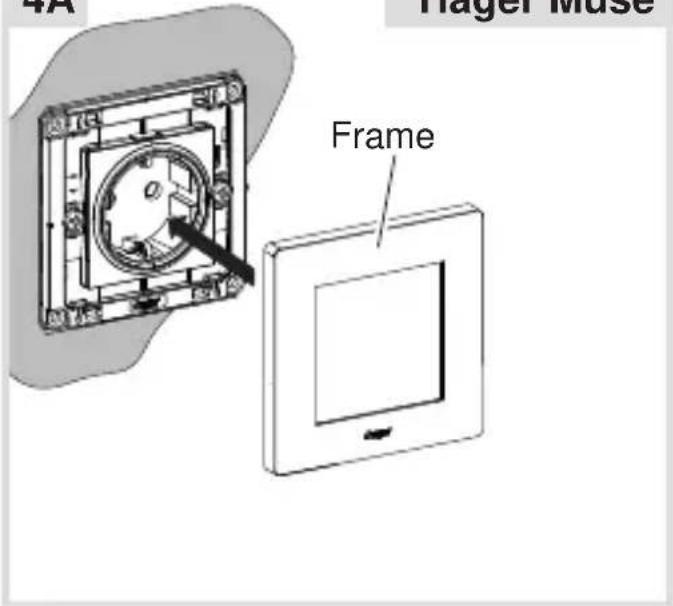

Assembling the covers
4A
Hager Muse
Hager Inspire
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (4B).
2-5gang frames are available for multiple combinations.
