WGCHSR - Power outlet HAGER - Free user manual and instructions

Product Type	Shaver Socket
Brand	Hager
Model	WGCHSR
Rated Voltage	250 V~
Frequency	50/60 Hz
Output Voltage	115 V~ / 230 V~
Power Rating	Max. 20 VA
Conductor Cross-Section	Min. 1 x 1.5 mm², Max. 2 x 4 mm²
Fixing Holes Distance	120.6 mm
Wall Box Depth Requirement	≥ 51 mm
Compliance	BS EN 61558
Intended Use	Safety power supply for electric razors in bathrooms
Installation	Only by qualified electrician; use plastic or metal wall box (metal must be earthed)
Safety	Disconnect power before installation; risk of electric shock
Environment	Indoor areas with no drip or spray water
Maintenance	Clean with dry cloth; do not use water or solvents
Spare Parts	Frame available; contact Hager for replacements
Certification	CE, UKCA

Frequently Asked Questions - WGCHSR HAGER

What is the rated voltage of the Hager WGCHSR shaver socket?

The rated voltage is 250 V~ with a frequency of 50/60 Hz.

Can the shaver socket be used in a bathroom?

Yes, it is designed for bathrooms but only in areas without drip or spray water. It provides safety power for electric razors.

What is the power rating of the WGCHSR?

The maximum power is 20 VA.

What output voltages does it provide?

It provides dual output voltages: 115 V~ and 230 V~.

Who should install the shaver socket?

Installation must be performed by a qualified electrician following local regulations.

What type of wall box is required?

It can be installed in a plastic or metal wall box. If using a metal box, it must be directly earthed. The box depth must be at least 51 mm.

What are the conductor cross-section requirements?

The screw terminals accept conductors from 1.5 mm² up to 4 mm² (max 2 x 4 mm²).

How do I remove the frame?

Carefully loosen the frame at the notches using a flat-blade screwdriver, then lift and remove.

What safety precautions should be taken during installation?

Always disconnect the power supply before working on the device and cover all live parts in the area to avoid electric shock.

Is the shaver socket compliant with any standards?

Yes, it complies with BS EN 61558.

USER MANUAL WGCHSR HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The shaver socket is installed in a bathroom of a hotel in order to provide safety power to an electric razor.

Correct use

- According to IEC 60670 installation of the safety shaver socket outlet is only permitted in plastic wall box or metal wall box (metal wall box must be connected with earth directly).

Observe depth of wall box (depth ≥ 51 mm).

- Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Output voltage: 115 V\~/230 V\~

Power: max. 20 VA

Conductor cross-section of screw terminals: min. 1 x 1.5 mm ^2 ... max. 2 x 4 mm ^2

Distance of fixing holes: 120.6 mm

Compliance: BS EN 61558

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1

- Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

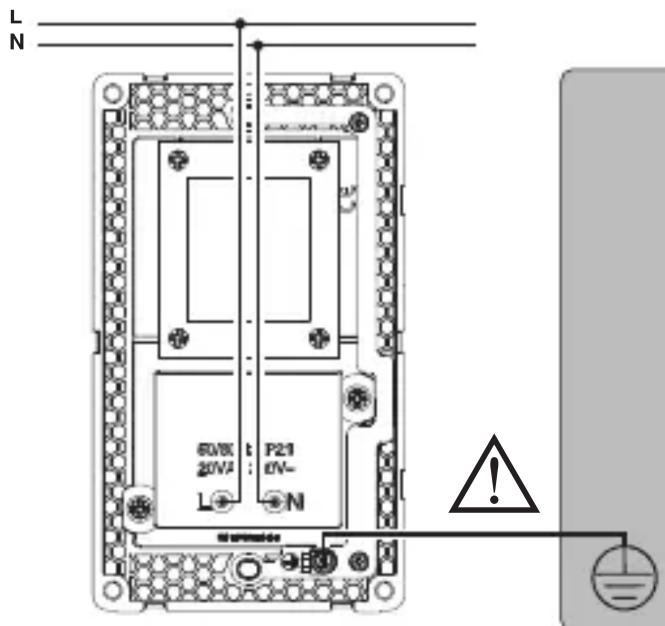

Connecting the device

2A
with plastic wall box

2B
with metal wall box

• Strip connection cables approx. 10 ... 15 mm.
  ■ Wire the shaver socket according to the connection diagram (2A or 2B). When installing in metal wall box (2B), the box must be connected with earth directly.

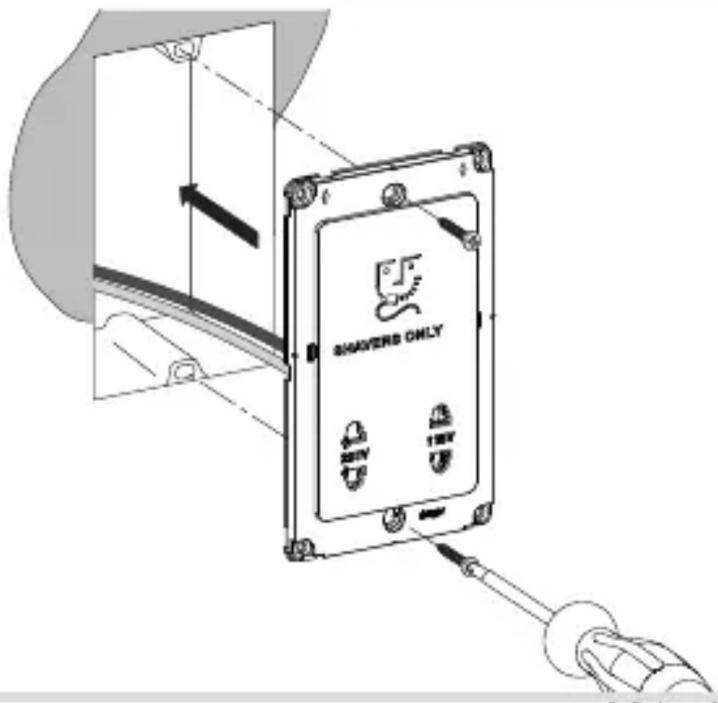

Installing the device into the wall box

3

■ After wiring, fix the device with the two screws attached into the wall box (3).

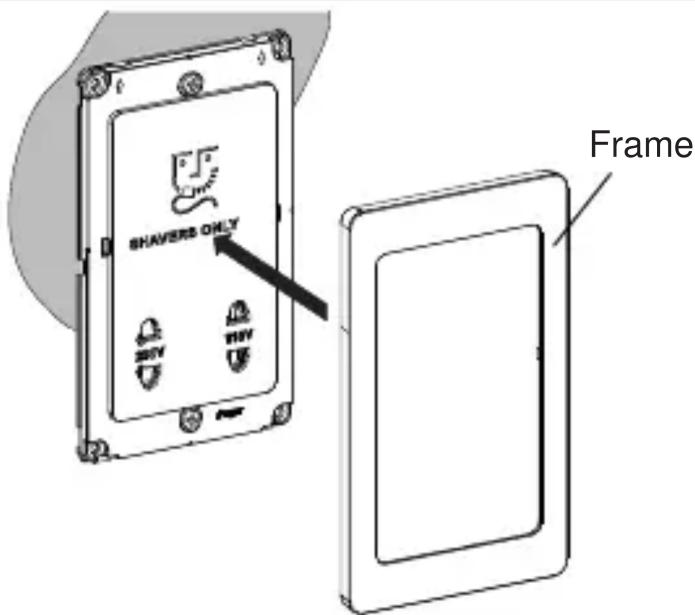

Assembling the frame

4

■ Snap the frame onto the device (4).
