WGCXHSRKB - Power outlet HAGER - Free user manual and instructions

Product Type	Shaver Socket Outlet (Power Outlet)
Brand	Hager
Model	WGCXHSRKB
Application	Bathroom safety power for electric razors
Rated Voltage	250 V~
Frequency	50/60 Hz
Output Voltage	115 V~ / 230 V~ (dual voltage)
Max Power	20 VA
Conductor Cross-Section (Screw Terminals)	1.5 mm² to 4 mm²
Mounting Hole Distance	120.6 mm
Required Wall Box Depth	≥ 51 mm
Compliance	BS EN 61558
Installation Environment	Indoor, no drip or spray water
Protection Class	Safety isolating transformer (shaver socket)
Wall Box Type	Plastic or metal (metal must be earthed directly)
Frame	Removable for installation, snap-on
Connection	Screw terminals
Maintenance	Clean with dry cloth; do not use liquids
Safety Warning	Installation by qualified electrician only; disconnect power before work

Frequently Asked Questions - WGCXHSRKB HAGER

What is the Hager WGCXHSRKB?

The Hager WGCXHSRKB is a shaver socket outlet designed for installation in bathrooms, providing safe power for electric razors.

Where can I install this shaver socket?

It must be installed in a plastic or metal wall box with a minimum depth of 51 mm, indoors where there is no drip or spray water. It is suitable for use in hotel bathrooms.

What is the maximum power rating?

The maximum power is 20 VA. Do not exceed this rating to avoid overheating or damage.

Does it support dual voltage?

Yes, the output voltage can be switched between 115 V~ and 230 V~, making it compatible with different razor types.

Can I install it myself?

No, installation must be performed by a qualified electrician in accordance with local standards and safety regulations to prevent electric shock.

What type of wall box is required?

Use a plastic wall box or a metal wall box. If using a metal box, it must be connected directly to earth.

What is the mounting hole distance?

The distance between fixing holes is 120.6 mm. Ensure the wall box matches this spacing.

Is it compliant with standards?

Yes, it complies with BS EN 61558, ensuring safety for use in bathrooms.

How do I install the frame?

After wiring, fix the device into the wall box using the two screws provided, then snap the frame onto the device until it clicks.

How to clean it?

Clean the exterior with a dry cloth. Do not use water, cleaning agents, or abrasive materials.

USER MANUAL WGCXHSRKB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The shaver socket is installed in a bathroom of a hotel in order to provide safety power to an electric razor.

Correct use

- According to IEC 60670 installation of the safety shaver socket outlet is only permitted in plastic wall box or metal wall box (metal wall box must be connected with earth directly).

Observe depth of wall box (depth ≥ 51 mm).

- Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Output voltage: 115 V\~/230 V\~

Power: max. 20 VA

Conductor cross-section of screw terminals: min. 1 x 1.5 mm ² ... max. 2 x 4 mm ²

Distance of fixing holes: 120.6 mm

Compliance: BS EN 61558

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1

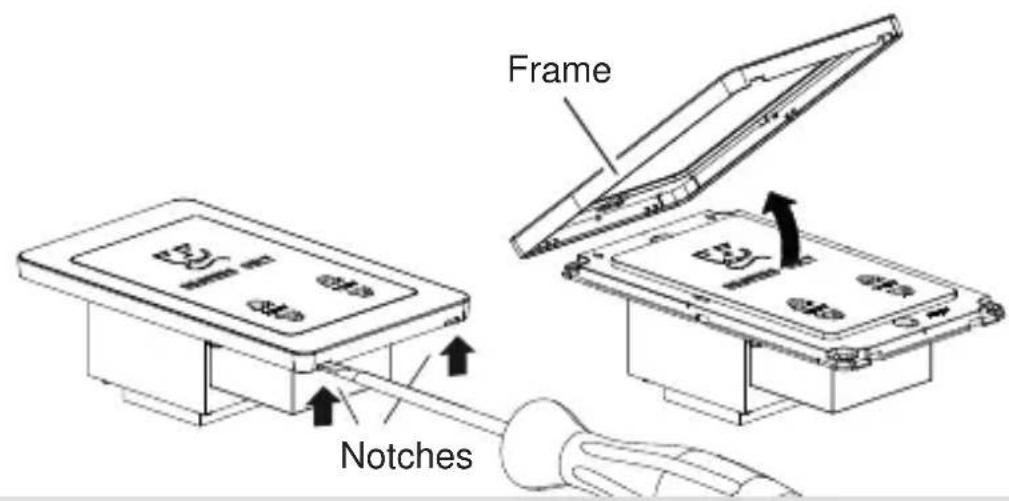

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

Connecting the device

2A

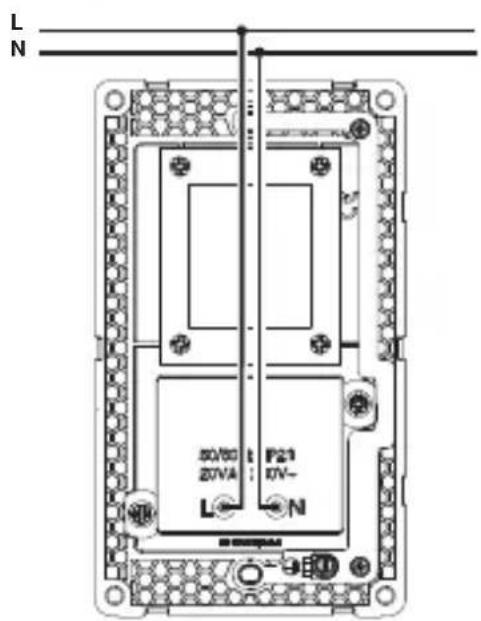

with plastic wall box

2B
with metal wall box

- Strip connection cables approx. 10 ... 15 mm.

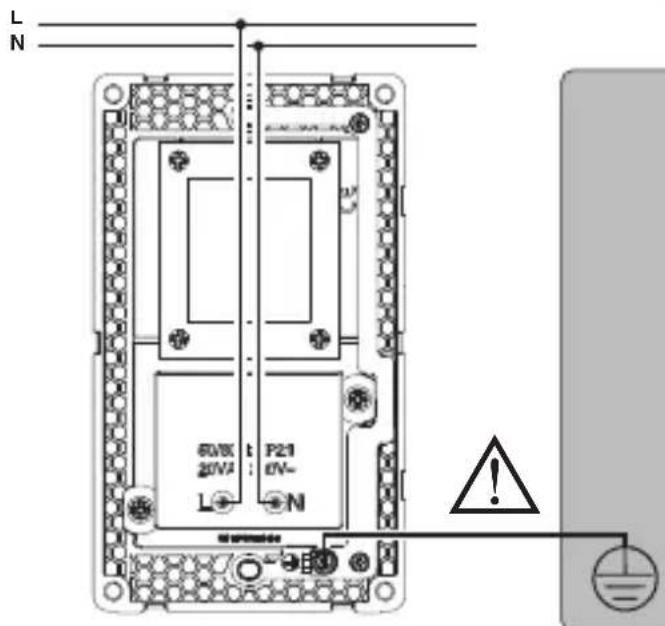

■ Wire the shaver socket according to the connection diagram (2A or 2B). When installing in metal wall box (2B), the box must be connected with earth directly.

Installing the device into the wall box

3

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the frame

4

■ Snap the frame onto the device (4).
