CB2010 - Hand tool BLAUPUNKT - Free user manual and instructions

Product Type	Hand Tool
Brand	Blaupunkt
Model	CB2010
Intended Use	General DIY, automotive, household repairs
Material	Chrome vanadium steel (alloy)
Handle Material	Bi-material with rubberized non-slip grip
Overall Length	200 mm (approx.)
Weight	0.3 kg (approx.)
Power Source	Manual (no power required)
Main Functions	Tightening and loosening screws, bolts, nuts
Handle Design	Ergonomic shape to reduce fatigue
Surface Treatment	Phosphate coating for corrosion resistance
Warranty	2 years (limited)
Included Accessories	None (tool only)
Maintenance	Clean with dry cloth; apply light oil to moving parts
Storage	Store in dry place, avoid moisture
Safety Precaution	Wear safety goggles when in use
Standards Compliant	ISO 9001, CE marked
Repairability	Non-repairable (replace if damaged)
Spare Parts Availability	Contact Blaupunkt service center

Frequently Asked Questions - CB2010 BLAUPUNKT

What is the Blaupunkt CB2010 tool used for?

The Blaupunkt CB2010 is a multi-purpose hand tool designed for tightening and loosening screws, bolts, and nuts in DIY, automotive, and household applications.

Is the CB2010 suitable for professional use?

Yes, it is built with durable chrome vanadium steel and an ergonomic handle making it suitable for both professional and occasional use.

How should I clean and maintain the CB2010?

Wipe the tool with a dry cloth after use. For moving parts, apply a drop of light oil periodically. Avoid using harsh chemicals.

Can the handle be replaced if damaged?

The handle is integrated and not replaceable. If the handle is damaged, the entire tool should be replaced for safety.

What materials is the CB2010 made of?

The tool head is made of chrome vanadium steel and the handle features a bi-material rubberized grip for comfort.

Does the CB2010 come with a warranty?

Yes, Blaupunkt offers a limited 2-year warranty covering manufacturing defects. Proof of purchase is required.

What size of fasteners can the CB2010 handle?

The tool is designed for standard metric fasteners up to 10 mm (depending on the specific model variant). Check the product specifications for exact sizes.

Is the CB2010 resistant to rust?

The tool has a phosphate coating that provides moderate corrosion resistance. Always store it in a dry place to prevent rust.

Can I use the CB2010 with impact drivers?

No, the CB2010 is a manual hand tool and should not be used with power tools or impact drivers as it may cause damage or injury.

Where can I find spare parts or service for the CB2010?

Spare parts are generally not available individually. For service, contact an authorized Blaupunkt service center or retailer.

USER MANUAL CB2010 BLAUPUNKT

Blue and black hair blower with attached trigger handle (no visible text or symbols)

Enjoy it.

Φυσητήρας φύλλων μπαταρίας Ακυμулаторна духалка за листа Suflantă de frunze fără fir Belaidis lapu pūstuvas Juhtmevaba lehepuhur Bezvadu lapu pūtējs

Close-up of a black handheld device with a labeled component (12), no visible text or symbols on the device itself.

	75% to 100%
	50% to 75%
	25% to 50%
	0% to 25%
	Charge the battery.

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

- A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

• Always place and use the power tool on a stable, level and horizontal surface.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Check the grinder housing for damage before each use.

- Ensure that the vents are free from debris.

- The device may only be used in a dry, well-lit environment.

- This tool should not be used by anyone under the age of 16. The device is intended for outdoor use only. Do not use for other than its intended purpose.

- Only charge the batteries in chargers specified by the manufacturer. There is a danger of fire if a charger designed for specific battery types is not used as intended.

- The battery should only be used in the manufacturer's equipment. This is the only way to protect the battery from dangerous overloading.

- Only use the power tool with the correct batteries. The use of other batteries could cause a risk of personal injury and a fire hazard.

- The battery can be damaged by sharp objects such as nails or screwdrivers as well as external forces. The battery may then short circuit internally and burn out, explode or overheat.

• When not in use, keep the battery away from metal items such as paper clips, coins, keys, nails, screws or other small metal objects that could short-circuit the battery terminals. A short circuit between the battery terminals can cause burns or a fire.
• Vapours may occur if the battery is damaged or not used as intended. The battery may catch fire or explode. Provide access to fresh air or contact your doctor in the event of any discomfort. Vapours may irritate the respiratory tract.
• Do not open the battery. Short-circuit hazard.
• Wait until the power tool stops moving before putting it down. The work tool may jam and lead to a loss of control of the power tool.
• Storing or using the battery in unsuitable conditions can cause electrolyte leakage. Avoid contact with the electrolyte, and flush the skin with water in the event of accidental contact. Additionally, seek medical advice if the electrolyte comes into contact with the eyes. Electrolyte leaking from the battery can cause skin irritation or burns.
• When carrying out work where the tool or clamping attachment could come into contact with concealed electric wires, hold the power tool only by insulated surfaces. Contact of the tool or clamping attachment with a live electrical conductor may cause voltage to be transmitted to non-insulated metal parts of the power tool, causing a risk of electric shock.
• Loss of control of the power tool may result in personal injury.
• Use appropriate detectors to locate the installation or seek assistance from your local service provider. Contact with live wires may result in a fire or electric shock.

Charger and battery pack safety instructions

To connect the battery pack for charging, insert the battery pack into the charger dock and plug the charger to a power

source.

• Keep the charger away from rain and moisture. The charger may only be used indoors.
• Keep the charger clean.
• Do not operate the charger on readily combustible objects and surfaces (e.g. paper) or areas with flammable/explosive atmospheres.
  • Always ensure adequate ventilation when charging; fumes or battery acid can be released from the battery pack if the latter is compromised by poor handling or damage.
• When charging is complete, unplug the charger from the power source. Do not leave it connected to a power source for longer than necessary.
• Store and charge the battery pack in a dry place and make sure it will not be flooded by water.
• Keep the battery pack terminals clean and free of dirt.
• Protect the battery pack from shocks and moisture; never open the battery pack or expose it to any damage.

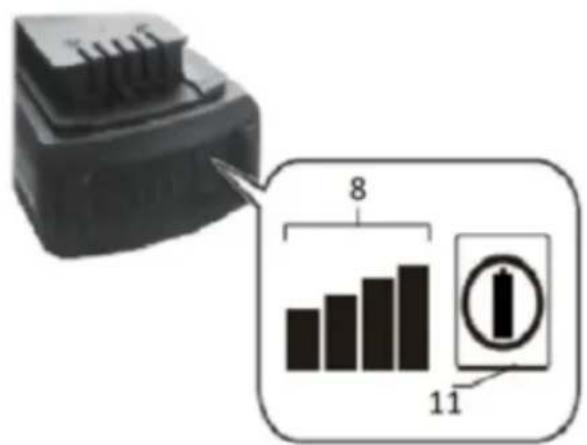

The battery pack charge level can be displayed with the number of charge indicator LEDs by pressing the state of charge indicator button on the pack; if required, charge the battery pack for as long as required to reach the desired charge level and the expected operating time of the cordless power tool.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

	Read the user manual. Wear protective footy
	The product complies with EC safety standards		Use ear protection
			Wear protective glovesGeneral warning
	Dispose of the product in accordance with the WEEE directive		Wear protective clothing
LI-ION	Contains a lithium-ion rechargeable battery		Wear a protective mask
	The product has double electrical insulation		Wear safety glasses
	Fire hazard		Wear a protective helmet
	Electric shock hazard		Wear respiratory protection

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Design of the electric leaf blower.

1. Power & speed control switch
2. Lock release button
3. Centre tube
4. End tube

5. Vents

6. Handle grip

7. Battery charge indicator
8. State of charge indicator button
9. Battery pack latch release buton

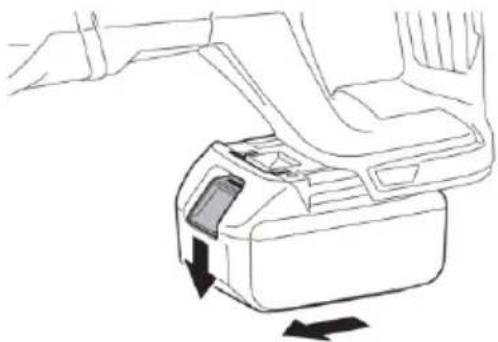

Remove the battery pack by pressing the battery pack latch release button and slide out the pack.

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Storage

Store cordless tools in a dry place and out of the reach of

children. For safety concerns, remove the battery pack from the cordless tool before storage. When left connected to a cordless tool, the battery pack is drained faster. Protect the battery pack and power tools from frost, high temperatures, moisture and water.

Do not attempt to repair a failed battery pack. Only the original manufacturer or an authorised service may repair the battery pack.

Recharge the battery packs using only the chargers specified by the manufacturer.

Storage or operation of the battery pack in unsuitable conditions may result in a battery acid leak.

Never attempt to use a damaged or modified battery pack. Damaged or modified battery packs may cause unpredictable effects during operation, resulting in health hazards. Keep the battery pack away

from open flames and high temperature. If exposed to fire or temperatures above 130^ C, the battery pack may explode.

Installing the battery pack

Tip: Using a battery pack incompatible with the power tool may result in abnormal performance or failure of the power tool. Insert the battery pack into the handle until the battery pack latch clicks (the battery pack should be flush with the receptacle edges on the power tool).

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

ASSEMBLING THE TOOL

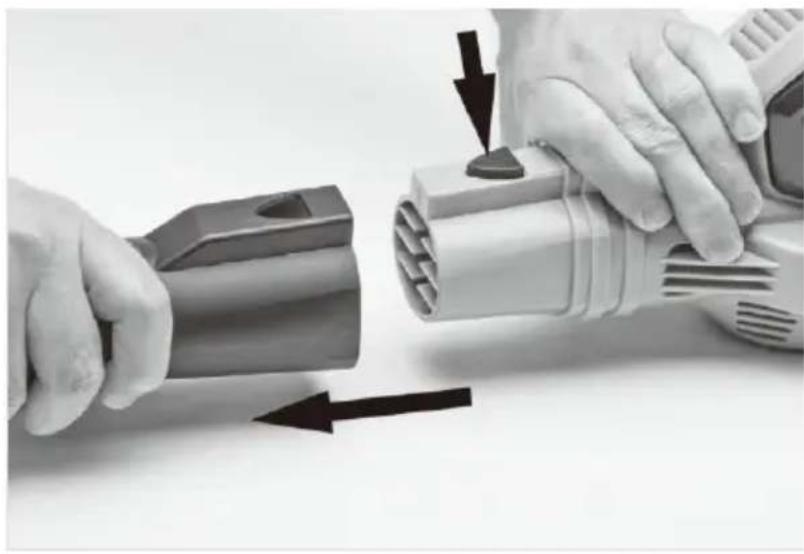

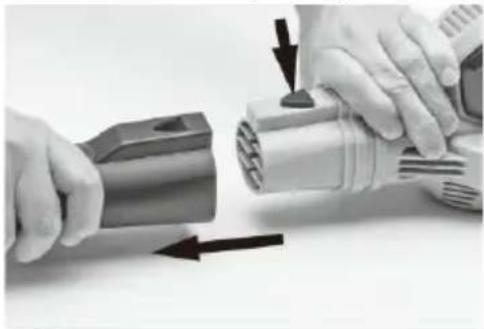

Follow the description and the figure Assemble the tool by sliding the centre tube in, until the lock release button is engaged.

Close-up of hands using a handheld device to adjust a cylindrical component (no visible text or symbols)

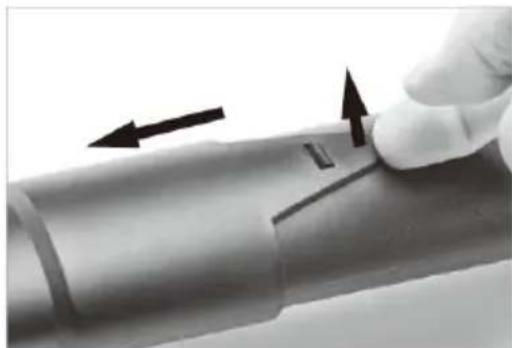

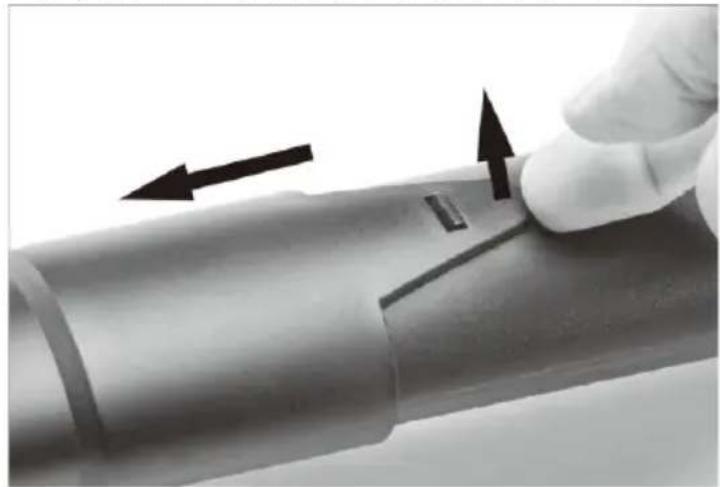

Next, slide in the end tube until the lock is engaged.

Close-up of a mechanical component with a hand holding a button, showing a black arrow indicating direction (no text or symbols visible)

Starting the tool

Turn on the tool by moving the switch (1) to (I).
To choose the higher speed, move the switch (1) to (II).
To turn the tool off, move the switch (1) to (0).
Extreme caution is required near the blower tube mouth, as it may propel debris and other objects with a high force under the blower air pressure, which may result in injury.
Use the tool only in a dry and well-lit location.
The tool is intended for blowing away leaves, mown grass clippings and other light debris from foot pavements, driveways, and similar areas.

Technical data:

Voltage: 18 V

No-load speed: 13000 rpm

2 speed settings: 110 km/h; 210 km/h

Battery: 18 V Li-Ion, BP1820 2.0 Ah (not included); BP1840 4.0 Ah recommended (not included)

Dimensions: 92 x 15 x 18.5 cm

Weight:1.2 kg

Noise

Typical A-weighted noise level measured in accordance with En62841:

Sound pressure level (LpA): 75.5 dB (A)

Measurement uncertainty (K): 3.0 dB (A)

Noise level during operation may exceed: 88.26 dB (A).

Wear hearing protection!

Vibrations

Total vibration value measured in accordance with EN 62841:

Vibration emission: ah=3.5 m/s ^2 K=1.5 m/s ^2

Measurement uncertainty (K): 1,5 m/s²

Weight: 1.2 kg

Permissible Operating Time: 15 minutes of operation, 30 minutes off.

The declared vibrations has been measured according to the standard test method and can be used to compare tools.

The declared vibrations can also be used in the initial exposure assessment.

WAŻNE INFORMACJE

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Przechowywanie

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

MONTARZ URZĄDZENIE

Close-up of hands using a handheld device to adjust a device (no visible text or symbols)

Close-up of a mechanical component with a hand holding a knob, showing a black arrow indicating direction (no text or symbols visible)

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Skladování

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

MONTÁŽ ZAŘÍZENÍ

Close-up of hands holding a device with a black arrow indicating direction (no text or symbols visible)

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

Spuštění zařízení

Line drawing of a car interior showing a hand valve and internal components with directional arrows indicating movement (no text or symbols)

Uschovávanie

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

MONTÁŽ ZARIADENIA

Close-up of hands using a handheld device to adjust a cylindrical component, with an arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with a hand adjusting it, showing a curved section and an arrow indicating direction (no text or symbols present)

Spúštanie zariadenia

Ked' chcete zariadenie zapnút, prestavte tlačidlo 1 na polohu (I).

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Tárolás

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

Close-up of hands using a handheld device to adjust a cylindrical component, with an arrow indicating motion (no text or symbols visible)

Close-up of a mechanical component with a hand holding a knob, showing motion direction arrows (no text or symbols)

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Shranjevanje

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

SESTAVLJANJE NAPRAVE

Sledite opisu in ilustracijam.

Za sestavljanje naprave pritisnite sredinsko cev, dokler se gumb blokade ne zaskoči.

Close-up of hands using a handheld device to adjust a cylindrical component, with arrows indicating motion (no text or symbols visible)

Nato potisnite končno cev, dokler se blokada ne zaskoči.

Close-up of a mechanical component with a gloved hand and black arrows indicating direction (no text or symbols)

Zagon naprave

Merilna negotovost (K): 3,0 dB (A)

Raven hrupa med delom lahko preseže: 88,26 dB (A).

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Pohrana

Akumulatorske alate treba čuvati na suhom mjestu izvan dohvata djece. Iz sigurnosnih razloga uklonite bateriju prije nego što odložite bežični alat. Kada se akumulator umetne u akumulatorski alat, ona se brže prazni. Zaštitite akumulator alat od mraza, topline, vlage i vode.

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

MONTAŽA UREĐAJA

Postupajte sukladno opisu i slikama.

Close-up of hands holding a flashlight with a black arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical part with an arrow indicating direction (no text or symbols visible)

Pokretanje uređaja

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Φύλαξη

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

Close-up of hands using a handheld device to adjust a mechanical component, with arrows indicating direction (no text or symbols visible)

Close-up of a mechanical component with a hand adjusting its edge, showing a black arrow indicating direction (no text or symbols present)

Εκκίνηση συσκευής

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Съхранение

Line drawing of a car interior component with directional arrows indicating movement or flow (no text or symbols)

МОНТАЖ НА УРЕДА

Close-up of hands using a handheld device to adjust a cylindrical component, with an arrow indicating rotation (no text or symbols visible)

Close-up of a hand pressing down on a cylindrical mechanical component with an arrow indicating direction (no text or symbols visible)

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

Depozitare

Line drawing of a car interior component with directional arrows indicating movement or flow (no text or symbols)

ASAMBLAREA DISPOZITIVULUI

Close-up of hands using a power tool to adjust a mechanical component, with arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with a hand holding a knob, showing a black arrow indicating direction (no text or symbols present)

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

Laikymas

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

PRIETAISO SURINKIMAS

Close-up of hands using a power shaver tool to adjust a cylindrical component, with arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with a hand holding a knob, showing a black arrow indicating direction (no text or symbols present)

Irenginio paleidimas

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Hoiustamine

Line drawing of a car interior device with directional arrows indicating movement or force (no text or symbols)

SEADME PAIGALDUS

Close-up of hands using a handheld device to adjust a cylindrical component, with arrows indicating motion (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical part with an arrow indicating direction (no text or symbols visible)

Seadme käivitamine

Line drawing of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Uzglabāšana

Line drawing of a car seatbelt device with directional arrows indicating movement (no text or symbols)

IERICES SALIKŠANA

Close-up of hands using a handheld device to adjust a cylindrical component, with arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with a hand holding a tool, showing a small inset detail (no text or symbols visible)

EU – DECLARATION OF CONFORMITY

01/2023/CB2010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Cordless Leaf Blower 18 V

CB2010

Name:

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN 55014-1:2017+A11:2020 | EN IEC 55014-1:2021

EN 55014-2:1997+A1:2001+A2:2008 | EN IEC 55014-2:2021

MD and LVD standards:

ISO 12100:2010

EN 62841-1:2015

EN 15503:2009+A2:2015

EN 62233:2008

RoHS standards:

EN IEC 63000:2018

Warsaw, 14.02.2023

BLAUPUNKT

Blaupunkt Competence Center 2N-Everpol Sp. z o.o.

Registered office:

Puławska 403A

02-801 Warsaw, Poland

Corespondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]

DEKLARACJA ZGODNOŚCI UE

01/2023/CB2010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
