Product Type	Electric Water Heater
Model	BWH 50 EUC
Brand	Beko
Capacity	50 Liters
Dimensions (Diameter x Height)	450 mm x 800 mm
Weight (Empty)	20 kg
Power Supply	230 V / 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	C
Temperature Adjustment Range	30°C - 75°C
Heating Element	Copper immersion heater
Safety Valve	Pressure relief valve (8 bar)
Corrosion Protection	Magnesium anode
Insulation	Polyurethane foam, 50 mm
Mounting Type	Wall-mounted, vertical
Connection Type	Bottom water connections (½" BSP)
Control Type	Thermostatic knob with indicator light
Maintenance	Drain annually; replace anode every 2-3 years
Cleaning	Wipe exterior with damp cloth; flush interior periodically
Safety Features	Overheat protection, dry-fire protection
Spare Parts Availability	Thermostat, heating element, anode, gaskets
Repairability Index	7.5 / 10
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - BWH 50 EUC BEKO

How do I install the Beko BWH 50 EUC water heater?

Installation must be performed by a qualified technician. Ensure the wall can support the weight (approx. 80 kg when full). Connect to mains water and 230 V power supply. Install the safety valve and set the thermostat as desired.

What is the recommended temperature setting?

For energy efficiency and to prevent scalding, set the thermostat between 55°C and 60°C. Higher temperatures increase energy consumption and risk of burns.

How often should I drain the water heater?

Drain the tank at least once a year to remove sediment. Follow the manual: turn off power, close inlet valve, open hot tap, and drain via the drain valve.

Why is my water heater leaking from the pressure relief valve?

A small amount of dripping during heating is normal. If it leaks constantly, the valve may be faulty or water pressure is too high. Test the valve manually; replace if necessary.

How do I replace the magnesium anode?

The anode protects against corrosion. Check every 2 years and replace if less than 50% of original size. To replace, drain the tank, unscrew the old anode, and install a new one with thread sealant.

What should I do if the water is not heating?

First check the power supply and circuit breaker. Then test the thermostat and heating element with a multimeter. If faulty, replace them. Ensure the overheat protection hasn't tripped.

Can I use an extension cord for this water heater?

No, never use an extension cord. The water heater must be directly connected to a dedicated 230 V circuit with proper grounding to avoid fire or shock hazards.

How energy efficient is the BWH 50 EUC?

It has an energy efficiency class of C (on a scale of A++ to G). To save energy, set lower temperatures and insulate hot water pipes.

What spare parts are available for this model?

Common spare parts include the thermostat, heating element, magnesium anode, and gaskets. Order from Beko authorized service centers.

How do I clean the exterior of the water heater?

Disconnect power and let it cool. Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the paint.

USER MANUAL BWH 50 EUC BEKO

Line drawing of a rectangular electronic device with a circular button and two ports at the bottom (no text or symbols)

Observación General

Technical diagram of a mechanical assembly with hatched background and vertical rail (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled point 'F' (no text or symbols beyond label)

(Fig.3)

Line drawing of a rectangular electronic device with a circular button and two ports (no text or symbols)

Comentários Gerais

Technical line drawing of a mechanical assembly with hatched background and vertical rail (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled force arrow (no text or symbols)

(Fig.3)

Storage Electric Water Heater

User Manual

BWH 50 EUC

BWH 80 EUC

BWH 100 EUC

Line drawing of a rectangular electronic device with a circular button and two ports (no text or symbols)

General Remark

• The installation and maintenance has to be carried out by qualified professionals or authorized technicians.
• The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet.
• For more detailed installation and maintenance guidelines, please refer to below chapters.

TABLE OF CONTENTS

TITLE PAGE

1. Cautions ......(2)
   2.Product introduction ....(3)
2. Unit installation ....(5)
   4.Methods of using....(7)
3. Maintenance....(8)
4. Troubleshooting....(9)

1. CAUTIONS

Before installing this water heater, check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property.

Special Cautions

• The water heater is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater.
• The wall in which the electrical water heater is installed must be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures must be adopted.
• The supply socket must be earthed reliably. The installation height of the supply socket must not be lower than 1.8m. The rated current of the socket must not be lower than 16A. The socket and plug must be kept dry to prevent electrical leakage. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.
• The maximum inlet water pressure is 0.5MPa; the minimum inlet water pressure is 0.1MPa, if this is necessary for the correct operation of the appliance.
• When using the heater for the first time (or the first use after maintenance), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.

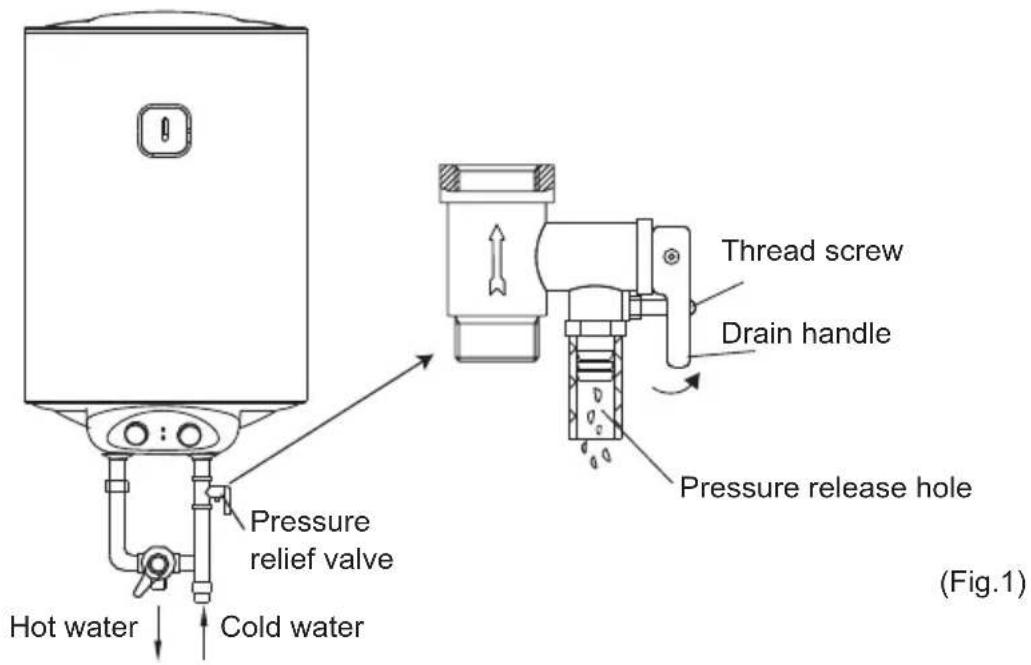

• The pressure relief valve attached with the heater must be installed at the cold water inlet of this heater, and make sure it is not exposed in the foggy. The water may be outflowed from pressure relief valve, so the outflow pipe must open wide in the air. In order to drain away the water inside the inner container, it can be drained away from the pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain handle upwards(See Fig.1). The drainage pipe connected to the pressure release hole must be kept sloping downwards and in a frost-free environment. The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere.
• During heating, there may be drops of water dripping from the pressure release hole of the pressure relief valve, this is a normal phenomenon. The pressure release hole shall not be blocked under no circumstances, otherwise, the heater may get damaged, even resulting in accidents. If there is a large amount of water leak, please contact customer care center for repair.
• The pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.

- Since the water temperature inside the heater can reach up to 75°C, the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a suitable temperature to avoid scalding.

- If any parts and components of this electrical water heater are damaged please contact customer care center for repair.

2. PRODUCT INTRODUCTION

2.1 Technical Performance Parameters

Model	Volume (L)	Rated Power (W)	Rated Voltage (ACV)	Rated Pressure (MPa)	Max Of Water Temperature (°C)	Protection Class	Waterproof Grade
BWH 50 EUC	50	2000	220-240	0.75	75	I	IPX4
BWH 80 EUC	80	2000	220-240	0.75	75	I	IPX4
BWH 100 EUC						I	IPX4750.75220-24

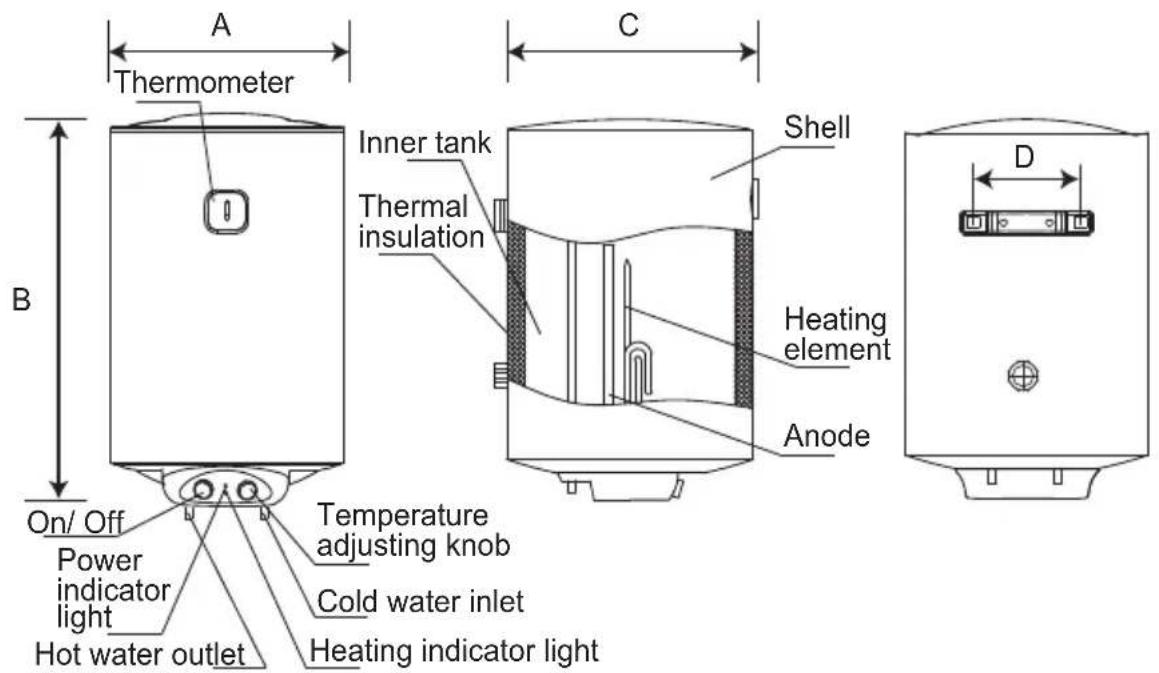

2.2 Brief introduction of product structure

	50L	80L	100L
A	385	450	450
B	759	791	956
C	385	450	450
D	200	200	200

(Note: All dimensions are in mm)

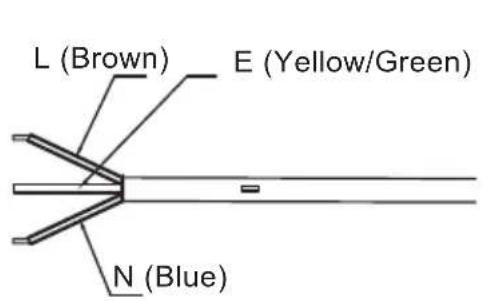

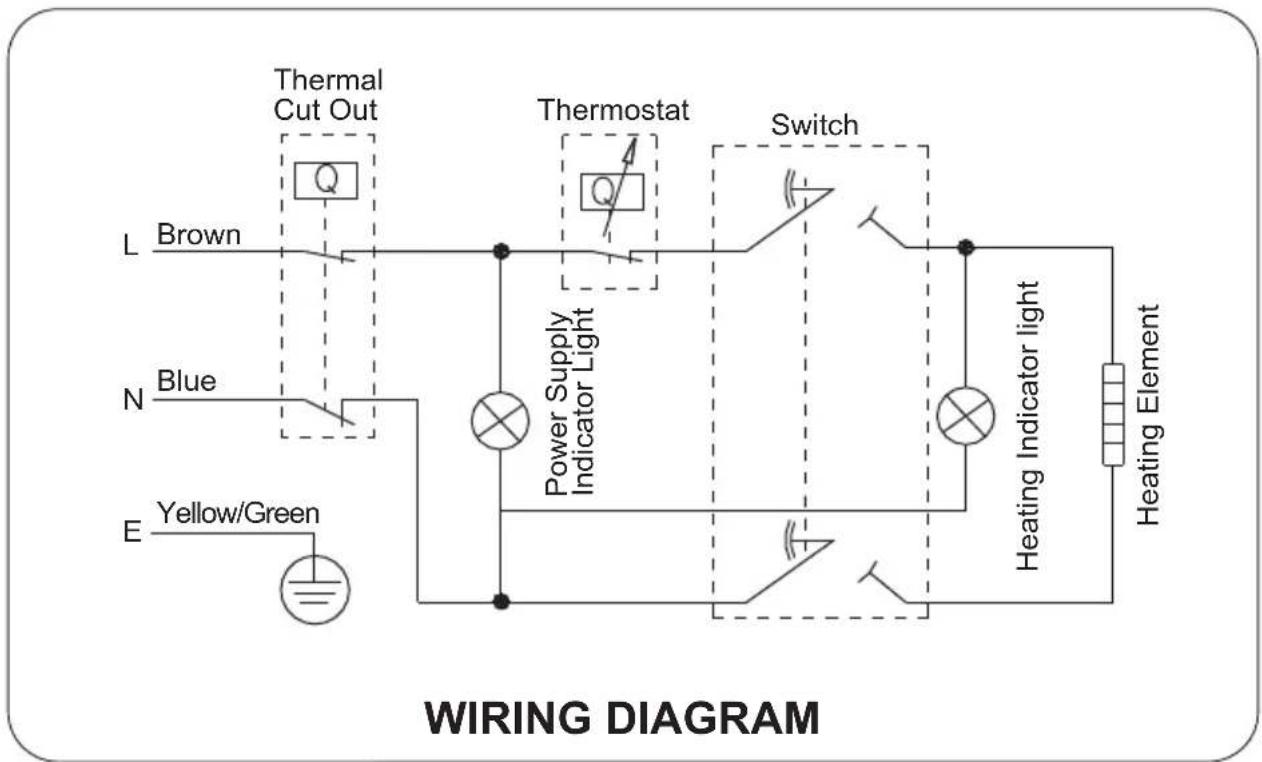

2.3 Internal Wire Diagram

3. UNIT INSTALLATION

3.1 Installation Instruction

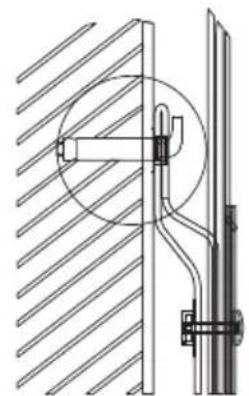

① This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support. In case of hollow bricks wall, ensure to fill it with cement concrete completely.
② After selecting a proper location, determine the positons of the two install holes used for expansion bolts with hook. Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Technical line drawing of a mechanical assembly with hatched background and vertical rail (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled point B (no text or symbols beyond label)

Expansion bolt (with hook)
(Fig.2)

③ Install the supply socket in the wall. The supply socket be 220V. It is recommended to placed the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3). If there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified person who is able to do this so as to ensure the safety.

(Fig.3)

④ If the bathroom is too small, the heater can be installed at another place. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location shall be as near as possible to the heater.

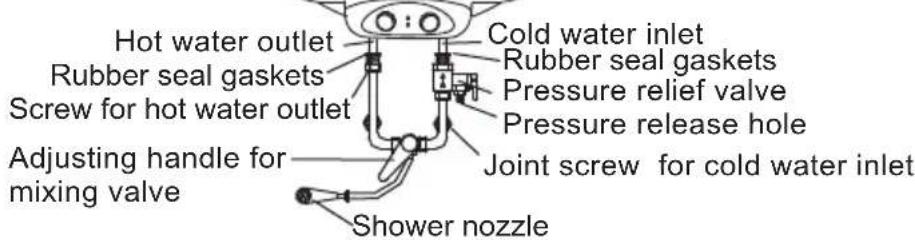

3.2 Pipelines Connection

① The dimension of each pipe part is G1/2"; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.

② Connection of pressure relief valve with the heater on the inlet of the water heater.
③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

(Fig.4)

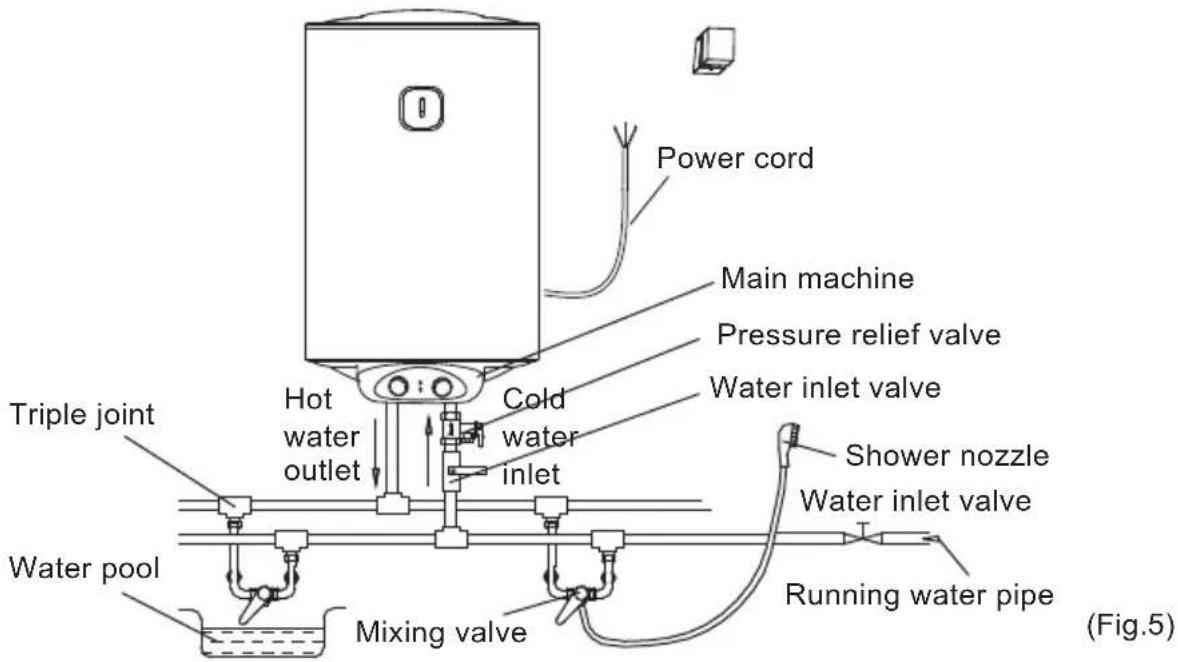

④ If the users want to realize a multi-way supply system, refer to the method shown in fig.5 and fig.6 for connection of the pipelines.

NOTE

Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to convenient the maintenance of the heater, if necessary.

4. METHODS OF USING

- First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet valve can be closed.

NOTE

During normal operation, the inlet valve shall be always kept open.

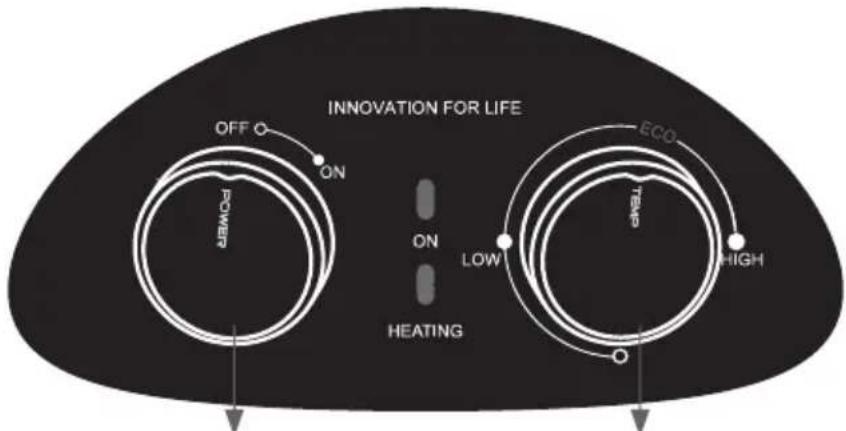

• Insert the supply plug into the socket.
• Rotate the power knob to "ON", the "ON" indicator will light up this time. If you want to turn off the water heater heating, please rotate the power knob to "OFF", the "ON" indicator will light off.
• Rotate the temperature adjusting knob, the "HEATING" indicator will light up. According to the marking on the knob to increase or decrease the setting temperature. The thermostat will automatically control the temperature. When the water temperature inside the heater has reached the set temperature, it will switch off automatically and light off the "Heating" indicator. When the water temperature falls below the set point, the heater will be turned on automatically to restore the heating, the indicator will light up again.

OFF/ON Temperture Adjusting Knob
(Fig.7)

Before doing any maintenance, please cut off the power supply.

- Check the power plug and outlet as often as possible. Secure electrical contact and also proper grounding must be provided. The plug and outlet must not heat excessively.

- If the heater is not used for a long time, especially in regions with low air temperature (below 0°C), it is necessary to drain water from the heater to prevent damage of the water heater, due to water freezing in the internal tank. (Refer Cautions in this manual for the method to drain away the water from the inner container).

- To ensure long reliable water heater operation, it is recommended to regularly clean the internal tank and remove deposits on the electric heating element of the water heater, as well as check condition (fully decomposed or not) of the magnesium anode and, if necessary, replace it with a new one in case of full decomposition. Tank cleaning frequency depends on hardness of water located in this territory. Cleaning must be performed by special maintenance services. You can ask the seller for address of the nearest service center.

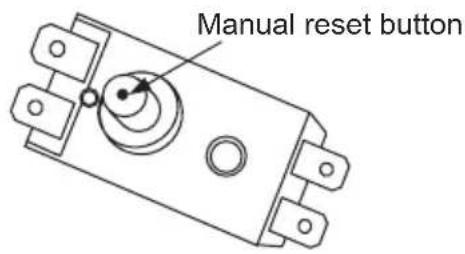

- The water heater is equipped with a thermal switch, which cuts off power supply of the heating element upon water overheating or its absence in the water heater. If the water heater is connected to the mains, but water is not heated and the indicator doesn't light up, then the thermal switch was switched off or not switched on. To reset the water heater to the operating condition, it is necessary to:

1. De-energize the water heater, remove the plate of the side/lower cover.

2. Press the button, located at the center of the thermal switch, see Fig.8;

3. If the button is not pressed and there is no clicking, then you should wait until the thermal switch cools down to the initial temperature.

(Fig.8)

WARNING

Non-professionals are not allowed to disassemble the thermal switch to reset. Please contact professionals to maintain. Otherwise our company will not take responsibility if any quality accident happens because of this.

6. TROUBLESHOOTING

Failures Reasons Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact Carrier Midea India service helping for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve of running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve of running water.
The water temperature is too high.	Failures of the temperature control system.	Contact Carrier Midea India service helping for repair.
Water leak.	Seal problem of the joint of each pipe.	Seal up the joints.

NOTE

Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations. This product is intended for household use only. Specifications are subject to change without notice.
