USER MANUAL JAG014153 Jocel

Exterior view of a black industrial air purifier unit with mesh grille and control panel (no visible text or symbols)

JAG014153

FOR ENERGY SAVING, THIS PRODUCT IS NOT SUITABLE FOR PRIMARY HEATING PURPOSES

Read the Instruction Manual carefully.

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

READ INSTRUCTIONS CAREFULLY: READ AND FOLLOW ALL INSTRUCTIONS. PLACE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. ONLY USE IN A WELL-VENTILATED AREA

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY. A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE. PERSONAL INJURY OR LOSS OF LIFE

TECHNICAL CHARACTERISTICS

	Category	I_3+
CE 1008	Type of gas	G30	G31
	Gas Pressure (mbar)	28-30	37
MODEL: JAG014153
INPUT: 2.0 / 2.6 / 3.2 KW
GAS CONSUMPTION: 145 / 190 / 235 g/h
IGNITION TYPE: Piezo-spark Ignition
Weight (KG): 10.1kg

WARNING:

1. THE APPARATUS IS NOT READY FOR THE PHYSICALLY WEAK, SLOW RESPONSE OR MENTAL DISORDERS (INCLUDING CHILDREN) TO USE, UNLESS IT BEARS RESPONSIBILITY FOR THE GUIDANCE OF SAFETY OR SAFE USE OF THE HELP.
2. CHILDREN SHOULD BE MONITORED TO ENSURE THEY DO NOT PLAY APPARATUS.
3. HEATER IS NOT LOCATED IMMEDIATELY BELOW A SOCKET-OUTLET.
4. THIS HEATER IS NOT EQUIPPED WITH A DEVICE TO CONTROL THE ROOM TEMPERATURE. DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

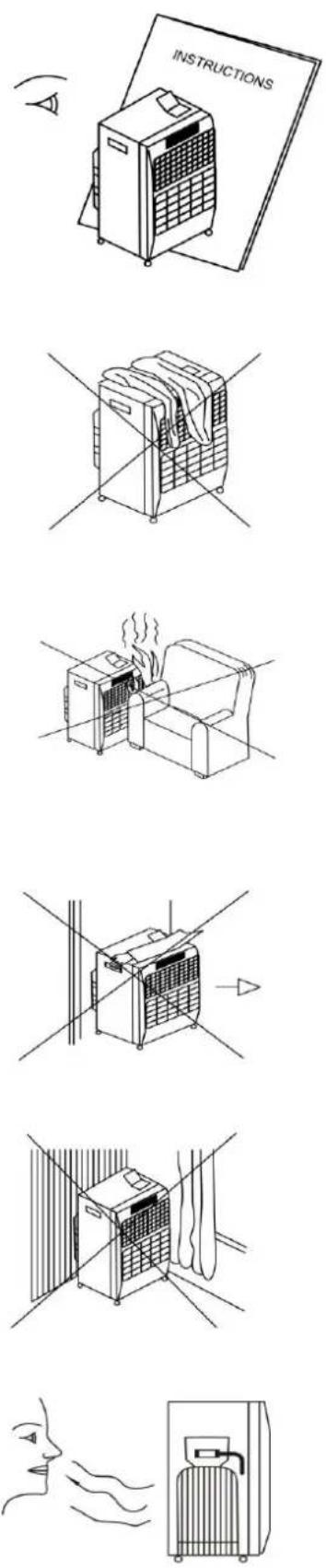

SAFETY PRECAUTIONS:

1. Always use heater in accordance with instructions supplied with each heater. Keep instructions in a safe place.

2. DO NOT place clothes or other materials on the heater. This could cause a fire risk and/or affect the efficiency of the appliance.

3. DO NOT position heater close furniture.

4. DO NOT move heater from room to room when lit.

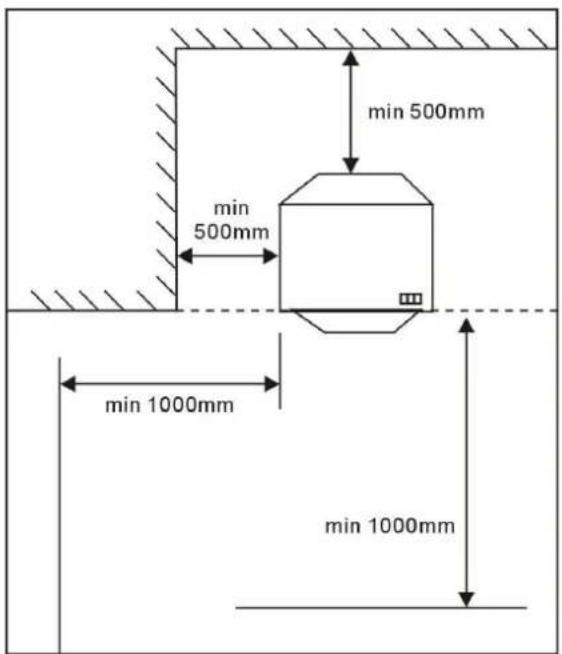

5. DO NOT position heater close to walls, furniture, net curtains, bed linen or any other inflammable materials as this could result in the risk of fire. The following minimum distances should be respected; 50cm from side, 100 cm from front. ALWAYS face heater towards center of room. The heater should be positioned on a level surface at all times.

6. If a leak is suspected, turn the gas off at the cylinder. DO NOT disconnect the regulator. Check all connections. Slowly turn the gas on and brush the connections with soapy water or liquid detergents a gas leak will form bubbles. If a leak is found, turn the gas off. DO NOT use the heater again until it has been checked by a competent person in accordance with the Gas Safety (installations and use) Regulations 1998.

USING ENVIRONMENT:

Your heater consumes oxygen while it is in function. For that reason, adequate ventilation should be provided in rooms in which the heater is used. This ensures the removal of products of combustion and allows the entry of replacement air.

Adequate ventilation should considerably reduce the possibility of condensation occurring. The following table shows the smallest sizes of room suitable for each heat setting and the ventilation.

FOR CATALYTIC HEATER MODELS:

Number of heaters continuously IN USE	ROOM SIZE	VENTILATION
		Low level
1	40 cubic meters - 4m*4m*2.5	40cm2	1
2	70 cubic meters - 7m*4m*2.5	70cm2	2
3	105 cubic meters - 105m*4m*2.5	105cm2	3

1. This appliance requires a hose and a regulator.

2. Only use in well ventilated areas.

3. Do not use in vehicles, caravans or auto caravans.

4. Do not attempt to use in high-rise flats, basements, bathrooms or bedrooms.

5. Do not use your heater while sleeping.

6. Do not store flammable liquids or material near the heater.

7. Do not expose the gas bottle to the full summer heat nor too near any other heat source.

8. Do not place a heater in use near curtains, furniture, wood paneling or combustible material which can deteriorate with heat.

9. While in use, ensure that children do not approach the heater.
10. Do not move the appliance when in use; the safety device may be activated by knocks or movement.
11. This appliance should be tested for leaks before initial use and whenever the cylinder is re-connected.
12. It is important that all gas connections have been correctly made to prevent any leakage. Do not use naked flame to test for leaks. Use soapy water.
13. Always use your cylinder always in an upright position.
14. Always turn off the regulator control when the heater is not in use.
15. When lighting your heater for the first time or after a period of time has passed since the last use, light the heater outside and burn outdoors for 15 minutes.
16. This appliance requires a hose and a regulator, check with your gas supplier for the correct type according to the cylinder being used and any regulations at the time.
17. The guard on the appliance is to prevent risk of fire or injury form burns and no part of it should be permanently removed. It does not give full protection for young children or the infirm. We would recommend a fireguard to be fitted.
18. For the Pusher Igniter unit, it need to be installed a AAA battery

FAULT FINDING CHART

SYMPTOMS	FAULT	REMEDY
5. Pilot will not light automatically	No spark across electrode gap	6. Ensure that piezo-electric ignition is functioning correctly.7. Check that electrical lead is not damaged.8. Check the battery power if the heater fitted with Push ignitEr and replace a new one
6. Pilot will not light automatically but points (a) to (e) are satisfactory and the pilot will light with a match	Incorrect position of spark in relation to pilot gas flow.	Re-position spark plug so that spark jumps across gas flow.
7. Heater will not remain alight when pressure is released from ignition button	Electro-magnetic valve closes whilst heater is alight.	(e) Ensure that thermocouple probe is located in pilot flame.(f) Ensure good connection between thermocouple and valve(g) Check thermocouple.(h) Check electromagnetic valve
8. Smell of combustion.	Heating temperature become lower than usual	1. Damage of the catalytic pad.2. Gas leakage from the gas circuit pipe.3. Faulty regulator4. Hose ageing

For your safety purpose, call local service center if you have problems.

REPAIRS SHOULD ONLY BE CARRIED OUT BY A COMPETENT PERSON IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATIONS AND USE) REGULATIONS 1998

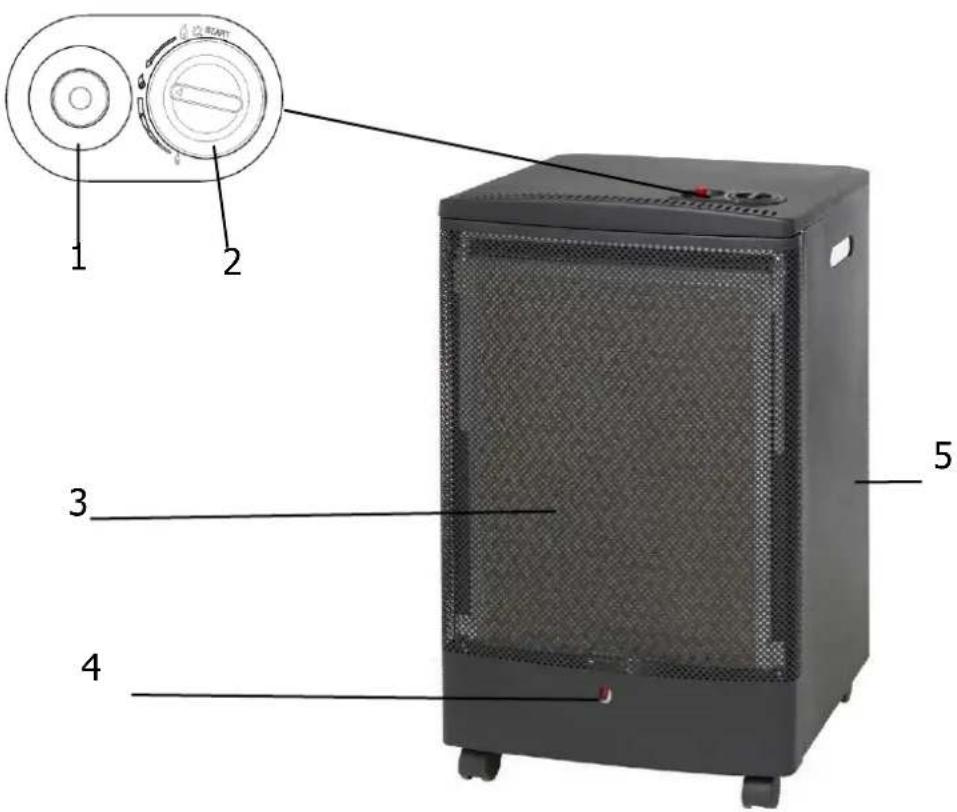

CONSTRUCTION AND FUNCTION

1. Igniter
2. gas control knob
3. Catalytic panel
4. Pilot flame window
5. Rear cover

CONNECTING THE CYLINDER

1. Place the gas filled cylinder into the back of the heater.
2. Clip on the gas regulator to the gas cylinder.
3. Turn the regulator on.
4. The regulator is not supplied please contact your gas dealer to advise of correct type for the gas cylinder being used.

5. IMPORTANT TEST FOR LEAKS:

This must be carried out in a well-ventilated area, free from naked flames and any other sources of ignition. With the regulator connected to the cylinder turn on the regulator control. Brush all hose connections, pipe connections to the valve and gas cylinder valve with a 50:50 solution of detergent and water. A stream of bubbles forming indicates a leak. If a leak is found turn off at the regulator and disconnect the regulator from the bottle and remove the gas cylinder outdoors or to a well-ventilated area. Contact your gas supplier for assistance. DO NOT USE THE HEATER.

1. After leak testing is satisfactorily carried out close the back door of the heater. It may be necessary to move the heater slightly to allow the regulator and hose to fit in the back without kinking the hose.

HOW TO CHANGE A CYLINDER

1. Unplug the heater before take out the cylinder.
2. Turn off at the regulator and allow the heater to cool fully before removing and replacing the cylinder. Do not attempt to replace the cylinder whilst the heater is still running.
3. Cylinders must be replaced in a flame free environment.
4. Do not smoke while changing the cylinder.
5. When you need to replace your empty cylinder, turn the gas off at the valve or regulator of the cylinder and take the empty cylinder out of the heater.
6. Remove the regulator from the empty cylinder.
7. Following the steps described under "connecting the cylinder", connect a new cylinder.

(a) Take out the heater from the carton carefully. Please save the carton for off–season storage.
(b) Make sure the heater in off position "O" before switching on.
(c) Connect to a cylinder with a regulator and hose (not supplied).

GAS HEATER OPERATION GUIDE

1. LIGHTNG INSTUCTION

a. The heater has three settings. Lighting (Pos.1) and Minimum (Pos.2); Medium (Pos.3) and Maximum (Pos.4)
b. Place the gas filled cylinder into the back of the heater.
c. Clip on the gas regulator to the gas cylinder.
d. Turn on the gas regulator.

2. LIGHTING

Press the control button for 10 seconds at the Position 1, at the same time press the piezo igniter key to light with thumb finger of left hand, continue this procedure until pilot ignites, approximately after 20 seconds leave control button. At this stage if the pilot is alight, it means that the heater is at the minimum position (Pos.1). If the pilot flame goes out please repeat this procedure.

3. HEAT SETTINGS

To change from minimum to maximum gently press control button and turn it to position 3.

To change from maximum to medium gently press control button and turn it to position 2.

4. TURN OFF THE HEATER

Turn and press the control knob to LIGHTNING position. Then turn off the valve on the gas cylinder. If the heater is not used for a period of time, disconnect the regulator from the cylinder.

WARNING

• Read the instructions before using this appliance.
• The apparatus is not ready for the physically weak, slow response or mental disorders (including children) to use, unless it bears responsibility for the guidance of safety or safe use of the help.
• Children should be monitored to ensure they do not play apparatus.
• Use an appropriate regulator (not supplied), ask your supplier to get one.
• Never attempt to light if the hose is loose or damaged in any way.
• Do not press the ignition button for more than 40 seconds.
• Never disconnect the regulator while cylinder valve or regulator is open.
• Do not change cylinder in areas in which open fire exists.
• Do not expose your cylinder to extreme heat.
• Do not store any other cylinders in the room in which your heater is used.
• Do not insert your finger or any other material through the front panel of the heater.

• Leave at least 1 meter distance between your heater and the other heat source.

• Do not let unauthorized persons to tamper with your heater.

• Do not place appliance under electrical socket outlets.
• Do not use the heater in bathrooms, shower of swimming pool, or leisure vehicles such as caravans or auto caravans.
• This heater must not be used without a gas cylinder fitted for stability purposes.
• Do not cover your heater. Fabrics, clothing, hangings, net curtains, bed linens and other flammable materials may ignite if placed against the outlets of your heater.
• In the event of leakage, the appliance should be turned off at the regulator switch-on valve and the regulator disconnected from the cylinder.
  • After use turn off the appliance at the gas container valve.
• Only use in a well ventilated area.

STORAGE

1. Disconnect cylinder.
2. Store cylinder in a well-ventilated area away from combustible material. Storage preferable be in an outhouse but must not be in a basement or high-rise flat.
3. The heater should be covered in a dry, dust-free area in its original packaging.

CLEANING

1. Make sure unplug the heater before cleaning.
2. Turn of your gas supply at the regulator.
3. Use a damp soapy wrung cloth clean the exterior and cylinder storage area of your heater.
4. Make sure that no water gets onto the burners or pilot/light area. Wipe the heater dry before use.
5. Don't use abrasive cleaners as they may damage the quality paint finish.

MAINTENANCE

1. Check flexible tubing between regulator and heater regularly and replace if perished, worn or damaged. In any case replace tubing taking into consideration the expiration date.
2. It is recommended that the heater be serviced every year by a competent person in accordance with the Gas Safety (installations and use) Regulations 1998.
3. If any parts need replacing, they should be replaced only with the correct parts supplied by the original manufacturer.

Information requirements for gaseous/liquid fuel local space heaters

Model identifier(s): JAG014153

Indirect heating functionality: NO

Direct heat output: 3.2 (kW)

Indirect heat output: NA

Fuel					Space heating emissions (*)NOX(mg/kWh input) (GCV)
I3+(28-30/37)		gaseous		28-30/37 mbar
item	Symbol	Value	Unit	item	Symbol	Value	Unit
Heat output				Useful efficiency
Nominal heat output	P(NOM)	3.2	kW	Useful efficiency at nominal heat output	(nom)	91	%
Minimum heat output	P(MIN)	NA	kW	Useful efficiency at minimum heat output	(min)	NA	%
Auxiliary electricity consumption				Type of heat output/room temperature control
at nominal heat output	el	0	kW	single stage heat output, no room temperature control			NO
at minimum heat output	el	0	kW	two or more manual stages, no room temperature control			YES
In standby mode	el	0	kW	with mechanic thermostat room temperature control			NO
				with electronic room temperature control plus day timer			NO
				with electronic room temperature control plus week timer			NO
				Other control options (multiple selections possible)
				room temperature control, with presence detection			NO
				room temperature control, with open window detection			NO
				with distance control option			NO

Permanent pilot flame power requirement

Pilot flame power requirement (if applicable)

P

0

kW

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product GAS HEATER

Brand JOCEL

Model JAG014153

Complies with the following European directives and standards implementation

Gas Appliances

2009/142/EC

EN 449:2002 + A1:2007

2009/125/EC

2015/1188

2015/1186
