JA011855 - Heating Jocel - Free user manual and instructions

Product Type	Wall-Mounted Electric Heater (WC Heater)
Brand	Jocel
Model	JA011855
Input Voltage	220-240V AC
Rated Power	1500W
Frequency	50/60 Hz
Power Settings	Off, 500W, 1000W, 1500W (3 levels)
Heating Element	Quartz tubes
Protection Class	Class I
IP Rating	IP24
Installation Height	180 cm from floor
Wall Mounting	Two holes, 8 cm apart, diameter 0.8 cm, depth 3.5 cm
Max Tilt Angle	55 degrees
Earthing Required	Yes
Cleaning	Soft moist rag and neutral detergent
Maintenance	No particular maintenance, keep ventilation free of dust
Warranty (Home)	2 years
Warranty (Industrial)	6 months
Country of Origin	R.P.C. (China)

Frequently Asked Questions - JA011855 Jocel

What is the maximum power output of the Jocel JA011855 heater?

The maximum power output is 1500W, selectable via a switch with settings for 500W, 1000W, and 1500W.

How should I mount the heater on the wall?

Mount the heater at a height of 180 cm from the floor. Drill two holes 8 cm apart with diameter 0.8 cm and depth 3.5 cm. Use the provided plastic plugs and screws. The heater can be tilted up to 55 degrees.

Is earthing required for this heater?

Yes, the heater is Class I and must be earthed for electrical safety. Ensure the electrical installation is done by a qualified professional.

How do I clean the Jocel JA011855?

Disconnect the heater from the power supply first. Use a soft moist rag and neutral detergent. Avoid abrasive cloths and do not touch the quartz heating elements during cleaning.

Can I use the heater in a bathroom?

The heater has an IP rating of IP24, meaning it is splash-proof. However, do not install it near bathtubs, showers, or swimming pools. Keep it at a safe distance.

What should I do if the heater vibrates when turned on?

Slight vibrations that gradually fade are normal behavior. If they persist or are severe, disconnect the heater and contact an authorized service center.

What is the warranty period for the Jocel JA011855?

The warranty is 2 years for home use and 6 months for industrial use. It covers defective parts replacement at Jocel's discretion, provided the appliance has been used according to instructions.

Can I operate the heater with a remote control?

The manual includes technical drawings of a remote control, but it does not explicitly state that a remote is included or how to use it. Please refer to the actual product package or contact Jocel for confirmation.

Does the heater require any special maintenance?

No particular maintenance is required beyond regular cleaning. Ensure the ventilation openings are free of dust and dirt. Do not cover the heater.

What are the power settings and how do I select them?

The heater has a switch with positions: 0=Off, 1=500W, 2=1000W, 3=1500W. Turn the switch to the desired setting to operate the heater.

USER MANUAL JA011855 Jocel

Exterior view of a JOCEL heat exchanger with vertical cooling fins and orange ambient lighting (no text or symbols on body)

JA011855

Read the Instruction Manual carefully.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a remote control device with 55-degree angle标注 (no text or symbols beyond the angle marker)

Close-up of a metallic door or panel with a central screw (no text or symbols visible)

0=Desligado
1=500W

Close-up of a metallic door or vent with a small circular button on top (no text or symbols visible)

2=1000W
3=1500W

Close-up of a metallic door or vent with a circular button on top (no text or symbols visible)

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Technical line drawing of a handheld electronic device with a 40mm indicator and internal circuitry (no text or symbols)

Technical line drawing of a handheld remote control device with 55-degree angle标注 (no text or symbols beyond the angle marker)

Close-up of a metallic door or seat with a central knob (no text or symbols visible)

0=Apagado

1=500W

Close-up of a metallic door or vent with a small circular button on the side (no text or symbols visible)

2=1000W

3=1500W

Close-up of a metallic door or seat with a circular button on top (no visible text or symbols)

KEEP THIS BOOKLET IN A SAFE PLACE SO THAY YOU MAY CONSULT IT LATER

After removing the packaging, make sure that the appliance is in good condition. If you have doubts, do not use the appliance and return to your retailer.

The packaging materials contain plastic, nails.etc, which may be hazardous and therefore should not be left within the reach of children.

WARNING

• We strongly recommend that the electrical installation be carried out by qualified professional personnel.
• Do not install the appliance in the immediate vicinity of bath tubs, showers, wash basins, swimming pools, etc.
• This appliance is to be used only for the purpose intended by the manufacturer that is for area heating. Any other use is improper and therefore dangerous. The manufacturer is not responsible for any damages caused by improper and unreasonable use of this appliance.
• DO NOT PUT A COVER OVER THE APPLIANCE AS THE COVER COULD CATCH FIRE DURING USE.
• Do not attach accessories or equipment not foreseen by the manufacturer.
• Improper installation can cause harm to persons and animals or damage to objects.
  • Install the appliance only in a horizontal position.
• Do not install the appliance under a light or fixed source of electrical supply.
• Avoid installation behind a door.

INSTALLATION

1. Unpack carefully. Make sure to discard of all packaging thoughtfully and to keep the mounting screw kit.

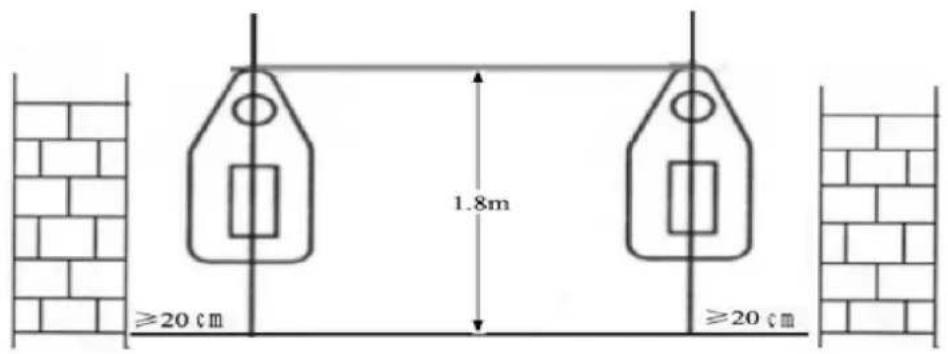

2. The wall mounting height of the heater shall be 180 ~cm . As shown in the following figure, drill two holes on the wall. Diameter and depth of the drilling hole are respectively 0.8 ~cm and 3.5 ~cm . The gap between the two drilling holes is 8 ~cm . The distance between the drilling hole and side wall shall be 20 ~cm or longer.

1. As shown in the following figure, insert the plastic bulged plug into the drilling hole. The product as shown by bracket screws into the wall of the expansion internal rotation.

1. Finally tighten the junction box lid screws up and then fixed, Products as below the maximum elevation angle of 55 degrees.

Technical line drawing of a mechanical component with a 55° angle标注 (no text or symbols beyond the angle marker)

Model	Input Voltage	Rated Input Power	Rated frequency(Hz)
JA011855	220-240V AC	1500W	50/60Hz

Before connecting the appliance, make sure that the specifications on the data plate correspond to the conditions of the electrical supply network.

The electrical safety of this appliance can only be assured if it has been correctly grounded.

This appliance conforms to the directives 89/366/CEE concerning electromagnetic interference.

WARNING---THIS APPLIANCE MUSE BE EARTHEI

IMPORTANT: During the assembly is important to be especially careful to touch with the hands the heating elements as this could leave spots which would diminish the thermal radiation.

INSTRUCTIONS FOR USE

In order to turn the appliance on, turn on the switch.

Close-up of a gray metal door or panel with a central hole (no text or symbols visible)

0=Off

1=500W;

2=1000W;

Close-up of a metallic door or vent with a small circular button on the top (no text or symbols visible)

3=1500W

Close-up of a metallic door or vent with a small circular button on top (no text or symbols visible)

If you notice while turning on the appliance that there are slight vibrations which then gradually fade away, don't become unduly alarmed this is part of the normal behavior of the appliance.

MAINTENANCE

• Before undertaking any maintenance operation, disconnect the appliance from the power supply.
  • This appliance does not require any particular maintenance.
• For cleaning it is recommended to use a soft moist rag and neutral detergent.
• Do not use an abrasive cloth or devices which could affect the outward appearance of the appliance. Check that the parts exposed to the heat rays and the ventilation are free of dust and dirt.

• During cleaning, be careful not to touch the quartz heating elements.

• In case of breakdown and/or poor function of the appliance, disconnect the appliance from the power supply and contact an authorized service center. Always request the use of original spare parts.

• The non-observation of these instructions can compromise the safety of the appliance and render guaranty invalid.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

We declare on our own responsibility that the machine indicated below

Product WC HEATER

Brand JOCEL

Model JA011855

Complies with the following European directives and standards implementation:

Low Voltage

2006/95/CE

EN60335-2-30:2009+A11:2012

EN60335-1:2012

EN62233:2008

Electromagnetic Compatibility

2004/108/CE

EN55014-1:2006/+A1:2009/+A2:2011

EN55014-2:1997/+A1:2001/+A2:2008

EN61000-3-2:2006/+A1: 2009/+A2:2009

EN61000-3-3:2008

Protection

Classe I - IP24

Country of Origin: R.P.C.
