USER MANUAL FreshLock HAV-E110BKSL Heinner

Black rectangular electronic device with control buttons and a blank display area (no visible text or symbols)

A. Cârlig de blocare

Two black plastic enclosures stacked vertically on a light surface, no text or symbols visible

A

Black rectangular electronic device with a white stripe and control panel, placed on a textured surface (no visible text or symbols)

Black rectangular device with digital display and plastic bag filled with small metal fragments (no visible text or symbols)

C

Black rectangular electronic device with control buttons and a blank display area (no visible text or symbols)

• Vacuum sealer
• Power: 110W
  • Color: black with silver decoration

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and keep it for later information

This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Vacuum sealer
➢ Instruction Manual
Warranty card
▶ Declaration of conformity
Roll bag
5 individual bags
➢ Hose connector for canisters

III. SAFETY MEASURES

Please read and follow the safety instruction carefully before you use this appliance.

1. Please check if the local power supply voltage matches the voltage indicated on this appliance before use.
2. Do not operate the appliance with a damaged power cord or plug. Do not operate the appliance if there's any malfunctions or damage of the product. if the cord or the appliance is damaged, it must be returned to an authorized service center.
3. To disconnect the power, unplug the power cord from the electrical outlet. Do not disconnect by pulling on the power cord.
4. If the supply cord is damaged, it must be replaced by the manufacturer, or it's service agent or similarly qualified person in order to avoid a hazard.
5. Do not use an extension cord with the appliance.
6. When the appliance is not in use or need to be clean, please unplug cord from the power outlet first.
7. Do not use the appliance on wet or hot surfaces, or near a power source.
8. Do not immerse any part of the appliance, power cord or plug in water or other liquid.
9. Use only accessories or attachments recommended by the manufacture.
10. Use the appliance only for it's intended use. Don't use the product outside the work area.
11. Close supervision is required when children use the appliance. Do not play with the appliance as a toy.
12. Intervals for 40 seconds is recommended every time after seal.

User Instructions

1. DO NOT IMMERSE
2. CAUTION: Hot Surface, Avoid Contact
3. To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other). This plug is intended to fit in a polarized outlet only one way. Ethen the plug does not fit fully in the outlet, reverse the plug. When it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
4. Close supervision is required when this product is used near children.
5. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
7. Children shall not play with the appliance.
8. Cleaning and user maintenance shall not be made by children without supervision.

Why do you need a vacuum sealer?

Exposure to air can cause food to lose flavour and nutrition, it can also encourage the growth of bacteria and yeast which will cause the food to spoil. This vacuum sealer's packaging system removes air and seals flavour and freshness. With this packaging system, you can keep your food fresh for up to 7 times longer.

Save time and money

Save money:

You can buy in bulk or when food is on sale and vacuum package your food in your desired portions size without wasting food.

Save time:

Cook ahead for the week, prepare meals and save them in the vacuum bags.

Marinate in minutes:

Vacuum packaging opens up the pores of food so you can get that great-marinated flavour in just 20 minutes instead of overnight.

Make entertaining easy:

Prepare your favorite dishes and festival feast in advance so you can spend quality time with your guests.

Enjoy seasonal or specialty foods:

Keep highly perishable or infrequently used items fresh longer.

Control portions for dieting:

Vacuum package sensible portions and write calories and/or fat content on the bag.

Protect non-food items:

Keep camping and boating supplies dry and organized for outings, protect polished silver from tarnishing by minimizing exposure to air.

IV. PRODUCT DESCRIPTION

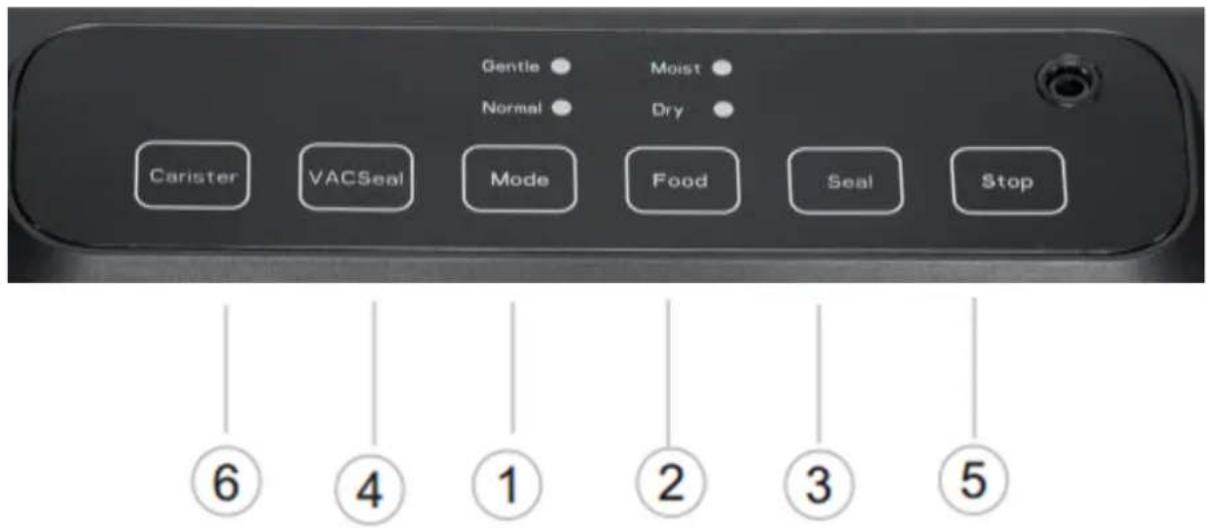

1. "Mode" button: it has two setting mode (Normal and Gentle). The default mode is Normal. When the food is crumbly, you can press the button, then the vacuum mode is changed to Gentle. You can manually control the degree of vacuum by pressing "Seal" button at any time, the food will be sealed automatically. Note: if the power is interrupted, this setting will return to a preset standard mode.
2. "Food" button: it has two setting mode (Dry and Moist). The default mode is Dry, when you press the button, it changes to Moist mode. You can choose the model according to the food type
3. "Seal" button (with LED): Press this button to seal bag (intervals for 40 seconds is recommended each time)
4. "Vac/Seal" button: Press this bottom to vacuum and seal bag (intervals for 40 seconds is recommended each time)
5. "Stop" button: allow user to stop working anytime
6. "Canister" button: Press this button, the appliance begins to vacuum package the canister until the process is completed. Note: This function is used together with the canister.

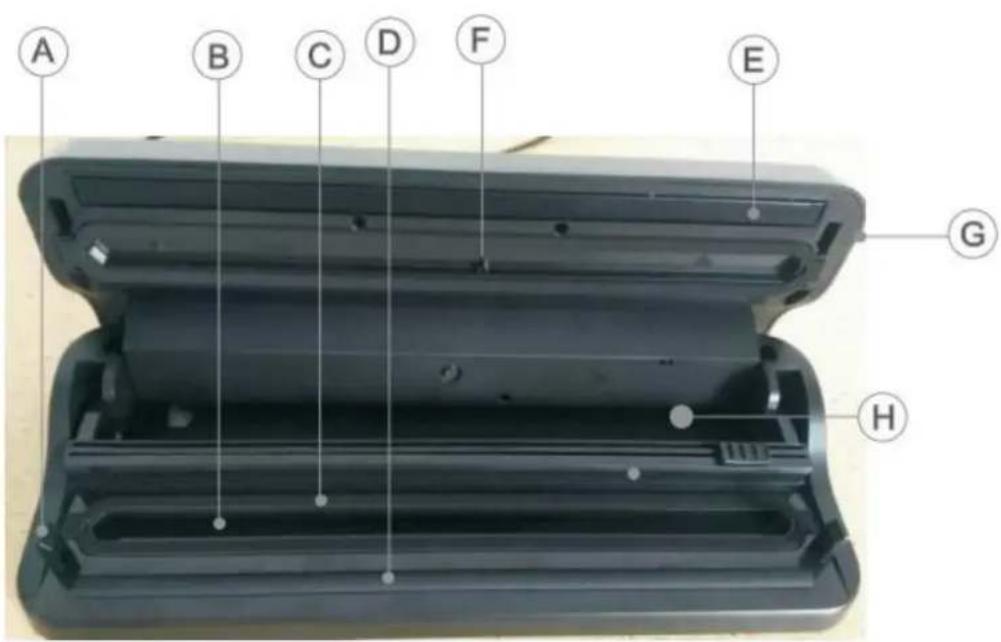

A. Locking hook

Press the cover down until it clicks to lock the bag into place.

B. Vacuum chamber

The bag must be placed within the vacuum chamber for the vacuum.

C. Lower gasket

Airproof the vacuum area and prevent leaking for the vacuum.

D. Rubber lip

Makes seal flat.

E. Sealing bar

3mm width sealing bar make good seal.

F. Vacuum nozzle

When pumping external vacuum canister, wine stopper or other accessories, insert the hose into the nozzle. Do not block the nozzle when in use.

G. Release button

Press the release buttons at two sides, then open the appliance and take out the sealed food.

H. Roll chamber

Chamber for putting the rolls (only when is opened)

V. USING THE APPLIANCE

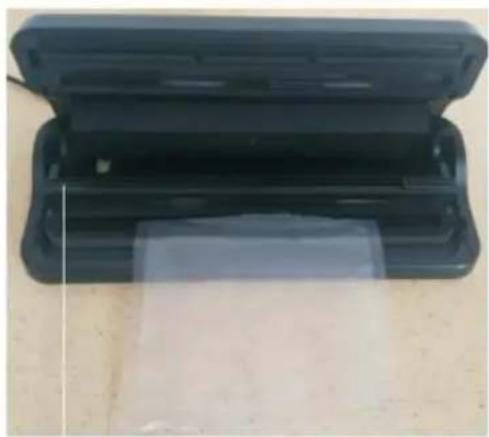

Two black plastic enclosures stacked vertically on a light surface, no text or symbols visible

A

Put the opening of the bag in the vacuum chamber. Ensure the bag does not cover the vacuum nozzle.

Press the cover down, click sound indicates the locking hooks lock correctly, then the next step is the vacuum or seal process.

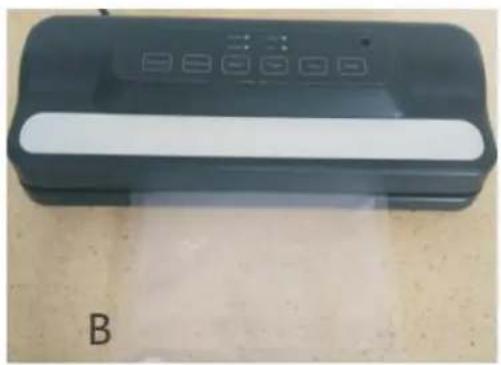

Black rectangular electronic device with a white stripe and control panel, placed on a textured surface (no visible text or symbols)

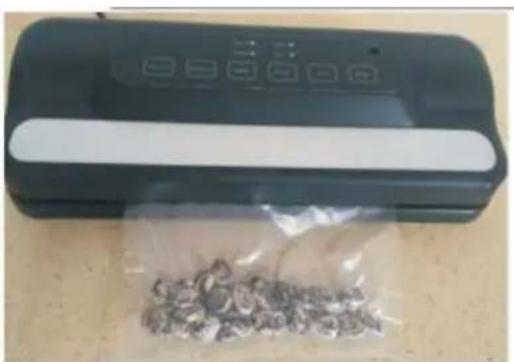

Black rectangular device with digital display and plastic bag containing dried food items (no visible text or symbols)

C

Press "Release button" to open the appliance and take out the sealed food.

SEAL VACUUM BAGS AND VACUUM CANISTER

SEAL PLASTIC BAGS

Plug the appliance in and switch it on.

Insert the opening of the bag into the vacuum chamber as the above pictures.

Press down the latches of two sides at the same time until two click sounds heard.

Press the "Seal" button and you will find the LED will light, When the Led light disappears, the seal is done.

Press "Release Button" to open the appliance, then take out the sealed bag.

PRESERVATION WITH VACUUM BAG

Plug the appliance in and switch it on.

Put the items that you want to preserve inside the bag.

Clean and straighten the opening of the bag, make sure there are no wrinkle on the opening.

Insert the opening of the bag into the vacuum chamber as the above pictures.

Press down the latches of two sides at the same time until two click sounds heard.

Press the "Vacuum/Seal" button and the LED will light, then the bag will be automatically vacuumed and sealed. When the LED light disappears, the process is completed.

Press the release buttons at two sides, then take out the sealed items.

Note: if the food is wet, please choose Moist mode.

PRESERVATION WITH VACUUM CANISTERS

Put the items inside the canister and cover it with lid, insert one end of the hose into the Suck Air Hole on the appliance, then insert the other end into the hole on the top of the canister lid.

Press "Canister" button, it begins to draw the air from the canister and create a tight seal. You can press "Stop" button to stop working anytime. When the vacuum process is completed, the appliance will automatically stop.

Unplug one end of the hose from the canister first, then unplug the other end from the appliance.

When the stored items expire or need to be removed from the canister, please press down the button in the center of the canister lid to deflate air, then open the canister in a few seconds.

TIPS ON USING CANISTERS

Please remove the lid before you put the canister in microwave oven. Place the canister in refrigerator for better preservation.

HELPFUL HINTS

1. Do not overfull the bags, leave enough length at the opening of the bag so that it can be placed in the vacuum chamber easily.
2. Ensure that the opening the bag is not wet. A wet bag may be difficult to melt and seal tightly.
3. Vacuum seal can not completely replace the and freeze, perishable foods still need to be refrigerated or frozen.
4. Make the opening of plastic bags clean and flat, no foreign objects or folds allowed, otherwise it will cause difficulty or leak during seal.
5. To prevent wrinkles in a seal when vacuum sealing bulky items, gently stretch bag flat while inserting into the vacuum chamber and hold it until the pump begins to work.
6. When you are vacuum sealing items with sharp edges (dry spaghetti, silverware etc.), protect the bag from punctures by wrapping item in soft cushioning material, such as tissue paper, you may need a canister or container instead of a bag.
7. When using accessories, remember to leave 2.5CM (1-inch) of space at top of canister or container.
8. Pre-freeze fruits and blanch vegetables before vacuum sealing for the best results.
9. Intervals for 40 seconds after seal or vacuum is recommended.
10. If you are unsure whether your bag was sealed properly, just reseal the bag.

VI. CLEANING AND MAINTENANCE

1. Always unplug the unit before cleaning.
2. Don't immerse the appliance in water on other liquid for cleaning.
3. Do not use abrasive cleaners to clean, because it is easy to scratch the surface of the appliance.
4. Wipe the outside of the appliance with a damp cloth or sponge with mild soap if necessary.
5. To clean the vacuum chamber, wipe away any food or liquid with a tissue paper.
6. Dry thoroughly before using again.
7. Clean the appliance regularly.

VII. ESTIMATED TIME OF PRESERVATION

Food kept in the fridge (5 ± 2°C)	No vacuum	Vacuumed
Red meat	3-4 days	8-9 days
White meat	2-3 days	6-8 days
Fish	1-3 days	4-5 days
Cooked meat	3-5 days	10-15 days
Soft cheese	5-7 days	20 days
Hard/semi hard cheese	1-5 days	60 days
Fruits	5-7 days	14-20 days
Vegetables	1-3 days	7-10 days
Soup	2-3 days	8-10 days
Pasta/rice leftover	2-3 days	6-8 days
Cream desserts	2-3 days	8 days
Food kept at room temperature (25 ± 2°C)	No vacuum	Vacuumed
Fresh bread	1-2 days	8-10 days
Biscuits	4-6 months	12 months
Uncooked pasta/rice	5-6 months	12 months
Flour	4-6 months	12 months
Dry fruits	3-4 months	12 months
Grinded coffee	2-3 months	12 months
Loose tea	5-6 months	12 months
Milk tea	1-2 months	12 months
Food kept in the freezer (-18 ± 2°C)	No vacuum	Vacuumed
Meat	4-6 months	15-20 months
Fish	3-4 months	10-12 months
Vegetables	8-10 months	8-24 months

VIII. TROUBLESHOOTING

Nothing happens when you try to vacuum package:

Check if the power cord is tightly plugged into electrical outlet.

1. Check if the power cord is damaged.
2. Check if electrical outlet is working by plugging in another appliance.
3. Make sure the latches are in the locked position.
4. Make sure bag is placed correctly inside vacuum chamber.
5. Allow the appliance to cool for 40 seconds before using it again.

Note: To prevent overheating of the appliance, allow the appliance to cool for 40 seconds before using it again, and keep the cover open.

Air is still in the bag after vacuuming:

1. Make sure the opening of the bag is placed entirely inside vacuum chamber.
2. Examine the bag if it leaks. Seal bag with air, then immerse it in water and apply pressure, bubbles indicate a leak, use a new bag if bubbles appear.
3. If you use a Bag with customized size, check the seal of bag. A wrinkle in the bag along the seal may cause leakage and allow air to re-enter, just cut bag and reseal.
4. Do not attempt to make your own side seams for bag, the bags are manufactured with special side seams, which are sealed all the way to the outer edge. Making your own side seams may cause leakage and allow air to re-enter.

Air was removed from the bag, but the air reentered later:

1. Examine seal of bag. A wrinkle along the seal may cause leakage and allow air to enter, simply cut bag and reseal.
2. Sometimes moisture or food material (such as juices, grease, crumbs, powders, etc.) along seal prevents bag from sealing properly. Cut bag, wipe top inside of bag and reseal.
3. If you vacuum package sharp food items, bag may have been punctured, use a new bag if there is a hole. Cover sharp food items with a soft cushioning material, such as a tissue paper, and reseal.
4. If there's air still in the bag, fermentation or the release of natural gases from inside the foods may have occurred, when this happens, food may have begun to spoil and should be discarded.

The bag melts:

If the bag melts, rubber lip may have become too hot, always wait at least 5 minutes for appliance to cool down before you vacuum package another item.

IX. TECHNICAL FICHE

Rated voltage	220-240 V
Rated frequency	50-60Hz
Power	110W

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

Black rectangular electronic device with control buttons and a display screen (no visible text or symbols on body)

A. Заключваща кука

Two black plastic enclosures stacked vertically on a light surface, no text or symbols visible

A

Black rectangular electronic device with a white stripe and control panel, placed on a textured surface (no visible text or symbols)

Black rectangular device with digital display and plastic bag filled with small metal fragments (no visible text or symbols)

C

Black rectangular electronic device with control buttons and a display screen (no visible text or symbols on the device itself)

A. Záróhorog

Two black plastic enclosures stacked vertically on a light surface, no text or symbols visible

A

Black rectangular electronic device with a white stripe and control panel, placed on a textured surface (no visible text or symbols)

Black rectangular device with digital display and plastic bag containing dried food items (no visible text or symbols)

C
