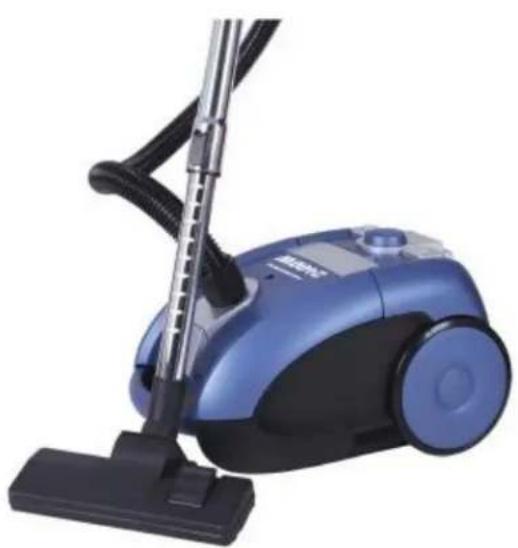

Vacuum cleaner with bag Universe 2560

Blue and black vacuum cleaner with black handle and white exhaust cover (no visible text or symbols)

• Vacuum cleaner with bag, 2400W
• 220-240V, 50/60 Hz
- Color: Red, Blue

Thank you for choosing this product!

I. INTRODUCTION

Please read this instrucon manual carefully before using it and kee it for later informaon

This manual is conceived for offering you all of the necessary info regarding instalaon, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before instalaon and using.

II. PACKAGE CONTENTS

Vacuum cleaner
Instrucon Manual
Warranty card
2 in 1 accessory: oor/ carpet brush
▶ Tight spaces accessory

III. SAFETY REGULATIONS

1. Please read this instrucon manual carefully before using it and kee it for later informaon;

2. Check if the voltage indicated on the appliance corresponds to the local main: voltage before you connect the appliance;

3. To protect against electrical shock, do not immerse cord or plug into water or other liquid;

4. Do not use the appliance if the plug, the cord or the appliance itself is damaged;

5. If the mains cord of this appliance is damaged, it must be replaced by the producer or by the authorized service;

6. Keep the appliance out of the reach of children;

7. Never vacuum water or any other liquid, never vacuum ammable substances and do not vacuum ashes unl they are cold;

8. Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and vacuum cleaner is switched on;

9. When you use the appliance to vacuum ashes, ne sand, lime cement dust and similar substance, the pores of the paper dust bag become clogged, as a result, the dust bag full indicator will indicate that the dust bag is full: replace the dust bag, even if it is not full yet;

10. Never use the appliance without the motor protecon iter. This damages the motor and shortens the life of the appliance;

11. Never use this appliance without a dust bag

12. If faulty, please return this unit to authorized service, the repair must be done by authorized people only;

13. Never allow a child to operate this appliance. Children are vulnerable in the kitchen particularly when unsupervised and if appliances are being used or cooking is being carried out. Teach children to be aware of dangers in the kitchen, warm them of the dangers of reaching up to areas where they cannot see properly or should not be reaching;

14. Do not let the power cord to get in contact with hot surfaces;

15. Unplug the vacuum cleaner when you are not using it or when you are cleaning it;

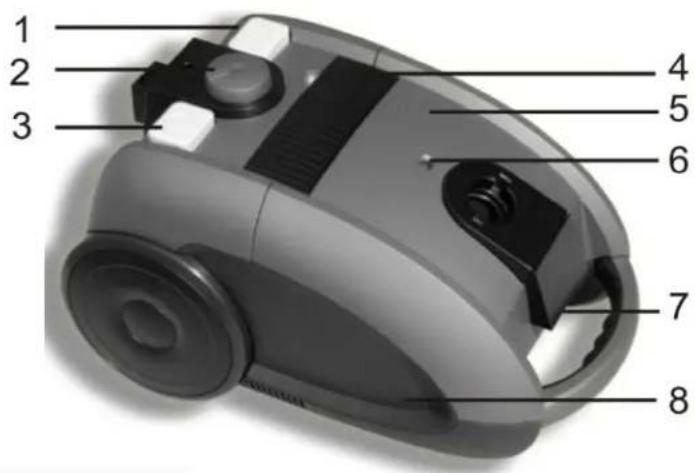

IV. GENERAL DESCRIPTION

1. Cord rewinder switch
2. Sucon power regulaon
3. On/off switch
4. On board tool combinet
5. Front cover
6. Dust full indicator
7. Lock pin
8. Dust bag compartment

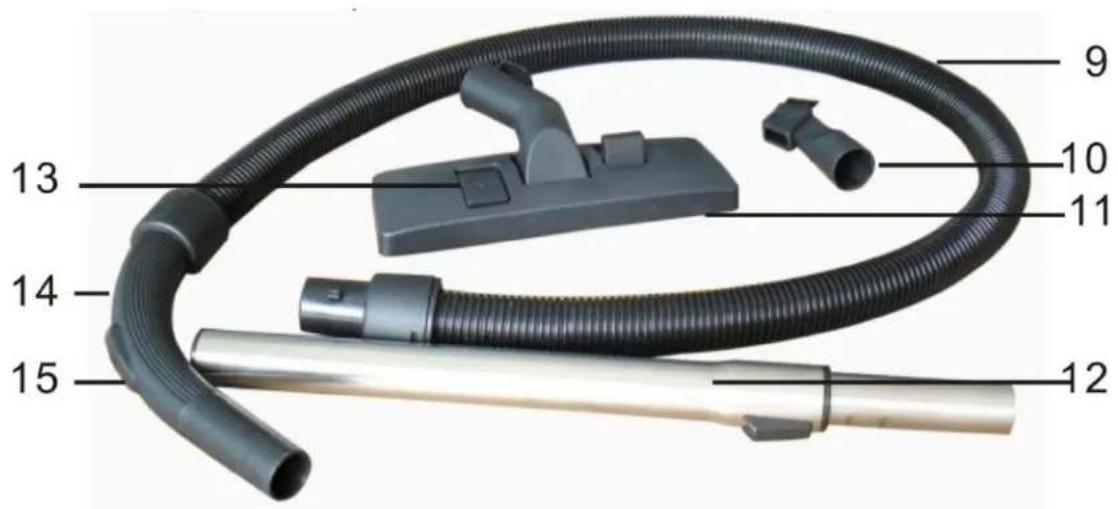

9. Flexible hose
10. Integrated brush and nozzle
11. Floor brush
12. Tube
13. Hard oors/carpet selector
14. Hand grip
15. Sucon power slider

V. PREPARING FOR USE

Hose:

- To connect the hose, push it into the appliance and turn it clockwise. To disconnect the hose, turn it an-clockwise and pull it out of the appliance: see Fig 1.

Plasc tube (specific types only):

• To connect the tube parts to each other, insert the narrow secon into the wider secon and turn a lile;
• To connect the tube to the handgrip of the hose, insert the narrow secon to the wider secon and turn a lile;
  • To disconnect the tube or tube parts. Pull and turn a lile;
• Use the same method to connect and disconnect the accessories.

Telescopic tube (specific types only):

• Press the spring loaded lock buon on the telescopic tube part and slide the lock buon into the opening in the other tube part; see Fig 2;
• Connect the tube part to the handgrip of the hose, insert the narrow secon into the wider secon and turn a lile;
• Adjust the telescopic tube to the length that you nd most comfortable during vacuuming;

Floor brush:

• You can use this brush on the carpet of on the hard oors;
- To clean the hard oors, push the rocker switch on the top of the oor brush with your foot to make the brush strips come out of the brush housing.
- To clean carpet, push the rocker switch on the other side to make the brush strips disappear into the housing.

▶ Intergrated brush & nozzle:

• Your vacuum cleaner comes with one of these accessories: it is stored in the tool combinet of units, see Fig 5;
• Connect the intergrate brush and nozzle directly to the handgrip or to the tube;
• Use the crevice nozzle to vacuum the small area or clean narrow corners or hard-to-reach places;
• Use the brush nozzle to clean computers, bookshelves etc.

VI. USING THE APPLIANCE

▶ Vacuum cleaning:

• You can carry the vacuum cleaner by the handle at the front or on top of the appliance;
• Pull the cord out of the appliance and insert the mains plug into the wall socket;
• . Press the on/o buon on the top of the appliance with your foot or switch on the appliance. See Fig 3. If you want to pause for a moment, insert the ridge on the oor brush into the parking slot to set the tube in a convenient posion.

Adjusng sucon power:

• You can adjust the sucon power with the sucon power slide on the handgrip of the hose. See Fig 4;
• The electronic sucon power control on the vacuum cleaner (specific types only) See Fig 6.

Replacing the dust bag:

• When the indicator light goes red, then it is the me to change the dust bag;
  • Li the front cover pulling the lock pin outwards. See Fig7;
• Take out the dust bag holder, slide the s card secon out along the guides and then throw the bag away. See Fig 8;
• Insert a new bag by sliding the s card secon out along the guides and then place the dust bag holder in its lid;
  • Always unplug the appliance before you replace a liter.

- Cleaning /replacing the motor lter:

• Your vacuum cleaner is equipped with the motor protecng Iter, replace the Iter once in a year;
• Open the cover and pull the Iter out of the appliance. See Fig 9;
• Insert a new Iter into the holder;

- Cleaning/replacing the exhaust air liter:

• Your vacuum cleaner is equipped with the exhaust air liter, replace the liter once in a year;
• Open the exhaust iter cover and pull the iter out of the appliance;
• Replace the Iter in its compartment and t it. See Fig 10;
• Make sure the Iter compartment is correctly placed before using the cleaner;

Cleaning:

• Always switch o and unplug the appliance before you clean any parts;
• Do not clean any part of the vacuum cleaner in the dishwasher. It necessary, clean the parts with a moist cloth;
• Clean the appliance with a damp cloth.

Storage:

1. Switch off the appliance and remove the mains plug from the wall socket;
2. Press the cord rewind buon to rewind the cord;
3. You can store the appliance in two ways:

- Horizontal parking posion: insert the ridge on the oor brush into the parking slot to park the tube and then put the appliance away;

- Vercal parking posion: insert the hook on the tubes into the parking slot underneath of the appliance, then put it away.

Environment:

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in to an ocial collecon point for recycling. By doing this, you help to preserve the environment.

VII. TROUBLESHOOTING

The sucon power is insucient:

• Perhaps the dust bag is full: If necessary, replace the dust bag;
• Perhaps the Iters need to be replaced: If necessary, replace the Iters;
• Perhaps the sucon power slide on the handgrip is open: Close the slide;
- Perhaps the electronic sucon power control (specific types only) has been set to a low seng: set the control to a higher seng;
- Perhaps the oor brush, nozzle tube or hose is blocked up: To remove the obstrucon, disconnect the block item and connect it (as far as possible) the other way round. Switch on the vacuum cleaner to force the air through the blocked-up item in the opposite direcon.

Close-up of a hand using a tool to press or install an electric plug into a socket (no visible text or symbols)

Close-up of a hand holding a pen or tool, with no visible text or symbols on the tool or background.

Hand holding a black handheld device with a curved handle, labeled 'FIG. 4' (no text on device or background)

Close-up of a hand pressing a button on a computer mouse (no visible text or symbols)

Characteristic (Model):	UV-2560
Power:	2400W
Sucon power:	360W
Noise level:	<80dB
Input:	230V
Power cord length:	5.2m
Dust bag capacity:	4.5L

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulaons: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribuon SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the speciaons may be reproduced in any form or by any means or used to make any derivative such as translaon, transformaon, or adaptaon without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Disbuon. All rights reserved.

This product is in conformity with norms and standards of European Community
