Product Type	Surge Protective Device (SPD)
Model	JK202SPD
Brand	Hager
Rated Voltage	230 V AC (50/60 Hz)
Rated Current	16 A
Maximum Discharge Current (Imax)	40 kA (8/20 µs)
Nominal Discharge Current (In)	20 kA (8/20 µs)
Protection Modes	L-N, L-PE, N-PE
Response Time	< 25 ns
Dimensions (W x H x D)	36 x 85 x 70 mm (2 modules)
Weight	0.2 kg
Mounting	DIN rail (EN 60715)
Degree of Protection	IP20 (in enclosure)
Operating Temperature	-25°C to +70°C
Housing Material	Thermoplastic, self-extinguishing
Standards	EN 61643-11, IEC 61643-11
Status Indicator	Green (normal), Red (fault)
Remote Signalling	Optional (via auxiliary contact)
End of Life Protection	Thermal disconnection
Maintenance	Check indicator monthly; replace after end of life
Safety Notes	Install by qualified electrician; disconnect power before servicing

Frequently Asked Questions - JK202SPD HAGER

What is the maximum operating voltage of the Hager JK202SPD?

The rated voltage is 230 V AC (50/60 Hz). Do not exceed this voltage.

How do I install the JK202SPD on a DIN rail?

Snap the device onto a DIN rail (EN 60715) until it locks. Ensure proper orientation and secure wiring according to the diagram.

Can the JK202SPD be used outdoors?

The device has IP20 protection, suitable for indoor use only. For outdoor installation, place it in a weatherproof enclosure.

What does the indicator light mean?

A green indicator means normal operation. A red indicator signals a fault or end of life. Replace the device immediately if red.

Is the JK202SPD compatible with Hager MCBs?

Yes, it is designed to work with Hager MCBs and other DIN-rail mounted devices in the same distribution board.

How do I test the JK202SPD?

There is no user test button. Regularly check the status indicator. A functional test requires specialized equipment by a qualified technician.

What is the warranty period for the JK202SPD?

Hager offers a 2-year warranty from the date of purchase against manufacturing defects, subject to proper installation and use.

Where can I purchase spare parts for the JK202SPD?

The device is a non-repairable unit. If defective, replace the entire SPD. Authorized Hager distributors stock the model.

How should I dispose of an expired JK202SPD?

Dispose of it according to local electronic waste regulations. Do not throw in household waste; recycle at designated collection points.

What should I do if the JK202SPD trips frequently?

Frequent tripping may indicate repeated surges or a damaged device. Check the indicator; if red, replace. Also verify upstream protection and grounding.

USER MANUAL JK202SPD HAGER

Exterior view of a three-tiered electrical shock absorber with indicator lights (no text or symbols visible)

JK202SPD
User instructions

Surge Protection Kit JK 250A Type II

Parts list:

1. 16mm sq neutral cable
2. 16mm sq L1/L2/L3 cable
3. 1 x M5 Hex Carp Nut
4. 16mm Earth Link cable
5. 1 x Type II SPD

Technical line drawing of an electrical circuit board with no visible text or symbols

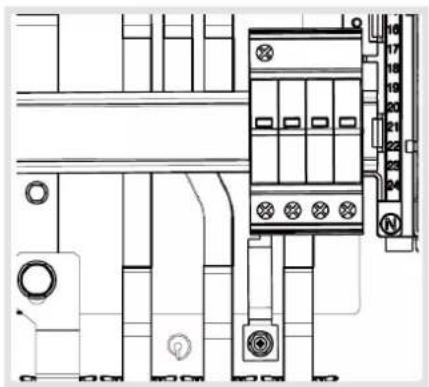

Clip surge protection device to din rail on the right hand side as shown & connect the copper earth link into the SPD and using the Hex head High Torque screw to the chassis at 5Nm 'Always install the chosen Incomer first'.

Pure electrical circuit lines without any symbols

Connect Neutral cable to the neutral bar with the M5 hex Carp nut and torque to 5Nm

Technical line drawing of an electrical circuit with resistors and capacitors (no text or symbols)

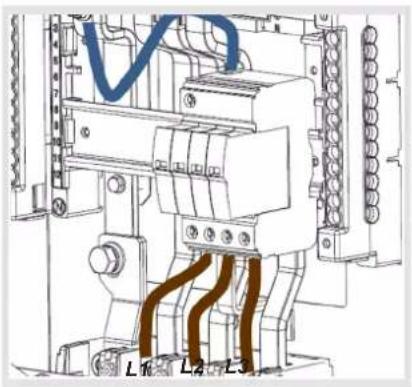

Connect the L1/L2/L3 cable lugs to the Incomer using the M8 Bolts provided making sure to use the flat washer and shake proof washer, torque to 13Nm

Torque all cable & earth connections into the surge protection device to 4.5Nm

Mark the shroud ready for cutting out the aperture to allow the device to protrude through.

The device may only be connected and installed by an electrically skilled person. National standards and safety regulations must be observed.

The device must be checked for external damage prior to installation. If any damage or other defects are detected in this check, the device must not be installed.

Its use is only permitted within the limits shown and stated in the installation instructions. Opening or otherwise tampering with the device invalidates the warranty.
